Old 05-06-2014, 09:13 PM   #561
Junior Member
Thread Starter

Join Date: Aug 2009
Location: melbourne aus
Posts: 425
Total Cats: 36
Default

I haven't done much. Been busy finishing the build on our house. The motor is nearly finished. It has been dynoed to 4000rpm. I bought a WRXto race in a WRX race series. So that has taken any spare time. The house should be finished in the next 3 months hopefully. And then I will finish this car. Have pics of engine on dyno. Will upload to keep some interest. The goal is to finish this car by the end of the year.
lightyear is offline   Reply With Quote
Old 05-06-2014, 09:45 PM   #562
Elite Member
iTrader: (4)

Pen2_the_penguin's Avatar

Join Date: Dec 2009
Location: Reno, NV
Posts: 3,690
Total Cats: 95
Default

Saw the thread update...







Attached Thumbnails
Carbon fibre time attack twins-blue-balls-275x300.jpg
Pen2_the_penguin is offline   Reply With Quote
Old 05-06-2014, 09:59 PM   #563
Junior Member
Thread Starter

Join Date: Aug 2009
Location: melbourne aus
Posts: 425
Total Cats: 36
Default

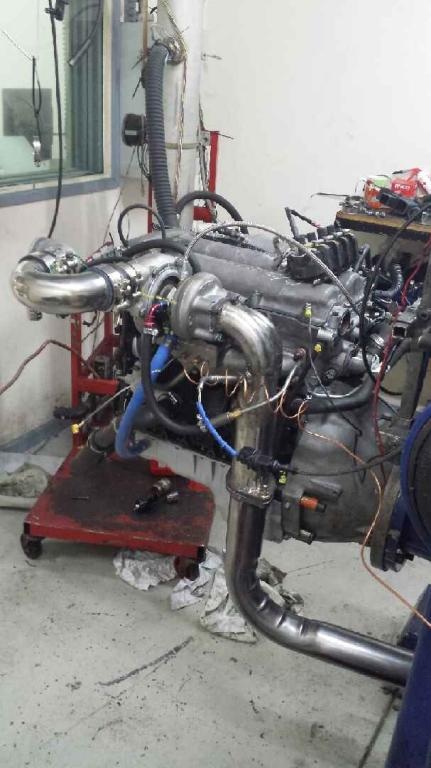

Engine on dyno last week.


free image hosting
Attached Thumbnails
Carbon fibre time attack twins-image.jpg   Carbon fibre time attack twins-image.jpg
lightyear is offline   Reply With Quote
Old 05-07-2014, 06:39 PM   #564
Junior Member
Thread Starter

Join Date: Aug 2009
Location: melbourne aus
Posts: 425
Total Cats: 36
Default

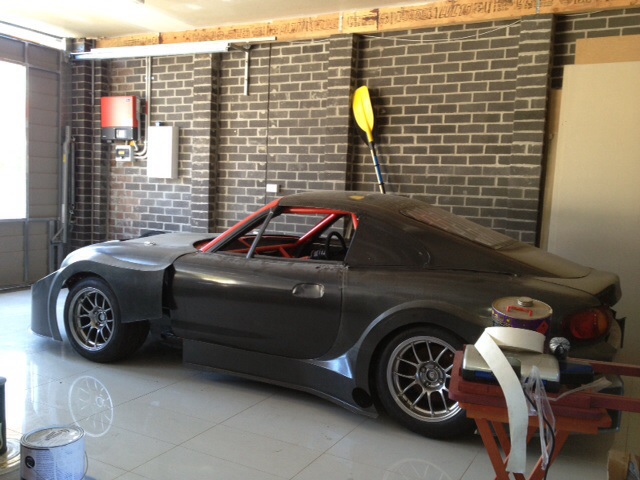

This is how it looks now.


jpg images

Hopefully I will get started on it again in about 2-3 months.
Attached Thumbnails
Carbon fibre time attack twins-image.jpg
lightyear is offline   Reply With Quote
Old 05-07-2014, 07:19 PM   #565
Elite Member
iTrader: (4)

Pen2_the_penguin's Avatar

Join Date: Dec 2009
Location: Reno, NV
Posts: 3,690
Total Cats: 95
Default

im so friggin jelly just at the garage floor
Pen2_the_penguin is offline   Reply With Quote
Old 05-07-2014, 08:14 PM   #566
Junior Member
Thread Starter

Join Date: Aug 2009
Location: melbourne aus
Posts: 425
Total Cats: 36
Default

This is an old pic. I have done a lot more since this. The main/front garage area is 9mx7.5m, and the rear section is 8.5mx4m with a hoist and mezzanine. I can fit about 6 cars in there. Or 4 cars and a car trailer pretty easy.


upload
Attached Thumbnails
Carbon fibre time attack twins-image.jpg
lightyear is offline   Reply With Quote
Old 05-08-2014, 10:21 AM   #567
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,402
Total Cats: 1,426
Default

Quote:
Originally Posted by lightyear View Post
Engine on dyno last week.


free image hosting

im sure that DP isn't helping with the TQ...
Braineack is online now   Reply With Quote
Old 05-08-2014, 06:35 PM   #568
Junior Member
Thread Starter

Join Date: Aug 2009
Location: melbourne aus
Posts: 425
Total Cats: 36
Default

Why?
lightyear is offline   Reply With Quote
Old 05-08-2014, 07:07 PM   #569
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 2,999
Total Cats: 105
Default

The crush bend, to name something?
Oscar is online now   Reply With Quote
Old 05-08-2014, 09:33 PM   #570
Junior Member
Thread Starter

Join Date: Aug 2009
Location: melbourne aus
Posts: 425
Total Cats: 36
Default

That is part if the dyno exhaust. My part is just the down pipe. It has a divorced pipe with a splitter inside the mouth.
lightyear is offline   Reply With Quote
Old 07-03-2014, 11:15 PM   #571
Junior Member
Thread Starter

Join Date: Aug 2009
Location: melbourne aus
Posts: 425
Total Cats: 36
Default

So the tune is finished, and it has 374hp (279kw) at 6000rpm. 380lbft (512nm) of torque at 5700. Rev limit is 7000rpm as the injectors are maxed. Could go bigger, but I am happy to leave it as is, and chase more power once I upgrade the box.

So basically the same power as a 6.0l V8 SS Commodore, but 1100 kg less weight to lug around.

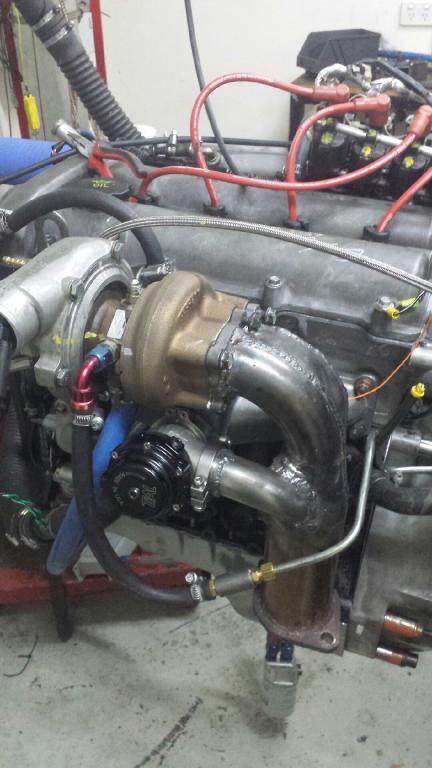

Tyrone had the engine on the dyno. And he had to fiddle around with oil pressure for a bit. Then he started doing the tune up to 4000rpm. But the turbo, intercooler and bits are so efficient he couldn't get the boost low enough. At 4000rpm 60% of exhaust has to go out the waste gate. It was making about 450hp at 4000rpm. He is tuning the motor to keep the gearbox alive. So to keep the boost down, he had to machine the exhaust manifold and make a place to mount an external waste gate. As well, he cut out the down pipe between the exhaust and waste gate. As it had a divorced waste gate pipe. So now the down pipe is a massive funnel flowing smoothly into the 3" system. Last I spoke it is all working well, and he got the power down to around the 220-230rwkw at 7000rpm. The 6 speed, even though it is an SE box will not take more than around that mark. It will have different torque and power in each gear. As he knows the weaker gears won't like even that much power.
One day when I get a decent gearbox, he can up the power. But 220rwkw in a sub 800kg car will still go o.k.



adult image sharing
Attached Thumbnails
Carbon fibre time attack twins-image.jpg
lightyear is offline   Reply With Quote
Old 07-04-2014, 10:20 AM   #572
Senior Member
iTrader: (1)

Join Date: Dec 2008
Location: Manassas, Virginia
Posts: 1,243
Total Cats: 53
Default

Ho. Lee. ****.

"This is Boss Lightyear of Star Command. Come in Star Command."
mx5autoxer is offline   Reply With Quote
Old 07-07-2014, 03:14 PM   #573
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 18,788
Total Cats: 329
Default

I think you should call the downpipe "the claw"

y8s is offline   Reply With Quote
Old 08-10-2014, 09:39 PM   #574
Junior Member
iTrader: (2)

Join Date: Apr 2010
Location: albion, mi
Posts: 269
Total Cats: 13
Default

Dammit, updates man!
glade is offline   Reply With Quote
Old 08-11-2014, 02:41 AM   #575
Newb

Join Date: Aug 2013
Location: MA
Posts: 12
Total Cats: -1
Default

Quote:
Originally Posted by lightyear View Post
So the tune is finished, and it has 374hp (279kw) at 6000rpm. 380lbft (512nm) of torque at 5700.
But 220rwkw in a sub 800kg car will still go o.k.

4.7 lb/hp, bit better than an Aventador for sake of comparison

Yeah it'll go alright, plus with all that areo I would be intigrued by another cornering speed comparison like you did with your friend's car.

Beautiful work, as always
Uber is offline   Reply With Quote
Old 08-18-2014, 09:45 AM   #576
Junior Member

Join Date: Mar 2011
Location: Melbourne, Australia
Posts: 101
Total Cats: 28
Default

Quote:
Originally Posted by lightyear View Post
So the tune is finished, and it has 374hp (279kw) at 6000rpm.
Have you got the engine in your possession yet?
BEAVIS is offline   Reply With Quote
Old 08-18-2014, 01:33 PM   #577
Elite Member
iTrader: (4)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,635
Total Cats: 60
Default

the wastegate isn't going to hit the frame rail? will be tight.
shlammed is offline   Reply With Quote
Old 08-19-2014, 03:22 AM   #578
Junior Member
Thread Starter

Join Date: Aug 2009
Location: melbourne aus
Posts: 425
Total Cats: 36
Default

The turbo sits pretty high, so hopefully it won't hit. No, can't get on to Tyrone. So have not picked up the motor.
Once I get the motor, I plan on getting the car finished. Might need some help and motivation Beavis.
lightyear is offline   Reply With Quote
Old 08-19-2014, 06:52 PM   #579
Elite Member
iTrader: (12)

GeneSplicer's Avatar

Join Date: Sep 2009
Location: Birmingham, AL
Posts: 1,967
Total Cats: 140
Default

Motivation... I know what you mean
GeneSplicer is offline   Reply With Quote
Old 10-03-2014, 05:51 PM   #580
Junior Member
Thread Starter

Join Date: Aug 2009
Location: melbourne aus
Posts: 425
Total Cats: 36
Default

So, I am have started work on it again. But I won't get much done for the next month, as I am doing a run of carbon fibre stuff. Like 10 hardtops, trunks, EVO roof, etc. get some cash flowing in.


The motor is ready to go in. But found a sensor missing on the top left of the gearbox. So need to put that in before the motor goes in.

WRX is going well, it is going in its first race in 2 weeks. So far, with crap tyres it has done a 1:48.5 at Phillip Island. 1.6 seconds quicker only than the red MX5 with stock 1.8 driveline.


I am making a seat too.







windows 7 screenshot
