Old 05-21-2015, 09:57 AM   #2061
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,437
Total Cats: 2,038
Default

800 and 14.7 at idle and pretty much 14.7-15.5 everywhere under 80kpa. 15.5-16 at hwy cruise
And then it takes a huge dip, because I'm a huge whimp too and like to run my cars on the rich side in boost, ~11.9

..also because it produces really smooth, really effortless, really delicious torque
18psi is offline   Reply With Quote
Old 05-21-2015, 01:16 PM   #2062
Elite Member

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 1,964
Total Cats: 108
Default

I can't get my car to idle lower than 1,000 rpm. I also have problems where the car idles higher after coming to a stop after driving it for some time. It takes a bit for it to settle back to 1k. I'd like to see what i'm doing that you are not (and vice versus).
Chiburbian is offline   Reply With Quote
Old 05-21-2015, 01:34 PM   #2063
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,437
Total Cats: 2,038
Default

CL idle control settings. and trust me when I say, mine won't be useful to you since I've tried "borrowing" others and it never worked, but I'll post up if you still want em

did you do the idle valve test to know the range?
18psi is offline   Reply With Quote
Old 05-21-2015, 02:01 PM   #2064
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 1,903
Total Cats: 166
Default

Quote:
Originally Posted by Chiburbian View Post
I can't get my car to idle lower than 1,000 rpm. I also have problems where the car idles higher after coming to a stop after driving it for some time. It takes a bit for it to settle back to 1k. I'd like to see what i'm doing that you are not (and vice versus).
You're likely talking dashpot action. Mine is not 100% consistent, especially with A/C on. My thoughts is that it's better to occasionally have a slow return, than to occasionally miss catching CL.

You might want to look into your close idle valve settings, which I presently have turned off.

Another thing would be if you use "use last" or actually preset temp vs initial AIC duty cycle. I use presets.

If your high temp preset is too large, then the return could be slow.

If you care to look, my msq is in my build thread.
DNMakinson is offline   Reply With Quote
Old 05-21-2015, 02:15 PM   #2065
Elite Member

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 1,964
Total Cats: 108
Default

Re: Vlad - Thanks. No, I am not expecting to just plug and play with your stuff. I just want to see what things you have enabled etc (duty table vs. Last known good etc).

Quote:
Originally Posted by DNMakinson View Post
You're likely talking dashpot action. Mine is not 100% consistent, especially with A/C on. My thoughts is that it's better to occasionally have a slow return, than to occasionally miss catching CL.

You might want to look into your close idle valve settings, which I presently have turned off.

Another thing would be if you use "use last" or actually preset temp vs initial AIC duty cycle. I use presets.

If your high temp preset is too large, then the return could be slow.

If you care to look, my msq is in my build thread.
It does me no good to ask these questions when car is apart :( I will take what you say into consideration when I get it back on the road after smogggggggg.

Yes, idle valve min/max was set, but that was a couple tunes ago and maybe I was doing something else (like had my EGR hooked up) that might mess up my numbers. I'll re-do it when the car is back on the road and turbomiata again.
Chiburbian is offline   Reply With Quote
Old 05-21-2015, 02:22 PM   #2066
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,437
Total Cats: 2,038
Default

I have it on "last known". I want to mess with (and think it might work better) with a pre-set duty table but it's been so good that I'm just lazy and don't even care to touch it right now LOL

You can play with, but you can't plug......my stuff....
18psi is offline   Reply With Quote
Old 05-22-2015, 02:16 PM   #2067
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 41
Default

Quote:
Originally Posted by 18psi View Post
I have it on "last known". I want to mess with (and think it might work better)
IME using the table is inferior to last known value. When external temps vary is when you experience issues.
richyvrlimited is offline   Reply With Quote
Old 05-22-2015, 02:21 PM   #2068
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,437
Total Cats: 2,038
Default

Perhaps you're right, I don't know. The temp swing here is pretty significant between daytime/morning/evening, sometimes around 20F
18psi is offline   Reply With Quote
Old 05-23-2015, 08:48 PM   #2069
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,437
Total Cats: 2,038
Default

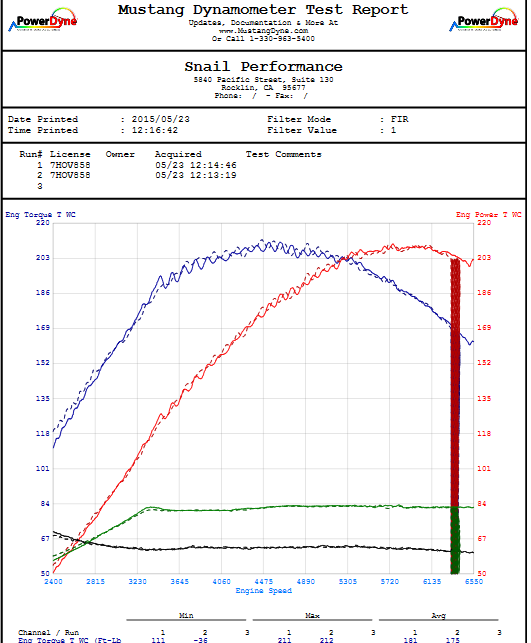

Just got back from the dyno, did pretty much exactly as expected.


It's a LOW reading MUSTANG dyno that was set up in AWD mode (because it was a subaru dyno day, and the guy didn't feel like disconnecting the couplings for my rwd car or re-calibrating the dyno) but the numbers are 211/209.

This matches up pretty decent with VD, which showed 226 in Dynojet mode.
Plot as soon as he sends it to me.

*edit

plot

Attached Thumbnails
H3AVY to H3AVYER to...H3AV1EST P1G-zoom%2520zoom.png

Last edited by 18psi; 05-24-2015 at 01:40 AM.
18psi is offline   Reply With Quote
Old 05-23-2015, 09:47 PM   #2070
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 1,903
Total Cats: 166
Default

Quote:
Originally Posted by richyvrlimited View Post
IME using the table is inferior to last known value. When external temps vary is when you experience issues.
How does Last Known Value handle idling with A/C compressor off, then at next off throttle / clutch in, the A/C compressor is on? Does it move the valve to the actual Last Known, or does it move to that PLUS the A/C set adder?
DNMakinson is offline   Reply With Quote
Old 05-23-2015, 10:01 PM   #2071
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,437
Total Cats: 2,038
Default

I think ac adder is independent, so yes it would get added in.
18psi is offline   Reply With Quote
Old 05-25-2015, 09:56 AM   #2072
Junior Member
iTrader: (3)

Join Date: Apr 2012
Location: Houston, TX
Posts: 414
Total Cats: 28
Default

Holy ****! AWD miata?!
czubaka is offline   Reply With Quote
Old 05-25-2015, 11:43 AM   #2073
SOMEOFIT
iTrader: (1)

Girz0r's Avatar

Join Date: Jun 2014
Location: Austin, TX
Posts: 2,573
Total Cats: 224
Default

Nice plot & numbers.
Girz0r is offline   Reply With Quote
Old 05-25-2015, 02:06 PM   #2074
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 8,918
Total Cats: 499
Default

Man thats a very smooth curve, very nice.
triple88a is offline   Reply With Quote
Old 05-25-2015, 02:19 PM   #2075
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,437
Total Cats: 2,038
Default

Thanks guys
18psi is offline   Reply With Quote
Old 05-25-2015, 02:47 PM   #2076
Senior Member
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

Not bad for Russian Mafia MSM!
bcrx7 is offline   Reply With Quote
Old 05-25-2015, 03:05 PM   #2077
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,895
Total Cats: 775
Default

Car is too quiet, needs more drama

Actually that's awesome. I guess I shouldn't be surprised that the tq starts to fall off after 5k becausetinyIHI but it still looks like a ridiculously fun DD. No need to rev the **** out of it and sound like a hooligan to have a good time. Kudos sir!

On a semi related note, did you end up using the small pulsewidth from this thread for your ID725's?
EO2K is offline   Reply With Quote
Old 05-25-2015, 03:38 PM   #2078
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,437
Total Cats: 2,038
Default

Hehe Thanks. I LOVE that it's subtle. It makes all the right noises: the intake gives me just enough "spool" sound that I can just drive and enjoy it without having to floor it all the time. The Turbosmart bpv I like so much that I actually ordered one for my subaru as well to replace the forge that's on there. The FM exhaust is deep and really enjoyable.

I remember that thread now. Somehow couldn't find it when I did my search when installing the ID's. I did see a couple similar ones, and also Chiburbian was nice enough to email me the spreadsheet from ID, which I also posted in this thread
Post 1956 and used to dial in the ID's
18psi is offline   Reply With Quote
Old 05-25-2015, 03:55 PM   #2079
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,895
Total Cats: 775
Default

Awesome, good to know those are the settings you actually used and that's where they came from. I just emailed ID for some info on a different injector set, hopefully I can add another spreadsheet to that thread. For science.
EO2K is offline   Reply With Quote
Old 05-25-2015, 03:59 PM   #2080
Senior Member
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

That dyno sounds like it is going to come apart at any second! Is it because of the AWD and being a RWD?
bcrx7 is offline   Reply With Quote
