Old 02-18-2016, 09:42 AM   #141
Moderator
iTrader: (9)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, FL
Posts: 13,733
Total Cats: 1,062
Default

Boost leak, I'm betting. Check all vac hoses on both ends. Clamp or zip-tie them.
sixshooter is offline   Reply With Quote
Old 02-18-2016, 12:19 PM   #142
Junior Member
Thread Starter

Sirnixalot's Avatar

Join Date: Aug 2005
Location: Cayman Islands
Posts: 410
Total Cats: 13
Default

I did a BLT and got a few small leaks sorted but the main culprit.....the actuator spring is just weak. I set the boost cut to 10psi and disconnected the vacuum hose from the actuator and....

We have boost!

I'm going to get another actuator later on today and hope that solves it.

Side note, this car is a ******* animal now
Sirnixalot is offline   Reply With Quote
Old 02-18-2016, 12:27 PM   #143
SOMEOFIT
iTrader: (1)

Girz0r's Avatar

Join Date: Jun 2014
Location: Austin, TX
Posts: 2,574
Total Cats: 224
Default

Looks fast

Noticed you're on an island, How's island life??? I contemplated a 'what if I lived on a island' at one point.

I grew up mostly on the TX gulf coast in a beach town
Girz0r is offline   Reply With Quote
Old 02-18-2016, 12:37 PM   #144
Junior Member
Thread Starter

Sirnixalot's Avatar

Join Date: Aug 2005
Location: Cayman Islands
Posts: 410
Total Cats: 13
Default

Quote:
Originally Posted by Girz0r View Post
Looks fast

Noticed you're on an island, How's island life??? I contemplated a 'what if I lived on a island' at one point.

I grew up mostly on the TX gulf coast in a beach town
Yep....75 square miles of flat. It's pretty good and laid back most of the time. My main gripe is our gas prices jump as soon as yours do but they don't fall at the same time (understand a few weeks lag due to shipping in the stuff) but we are still at around US$5.20 a gallon for 93oct

I think the only other place I could live in the world is the bell end of florida (or the Philippines since that's where my wife is from) Gotta be close to the water and warm, I don't handle cold weather very well
Sirnixalot is offline   Reply With Quote
Old 02-18-2016, 12:43 PM   #145
SOMEOFIT
iTrader: (1)

Girz0r's Avatar

Join Date: Jun 2014
Location: Austin, TX
Posts: 2,574
Total Cats: 224
Default

You sound like me.

I tried virginia for 1.5 yrs and hated it. This is snow? Snow sucks... Went back to TX

What's the industry like down there? Any Tech or IT? A quick look at Wiki says BOATS. I never adapted my father's excellent welding skills. He has now made 4 full aluminum boats for fishing. He calls the fiberglass molded ones "Glitter Boats" lol
Girz0r is offline   Reply With Quote
Old 02-18-2016, 01:03 PM   #146
Junior Member
Thread Starter

Sirnixalot's Avatar

Join Date: Aug 2005
Location: Cayman Islands
Posts: 410
Total Cats: 13
Default

Quote:
Originally Posted by Girz0r View Post
You sound like me.

I tried virginia for 1.5 yrs and hated it. This is snow? Snow sucks... Went back to TX

What's the industry like down there? Any Tech or IT? A quick look at Wiki says BOATS. I never adapted my father's excellent welding skills. He has now made 4 full aluminum boats for fishing. He calls the fiberglass molded ones "Glitter Boats" lol
Banking, Corporate law and IT are the main fields that expats (most locals just don't have the qualifications and experience) go for if you're here to make money, there are also the younger (19-25) crowd that come here, learn to dive and just never go back. They don't make much as a diving instructor or water sports/tour guide but if you have 0 responsibilities every day is a work vacation.

For you to get a bank account here Uncle Sam is going to want a metric **** ton of paper work since we are a tax haven

The glitter boats would do well in the sound and inside the reef, we get some deep water relatively close to shore but that's sea sickness territory so I keep my *** inside the reef I do not share my grandfather's sea legs one bit
Sirnixalot is offline   Reply With Quote
Old 02-19-2016, 10:51 AM   #147
Junior Member
Thread Starter

Sirnixalot's Avatar

Join Date: Aug 2005
Location: Cayman Islands
Posts: 410
Total Cats: 13
Default

Shimmed the actuator a total of 1/4" & connected up the ECU based boost control. My lap top died before I could even start tuning it but so far it's definitely working.

I have the boost cut set to 70kpa and the target boost level at 65kpa. I need to drop the duty cycle a few percent as I have managed to hit boost cut a few times. It really doesn't need more than that for autocross on sunday.

AFR's taper from 12.7 down to 11.3 from the onset of boost till redline. Timing ends up at 11*. It needs some general smoothing for the transition from the idle and cruise areas and some "cold" start/idle work (no idle air motor) for the tune to be complete.
Sirnixalot is offline   Reply With Quote
Old 02-20-2016, 05:31 PM   #148
Junior Member
Thread Starter

Sirnixalot's Avatar

Join Date: Aug 2005
Location: Cayman Islands
Posts: 410
Total Cats: 13
Default

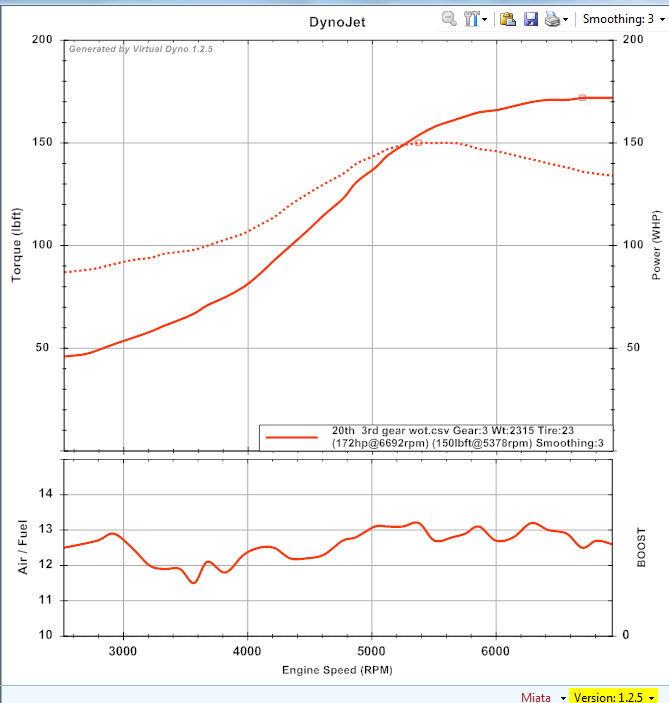

Ignore the AFR curve. I am having an issue with what the wide band says and what the haltech logs.

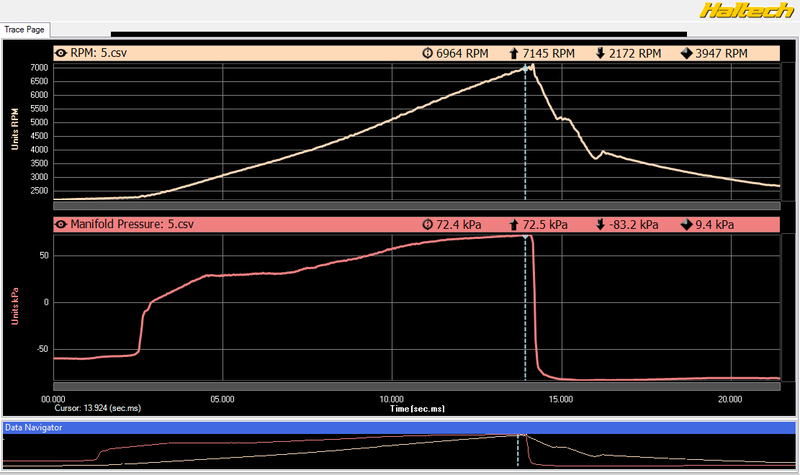

Boost curve
Attached Thumbnails
Round 2: Wannabe turbo NB6C-miata%2520dyno_zpsxz4w3rik.png   Round 2: Wannabe turbo NB6C-miata%2520haltech%2520log_zpslteccp9t.png
Sirnixalot is offline   Reply With Quote
Old 02-21-2016, 12:32 AM   #149
Junior Member
Thread Starter

Sirnixalot's Avatar

Join Date: Aug 2005
Location: Cayman Islands
Posts: 410
Total Cats: 13
Default

today's mission: launch control

stock wiring between the clutch switch and the haltech was grounding out. Ran 2 brand new wires from clutch switch to haltech and ground and I now has launch control

Tomorrow we autocross
Sirnixalot is offline   Reply With Quote
Old 02-21-2016, 06:31 PM   #150
Junior Member
Thread Starter

Sirnixalot's Avatar

Join Date: Aug 2005
Location: Cayman Islands
Posts: 410
Total Cats: 13
Default

Sirnixalot is offline   Reply With Quote
Old 02-22-2016, 12:46 PM   #151
Junior Member
Thread Starter

Sirnixalot's Avatar

Join Date: Aug 2005
Location: Cayman Islands
Posts: 410
Total Cats: 13
Default

7And this just took a turn for AllOfIt

BP6D and a 6 speed coming from japan. Should be here in 3 months.

Stock bore CP pistons, K1 rods, King XP bearings, ARP head studs and a Cometic head gasket are being ordered also.

Reason for keeping the stock bore is that localy its like $400 to bore and hone a block

Last edited by Sirnixalot; 02-23-2016 at 08:39 AM.
Sirnixalot is offline   Reply With Quote
Old 02-22-2016, 12:56 PM   #152
SOMEOFIT
iTrader: (1)

Girz0r's Avatar

Join Date: Jun 2014
Location: Austin, TX
Posts: 2,574
Total Cats: 224
Default

That looks fun

Sucks to hear your bearing say f-it.

Which one was it? #4?
Girz0r is offline   Reply With Quote
Old 02-23-2016, 10:50 AM   #153
Junior Member
Thread Starter

Sirnixalot's Avatar

Join Date: Aug 2005
Location: Cayman Islands
Posts: 410
Total Cats: 13
Default

I haven't pulled the motor apart yet so I'm not sure which one.

Wonder if there would be anyone with a 1.6 that wants the later style head with the solid lifters.
Sirnixalot is offline   Reply With Quote
Old 02-23-2016, 10:58 AM   #154
Ich verstehe nur Bahnhof
iTrader: (2)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 2,816
Total Cats: 224
Default

This looks fun. Kindof janky, but totally fun.
psyber_0ptix is offline   Reply With Quote
Old 02-23-2016, 11:02 AM   #155
Junior Member

mmmjesse's Avatar

Join Date: Aug 2007
Posts: 365
Total Cats: 33
Default

Hell, i would love to have a late model 1.6 head to dick around with. Dont think i would want to pay that shipping from the islands though.
mmmjesse is offline   Reply With Quote
Old 02-23-2016, 11:23 AM   #156
Junior Member
iTrader: (1)

Join Date: May 2013
Location: Sandia Park, NM
Posts: 334
Total Cats: 30
Default

Bummer man! We(I) need the full story. What happened?
leboeuf is offline   Reply With Quote
Old 02-23-2016, 12:03 PM   #157
Junior Member
Thread Starter

Sirnixalot's Avatar

Join Date: Aug 2005
Location: Cayman Islands
Posts: 410
Total Cats: 13
Default

It's my fault of course. I knew the turbo was leakin/burning some oil through the turbine seal and I neglected to check oil levels between runs.

The course was laid out so it was faster to just leave the car in 1st gear. So I was between 6000 and 7500 for the entire course. Add that up with the chicanes and that's what happened.

The EDF died so I couldn't soften up the damping so as you can see it was stuck in maddriftz mode :( I might just get the manual adjustment hard ware for the teins.

As soon as I pull the motor I'm having the bay and interior resprayed to clean up the appearance a bit.
Sirnixalot is offline   Reply With Quote
Old 02-25-2016, 08:37 PM   #158
Junior Member
Thread Starter

Sirnixalot's Avatar

Join Date: Aug 2005
Location: Cayman Islands
Posts: 410
Total Cats: 13
Default

Well I missed the motor auction in japan so I decided to look on ebay and scored one for $1k shipped to my freight forwarder.

That being said, new manifold materials and turbo rebuild kit are coming with the motor.

Hopefully the 5 speed stays together until the 6 speed arrives
Sirnixalot is offline   Reply With Quote
Old 04-02-2016, 10:59 PM   #159
Junior Member
Thread Starter

Sirnixalot's Avatar

Join Date: Aug 2005
Location: Cayman Islands
Posts: 410
Total Cats: 13
Default

6 weeks later. Picked up the motor and stuff today. Looks fairly clean and it was off an automatic which is nice.

I also got the adjustment hardware for the Tein's so I can bin the edfc.

Internals should be here next week so I'll be tearing into the motor next weekend to rebuild. Can't wait to get the car running again.

Impulse buy of the month...Maxxis VR-1 245/40R15 tires. I'm trying to get my current wheel and tire setup sold to get some 949 15x10 wheels.
Sirnixalot is offline   Reply With Quote
Old 04-06-2016, 10:21 PM   #160
Junior Member
Thread Starter

Sirnixalot's Avatar

Join Date: Aug 2005
Location: Cayman Islands
Posts: 410
Total Cats: 13
Default

Spring cleaning and shed mods

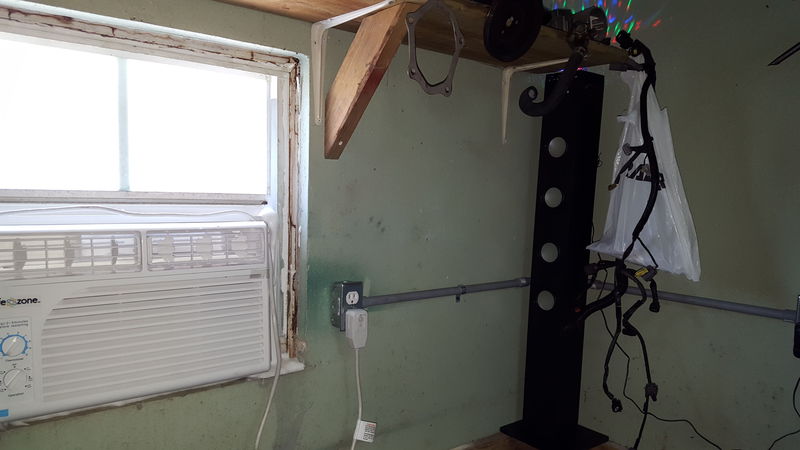

I finally ran power to the other side of the shed, installed a 5k btu ac unit and picked up a cheap blue tooth sound tower.

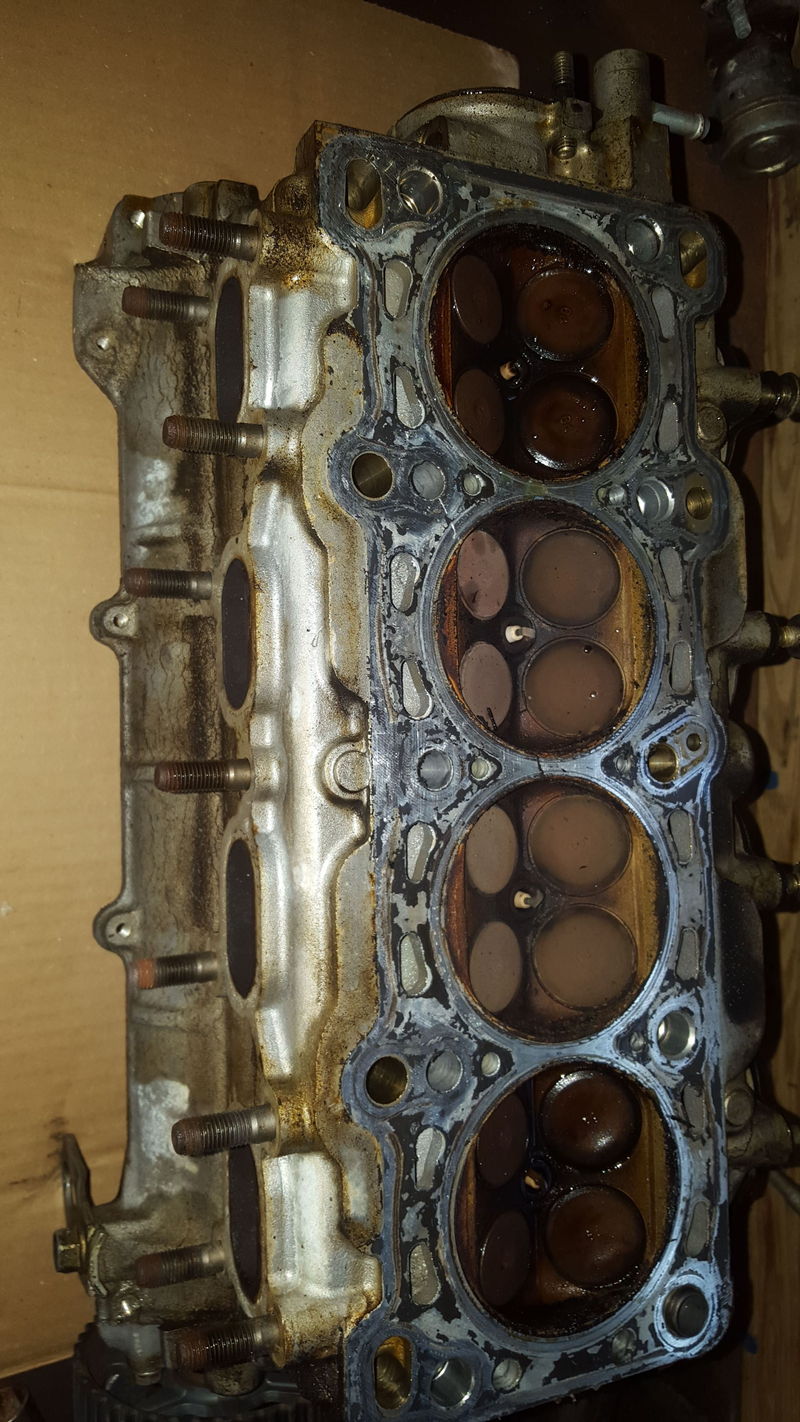

Most of the rest of the day was boring cleaning up but I did manage to strip down the new to me VVT motor


Not sure why the outer cylinders were wet

b

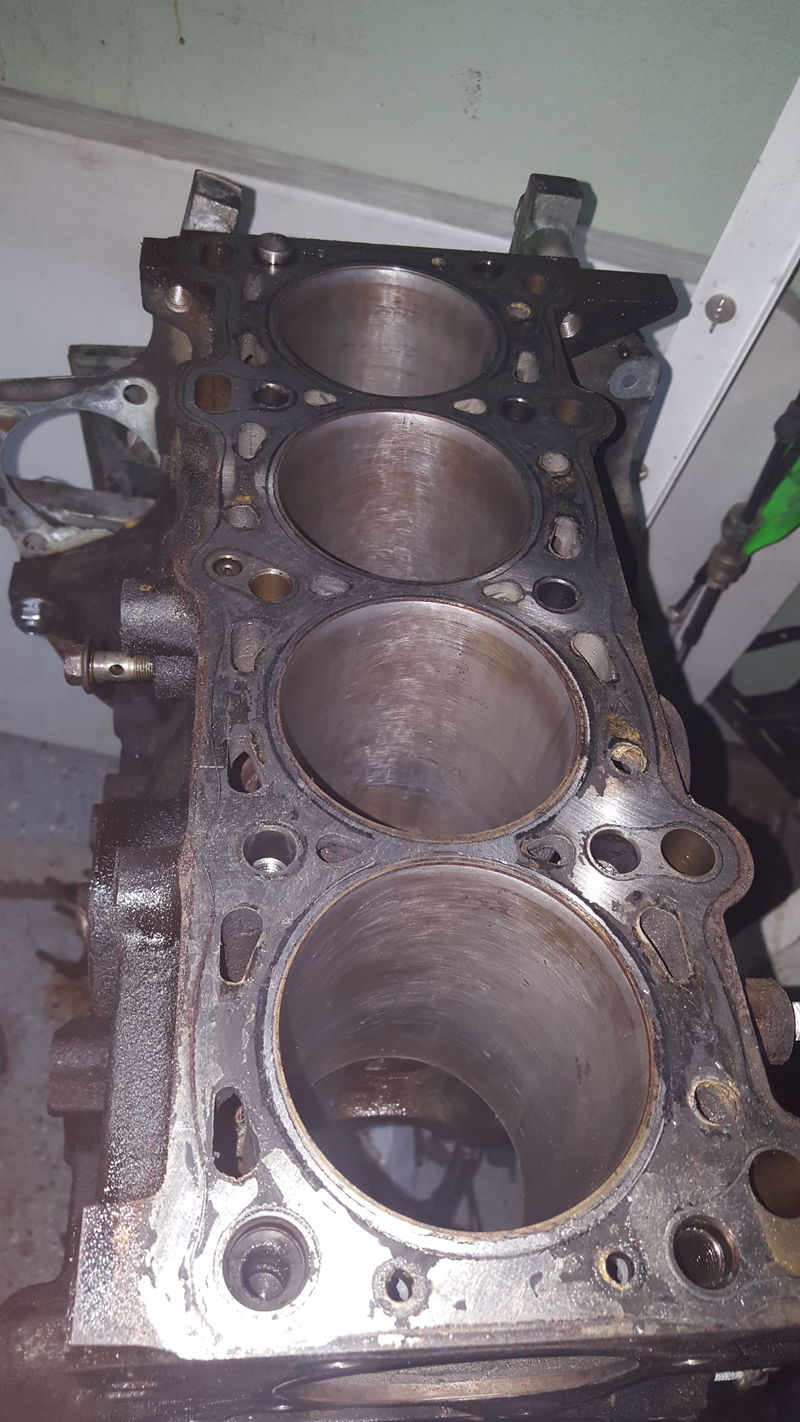

Bores wiped down

internals should be here for the weekend so hopefully saturday I'll be assembling the motor
Attached Thumbnails
Round 2: Wannabe turbo NB6C-img-20160406-wa0016_zpshwdkjohg.jpeg   Round 2: Wannabe turbo NB6C-img-20160406-wa0044_zpsokwf1kwp.jpeg   Round 2: Wannabe turbo NB6C-img-20160406-wa0048_zpsnwhowg2t.jpeg
Sirnixalot is offline   Reply With Quote
