Old 02-19-2015, 04:23 PM   #181
Ich verstehe nur Bahnhof
Thread Starter
iTrader: (2)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 2,773
Total Cats: 221
Default

1/8" bspt -> 1/8" NPT SS adapter

1/8" npt -> -6AN SS adapter

-6AN SS elbow -> Aeroquip AQP socketless hose -> -6an Alu elbow

You'd just have to get the -6AN fitting for the turbo

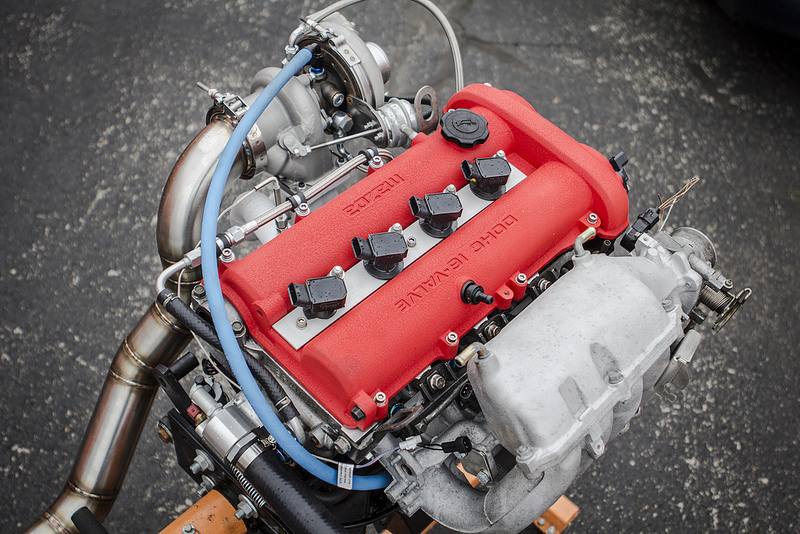

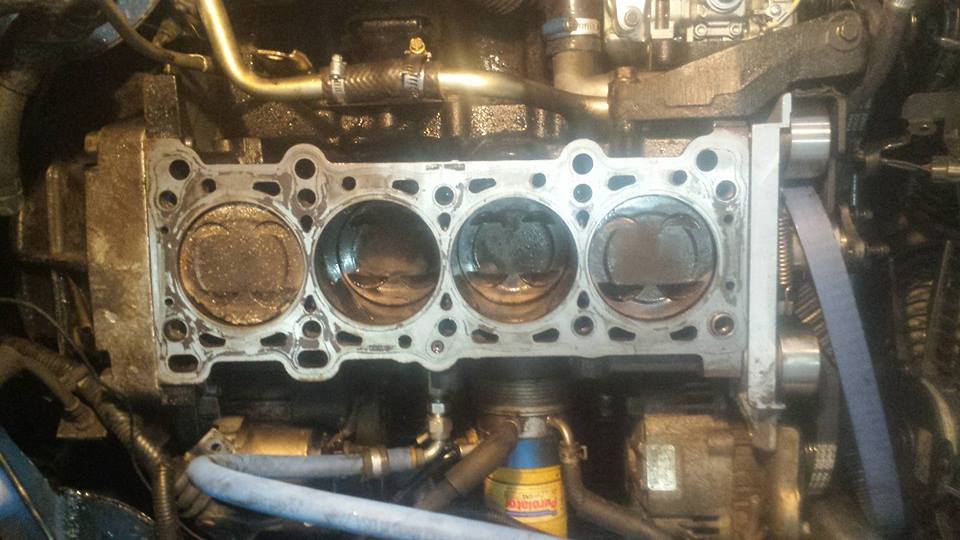

recycling pictures:




it's blue
Attached Thumbnails
Turbo Smurfette - Build in progress (slow)-124552d1411845622-turbo-smurfette-build-progress-slow-10650052_10101509264898265_396707409188232.jpg   Turbo Smurfette - Build in progress (slow)-107746d1396117997-turbo-smurfette-build-progress-slow-13492356975_647709c404_c.jpg
psyber_0ptix is offline   Reply With Quote
Old 02-19-2015, 04:30 PM   #182
Ich verstehe nur Bahnhof
Thread Starter
iTrader: (2)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 2,773
Total Cats: 221
Default

It'd be about $35 in fittings for me to make a replacement for the new block, I already have hose. so....35 bux if you want my feed line?
psyber_0ptix is offline   Reply With Quote
Old 02-23-2015, 10:14 AM   #183
Ich verstehe nur Bahnhof
Thread Starter
iTrader: (2)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 2,773
Total Cats: 221
Default

Folks,
What's the consensus on oil temperature installation in the oil pan? Do you all just drill, tap and thread directly into the pan or is it advised/worth the extra effort to have a bung welded?
psyber_0ptix is offline   Reply With Quote
Old 02-23-2015, 10:16 AM   #184
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,842
Total Cats: 936
Default

Bung.
aidandj is offline   Reply With Quote
Old 02-23-2015, 10:17 AM   #185
Ich verstehe nur Bahnhof
Thread Starter
iTrader: (2)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 2,773
Total Cats: 221
Default

Placement of bung should be just above the drain bolt?
psyber_0ptix is offline   Reply With Quote
Old 02-23-2015, 10:25 AM   #186
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

I'm just putting a bung onto the Mocal oil sandwich plate.
Jeffbucc is offline   Reply With Quote
Old 02-23-2015, 10:29 AM   #187
Ich verstehe nur Bahnhof
Thread Starter
iTrader: (2)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 2,773
Total Cats: 221
Default

If I recall, putting it at the sandwich adapter often reads higher temps.

If it's not a big deal, then I suppose I'll just keep using my sandwich plate, I just hate to have my gauge blinking at me after some runs; makes me think theres something wrong all the time.
psyber_0ptix is offline   Reply With Quote
Old 02-23-2015, 10:32 AM   #188
Elite Member

Jeffbucc's Avatar

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 946
Default

I'd be a little more concerned if I hadn't just put a huge *** setrab cooler on the car, that is interesting to hear though. It can't be THAT much hotter though, have to look into it.
Jeffbucc is offline   Reply With Quote
Old 02-23-2015, 10:56 AM   #189
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 12,212
Total Cats: 750
Default

Wherever you put it in the oil pan make sure that with the sensor in it won't hit anything else in the engine bay. I have put them in where they end up to close to the subframe to be used.
shuiend is offline   Reply With Quote
Old 02-23-2015, 11:41 AM   #190
Ich verstehe nur Bahnhof
Thread Starter
iTrader: (2)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 2,773
Total Cats: 221
Default

****, I wish I took pictures before removing the motor.

Any recommendations?
psyber_0ptix is offline   Reply With Quote
Old 02-23-2015, 11:56 AM   #191
Junior Member
iTrader: (1)

Join Date: May 2013
Location: Sandia Park, NM
Posts: 333
Total Cats: 29
Default

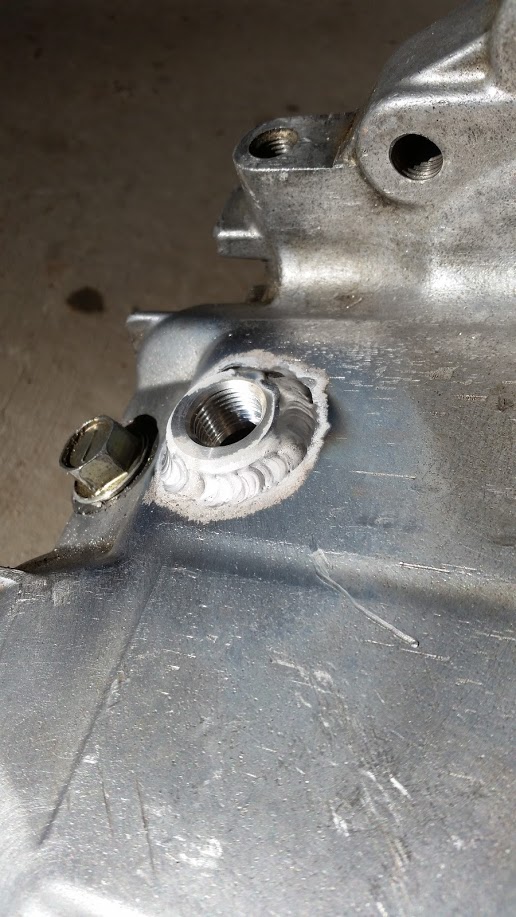

I welded a bung just above the drain plug in the flat spot. This puts it about 1" below the baffle plate.
Used a 3/8 npt which you probably won't want to do.
Attached Thumbnails
Turbo Smurfette - Build in progress (slow)-2015-01-04.jpg
leboeuf is offline   Reply With Quote
Old 02-23-2015, 12:00 PM   #192
Ich verstehe nur Bahnhof
Thread Starter
iTrader: (2)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 2,773
Total Cats: 221
Default

The 3/8" NPT isn't a big deal as I have an adapter for it already to 1/8" NPT

You have no interference with subframe or motor mounts or anything?

That location is exactly what I had in mind, but what about oil level? Have you ever noticed temps fluctuating greatly under high revs? Or is oil temp the least of your worries if the oil level is too low to read?
psyber_0ptix is offline   Reply With Quote
Old 02-23-2015, 12:02 PM   #193
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,842
Total Cats: 936
Default

To elaborate on why I said bung. Taping it works decently well for something you install once, like an oil drain. I also JB welded it in after I tapped it. But for something that will get replaced like a temp sensor its too risky. Also if you have the pan off then both bungs should be welded in.
aidandj is offline   Reply With Quote
Old 02-23-2015, 12:03 PM   #194
Junior Member
iTrader: (1)

Join Date: May 2013
Location: Sandia Park, NM
Posts: 333
Total Cats: 29
Default

I should have clarified that while the oil pan is finally on the engine, the engine is still on a stand. I looked over my existing engine and determined this was the best spot. I'll take another look tonight and get back to you.
I'm 99% sure that this is the best spot.
leboeuf is offline   Reply With Quote
Old 02-23-2015, 02:25 PM   #195
Ich verstehe nur Bahnhof
Thread Starter
iTrader: (2)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 2,773
Total Cats: 221
Default

I have the pan off, the oil return was already welded but I cannot find reference for a welder that tigs locally. A lot of 'friends of a friend' who don't seem sure they can make it oil tight. I don't want to have to remove the engine for a **** weld job after dumping oil all over the place.

I'll see what bungs I have laying around and keep looking. Better do it twice, do it right, right?
psyber_0ptix is offline   Reply With Quote
Old 02-23-2015, 02:51 PM   #196
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 12,212
Total Cats: 750
Default

Quote:
Originally Posted by psyber_0ptix View Post
I have the pan off, the oil return was already welded but I cannot find reference for a welder that tigs locally. A lot of 'friends of a friend' who don't seem sure they can make it oil tight. I don't want to have to remove the engine for a **** weld job after dumping oil all over the place.

I'll see what bungs I have laying around and keep looking. Better do it twice, do it right, right?
Get on CL, you can find a cheap welder there.
shuiend is offline   Reply With Quote
Old 02-23-2015, 05:14 PM   #197
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 8,875
Total Cats: 485
Default

nvm had the dumb.
triple88a is offline   Reply With Quote
Old 02-23-2015, 05:15 PM   #198
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,842
Total Cats: 936
Default

Were talking about a temp sensor, not a drain.
aidandj is offline   Reply With Quote
Old 02-24-2015, 02:16 AM   #199
Junior Member
iTrader: (1)

Join Date: May 2013
Location: Sandia Park, NM
Posts: 333
Total Cats: 29
Default

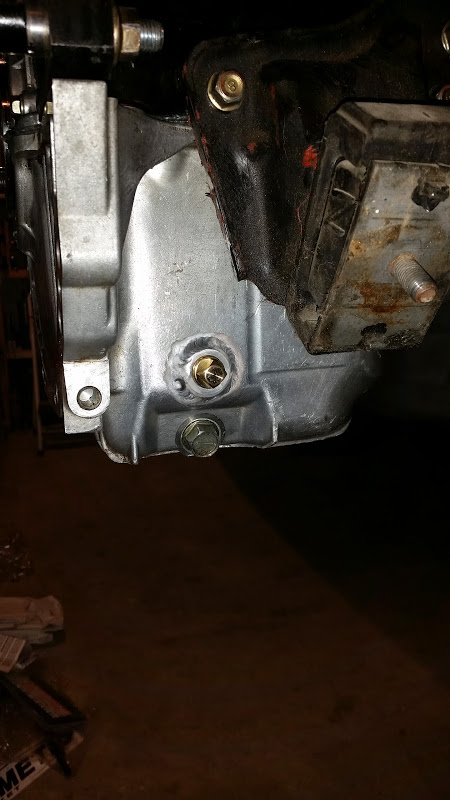

Snapped a pic tonight of my location with the motor mount on:

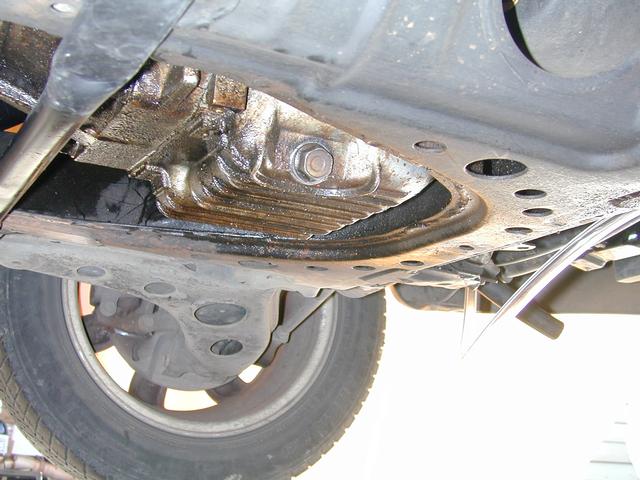

Also stole a pic from google to show that you will indeed be able to fit a wrench in there:
Attached Thumbnails
Turbo Smurfette - Build in progress (slow)-20150223_224221.jpg   Turbo Smurfette - Build in progress (slow)-03.jpg
leboeuf is offline   Reply With Quote
Old 02-24-2015, 07:48 AM   #200
Ich verstehe nur Bahnhof
Thread Starter
iTrader: (2)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 2,773
Total Cats: 221
Default

thanks a lot!
psyber_0ptix is offline   Reply With Quote
