Old 01-21-2016, 08:19 PM   #21
Junior Member
Thread Starter

Join Date: Mar 2014
Location: Jacksonville, FL
Posts: 312
Total Cats: 19
Default

Quote:
Originally Posted by deezums View Post
Why not megasquirt EBC? I'm cheap and that looks expensive.

Those are the injectors though, I like them more than rx8's.
that innovate 3882 is $304 on Jet.com

LC-2 with no gauge is $150, so for another $150 i have boost gauge and EBC. not that bad, if you figure $150 wideband w/gauge + $150 for boost gauge.

or its preferred that MS2E does the EBC stuff by controlling the solenoid, thus easier adjustments and tuning?
borka is offline   Reply With Quote
Old 01-21-2016, 08:36 PM   #22
Junior Member

Join Date: Apr 2015
Location: Tampa, FL
Posts: 105
Total Cats: 7
Default

Quote:
Originally Posted by borka View Post
that innovate 3882 is $304 on Jet.com

LC-2 with no gauge is $150, so for another $150 i have boost gauge and EBC. not that bad, if you figure $150 wideband w/gauge + $150 for boost gauge.

or its preferred that MS2E does the EBC stuff by controlling the solenoid, thus easier adjustments and tuning?
UEGO is like $160 and mtx-l is about the same. Megasquirt ebc stuff is $60 plus some soldering time. Add a cheap mechanical boost gauge. Now you have more cash for injectors! And yes, the trackspeed injectors are the ones that get recommended all the time.
slowcarfast is offline   Reply With Quote
Old 01-21-2016, 08:36 PM   #23
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 114
Default

I prefer it that way, it gives you more control. There's boost by throttle position and other things you won't be able to use with that gauge.

Make sure whatever protocol that thing runs is the same as what the digtal input expects, should be the same still I imagine.

I still think you can find a cheaper gauge, even combo setup. There's a few projects based on some little can chip and arduino, I plan on doing one of those eventually.
deezums is offline   Reply With Quote
Old 01-22-2016, 08:19 AM   #24
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 12,415
Total Cats: 780
Default

Borka check the other cast manifold thread for lots of pictures.
shuiend is offline   Reply With Quote
Old 01-22-2016, 09:36 AM   #25
Junior Member
Thread Starter

Join Date: Mar 2014
Location: Jacksonville, FL
Posts: 312
Total Cats: 19
Default

Quote:
Originally Posted by shuiend View Post
Borka check the other cast manifold thread for lots of pictures.
Thanks for the pics!

i replied with some questions..
borka is offline   Reply With Quote
Old 01-22-2016, 04:07 PM   #26
Junior Member
Thread Starter

Join Date: Mar 2014
Location: Jacksonville, FL
Posts: 312
Total Cats: 19
Default

update:

I returned the tacotaco manifold, because the T3 turbo will not fit.

so i am taking a different directions and likely going with the MK kit from Lars.

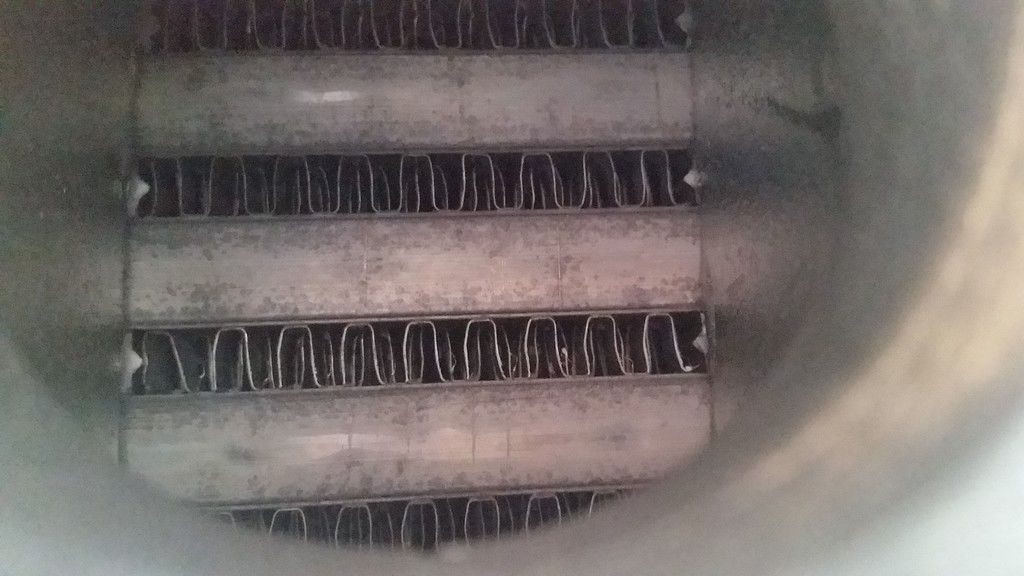

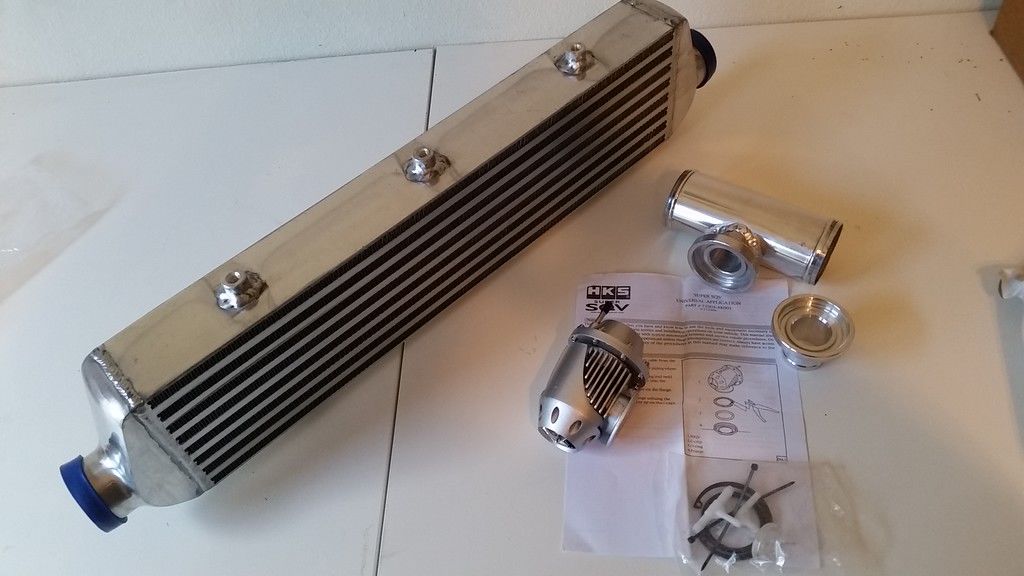

in other news, HKS SSQV BOV and intercooler (27*5.5*2.5") came in today.






not bad for a $55 bov and $61 intercooler.
Attached Thumbnails
99 Sport eBay turbo build-80-i_zczppmd_xl_5af63dcfb854d4325f859616e66575cbe797a4cf.jpg   99 Sport eBay turbo build-80-i_s56xnxc_xl_1516439ef6a87246334530905d8eb88d6825ce3c.jpg
borka is offline   Reply With Quote
Old 01-22-2016, 05:12 PM   #27
SOMEOFIT
iTrader: (1)

Girz0r's Avatar

Join Date: Jun 2014
Location: Austin, TX
Posts: 2,574
Total Cats: 224
Default

Quote:
Originally Posted by borka View Post
so i am taking a different directions and likely going with the MK kit from Lars.
Girz0r is offline   Reply With Quote
Old 01-22-2016, 05:28 PM   #28
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 12,415
Total Cats: 780
Default

Basically he needs to just do exactly what was done in this build thread. Then he can profit all day long.
shuiend is offline   Reply With Quote
Old 01-28-2016, 08:38 PM   #29
Junior Member
Thread Starter

Join Date: Mar 2014
Location: Jacksonville, FL
Posts: 312
Total Cats: 19
Default

So i changed my mind again, MK turbo kit is on back order till spring... so i went in a different direction.

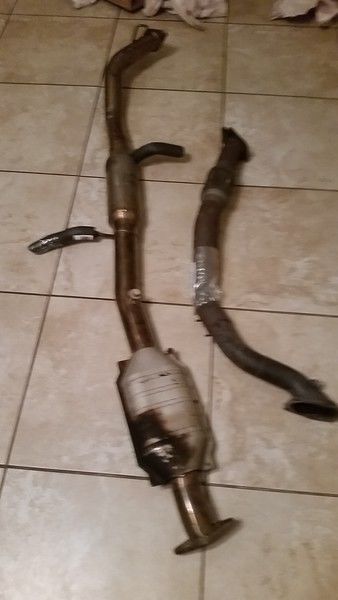

FM 2.5" Downpipe and Midpipe. got a great deal from the MT classifieds.
For now it will mate to my RB exhaust rear section.





I am still trying to be cheap, so i ordered the T25 TacoTaco manifold and a .48AR GT25 turbo (Chinacharger).
They didnt come in yet, so no pics.

If this manifold wont work with the FM downpipe, ill just get an FM cast manifold.

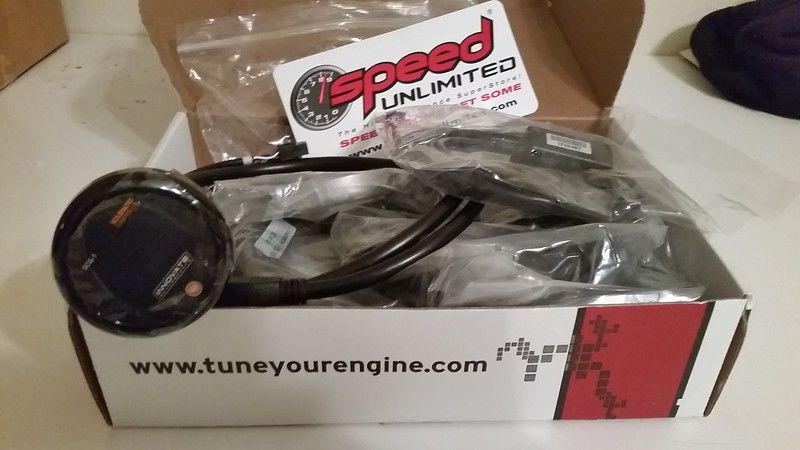

Innovate SCG-1 Gauge (Boost, Wideband AFR and Boost controller) all in one.

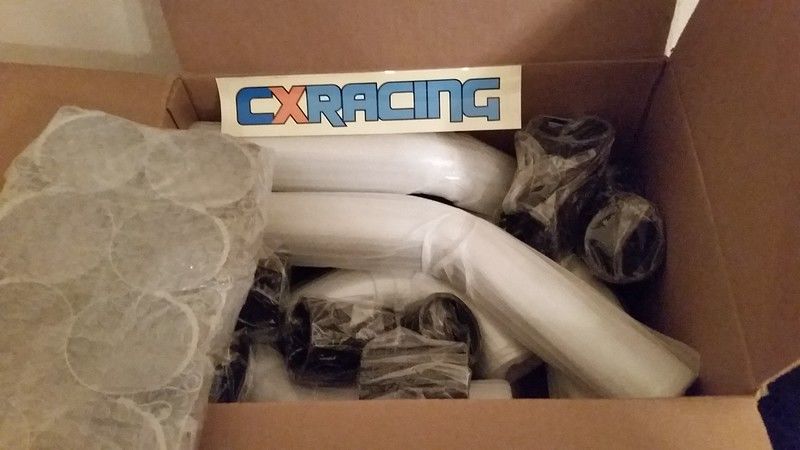

Universal eBay CXRACING 2.25" intercooler piping and a 3" U pipe for intake




Also ordered Flow Force EV14 610cc injectors.

I am still waiting for mslabs MS2E to come in.

The turbo bits wont be installed for about a month or so, i am doing the build in the following order:

1. Install Innovate wideband
2. install MS2E and get it running as is.
3. install ev14 injectors, program MS2 and get it running good.
4. install turbo bits and tune tune tune.
Attached Thumbnails
99 Sport eBay turbo build-80-i_vh3qxnf_l_6b2da8aa4a830e730ff6c3547e1a2410ebe51553.jpg   99 Sport eBay turbo build-80-i_4lrvrtp_l_559d25750efce844f9049b88a9ffb7fe8d200cac.jpg   99 Sport eBay turbo build-80-i_66h6jrr_l_1916a4d33063ddab70cd84fe18a224ce35a1adb3.jpg

Last edited by borka; 01-29-2016 at 10:31 AM.
borka is offline   Reply With Quote
Old 01-29-2016, 03:34 PM   #30
Junior Member
Thread Starter

Join Date: Mar 2014
Location: Jacksonville, FL
Posts: 312
Total Cats: 19
Default

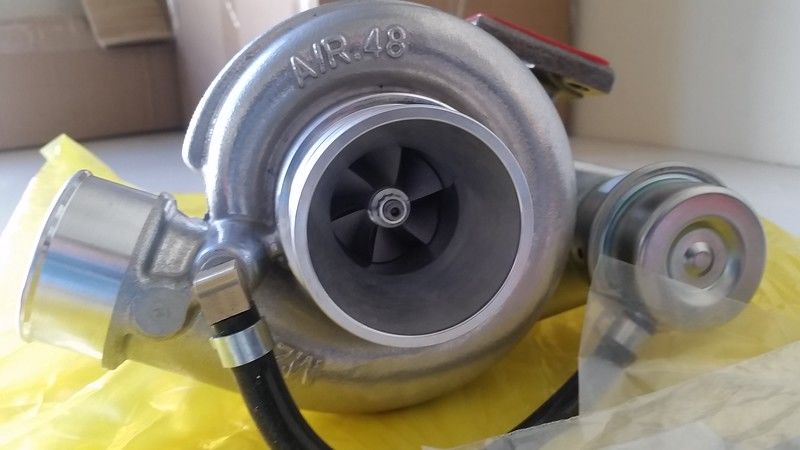

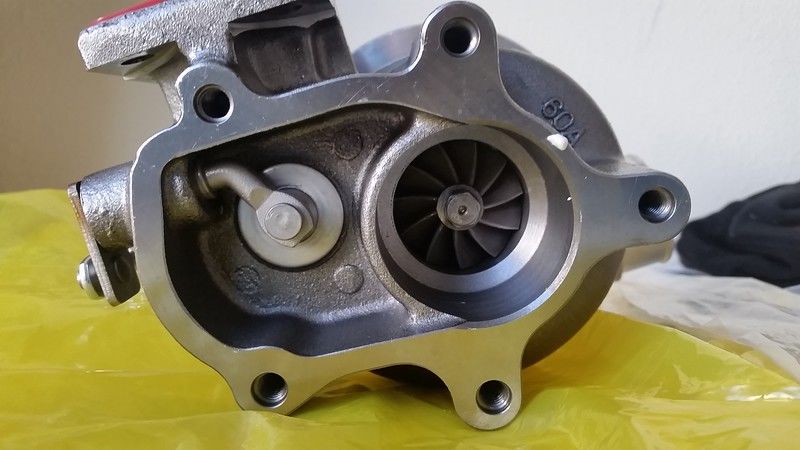

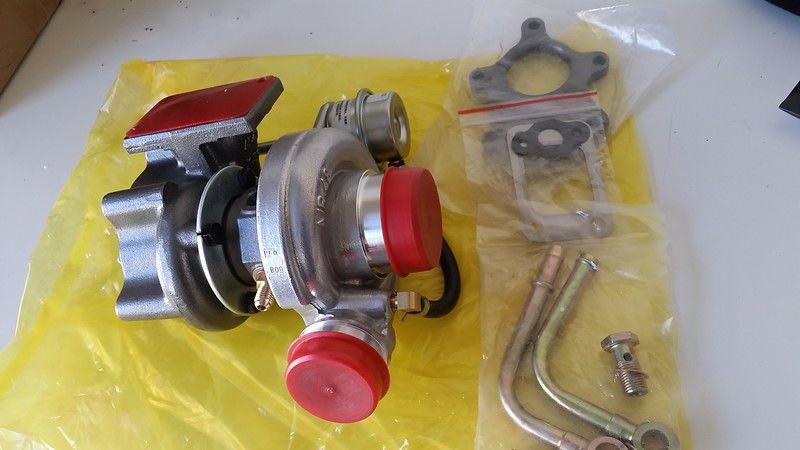

eBay GT25 .48AR turbo came in.








GT25 Turbo

Looks pretty solid and good quality for a Chinacharger. but what do i know? this is the first turbo i have ever held in my hands.
Attached Thumbnails
99 Sport eBay turbo build-80-i_fqsw5nw_l_3c2dd0a0a5d96a6b0f99e610e3d4500fcfdf8e5a.jpg   99 Sport eBay turbo build-80-i_z4h7cnz_l_acd140b474c3ad21e73f2138a3dd8a192a92c715.jpg   99 Sport eBay turbo build-80-i_xml88fr_l_c50aec4895a7597c6d8e3d31de8f672ff00bef9b.jpg
borka is offline   Reply With Quote
Old 01-29-2016, 03:35 PM   #31
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 12,415
Total Cats: 780
Default

Wheres a link to the actual auction you bought it from?
shuiend is offline   Reply With Quote
Old 01-29-2016, 03:37 PM   #32
Junior Member
Thread Starter

Join Date: Mar 2014
Location: Jacksonville, FL
Posts: 312
Total Cats: 19
Default

Quote:
Originally Posted by shuiend View Post
Wheres a link to the actual auction you bought it from?
GT25 Turbo here:
GT25 Turbo Charger turbocharger T25 0 48 A R for 240sx CA18 KA24 Civic Miata | eBay
borka is offline   Reply With Quote
Old 01-29-2016, 03:38 PM   #33
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 114
Default

Oil and water, cool!

Wish I could find an ebay T3 that did that.
deezums is offline   Reply With Quote
Old 01-29-2016, 03:56 PM   #34
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,456
Total Cats: 1,426
Default

its small. going to probbaly top out at 200rwhp. but itll spool fast as ****. the word insta comes to mind.
Braineack is offline   Reply With Quote
Old 01-29-2016, 04:04 PM   #35
Junior Member
Thread Starter

Join Date: Mar 2014
Location: Jacksonville, FL
Posts: 312
Total Cats: 19
Default

Quote:
Originally Posted by Braineack View Post
its small. going to probbaly top out at 200rwhp. but itll spool fast as ****. the word insta comes to mind.
same specs as MKTURBO kit but in T25 and not T3. and his kit is making 230+HP and not pushed ALLOFIT.

My MAX goal is 250whp and ill be happy around 230
borka is offline   Reply With Quote
Old 01-29-2016, 04:06 PM   #36
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 114
Default

Isn't the inlet on a t2 smaller, so considering the same AR the housing is a lot smaller.

Looks a lot smaller, are you sure the specs are the same?
deezums is offline   Reply With Quote
Old 01-29-2016, 04:14 PM   #37
Junior Member
Thread Starter

Join Date: Mar 2014
Location: Jacksonville, FL
Posts: 312
Total Cats: 19
Default

MKTURBO Specs:
T3 TURBO CHARGER INTERNAL WASTEGATE .48ar
Intake: 2.5 inch
Inlet: 2.25 inch
Compressor trim: .42ar
Compressor Wheel diameter: 43.20 / 60.41
Turbine Wheel diameter: 45.74 / 62.86
Exhaust Trim: .48ar
Turbine flange type: t3 flange
Down pipe flange type :2.50" v band
Cooling type: oil cool only
Horsepower rating: 325-350
Actuator setting: 8psi

GT25 Specs:
Inlet 2.5"
Outlet 2"
Bearing Wet Floating Bearings
Cooling Oil + Water
Flange Standard T25/T28Flange
HP Rating 250-300 HP
Internal Wastegate 14psi
Compressor .48 A/R Compressor
Turbine .49A/R Turbine
Compressor Wheel 60mm/42mm
Turbine Wheel 53mm/46mm
Hot Side 5 Bolt (don't fit SR20DET Elbow pipe)

Looks the same to me no?
borka is offline   Reply With Quote
Old 01-30-2016, 12:19 PM   #38
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,456
Total Cats: 1,426
Default

Quote:
Originally Posted by borka View Post
same specs as MKTURBO kit but in T25 and not T3.
then that's not the same specs now is it?


63mm turbine wheel 53mm turbine wheel.
.48 T3 turbine housing .49 T25 turbine housing

and I personally doubt the specs on the compressor wheel, I bet it's really 54mm, not 60mm. If it's actually correct, then this is pretty much a 2560 turbo (or T28)...






...with a REALLY REALLY REALLY tiny turbine A/R.
Braineack is offline   Reply With Quote
Old 01-30-2016, 12:24 PM   #39
Junior Member
Thread Starter

Join Date: Mar 2014
Location: Jacksonville, FL
Posts: 312
Total Cats: 19
Default

Quote:
Originally Posted by Braineack View Post
then that's not the same specs now is it?
OK so its a different flange.

I am talking about the AR specs and compressor/turbine wheel specs, which are very similar. so should yield similar power outputs no??

I dont mean they are 100% the same turbos, but performance wise should be pretty close, as the specs seem very close.

but like i said, what do i know, i am a noob.

if this turbo is too small and wont get me to 230ish hp, i can get the .64AR, they are only $200.
borka is offline   Reply With Quote
Old 01-30-2016, 12:27 PM   #40
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,456
Total Cats: 1,426
Default

no. performance wise they will be very different.

If the compressor wheels are actually the same size that's good, but the turbine is very small on that thing, not just the wheel, but the inlet size.

it's going to spool fast and not have the same top-end potential.

consider that a T25 .63 A/R = a T3 .48 A/R
Braineack is offline   Reply With Quote
