Old 06-30-2015, 07:00 PM   #1281
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,156
Total Cats: 1,401
Default

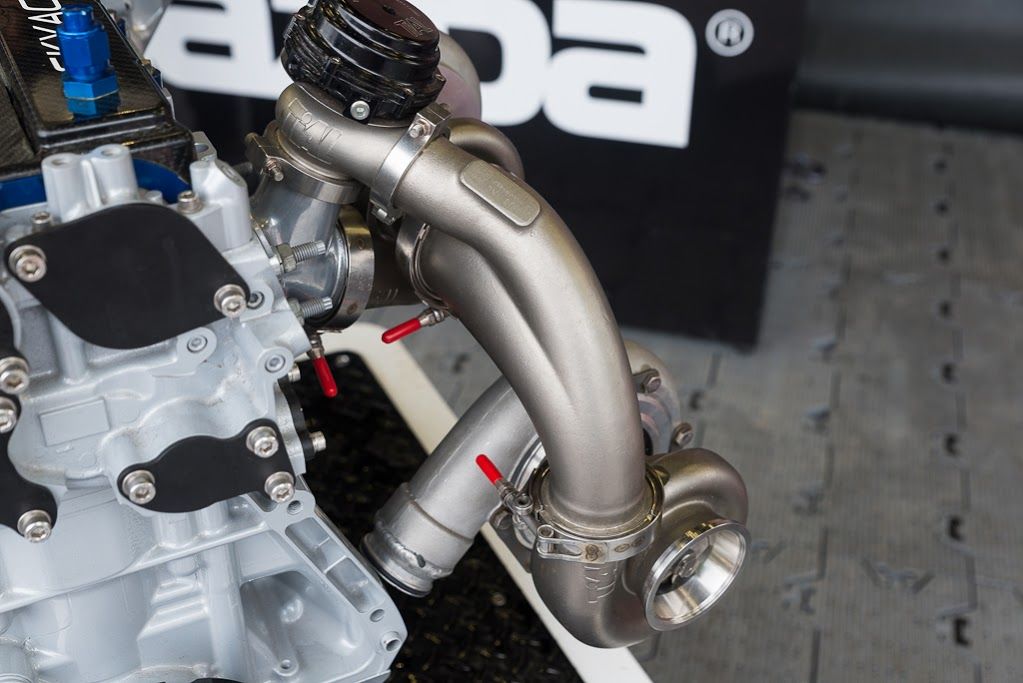

no, it's a skyactive turbo diesel motor.

see mazda logo in BG and skyactive on VC:


Attached Thumbnails
miataturbo.net-like debauchery thread (about the ND or something)-80-dsc_0599_2_f08cc9b37379e75e848d1a4d89cf6342051c9430.jpg
Braineack is offline   Reply With Quote
Old 06-30-2015, 07:49 PM   #1282
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,605
Total Cats: 91
Default

Quote:
Originally Posted by emilio700 View Post
Nope. More like a clutch type in action. This is a generic pic. The Mazda diff has a separate stamped steel bowl shaped plate with radial grooves that sits over the cones and bears against the outer housing. The one in this pic has no plate so the cone bears directly onto the housing. Seems crude but apparently it works. Early feedback is that the OEM ND LSD has a fairly low locking ratio. This heard second hand from someone who would have direct experience with it. I haven't driven an ND yet.
Same as a lot of the american "posi" lsd. I know the ford tru trac version in the mustangs lasts about half a season of auto-x between rebuilds on slicks if you're lucky.
Leafy is offline   Reply With Quote
Old 06-30-2015, 07:57 PM   #1283
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,160
Total Cats: 1,990
Default

That is a really impressive turbine inlet....thing
18psi is offline   Reply With Quote
Old 06-30-2015, 08:34 PM   #1284
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 24,671
Total Cats: 1,571
Default

Quote:
Originally Posted by Braineack View Post
no, it's a skyactive turbo diesel motor.
Serious question: is there a meaningful difference?
Joe Perez is offline   Reply With Quote
Old 06-30-2015, 09:17 PM   #1285
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,605
Total Cats: 91
Default

Quote:
Originally Posted by Joe Perez View Post
Serious question: is there a meaningful difference?
yes. One runs on diesel fuel.
Leafy is offline   Reply With Quote
Old 06-30-2015, 09:38 PM   #1286
Junior Member
iTrader: (1)

Join Date: Apr 2007
Location: Toronto, Canada
Posts: 433
Total Cats: 14
Default

I worked as a "product specialist" in Canada for Mazda during this year's autoshow season. The answer we were given to field "why no diesel in any Canadian models" was "because US customers won't buy it and Canadian certification runs on the back of US certification".

Just sayin'
BarbyCar is offline   Reply With Quote
Old 06-30-2015, 10:27 PM   #1287
Elite Member
iTrader: (19)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,185
Total Cats: 324
Default

Quote:
Originally Posted by Braineack View Post
I saw it in person--
You came all the way to NY and didn't call me down to buy you a foofy girly drink? You bastard.
rleete is online now   Reply With Quote
Old 06-30-2015, 10:32 PM   #1288
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,156
Total Cats: 1,401
Default

I posted that I was going to be at the Glen! It was my birthday too, you could have kept me warm.
Braineack is offline   Reply With Quote
Old 07-01-2015, 12:46 PM   #1289
Moderator
iTrader: (9)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, FL
Posts: 13,401
Total Cats: 1,016
Default miata.net-like discussion thread (about the ND or something)

The 310hp 2.3 ecoboost in the Mustang is in the same family of engines as the MZR and may one day be a viable swap candidate for the NC EDIT: but not the ND.

Last edited by sixshooter; 07-01-2015 at 03:49 PM.
sixshooter is offline   Reply With Quote
Old 07-01-2015, 12:50 PM   #1290
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,836
Total Cats: 934
Default

<p>Really interesting wastegate thingy. One turbo spools until the wastegate opens then you get exhaust to both turbos?</p>
aidandj is offline   Reply With Quote
Old 07-01-2015, 12:51 PM   #1291
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,809
Total Cats: 554
Default

Quote:
Originally Posted by sixshooter View Post
The 310hp 2.3 ecoboost in the Mustang is in the same family of engines as the MZR and may one day be a viable swap candidate for the NC and ND.
Oh cool. So the SkyActive is still based on the MZR block design? Didn't know that.
hornetball is offline   Reply With Quote
Old 07-01-2015, 01:06 PM   #1292
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,156
Total Cats: 1,401
Default

Quote:
Originally Posted by aidandj View Post
<p>Really interesting wastegate thingy. One turbo spools until the wastegate opens then you get exhaust to both turbos?</p>
the small turbo makes insta boost, then once the large one starts to boost, the wastegate opens and the smaller turbo doesn't spin as hard and most boost is made with the large.

large turbo runs ALL OF IT levels of boost.
Braineack is offline   Reply With Quote
Old 07-01-2015, 01:06 PM   #1293
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,237
Total Cats: 554
Default

Quote:
Originally Posted by hornetball View Post
Oh cool. So the SkyActive is still based on the MZR block design? Didn't know that.

The diesels are still based on 60-70s blocks, too.
concealer404 is offline   Reply With Quote
Old 07-01-2015, 01:07 PM   #1294
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,237
Total Cats: 554
Default

Quote:
Originally Posted by aidandj View Post
<p>Really interesting wastegate thingy. One turbo spools until the wastegate opens then you get exhaust to both turbos?</p>

You always get exhaust to both, the wastegate just routes back into the 2nd one so you don't lose energy.
concealer404 is offline   Reply With Quote
Old 07-01-2015, 01:17 PM   #1295
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 4,537
Total Cats: 840
Default

The Skayctiv 2.0L is not based on the MZR. It has more in common with a 4B11 Mistubishi motor than an an MZR once you get inside.
emilio700 is offline   Reply With Quote
Old 07-01-2015, 03:47 PM   #1296
Moderator
iTrader: (9)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, FL
Posts: 13,401
Total Cats: 1,016
Default

Quote:
Originally Posted by emilio700 View Post
The Skayctiv 2.0L is not based on the MZR. It has more in common with a 4B11 Mistubishi motor than an an MZR once you get inside.
^Yep, I was wrong. The ecoboost swap is only good for NC's.
sixshooter is offline   Reply With Quote
Old 07-01-2015, 03:48 PM   #1297
Moderator
iTrader: (9)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, FL
Posts: 13,401
Total Cats: 1,016
Default

Quote:
Originally Posted by hornetball View Post
Oh cool. So the SkyActive is still based on the MZR block design? Didn't know that.
It's not. I was wrong.
sixshooter is offline   Reply With Quote
Old 07-01-2015, 04:04 PM   #1298
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,836
Total Cats: 934
Default

Quote:
Originally Posted by emilio700 View Post
The Skayctiv 2.0L is not based on the MZR. It has more in common with a 4B11 Mistubishi motor than an an MZR once you get inside.
<br /><br />
<br /><br /><br /><br />
<br /><br />I'm gonna take this as a product announcement <img src="images/smilies/smile.gif" border="0" alt="" title="" smilieid="1" class="inlineimg" /><br />
<br /><br />When can I buy the 949 4B11 swap kit. That could be fun.
aidandj is offline   Reply With Quote
Old 07-01-2015, 04:08 PM   #1299
Senior Member

Join Date: Sep 2013
Posts: 900
Total Cats: 57
Default

Everyone has a bunch of "feelings" when it comes to what's faster stock-for-stock.

I should have taken my own advice and not touched the poop.
Dunning Kruger Affect is offline   Reply With Quote
Old 07-01-2015, 04:19 PM   #1300
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 24,671
Total Cats: 1,571
Default

Quote:
Originally Posted by aidandj View Post
<p>Really interesting wastegate thingy. One turbo spools until the wastegate opens then you get exhaust to both turbos?</p>
Quoting Automotive Engineering Magazine:
The diesel engine’s boosting setup, comprising a pair of Garrett turbochargers and a sophisticated air-to-air intercooler array, is based on the production Sky-D. It’s the first motorsports use of a compounded turbo system, Tremblay claimed. A large low-pressure turbocharger draws in and compresses ambient air, feeding it into a smaller high-pressure turbo which compresses the air again and forces it into the intake manifold.

Compared with a single turbocharger, the compounded-turbo arrangement provides a greater range of operating efficiency, [SpeedSource President Sylvain] Tremblay said. However, it is more complex and difficult to package in the car. The arrangement is not to be confused with turbo-compounding used on some reciprocating aircraft engines and the Detroit Diesel DD15 heavy-truck diesel, where one of the turbines is connected mechanically to the engine’s crankshaft.

And it’s not sequential like on some gasoline turbocharged engines,” Tremblay explained. “One turbo charges the other and they’re not regulated mechanically in any other way other than by the actual computer control mapping of the turbos. As one compressor stalls, the other picks up that particular boost. It’s a very effective system for the Mazda race diesel.”

Maximum boost pressure used during the race will be in the 50-55-psi (345-379 kPa) range.

Mazda races compounded-turbodiesel, new synthetic fuel - SAE International
Joe Perez is offline   Reply With Quote
