Old 02-24-2016, 02:16 PM   #661
Elite Member
iTrader: (7)

Join Date: Jan 2008
Location: Knoxville, TN
Posts: 1,901
Total Cats: 14
Default

Quote:
Originally Posted by emilio700 View Post
Just an FYI, the OEM downpipe is considered part of the exhaust, not the header. So if you take exhaust points, you can include a nice mandrel bent 2.5" DP. If building a full custom exhaust then you can ignore the OEM flange locations and just build your midpipe directly to the header with a slip fit at the rear subframe. We left NASA before we could do A/B dynos with the custom DP but I would be surprised if it wasn't worth a few whp.
Orly? Well that could change my future plans(pending NASA ruling next year).


That +1 could be used to swap to a square-top manifold for a few more peak HP.
flier129 is offline   Reply With Quote
Old 02-24-2016, 09:27 PM   #662
Junior Member

Join Date: Mar 2010
Location: Durham, NC
Posts: 369
Total Cats: 13
Default

Honestly, I'd not touch anything in the engine if you're building the car now. Get the chassis set up with a stock sway setup and wait to see what the 2017 rule book has.
FatKao is offline   Reply With Quote
Old 02-24-2016, 10:36 PM   #663
Senior Member

Join Date: Jan 2013
Location: Gilbert, AZ
Posts: 618
Total Cats: 75
Default

Quote:
Originally Posted by FatKao View Post
Honestly, I'd not touch anything in the engine if you're building the car now. Get the chassis set up with a stock sway setup and wait to see what the 2017 rule book has.
This is probably the most sound advice for anyone building up a car right now.
Arca_ex is offline   Reply With Quote
Old 02-24-2016, 11:12 PM   #664
Senior Member
iTrader: (2)

Join Date: Dec 2008
Location: KY
Posts: 621
Total Cats: 34
Default

Yep
jpreston is offline   Reply With Quote
Old 02-24-2016, 11:27 PM   #665
Elite Member
iTrader: (7)

Join Date: Jan 2008
Location: Knoxville, TN
Posts: 1,901
Total Cats: 14
Default

That's what I'm doing!
flier129 is offline   Reply With Quote
Old 02-25-2016, 10:51 AM   #666
Junior Member

Join Date: Feb 2016
Location: Walnut Creek, Ca
Posts: 56
Total Cats: 6
Default

Is there a list of PT/TT track records anywhere?
charliehayes22 is offline   Reply With Quote
Old 02-25-2016, 11:01 AM   #667
Elite Member
iTrader: (7)

Join Date: Jan 2008
Location: Knoxville, TN
Posts: 1,901
Total Cats: 14
Default

Quote:
Originally Posted by charliehayes22 View Post
Is there a list of PT/TT track records anywhere?
NASA Time Trial

They're listed within the regions. Some records might not be updated recently, depends on the region I suppose.
flier129 is offline   Reply With Quote
Old 02-25-2016, 11:02 AM   #668
Senior Member
iTrader: (7)

Join Date: Nov 2009
Location: Mount Prospect, IL
Posts: 673
Total Cats: 3
Default

Quote:
Originally Posted by charliehayes22 View Post
Is there a list of PT/TT track records anywhere?
There is no single spot for all NASA track records but individual regions keep track of records on their own.

For example, you can see NASA Great Lakes records here:

NASA Great Lakes - National Auto Sport Association
chris101 is offline   Reply With Quote
Old 02-25-2016, 01:20 PM   #669
Senior Member

Join Date: Jan 2013
Location: Gilbert, AZ
Posts: 618
Total Cats: 75
Default

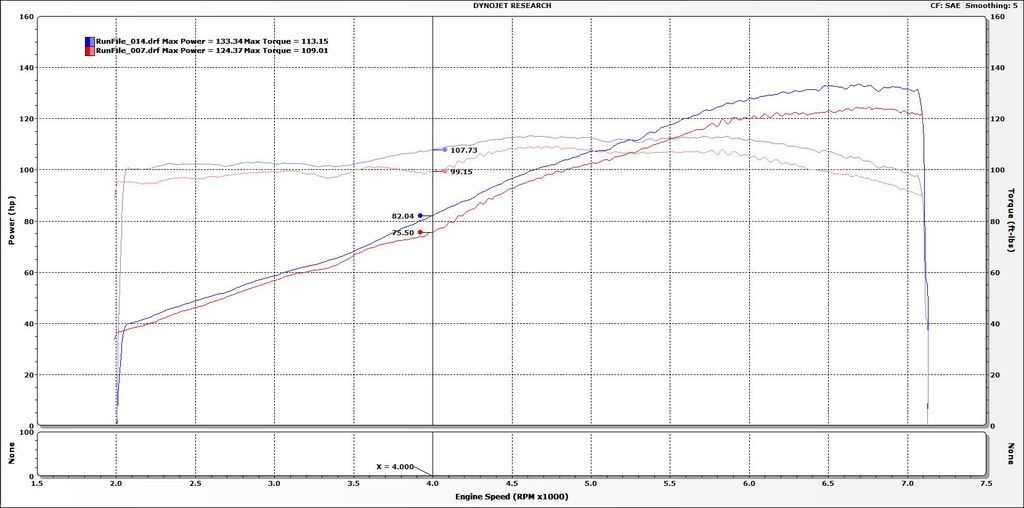

My old classing vs. new classing after switching to e85. I made a little more power than I wanted but oh well.

Going off of the changes made to Appendix C to make these relevant to this year.

PTE Base: 128whp at 2395lbs (18.71lbs/hp)

PTE* Base: 136whp at 2430lbs (17.87lbs/hp)

Attached Thumbnails
Adventures in PTE/TTE-dyno_zpsu7vqobqj.jpg
Arca_ex is offline   Reply With Quote
Old 02-25-2016, 01:25 PM   #670
Senior Member
iTrader: (2)

Join Date: Dec 2008
Location: KY
Posts: 621
Total Cats: 34
Default

Was E85 the only change between those two runs?
jpreston is offline   Reply With Quote
Old 02-25-2016, 01:34 PM   #671
Senior Member

Join Date: Jan 2013
Location: Gilbert, AZ
Posts: 618
Total Cats: 75
Default

Quote:
Originally Posted by jpreston View Post
Was E85 the only change between those two runs?
Flywheel/Clutch
Injectors
Changed to different catback for sound limit purposes but both are 2.25" mandrel bent.

All the information and a dynapack before/after are in my build thread.
Arca_ex is offline   Reply With Quote
Old 02-28-2016, 08:42 PM   #672
Junior Member
iTrader: (2)

Join Date: Mar 2011
Posts: 250
Total Cats: -161
Default

Aftermarket sway bar endlinks a points item? stock sways.
blkmkiii is offline   Reply With Quote
Old 02-28-2016, 09:30 PM   #673
Moderator
iTrader: (9)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, FL
Posts: 13,439
Total Cats: 1,016
Default

Quote:
Originally Posted by blkmkiii View Post
Aftermarket sway bar endlinks a points item? stock sways.
Is this a question? Would you be willing to spend a bit extra to purchase a verb?
sixshooter is offline   Reply With Quote
Old 02-28-2016, 10:22 PM   #674
Senior Member

Join Date: Feb 2007
Location: Aliso Viejo, CA
Posts: 556
Total Cats: 86
Default

Quote:
Originally Posted by blkmkiii View Post
Aftermarket sway bar endlinks a points item? stock sways.
"7) Add, replace, remove, or modify anti-roll bars (“sway” bars—front, rear, or both) or end
links—may have spherical joints on the end links and/or relocation of the mounting points without additional points assessment +2"


replace, remove, or modify end links: +2
doward is offline   Reply With Quote
Old 02-29-2016, 11:46 AM   #675
Senior Member

Join Date: Feb 2007
Location: Aliso Viejo, CA
Posts: 556
Total Cats: 86
Default

What does everyone do for kill switches?

2 post vs 4 post?
Where did you mount it?
doward is offline   Reply With Quote
Old 02-29-2016, 01:12 PM   #676
Senior Member

Join Date: Jan 2013
Location: Gilbert, AZ
Posts: 618
Total Cats: 75
Default

4 post.

Big post kills positive battery cable coming from the back of the car, small post kills ECU power so I don't have to mess with alternator stuff. ECU shuts off, car shuts off, and when alternator stops spinning nothing has power anymore.

Mine is mounted near the forward corner opening of the driver side window. I can reach it and it's clearly visible and accessible from outside. Pictures are in my build thread.
Arca_ex is offline   Reply With Quote
Old 02-29-2016, 02:04 PM   #677
Junior Member
iTrader: (1)

Join Date: Jan 2012
Posts: 109
Total Cats: 9
Default

I did a 2 post in the link below. worked just fine and confirmed to shut off all power, both from head tech official and regional director. a few good posts in there that simplify install. if you do do this, be sure to cover all engine connections. I used liquid electrical tape.

Spec Miata Community: 2-Pole Master Switch?


as far as mounting goes, its up to you where to mount it but ideally you will want it somewhere easily accessible from the outside in case a safety worker needs to shut it off if you forgot too. mine is by my right hand and also by the fire pull handle.
JSpeed6 is offline   Reply With Quote
Old 02-29-2016, 03:58 PM   #678
Newb

Join Date: Jul 2014
Posts: 20
Total Cats: 0
Default

4-pole from Miatacage for me. After being intimidated thinking about playing with wires in my car, I spent less time actually installing the kill switch than I did reading the dozens of threads out there about it (meaning you can't go wrong if you read 'em all).

I have mine mounted at the intersection of the main hoop and harness cross-bar, passenger side. Battery is still located in trunk. I can turn it off while strapped in tightly and it is only a couple of inches from where the passenger window would be so the outside world can get to it if need be.
wagnerov is offline   Reply With Quote
Old 02-29-2016, 04:24 PM   #679
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 4,540
Total Cats: 841
Default

We only use the high capacity 4 pole from Longacre. We have had a few of the standard hi-lp cap switches die when running alternator current through them.

Longacre Battery Disconnect Switch 45782

emilio700 is offline   Reply With Quote
Old 02-29-2016, 04:43 PM   #680
Junior Member
iTrader: (7)

Join Date: Jun 2012
Location: Columbus, IN
Posts: 395
Total Cats: 7
Default

2 post with the alt and battery on the same post just like the SM guys that way you avoid running the alt current through them. I bought a 4-post the first time and have no need for the second pair of posts. I just bought a 2-post Longacre for the new car
slammed200 is offline   Reply With Quote
