Aerodynamics Splitters, spoilers, and all the aero advice you can handle.
Sponsored by:
Sponsored by:

New Cheap Aluminum wing option


Old 03-20-2018, 01:29 PM
  #61
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 14,335
Total Cats: 1,313
Default

Originally Posted by Uncle Humjaba View Post
Aero merits of said big **** aside, 160mph at road Atlanta in a Miata is insane.
Got to love that LS motor.
shuiend is offline
Old 03-23-2018, 12:26 PM
  #62
Junior Member

Join Date: Jul 2009
Location: Greenville SC
Posts: 350
Total Cats: 22
Default

Originally Posted by shuiend View Post
Got to love that LS motor.
Yep, I've been passed many a time by that car between turn 7 and 10...
Morello is offline
Old 03-26-2018, 03:58 PM
  #63
Elite Member
iTrader: (24)

UrbanSoot's Avatar

Join Date: Jun 2007
Location: Sherman Oaks, CA
Posts: 4,654
Total Cats: 18
Default

Results are available - Nine Lives Racing: The "Big ****" test
UrbanSoot is offline
Old 03-26-2018, 04:17 PM
  #64
Senior Member

matrussell122's Avatar

Join Date: Sep 2016
Location: Seattle
Posts: 1,141
Total Cats: 155
Default

How long is the pre order discount going to last?
matrussell122 is offline
Old 03-26-2018, 08:25 PM
  #65
Junior Member

Join Date: Jan 2016
Location: Atlanta, GA
Posts: 165
Total Cats: 19
Default

Originally Posted by UrbanSoot View Post
You mean this bigger 2D wing was less draggy and faster then a smaller 3D wing used incorrectly and mounted to high? Shocking.

Not knocking 9LR, I would have picked up one of these myself if I had not completed building my own wing literally a week before these were announced. But I still want to see real CFD/wind tunnel testing for numbers and lift/drag, not skewed tests vs a 3D wing before I sing their praises.
Wingman703 is offline
Old 03-27-2018, 05:31 PM
  #66
Supporting Vendor
iTrader: (1)

OGRacing's Avatar

Join Date: May 2014
Posts: 1,796
Total Cats: 33
Default

Originally Posted by Morello View Post
Yep, I've been passed many a time by that car between turn 7 and 10...
I wave, every single time.
__________________
OG Racing
Your Source For Motorsports Safety Equipment
WWW.OGRACING.COM
800.934.9112
703.430.3303
[email protected]
Originally Posted by Mobius View Post
Hopefully so, but let's hope it's never necessary. Experiencing your safety gear in action is ... not optimal.
OGRacing is offline
Old 03-30-2018, 11:41 AM
  #67
Junior Member
Thread Starter

Join Date: Sep 2013
Location: SL,UT
Posts: 161
Total Cats: 23
Default

So I posted on 9LR's facebook saying they should provide some data we could use to compare to the APR wings, and they just tagged me back this morning. Here's the free air data they just added to their site. Looks pretty damn good actually. Compare to the charts in my post #53.

soot is offline
Old 03-30-2018, 02:51 PM
  #68
Junior Member

Join Date: Jan 2016
Location: Atlanta, GA
Posts: 165
Total Cats: 19
Default

Those are pretty impressive numbers and look like they could be improved considering the lack of a gurney. Can't help but notice this was on a 70" wing, not the 64"/68" that are legal for most miatas in various classes. Still 200lb of downforce @100mph with only 20lb of drag sounds pretty dam noticeable.
Wingman703 is offline
Old 03-30-2018, 03:16 PM
  #69
Junior Member
Thread Starter

Join Date: Sep 2013
Location: SL,UT
Posts: 161
Total Cats: 23
Default

Originally Posted by Wingman703 View Post
Those are pretty impressive numbers and look like they could be improved considering the lack of a gurney. Can't help but notice this was on a 70" wing, not the 64"/68" that are legal for most miatas in various classes. Still 200lb of downforce @100mph with only 20lb of drag sounds pretty dam noticeable.
My thoughts exactly. I'm trying really hard to resist picking one up now...
Also, yes 9LR's CFD is on a 70" wing, but APR does not list the size they tested the GT-250 with. Since the largest size they offer is a 71", I'd assume that APR's numbers are based off of their biggest ****.

73lbs at 60MPH and 10 without a flap sounds pretty decent too...
soot is offline
Old 04-04-2018, 04:54 PM
  #70
ECU Pariah

ChrisLol's Avatar

Join Date: Mar 2016
Location: Lexington, KY
Posts: 135
Total Cats: 62
Default

So I did a thing... and I'm very happy with it.

The endplates were just to center the airfoil in the box for shipping. I'll be fabricating my own uprights and endplates. I'll also be getting a range of gurney flap sizes to test/tune that aspect.
ChrisLol is offline
Old 04-06-2018, 04:22 PM
  #71
Junior Member

Join Date: Aug 2012
Posts: 461
Total Cats: 57
Default

I'll most likely be going with that wing too. please keep us updated and enjoy
G3ML1NGZ is offline
Old 05-22-2018, 09:43 AM
  #72
ECU Pariah

ChrisLol's Avatar

Join Date: Mar 2016
Location: Lexington, KY
Posts: 135
Total Cats: 62
Default

Quick update.

Disclaimer: I am not a professional. I'm not sure how this is normally done but this is how I did it.
ChrisLol is offline
Old 05-22-2018, 12:54 PM
  #73
Elite Member

Join Date: Sep 2015
Location: San Jose, CA
Posts: 1,566
Total Cats: 114
Default

Now THAT, is awesome. Props to you sir. Just an idea, if you have time to burn, you can grind the forward facing edges of the stands down so they look more like a knife blade if that makes sense. I hear it helps with drag slightly.
MiataMan00 is offline
Old 05-22-2018, 01:05 PM
  #74
Senior Member
iTrader: (1)

Join Date: Dec 2010
Location: Farmington Hills, MI
Posts: 1,140
Total Cats: 151
Default

Originally Posted by MiataMan00 View Post
Now THAT, is awesome. Props to you sir. Just an idea, if you have time to burn, you can grind the forward facing edges of the stands down so they look more like a knife blade if that makes sense. I hear it helps with drag slightly.
You'd actually want to knife blade the rear, and teardrop the front!

acedeuce802 is offline
Old 05-22-2018, 03:19 PM
  #75
ECU Pariah

ChrisLol's Avatar

Join Date: Mar 2016
Location: Lexington, KY
Posts: 135
Total Cats: 62
Default

Front edges are rounded, rear edges are clipped 45 (Best I could do with my handheld router)

That's right. The uprights were HAND routed from 3/8" plate. Mounts and endplates were cut with a laser. Shoutout to Paco Motorsports.
ChrisLol is offline
Old 05-22-2018, 03:24 PM
  #76
Elite Member
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 3,093
Total Cats: 366
Default

Originally Posted by MiataMan00 View Post
, you can grind the forward facing edges of the stands down so they look more like a knife blade if that makes sense. I hear it helps with drag slightly.
Dont worry, everyone who was never into airplanes thinks this too.
ryansmoneypit is offline
Old 05-22-2018, 04:04 PM
  #77
Elite Member

Join Date: Sep 2015
Location: San Jose, CA
Posts: 1,566
Total Cats: 114
Default

Like I said, I know nothing about aero. Im the guy with cables holding his wing on after all. Proceed.
MiataMan00 is offline
Old 05-22-2018, 06:34 PM
  #78
Junior Member

Join Date: Jan 2015
Posts: 184
Total Cats: 19
Default

Any easy options for a gurney flap?

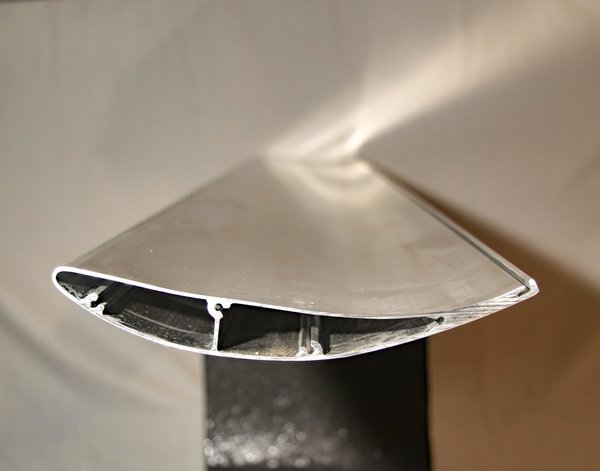

The wing profile has a slot to allow one to slide in one from the sides...but would require the right profile / the right extruded piece:
Junkwhale is offline
Old 05-22-2018, 07:30 PM
  #79
Ich verstehe nur Bahnhof
iTrader: (4)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 4,406
Total Cats: 479
Default

1-3% of chord length according to https://www.sciencedirect.com/science/article/pii/S136988699800010X


Nlr states ~9.5" chord length ergo 0.095-.285" for the flap length. The channel embedded in the wing is about 0.285" already.

Maybe find some aluminum or carbon fiber angle stock to fit?

I measured the width of the channel at 0.086" so that's the approximate limit to how thick the gurney can be to utilize that spot.
psyber_0ptix is offline
Old 05-22-2018, 10:45 PM
  #80
Junior Member

Join Date: Jan 2015
Posts: 184
Total Cats: 19
Default

Originally Posted by psyber_0ptix View Post
Maybe find some aluminum or carbon fiber angle stock to fit?.
It looks like it's designed with something specific in mind which was why I was asking. Using some 90 degree aluminium angle stock it looks like your gurney flap will stick at an odd angle. Could just be the picture that looks like though I guess...

Last edited by Junkwhale; 05-22-2018 at 11:01 PM.
Junkwhale is offline
