Old 05-07-2011, 11:16 PM   #61
Hear me Meow
iTrader: (3)

skidude's Avatar

Join Date: Apr 2008
Location: Outside Portland Maine
Posts: 1,994
Total Cats: 13
Default

With the boost signal sourced after the throttle plate, you'll have that overshoot going from part throttle to WOT. I'm not sure how people get around that when running EBC, but there must be a way.
skidude is offline   Reply With Quote
Old 05-07-2011, 11:20 PM   #62
Senior Member
Thread Starter
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

you mean the source for megasquirt, or source for the boost controller?

megasquirt is of course sourced after TB in the intake mani. Boost source for EBC is at the compressor outlet.

I tried making the boost target table linear, so it wont try to hit super high targets at part throttle, but i guess that didn't really work.
aaronc7 is offline   Reply With Quote
Old 05-07-2011, 11:25 PM   #63
Hear me Meow
iTrader: (3)

skidude's Avatar

Join Date: Apr 2008
Location: Outside Portland Maine
Posts: 1,994
Total Cats: 13
Default

I assumed your EBC was sourced at the same place as MS... my bad.
skidude is offline   Reply With Quote
Old 06-04-2011, 05:01 PM   #64
Senior Member
Thread Starter
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

still gay but heres an update

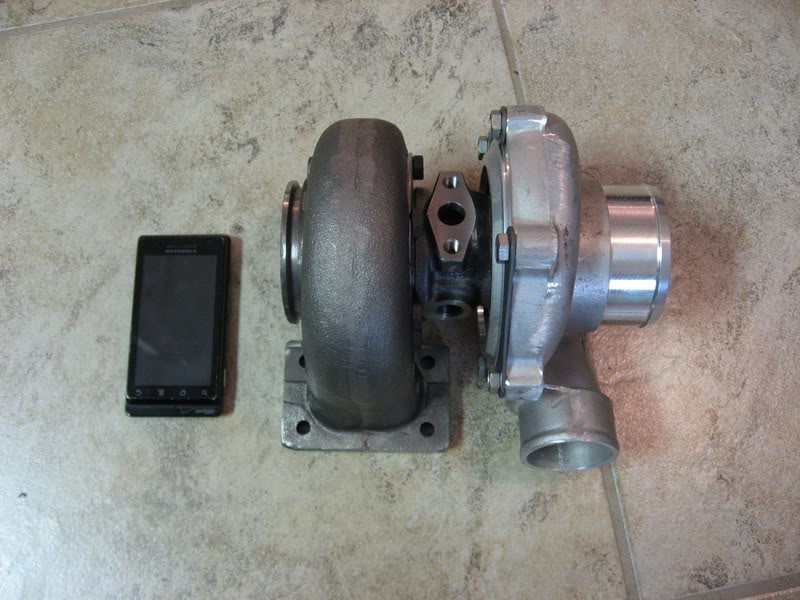

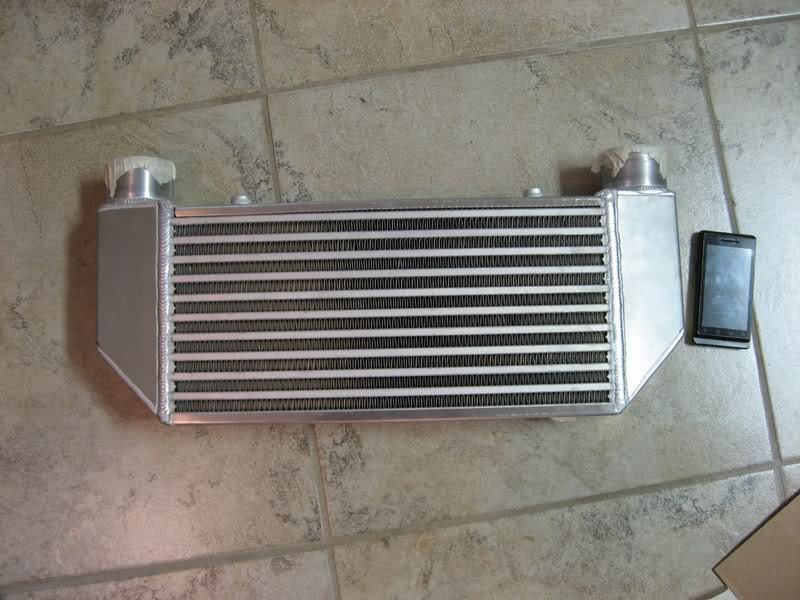

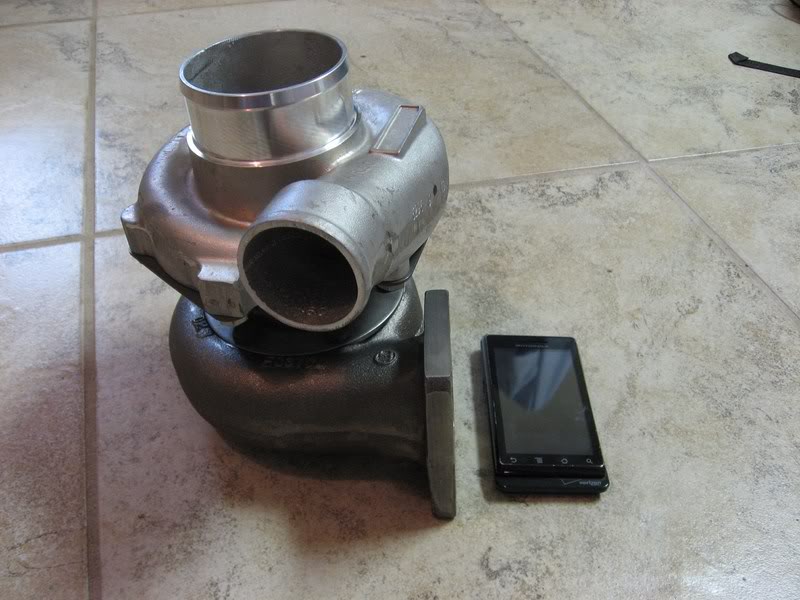

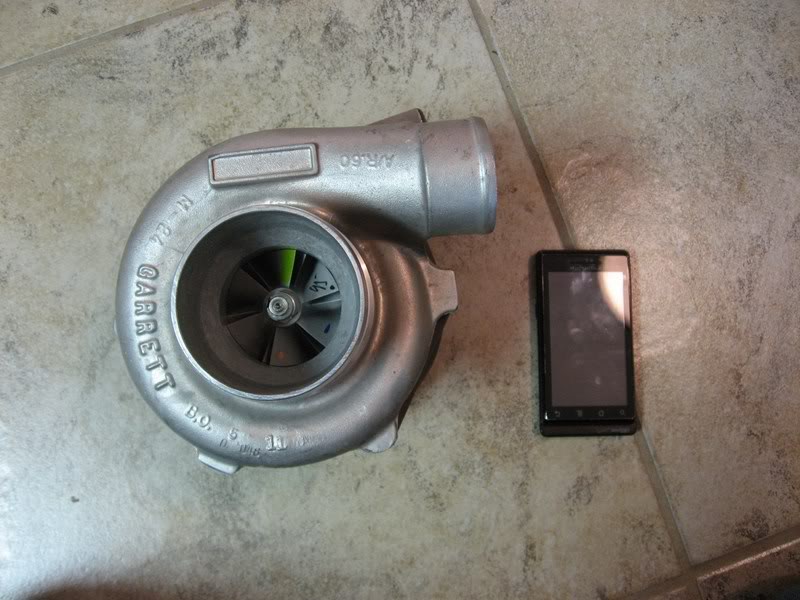

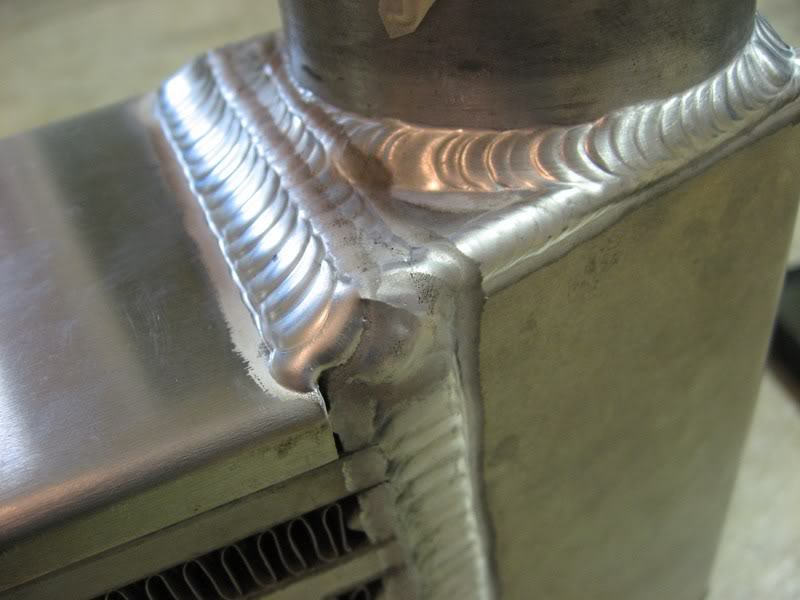

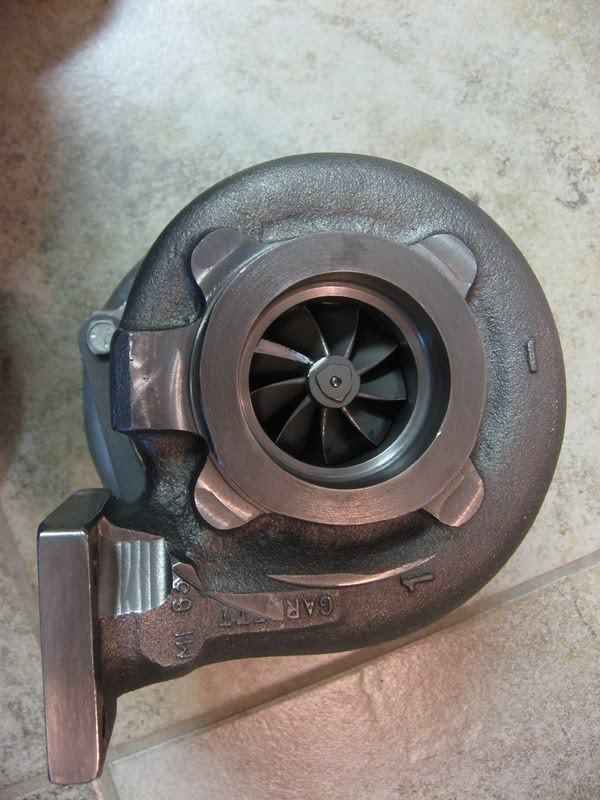

GT2871R w/ .63 A/R V-band housing is here.... along with custom intercooler from ETS (no more george foreman grill front mount)

Name:  IMG_0437800x600.jpg
Views: 12
Size:  74.2 KB

Name:  IMG_0438800x600.jpg
Views: 12
Size:  82.8 KB

Name:  IMG_0446800x600.jpg
Views: 14
Size:  78.2 KB

Name:  IMG_0442800x600.jpg
Views: 12
Size:  83.9 KB

Name:  IMG_0452800x600.jpg
Views: 12
Size:  94.1 KB

Name:  IMG_0454800x600.jpg
Views: 14
Size:  48.1 KB
aaronc7 is offline   Reply With Quote
Old 06-04-2011, 05:05 PM   #65
Senior Member
iTrader: (8)

Join Date: Sep 2010
Location: misery
Posts: 1,130
Total Cats: 9
Default

yay!
send me your old intercooler
phillyb is offline   Reply With Quote
Old 06-04-2011, 05:07 PM   #66
Senior Member
Thread Starter
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

I should be able to send you all you'll need other than the cold side "T pipe" + bov.... a 90 degree 2.5 coupler, and some misc clamps. ill send all i can spare
aaronc7 is offline   Reply With Quote
Old 06-04-2011, 05:12 PM   #67
Senior Member
iTrader: (8)

Join Date: Sep 2010
Location: misery
Posts: 1,130
Total Cats: 9
Default

**** chris
phillyb needs parts
phillyb is offline   Reply With Quote
Old 06-15-2011, 06:34 PM   #68
Senior Member
Thread Starter
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

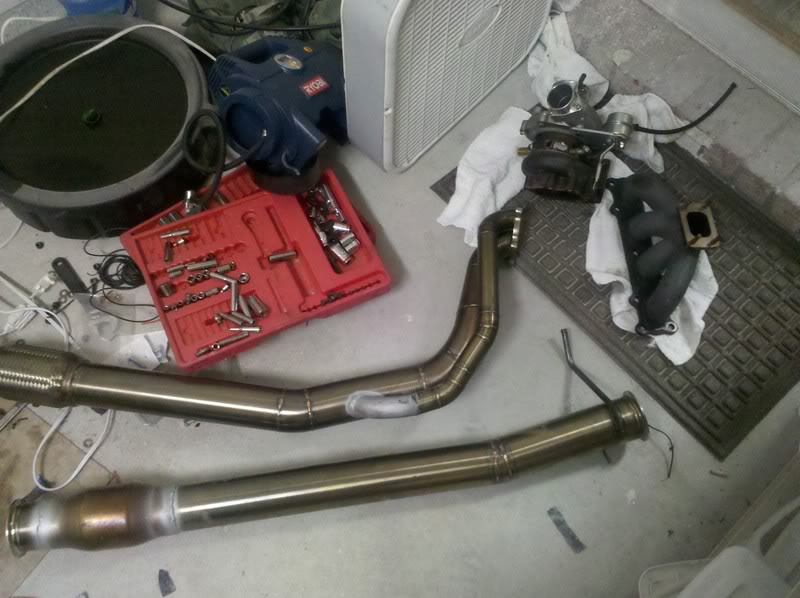

TURBO SETUP FOR SALE

Name:  IMG_20110614_205139.jpg
Views: 13
Size:  102.2 KB

just kidding....

removed the 'old stuff', going to send it off to get modded for EWG.

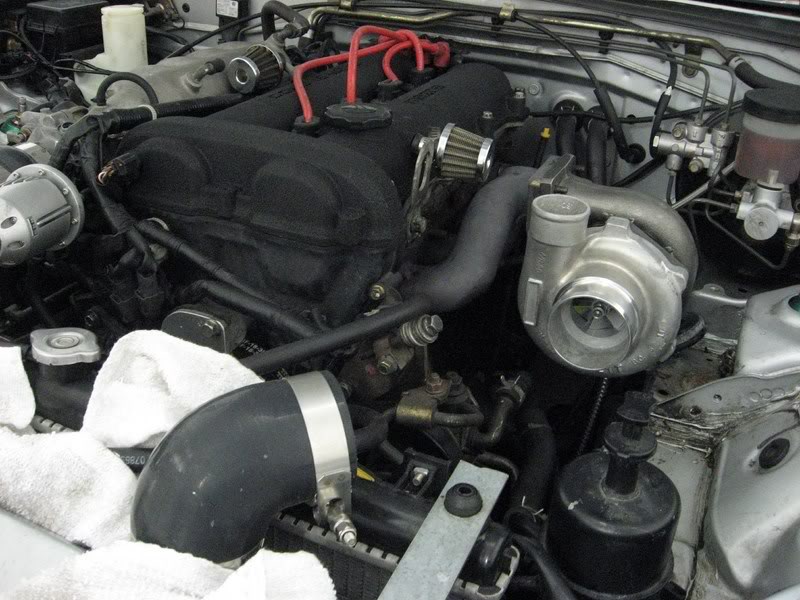

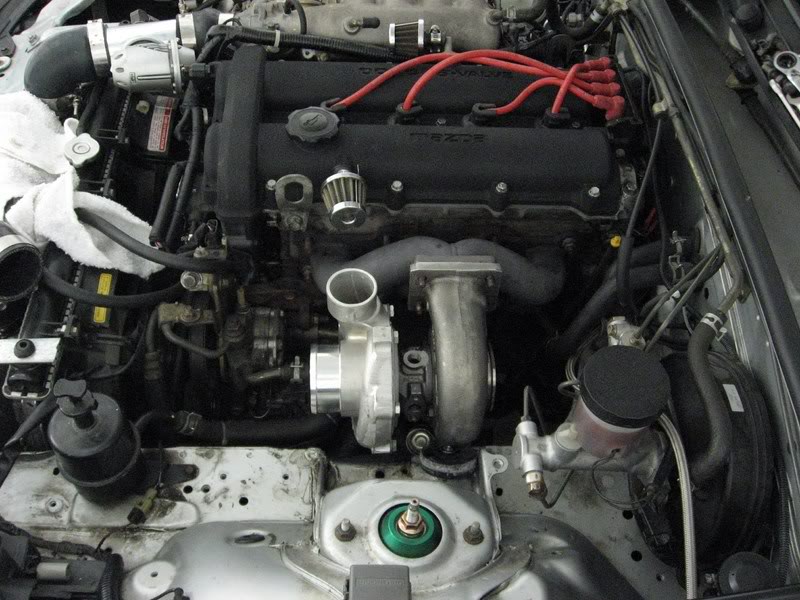

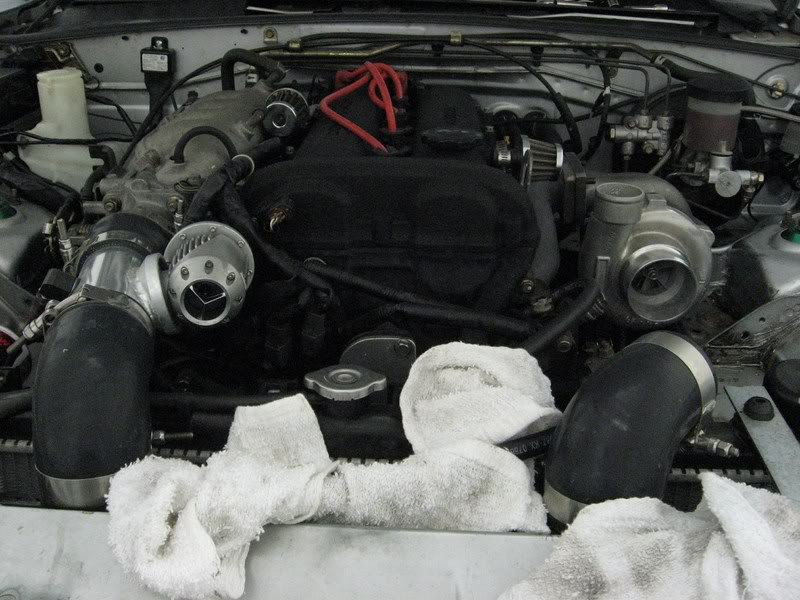

Also, say herro to my rittle friend

Name:  IMG_0459Copy.jpg
Views: 16
Size:  91.1 KB

Name:  IMG_0460Copy.jpg
Views: 19
Size:  97.1 KB

Name:  IMG_0462Copy.jpg
Views: 20
Size:  100.4 KB

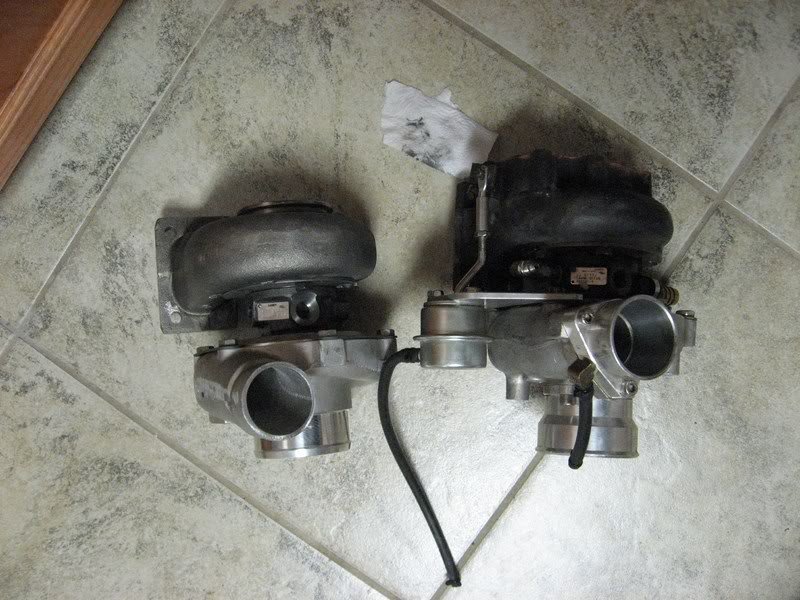

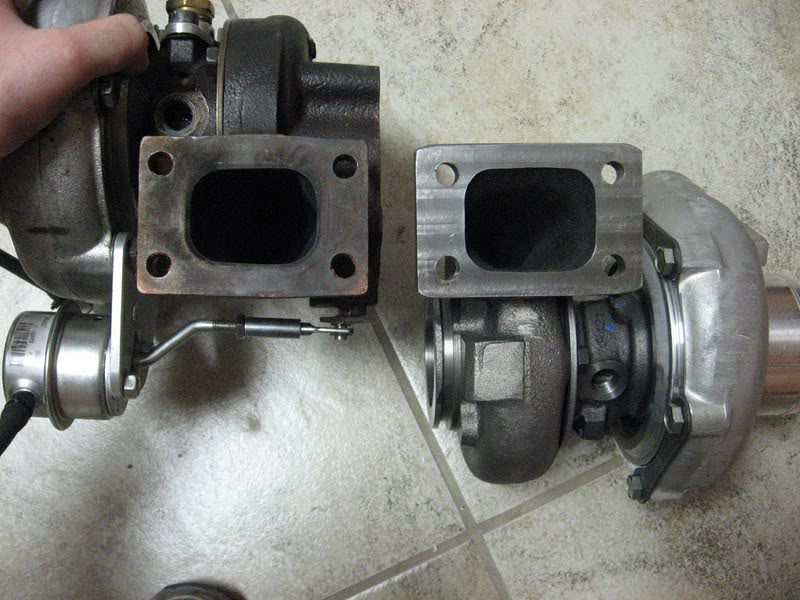

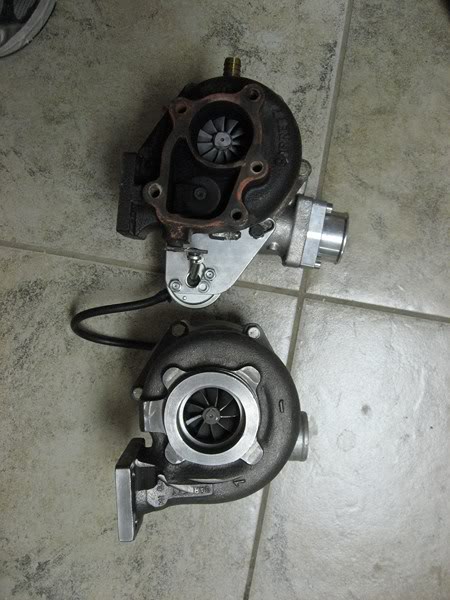

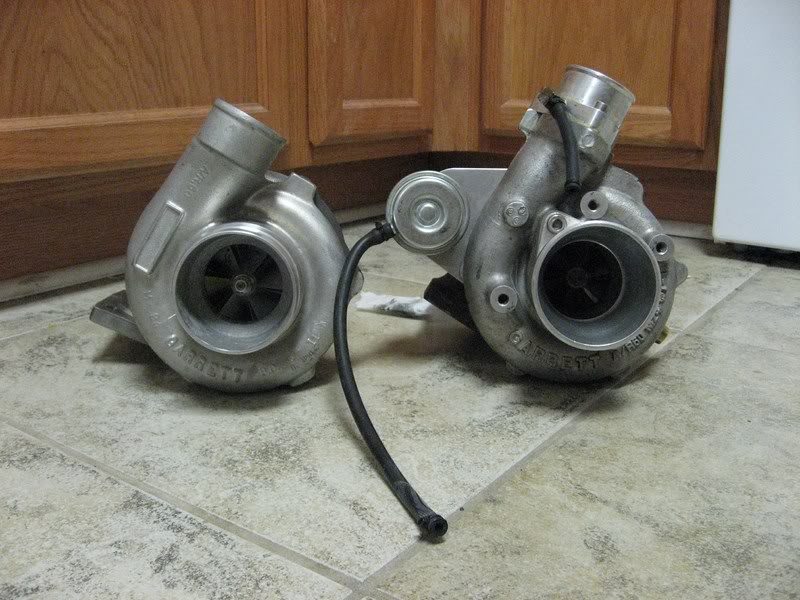

Here's some pics... GT2560R vs GT2871R

Name:  IMG_0466Copy.jpg
Views: 12
Size:  90.6 KB

Name:  IMG_0467Copy.jpg
Views: 13
Size:  97.5 KB

Name:  IMG_0468Copy.jpg
Views: 12
Size:  55.0 KB

Name:  IMG_0469Copy.jpg
Views: 15
Size:  96.3 KB
aaronc7 is offline   Reply With Quote
Old 08-26-2011, 06:45 PM   #69
Senior Member
Thread Starter
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

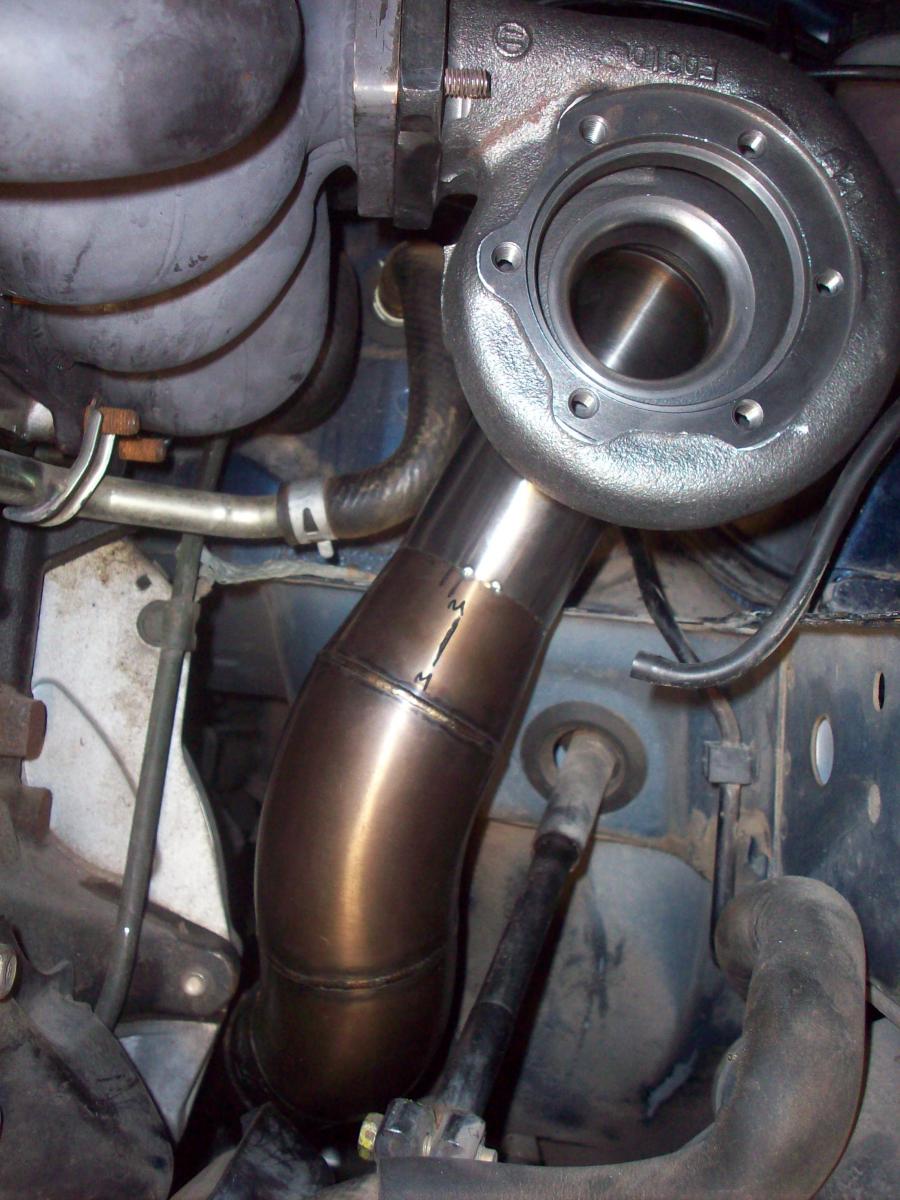

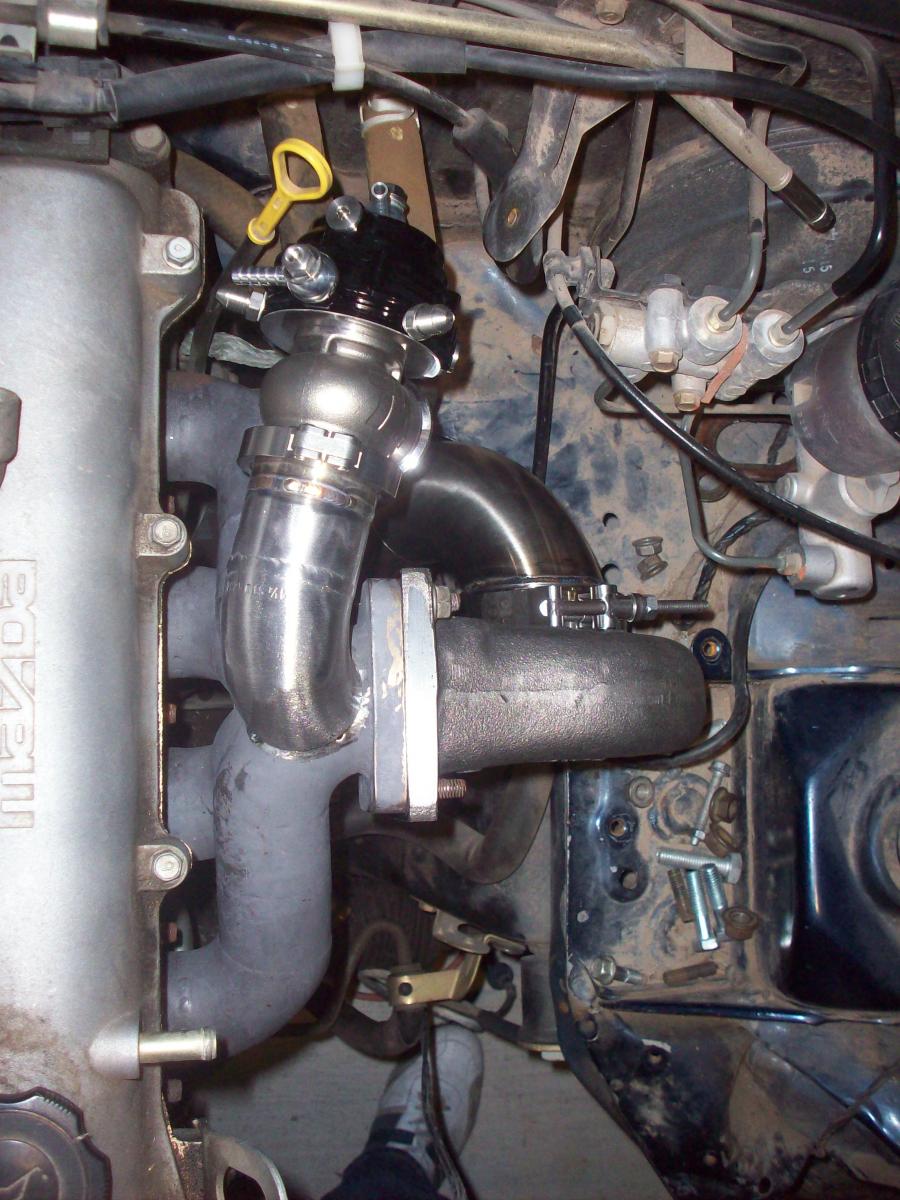

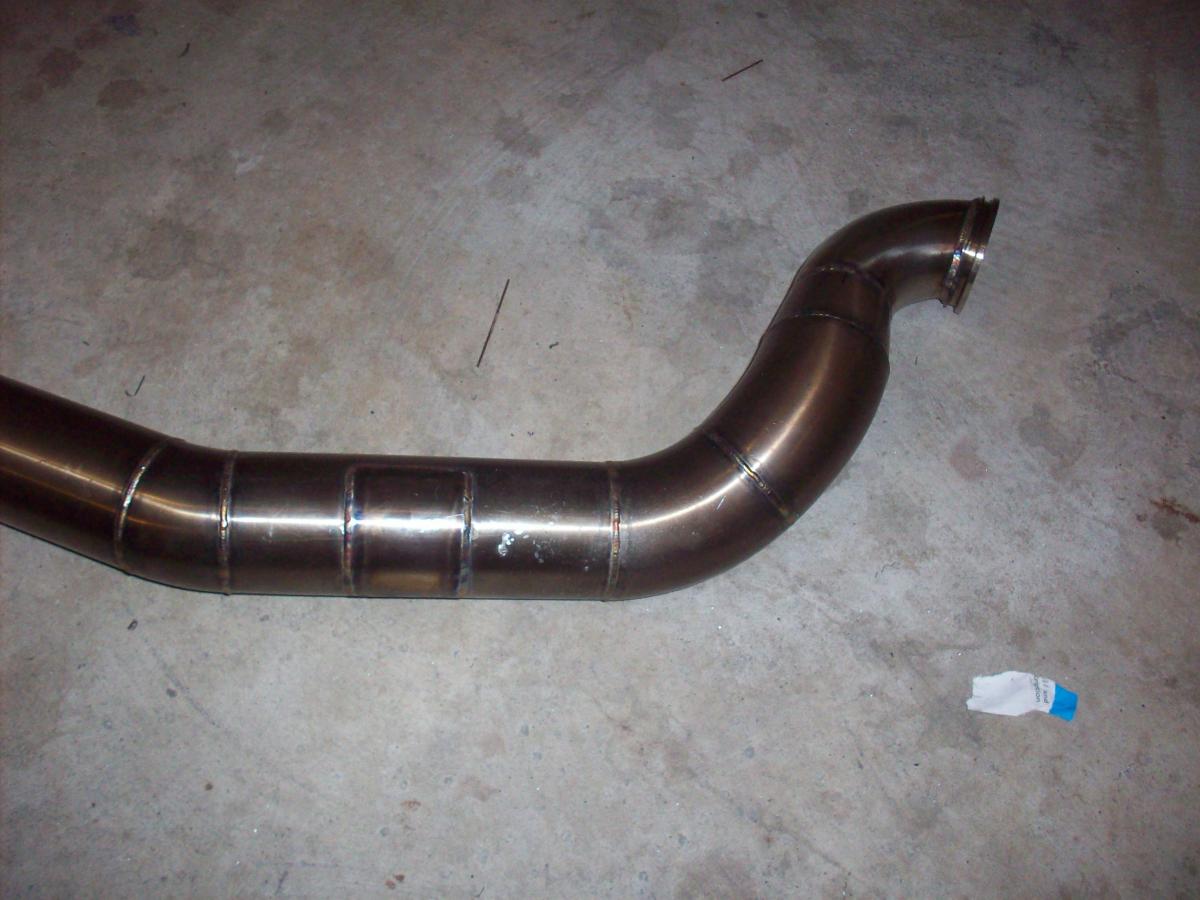

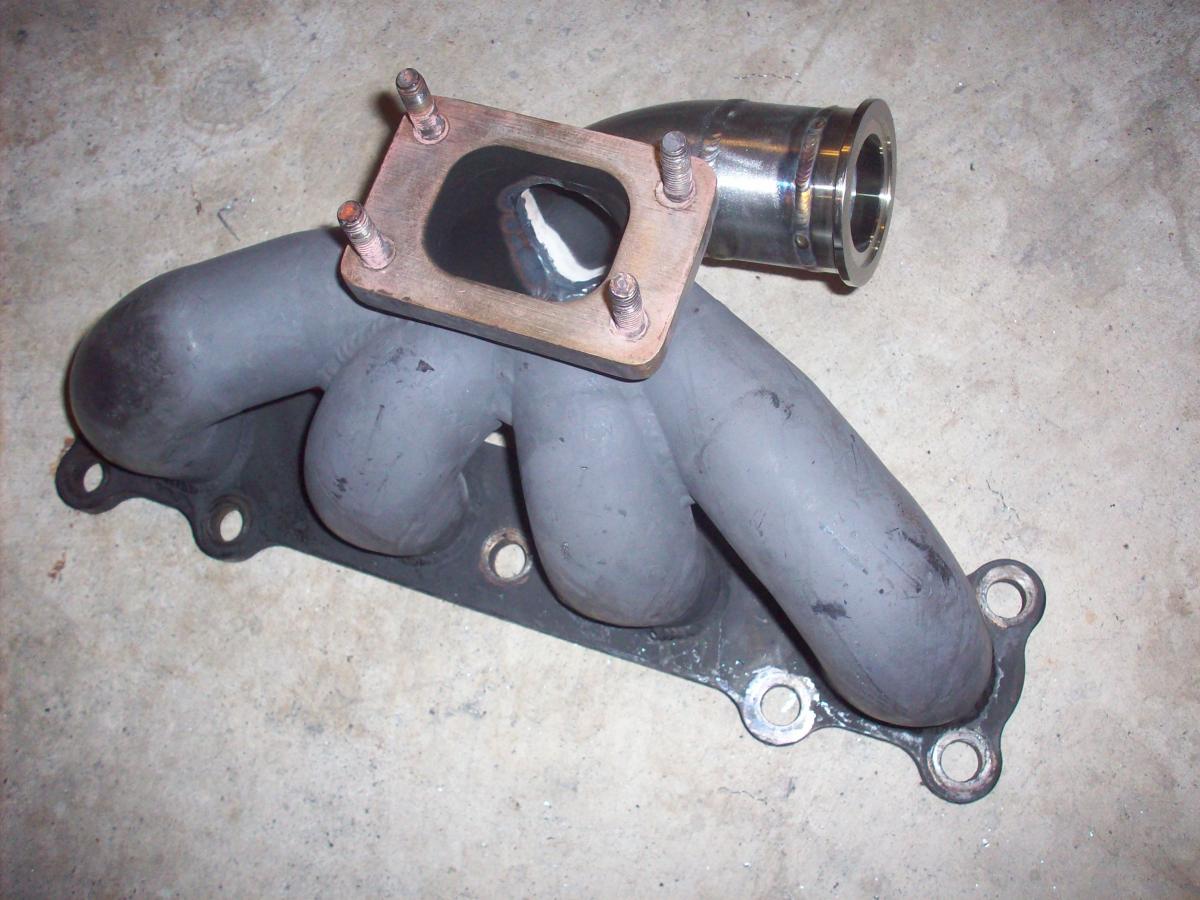

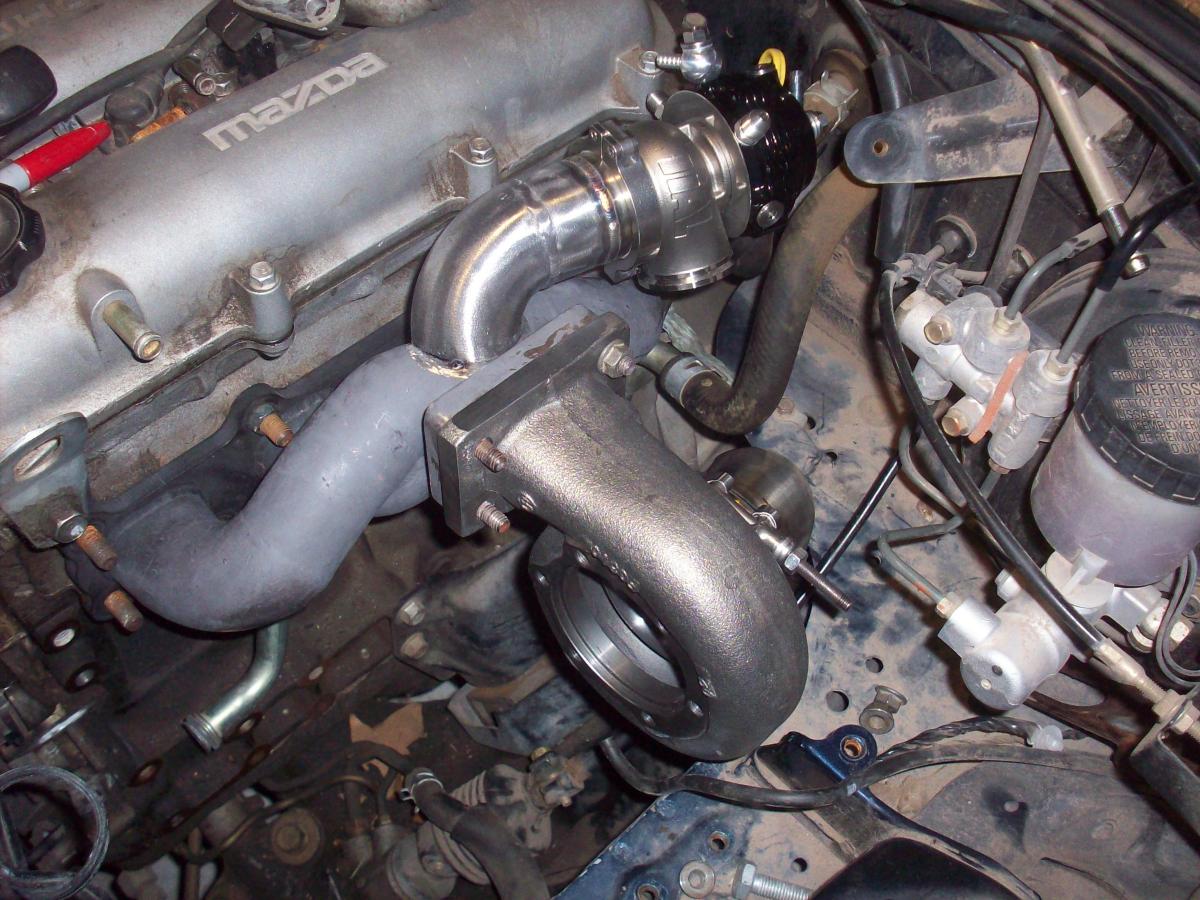

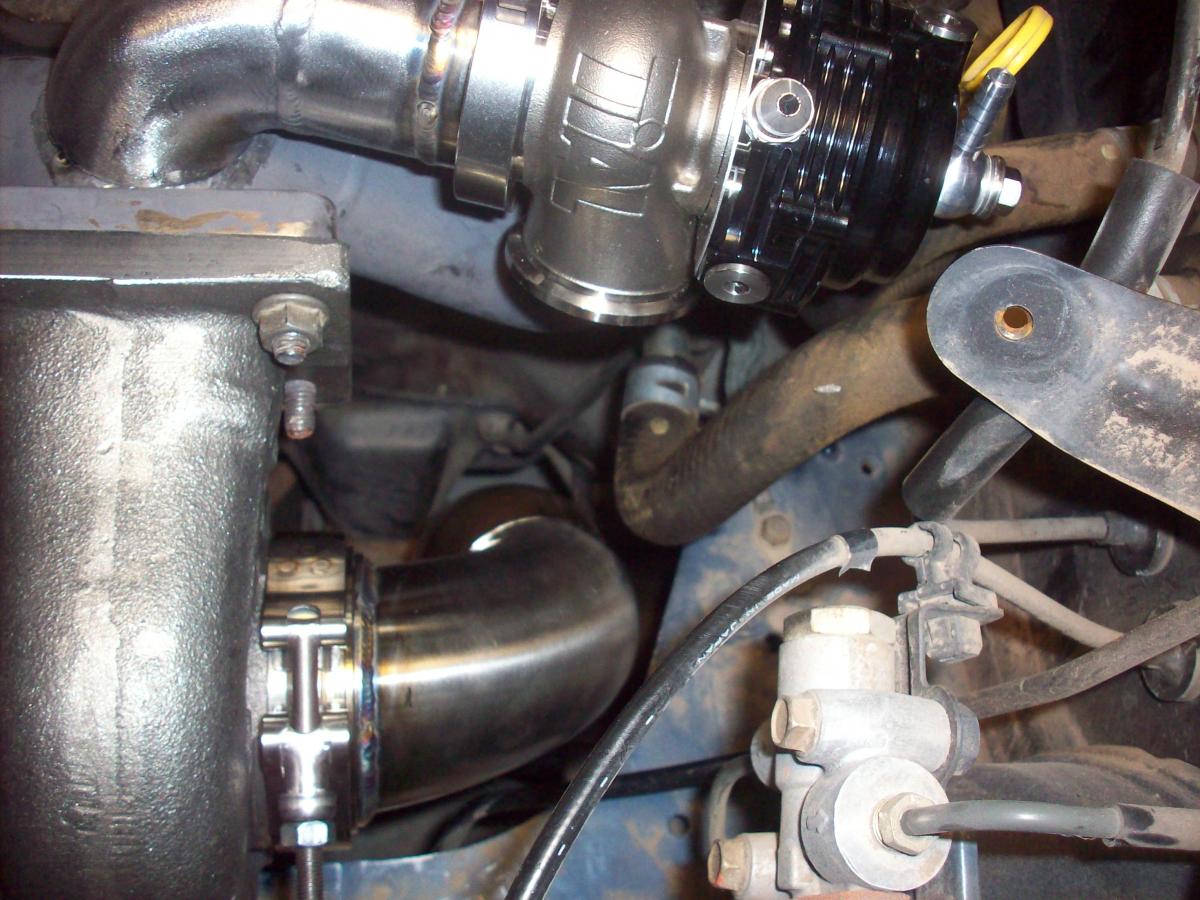

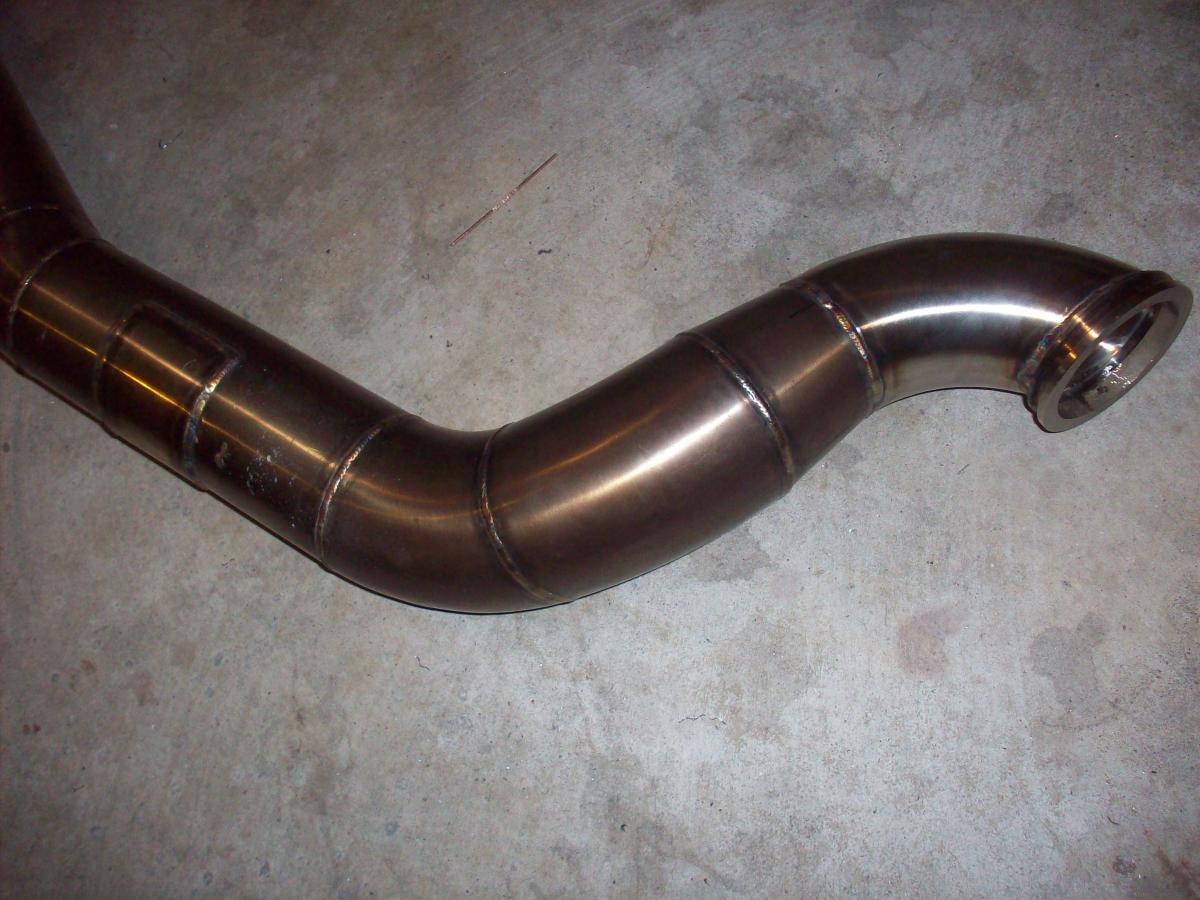

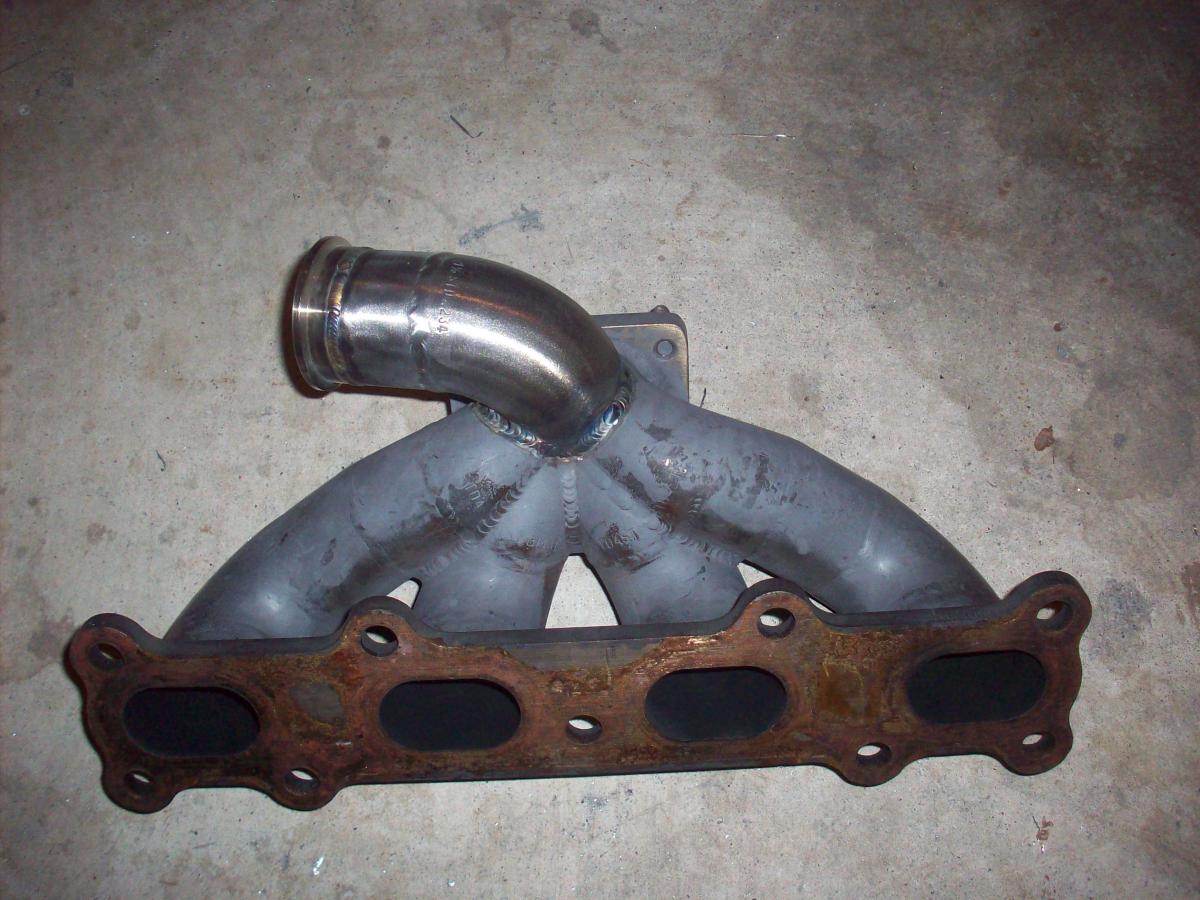

Exhaust has been modded for EWG now... also got the high flow cat i put in the midpipe removed (was trying to reduce boost creep).

Soon all that crap + GT2871 will be on!
Attached Thumbnails
aaron's build thread - more fail to come-109_0541.jpg   aaron's build thread - more fail to come-109_0542.jpg   aaron's build thread - more fail to come-109_0543.jpg   aaron's build thread - more fail to come-109_0544.jpg   aaron's build thread - more fail to come-109_0546.jpg

aaron's build thread - more fail to come-109_0548.jpg   aaron's build thread - more fail to come-109_0549.jpg   aaron's build thread - more fail to come-109_0550.jpg
aaronc7 is offline   Reply With Quote
Old 08-31-2011, 08:59 AM   #70
Junior Member

Join Date: Oct 2006
Location: Melbourne, Australia
Posts: 48
Total Cats: 0
Default

Awesome build mate, quick question what paint was it that you used on the manifold?
green_comet is offline   Reply With Quote
Old 08-31-2011, 12:16 PM   #71
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

So cool.... in for new dyno numbers.
shlammed is offline   Reply With Quote
Old 08-31-2011, 02:43 PM   #72
Senior Member
Thread Starter
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

Quote:
Originally Posted by green_comet View Post
Awesome build mate, quick question what paint was it that you used on the manifold?
High temp VHT paint that's supposed to be good for 1600 or 2000 F or whatever. Had a lot of guys say it will just peel off after the first week or first drive even, but I put a few thousand on it, no issues.

I think the difference between fail and success is the prep work. I didn't sandblast the surface, which would be even better, but I roughed it up pretty good with sandpaper. Then applied several coats (whatever the directions said), and then baked/cured the paint in the oven...there's instructions for doing it on the car as well. Bottom line, I followed the directions and had no peeling or cracking or anything.

With that said though, I'm probably going to get this properly ceramic coated before it goes back on.

Quote:
Originally Posted by shlammed View Post
So cool.... in for new dyno numbers.
Cool, thanks guys. I'll probably dyno it again on 'low boost' with the new turbo in the near future.
aaronc7 is offline   Reply With Quote
Old 10-30-2011, 06:25 PM   #73
Senior Member
Thread Starter
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

Back from the dead.

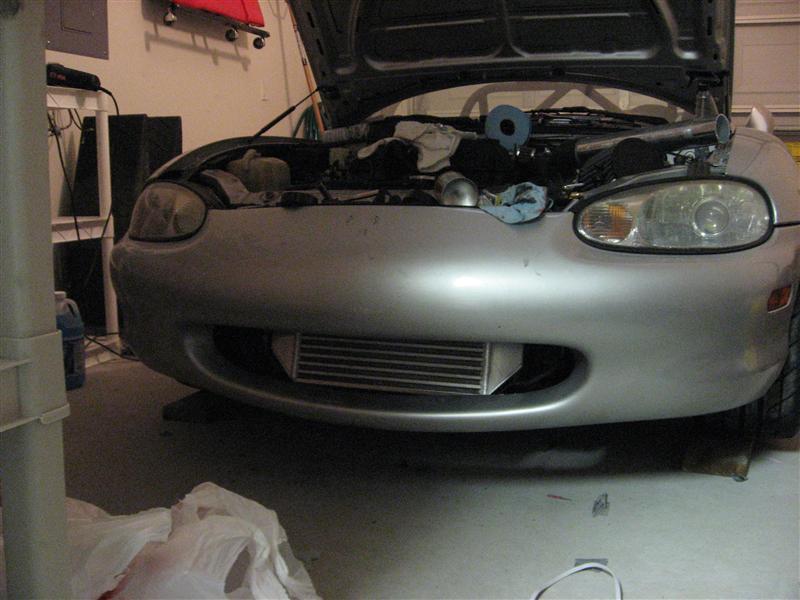

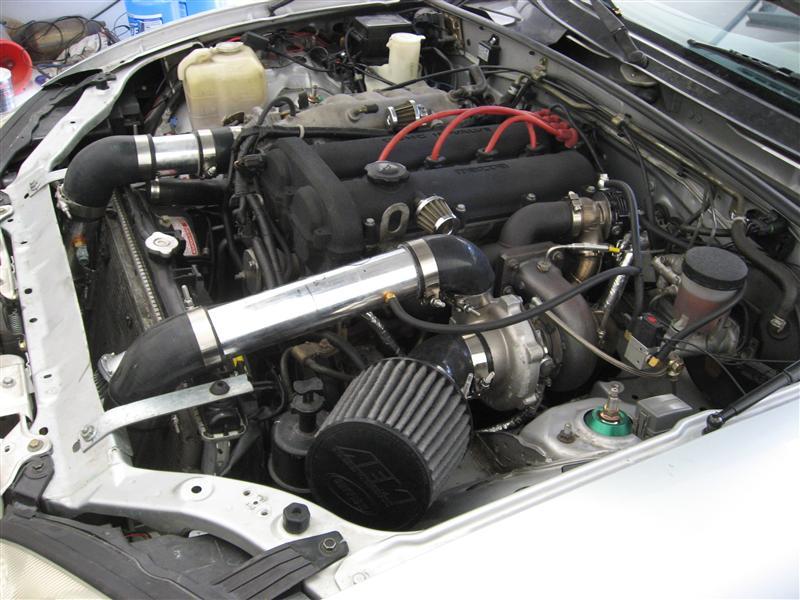

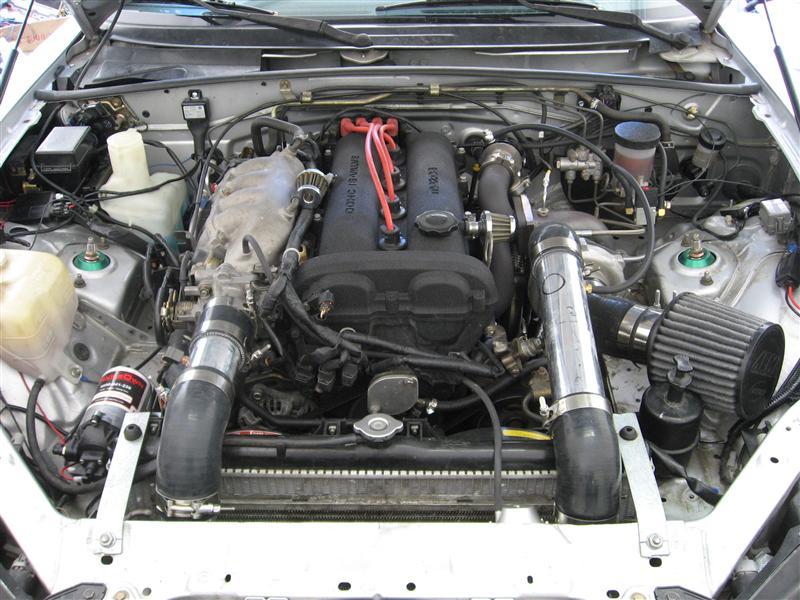

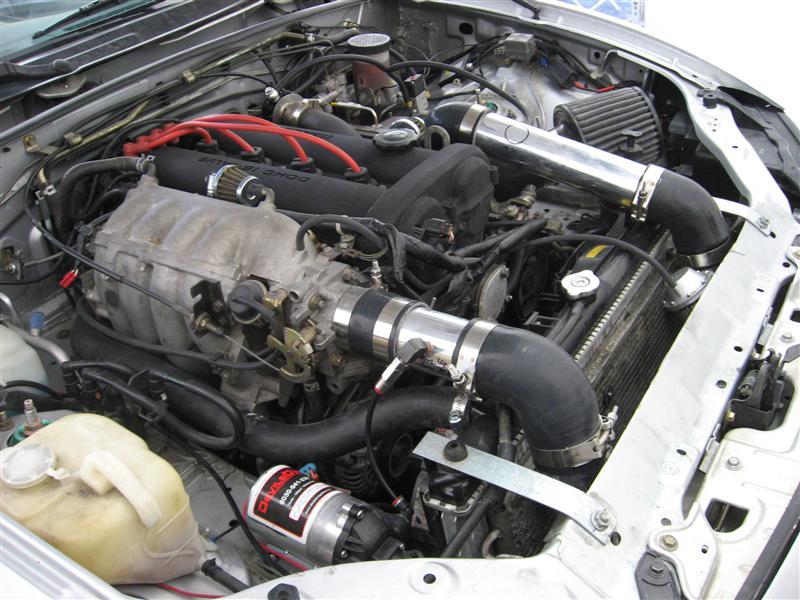

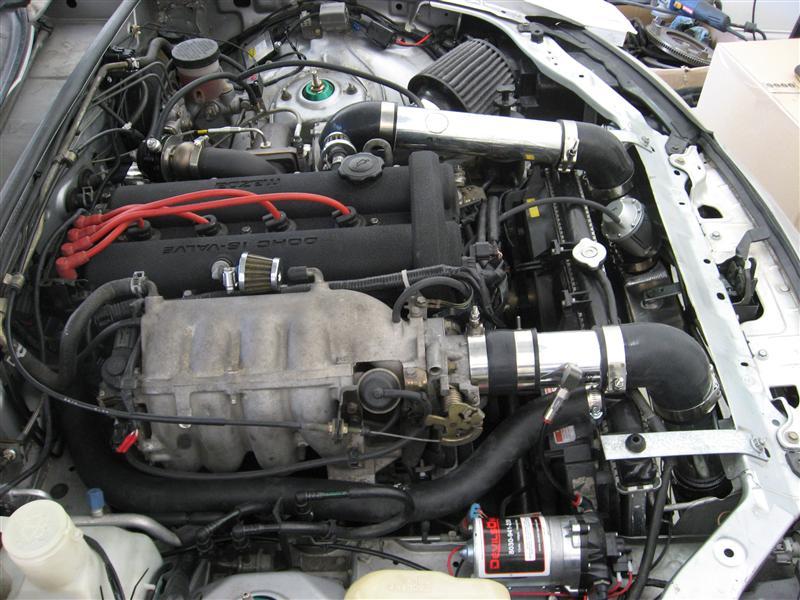

Car has been running for a month or so on this setup. Been fiddling around and fixing various issues, but running pretty well at around 12psi... might bump it up to 14, if my injectors can support it (550cc).

Wired a GM 3 bar MAP sensor into the MS and using the stock 2.5 bar one for baro correction.

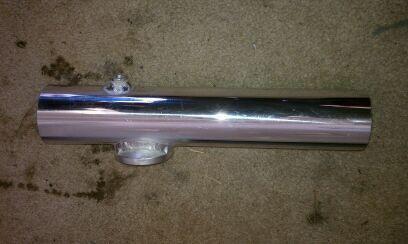

Properly welded IC piping with bungs (rather than ghetto rtv silicone) on the way. I did do a boost leak test though, and the RTV is holding it just fine.

Attached Thumbnails
aaron's build thread - more fail to come-img_0501custom.jpg   aaron's build thread - more fail to come-img_0534.jpg   aaron's build thread - more fail to come-img_0535.jpg   aaron's build thread - more fail to come-img_0536.jpg   aaron's build thread - more fail to come-100media95imag0107.jpg

aaron's build thread - more fail to come-img_0540.jpg
aaronc7 is offline   Reply With Quote
Old 11-03-2011, 06:06 PM   #74
Senior Member
Thread Starter
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default





Attached Thumbnails
aaron's build thread - more fail to come-img_0552.jpg   aaron's build thread - more fail to come-img_0553.jpg   aaron's build thread - more fail to come-img_0559.jpg
aaronc7 is offline   Reply With Quote
Old 11-08-2011, 03:48 AM   #75
Newb

Join Date: Nov 2009
Location: ratlanta
Posts: 19
Total Cats: 0
Default

i love you aaron! for real though what kind of shady *** place do you live in? End of the road, denalis, tractors!?
martyxattack is offline   Reply With Quote
Old 11-28-2011, 10:18 AM   #76
Newb

Join Date: Jul 2011
Location: Estonia
Posts: 9
Total Cats: 0
Default

Hi
Where did you buy that I/C?
nashvill is offline   Reply With Quote
Old 11-28-2011, 11:42 AM   #77
Junior Member
iTrader: (2)

Join Date: Jan 2011
Location: Columbus Ohio
Posts: 259
Total Cats: 4
Default

he called ets and they made it to his requested dimensions
http://www.extremeturbosystems.com/
cpolly69 is offline   Reply With Quote
Old 11-28-2011, 03:30 PM   #78
Senior Member
Thread Starter
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

Cpolly is my new personal secretary guys. Please direct all questions to him and get with him if you'd like to set up an appointment, thanks
aaronc7 is offline   Reply With Quote
Old 11-28-2011, 03:44 PM   #79
Junior Member
iTrader: (2)

Join Date: Jan 2011
Location: Columbus Ohio
Posts: 259
Total Cats: 4
Default

That was the deal right? My services in exchange for free parts, I'm still waiting on that turbo....
cpolly69 is offline   Reply With Quote
Old 12-21-2011, 08:33 PM   #80
Senior Member
Thread Starter
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

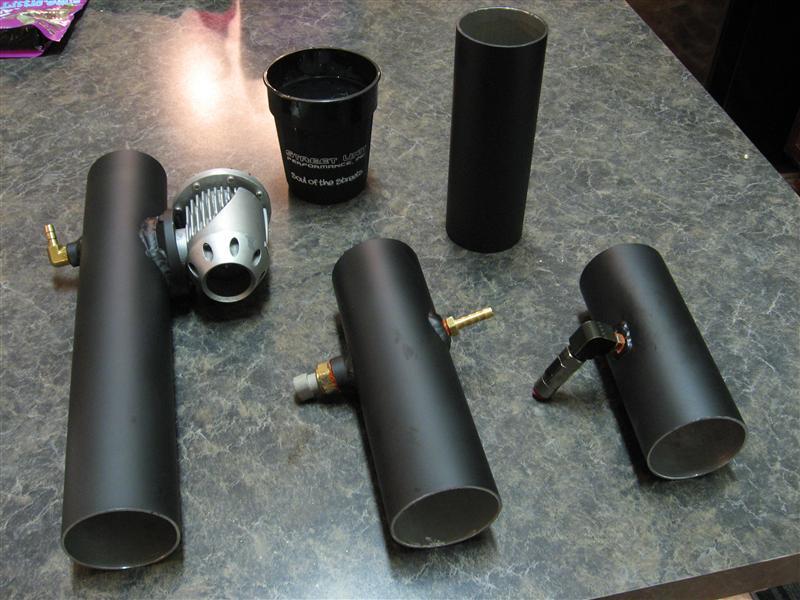

new ic pipes. no more just drilling and tapping into thin aluminum wall and using lots of RTV, lol.

Attached Thumbnails
aaron's build thread - more fail to come-img_0649custom.jpg
aaronc7 is offline   Reply With Quote
