Old 06-12-2012, 10:50 PM   #121
Senior Member
Thread Starter
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

"Integral stage 3" is what my searching comes up with... specs unknown but seems pretty on par with what "272" cams generally seek to accomplish.

He did have 95 head, I read that as well.
aaronc7 is offline   Reply With Quote
Old 12-03-2012, 09:52 PM   #122
Senior Member
Thread Starter
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

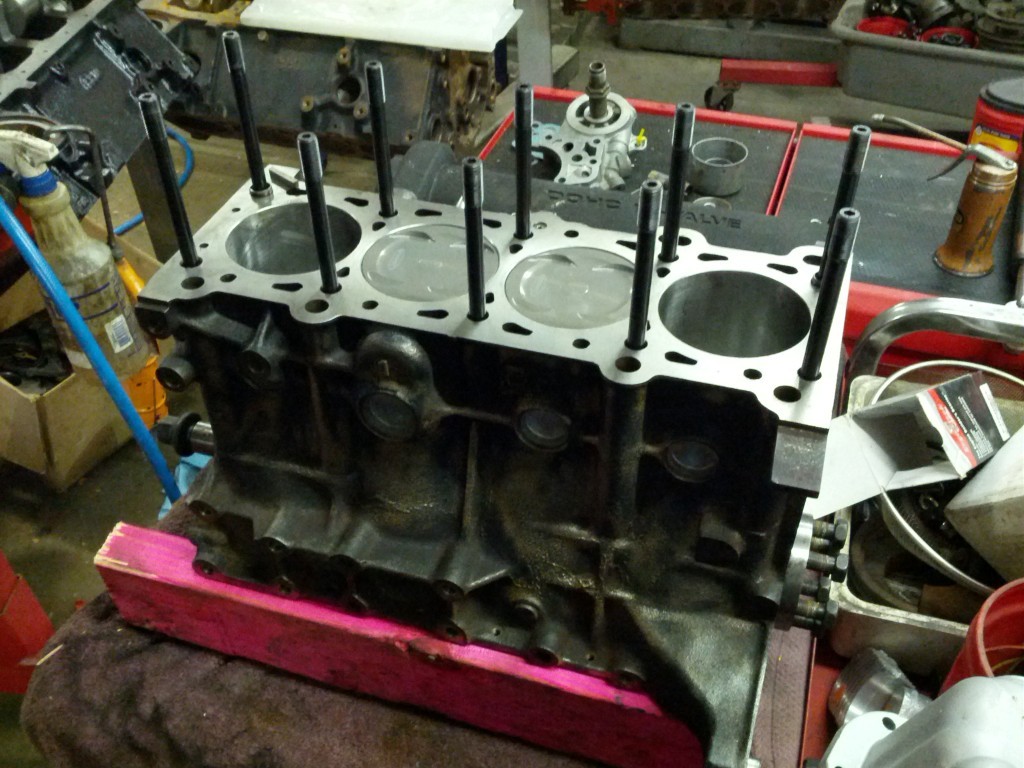

very slowly making progress.... bottom end is done. waiting on head. turning out to be a little more in depth, with the custom cams from Webb, etc.

Attached Thumbnails
aaron's build thread - more fail to come-img_20121130_142129custom.jpg
aaronc7 is offline   Reply With Quote
Old 12-03-2012, 10:00 PM   #123
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,165
Total Cats: 2,573
Default

geez...going all out...I like

very interested to see how your GTX plot will stack up to soviets EFR. I know its not exactly apples to apples with the cams and whatnot, but its all we got for now.
18psi is offline   Reply With Quote
Old 12-03-2012, 11:38 PM   #124
Senior Member
Thread Starter
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

Ultimately looking for about the same power, ~400whp. But hopefully can get there with a lot lower psi (head work, higher redline)
aaronc7 is offline   Reply With Quote
Old 12-20-2012, 05:32 PM   #125
Senior Member
iTrader: (1)

BogusSVO's Avatar

Join Date: Mar 2012
Location: Pensacola Fla.
Posts: 590
Total Cats: 191
Default

Just picked up the intake today. Thought I would post it up!


I went about it a little diffrent than it is commonly done.

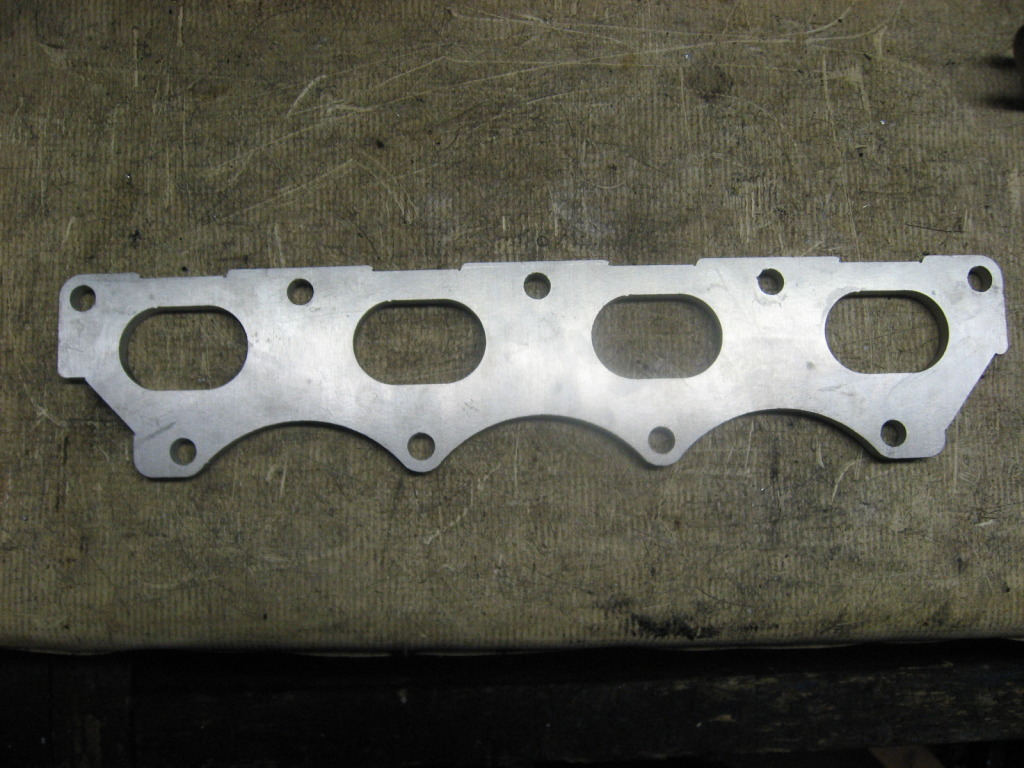

To help keep some torque, and shorten the runner a bit, I had a flange made that fits the Mazda.

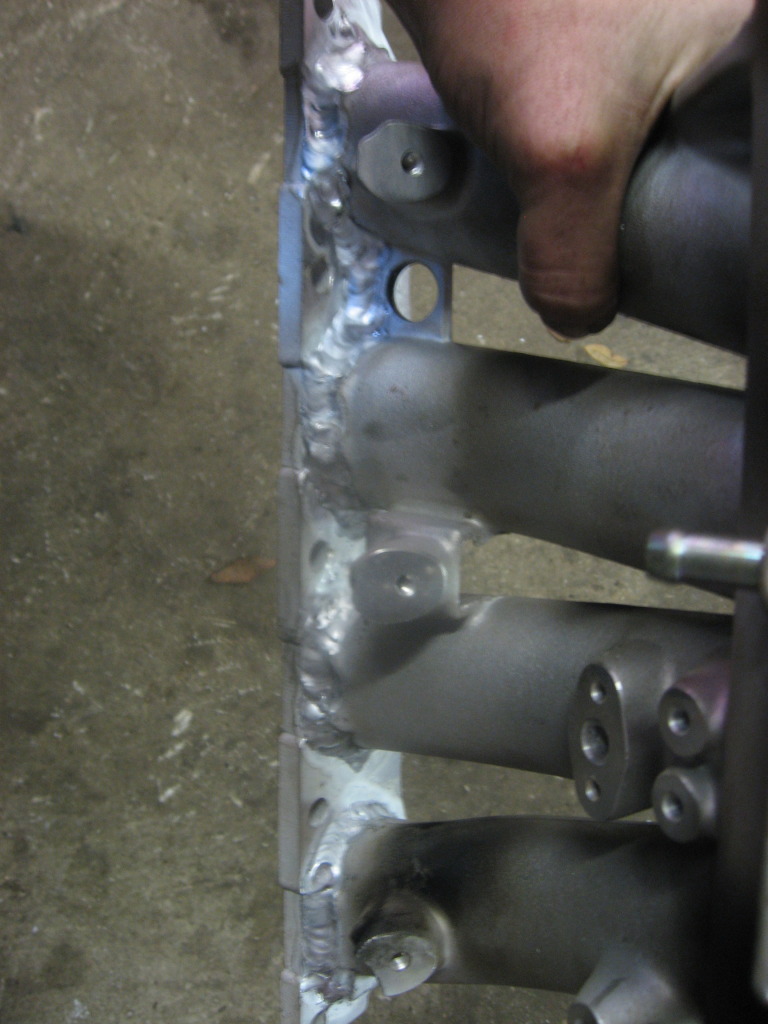

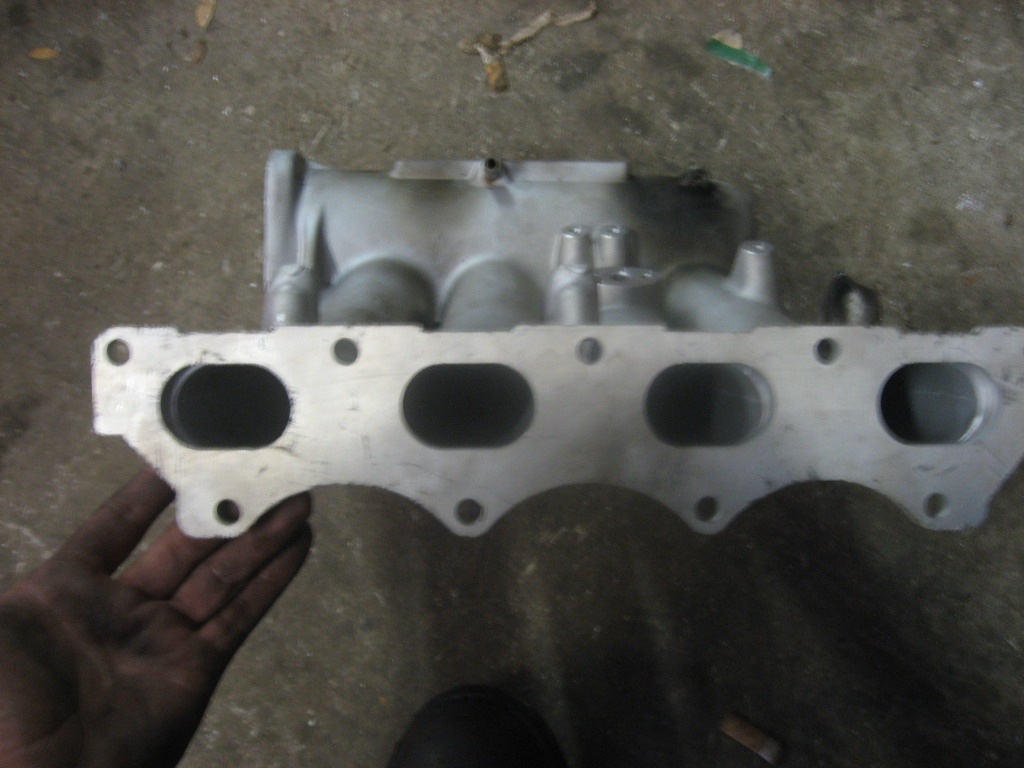

Then welding the new water jet cut Mazda flange onto the Honda intake

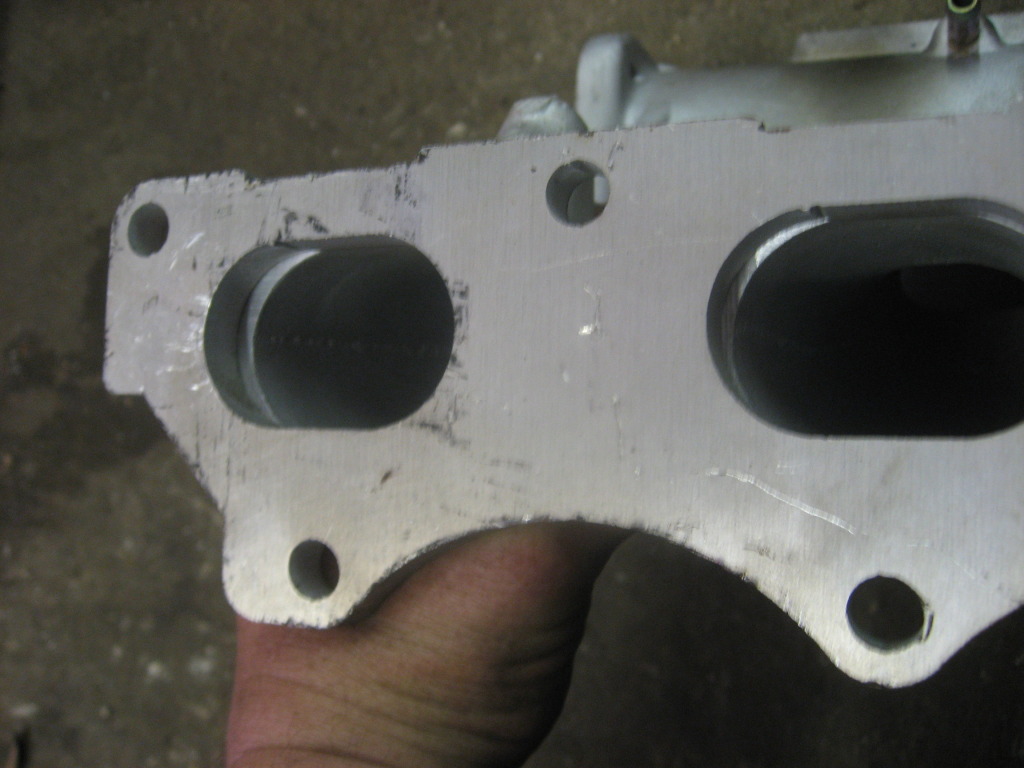

The runner spacing is close between the Mazda and the Hinda.


A little porting will be needed to smooth things out.
Attached Thumbnails
aaron's build thread - more fail to come-img_1350.jpg   aaron's build thread - more fail to come-img_1588.jpg   aaron's build thread - more fail to come-img_1586.jpg   aaron's build thread - more fail to come-img_1587.jpg
BogusSVO is offline   Reply With Quote
Old 12-21-2012, 06:39 PM   #126
Senior Member
Thread Starter
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

Thanks for posting! This is a "Godspeed" Skunk2 knockoff for anyone who is wondering. I will make a full thread with pics, TB info and any issues I ran into after it's all done with.
aaronc7 is offline   Reply With Quote
Old 01-05-2013, 07:50 PM   #127
Newb

Join Date: Jan 2013
Posts: 9
Total Cats: -3
Default

aaronc7 do you still have the 4.3 ring and pinion?
zumish is offline   Reply With Quote
Old 01-05-2013, 10:29 PM   #128
Senior Member
Thread Starter
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

nope, sold it local
aaronc7 is offline   Reply With Quote
Old 01-19-2013, 11:46 AM   #129
Senior Member
Thread Starter
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

About that time for a monthly fail update I suppose.

The motor is getting closer to being done...still waiting on the head.

In the meantime I've been working on cleaning my garage and some small stuff on the car.

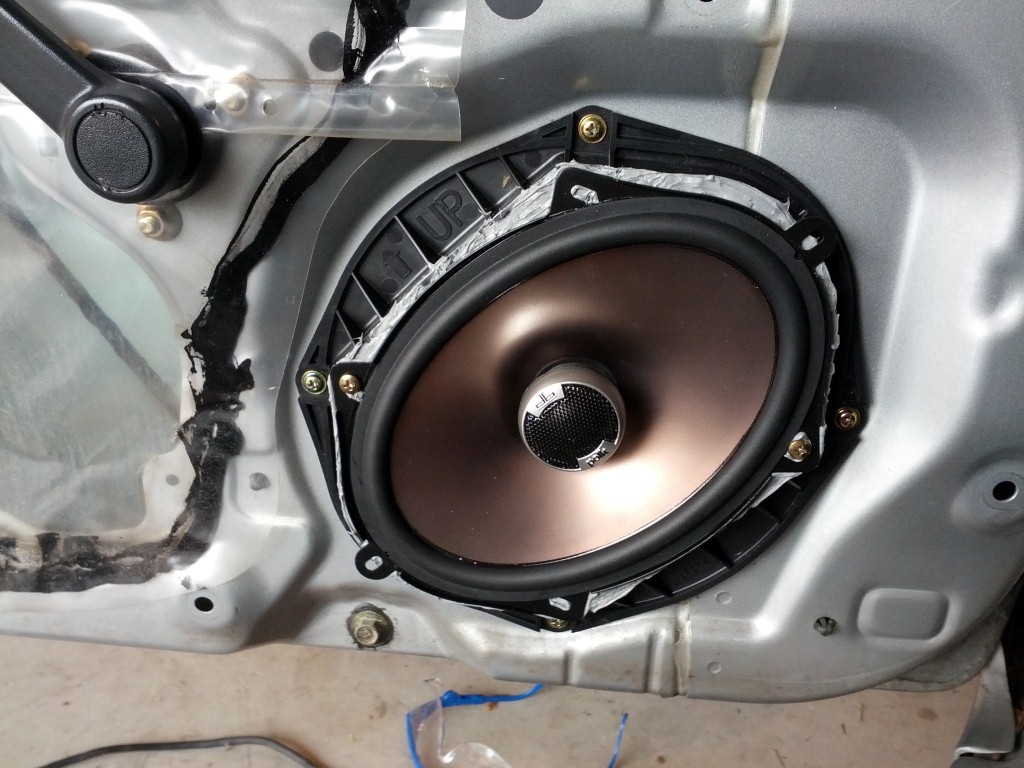

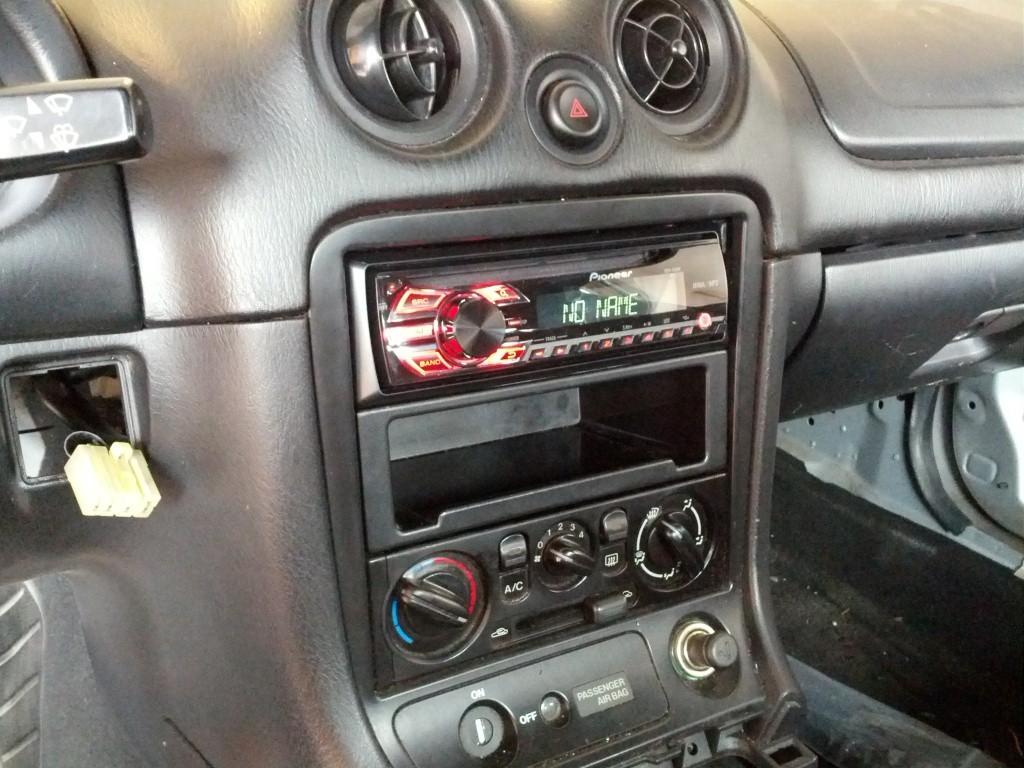

Put a new headunit + speakers in the car. The previous install job was very depressing.... and sounded like **** (only 1 speaker worked, off brand crap). Just went with a basic Pionner HU with aux input, and Polk DB571 5x7 speakers. Nothing amazing, but light years better than what was in there before...plus I has aux input, which is the biggest thing I needed.

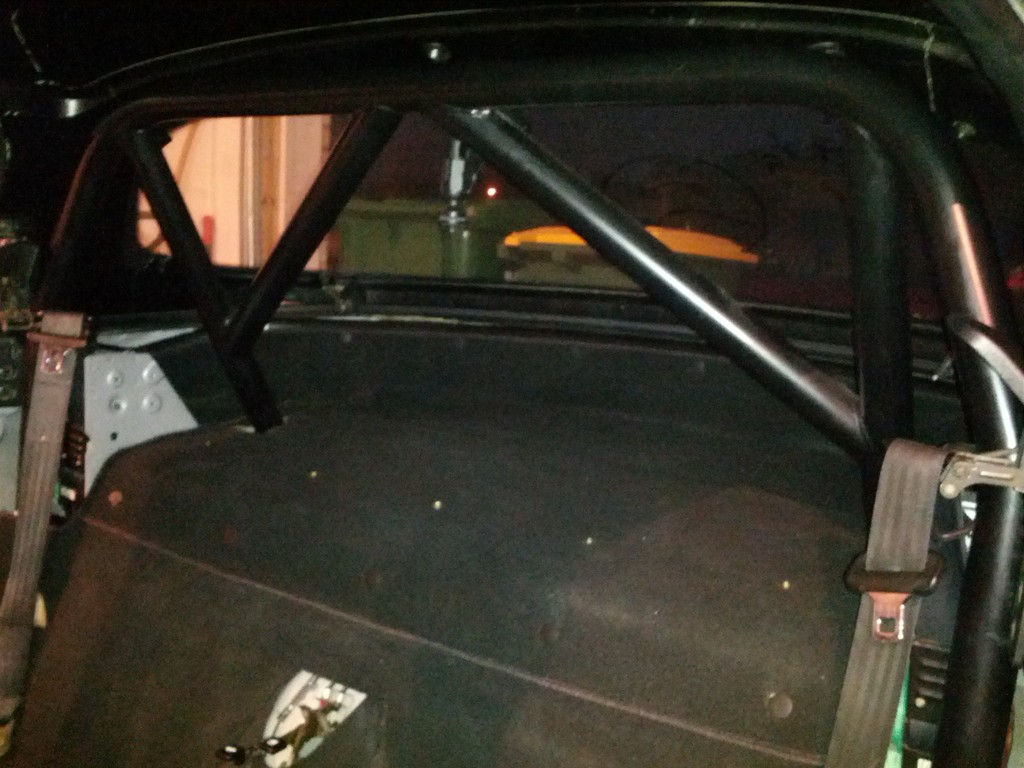

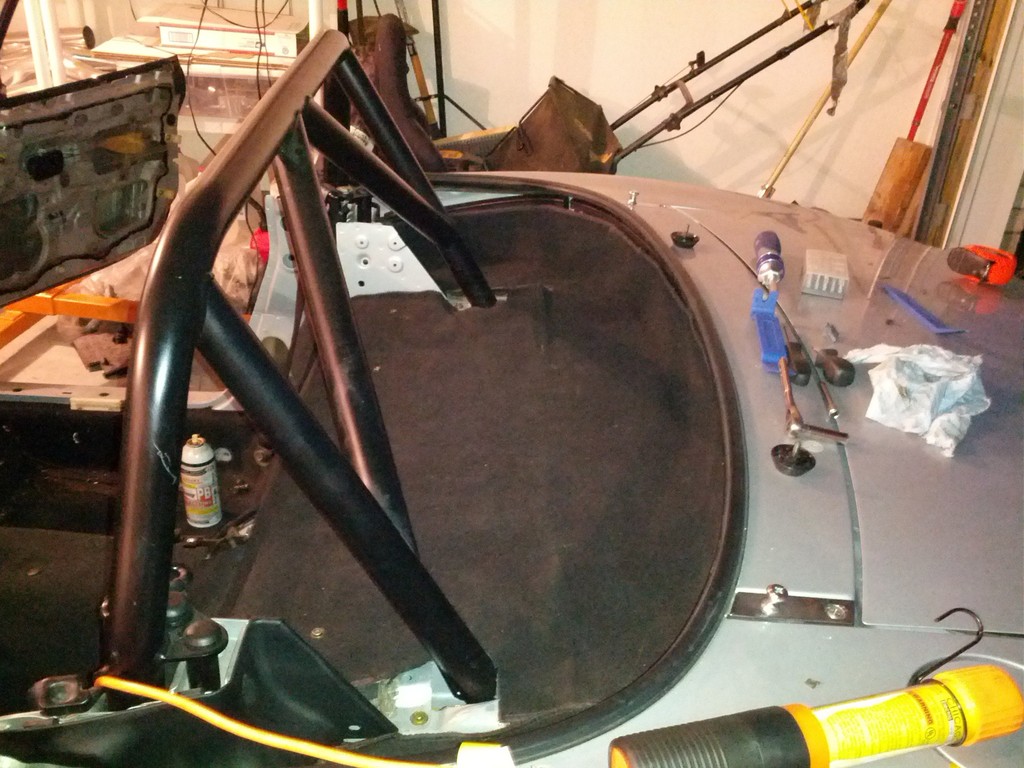

My soft top has a rip in it, plus I much prefer the hard top, so I pulled the whole soft top out today. Thing is heavy, it's gotta be pretty much the same weight as the hard top, or heavier. Saved some weight, and got a bunch of extra space behind the seats.

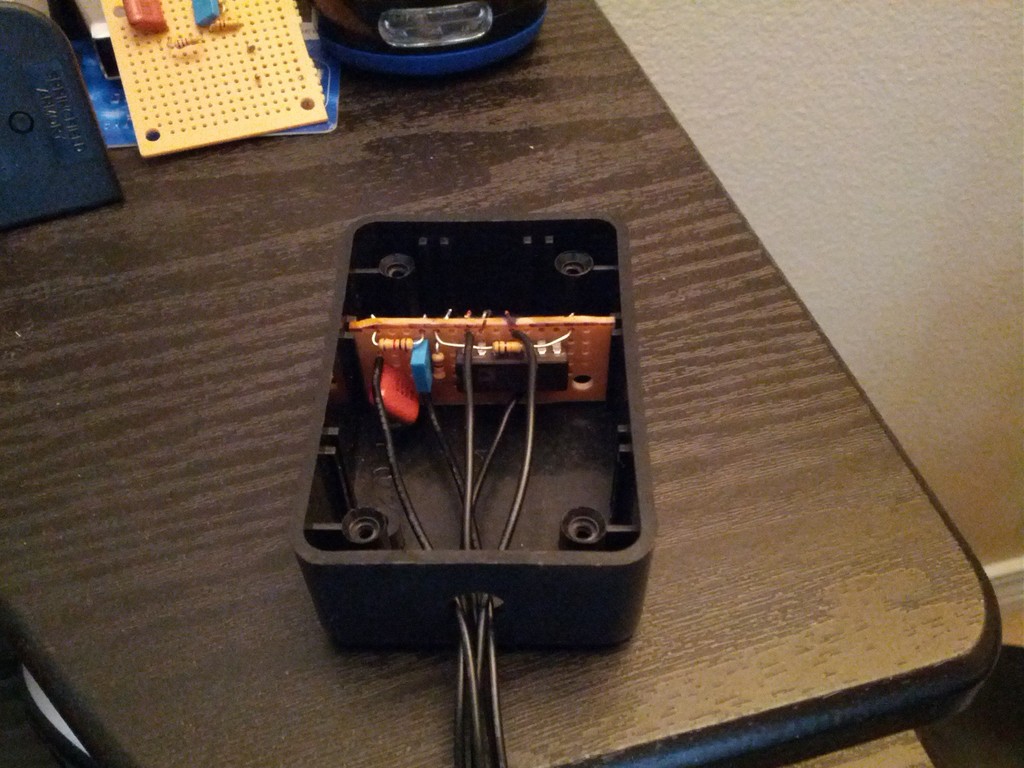

I re-did the EGT circuit as well (so I can wire EGT straight to MS, for datalogging/display, etc.). My first job was kinda embarassing, and didn't actually fit inside the box I got for it... v2 much better.









Attached Thumbnails
aaron's build thread - more fail to come-img_20130106_104347medium.jpg   aaron's build thread - more fail to come-img_20130106_104357medium.jpg   aaron's build thread - more fail to come-img_20130112_172722.jpg   aaron's build thread - more fail to come-img_20130112_173542.jpg   aaron's build thread - more fail to come-img_20130113_095154.jpg

aaronc7 is offline   Reply With Quote
Old 01-19-2013, 12:05 PM   #130
Senior Member
Thread Starter
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

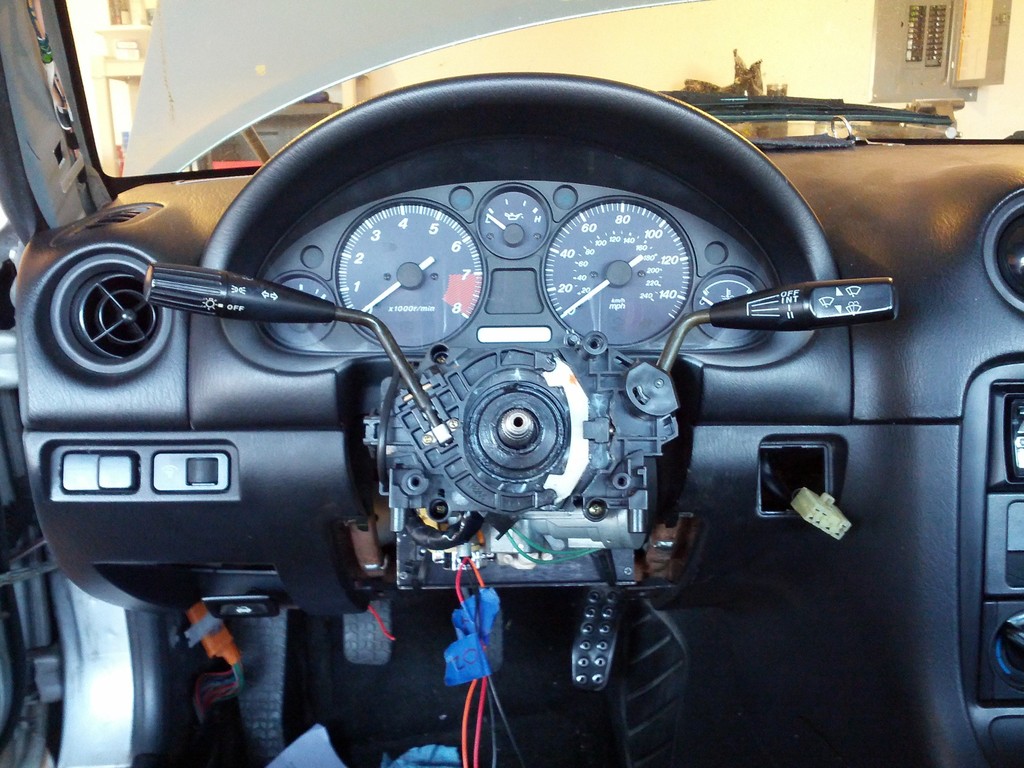

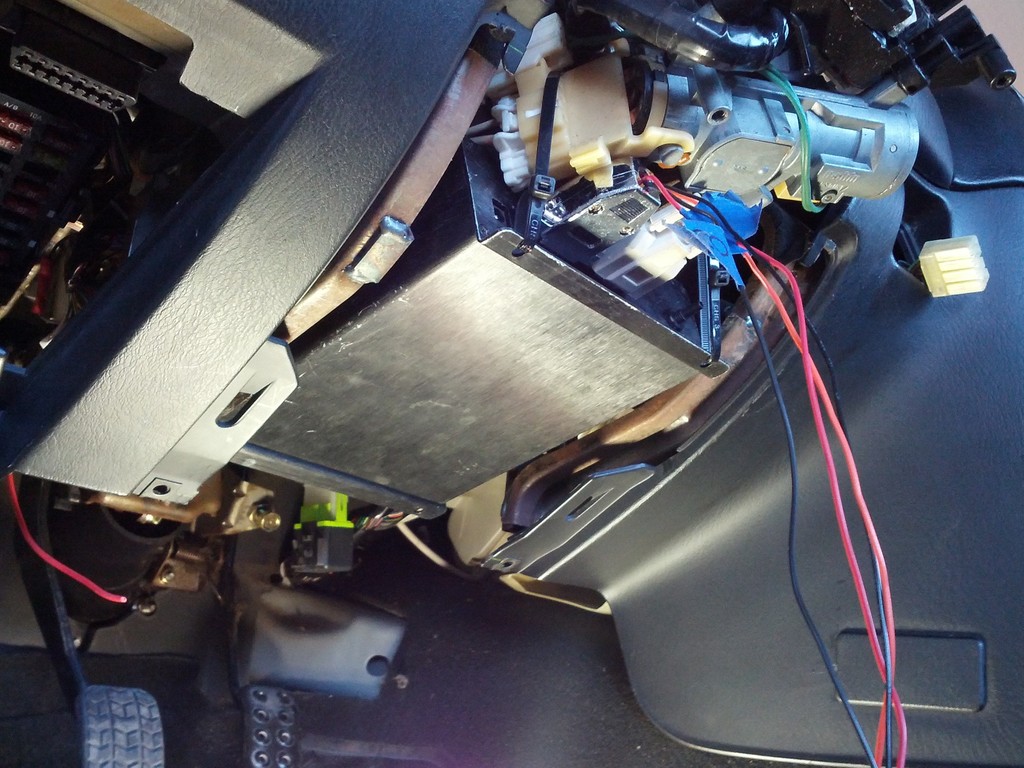

I've always had an issue/disliked having the ecu mounted in the standard NB location (up between the clutch and brake pedal). Pain in the butt to get to, after having to pull ecu a few times now I have been looking for a better option..this is what I came up with. Two zip ties in the front and it's rock solid, not in the way of my legs at all, with my bucket seats. Very easy to get to and install/remove.



Attached Thumbnails
aaron's build thread - more fail to come-img_20130118_163904.jpg   aaron's build thread - more fail to come-img_20130118_163745.jpg
aaronc7 is offline   Reply With Quote
Old 01-19-2013, 12:22 PM   #131
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,065
Total Cats: 253
Default

Interesting speaker change. As an audio noob, I'm curious as to how those sound vs. the round door speaker that is traditionally used.

Looks good, Aaron.
viperormiata is offline   Reply With Quote
Old 01-19-2013, 09:19 PM   #132
Senior Member
Thread Starter
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

Quote:
Originally Posted by viperormiata View Post
Interesting speaker change. As an audio noob, I'm curious as to how those sound vs. the round door speaker that is traditionally used.

Looks good, Aaron.
5x7 is what came stock with mine...those plastic speaker adapter things were already in place. Also, when I put 99 Miata, non-bose, unit into Crutchfield, it tells me to get 5x7. I think there was some variance over the years of 5x7 vs 6.5" round.. but not sure exactly when that switched over. There was a large round opening behind the 5x7 adapter thing... probably like 8" size, but I didn't feel like going that route, so I just went the easy route. Just wanted decent sound and a little more volume. I'm not a huge audio guy myself and don't really care all that much when it comes to the Miata lol.

I may throw another set of the same speakers in the rear shelf if I want a bit more volume, but I have a feeling I will be happy as-is.
aaronc7 is offline   Reply With Quote
Old 06-18-2013, 12:43 AM   #133
Senior Member
Thread Starter
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

Getting close to 1.5 years of engine-less Miata. The engine build has been taking forever obviously. Most recent/last hiccup is getting the head done. My builder is getting stuck on/taking forever to make my custom cams work from Web. Due to the higher lift, I either need to enlarge the lifter bores and run larger 33mm buckets, or now I am also looking into trimming the sides of the bores enough to make clearance. I've spoken with ctdrftna about it, since he is running even more aggressive cams than what I have, and made it work by trimming the sides of the bores.

I haven't been able to even get in contact with my builder for over a month now and I don't really know/trust any of the other local shops in my area- does anyone have any recommendations for a high quality machine shop and one that will get things done on schedule? Willing to ship this thing wherever at this point, just to get it done.

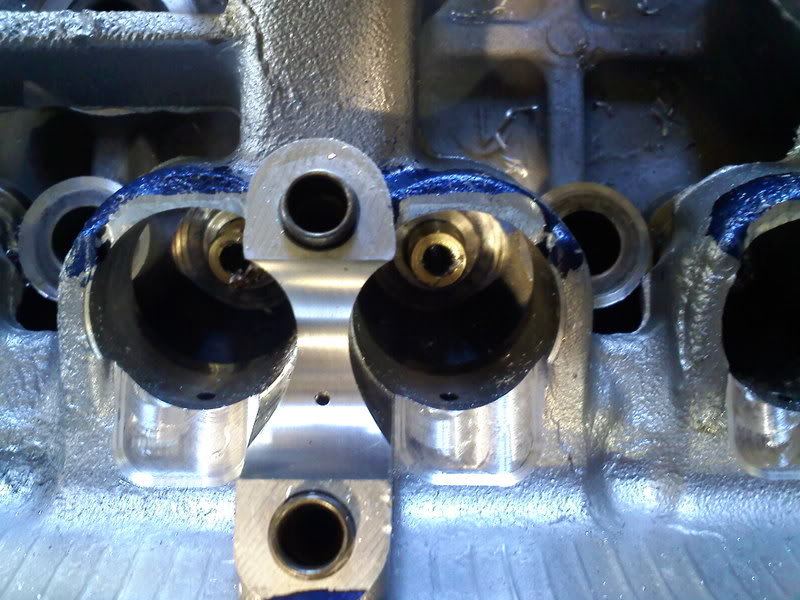

Here's a picture of what ctdrftna did on his, you can see the milling on the bottom of the bores, and sharpied on the top edges, for more material to be removed via die grinder. His cams have around .070" more lift than mine on both the intake and exhaust side, so it would probably not have to be quite as much material removed...but same idea.

Attached Thumbnails
aaron's build thread - more fail to come-miata101_zps581861a2.jpg
aaronc7 is offline   Reply With Quote
Old 06-18-2013, 12:56 AM   #134
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,165
Total Cats: 2,573
Default

Wow, bummer about the builder taking forever man, I was wondering what's going on with your build.

Isn't BogusSVO building it for you?
18psi is offline   Reply With Quote
Old 06-18-2013, 02:40 AM   #135
Senior Member
Thread Starter
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

18psi,

I'm out of the country a lot- basically nothing seems to get done when I'm gone. Either way it's taken forever for sure. I get back in about a month and need/want to get this thing on the road for the 4 months I'll be home!

Bogus is indeed doing it..... originally another shop in Pensacola was going to be doing the head machine work related stuff, but that fell thru. Not sure if he's just not comfortable doing it, or if he fucked it up and not avoiding me, or what.

If I get back and it's not done I may grab a stock 99-00 head and throw it on if I can find one quickly.
aaronc7 is offline   Reply With Quote
Old 06-18-2013, 06:14 PM   #136
Elite Member
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,790
Total Cats: 128
Default

Can't wait to see this thing finally come together. Good luck finishing her up.
pdexta is offline   Reply With Quote
Old 06-19-2013, 12:35 AM   #137
Senior Member
Thread Starter
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

I'm also really debating getting a MS3 to replace the DIYPNP.... some built in knock control features would be nice after all the money and time that has went into the engine, etc. Plus I think I'm just getting bored and looking for something to work on/do. Any MS2E to MS3X converts?
aaronc7 is offline   Reply With Quote
Old 06-19-2013, 09:08 AM   #138
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,894
Total Cats: 109
Default

Quote:
Originally Posted by aaronc7 View Post
Getting close to 1.5 years of engine-less Miata. The engine build has been taking forever obviously. Most recent/last hiccup is getting the head done. My builder is getting stuck on/taking forever to make my custom cams work from Web. Due to the higher lift, I either need to enlarge the lifter bores and run larger 33mm buckets, or now I am also looking into trimming the sides of the bores enough to make clearance. I've spoken with ctdrftna about it, since he is running even more aggressive cams than what I have, and made it work by trimming the sides of the bores.

I haven't been able to even get in contact with my builder for over a month now and I don't really know/trust any of the other local shops in my area- does anyone have any recommendations for a high quality machine shop and one that will get things done on schedule? Willing to ship this thing wherever at this point, just to get it done.

Here's a picture of what ctdrftna did on his, you can see the milling on the bottom of the bores, and sharpied on the top edges, for more material to be removed via die grinder. His cams have around .070" more lift than mine on both the intake and exhaust side, so it would probably not have to be quite as much material removed...but same idea.

When I put a larger cam in my 95 head, I had to clearance the lifter bores. I just used a die grinder to cut it. It is really no big deal, and can be done without any fancy equipment or knowledge. Just take your time, and be careful not to cut too deep into the lifter bores.
miata2fast is offline   Reply With Quote
Old 06-19-2013, 04:48 PM   #139
Senior Member
Thread Starter
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

Thanks Troy. That is something I do have at home and could probably just do myself. Hopefully the head isn't messed up otherwise.
aaronc7 is offline   Reply With Quote
Old 06-19-2013, 05:16 PM   #140
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,894
Total Cats: 109
Default

I hope everything is ok with your cyl head.

I had all my porting done by Rebello Racing which is in California. They seem to be more involved with Nissan motors these days, but they have done their fair share of Miata motors, and have built championship winning motors.

I prefer to do business with shops that are higher up on the totem pole in motorsport accomplishments.
miata2fast is offline   Reply With Quote
