aaron's build thread - more fail to come - Page 9 - Miata Turbo Forum - Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



Build Threads Building a motor? Post the progress here.

Reply



LinkBack Thread Tools Search this Thread
Old 07-16-2013, 08:05 AM   #161
Senior Member
Thread Starter
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

Scroll up.... block was done November of last year. Been waiting on the head since/
aaronc7 is offline   Reply With Quote
Old 07-16-2013, 09:30 AM   #162
Senior Member
iTrader: (8)

Join Date: Sep 2010
Location: misery
Posts: 1,130
Total Cats: 9
Default

did you block me on spacebookz?
phillyb is offline   Reply With Quote
Old 07-31-2013, 11:28 PM   #163
Senior Member
Thread Starter
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

Thinking about picking up a VVT head to run in the meantime or forever if I can make the powa I want with it.

Any gotchas with running a VVT head on a 99 block? I believe I will need the NB2/VVT head gasket... anything else to watch out for? Also, I have the standard BE oil pump gears, I think they recommend a higher flowing model for those with VVT heads?
aaronc7 is offline   Reply With Quote
Old 07-31-2013, 11:36 PM   #164
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,895
Total Cats: 109
Default

The combustion chamber and intake/exhaust ports are dimensionally identical to the 99 head. Only issue I know of is like you said, the head gasket and oil pump.

I take it all is not well in love and paradise. Keep us informed.
miata2fast is offline   Reply With Quote
Old 07-31-2013, 11:48 PM   #165
Junior Member
iTrader: (2)

Join Date: Jan 2011
Location: Columbus Ohio
Posts: 259
Total Cats: 4
Default

everything i've read says you still want to keep your 99-00 head gasket and use the vvt head if your're still going to use the coolant reroute you already have

https://www.miataturbo.net/build-thr...47/#post952748
cpolly69 is offline   Reply With Quote
Old 07-31-2013, 11:49 PM   #166
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,171
Total Cats: 2,574
Default

use the 99-00 hg with a proper coolant re-route
figure out how you will control vvt. do not just leave it unplugged, that's stupid.
yes you will need the vvt oil pump
yes that head will work with that block
yes it will make 400whp with enough boost, but don't spin it past 7400
yes you should do it
18psi is offline   Reply With Quote
Old 07-31-2013, 11:51 PM   #167
Junior Member
iTrader: (2)

Join Date: Jan 2011
Location: Columbus Ohio
Posts: 259
Total Cats: 4
Default

Quote:
Originally Posted by 18psi View Post
use the 99-00 hg with a proper coolant re-route
figure out how you will control vvt. do not just leave it unplugged, that's stupid.
yes you will need the vvt oil pump
yes that head will work with that block
yes it will make 400whp with enough boost, but don't spin it past 7400
yes you should do it
this

and i know where you can get a cheap vvt box

cpolly69 is offline   Reply With Quote
Old 07-31-2013, 11:57 PM   #168
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,171
Total Cats: 2,574
Default

it almost makes me mad how you're letting that dude screw you around like that....I mean seriously: over a year? that's just pathetic. I'd raise such a ruckus he would have no choice but to respond

I dunno if you're still deployed or what, but plane tickets to wherever his shop is at are like $300 or something. I'm just sayin, lol
18psi is offline   Reply With Quote
Old 07-31-2013, 11:57 PM   #169
Senior Member
Thread Starter
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

Cpolly and I just dicked around for 6 hours figuring out the wiring and set up of that VVTuner... I would use that for now- MS3 possibly later down the line.

With a Honda intake mani and the x2867, I think 350-400 shouldn't be too difficult at all- maybe this is the best route for me anyways (more mid range, power under da curve).

Emailing BE right now about the status/wait time for a Street/Strip pump. Need to do some emailing about some heads..... will keep you all posted!

Also, not sure if I mentioned it earlier but I have a set of cryo treated 3.636 gears sitting at home as well read to be put on this lifeless slug that has been taking up space in my garage.

Thanks guys for the info/confirmations!
aaronc7 is offline   Reply With Quote
Old 07-31-2013, 11:58 PM   #170
Senior Member
Thread Starter
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

I stopped by there not too long ago. Long story short he's making progress it's just super slow. He started boring out one of the lifter bores, but his cutter would not reach quite deep enough, and is now waiting to get a longer/deeper/whatever one in. I will post up more info laters for sure once I figure out my plan of action here.
aaronc7 is offline   Reply With Quote
Old 08-09-2013, 05:48 PM   #171
Senior Member
Thread Starter
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

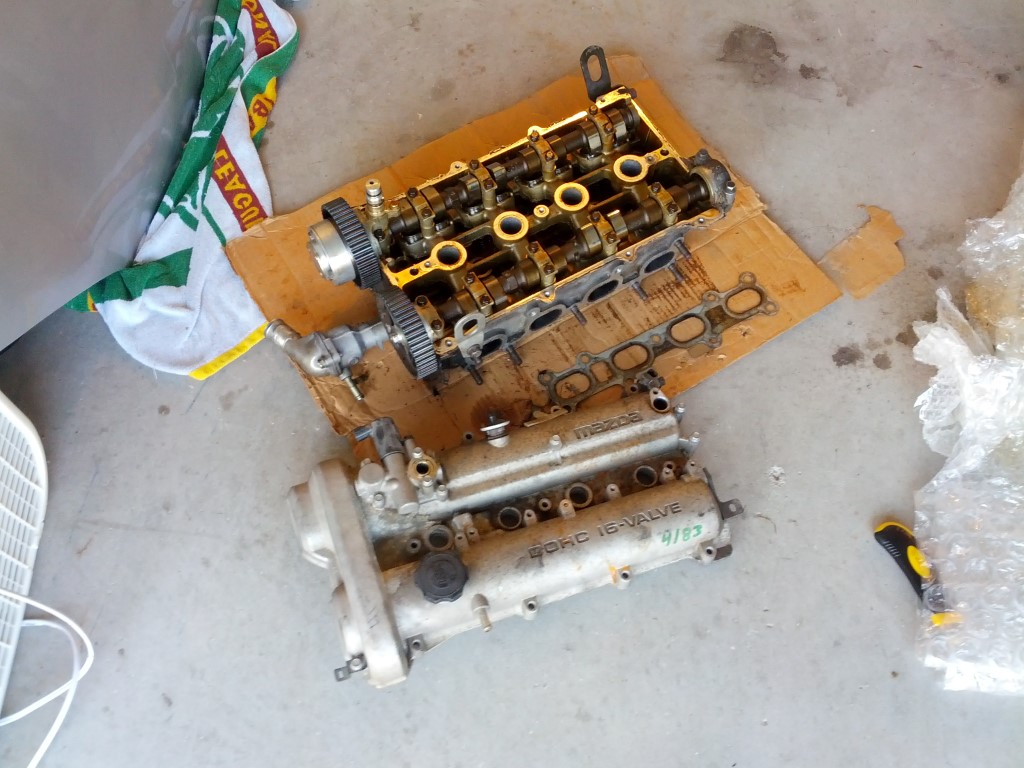

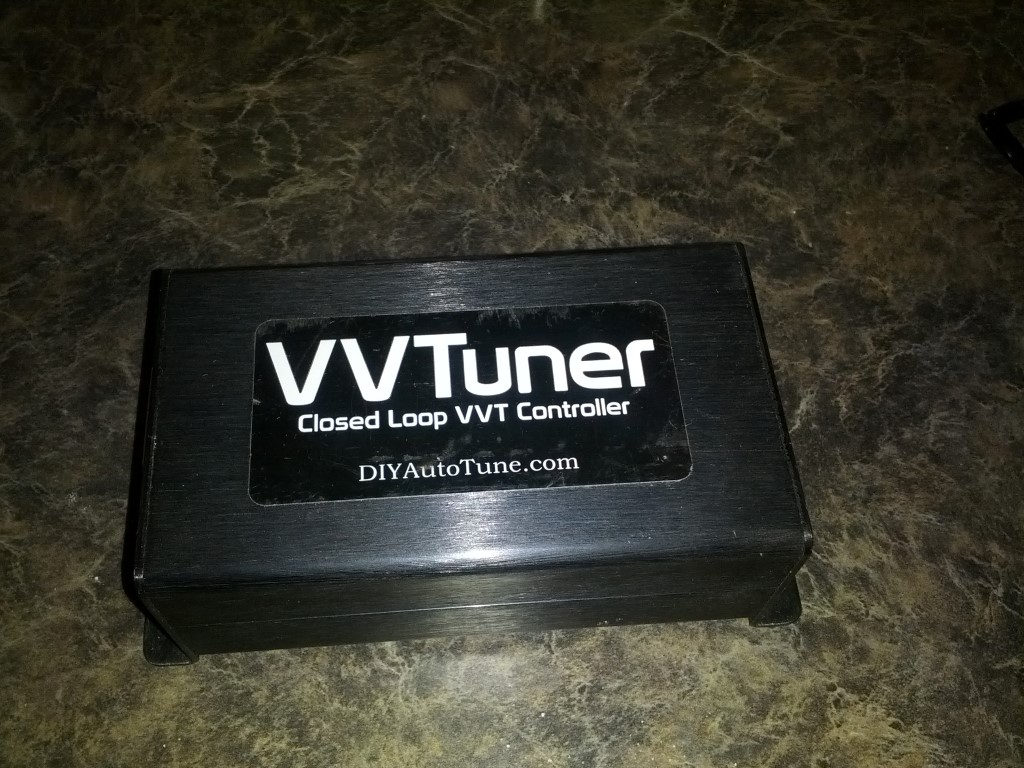

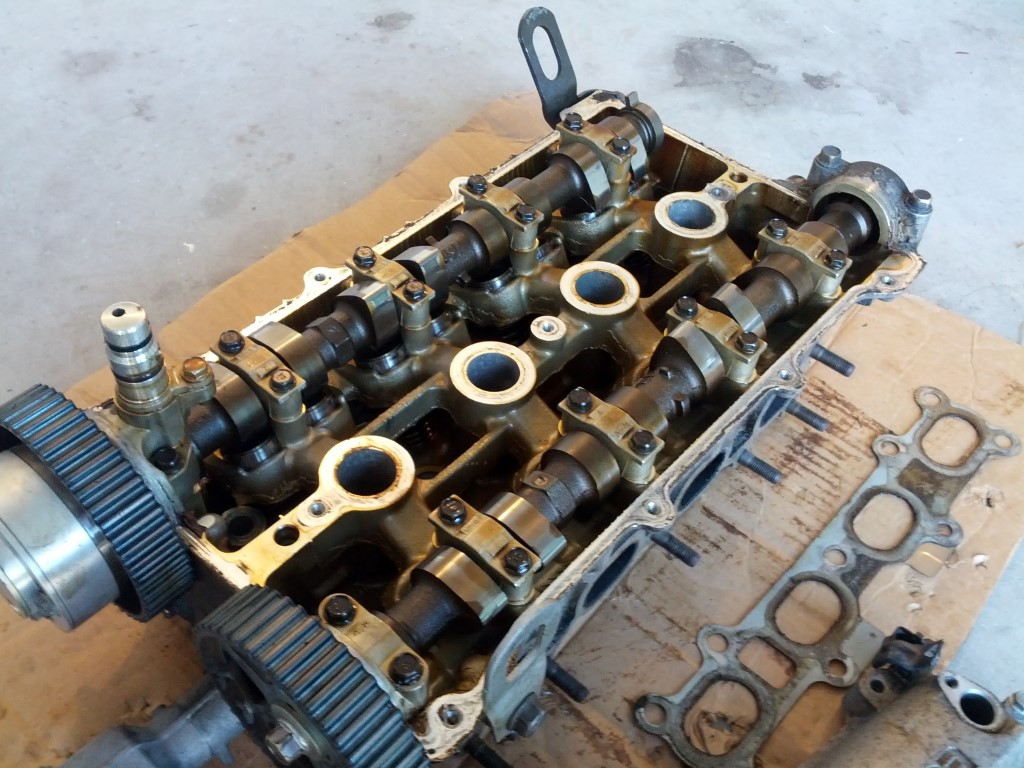

VVT head and tuner are here. NOW, I just need the rest of my engine and wait for this BE Street/strip pump to come in (currently have the street pump).

herro herro





Attached Thumbnails
aaron's build thread - more fail to come-img_20130809_154015medium_zpsf877b9bc.jpg   aaron's build thread - more fail to come-img_20130809_154035medium_zps432ec6d4.jpg   aaron's build thread - more fail to come-img_20130807_170110medium_zps74f38d16.jpg
aaronc7 is offline   Reply With Quote
Old 08-09-2013, 06:04 PM   #172
Senior Member
Thread Starter
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

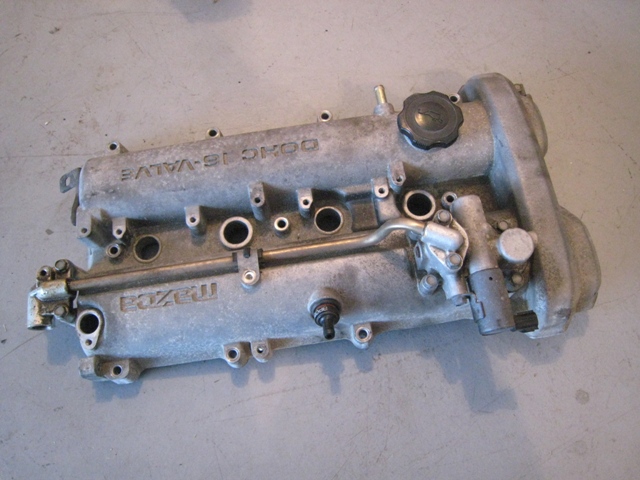

Looks like they stiffed me the oil hard line on the valve cover. Anyone catch anything else?

aaronc7 is offline   Reply With Quote
Old 08-09-2013, 06:09 PM   #173
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,171
Total Cats: 2,574
Default

cam sensor
18psi is offline   Reply With Quote
Old 08-09-2013, 06:24 PM   #174
Senior Member
Thread Starter
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

Cool, thanks. Got it from a salvage yard (same place I got my 6 speed from coincidentally). Told them I wanted the head "ready to bolt on" more or less- hopefully they still have this stuff and will send it out soon.
aaronc7 is offline   Reply With Quote
Old 08-09-2013, 06:31 PM   #175
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,171
Total Cats: 2,574
Default

its probably the same one as on the front of your 99-00 valve cover, but why not have them give you the one that came with this engine too.
18psi is offline   Reply With Quote
Old 08-09-2013, 10:55 PM   #176
Senior Member
iTrader: (1)

Join Date: Sep 2008
Location: Tucson, Arizona
Posts: 889
Total Cats: 55
Default

you're the only one with a gtx equiv to the 2871. Ive been waiting so hard for you to dyno this ish.
krissetsfire is offline   Reply With Quote
Old 08-10-2013, 12:03 AM   #177
Senior Member
iTrader: (2)

Join Date: Jun 2007
Location: Shalimar, FL
Posts: 965
Total Cats: 7
Default

I predict first dyno run Fall 2014.
messiahx is offline   Reply With Quote
Old 08-10-2013, 01:14 AM   #178
Senior Member
Thread Starter
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

Looking into the cam sensor ordeal. Guy said he probably still has the oil line. It's a salvage yard, pretty sure they had already pulled the cam sensor and sold it, lol.
aaronc7 is offline   Reply With Quote
Old 08-10-2013, 04:54 AM   #179
Junior Member
iTrader: (2)

Join Date: Jan 2011
Location: Columbus Ohio
Posts: 259
Total Cats: 4
Default

progress!
cpolly69 is offline   Reply With Quote
Old 08-10-2013, 01:27 PM   #180
Senior Member
Thread Starter
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

BE street/strip oil pump has been shipped and has a scheduled delivery for Monday! If I can get the bottom end of my block back next week, I think realistically it may be possible to be back on the road in a week or so. Pretty much confirmed my original cam sensor will work, I just need that VVT valvecover oil hardline and I should have all parts needed to make this work....woot woot!!!
aaronc7 is offline   Reply With Quote
