Old 05-04-2012, 10:42 PM   #101
Senior Member
Thread Starter
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

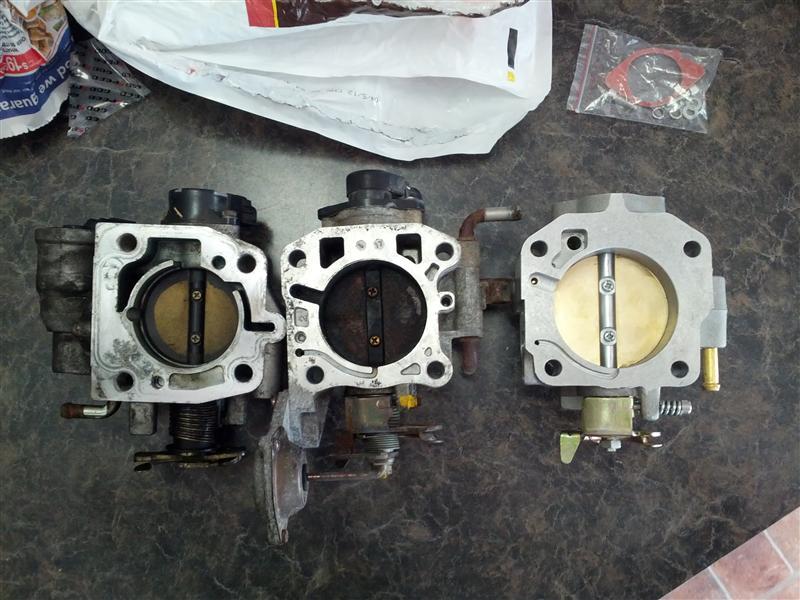

got all my throttle body parts today. Just waiting on engine builder to have the flange made and welded on...

stock bp vs stock B series vs Godspeed 68mm

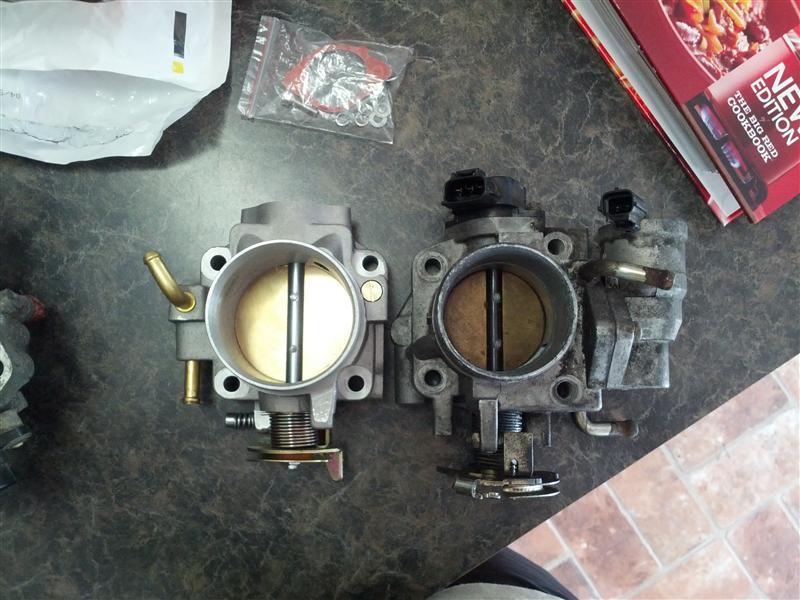

stock bp vs godspeed 68mm

Attached Thumbnails
aaron's build thread - more fail to come-img_20120504_155537custom.jpg   aaron's build thread - more fail to come-img_20120504_155626custom.jpg
aaronc7 is offline   Reply With Quote
Old 05-12-2012, 04:17 PM   #102
Senior Member
Thread Starter
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

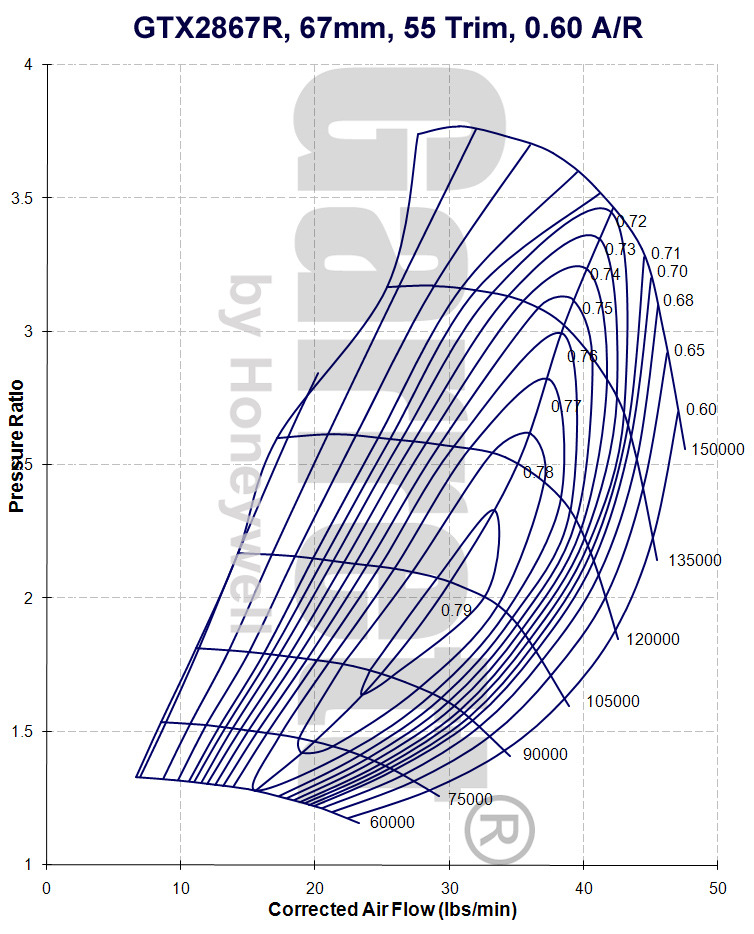

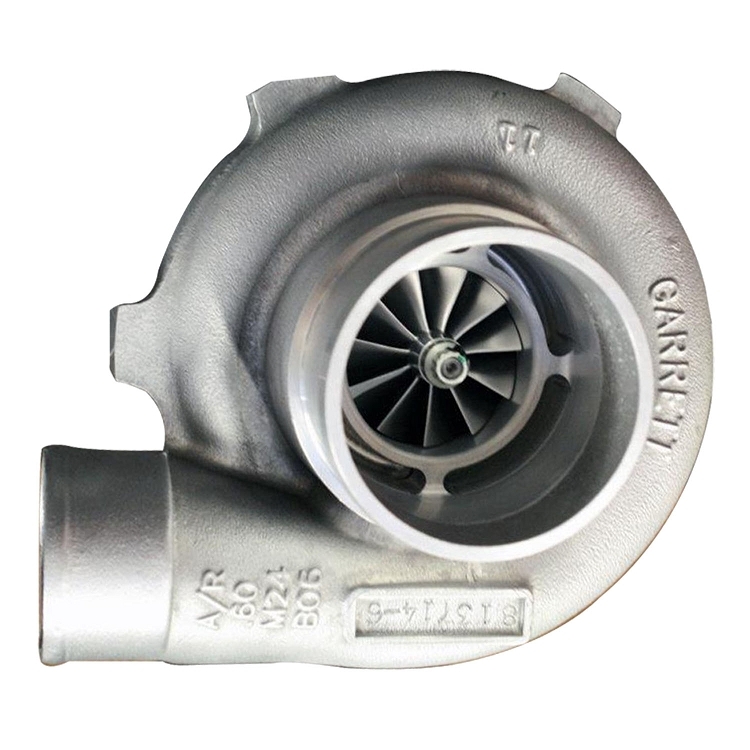

GTX2867R on the way! Big thanks to @[email protected]!

Already have the GT2871R of course. Turbine side is identical, so keeping my existing big turbine housing and just swapping CHRA and comp housing. Selling the 2871 guts to local guy, so it works out pretty well. Shooting for a solid 400whp now, no meth/water. This compressor will give me a lot more headroom, ability to run more boost, and more efficient everywhere.

http://www.atpturbo.com/mm5/merchant...egory_Code=GTX



Attached Thumbnails
aaron's build thread - more fail to come-gtx28.jpg   aaron's build thread - more fail to come-gtx2867r_816366-1_comp.jpg
aaronc7 is offline   Reply With Quote
Old 05-14-2012, 01:42 PM   #103
Senior Member
iTrader: (1)

BogusSVO's Avatar

Join Date: Mar 2012
Location: Pensacola Fla.
Posts: 590
Total Cats: 191
Default

Waiting on a call to go pick up the IM flange. Then off to another race shop fab to get the Intake cut and the flange one.

The flange is being water jet cut.

Also waiting from another shop to go pick up the custom made torque plate, so I can bore and hone the block.
BogusSVO is offline   Reply With Quote
Old 05-15-2012, 03:18 AM   #104
Senior Member
Thread Starter
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

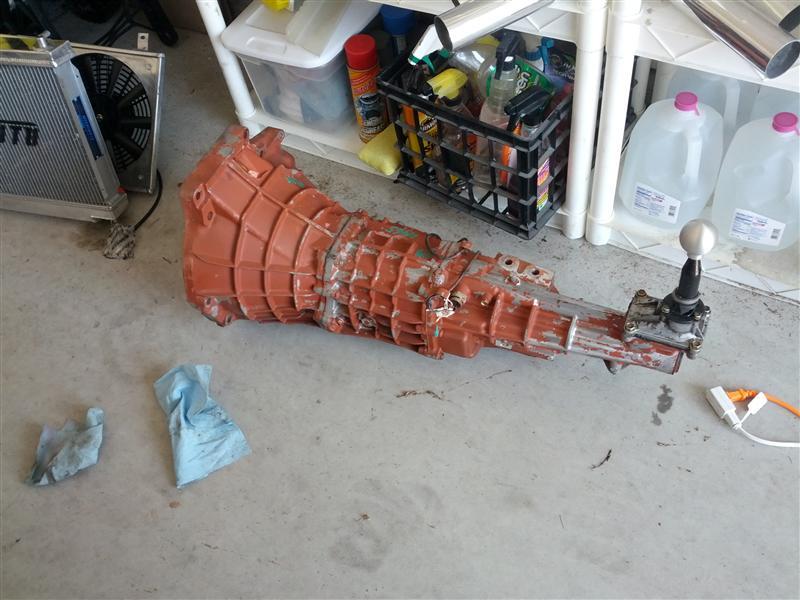

My 6 speed trans has AIDS

Attached Thumbnails
aaron's build thread - more fail to come-img_20120507_100541custom.jpg
aaronc7 is offline   Reply With Quote
Old 05-18-2012, 10:47 PM   #105
Junior Member
iTrader: (2)

Join Date: Mar 2008
Location: Navarre, Fl
Posts: 203
Total Cats: 3
Default

If you need help with any work, I'm not to far just ask.
ericsbestshot is offline   Reply With Quote
Old 05-21-2012, 12:34 PM   #106
Senior Member
Thread Starter
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

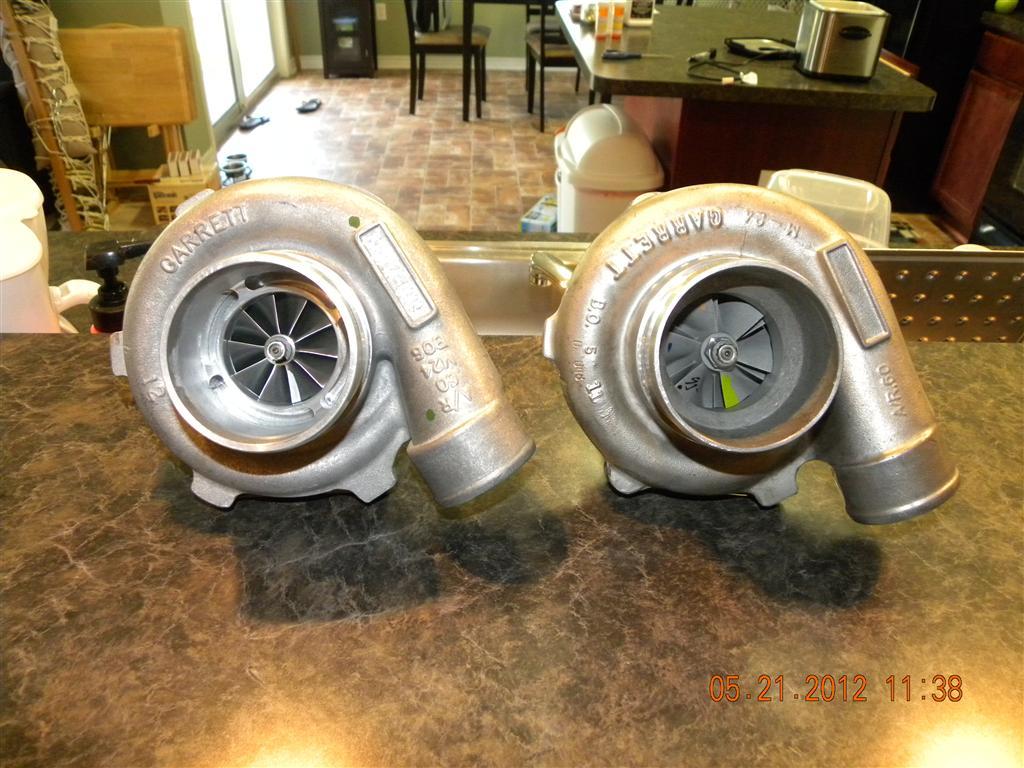

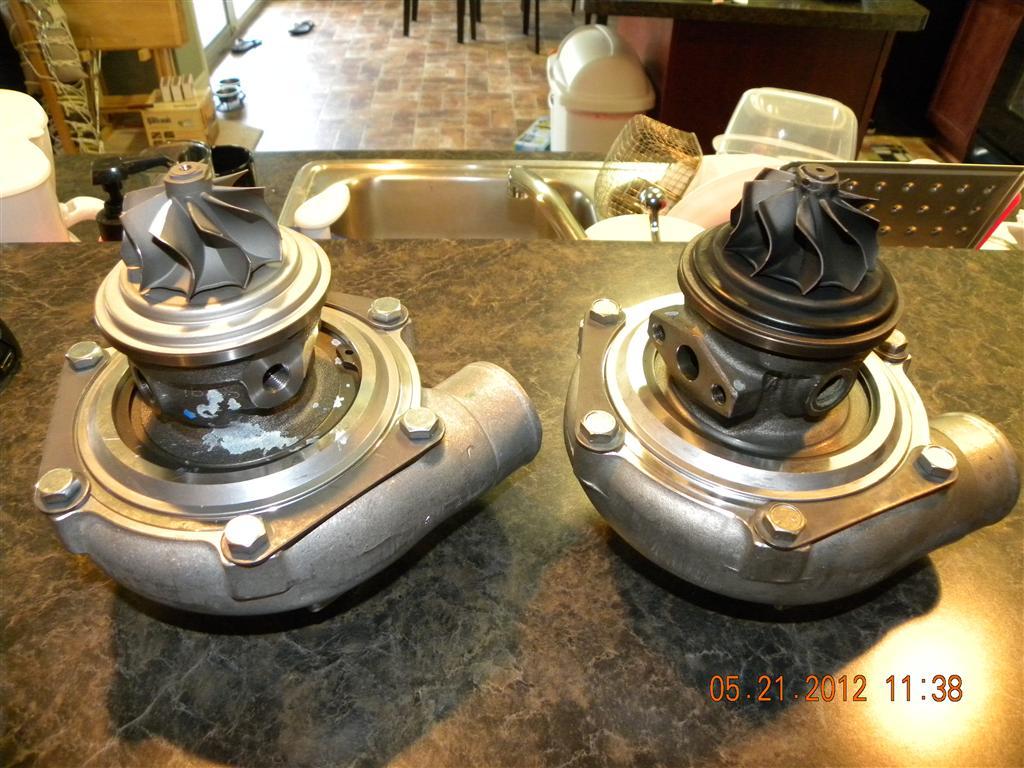

terbo is here. gtx2867 vs gt2871



Attached Thumbnails
aaron's build thread - more fail to come-dscn1645medium.jpg   aaron's build thread - more fail to come-dscn1646medium.jpg
aaronc7 is offline   Reply With Quote
Old 05-21-2012, 12:58 PM   #107
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

18psi is offline   Reply With Quote
Old 05-21-2012, 01:06 PM   #108
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,065
Total Cats: 253
Default

400whp! NOW!!!!
viperormiata is offline   Reply With Quote
Old 05-21-2012, 01:08 PM   #109
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,840
Total Cats: 1,786
Default

looks like garrett pre-splooged it.
Braineack is offline   Reply With Quote
Old 05-21-2012, 02:35 PM   #110
Junior Member
iTrader: (2)

Join Date: Mar 2008
Location: Navarre, Fl
Posts: 203
Total Cats: 3
Default

how much are you going to sell the gt2871 for?
ericsbestshot is offline   Reply With Quote
Old 05-22-2012, 03:37 PM   #111
Senior Member
Thread Starter
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

Quote:
Originally Posted by Braineack View Post
looks like garrett pre-splooged it.

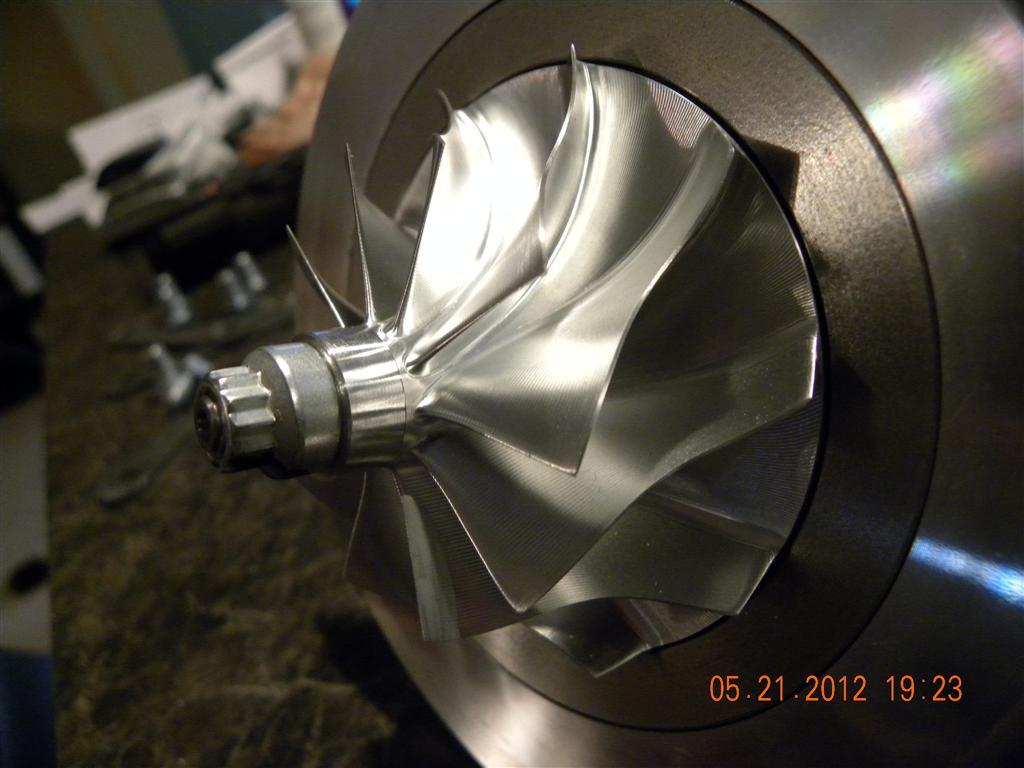

hahaha, yeah, first thing I noticed when I took it out of the plastic.

Quote:
Originally Posted by ericsbestshot View Post
how much are you going to sell the gt2871 for?
sold to messiahx on here. He's up at Eglin. 600 for CHRA and comp housing, turbo had like...3k miles on it.

Attached Thumbnails
aaron's build thread - more fail to come-dscn1648medium.jpg
aaronc7 is offline   Reply With Quote
Old 05-22-2012, 03:39 PM   #112
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,840
Total Cats: 1,786
Default

so looks like the turbine is the same, just the new compressor wheel design...been a long time since they've improved the wheel...---- has been the same since the 80s.
Braineack is offline   Reply With Quote
Old 05-22-2012, 03:45 PM   #113
Senior Member
Thread Starter
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

Quote:
Originally Posted by Braineack View Post
so looks like the turbine is the same, just the new compressor wheel design...been a long time since they've improved the wheel...---- has been the same since the 80s.
yep spot on. Doesnt seem to be a lot of info/dynos with them on the web...literally only 1 video of a dyno with one on youtube, last time I checked. But just going by the compressor map, looks pretty sweet, even up at ~25psi it appears it would still be very happy. My plan is to boost about 20 initially (after break in, etc.) and see what that gets me/how it feels, and go from there. I have a feeling that will be scary enough.
aaronc7 is offline   Reply With Quote
Old 05-22-2012, 03:47 PM   #114
Senior Member
Thread Starter
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

Searching around, looks like another good option for 28XX users might be this HTA upgrade I came across

http://store.forcedperformance.net/m...=Turbo-Upgrade

TU2868RHTA Upgrade customer's GT2860R or RS to a 68mm HTA billet compressor wheel $700.00
aaronc7 is offline   Reply With Quote
Old 06-11-2012, 11:07 PM   #115
Senior Member
Thread Starter
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

Build coming along slowly but surely. Currently Bogus is waiting on drill bits to get the torque plate finished up before boring and honing.

Ordered Supertech valvesprings, titanium retainers, +1mm intake and exhaust valves...

I jumped in on a Web Camshaft group buy, going to be getting a custom set from them. Talked with them today briefly... haven't decided on an exact grind yet, but basically going to emulate a Evo/DSM 4G63 "272" cam.

Gotta get these damn Toda cam gears now too, ugh.
aaronc7 is offline   Reply With Quote
Old 06-11-2012, 11:38 PM   #116
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,065
Total Cats: 253
Default

Get the same cams that Eliminator used!
viperormiata is offline   Reply With Quote
Old 06-11-2012, 11:42 PM   #117
Senior Member
Thread Starter
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

Did he ever post up specs? I recall seeing a thread, but never specs posted. 272 duration (222 ish @ .050") with 11mm of lift should be pretty darn good.
aaronc7 is offline   Reply With Quote
Old 06-11-2012, 11:49 PM   #118
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,065
Total Cats: 253
Default

He has it listed somewhere.

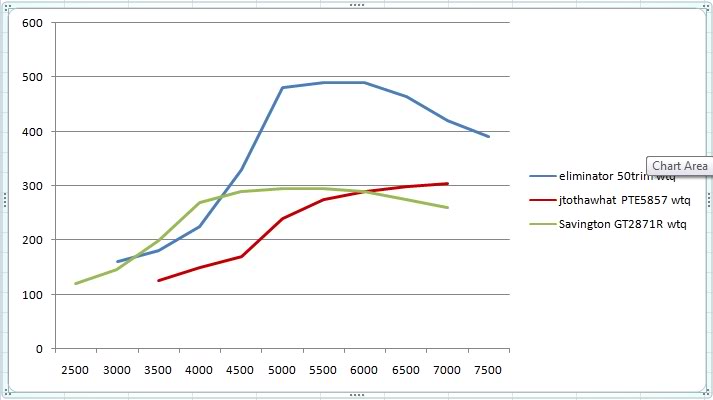

Do what he did so you can do this.
Attached Thumbnails
aaron's build thread - more fail to come-eliminatorvsjtothehwhatvssavington.jpg
viperormiata is offline   Reply With Quote
Old 06-12-2012, 06:06 PM   #119
Senior Member
Thread Starter
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

LOL, that graph is great.

Let me know if you find the specs... I'm looking but still no joy...
aaronc7 is offline   Reply With Quote
Old 06-12-2012, 06:27 PM   #120
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

eliminator had the old school bp05 head iirc
18psi is offline   Reply With Quote
