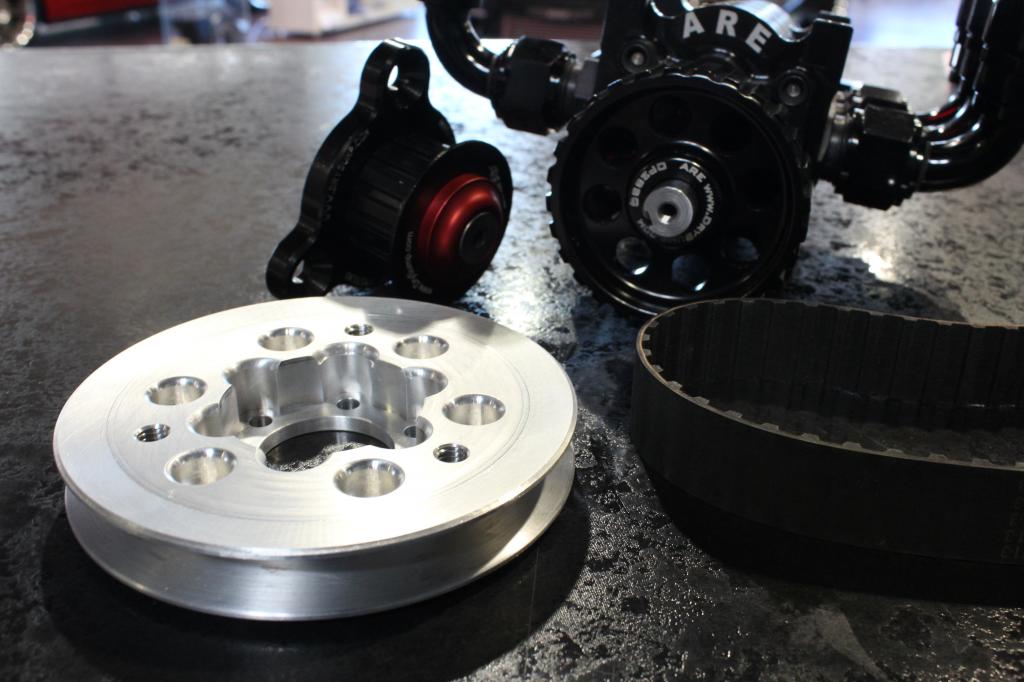

Finished deleting the A/C this past week and made a new TIG welded Stainless steel coolant reroute WITH MANDREL BENDS this time. Its nice to have resources and nice fab tools available. Received the custom crank pulley i designed in Solidworks today and my short block is at the machine shop and ready for pickup.



Tearing down the car tonight!
Attached Thumbnails
Build Thread (FE3, RX7 TII, EFR 6258, MS3)-img_6024_zps28e39bca.jpg
yank is offline   Reply With Quote
Old 06-06-2014, 06:18 PM   #402
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 783
Default

Quote:
Originally Posted by Leafy View Post
You should ask the F2T captain of the board if F2T bearings fit an FE3.
Should.

I may or may not have an FE3 crank with some F2T rods attached to it sitting in an F2T block at this very moment.

Glad OP was able to get some custom 155mm rods done.... I should call them concerning some 165.5mm rods a la Mazda G6, but stronger.



[edit]
Can you explain the torque plate to me? Actually building engines is far from my forte, so that's a new thing to me.

Also: How do you like the RH fittings?
concealer404 is offline   Reply With Quote
Old 06-06-2014, 10:21 PM   #403
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2007
Posts: 669
Total Cats: 29
Default

Quote:
Originally Posted by concealer404 View Post

[edit]
Can you explain the torque plate to me? Actually building engines is far from my forte, so that's a new thing to me.

Also: How do you like the RH fittings?
When the head is torqued to the block it actually pulls the cylinders slightly out of round by elastically deforming the block material itself (typically more pronounced with aluminum blocks but still exists in cast iron) Boring and honing with a torque plate helps keep the cylinders more concentric. Theories fly about how this is ineffective since thermal stresses are not considered which Google can produce for you but i thought i'd give it a shot. Made sense to me. Higher rev ring float comes to mind so i thought i'd be proactive.

Redhorse fittings fit and finish are good. They had a batch of them where the threads didn't come all the way down to the bottom of the shoulder which were a PITA to assemble but i called them and he told me that they were not supposed to be shipped out. Ended up sending them back and they replaced with the updated models/paid shipping. Shouldn't be seeing the assembly issue again.

On my way out to the shop to pull the head. It'll be interesting to see the damage. My guess is spent valve seals.
yank is offline   Reply With Quote
Old 06-07-2014, 01:32 AM   #404
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2007
Posts: 669
Total Cats: 29
Default

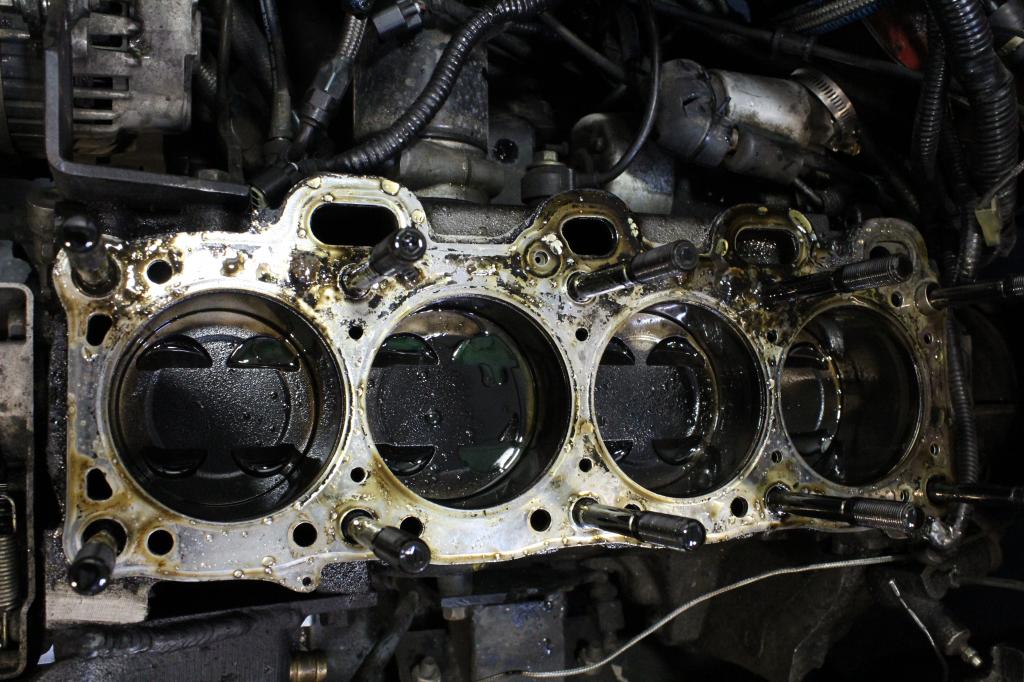

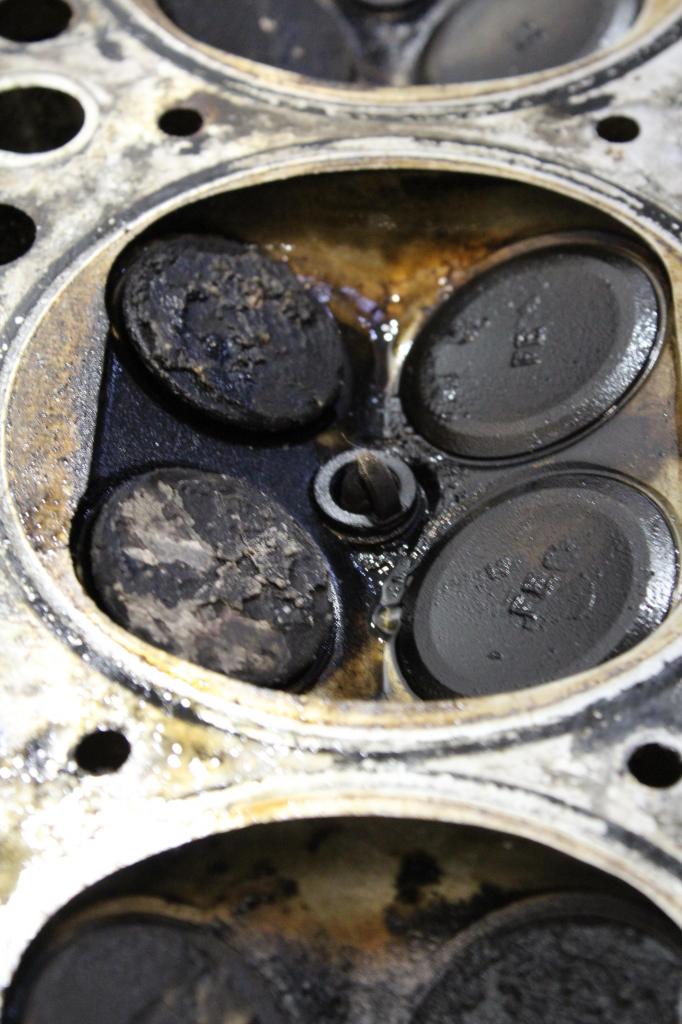

Headgasket. Lots of coolant and oil combustion evidence.



I'll be working on the new alternator, water inlet tube and new down pipe tomorrow almost all day. Should see some decent progress hopefully.
Attached Thumbnails
Build Thread (FE3, RX7 TII, EFR 6258, MS3)-img_6025_zps0cc35875.jpg   Build Thread (FE3, RX7 TII, EFR 6258, MS3)-img_6028_zps5c0aad61.jpg
yank is offline   Reply With Quote
Old 06-08-2014, 01:36 PM   #405
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2007
Posts: 669
Total Cats: 29
Default

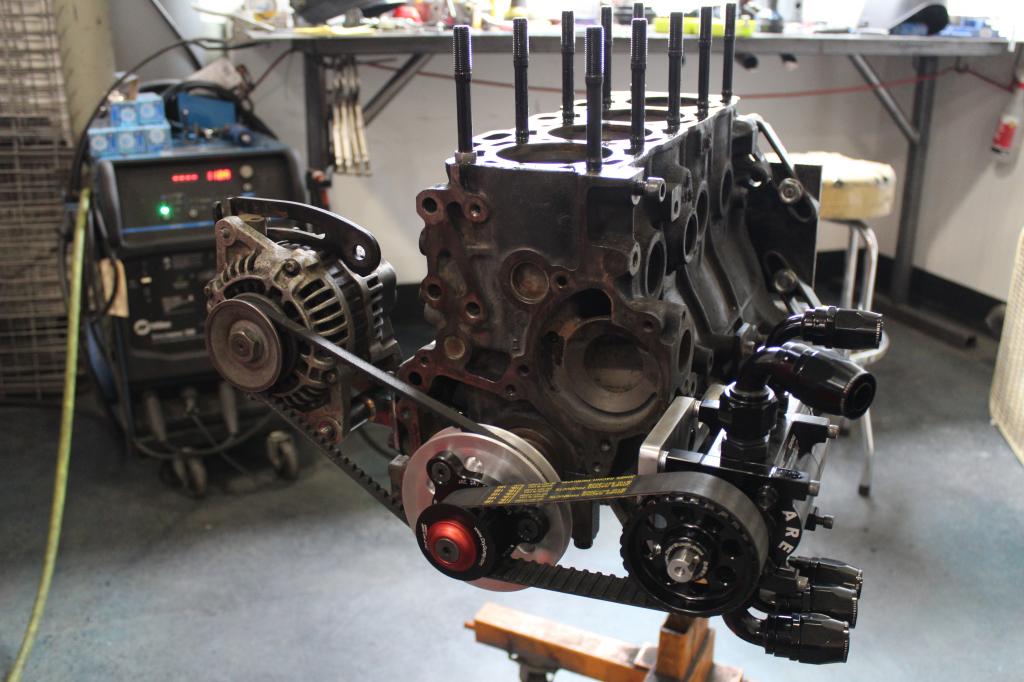

Yesterdays progress. Engine and trans pulled, engine brake down, mount dry sump and fabricate lower alternator bracket.

Attached Thumbnails
Build Thread (FE3, RX7 TII, EFR 6258, MS3)-img_6036_zpsd96e8d7c.jpg
yank is offline   Reply With Quote
Old 06-08-2014, 04:18 PM   #406
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 260
Default

so much awesome

you know borg warner makes a v-band efr housing now, right? call up full race and ask them about it.

BorgWarner EFR 6258 Turbo - Full-Race.com
See option in dropdown.
soviet is offline   Reply With Quote
Old 06-08-2014, 10:12 PM   #407
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by yank View Post
When the head is torqued to the block it actually pulls the cylinders slightly out of round by elastically deforming the block material itself (typically more pronounced with aluminum blocks but still exists in cast iron) Boring and honing with a torque plate helps keep the cylinders more concentric. Theories fly about how this is ineffective since thermal stresses are not considered which Google can produce for you but i thought i'd give it a shot. Made sense to me. Higher rev ring float comes to mind so i thought i'd be proactive..
That and I've only ever seen plates that were just dumb steel plates with holes in them. You'd think you'd want to simulate the actual stiffness of the head as closely as possible.
Leafy is offline   Reply With Quote
Old 06-08-2014, 10:18 PM   #408
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,109
Total Cats: 518
Default

So I should take my step drill to the spark plug holes of a dead cylinder head until they're ~84mm?
curly is offline   Reply With Quote
Old 06-09-2014, 04:12 PM   #409
Junior Member
iTrader: (2)

Join Date: Jan 2007
Posts: 329
Total Cats: 16
Default

sick build
Alejo_NIN is offline   Reply With Quote
Old 06-09-2014, 07:02 PM   #410
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2007
Posts: 669
Total Cats: 29
Default

Quote:
Originally Posted by soviet View Post
so much awesome

you know borg warner makes a v-band efr housing now, right? call up full race and ask them about it.
Yes i spoke with them about it. It'll end up being another 1000$ venture after an external wastgate and more custom fab bits. I'd rather put that toward a larger frame EFR and go for bigger power.

Quote:
Originally Posted by curly View Post
So I should take my step drill to the spark plug holes of a dead cylinder head until they're ~84mm?
Thought of this also since i have a spent head laying around. Both Eastco and M & B suggested against it for reasons unknown. My guess is that after boring and decking the top portion of the head the cast aluminum would be so weak that it wouldn't distribute the load of the nut even enough. Just a guess from a mechanical engineer though..

Last edited by yank; 06-09-2014 at 07:36 PM.
yank is offline   Reply With Quote
Old 06-10-2014, 10:19 AM   #411
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

Was your original engine build failing from the first start?
m2cupcar is offline   Reply With Quote
Old 06-11-2014, 04:24 PM   #412
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2007
Posts: 669
Total Cats: 29
Default

Quote:
Originally Posted by m2cupcar View Post
Was your original engine build failing from the first start?
Yes. Its always rolled smoke. It continued to get worse over its short life. I've pulled the pistons and the bearing in cylinder 1 had a deep groove cut all the way around directly under the oil port. The ring lands all looked okay on first glance but i haven't cleaned them up yet. I'll take pics of the damage when i get everything tore down. I haven't pulled the mains yet.
yank is offline   Reply With Quote
Old 06-12-2014, 11:21 PM   #413
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2007
Posts: 669
Total Cats: 29
Default

I have a sad story that results in me buying a new EFR supercore. Good news is that the 6758 will be a better turbo for my setup.

Be careful while removing turbine housings...
yank is offline   Reply With Quote
Old 06-13-2014, 02:46 AM   #414
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 260
Default

daaaaamnnnnnn
hey at least your turbine wheel is still attached!

compressor housings are different on 6758 and 6258
soviet is offline   Reply With Quote
Old 06-13-2014, 03:39 AM   #415
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2007
Posts: 669
Total Cats: 29
Default

Quote:
Originally Posted by soviet View Post
daaaaamnnnnnn
hey at least your turbine wheel is still attached!

compressor housings are different on 6758 and 6258
Yet still chipped with a slightly bent shaft.

Correct. Supercore's are everything except for the turbine housing.
Unfortunately. $$$

Modified the turbine housing tonight. Welded a GT30 V-band to it with some ER310 filler rod while back purging. From what I've read the ER310 filler is the best thing to use if welding HK40 cast Stainless. (which the EFR turbine housings are made of as per full-race email.)

Epic win / Fail. Time will tell.
yank is offline   Reply With Quote
Old 06-13-2014, 01:19 PM   #416
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

for turbo inlet or outlet?
shlammed is offline   Reply With Quote
Old 06-17-2014, 02:43 AM   #417
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2007
Posts: 669
Total Cats: 29
Default

Quote:
Originally Posted by shlammed View Post
for turbo inlet or outlet?
Turbine tells you its hot side and EFR tells you its inlet. All EFR turbine outlets are already V-band.
yank is offline   Reply With Quote
Old 06-18-2014, 12:58 PM   #418
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

Quote:
Originally Posted by yank View Post
Turbine tells you its hot side and EFR tells you its inlet. All EFR turbine outlets are already V-band.

You could still modify the turbine outlet to make it fit the same thing as a garrett with vband would.
shlammed is offline   Reply With Quote
Old 06-23-2014, 03:45 AM   #419
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2007
Posts: 669
Total Cats: 29
Default

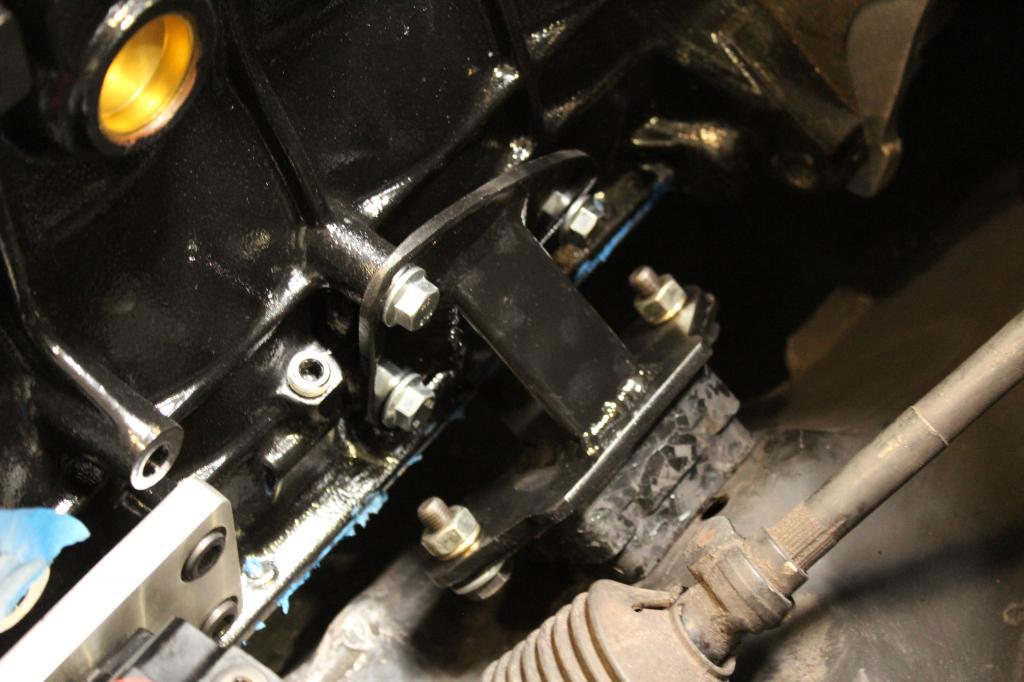

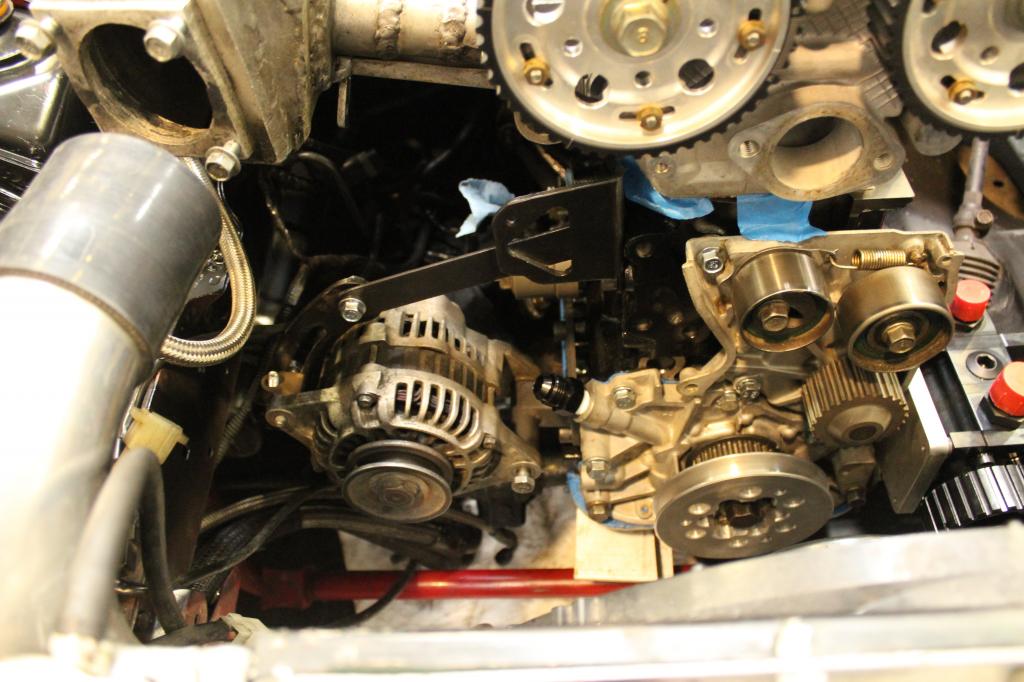

Motor mounts 3.0

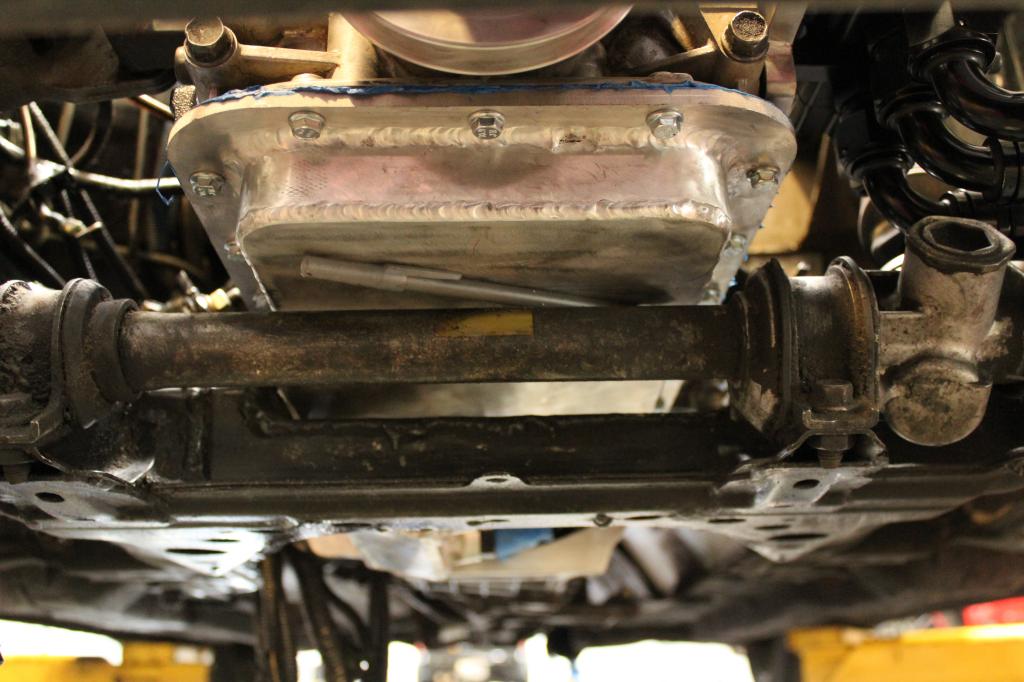

Pen fits snug under the pan. Got lucky on this one. Took preliminary measurements and everything ended up clearing just fine.

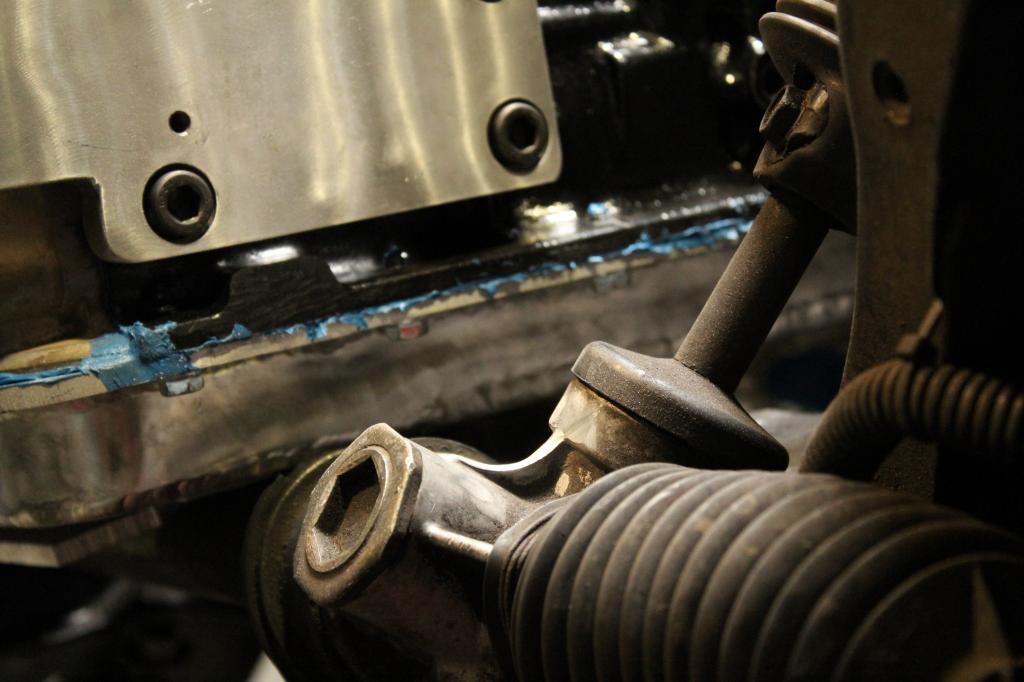

Notched the steering rack the same as M2cupcar for extra AN fitting clearance. Planning on routing the scavenge lines between the upper and lower control arms and then over the sub frame and down to the sump.

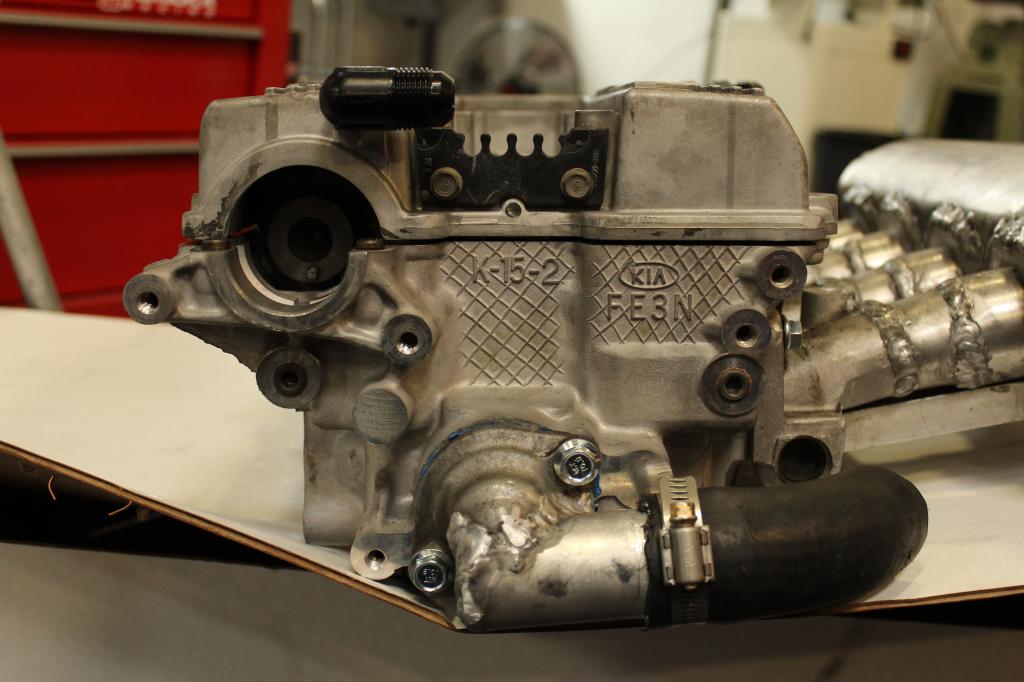

functional birdshit welds. T-sat housing now pointing the correct direction instead of straight down.

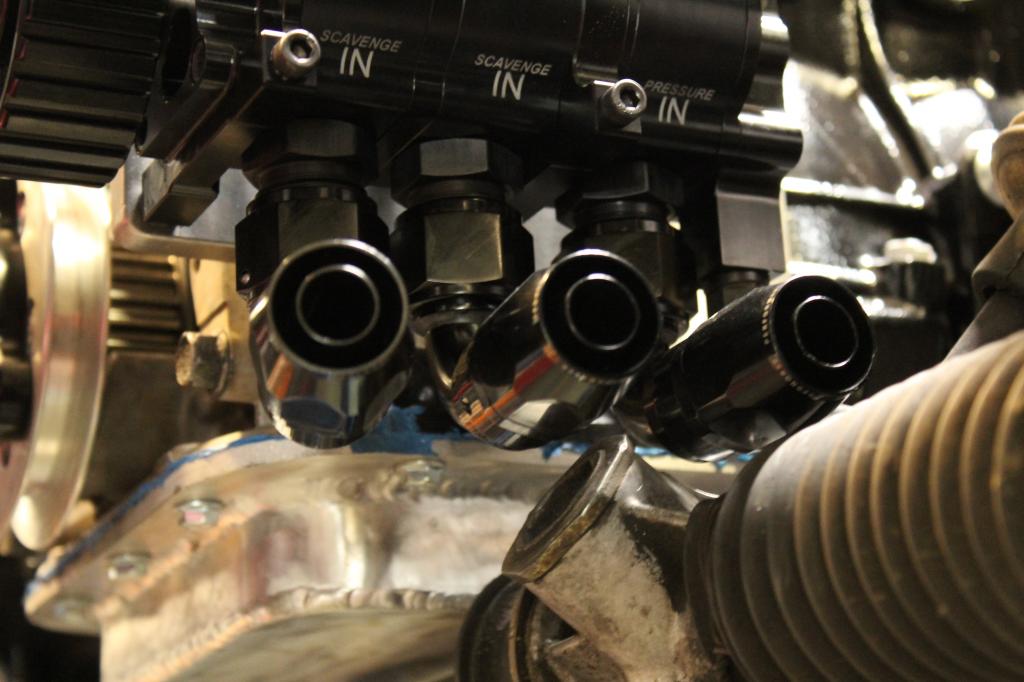

New alternator bracket with more room for the oil pressure inlet AN fitting.

Waiting on the pressure plate and flywheel to get back from the machine shop and a new set of HLA's and i'll be able to get this thing bolted back together.

I ended up taking another almost 2mm out of the combustion chamber so the dome of the pistons would clear the head.

Piston to head clearance should be about .045" in the quench and piston to valve clearance at TDC at full lift should come in at .039"

Hoping to turn the key this time next weekend.

Crossing fingers for success.
Attached Thumbnails
Build Thread (FE3, RX7 TII, EFR 6258, MS3)-img_6205_zpsd0f4947c.jpg   Build Thread (FE3, RX7 TII, EFR 6258, MS3)-img_6202_zps57969c3d.jpg   Build Thread (FE3, RX7 TII, EFR 6258, MS3)-img_6201_zps1953d458.jpg   Build Thread (FE3, RX7 TII, EFR 6258, MS3)-img_6200_zpsf321670c.jpg   Build Thread (FE3, RX7 TII, EFR 6258, MS3)-img_6199_zps42308af2.jpg

Build Thread (FE3, RX7 TII, EFR 6258, MS3)-img_6198_zpsc1d124d8.jpg
yank is offline   Reply With Quote
Old 06-23-2014, 09:52 AM   #420
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Thumbs up

What did you use for the new mounts v3? Jeep mounts? I believe those have both sides completely isolated with bushing material, but use a "capture" method IF the bushing material gives way.

I notched the aluminum collar on the rack first time around but this time I pulled the motor back out, pan off and made a concession in the pan to clear that collar. I was kicking myself as I completely forgot about when I fab'd the pan.

Free space is quickly diminishing with all the dry sump parts. Those AN 90s are giant.
