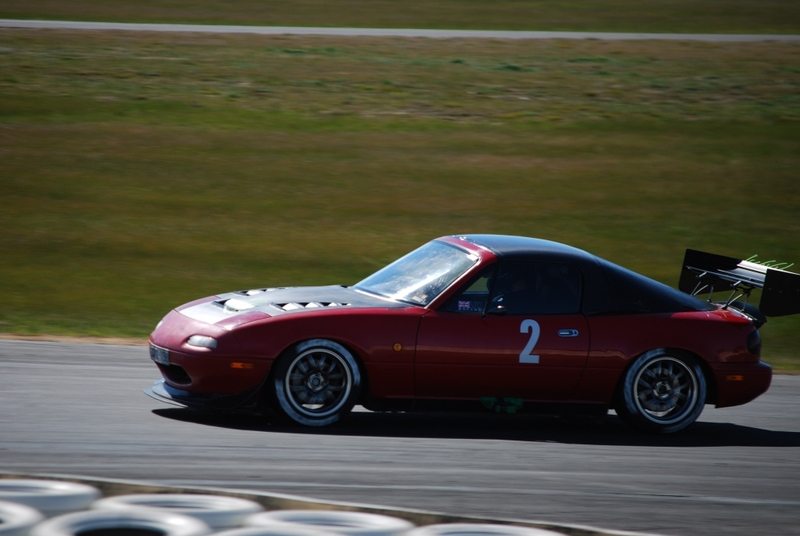

Check out the wool tufts on the wing. I wool tuft tested all the bonnet vents, then i did fastback, and the wing. everything checked out really well with attached flow, and in the direction i expected. The wing worked so well, beyond what i could have imagined. Need some front aero now. Massive understeer all day. You can see in the pic i dropped the aoa down as low as i could get it to get some steering back.



This was the last round of the victorian super sprint at winton. I did a 1:38.00, only 1.2 seconds slower than my old stripped out turbo race car. Out of all the turbo guys only one guy has beaten that time by a couple of tenths. So it was really moving. Considering this is a stock 1.8 no turbo.
Attached Thumbnails
Carbon fibre time attack twins-aeromx.jpg
lightyear is offline   Reply With Quote
Old 09-02-2012, 03:26 PM   #462
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,510
Total Cats: 1,710
Default

is that your harness, or are you just happy to see me?
Braineack is offline   Reply With Quote
Old 09-02-2012, 03:47 PM   #463
Elite Member
iTrader: (4)

Pen2_the_penguin's Avatar

Join Date: Dec 2009
Location: Reno, NV
Posts: 3,690
Total Cats: 97
Default

that looks sexy as FUUUUU
Pen2_the_penguin is offline   Reply With Quote
Old 09-02-2012, 04:07 PM   #464
Senior Member
iTrader: (1)

Join Date: Jun 2006
Location: Sweden
Posts: 1,387
Total Cats: 58
Default

I already knew that the "slickback" HT was something I'd want to copy sometime, but that picture makes it more urgent
NiklasFalk is offline   Reply With Quote
Old 09-03-2012, 07:43 AM   #465
Junior Member
Thread Starter

Join Date: Aug 2009
Location: melbourne aus
Posts: 437
Total Cats: 40
Default

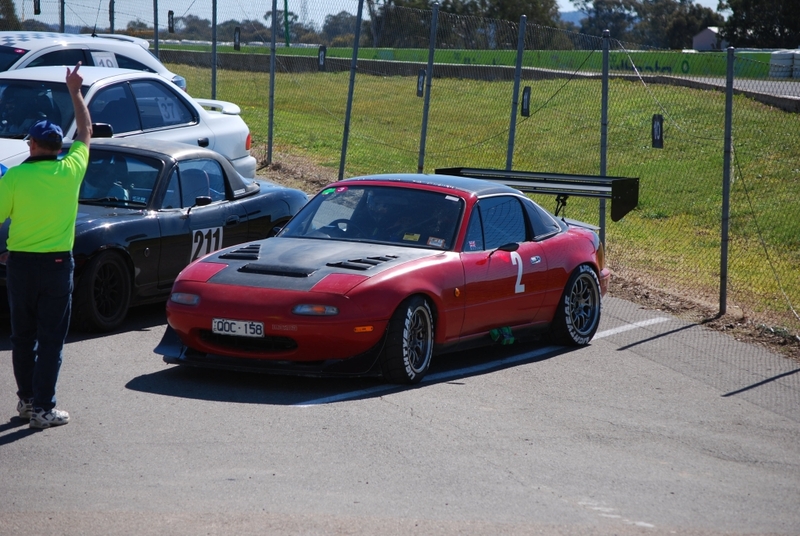

By davnar1 at 2012-09-02
Attached Thumbnails
Carbon fibre time attack twins-meanmx5.th.jpg   Carbon fibre time attack twins-meanmx5.jpg
lightyear is offline   Reply With Quote
Old 09-03-2012, 07:58 AM   #466
Elite Member
iTrader: (18)

Join Date: Dec 2007
Location: oahu
Posts: 1,720
Total Cats: 2
Default

Have any pics of the wool on the ht? Those pics with it on the wing look pretty promising.
astroboy is offline   Reply With Quote
Old 09-03-2012, 09:28 AM   #467
Junior Member
iTrader: (2)

Join Date: Apr 2010
Location: albion, mi
Posts: 299
Total Cats: 17
Default

Pricing on the hardtop? Lol, still in awe over The level of craftsmanship.
glade is offline   Reply With Quote
Old 09-03-2012, 11:04 AM   #468
Elite Member
iTrader: (12)

GeneSplicer's Avatar

Join Date: Sep 2009
Location: Birmingham, AL
Posts: 2,006
Total Cats: 147
Default

^ "more than you can afford, pal... carbon"

Keep the **** pics coming... hows the attack car coming?
GeneSplicer is offline   Reply With Quote
Old 09-03-2012, 11:12 AM   #469
Senior Member

Join Date: Oct 2011
Location: The Race Track & St Pete FL
Posts: 584
Total Cats: 47
Default

Lightyear----- Where did you get that hood? and how many layers of carbon do you use on your body panels?

LOL, your name on the tires, I didn't catch that at first

Last edited by 1993ka24det; 09-03-2012 at 12:00 PM.
1993ka24det is offline   Reply With Quote
Old 09-03-2012, 11:31 AM   #470
Senior Member
iTrader: (1)

Join Date: Jun 2006
Location: Sweden
Posts: 1,387
Total Cats: 58
Default

Quote:
Originally Posted by GeneSplicer View Post
^ "more than you can afford, pal... carbon"
The shipping would be a bigger problem than the choice of material

A 2D file for a waterjet would be a fantastic contribution to the community, to make a fast copy of the plug in any plastic sheet. But that assumes that the plug sheet is still available in 2D form (and someone want to spend some time measuring it without compensation).
NiklasFalk is offline   Reply With Quote
Old 09-03-2012, 04:41 PM   #471
Junior Member
Thread Starter

Join Date: Aug 2009
Location: melbourne aus
Posts: 437
Total Cats: 40
Default

The fastback wool test showed all the wool lying flat in the right direction with no movement. So good laminar attached flow. They would not allow me to mount a camera outside the car. So a friend drove really close behind me and video'd it, as well as watched what was happening. Same with the wing, the whole under side from the front to back had wool, all was sticking to the underside, and the ones you see in the pic is the last few. That fast back is just the add on piece. Not the one piece that I am still making.
The hood is oem with some bits cut and bent.
The c.f panels are 2 layers of about 200g twill, and a core layer of soric. The fastback is a very important piece of the aero package.
lightyear is offline   Reply With Quote
Old 09-07-2012, 05:40 PM   #472
Junior Member
Thread Starter

Join Date: Aug 2009
Location: melbourne aus
Posts: 437
Total Cats: 40
Default

Wool tuft test video of rear wing.

Winton - Slow-mo Aero testing - Mazda MX-5 ft. Dave LIGHTYEAR - YouTube

(youtube)http://www.youtube.com/watch?v=40Uoy...utu.be(youtube)

Not sure how to put the video box in here.
lightyear is offline   Reply With Quote
Old 09-07-2012, 07:03 PM   #473
Elite Member
iTrader: (10)

rccote's Avatar

Join Date: Jan 2008
Location: Buffalo NY
Posts: 1,593
Total Cats: 15
Default

Quote:
Originally Posted by lightyear View Post
Wool tuft test video of rear wing.



Not sure how to put the video box in here.
just use the body of text after the = and before the &. So 40UoyIHxpsQ, for future reference.

Last edited by rccote; 09-07-2012 at 11:22 PM.
rccote is offline   Reply With Quote
Old 09-07-2012, 08:08 PM   #474
Junior Member
Thread Starter

Join Date: Aug 2009
Location: melbourne aus
Posts: 437
Total Cats: 40
Default

O.k, Thanks for that.

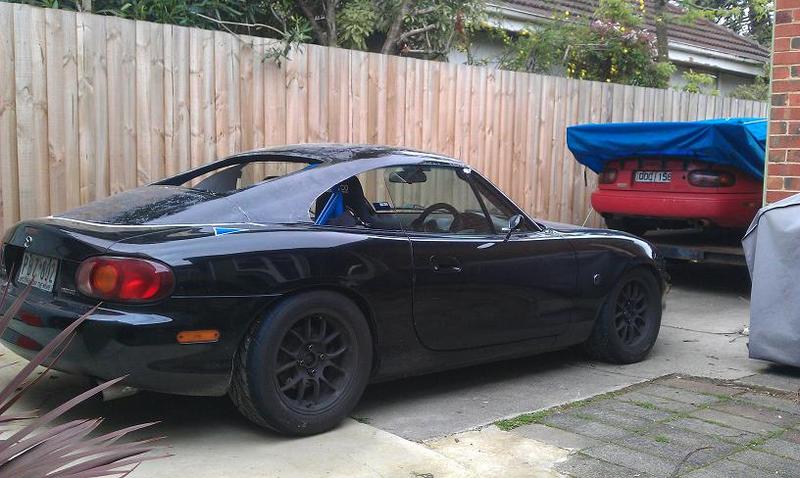

I have mounted the first fastback onto a friends car. The trunk section is cut off, and the rear wall under the back window is in. Next is to make the side window frames.

Attached Thumbnails
Carbon fibre time attack twins-fffye.jpg
lightyear is offline   Reply With Quote
Old 09-07-2012, 08:46 PM   #475
Junior Member
iTrader: (2)

Join Date: Apr 2010
Location: albion, mi
Posts: 299
Total Cats: 17
Default

Ok, seriously, how do I learn how to do that? What books, tools other than the vaccumn pump which I have, ect do I need to buy?
glade is offline   Reply With Quote
Old 09-07-2012, 10:13 PM   #476
Junior Member
Thread Starter

Join Date: Aug 2009
Location: melbourne aus
Posts: 437
Total Cats: 40
Default

Best to google it. There is too much to learn...
lightyear is offline   Reply With Quote
Old 09-07-2012, 10:34 PM   #477
Elite Member
iTrader: (18)

Join Date: Dec 2007
Location: oahu
Posts: 1,720
Total Cats: 2
Default

Looking quite fantastic, thanks for the vid!
astroboy is offline   Reply With Quote
Old 09-07-2012, 11:15 PM   #478
Senior Member
iTrader: (1)

gorillazfan1023's Avatar

Join Date: May 2010
Location: Harrisburg, Pa
Posts: 582
Total Cats: 8
Default

Wow. That looks insanely good.
gorillazfan1023 is offline   Reply With Quote
Old 09-07-2012, 11:44 PM   #479
Junior Member
iTrader: (3)

Join Date: Apr 2011
Location: Bay Area- East Bay
Posts: 288
Total Cats: 1
Default

Props, fantastic work.
brainzata is offline   Reply With Quote
Old 09-08-2012, 08:38 AM   #480
Elite Member
iTrader: (12)

GeneSplicer's Avatar

Join Date: Sep 2009
Location: Birmingham, AL
Posts: 2,006
Total Cats: 147
Default

Quote:
Originally Posted by lightyear View Post
I have mounted the first fastback onto a friends car.
I can be your friend too!!
