Old 11-10-2011, 05:36 AM   #321
Junior Member
Thread Starter

Join Date: Aug 2009
Location: melbourne aus
Posts: 425
Total Cats: 36
Default

They have not run bikes there for years. The V8 supercars cars (top cars in aus) run there. This track is only 20 minutes from the city (melbourne), the walls are very close, and if you hit the armco you have to pay to have it repaired..... Phillip island is the best track, very high speed and only about 1hr 15m. Winton is about 2.5 hrs away and is tight. Calder is about 25 minutes from the city on the otherside and is kind of not running much.

I didn't hit the rumble strip, it just didn't want to hang on. I should have gone a bit slower for the first session due to the tyres not being used for so long. I think once you go on the track you don't worry about the walls and just drive.

I have made the other door outer, still in the mould. And i have made 2 more hardtops - trying to make some moey to finish the car. I am now doing one part for my car at the same time as i make a part for someone else. Saves a bit of time and gets things done.
lightyear is offline   Reply With Quote
Old 11-11-2011, 06:26 AM   #322
Junior Member
Thread Starter

Join Date: Aug 2009
Location: melbourne aus
Posts: 425
Total Cats: 36
Default

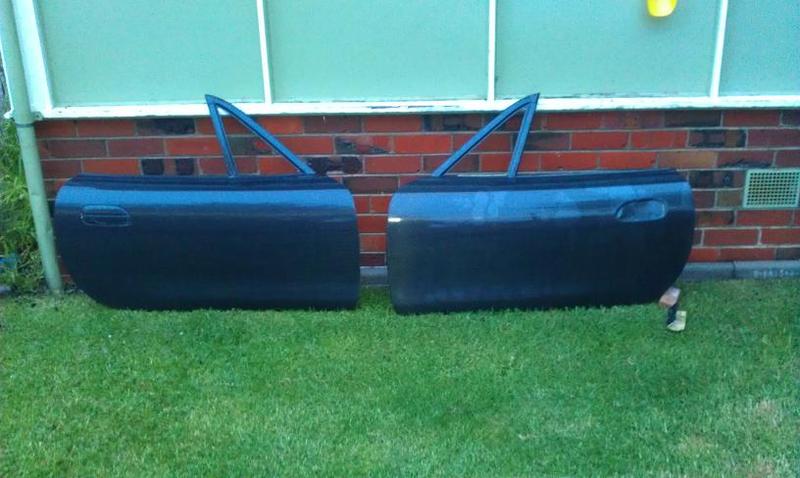

Both door outers done. I need to make the fake door handle on the left door as i didn't mould it in.

Attached Thumbnails
Carbon fibre time attack twins-nbracer059.jpg
lightyear is offline   Reply With Quote
Old 11-11-2011, 10:37 AM   #323
Senior Member

Join Date: Oct 2011
Location: The Race Track & St Pete FL
Posts: 575
Total Cats: 49
Default

what does the other side of the doors look like and how many layers did you use on them
1993ka24det is offline   Reply With Quote
Old 11-11-2011, 02:42 PM   #324
Junior Member
Thread Starter

Join Date: Aug 2009
Location: melbourne aus
Posts: 425
Total Cats: 36
Default

The other side looks very flat (not glossy). It is the texture of the peel ply imprint. If you imagine sticking some silk onto a surface and then after the glue has dried - you peel it off, leaving the texture of the silk. It is perfect to bond to as it is clean and a good key for glues and such.

The layers- c.f twill, c.f tissue, soric, c.f twill or flatweave, peel ply, inf mesh, inf chanel, then the plastic layer (bag). Also need the "T" pieces, tacky tape, silicon hose. Everything after peel ply on gets physically removed and thrown away. This part is the worst, it can take between 30min for a door outer to over 2 hours on the rear 1/4 panels. It is hard work.
lightyear is offline   Reply With Quote
Old 11-14-2011, 04:18 AM   #325
Junior Member
iTrader: (2)

Join Date: Sep 2009
Location: singapore
Posts: 228
Total Cats: 2
Default

Can I know what kind of timing are turbo MX5 doing around Sandown so that I can put things into perspective?
I was doing about 1.29 on hoosiers in my S14 200SX but that was 15 years ago, I no longer live in Melbourne.

Quote:
Originally Posted by lightyear View Post
They have not run bikes there for years. The V8 supercars cars (top cars in aus) run there. This track is only 20 minutes from the city (melbourne), the walls are very close, and if you hit the armco you have to pay to have it repaired..... Phillip island is the best track, very high speed and only about 1hr 15m. Winton is about 2.5 hrs away and is tight. Calder is about 25 minutes from the city on the otherside and is kind of not running much.

I didn't hit the rumble strip, it just didn't want to hang on. I should have gone a bit slower for the first session due to the tyres not being used for so long. I think once you go on the track you don't worry about the walls and just drive.

I have made the other door outer, still in the mould. And i have made 2 more hardtops - trying to make some moey to finish the car. I am now doing one part for my car at the same time as i make a part for someone else. Saves a bit of time and gets things done.
nismo502 is offline   Reply With Quote
Old 11-14-2011, 07:33 AM   #326
Elite Member
iTrader: (12)

Join Date: Sep 2007
Location: Portland, Oregon.
Posts: 6,841
Total Cats: 63
Default

By peel ply, are you talking about that brown clothy teflon material that is damn near impossible to get to conform properly to any mold that isn't flat? lol
Doppelgänger is offline   Reply With Quote
Old 11-14-2011, 11:32 AM   #327
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 18,899
Total Cats: 358
Default

peel ply is usually a woven silky material that doesn't stick to cured resin. it's pretty soft and conforming.

at least I didnt have any trouble with it. also mine was white.
y8s is offline   Reply With Quote
Old 11-14-2011, 11:45 AM   #328
Senior Member

Join Date: Oct 2011
Location: The Race Track & St Pete FL
Posts: 575
Total Cats: 49
Default

surprised you didn't cut the end off the compressor outlet of the turbo and weld on an 90 deg bend
Quote:
Originally Posted by lightyear View Post

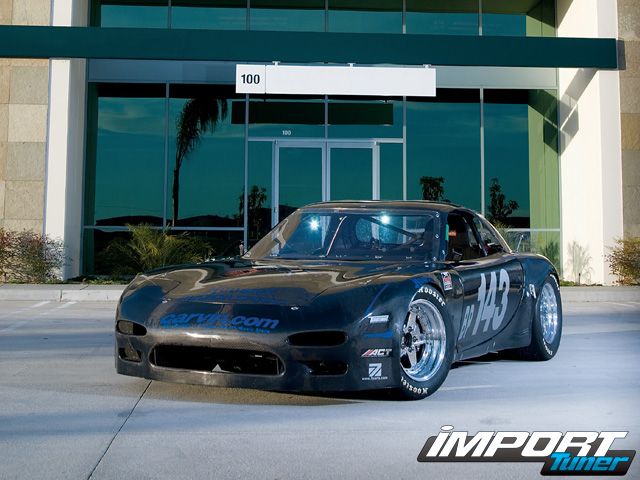

This article was from a while ago but the RX7 now weights in at 1950lbs
http://www.importtuner.com/features/.../photo_03.html




When you get to doing the bottom of the car with the flat bottom, can you make a detailed description on how and where you mounted it. I think alot of use want to do the same thing
Attached Thumbnails
Carbon fibre time attack twins-s300sx3-90-1__73395_zoom.jpg
1993ka24det is offline   Reply With Quote
Old 11-14-2011, 03:19 PM   #329
Junior Member
Thread Starter

Join Date: Aug 2009
Location: melbourne aus
Posts: 425
Total Cats: 36
Default

Quote:
Originally Posted by y8s View Post
peel ply is usually a woven silky material that doesn't stick to cured resin. it's pretty soft and conforming.

at least I didnt have any trouble with it. also mine was white.
Exactly.
lightyear is offline   Reply With Quote
Old 11-14-2011, 03:21 PM   #330
Junior Member
Thread Starter

Join Date: Aug 2009
Location: melbourne aus
Posts: 425
Total Cats: 36
Default

Quote:
Originally Posted by nismo502 View Post
Can I know what kind of timing are turbo MX5 doing around Sandown so that I can put things into perspective?
I was doing about 1.29 on hoosiers in my S14 200SX but that was 15 years ago, I no longer live in Melbourne.
I did a 1:24 there on 205 R888's with a $300 ebay motor (and all the old turbo gear) puting out only 110rwkw's.
lightyear is offline   Reply With Quote
Old 11-14-2011, 03:26 PM   #331
Junior Member
Thread Starter

Join Date: Aug 2009
Location: melbourne aus
Posts: 425
Total Cats: 36
Default

The manifold will be changed later, so i just used some left oer pipe from the old car. Took me about 15 min to do the whole thing. I just need it all done so i can put it on the good engine to get it dynoed.
lightyear is offline   Reply With Quote
Old 11-16-2011, 01:12 AM   #332
Senior Member
iTrader: (1)

Join Date: Dec 2008
Location: Manassas, Virginia
Posts: 1,247
Total Cats: 57
Default

Quote:
Originally Posted by 1993ka24det View Post

Attached Thumbnails
Carbon fibre time attack twins-0703_impp_13z_1994_mazda_rx7front_quarter_view.jpg   Carbon fibre time attack twins-0703_impp_03z_1994_mazda_rx7rear_view_with_carbon_fiber_trunk_hatch_open.jpg
mx5autoxer is offline   Reply With Quote
Old 11-16-2011, 02:04 AM   #333
Junior Member

Join Date: Sep 2010
Location: SFL
Posts: 376
Total Cats: 3
Default

Quote:
Originally Posted by mx5autoxer View Post
not to de-rail but:

MD323 is offline   Reply With Quote
Old 11-16-2011, 02:32 AM   #334
Senior Member

Join Date: Oct 2011
Location: The Race Track & St Pete FL
Posts: 575
Total Cats: 49
Default

WOW WTF I hate *** 0's like that. what is someone going to do with it?
Joyride....not street legal and easy to spot
Part out.....ya right only one car is like that
1993ka24det is offline   Reply With Quote
Old 11-22-2011, 10:15 PM   #335
Junior Member
Thread Starter

Join Date: Aug 2009
Location: melbourne aus
Posts: 425
Total Cats: 36
Default

I bought a new shell to put the 2001 running gear into. So that will slow me down a bit. I am not in a massive rush to finish this car, but i would like to get it done in the next 6 months. There is always something that stops you from building it. I take my hat off to anyone that finishes a big project. It takes away from a lot of your liesure and family time.

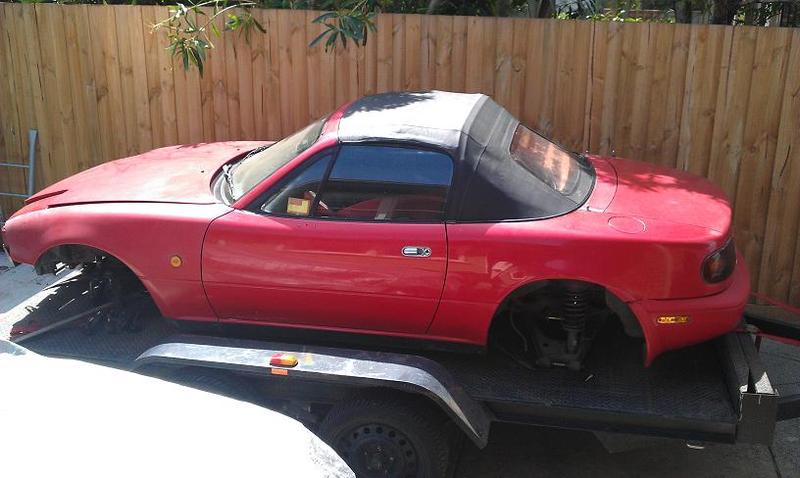

Pic of my $500 shell. The guy just took out what he needed to make a lotus clubman replica.
Attached Thumbnails
Carbon fibre time attack twins-na6andsandownv8day029.jpg
lightyear is offline   Reply With Quote
Old 12-29-2011, 06:32 AM   #336
Newb

Join Date: May 2008
Posts: 5
Total Cats: 0
Default

updates ???
mx5-dan is offline   Reply With Quote
Old 12-29-2011, 11:58 PM   #337
Senior Member

Join Date: Oct 2011
Location: The Race Track & St Pete FL
Posts: 575
Total Cats: 49
Default

Thats what I was thinking, he hasn't been on Time Attack Forums in about a month
1993ka24det is offline   Reply With Quote
Old 12-30-2011, 08:51 AM   #338
Elite Member
iTrader: (12)

GeneSplicer's Avatar

Join Date: Sep 2009
Location: Birmingham, AL
Posts: 1,986
Total Cats: 142
Default

It's summer there - he must be too hot to get out and work on it - or he's out diving in the reef
GeneSplicer is offline   Reply With Quote
Old 12-30-2011, 03:55 PM   #339
Junior Member
Thread Starter

Join Date: Aug 2009
Location: melbourne aus
Posts: 425
Total Cats: 36
Default

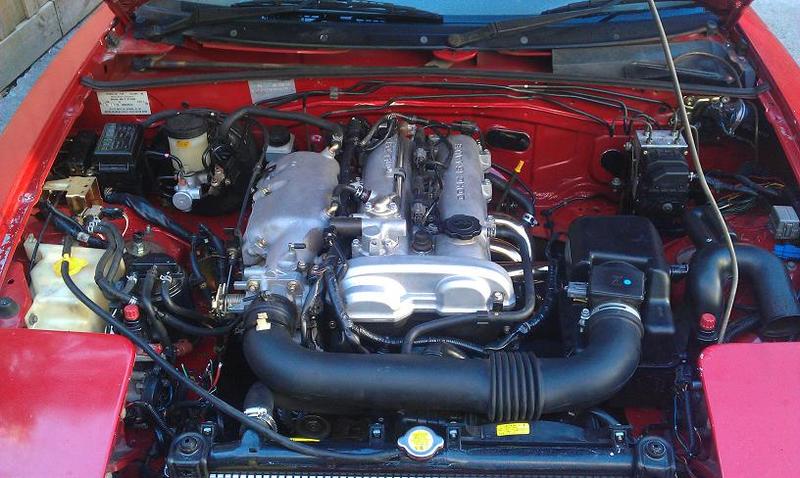

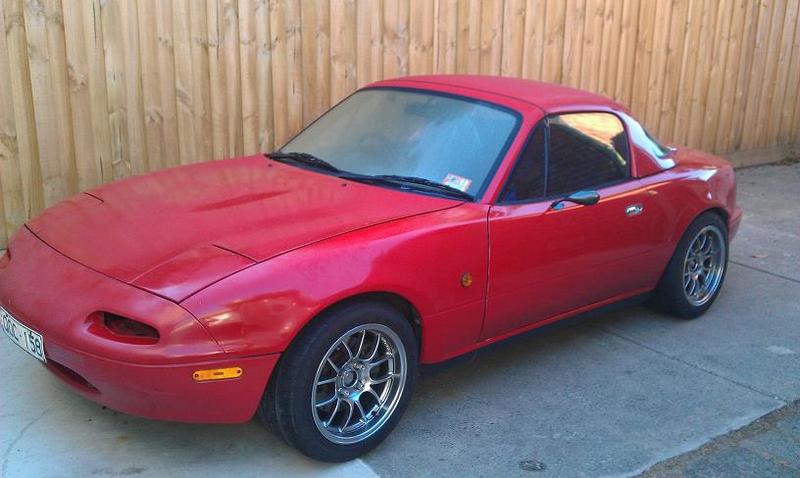

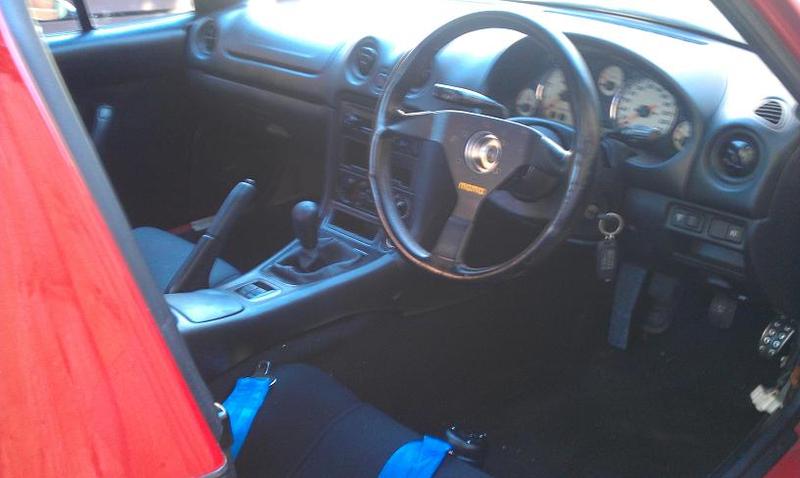

The NA6, or should i say, NA8B.... is pretty much done now. It has as much of the NB8B as i could fit in.







I am doing the inner doors on the c.f car shortly. So hopefully not too far away from having working doors.
Attached Thumbnails
Carbon fibre time attack twins-redco.jpg   Carbon fibre time attack twins-redc1l.jpg   Carbon fibre time attack twins-redc2.jpg
lightyear is offline   Reply With Quote
Old 01-02-2012, 02:21 AM   #340
Junior Member
Thread Starter

Join Date: Aug 2009
Location: melbourne aus
Posts: 425
Total Cats: 36
Default

Quote:
Originally Posted by GeneSplicer View Post
It's summer there - he must be too hot to get out and work on it - or he's out diving in the reef
It is 103 deg farenheit at the moment, so no going into the shed. I do have half of it insulated and have a big airconditioner. But i have not put the a/c in the wall yet. Will do it when it cools down. And finish the paneling the walls on the inside. It is like walking into an oven out there right now. Melbourne gets extreme hight temps for about 3 days at a time around this time of the year. But then you get a southerly and it cools it down instantly. The low temps overnight are very high too. Can be about 85*F at midnight and cools down to high 70*deg's buy 6.30am.
lightyear is offline   Reply With Quote
