Old 07-14-2012, 10:19 AM   #261
Senior Member

Join Date: Aug 2008
Location: Baton Rouge
Posts: 700
Total Cats: 17
Default

Quote:
Originally Posted by cordycord View Post

Speaking of engineering, I think the first few cars won't be shipped out for customers to build, but instead will be built in-house to make sure that they're done right and we didn't miss anything prior to release, such as anomalies between years or potential areas that can be improved.
That is a good idea.
golftdibrad is offline   Reply With Quote
Old 07-14-2012, 02:12 PM   #262
Elite Member
Thread Starter
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default

Quote:
Originally Posted by Scrappy Jack View Post
That rapid prototyping technology is very cool. The great thing about a build (design? manufacture?) thread like this is the ability to highlight all of the little details that can easily get overlooked or under-appreciated once the car is built.

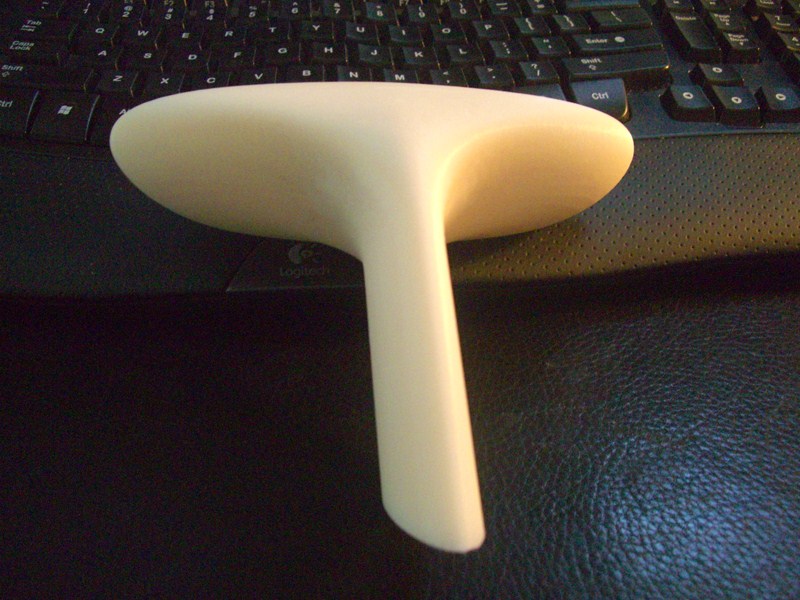

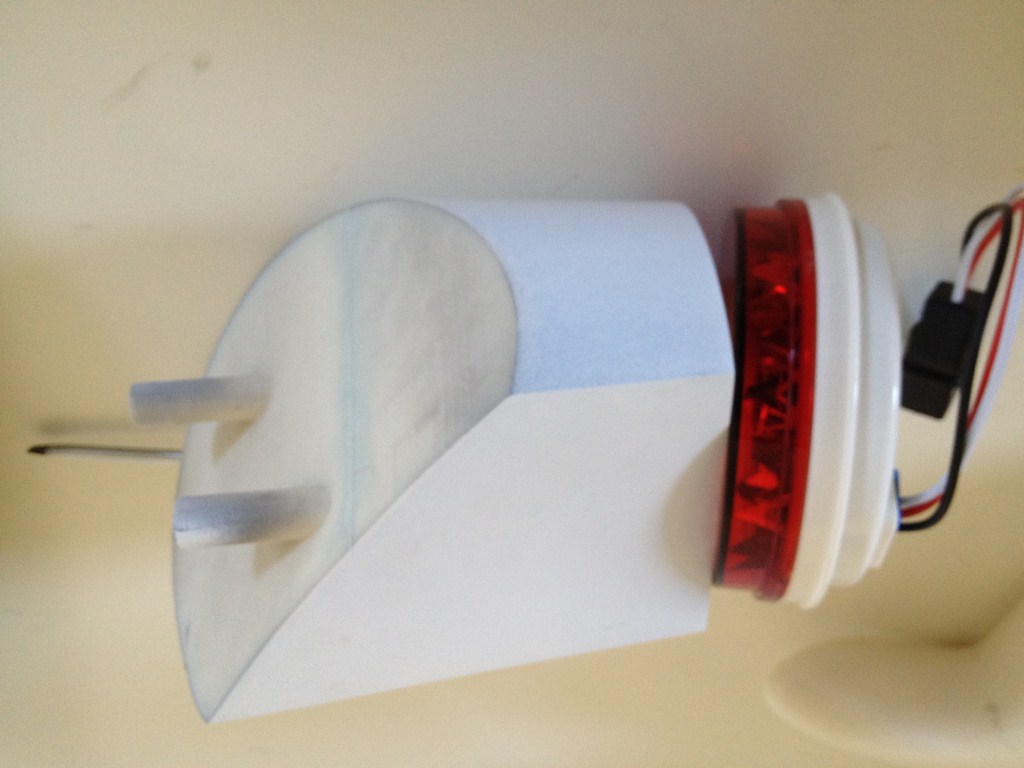

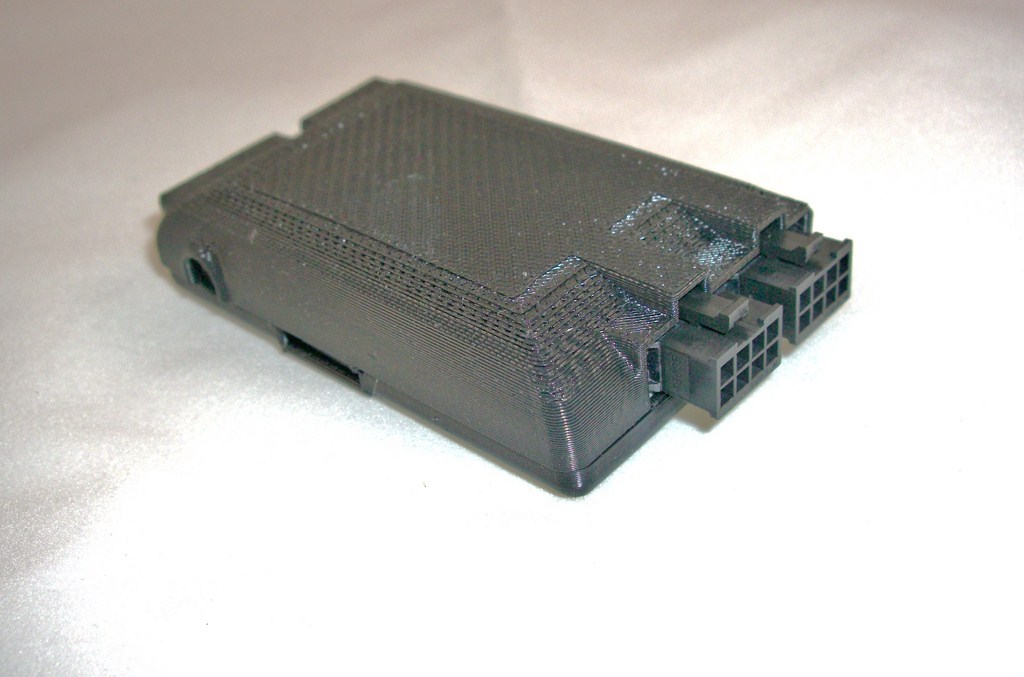

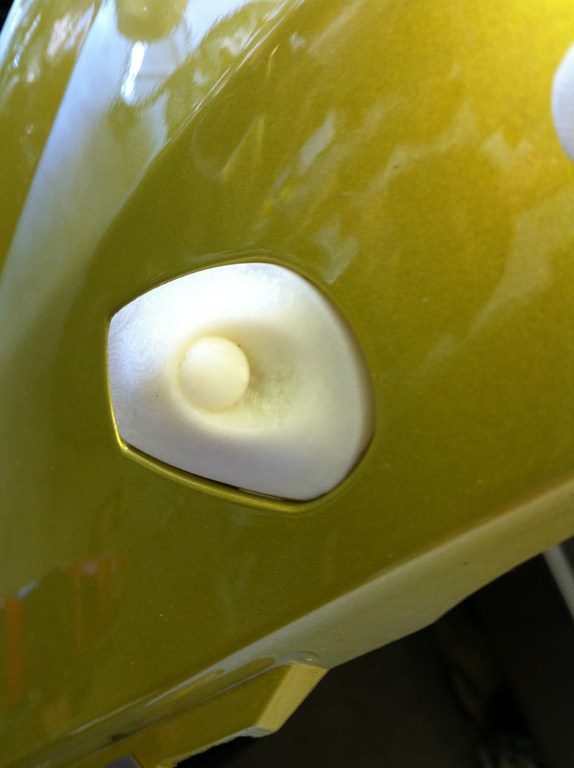

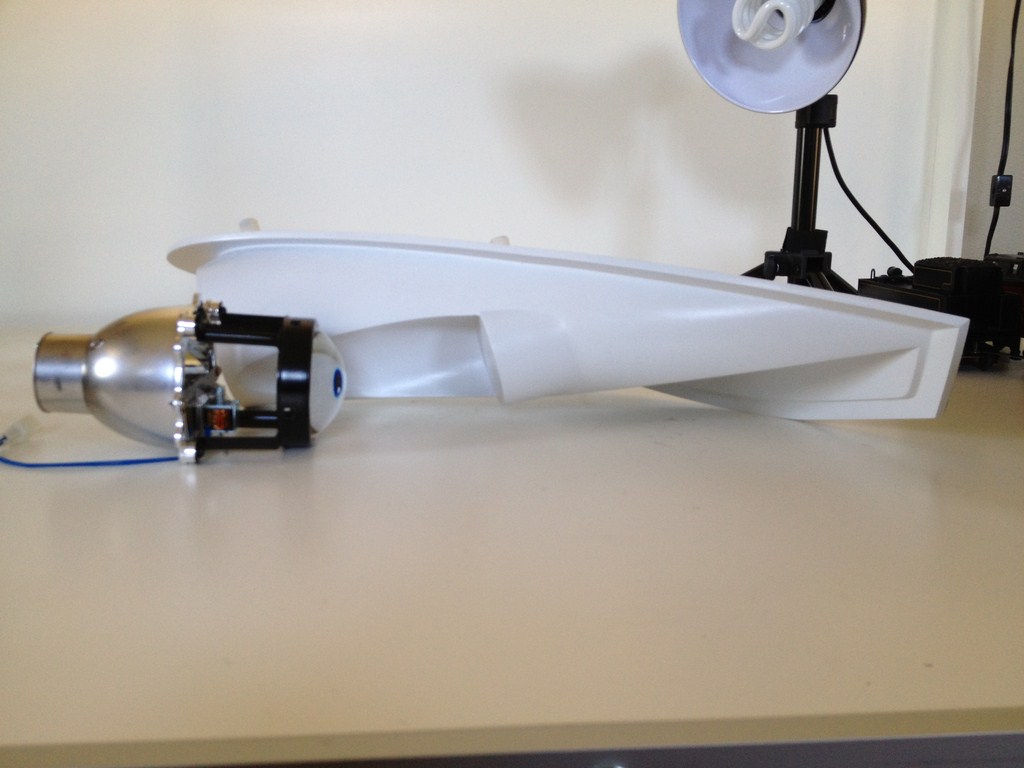

Rapid prototype is neat stuff. I use SolidWorks to build and review, and rapid prototype when needed to confirm fitment. If an expensive mold needs to be opened, it helps to know that the part will fit. Here are some recent examples:
Attached Thumbnails
Cordycord's epic tube frame build-1407121.jpg   Cordycord's epic tube frame build-1407123.jpg   Cordycord's epic tube frame build-1407124.jpg   Cordycord's epic tube frame build-1407125.jpg   Cordycord's epic tube frame build-2002121-3-.jpg

cordycord is offline   Reply With Quote
Old 07-14-2012, 05:40 PM   #263
Elite Member
iTrader: (2)

Join Date: Sep 2008
Location: Central Florida
Posts: 3,284
Total Cats: 178
Default

Things like rapid prototyping and super smart phones are what I call "white swans." They are the sort of science fiction technological advances people don't build in to their models that can transform tomorrow.

Very cool to watch this develop.
Scrappy Jack is offline   Reply With Quote
Old 07-16-2012, 03:26 PM   #264
Senior Member

Join Date: Feb 2012
Location: chicago
Posts: 665
Total Cats: -35
Default

Quote:
Originally Posted by cordycord View Post
None taken! I want this area of the car market to THRIVE. The more the merrier, as long as they're engineered well. If they are, it can only help the sales of every other manufacturer by making the market segment more legitimate.

Speaking of engineering, I think the first few cars won't be shipped out for customers to build, but instead will be built in-house to make sure that they're done right and we didn't miss anything prior to release, such as anomalies between years or potential areas that can be improved.

The nice thing for customers is that the people who designed the car will also be building it. Once we get our act together, maybe you'll be able to drive your donor to Southern California, take a week vacation, and then drive home in your new Catfish.

that would be sick. but unless I can build this car for about 15k I doubt I will be able to do it anytime soon.

personally I think it would be cool to skin it with miata body parts so it looks stock, but is way lighter. not sure if this is realistic or even feasible but it would be a neat option.
psreynol is offline   Reply With Quote
Old 07-16-2012, 05:59 PM   #265
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,133
Total Cats: 599
Default

Quote:
Originally Posted by psreynol View Post
personally I think it would be cool to skin it with miata body parts so it looks stock, but is way lighter. not sure if this is realistic or even feasible but it would be a neat option.
That has been my plan all along.
triple88a is offline   Reply With Quote
Old 07-16-2012, 06:19 PM   #266
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

Quote:
Originally Posted by cordycord View Post
Speaking of not ugly,

well played.
Braineack is offline   Reply With Quote
Old 07-17-2012, 12:52 AM   #267
Elite Member
Thread Starter
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default Seat brackets, side panels

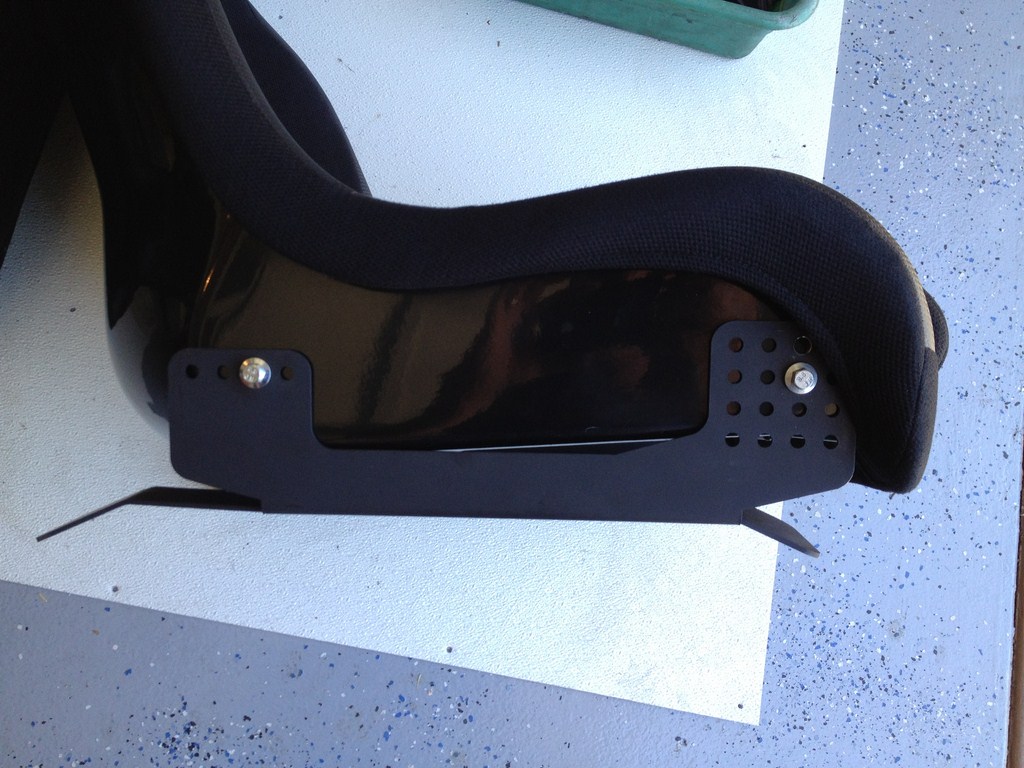

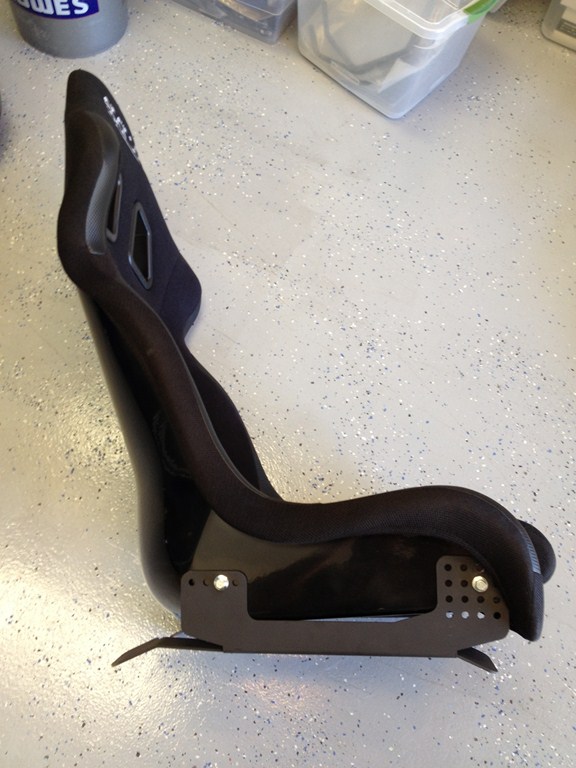

The seat brackets will get a little fine tuning to be perfect, but I think they're production-worthy. Here's a couple shots of them on a Sparco.

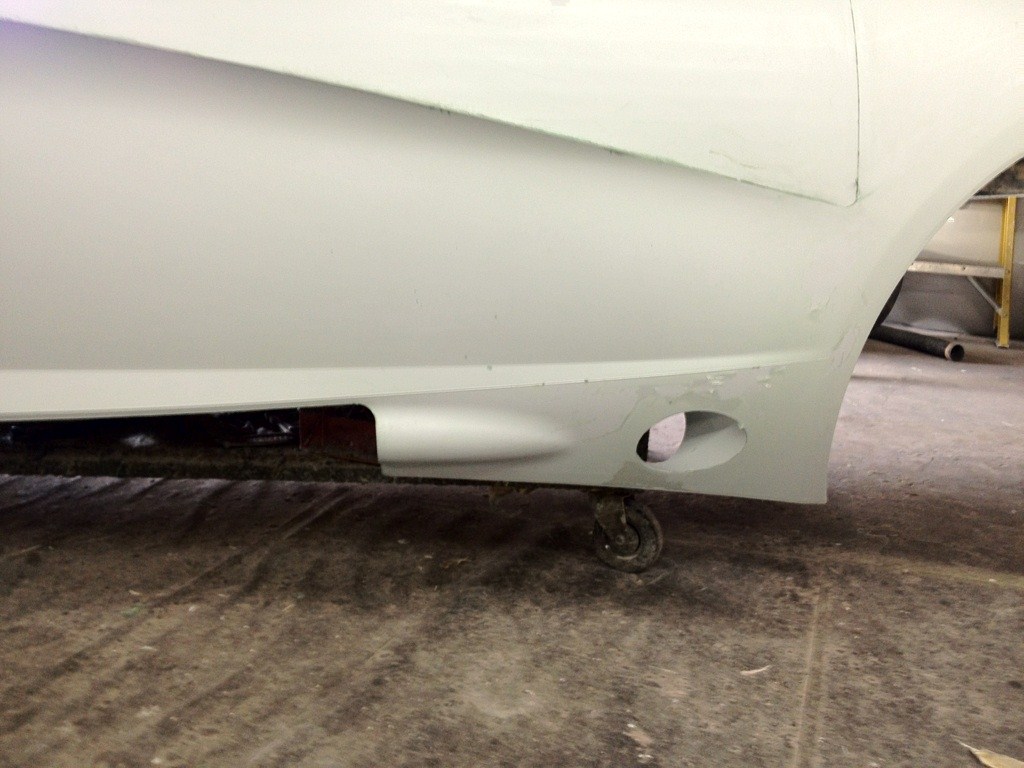

The side panels were finally liberated from the molds! I'm not going to show them off until they're completely on the car. Until then, included is a tease of the exhaust cutout.
Attached Thumbnails
Cordycord's epic tube frame build-1607122.jpg   Cordycord's epic tube frame build-1607121.jpg   Cordycord's epic tube frame build-1607125.jpg
cordycord is offline   Reply With Quote
Old 07-17-2012, 01:03 AM   #268
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,206
Total Cats: 2,587
Default

looks top notch. can't wait for full bodied glory pics
18psi is offline   Reply With Quote
Old 07-17-2012, 01:37 AM   #269
Senior Member

Join Date: Feb 2012
Location: chicago
Posts: 665
Total Cats: -35
Default

ok I might be a little slow, but are you reusing the stock floor pan? I assume so by looking at the seat mounts but after seeing the amount of work you've done it seems a little silly to use a stock part that many people cut out for clearance reasons.
psreynol is offline   Reply With Quote
Old 07-17-2012, 01:43 AM   #270
Elite Member
Thread Starter
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default

Quote:
Originally Posted by psreynol View Post
ok I might be a little slow, but are you reusing the stock floor pan? I assume so by looking at the seat mounts but after seeing the amount of work you've done it seems a little silly to use a stock part that many people cut out for clearance reasons.
Good question. NO to the stock floor pan, but YES to the stock seat mount position. Technically your stock seats can bolt right in.

The car will have a flat bottom aluminum skin from front to back, which coupled with splitters and diffusers should give some good down force. In the cockpit, a second set of aluminum panels will be placed from firewall to front seat brackets for safety. IMO, weight added for safety is not a bad thing.
cordycord is offline   Reply With Quote
Old 07-17-2012, 11:43 AM   #271
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

Inner diameter of exhaust hole?
TurboTim is offline   Reply With Quote
Old 07-18-2012, 03:04 AM   #272
Elite Member
Thread Starter
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default

Quote:
Originally Posted by TurboTim View Post
Inner diameter of exhaust hole?
I think it's 4", but subject to change upon notice.

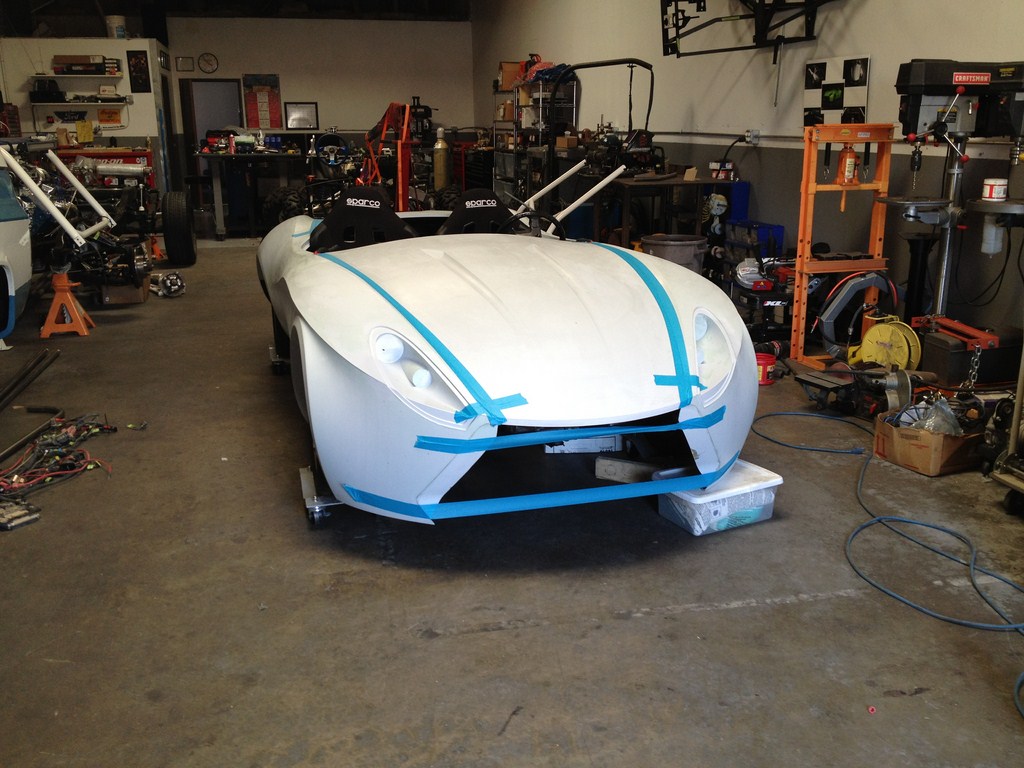

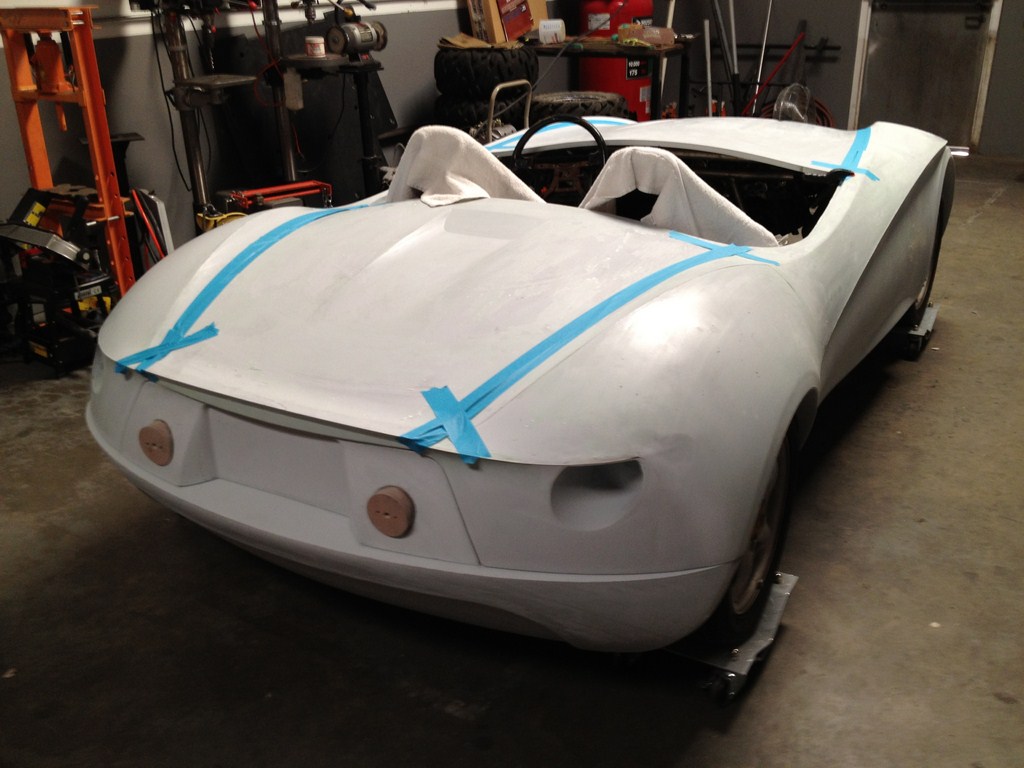

The side panels are finally at the car. I didn't have any cleco's today, so the body went together with blue painter's tape and squeeze clamps. The body is literally floating around the frame. It needs to be properly measured and connected. Tomorrow.

Overall, it was a PITA day as I was screwing with all this bodywork by myself. It's a two person job, minimum, to fit the bodywork properly.

First impressions;
--We made the conscious decision to build the body for wide tires, 8.5" at least, and the stock hoops look positively puny.
--There's a really good amount of wind protection in the cockpit. I think it will be possible to go for a Sunday drive without a helmet.
--There's still a lot to do. The tin work and proper inner panels for dirt and water still need to be addressed.

All of the final fitment of parts now (inner panels, mounting tabs, etceteras) will be used as templates, duplicated, and tested on the two other frames.

Tomorrow's my last day working on the car for a couple of weeks--vacation and the MotoGP at Laguna Seca await.
Attached Thumbnails
Cordycord's epic tube frame build-1707123.jpg   Cordycord's epic tube frame build-1707124.jpg
cordycord is offline   Reply With Quote
Old 07-18-2012, 04:02 AM   #273
Senior Member
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

Looks great!
bcrx7 is offline   Reply With Quote
Old 07-18-2012, 04:34 AM   #274
Elite Member
Thread Starter
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default from concept to car

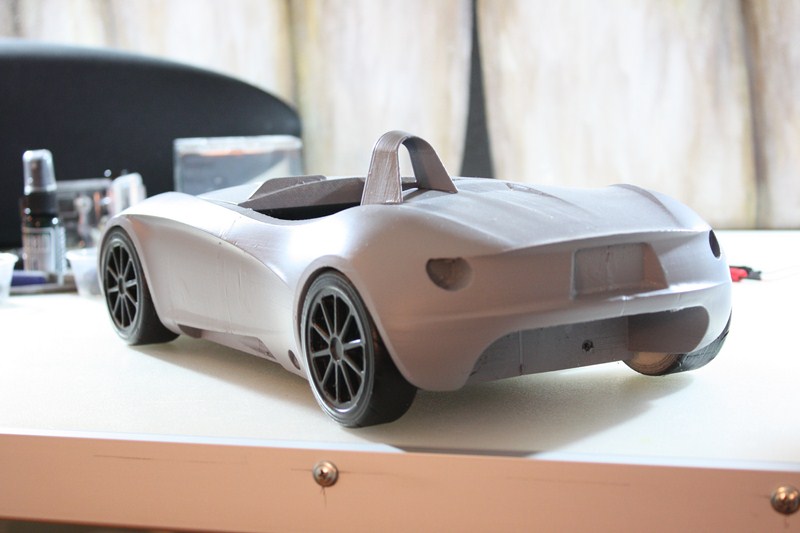

Here's a couple of funny shots. Take a look at the 1/5 scale model and the real car. It's been a long trek...
Attached Thumbnails
Cordycord's epic tube frame build-2702122.jpg   Cordycord's epic tube frame build-1707123.jpg
cordycord is offline   Reply With Quote
Old 07-18-2012, 10:22 AM   #275
Junior Member
iTrader: (3)

Join Date: Apr 2012
Location: Ridgecrest CA
Posts: 448
Total Cats: 44
Default

Ugh, why does it have to turn out so good? That just makes me want it more!

For the wheels, isn't that the hella-tucked look everyone's going for? I may not be grasping the concept...
czubaka is offline   Reply With Quote
Old 07-18-2012, 10:34 AM   #276
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

need moar wheel spacerz
Braineack is offline   Reply With Quote
Old 07-18-2012, 11:00 AM   #277
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

Needs 15x10 6UL's. If there were a street tire that works.

Except in the renderings there is no dish to the wheels, so I dunno. maybe that's the look Cordy is going for overall.
TurboTim is offline   Reply With Quote
Old 07-18-2012, 11:38 AM   #278
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

i dont care about dish. i just want it not to look like a 70s car, in repects to tiny sunken wheels in huge fenders.
Braineack is offline   Reply With Quote
Old 07-18-2012, 11:53 AM   #279
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

Herrasunk!



TurboTim is offline   Reply With Quote
Old 07-18-2012, 03:22 PM   #280
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,133
Total Cats: 599
Default

Brain you want the rear wheel skirts too?



Although this definitely looks clean.



Attached Thumbnails
Cordycord's epic tube frame build-ford-00211-2.jpg   Cordycord's epic tube frame build-porsche_356_coupe_51.jpg
triple88a is offline   Reply With Quote
