New price on Elise seats is insane-o. I dig the vintage style Recaros. I also dig Corbeau Classics:


Corbeau: Classic Bucket



A repop of the original 914 seat would be cool, too.
vehicular is offline   Reply With Quote
Old 09-26-2012, 01:41 PM   #422
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Well too classic, don't flow with the body of the catfish at all.
triple88a is offline   Reply With Quote
Old 09-26-2012, 11:15 PM   #423
Elite Member
Thread Starter
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default Got the molds!

The Elise seat is nice. Looks skinny. We'll be developing our own seat, but not right now, as there are too many damn things to do in 30 days.

The good part is that things are moving along. The SEMA frame will be all welded and ready to pick up Monday. It and the SEMA bodywork will go to get the interior fitted. I don't know how long that will take, but we'll be able to strip everything apart, paint, and then start final assembly after the interior is in. YES!

More good news from today. The last of the NEEDED molds are done. This includes the dash and the rear diffuser. All of these molds are temporary tools, so the car at SEMA will be built from temp-tooling. We'll pull one more really THICK part from each mold, add stiffeners, and then cherry out the finish. These bucks are what we will create our final tools from.

There's a LOT to do before the show, but we should be ready to ramp up for production once we get to November.
cordycord is offline   Reply With Quote
Old 09-28-2012, 12:56 AM   #424
Elite Member
Thread Starter
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default seats

How about these virtual seats?
Attached Thumbnails
Cordycord's epic tube frame build-seat002.jpg   Cordycord's epic tube frame build-seat002a.jpg
cordycord is offline   Reply With Quote
Old 09-28-2012, 04:26 AM   #425
Elite Member
Thread Starter
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default

Quote:
Originally Posted by vehicular View Post
New price on Elise seats is insane-o. I dig the vintage style Recaros. I also dig Corbeau Classics:


Corbeau: Classic Bucket



A repop of the original 914 seat would be cool, too.
I looked seriously at those seats, but triple88a has a point. I'm a big fan of the 914 seats, but same issue. I think we'll take the "virtual" seats I have shown above, and eventually morph them into something that matches the Catfish properly.
cordycord is offline   Reply With Quote
Old 09-28-2012, 04:16 PM   #426
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

On a side note seeing that the catfish is open to the elements the seats will have to be something along the lines of leather.
triple88a is offline   Reply With Quote
Old 09-28-2012, 04:20 PM   #427
Senior Member

Join Date: Aug 2008
Location: Baton Rouge
Posts: 700
Total Cats: 17
Default

Quote:
Originally Posted by triple88a View Post
On a side note seeing that the catfish is open to the elements the seats will have to be something along the lines of leather.


Nah.
Attached Thumbnails
Cordycord's epic tube frame build-dragon12web_218788.jpg
golftdibrad is offline   Reply With Quote
Old 09-28-2012, 04:35 PM   #428
Elite Member
Thread Starter
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default

Quote:
Originally Posted by golftdibrad View Post


Nah.
Danny's car is soooo cool, it's wet.
cordycord is offline   Reply With Quote
Old 09-28-2012, 04:36 PM   #429
Senior Member

Join Date: Aug 2008
Location: Baton Rouge
Posts: 700
Total Cats: 17
Default

Quote:
Originally Posted by cordycord View Post
Danny's car is soooo cool, it's wet.
yea, point being, those seats are fabirc, got very wet, and are just fine.
golftdibrad is offline   Reply With Quote
Old 09-28-2012, 04:41 PM   #430
Elite Member
Thread Starter
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default diffuser tech

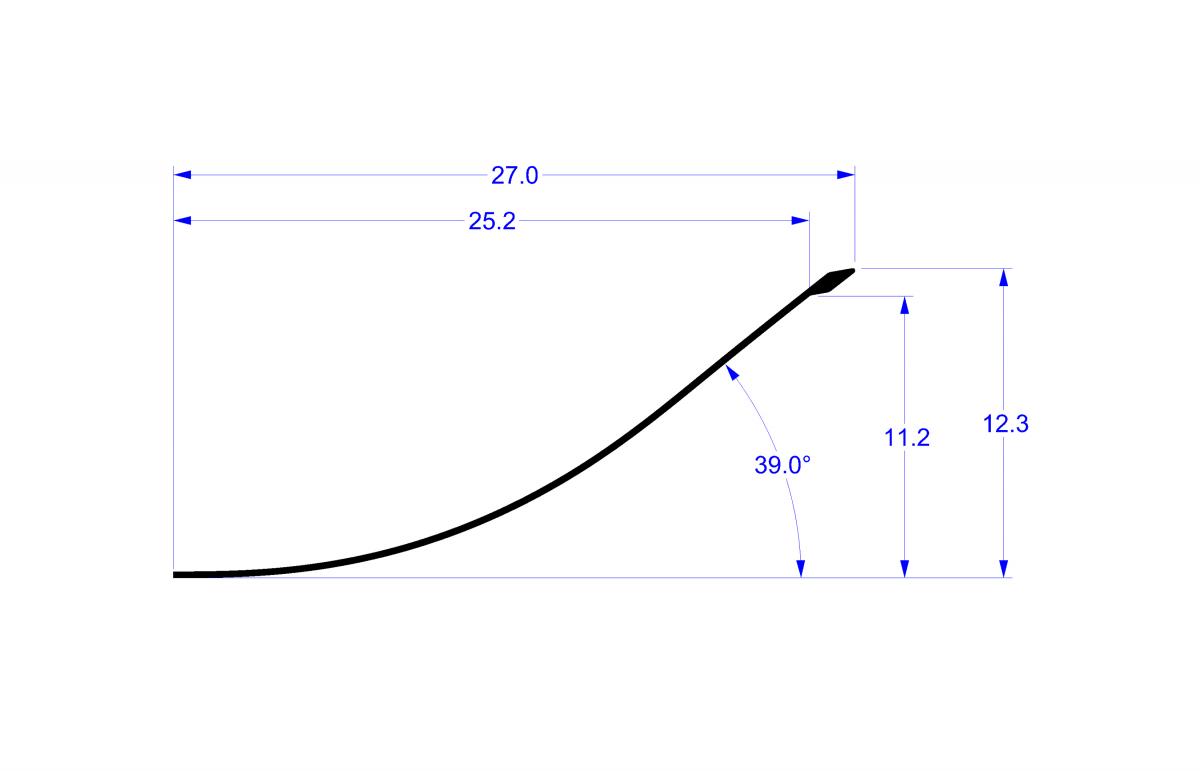

Ask 10 people the correct angle for a diffuser and eight will look at you funny. The other two gear heads will get in an argument over the correct angle, if it should be complex or simple, how many vanes to add and at what spacing, etceteras.

The bottom line is that with the flat bottom that the Catfish employs, real gains in downforce and road holding should be realized. Plus it looks cool.

One feature we're incorporating into the diffuser is the ability to change the height via turnbuckles and thread rod, quick pins, etceteras. This will allow some fine-tuning as well as street/track configurations. The other unique feature is that there's a gap between the body and the diffuser--it seems to "float" at the back of the car. The gap has two functions: to allow the diffuser to be raised and lowered, and to allow air in the rear wheel wells to easily escape the body.

The best part--If anyone is interested I think this part can be adapted to the Miata.
Attached Thumbnails
Cordycord's epic tube frame build-difus-dim.jpg   Cordycord's epic tube frame build-catfish-2.jpg
cordycord is offline   Reply With Quote
Old 09-28-2012, 04:43 PM   #431
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Quote:
Originally Posted by golftdibrad View Post
yea, point being, those seats are fabirc, got very wet, and are just fine.
Well i guess i'm more afraid of the stench.
triple88a is offline   Reply With Quote
Old 10-02-2012, 04:55 PM   #432
Elite Member
iTrader: (24)

Join Date: Jun 2007
Location: Sherman Oaks, CA
Posts: 4,481
Total Cats: 3
Default

Saw this in-person yesterday. Badass! Can't wait to see the body on this thing
UrbanSoot is online now   Reply With Quote
Old 10-02-2012, 06:01 PM   #433
Senior Member
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

Great to see you are adding a gap! It is more important than a lot of people think! It is amazing how much the smallest gap helps! Excellent work as usual and looking forward to SEMA pictures!

Quote:
Originally Posted by cordycord View Post
Ask 10 people the correct angle for a diffuser and eight will look at you funny. The other two gear heads will get in an argument over the correct angle, if it should be complex or simple, how many vanes to add and at what spacing, etceteras.

The bottom line is that with the flat bottom that the Catfish employs, real gains in downforce and road holding should be realized. Plus it looks cool.

One feature we're incorporating into the diffuser is the ability to change the height via turnbuckles and thread rod, quick pins, etceteras. This will allow some fine-tuning as well as street/track configurations. The other unique feature is that there's a gap between the body and the diffuser--it seems to "float" at the back of the car. The gap has two functions: to allow the diffuser to be raised and lowered, and to allow air in the rear wheel wells to easily escape the body.

The best part--If anyone is interested I think this part can be adapted to the Miata.
bcrx7 is offline   Reply With Quote
Old 10-03-2012, 01:41 AM   #434
Elite Member
Thread Starter
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default SEMA scramble

Here's the deal--the car looks like it will take six months to build. Actually no. We've got mule #1, which is a running, moving car, being detailed and set up for the production chassis. It will come down next week and have a finished, powder coated chassis replace the original frame that was seen circulating El Toro. Note the top bar is now straight--no dip. Wiring will be a snap.

The interior is being done in aluminum for the show, and the basic panel templates were cut out today. The good news is that we have a plan, and nothing should mess up our progress.

The included pictures show...

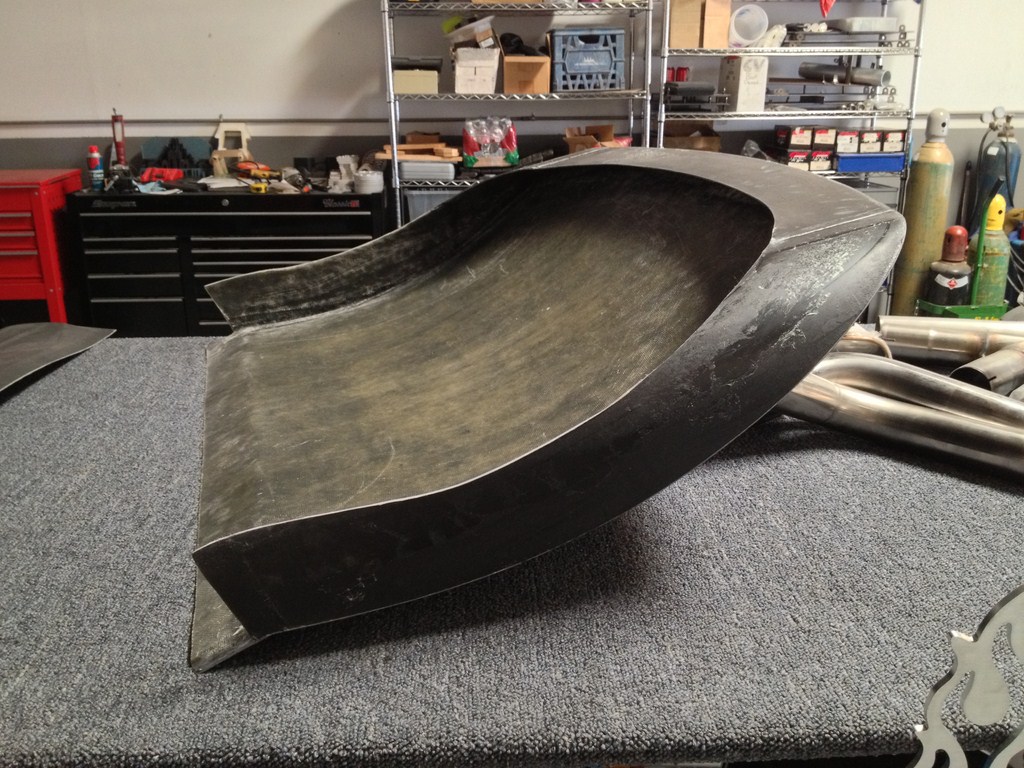

--the top of the rear diffuser. Fins and mounting tabs not yet added. The side skirts can be relieved to flow more air as a secondary operation.

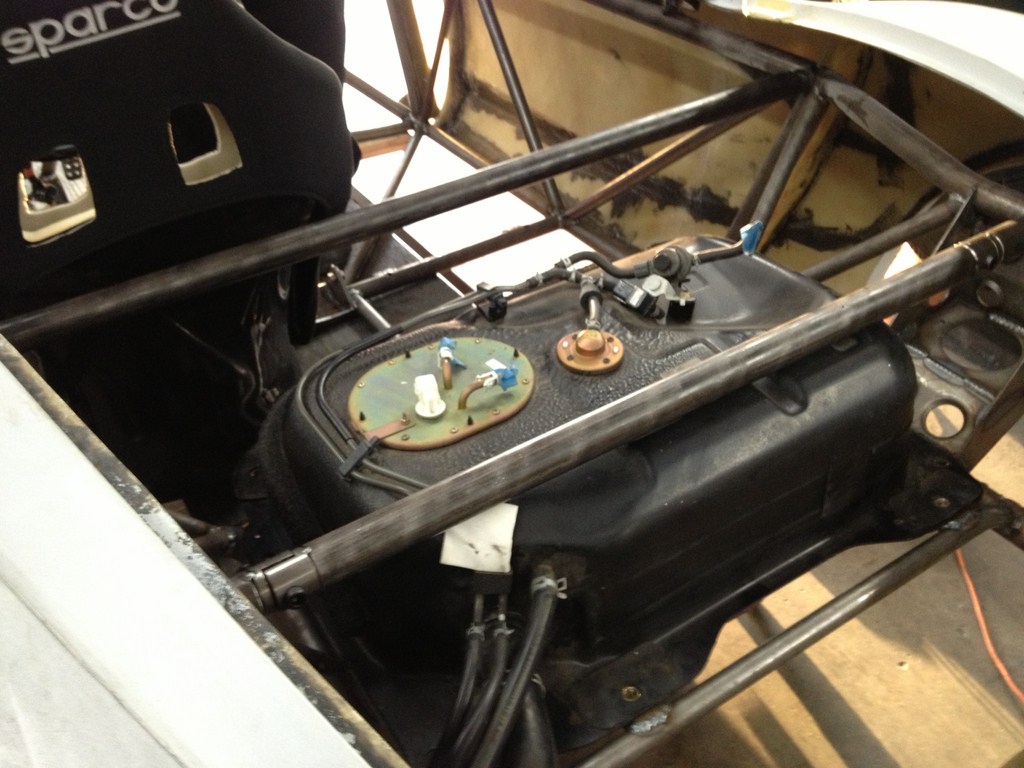

--The rear cross bar at the shock tower. This is for safety so the gas tank doesn't move in a crash, and for ultimate stiffness between the rear shock towers.

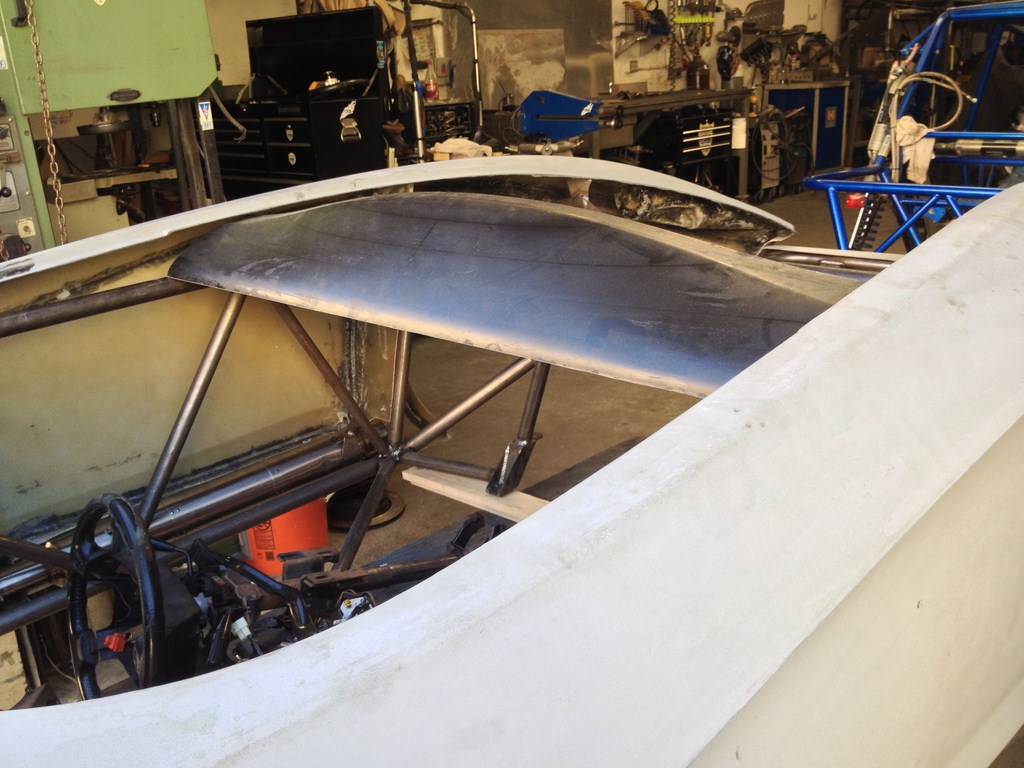

--dash. For the first car, this fits below the hood and will have a bubble for the gauge panel
--SEMA neighbor. Lucra is right next door, and their SEMA car with the new air exit fins in the hood looks stunning. And it sounds like NASCAR. This car is going to SEMA after a wrap job. Look for the Lucra in the next Fast & Furious movie.
Attached Thumbnails
Cordycord's epic tube frame build-0210121.jpg   Cordycord's epic tube frame build-0210124.jpg   Cordycord's epic tube frame build-0210122.jpg   Cordycord's epic tube frame build-0210123.jpg
cordycord is offline   Reply With Quote
Old 10-03-2012, 01:45 AM   #435
Elite Member
Thread Starter
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default 420 posts! I've gotta go do something :)

I reached a milestone, at least in California. 420 posts!

I stayed at a hotel this summer in room 420...the number had been taken off the door so many times that they didn't bother to put a new one up.

BTW, I mean going out and doing 420 push ups.
cordycord is offline   Reply With Quote
Old 10-03-2012, 01:53 AM   #436
Senior Member

Join Date: Feb 2012
Location: chicago
Posts: 665
Total Cats: -35
Default

what is that last car? does not look like cat fish
psreynol is offline   Reply With Quote
Old 10-03-2012, 02:00 AM   #437
Elite Member
Thread Starter
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default

Quote:
Originally Posted by psreynol View Post
what is that last car? does not look like cat fish
That's a Lucra LC470, with pricing from $85,000 to $125,000. This car (I think) has an LS6 or LS7 motor, has a carbon body bonded to a massive 4" tube backbone, and weighs in around 2,500lbs.

Lucra Cars
cordycord is offline   Reply With Quote
Old 10-03-2012, 05:13 AM   #438
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

I gotta admit. Uck not my cup of tea. I prefer something along the lines of a low front end thats pulled back similar to the a clk-gtr.
triple88a is offline   Reply With Quote
Old 10-03-2012, 11:19 AM   #439
Elite Member
Thread Starter
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default

Quote:
Originally Posted by triple88a View Post
I gotta admit. Uck not my cup of tea. I prefer something along the lines of a low front end thats pulled back similar to the a clk-gtr.
It's based on the old Lister made in England in the mid-fifties. It was raced with various engines, starting with a two liter and ending (I think) with a Chevy power plant.

These cars are old school style, but this one is thoroughly modern in manufacture.
cordycord is offline   Reply With Quote
Old 10-03-2012, 11:21 AM   #440
Junior Member
iTrader: (3)

Join Date: Apr 2012
Location: Ridgecrest CA
Posts: 448
Total Cats: 44
Default

I really like the setup for the fuel tank. Looks like it would be a snap to add a fuel cell.
czubaka is offline   Reply With Quote
