Old 01-14-2016, 03:28 PM   #41
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

I despise all non-butane portables.

You need a simple plugin 20-30W weller deal from ace hardware.
deezums is offline   Reply With Quote
Old 01-14-2016, 03:30 PM   #42
!!! NOT CONFIRMED !!!
Thread Starter
iTrader: (2)

Join Date: Nov 2015
Posts: 158
Total Cats: -4
Default

Quote:
Originally Posted by deezums View Post
I despise all non-butane portables.

You need a simple plugin weller deal from ace hardware.
I may hold off until I can get a plugin. I actually went to the hardware store yesterday to get one, a new tip, and some more wick.

Not only did they not have tips, the guy behind the counter had never even heard of solder wick. I had to google it and show it to him on my phone.

Suffice to say, I'll be making the long drive into town to shop at a real hardware store from now on.
VRRMPSH is offline   Reply With Quote
Old 01-14-2016, 03:34 PM   #43
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

I just saved you a ton of time:

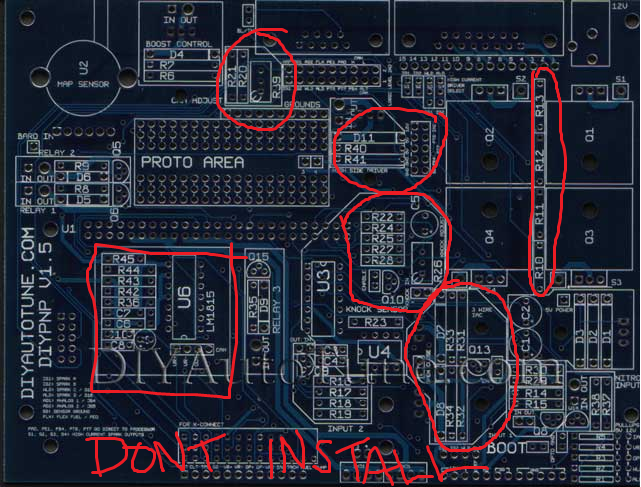

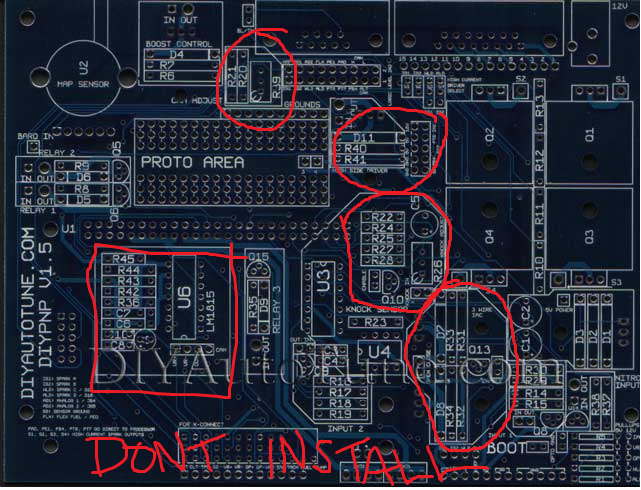

buy the $7 radio shack 45watt iron.
Attached Thumbnails
Danger To Manifold or: How I Learned To Stop Worrying And Love The Boost.-80-undefined_f16c3b7b27238ba201b2e8660ff8d06077ea534e.png   Danger To Manifold or: How I Learned To Stop Worrying And Love The Boost.-80-undefined_d698c1902b2c72d843fd999b1de14fcd5da9ea0b.png
Braineack is offline   Reply With Quote
Old 01-14-2016, 03:37 PM   #44
!!! NOT CONFIRMED !!!
Thread Starter
iTrader: (2)

Join Date: Nov 2015
Posts: 158
Total Cats: -4
Default

Quote:
Originally Posted by Braineack View Post
I just saved you a ton of time:
buy the $7 radio shack 45watt iron.
Thanks, Brain-- I didn't see this on their site.

I have the "V1.5B" board, does that make any difference?
VRRMPSH is offline   Reply With Quote
Old 01-14-2016, 03:39 PM   #45
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

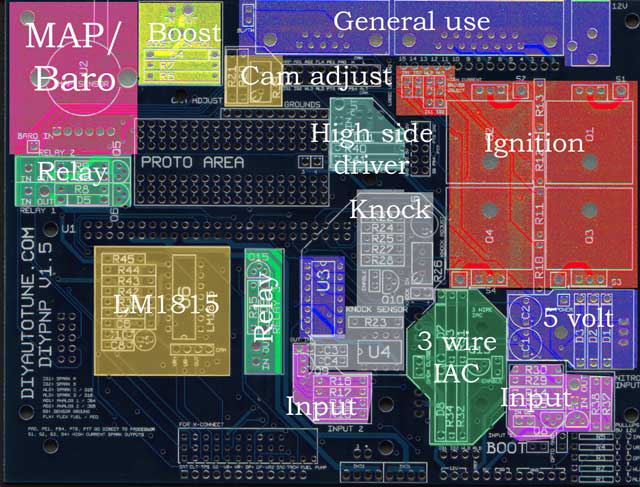

It's a slight revision, bet it's still all the same. You don't need the stuff Brian pictures, and this is why.
Attached Thumbnails
Danger To Manifold or: How I Learned To Stop Worrying And Love The Boost.-v15top_sections.jpg
deezums is offline   Reply With Quote
Old 01-14-2016, 03:41 PM   #46
!!! NOT CONFIRMED !!!
Thread Starter
iTrader: (2)

Join Date: Nov 2015
Posts: 158
Total Cats: -4
Default

Excellent. Many thanks, guys. I'm going to grab a plugin and some wick today and re-tackle this bastard.
VRRMPSH is offline   Reply With Quote
Old 01-14-2016, 04:08 PM   #47
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

guess they raised prices after they close all their stores -- cause that's good business.

https://www.radioshack.com/products/...ant=5717856645

I used that for years and years and years.


but im now using a REALLLLLLLLLLLLLLLY cheap weller that I hate compared to it.


Attached Thumbnails
Danger To Manifold or: How I Learned To Stop Worrying And Love The Boost.-80-undefined_462b1eb0f37659bd6c4e39fe7548243a5e0ae0f1.png
Braineack is offline   Reply With Quote
Old 01-14-2016, 04:30 PM   #48
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

+1 on the Radio Shack irons.

All the Radio Shack stores around my area are still open, thankfully. They've even kept the Radio Shack brand name.

Of course, I'm they're nightmare customer -- the guy that comes in to buy a package of resistors for $0.76 when they really want to be selling cellphones or something.

Last edited by hornetball; 01-14-2016 at 04:45 PM.
hornetball is offline   Reply With Quote
Old 01-14-2016, 04:43 PM   #49
Elite Member

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 2,158
Total Cats: 131
Default

Depending on where you are in California Fry's Electronics might be an option as well. They aren't what they used to be in the electronics area but last time I was at my local Fry's they still had a bunch of stuff that you couldn't easily find anywhere else. They have saved my bacon many times.
Chiburbian is offline   Reply With Quote
Old 01-14-2016, 04:46 PM   #50
!!! NOT CONFIRMED !!!
Thread Starter
iTrader: (2)

Join Date: Nov 2015
Posts: 158
Total Cats: -4
Default

I found a nearby Radio Shack rebranded as e-stuff+. Go figure. I got the generic soldering iron, fine tip, some more 0.03 60/40, solder wick and a new pair of snips. Ready to rock.
VRRMPSH is offline   Reply With Quote
Old 01-14-2016, 08:41 PM   #51
!!! NOT CONFIRMED !!!
Thread Starter
iTrader: (2)

Join Date: Nov 2015
Posts: 158
Total Cats: -4
Default

It's about a million times easier with this soldering iron. I didn't even have problems with those three-legged capacitors.

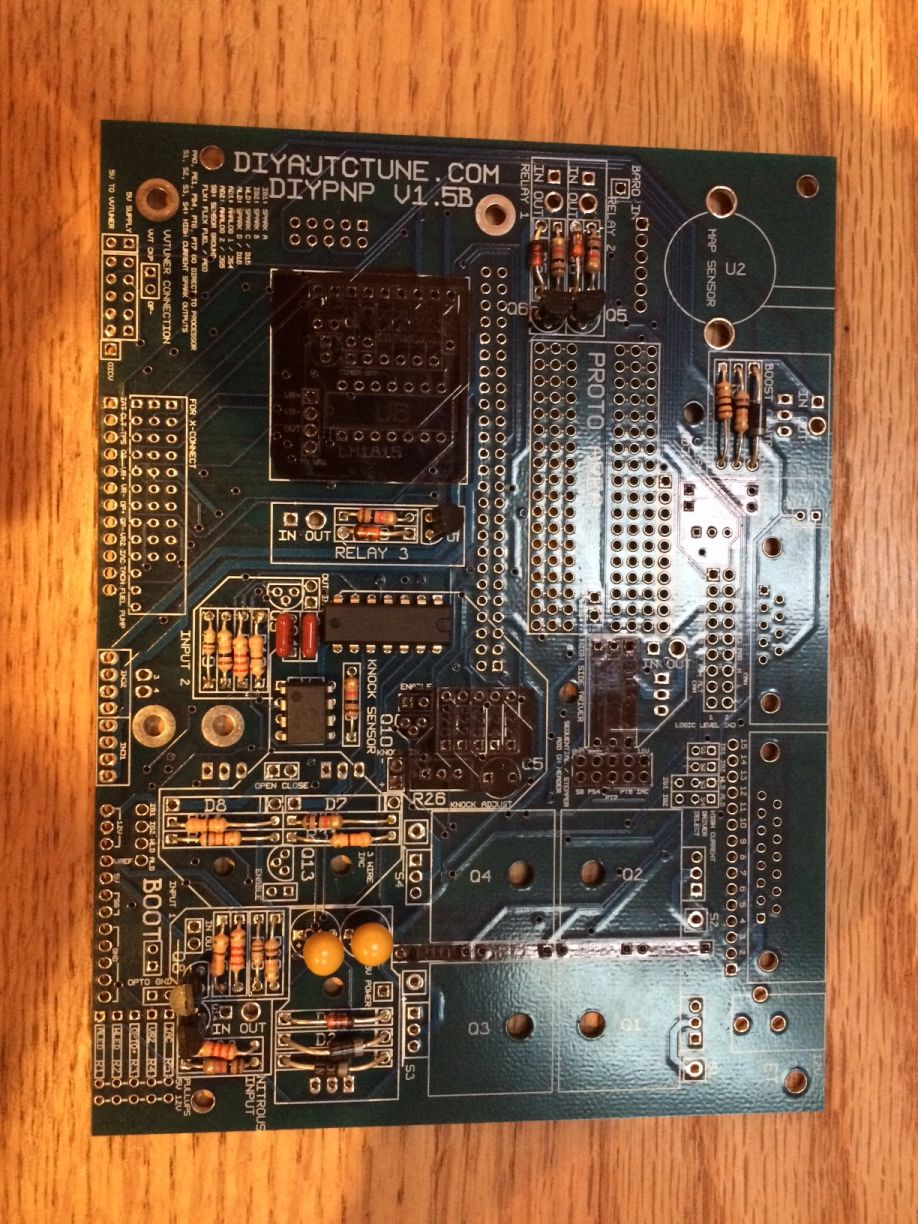

Progress: (Ignore the four resistors in the IAC section, I soldered those before Brain posted.)


Attached Thumbnails
Danger To Manifold or: How I Learned To Stop Worrying And Love The Boost.-80-img_0012_c43d5c5a1fce6c30d5205c2f7bc3f7cdf0fcec9a.jpg
VRRMPSH is offline   Reply With Quote
Old 01-14-2016, 08:54 PM   #52
!!! NOT CONFIRMED !!!
Thread Starter
iTrader: (2)

Join Date: Nov 2015
Posts: 158
Total Cats: -4
Default

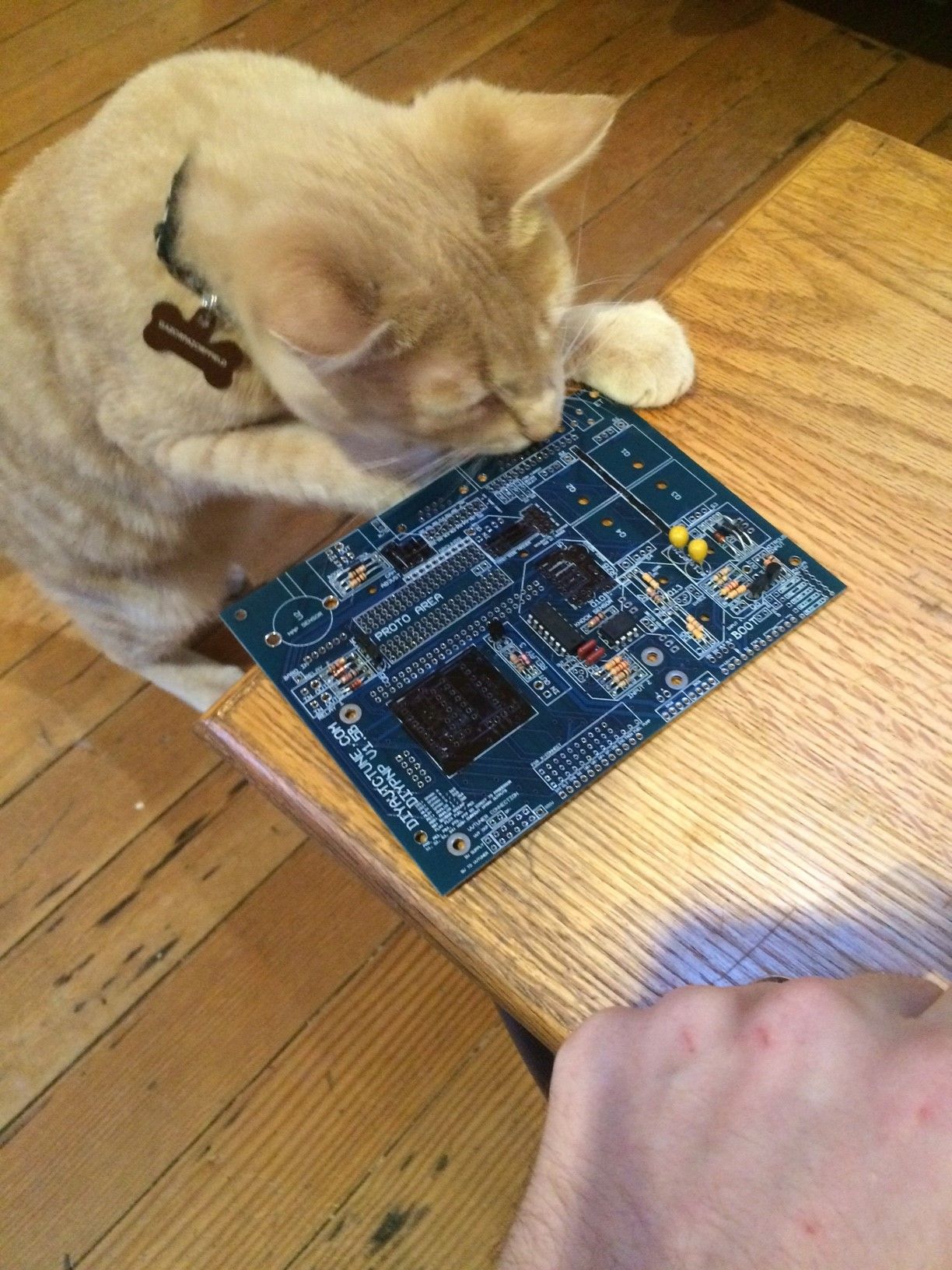

Gaz inspects my soldering.


Attached Thumbnails
Danger To Manifold or: How I Learned To Stop Worrying And Love The Boost.-80-img_0017_5610dd53d572cfb323e56ab6efb419a33bba36bd.jpg   Danger To Manifold or: How I Learned To Stop Worrying And Love The Boost.-80-img_0017_d3d00305608c3c866bdcd5a8530bc38bf1a9bb12.jpg
VRRMPSH is offline   Reply With Quote
Old 01-14-2016, 09:39 PM   #53
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,704
Total Cats: 269
Default

Quote:
Originally Posted by VRRMPSH View Post
I found a nearby Radio Shack rebranded as e-stuff+. Go figure. I got the generic soldering iron, fine tip, some more 0.03 60/40, solder wick and a new pair of snips. Ready to rock.
No, not 60/40. You want 63/37. It is eutectic and therefore easier to use and make good joints. I suggest "no-clean" core. Make sure that you do not move the parts as they cool. There are lots of guides on the internet. Here is one: 7.1.1 Soldering Basics
DNMakinson is offline   Reply With Quote
Old 01-14-2016, 10:42 PM   #54
!!! NOT CONFIRMED !!!
Thread Starter
iTrader: (2)

Join Date: Nov 2015
Posts: 158
Total Cats: -4
Default

So I've finished everything except for the adapter board jumpers. Before I continue, is there anything custom or non-standard that I should do?

I have a 1996 and I'd like to run boost control through MS. I will be using an IAT to delete my MAF.
VRRMPSH is offline   Reply With Quote
Old 01-14-2016, 10:47 PM   #55
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

You can use evap purge valve wiring for ebc if I'm not mistaken. I think the clutch switch might be there too, for launch control. Go look up a ECU wiring diagram for your year and poke about.
deezums is offline   Reply With Quote
Old 01-14-2016, 11:53 PM   #56
!!! NOT CONFIRMED !!!
Thread Starter
iTrader: (2)

Join Date: Nov 2015
Posts: 158
Total Cats: -4
Default

For radiator fan, I've got:

Relay 1 Mainboard PA0 to ConnectorBoard 1A

Does that look right?
VRRMPSH is offline   Reply With Quote
Old 01-14-2016, 11:56 PM   #57
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

Maybe, I have mine on wled or aled.

Looks like I use pa0 for EBC. EBC won't work on wled or aled, so I'd probably use one of them.
deezums is offline   Reply With Quote
Old 01-15-2016, 12:15 AM   #58
!!! NOT CONFIRMED !!!
Thread Starter
iTrader: (2)

Join Date: Nov 2015
Posts: 158
Total Cats: -4
Default

Can I jumper the evap purge signal pinout to the boost control in, or do I need to run it through something else?
VRRMPSH is offline   Reply With Quote
Old 01-15-2016, 12:24 AM   #59
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

The diypnp grounds a 12v feed to switch the valve on, so you can use the evap line as that ground line. You have to use the boost transistor circuit, though, not direct. PA0 -> boost in, boost out -> then to ecu jumper.

I think there's 12V right there too, at least on my 1.6. Pretty sure that's how the evap solenoid works, anyway. Too bad it's not meant for boost stock.
deezums is offline   Reply With Quote
Old 01-15-2016, 12:34 AM   #60
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,326
Total Cats: 1,926
Default

Quote:
Originally Posted by deezums View Post
I think there's 12V right there too, at least on my 1.6. Pretty sure that's how the evap solenoid works, anyway.

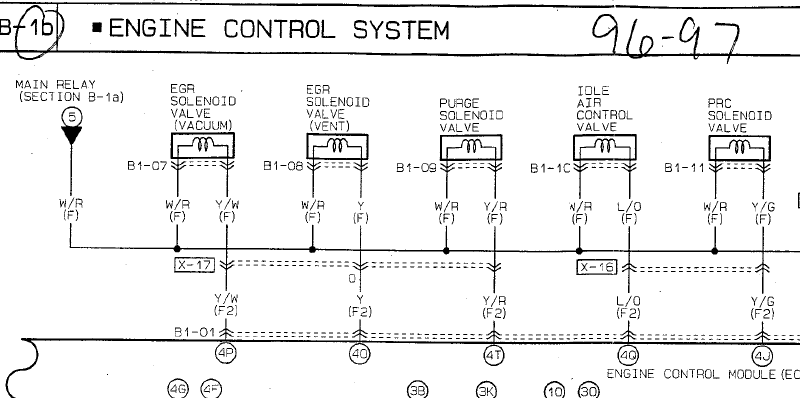

The evap purge solenoid (in stock form) is fed 12v by the white/red wire (same Main Relay wire that supplies damn near everything else) and expects a closure to ground on the yellow / red wire at 4T.





Does this valve actually work reliably when PWMed for EBC? Never tried it.
Attached Thumbnails
Danger To Manifold or: How I Learned To Stop Worrying And Love The Boost.-80-undefined_6db4026540acf8439b748648678a9969e2f1e344.png
Joe Perez is offline   Reply With Quote
