Old 01-15-2016, 12:36 AM   #61
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

I ripped mine apart, it's a pretty simple solenoid with the valve as the plunger with a pretty light returning spring. I don't think it would hold to much pressure or being switched very fast.

I gave it to someone who needed one, otherwise I'd try it!
deezums is offline   Reply With Quote
Old 01-15-2016, 12:44 AM   #62
!!! NOT CONFIRMED !!!
Thread Starter
iTrader: (2)

Join Date: Nov 2015
Posts: 158
Total Cats: -4
Default

I'm going with the standard jumpers for now. I might go back and add launch control later. Here's the reference I'm using for 96-97:


Attached Thumbnails
Danger To Manifold or: How I Learned To Stop Worrying And Love The Boost.-80-untitled_836dd7d7242a7a2fd0d950c72090201a919842fd.png
VRRMPSH is offline   Reply With Quote
Old 01-15-2016, 06:50 PM   #63
!!! NOT CONFIRMED !!!
Thread Starter
iTrader: (2)

Join Date: Nov 2015
Posts: 158
Total Cats: -4
Default

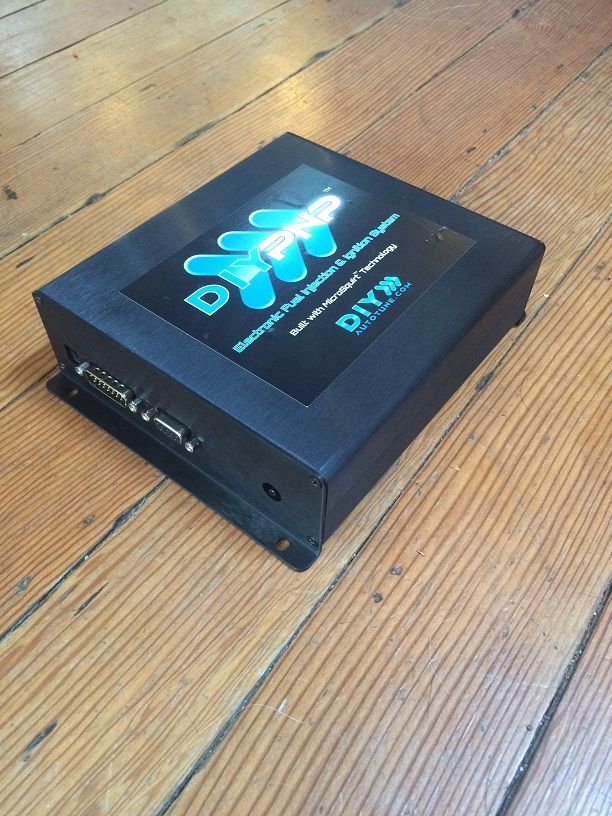

Attached Thumbnails
Danger To Manifold or: How I Learned To Stop Worrying And Love The Boost.-80-image1_2__ca21e55f4b884a2227ad218b19e3b17179383a73.jpg
VRRMPSH is offline   Reply With Quote
Old 01-15-2016, 07:37 PM   #64
!!! NOT CONFIRMED !!!
Thread Starter
iTrader: (2)

Join Date: Nov 2015
Posts: 158
Total Cats: -4
Default

Some pre-install questions:

I plan to put my IAT sensor in the cold side of my intercooler inlet, but obviously that's not installed yet. Where's a good place in the stock intake routing to put the IAT so that it doesn't get heat soaked while I learn how to tune the MS?

Am I correct in assuming I can swap out the OE oxygen sensor for the wideband, and then re-use the oxygen sensor wire going to the ECU harness so that the LC-1 can talk to the MS? I realize I'll have to run a different wire to the gauge.

I've read that the vacuum line off of the charcoal canister is a good location to tap for MAP pressure. True?
VRRMPSH is offline   Reply With Quote
Old 01-15-2016, 07:59 PM   #65
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

Drop it in the airbox or hang it in the air filter. You'll probably end up nerfing most of air density correction anyway...

You can use the ego wire, I put all my stuff inside the car so I just ran it to the db port. Running the wideband in the stock manifold doesn't appear to have killed it, even though it is closer than the manual asks for.

Map comes from fpr, not the turbulent messy front of the manifold.
deezums is offline   Reply With Quote
Old 01-15-2016, 08:19 PM   #66
!!! NOT CONFIRMED !!!
Thread Starter
iTrader: (2)

Join Date: Nov 2015
Posts: 158
Total Cats: -4
Default

Quote:
Originally Posted by deezums View Post
Drop it in the airbox or hang it in the air filter. You'll probably end up nerfing most of air density correction anyway...

You can use the ego wire, I put all my stuff inside the car so I just ran it to the db port. Running the wideband in the stock manifold doesn't appear to have killed it, even though it is closer than the manual asks for.

Map comes from fpr, not the turbulent messy front of the manifold.
So aux output wire from LC-1 to serial port, then corresponding serial pin-out to O2 on the MS mainboard?
VRRMPSH is offline   Reply With Quote
Old 01-15-2016, 08:21 PM   #67
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

Yep, that's it.
deezums is offline   Reply With Quote
Old 01-16-2016, 05:34 PM   #68
!!! NOT CONFIRMED !!!
Thread Starter
iTrader: (2)

Join Date: Nov 2015
Posts: 158
Total Cats: -4
Default

Waiting on the IAT sensor before I install the MS, so I figured I'd do a little interior work.

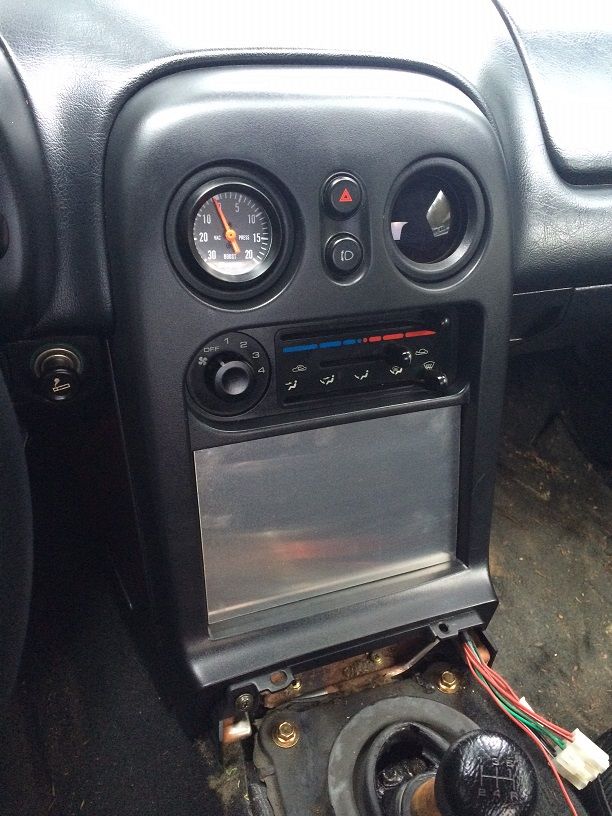

Test fitting boost and wideband gauges:

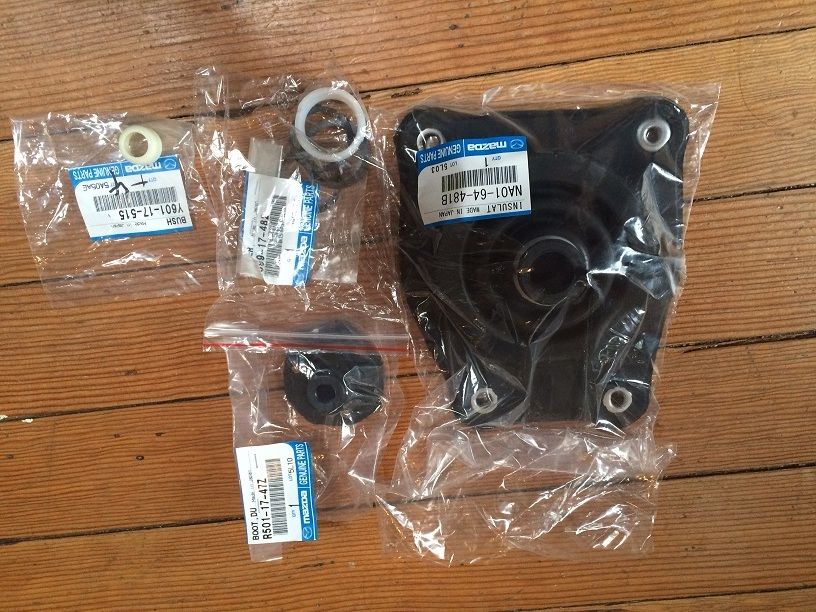

Time to rebuild the shifter:


Attached Thumbnails
Danger To Manifold or: How I Learned To Stop Worrying And Love The Boost.-80-img_0027_f44419b0ec46b64d435e13692fd425faaf300a23.jpg   Danger To Manifold or: How I Learned To Stop Worrying And Love The Boost.-80-img_0025_d46be5bdfe9d59c3d4773c37e70bf1c01c6c90b9.jpg
VRRMPSH is offline   Reply With Quote
Old 01-16-2016, 05:59 PM   #69
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

Quote:
Originally Posted by VRRMPSH View Post

I have a 1996 and I'd like to run boost control through MS. I will be using an IAT to delete my MAF.
I have a better way to hook up things than the DIY manual suggests.

you want the a/c switch to go into the MS, for A/C idle Up.

I like to wire the EBC back through the MAF for easy wiring since most most it close to wastegate.

When I'm back at my PC tonight or tomorrow am I can give the details.
Braineack is offline   Reply With Quote
Old 01-16-2016, 06:07 PM   #70
!!! NOT CONFIRMED !!!
Thread Starter
iTrader: (2)

Join Date: Nov 2015
Posts: 158
Total Cats: -4
Default

Quote:
Originally Posted by Braineack View Post
I have a better way to hook up things than the DIY manual suggests.

you want the a/c switch to go into the MS, for A/C idle Up.

I like to wire the EBC back through the MAF for easy wiring since most most it close to wastegate.

When I'm back at my PC tonight or tomorrow am I can give the details.
Thanks Brain. I have a non-AC model, FWIW.
VRRMPSH is offline   Reply With Quote
Old 01-16-2016, 06:47 PM   #71
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

im sorry.
Braineack is offline   Reply With Quote
