Old 07-07-2010, 12:50 AM   #61
Senior Member
Thread Starter
iTrader: (2)

dc2696's Avatar

Join Date: May 2005
Location: Edmonton Ab, Canada
Posts: 1,176
Total Cats: 13
Default

Quote:
Originally Posted by WonTon View Post
we also wanted pics of the modifications to the clutch fork....
You guys are too used to being spoon fed ****, clutch fork was bent then welded, ***** on and the trannies on, its not coming back off for a pic of a bent fork lol.

If you are going to do this swap that part won't hold you up, the Oilpan is the real ----
dc2696 is offline   Reply With Quote
Old 07-07-2010, 01:09 AM   #62
Elite Member
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

no, no spoon feeding. if i was wanting you too spoon feed me id be asking for more than just a pic. but whatever, just wanting good documentation. just trying to get a idea of how much i would have to bend the fork, thats all.
WonTon is offline   Reply With Quote
Old 07-07-2010, 01:12 AM   #63
Senior Member
Thread Starter
iTrader: (2)

dc2696's Avatar

Join Date: May 2005
Location: Edmonton Ab, Canada
Posts: 1,176
Total Cats: 13
Default

Quote:
Originally Posted by WonTon View Post
no, no spoon feeding. if i was wanting you too spoon feed me id be asking for more than just a pic. but whatever, just wanting good documentation. just trying to get a idea of how much i would have to bend the fork, thats all.
Send me 30bux and I'll make it for you if you do the swap ok? lol

It takes like 10minutes to do, it isn't much man.
dc2696 is offline   Reply With Quote
Old 07-07-2010, 01:31 AM   #64
Elite Member
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

im just trying to grasp the concept of certain aspects of the build. i can see the swap in person when m2cupcar gets his back up and going.

it will be a while from now before im even close to be able to start planning a swap like this......you thread is pretty much my deciding factor in the matter.
WonTon is offline   Reply With Quote
Old 07-07-2010, 09:06 AM   #65
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,189
Total Cats: 265
Default

Not having the two parts sitting on the floor is just causing insane curiosity. Sean my F block will be on the floor of the garage in a couple of weeks and you can bring up your six speed. From what Dean says it should be fairly obvious what's going on when we stick them together. For me the 6 spd is a better option for simplicity even though I've got two TII trans, so we can just build two forks at the same time.

Dean - what did you end up running for the flywheel/clutch/pp?
m2cupcar is offline   Reply With Quote
Old 07-07-2010, 02:13 PM   #66
Senior Member
iTrader: (1)

Join Date: Jun 2007
Posts: 668
Total Cats: 29
Default

Anyone know what the 6 speed and 1.8 rears can handle horse power wise? The 6 speed sounds like the easy way to go if it can take the power.
Thanks.
yank is offline   Reply With Quote
Old 07-07-2010, 02:20 PM   #67
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,189
Total Cats: 265
Default

More than the Miata 5 speed, less than the R trans from the Turbo II.
m2cupcar is offline   Reply With Quote
Old 07-08-2010, 12:04 AM   #68
Elite Member
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

Quote:
Originally Posted by m2cupcar View Post
Not having the two parts sitting on the floor is just causing insane curiosity. Sean my F block will be on the floor of the garage in a couple of weeks and you can bring up your six speed. From what Dean says it should be fairly obvious what's going on when we stick them together. For me the 6 spd is a better option for simplicity even though I've got two TII trans, so we can just build two forks at the same time.

Dean - what did you end up running for the flywheel/clutch/pp?
ill be ready to do this when you are, im off on Fridays and Saturdays. so one of those two days i can make it up to your neck of the woods.
WonTon is offline   Reply With Quote
Old 07-09-2010, 08:17 PM   #69
Senior Member
Thread Starter
iTrader: (2)

dc2696's Avatar

Join Date: May 2005
Location: Edmonton Ab, Canada
Posts: 1,176
Total Cats: 13
Default

Quote:
Originally Posted by m2cupcar View Post
Not having the two parts sitting on the floor is just causing insane curiosity. Sean my F block will be on the floor of the garage in a couple of weeks and you can bring up your six speed. From what Dean says it should be fairly obvious what's going on when we stick them together. For me the 6 spd is a better option for simplicity even though I've got two TII trans, so we can just build two forks at the same time.

Dean - what did you end up running for the flywheel/clutch/pp?
9lbs alum 626 flywheel with miata pp and disk.

Rob, you'll need or atleast it what i used, the metal gasket that goes between the trans and motor as a template for the transfer punches. Then you'll be drilling thru the flange. The F block and 6 speed dowels line up so the input shaft will be centered ect.

Only issue with this is there are only a few bolts holding the motor to the trans. I dont see it being a huge issue though.

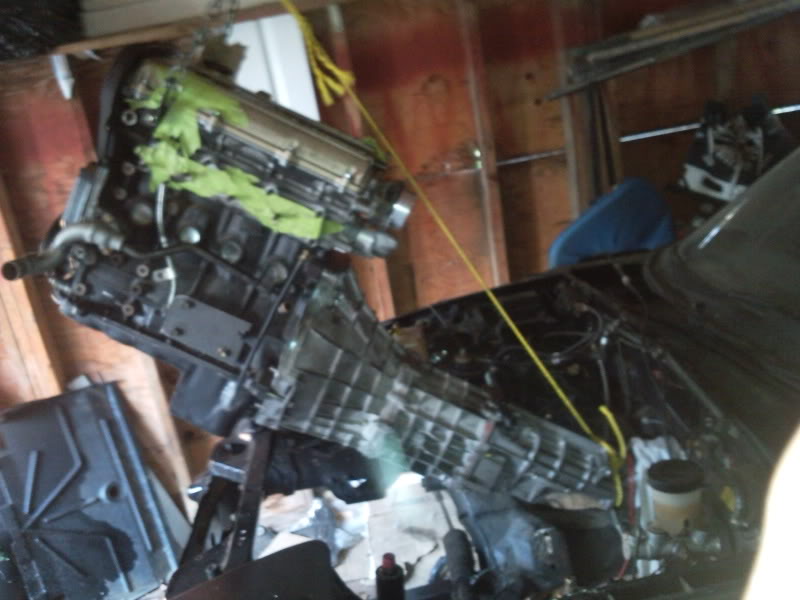

Motor is offcially in! (although I'm an idiot and didnt take any pics after I finished lol)

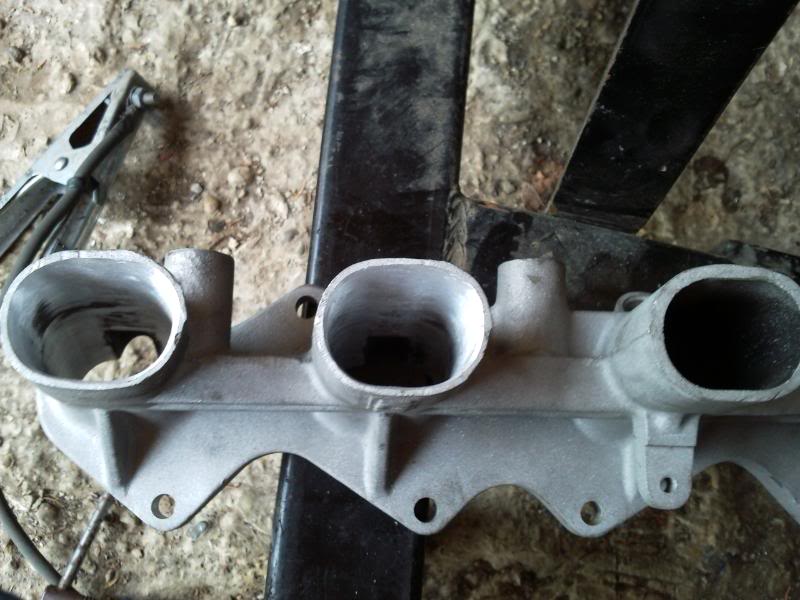

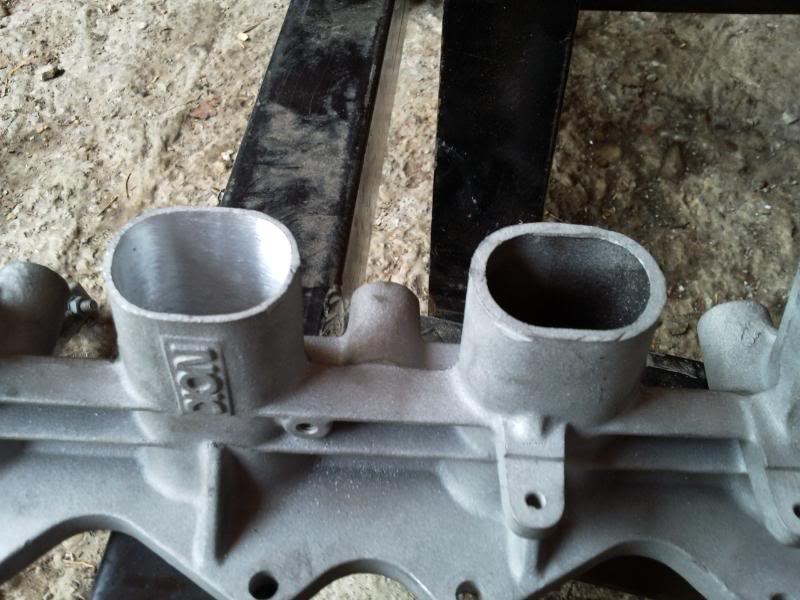

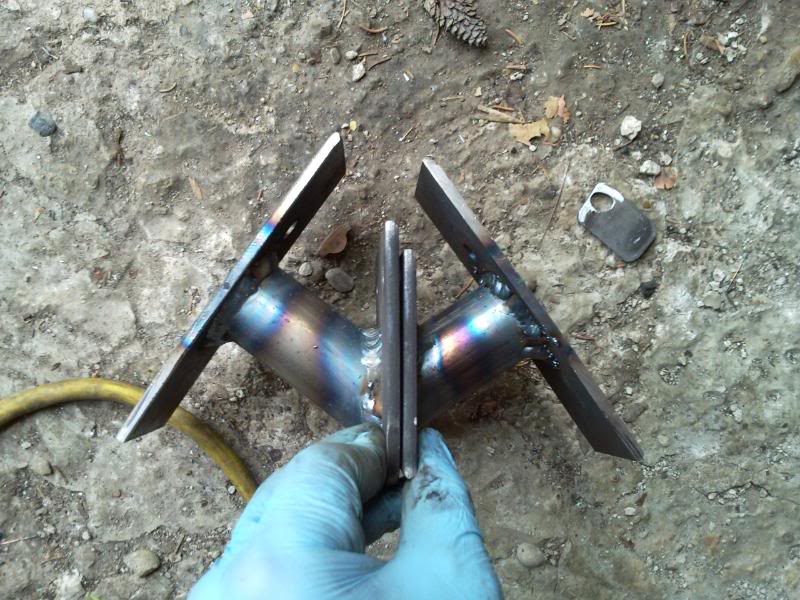

Ported out my intake manifold abit and knife edged the runners, swapped intake cam to a FE3N from the FEAP. 9.5ish mm of lift

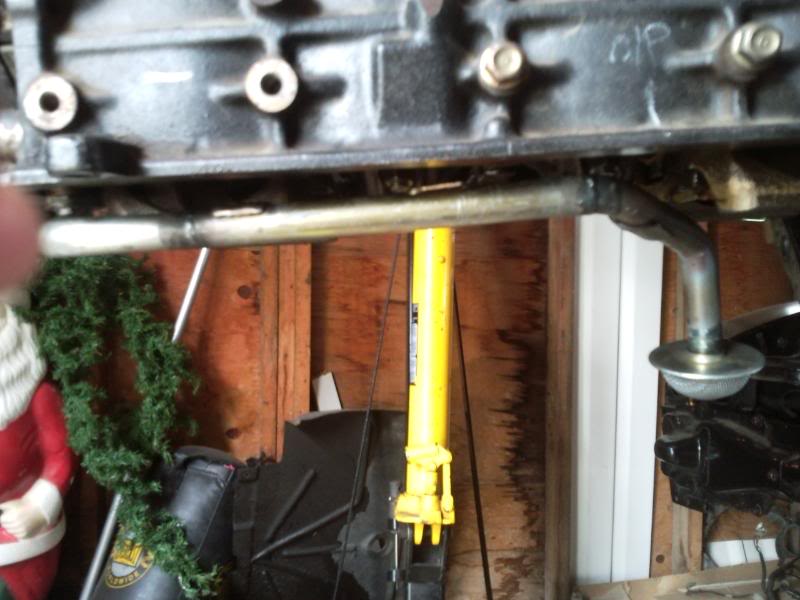

Name:  2010-07-07_193653.jpg
Views: 25
Size:  103.0 KB
Name:  2010-07-07_144036.jpg
Views: 25
Size:  102.1 KB
Name:  2010-07-08_103714.jpg
Views: 25
Size:  120.0 KB
Name:  2010-07-08_103723.jpg
Views: 22
Size:  119.3 KB
Name:  2010-07-08_103846.jpg
Views: 22
Size:  161.2 KB

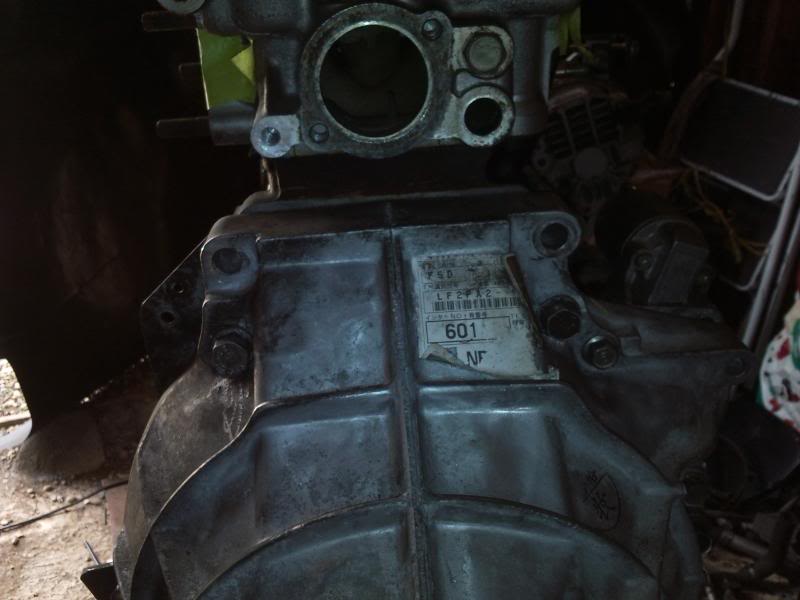

Here Rob, see nothing special here.
Name:  2010-07-07_143945.jpg
Views: 22
Size:  78.0 KB

Last edited by dc2696; 07-11-2010 at 02:25 PM.
dc2696 is offline   Reply With Quote
Old 07-09-2010, 08:41 PM   #70
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,189
Total Cats: 265
Default

That sounds feasible. I think most of the adapter plates use four bolts and nobody had an issue with that. The dowel pin alignment is key. FEAP is garbage- good swap there. In stock form at 9.5:1 the FE made 140ftlbs, so you should see more than that NA... about half what you made boosted.
m2cupcar is offline   Reply With Quote
Old 07-09-2010, 08:46 PM   #71
Senior Member
Thread Starter
iTrader: (2)

dc2696's Avatar

Join Date: May 2005
Location: Edmonton Ab, Canada
Posts: 1,176
Total Cats: 13
Default

Quote:
Originally Posted by m2cupcar View Post
That sounds feasible. I think most of the adapter plates use four bolts and nobody had an issue with that. The dowel pin alignment is key. FEAP is garbage- good swap there. In stock form at 9.5:1 the FE made 140ftlbs, so you should see more than that NA... about half what you made boosted.
Ya its going to be a monster alright, gonna slay some stock b16 civics...I hope lol
dc2696 is offline   Reply With Quote
Old 07-10-2010, 12:59 PM   #72
Senior Member
Thread Starter
iTrader: (2)

dc2696's Avatar

Join Date: May 2005
Location: Edmonton Ab, Canada
Posts: 1,176
Total Cats: 13
Default

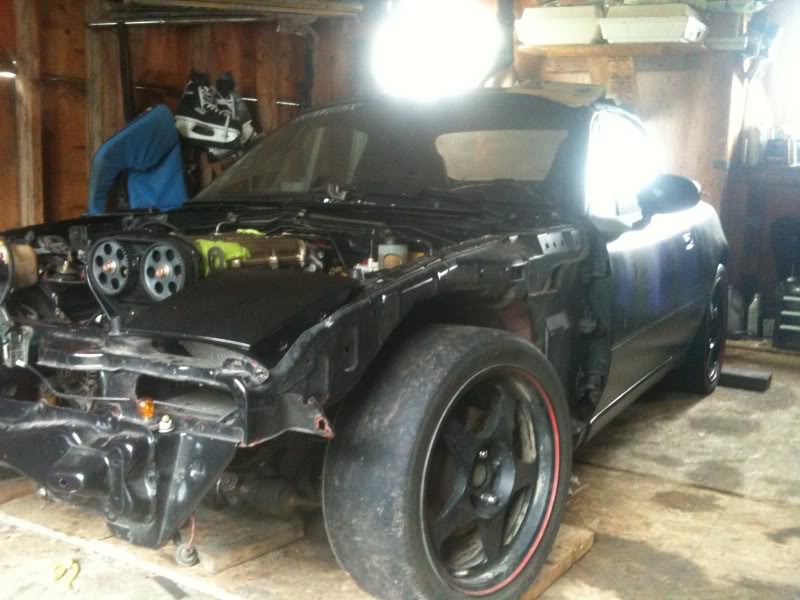

Name:  8cb0c177.jpg
Views: 22
Size:  74.2 KB
Name:  c0284f9f.jpg
Views: 22
Size:  87.3 KB
Name:  ff41eb24.jpg
Views: 22
Size:  90.5 KB

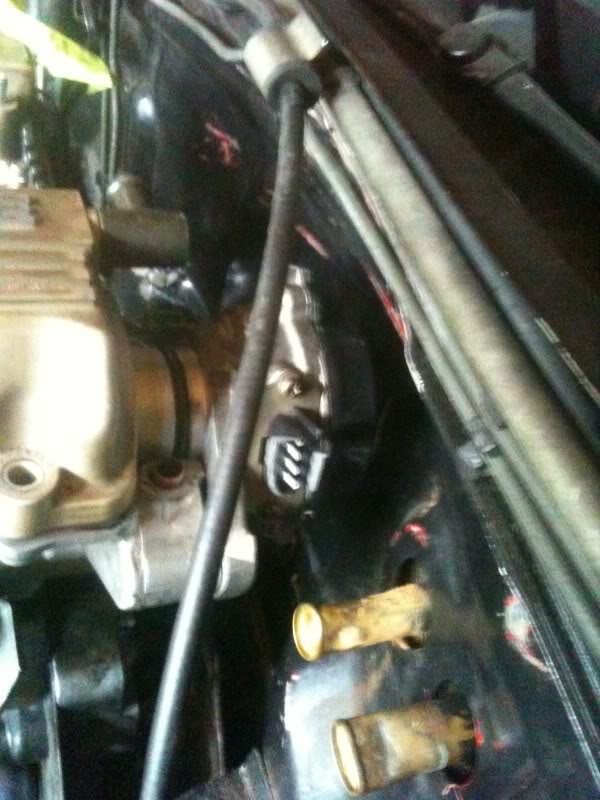

Cas got messed up during the install, officially impossible to install the motor with this oilpan and the cas in.

Name:  39e5d427.jpg
Views: 22
Size:  83.5 KB

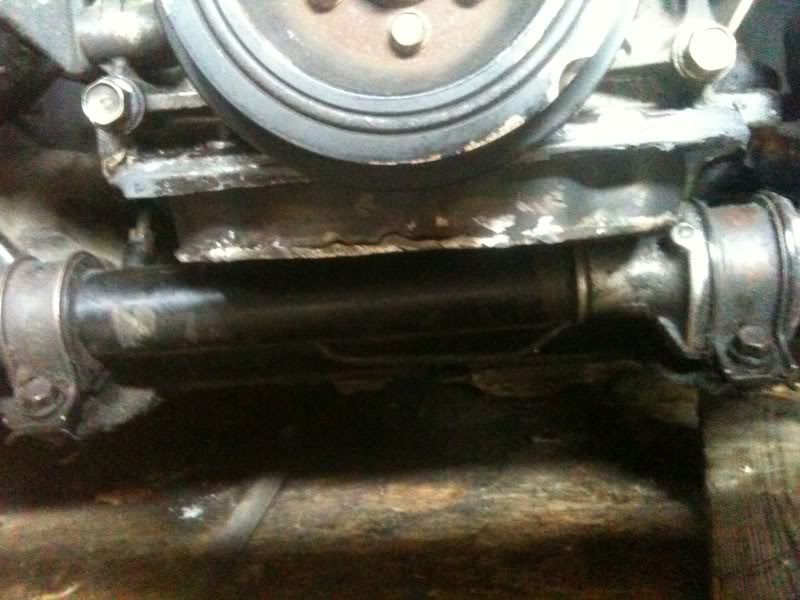

clearance is about .125" to the subframe, I'm pretty happy with the way it's sitting now.
dc2696 is offline   Reply With Quote
Old 07-10-2010, 07:51 PM   #73
Senior Member
iTrader: (2)

Join Date: Jan 2010
Location: Denver
Posts: 909
Total Cats: 14
Default

I don't think 1/8 inch is enough clearance, when the engine rocks on the mounts I am willing to bet the pan is going to contact the cross member.
hingstonwm is offline   Reply With Quote
Old 07-10-2010, 08:10 PM   #74
Senior Member
Thread Starter
iTrader: (2)

dc2696's Avatar

Join Date: May 2005
Location: Edmonton Ab, Canada
Posts: 1,176
Total Cats: 13
Default

Quote:
Originally Posted by hingstonwm View Post
I don't think 1/8 inch is enough clearance, when the engine rocks on the mounts I am willing to bet the pan is going to contact the cross member.
Mounts aren't stock, I'm not worried.
dc2696 is offline   Reply With Quote
Old 07-10-2010, 11:06 PM   #75
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,189
Total Cats: 265
Default

I checked the engine rocking and couldn't find any significant compression. It actually rises on the side opposite the opposing mount. Compression will happen on jarring hits but I can't see it compressing 1/8th inch.
m2cupcar is offline   Reply With Quote
Old 07-11-2010, 01:57 AM   #76
Senior Member
iTrader: (2)

Join Date: Jan 2010
Location: Denver
Posts: 909
Total Cats: 14
Default

^^^ Good to hear. Hopefully I am wrong, but my gut tells me that 1/8" may be cutting it a bit to close. If you find that it is hitting, you can always shim the mounts, but at this point that is putting the cart in front of the horse
hingstonwm is offline   Reply With Quote
Old 07-11-2010, 08:21 PM   #77
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,189
Total Cats: 265
Default

My first round on the mounts required a 1/16" shim at the driver side mount and it solved the problem. My pan was hitting that aluminum collar on the rack- actually riding on it most of the time.

Dean- looks like you have at least six bolts through the engine and tranmission- correct?

Last edited by m2cupcar; 07-12-2010 at 08:42 AM.
m2cupcar is offline   Reply With Quote
Old 07-12-2010, 09:29 PM   #78
Senior Member
Thread Starter
iTrader: (2)

dc2696's Avatar

Join Date: May 2005
Location: Edmonton Ab, Canada
Posts: 1,176
Total Cats: 13
Default

Quote:
Originally Posted by m2cupcar View Post
My first round on the mounts required a 1/16" shim at the driver side mount and it solved the problem. My pan was hitting that aluminum collar on the rack- actually riding on it most of the time.

Dean- looks like you have at least six bolts through the engine and tranmission- correct?
4 big bolts and a couple (2) small ones.
dc2696 is offline   Reply With Quote
Old 08-06-2010, 11:42 AM   #79
Senior Member
iTrader: (12)

absRTP's Avatar

Join Date: Sep 2009
Location: Montreal, Canada
Posts: 582
Total Cats: 0
Default

Wow!

nice build!

(and a Canadian one! woot woot!)
absRTP is offline   Reply With Quote
Old 08-09-2010, 09:13 AM   #80
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,189
Total Cats: 265
Default

So howz it runnin?! Break the 6 speed yet?
m2cupcar is offline   Reply With Quote
