Old 04-12-2015, 06:39 PM   #181
Senior Member
Thread Starter
iTrader: (2)

williams805's Avatar

Join Date: Oct 2013
Location: Goleta, Southern California
Posts: 505
Total Cats: 25
Default

Put 500 miles on and oil level hasn't changed. Still too early to tell but it looking promising.

Beat on the car pretty good yesterday. Went up and back on highway 33. Had a 3 series behind me on the way down which was fun.

In others news. Just place an order for a CAN wideband controller from MS Labs.

Also trying to figure out knock settings. Was logging for a while on the drive yesterday and noticed some noise from from about 4k to redline (7200). Think is just noise, trying to get rid of it. Put in some numbers I found in another thread (think Y8 posted it). We'll see how that works.
williams805 is offline   Reply With Quote
Old 05-11-2015, 01:18 PM   #182
Senior Member
Thread Starter
iTrader: (2)

williams805's Avatar

Join Date: Oct 2013
Location: Goleta, Southern California
Posts: 505
Total Cats: 25
Default

Think I managed to melt a cat. Car has slowly been losing power. AFRs keep getting farther off and when I retune, it just happens again. Now I can hardly get up to freeway speeds without getting run over. Pulling the forward Cali cat today to confirm suspicions. Hopefully I just ruined the forward cat and not the second one. I have a feeling that I'm going to find the first one has plugged the second.
williams805 is offline   Reply With Quote
Old 05-11-2015, 01:59 PM   #183
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,602
Total Cats: 937
Default

Ouch, that's the expensive one. If the second cat is still good you can add an O2 sensor bung after the second cat and do some creative wiring to pass smog, but its one of those things that will get you in trouble if you get caught.

Check your ignition system, that's usually why that front cat will self destruct. Sorry mang :(
EO2K is offline   Reply With Quote
Old 05-11-2015, 02:01 PM   #184
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,768
Total Cats: 2,495
Default

remove cat
replace with turbo
???????
instant win
18psi is offline   Reply With Quote
Old 05-11-2015, 02:13 PM   #185
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,602
Total Cats: 937
Default

He's in SoCal Bruh
EO2K is offline   Reply With Quote
Old 05-11-2015, 03:47 PM   #186
Senior Member
Thread Starter
iTrader: (2)

williams805's Avatar

Join Date: Oct 2013
Location: Goleta, Southern California
Posts: 505
Total Cats: 25
Default

I blame stock coils and lack of tuning skill. Have run seriously rich a few times and even managed to tune in a misfire here and there. But hey I've leaned a few things And am back on track.

No funds for turbo. Still need to get the charger back on. Header will go on today. Probably could have saved myself a little money had I put it on a couple of months ago. Doh!
williams805 is offline   Reply With Quote
Old 05-11-2015, 06:39 PM   #187
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,602
Total Cats: 937
Default

Quote:
Originally Posted by williams805 View Post
Header will go on today. Probably could have saved myself a little money had I put it on a couple of months ago. Doh!
I feel these pains. This is why I bought a NB2 manifold, so I could save the precat for when I absolutely needed it.
EO2K is offline   Reply With Quote
Old 05-11-2015, 10:20 PM   #188
Senior Member
Thread Starter
iTrader: (2)

williams805's Avatar

Join Date: Oct 2013
Location: Goleta, Southern California
Posts: 505
Total Cats: 25
Default

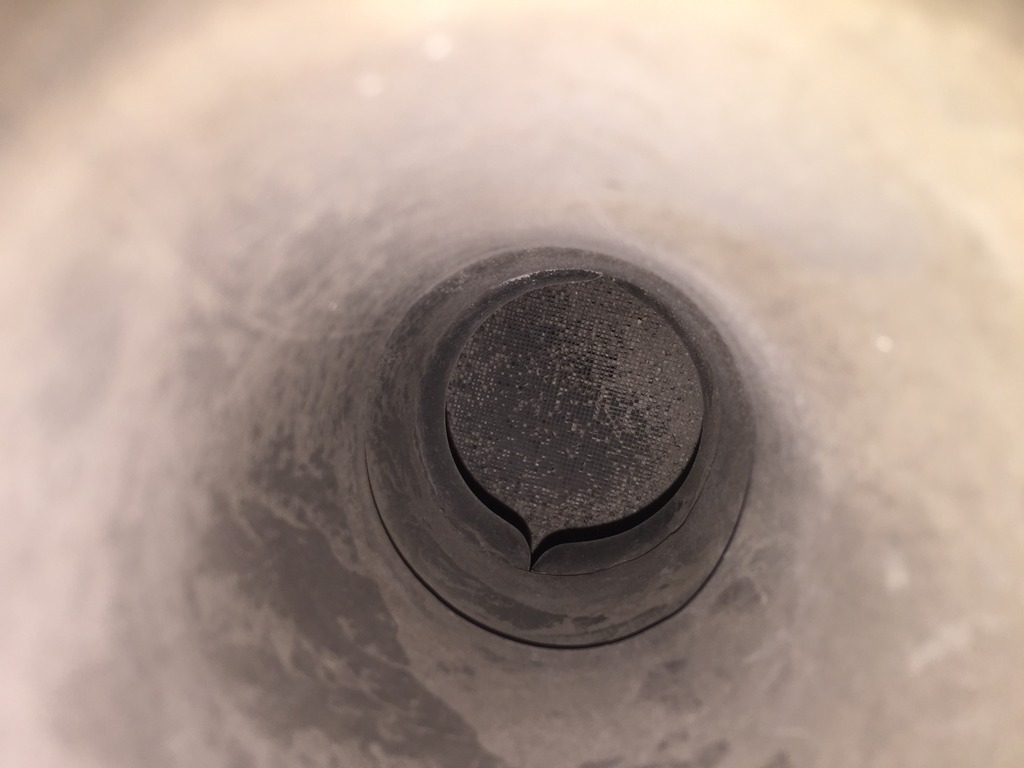

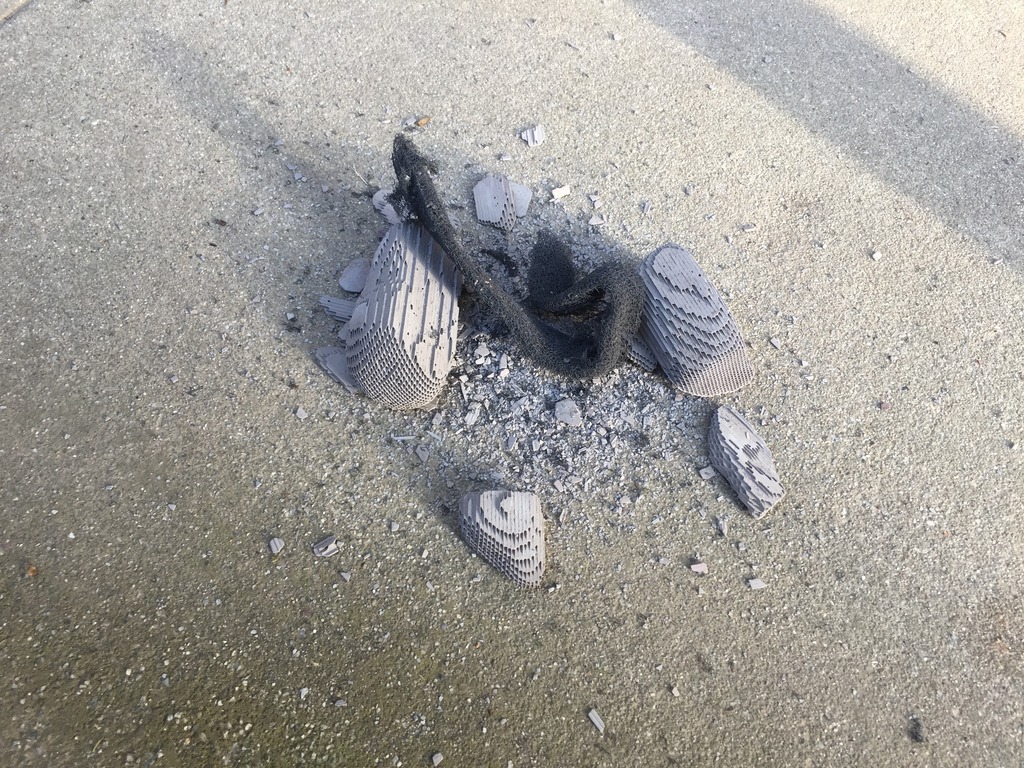

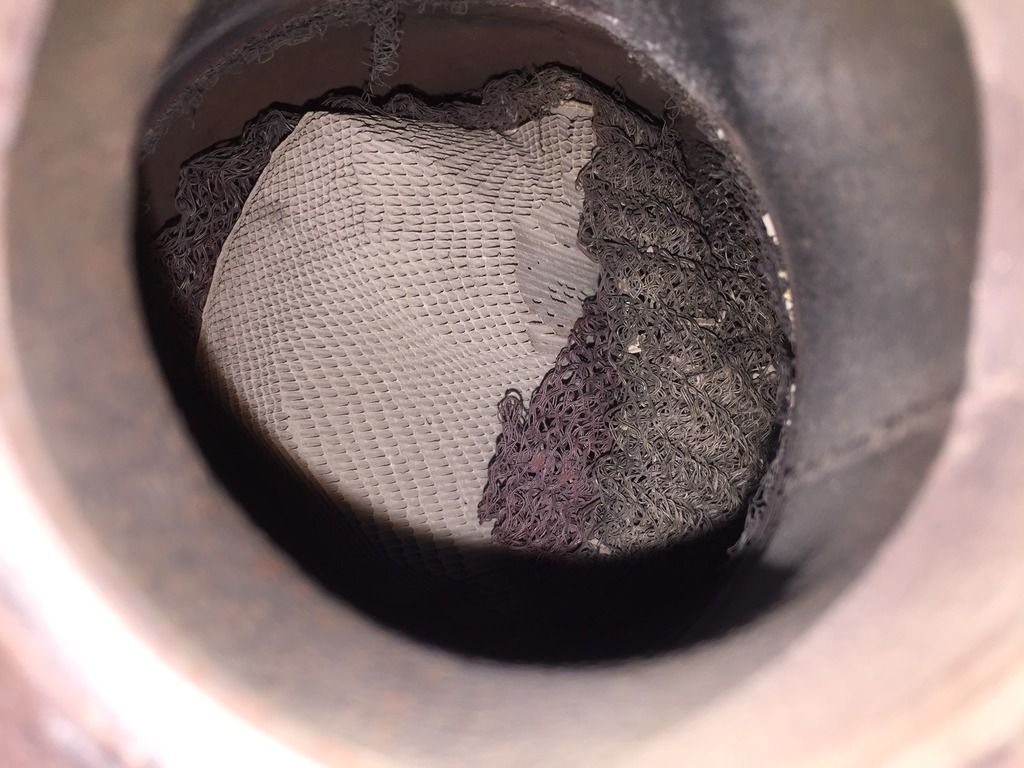

Suspicions confirmed. The first kitty clogged the second.





Attached Thumbnails
Forced induction bottom end build... AKA the unplanned child.-04a4e7f6-8ef6-4765-bef8-a8bfc6aa41e9.jpg   Forced induction bottom end build... AKA the unplanned child.-db38c1b3-ea9d-4629-8e73-3ccab3d7bbe9.jpg   Forced induction bottom end build... AKA the unplanned child.-76684258-3bec-47fa-9ca9-9b3b41edd663.jpg
williams805 is offline   Reply With Quote
Old 05-11-2015, 10:22 PM   #189
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,768
Total Cats: 2,495
Default

prepare for the ugliest sound known to man to be emitted from your exhaust system now lol
18psi is offline   Reply With Quote
Old 05-11-2015, 11:18 PM   #190
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,602
Total Cats: 937
Default

Do NOT breathe that ****.

Quote:
Originally Posted by williams805 View Post
Is that the inlet side on the second cat? It *might* still be OK if there is no physical destruction of the core. I've seen residue like that on cats that still passed smog.
EO2K is offline   Reply With Quote
Old 05-11-2015, 11:58 PM   #191
Senior Member
Thread Starter
iTrader: (2)

williams805's Avatar

Join Date: Oct 2013
Location: Goleta, Southern California
Posts: 505
Total Cats: 25
Default

The second cat was packed full of really fine **** from precat. Had to let them both go. Will replace the second one soon enough.

Yes that is the second cat. No Bueno.

Muffler is petty quite. Hopefully won't be too bad. If it is, it will motivate me to replace it faster.
williams805 is offline   Reply With Quote
Old 05-12-2015, 01:35 AM   #192
Senior Member
Thread Starter
iTrader: (2)

williams805's Avatar

Join Date: Oct 2013
Location: Goleta, Southern California
Posts: 505
Total Cats: 25
Default

You are correct... Horrible raspy sounds. Also pops on decel.

Good news is, car feels great.
williams805 is offline   Reply With Quote
Old 05-13-2015, 09:10 PM   #193
Senior Member
Thread Starter
iTrader: (2)

williams805's Avatar

Join Date: Oct 2013
Location: Goleta, Southern California
Posts: 505
Total Cats: 25
Default

Just lost clutch hydraulics. It's been a hard couple of weeks.
williams805 is offline   Reply With Quote
Old 05-13-2015, 09:23 PM   #194
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,602
Total Cats: 937
Default

Yikes, sorry man. But hey at least its a relatively cheap/easy fix?
EO2K is offline   Reply With Quote
Old 05-17-2015, 11:28 PM   #195
Senior Member
Thread Starter
iTrader: (2)

williams805's Avatar

Join Date: Oct 2013
Location: Goleta, Southern California
Posts: 505
Total Cats: 25
Default

Has anyone found a connector that will plug into the stock IAT? Would like simply plug the GM sensor in.
If not I'll just splice it in just tape off the original. I thought I found a thread a while back where someone found a plug n play solution but I can't find it now.
williams805 is offline   Reply With Quote
Old 05-17-2015, 11:29 PM   #196
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,929
Total Cats: 1,440
Default

Paging 18psi
aidandj is offline   Reply With Quote
Old 05-17-2015, 11:30 PM   #197
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,768
Total Cats: 2,495
Default

I made a plug-n-play solution by hacking up a spare ait sensor. Not sure if that's what you're talking about. its in my build thread
sold to nigelt
18psi is offline   Reply With Quote
Old 05-18-2015, 06:06 PM   #198
Senior Member
Thread Starter
iTrader: (2)

williams805's Avatar

Join Date: Oct 2013
Location: Goleta, Southern California
Posts: 505
Total Cats: 25
Default

Okay, cool. Thought I remembered something like that.
williams805 is offline   Reply With Quote
Old 05-20-2015, 10:17 PM   #199
Senior Member
Thread Starter
iTrader: (2)

williams805's Avatar

Join Date: Oct 2013
Location: Goleta, Southern California
Posts: 505
Total Cats: 25
Default

Having a little trouble with wiring in the CAN wideband module from MS Labs.

What are the twisted white and black wires from the CAN module? CAN high and low? Which is which?

What do I wire into on the MS3? The instructions with MS3 say pin 8 and 9. But they are not twisted.

Red and black wires? Power and ground? Is there a specific power and ground on the MS3 to hook to?
williams805 is offline   Reply With Quote
Old 05-20-2015, 10:23 PM   #200
Senior Member
Thread Starter
iTrader: (2)

williams805's Avatar

Join Date: Oct 2013
Location: Goleta, Southern California
Posts: 505
Total Cats: 25
Default

Okay found this...
https://www.miataturbo.net/ms-labs-m...s3-ecus-79429/

Post 42...
Quote:
Originally Posted by Reverant View Post
Red wire: Connect to pin 1.
Black wire: Connect to pin 2.
Twisted white: Connect to pin 8.
Twisted black: Connect to pin 9.

Done.
So now my question is, since I already have the the LC2 hooked to pin 1, should I still use it for the CAN module? In other words, is it okay/ideal to have both wide band and CAN module hooked to the same power?
williams805 is offline   Reply With Quote
