Old 01-27-2014, 11:22 AM   #281
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,295
Total Cats: 26
Default

Awesome.
Splitime is online now   Reply With Quote
Old 01-27-2014, 01:04 PM   #282
Senior Member
iTrader: (5)

Join Date: Jul 2011
Location: Sonora, Ca
Posts: 623
Total Cats: 73
Default

Awesome progress. Love the shade it appears in the inside pics. Can't wait to see this bad boy progress even more.
bikersam717 is offline   Reply With Quote
Old 01-27-2014, 01:16 PM   #283
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

Stein for pres.
Braineack is offline   Reply With Quote
Old 01-27-2014, 01:46 PM   #284
Senior Member
iTrader: (3)

Join Date: Nov 2011
Location: Beaverton, OR
Posts: 737
Total Cats: 30
Default

Interested in seeing this completed, need HD video of big smokey burnouts once its all broken in.
greddygalant is offline   Reply With Quote
Old 01-27-2014, 02:11 PM   #285
Elite Member
iTrader: (12)

Join Date: Nov 2009
Location: Harpers Ferry WV
Posts: 1,521
Total Cats: 20
Default

Wow this car is awesome!!! I cant wait to see it finish coming together
Sean is offline   Reply With Quote
Old 01-27-2014, 08:31 PM   #286
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,928
Total Cats: 526
Default

Looks absolutely incredible. Props to you.
turbofan is offline   Reply With Quote
Old 01-27-2014, 10:18 PM   #287
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

*boioioioioing*
y8s is offline   Reply With Quote
Old 01-28-2014, 01:02 PM   #288
Senior Member
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

Love the colour! Looks great!
bcrx7 is offline   Reply With Quote
Old 01-28-2014, 04:02 PM   #289
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 3,054
Total Cats: 8
Default

Sub'd to this awesome shiii....

Looking at the most recent pics vs. the pics of the car when you first picked it up...jeez, mind bleeewwnnnn
Efini~FC3S is offline   Reply With Quote
Old 02-04-2014, 01:27 AM   #290
Elite Member
Thread Starter
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

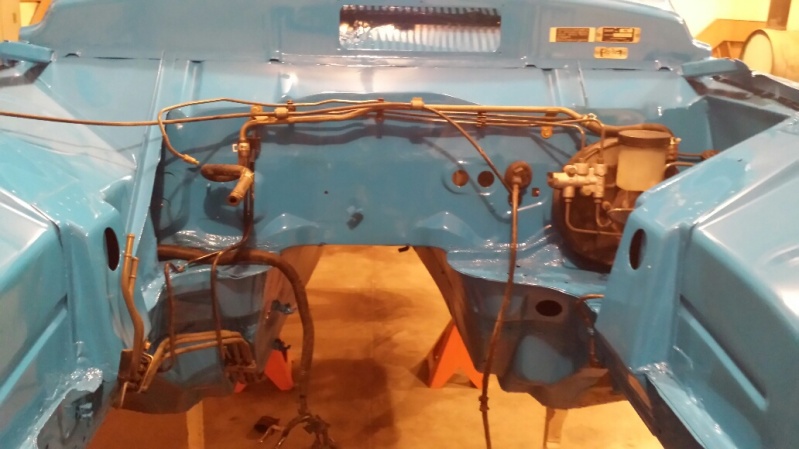

Starting to get it back together. Brakes and fuel back in. Harness is routed. All harness wires will be concealed behind the original SAAB inner fenders except for a couple of little places where it will have to poke through. Makes for a nice wire tuck.

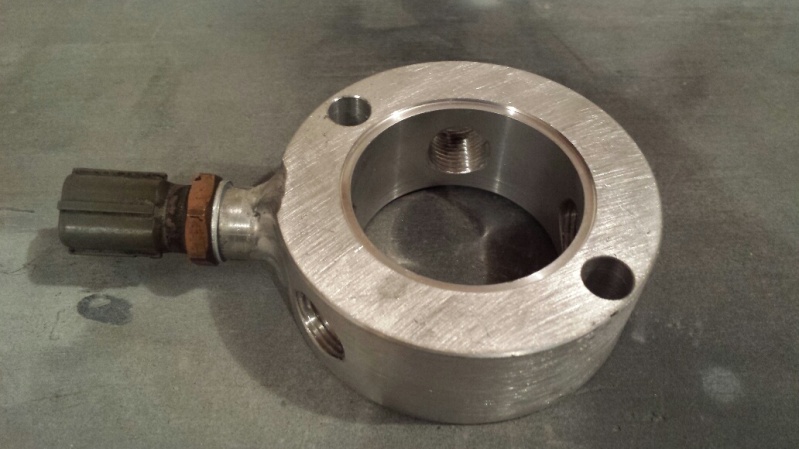

Also built a coolant reroute spacer.

Attached Thumbnails
Miata Drivetrain in a SAAB 96-20140203_230939_resized_zps52405507.jpg   Miata Drivetrain in a SAAB 96-20140203_230639_resized_zps58df6b9a.jpg
Stein is offline   Reply With Quote
Old 02-07-2014, 12:47 AM   #291
Elite Member
Thread Starter
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

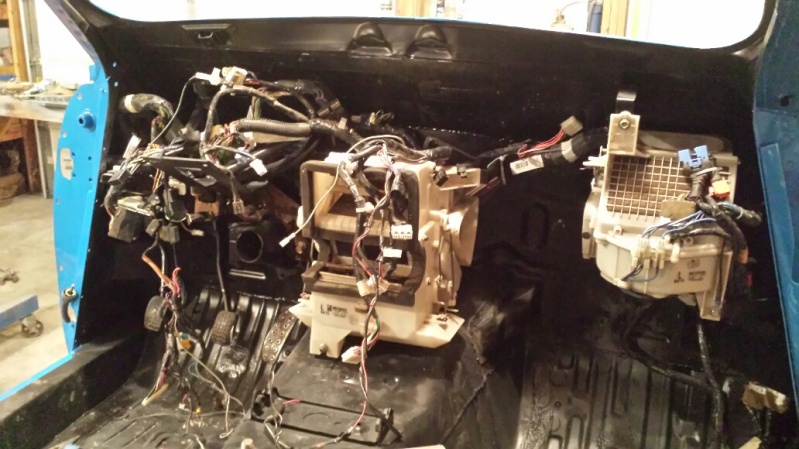

Working on wiring. I hate it. So I stopped.

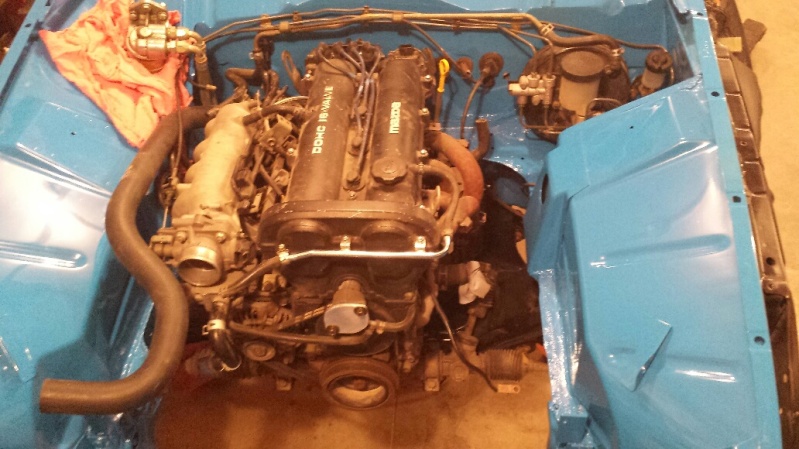

Finished the coolant reroute. Tapped the oil pan for turbo drain. No reason to not reinstall it and start hooking things up. Passenger side is tight but enough room to fit everything. Plenty of room for the turbo on the driver's side. Going with a TD04 from a WRX.

Attached Thumbnails
Miata Drivetrain in a SAAB 96-20140206_222455_resized_zps948d7cd8.jpg   Miata Drivetrain in a SAAB 96-20140206_222348_resized_zpsac5f2cf6.jpg
Stein is offline   Reply With Quote
Old 02-07-2014, 04:03 AM   #292
Senior Member

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

God, I love this project! Props given.
Zaphod is offline   Reply With Quote
Old 02-10-2014, 12:00 AM   #293
Senior Member

Join Date: Feb 2009
Location: DF-DUB
Posts: 640
Total Cats: 19
Default

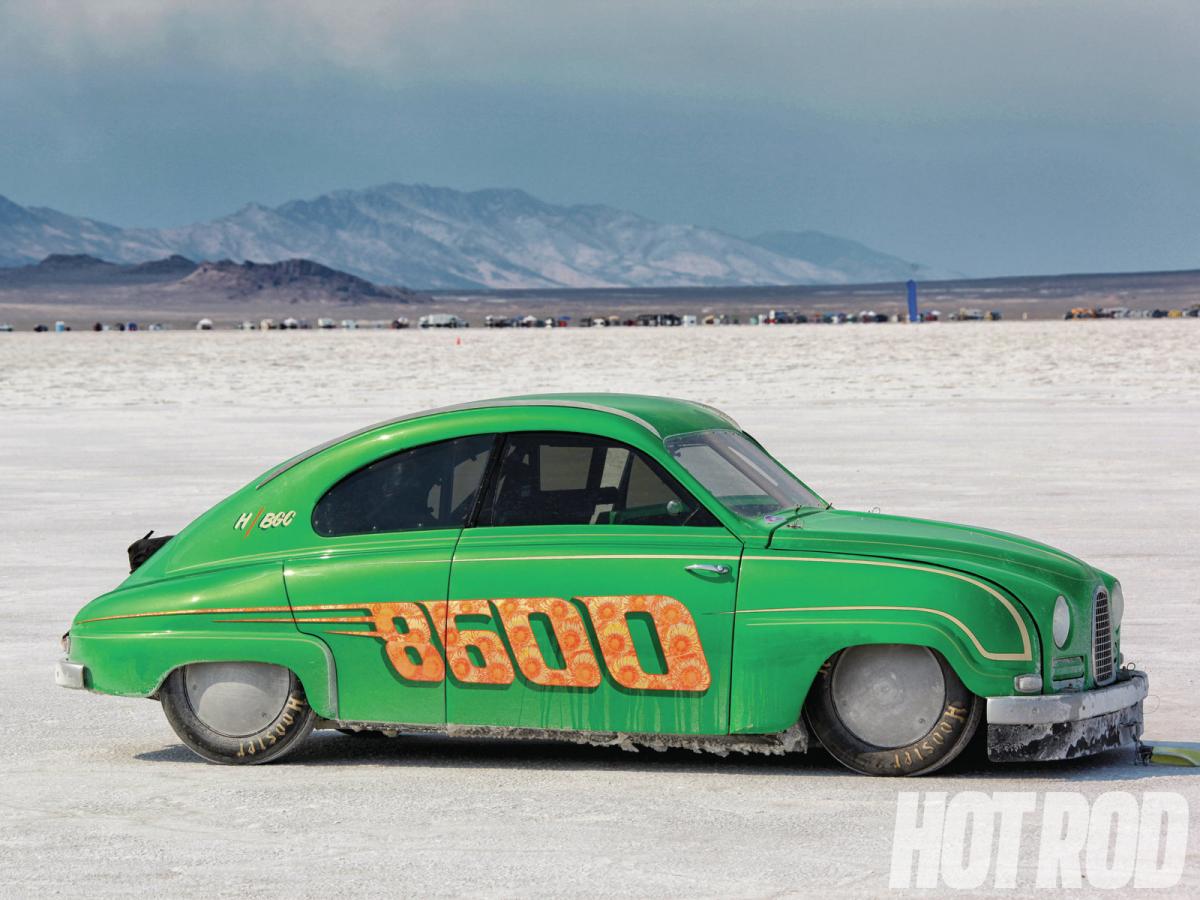

Saw these and it reminded me of this thread

Attached Thumbnails
Miata Drivetrain in a SAAB 96-hrdp-1301-12%252bsalt-101-bonneville-racing-guide%252b1959-saab.jpg   Miata Drivetrain in a SAAB 96-tumblr_n0c1otrbrn1qbs9puo1_1280.jpg
Opti is offline   Reply With Quote
Old 02-10-2014, 08:24 AM   #294
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

Stein, you're doing this wrong. You need to take pictures of every single part spray painted black.
Braineack is offline   Reply With Quote
Old 02-10-2014, 10:18 AM   #295
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,687
Total Cats: 1,562
Default

These guys will be racing this car in the 100 Acre Wood in MO pretty soon. (If any of you remember forum member "modernbeat", that's his car).


Quote:
The Rally America event, Rally in the 100 Acre Wood is coming up in a few weeks. If you are anywhere St Louis you should come out and see rally stars and chumps competing in this event. Billed as "real cars, real roads" it is one of the best rallys in the US.
Rally in the 100 Acre Wood | February 21-22, 2014
Attached Thumbnails
Miata Drivetrain in a SAAB 96-150474_10151482406322258_615779831_n.jpg

Last edited by sixshooter; 02-10-2014 at 10:29 AM.
sixshooter is offline   Reply With Quote
Old 02-17-2014, 12:22 AM   #296
Elite Member
Thread Starter
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

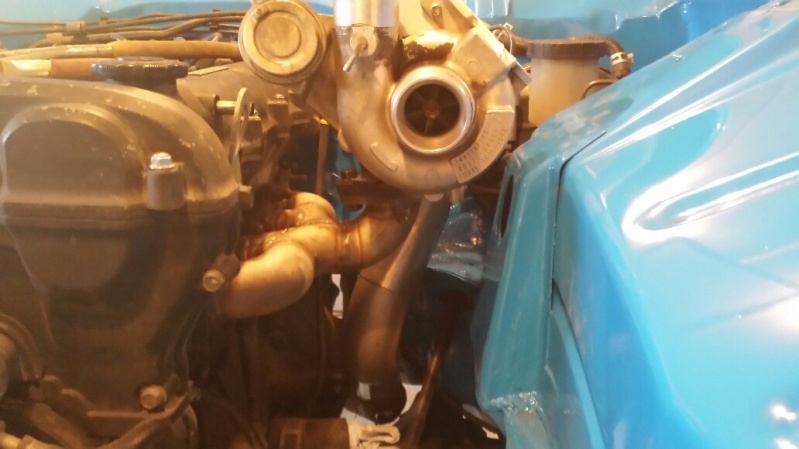

Turbo manifold and downpipe fabricated. Well, the downpipe is just tacked. Ran out of argon for my TIG.

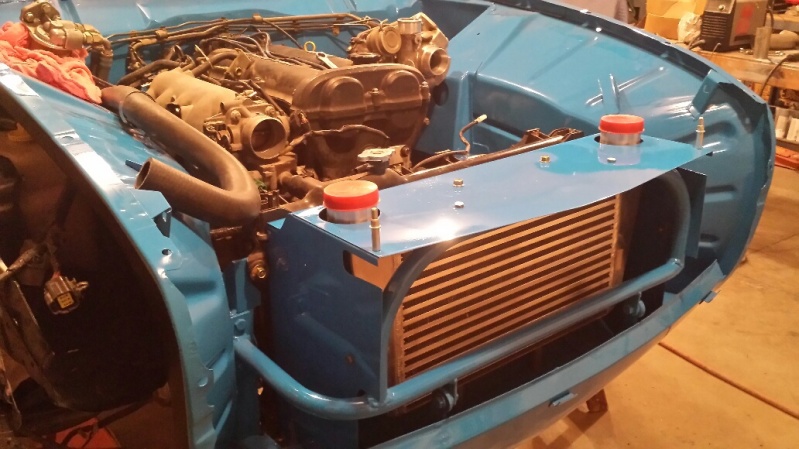

Got the radiator, fans, intercooler mounted.

Attached Thumbnails
Miata Drivetrain in a SAAB 96-20140216_171735_resized_zps7a837d5b.jpg   Miata Drivetrain in a SAAB 96-20140216_212909_resized_zps637516f2.jpg
Stein is offline   Reply With Quote
Old 02-17-2014, 12:31 AM   #297
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,928
Total Cats: 526
Default

Interesting manifold design. Any more pics of the process?
turbofan is offline   Reply With Quote
Old 02-17-2014, 12:41 AM   #298
Elite Member
Thread Starter
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

Quote:
Originally Posted by turbofan View Post
Interesting manifold design. Any more pics of the process?
I'll get some when I pull it back out. It's basically a flowish log like I built for my NB a couple of years ago and like sturovo is building now with one extra el to top mount it. I didn't have room or side mount the turbo with the SAAB inner fender there and I have plenty of hood clearance plus the top feed intercooler it's easy in and easy out.
Stein is offline   Reply With Quote
Old 02-17-2014, 02:07 AM   #299
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,199
Total Cats: 2,584
Default

Nice work. I'd be a little bit concerned with that one el though, its supporting everything. Maybe brace it?
18psi is offline   Reply With Quote
Old 02-17-2014, 09:40 AM   #300
Elite Member
Thread Starter
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

Quote:
Originally Posted by 18psi View Post
Nice work. I'd be a little bit concerned with that one el though, its supporting everything. Maybe brace it?
Possibly. I considered a couple of braces but obviously haven't done anything yet.
Stein is offline   Reply With Quote
