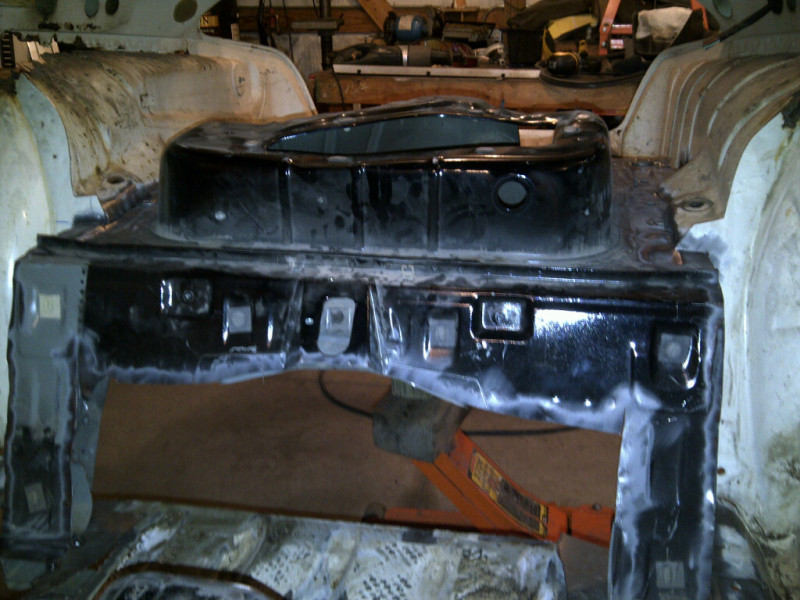

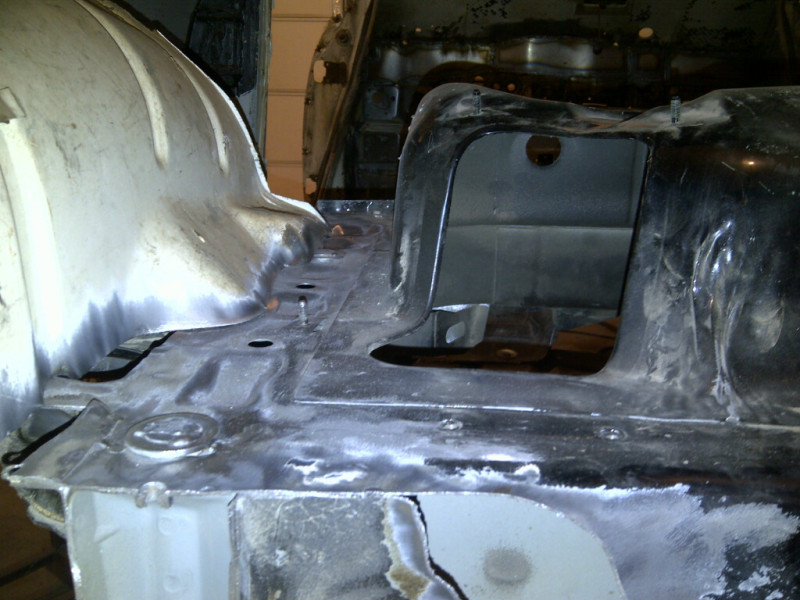

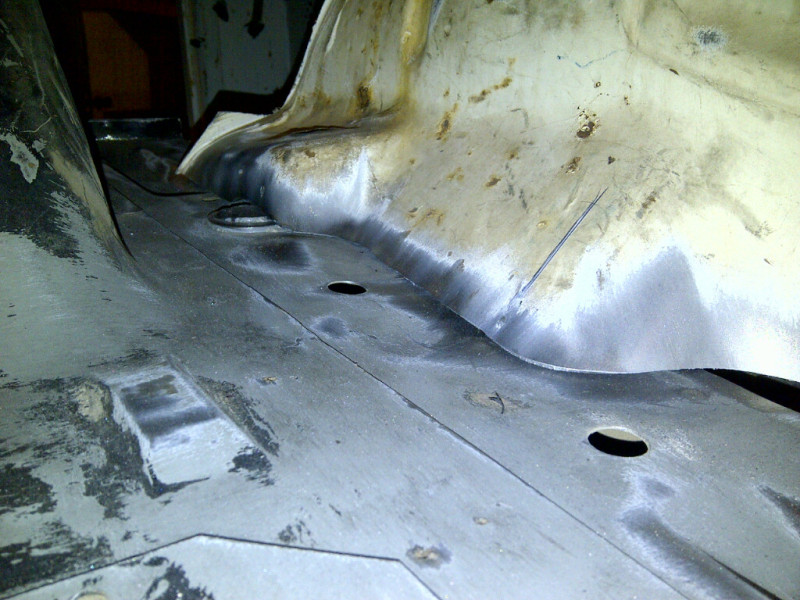

Final fitting of rear subframe holder has been completed. Pads for subframe mounting points are flat and parallel within a 1/16" of the planned dimension. It's ready to weld in place.



Attached Thumbnails
Miata Drivetrain in a SAAB 96-img-20120413-00182.jpg   Miata Drivetrain in a SAAB 96-img-20120413-00181.jpg   Miata Drivetrain in a SAAB 96-img-20120413-00183.jpg
Stein is offline   Reply With Quote
Old 04-20-2012, 12:39 AM   #126
Elite Member
Thread Starter
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

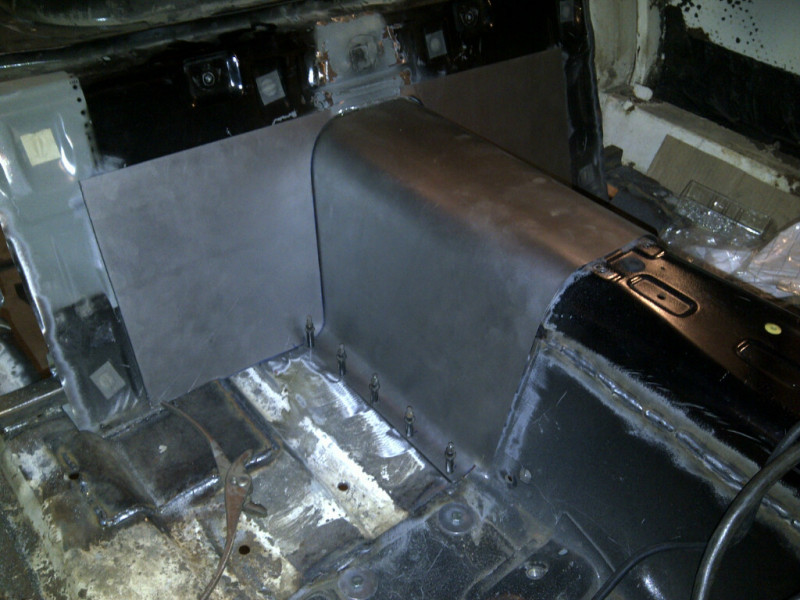

Got the parts cut and formed for the rest of the transmission tunnel.

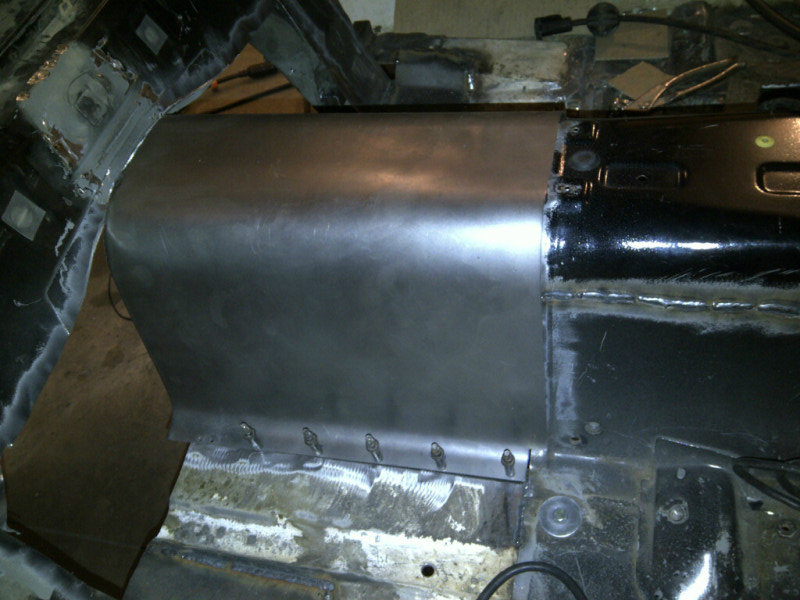

Drilled and used cleco clamps to hold the formed tunnel piece to the floor. Clecos are wonderful temporary fixtures to hold parts while drilling. You drill a hole and then use a pair of plier-like things to depress a spring which retracts the jaws, stick the cleco into the hole, release the pliers and the spring forces out the jaws so the draw the two pieces together tightly and align them.

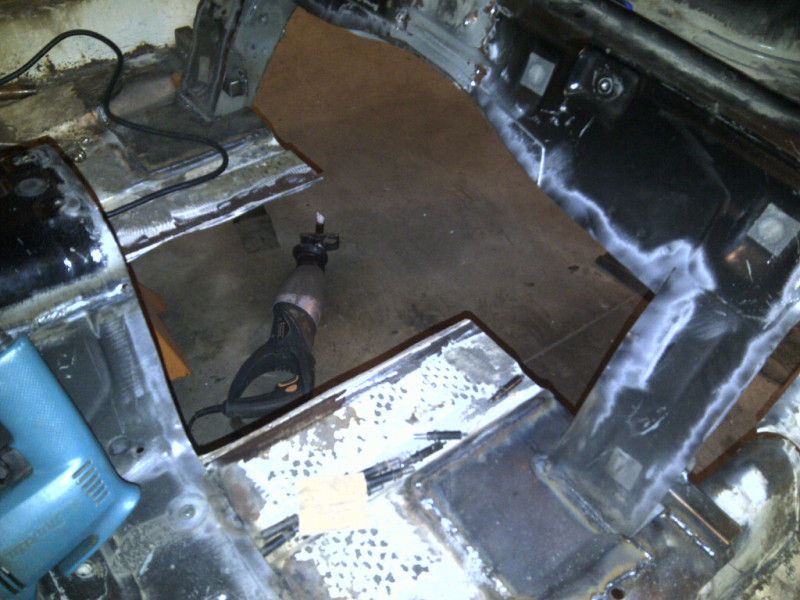

After that I cut away the part of the floor in the tunnel.



Finally I cut two pieces to fill in the space between the new tunnel and the original Miata subframe section.



I need to remove the paint from the weld areas and can weld the parts in place. Boring I know, but it's what I did today.
Attached Thumbnails
Miata Drivetrain in a SAAB 96-img-20120419-00185.jpg   Miata Drivetrain in a SAAB 96-img-20120419-00184.jpg   Miata Drivetrain in a SAAB 96-img-20120419-00188.jpg
Stein is offline   Reply With Quote
Old 04-21-2012, 01:18 AM   #127
Elite Member
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

This is making me happy! cant wait to see more.
WonTon is offline   Reply With Quote
Old 04-24-2012, 03:13 PM   #128
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,292
Total Cats: 26
Default

So love this build.
Splitime is offline   Reply With Quote
Old 04-24-2012, 11:48 PM   #129
Elite Member
Thread Starter
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

Quote:
Originally Posted by Splitime View Post
So love this build.
Thanks but there will be no updates for a bit. I pulled the V8 car back into the shop and there it will stay until I get the tach, speedo, Maxiguages gauge pack working. (They are still in the box they came in.) And then get the alignment and tune done. It's silly to have all of this time and money sitting here and never drive it.
Stein is offline   Reply With Quote
Old 10-13-2012, 01:14 AM   #130
Elite Member
Thread Starter
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

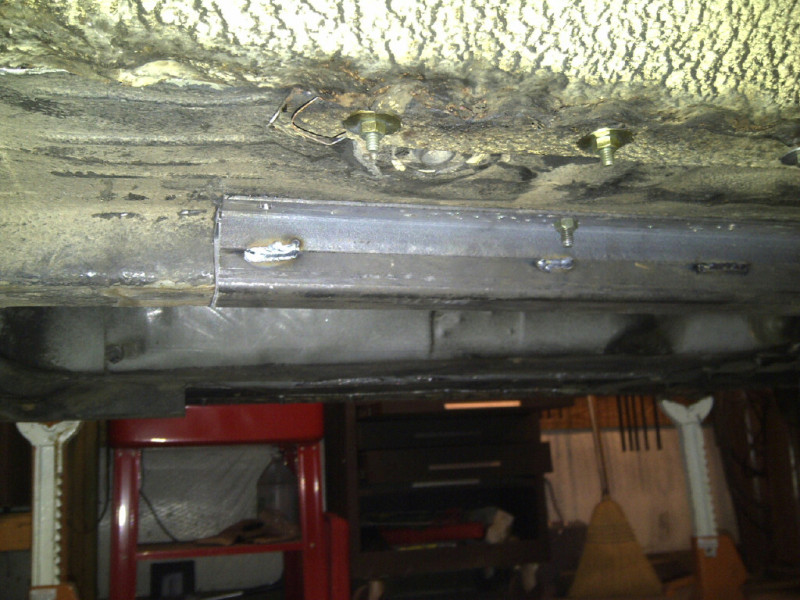

Started installing new frame rails today. I had to cut the old ones out when I cut the Miata pan to fit into the SAAB.

Both ends look like this.

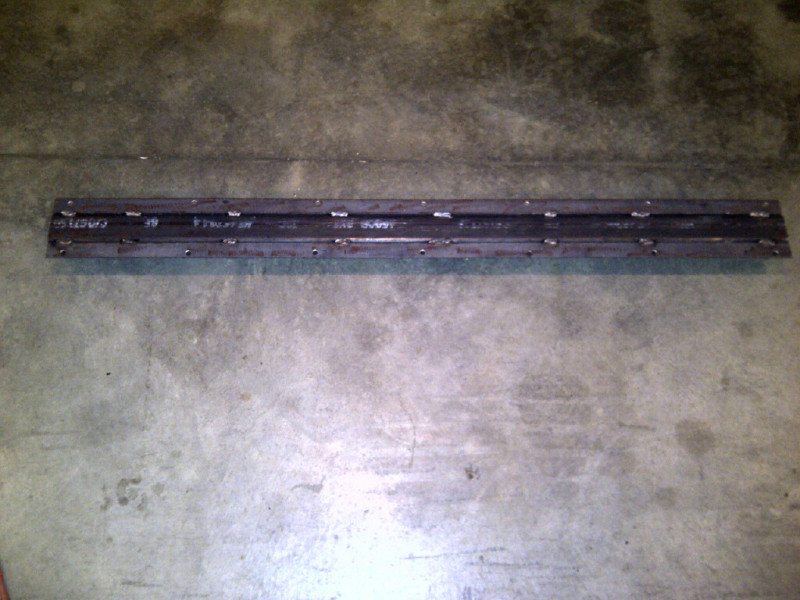

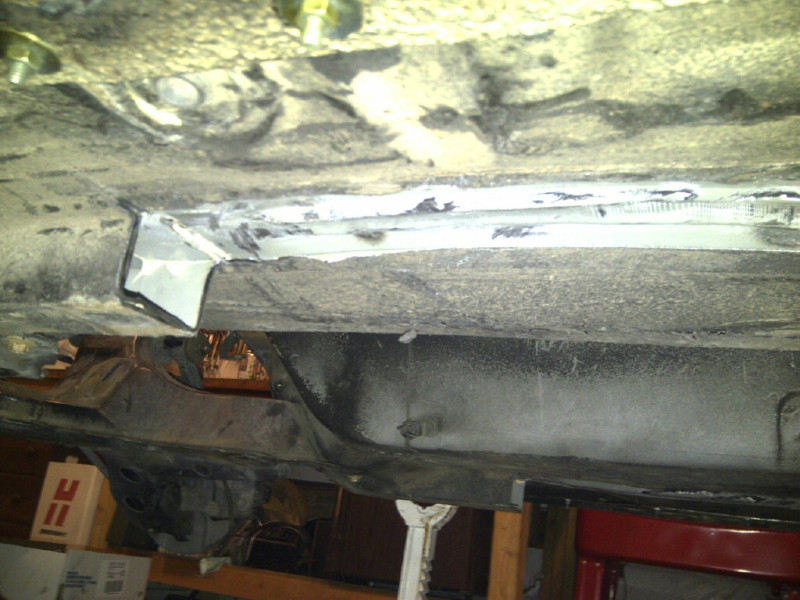

New frame rails constructed from 2" square tubing with 1" angle iron flanges welded onto it.



Frame rails will be bolted into place first, then welded in once everything is drawn up tight into position. Need to make a hardware run tomorrow for proper bolts and fender washers but everything is pulling into place nicely.

Attached Thumbnails
Miata Drivetrain in a SAAB 96-img-20121012-00005.jpg   Miata Drivetrain in a SAAB 96-img-20121012-00003.jpg   Miata Drivetrain in a SAAB 96-img-20121012-00006.jpg
Stein is offline   Reply With Quote
Old 10-13-2012, 09:53 AM   #131
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 406
Default

I had totally forgotten about this project.

And now you've re-whetted my appetite!
y8s is offline   Reply With Quote
Old 10-13-2012, 11:13 AM   #132
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,819
Total Cats: 1,780
Default

Quote:
Originally Posted by y8s View Post
And now you've re-whetted my appetite!

wHeeat thins.
Braineack is online now   Reply With Quote
Old 10-13-2012, 11:07 PM   #133
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 406
Default

Quote:
Originally Posted by Braineack View Post
wHeeat thins.
cool wHip?
y8s is offline   Reply With Quote
Old 10-14-2012, 02:21 AM   #134
Elite Member
Thread Starter
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

Got the other frame rail bolted in tonight. No pic. Looks like the other one.
Stein is offline   Reply With Quote
Old 10-14-2012, 02:49 AM   #135
I'm Miserable!

Join Date: Jun 2010
Location: Okinawa Japan
Posts: 329
Total Cats: -7
Default

I made a jealous in my pants
dk wolf is offline   Reply With Quote
Old 10-14-2012, 09:53 PM   #136
Boosting since 1984
iTrader: (1)

stefanst's Avatar

Join Date: Sep 2011
Location: Levittown
Posts: 1,198
Total Cats: 68
Default

Totally awesome build. My dad used to road-rally in the 70s. Came up against a few of the old Saabs. He always talked about them. Maybe I can find one of his old Super8 films with a 96 in it.
They were not known for handling, but they were supposedly near indestructible. Many a small tree in northern Europe found its' live ended by Saab 96 bumpers and fenders.
stefanst is offline   Reply With Quote
Old 10-15-2012, 01:01 PM   #137
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,292
Total Cats: 26
Default

Hooray! This thread lives again!
Splitime is offline   Reply With Quote
Old 11-03-2012, 01:25 AM   #138
Elite Member
Thread Starter
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

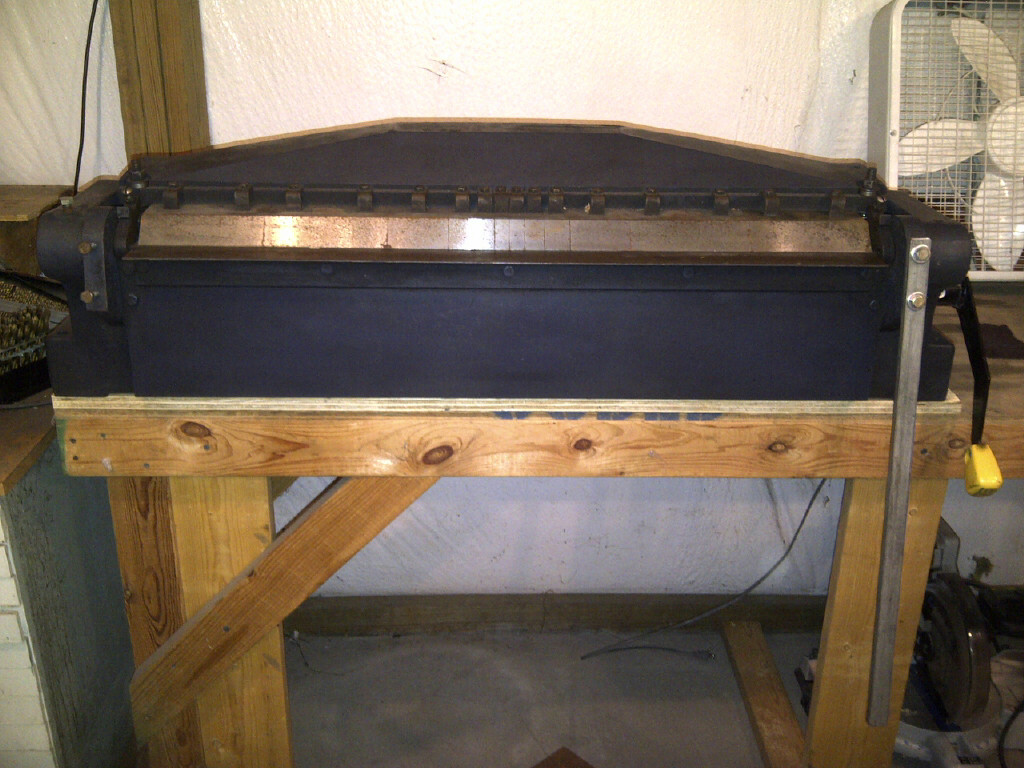

Picked up a sweet pan/box brake this week in Branson, MO. Not sure what brand it is (it's not marked) but it's very high quality and appears be domestic production. All surface ground fingers, high quality castings. It's at least 400 lbs. Heck, the eccentric shaft is 2" in diameter. Anyway, it appears to be new/old stock. A bit of surface rust but doesn't appear to have ever been used. Got it for $500 but it looks like at least a $1500 unit. Going to be really nice for all of the little panels that I need to bend up to finish boxing in the welded-in sections of Miata unibody.

Attached Thumbnails
Miata Drivetrain in a SAAB 96-img-20121102-00022.jpg
Stein is offline   Reply With Quote
Old 11-05-2012, 01:33 AM   #139
Elite Member
Thread Starter
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

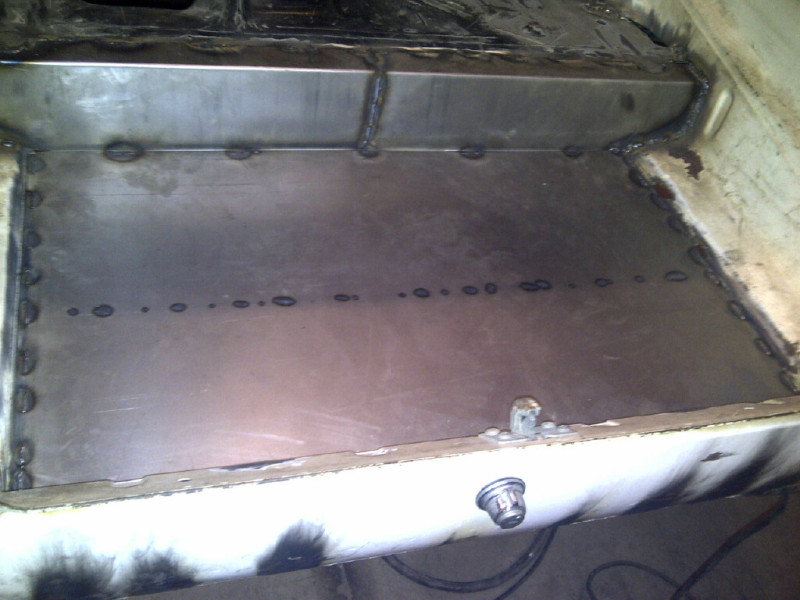

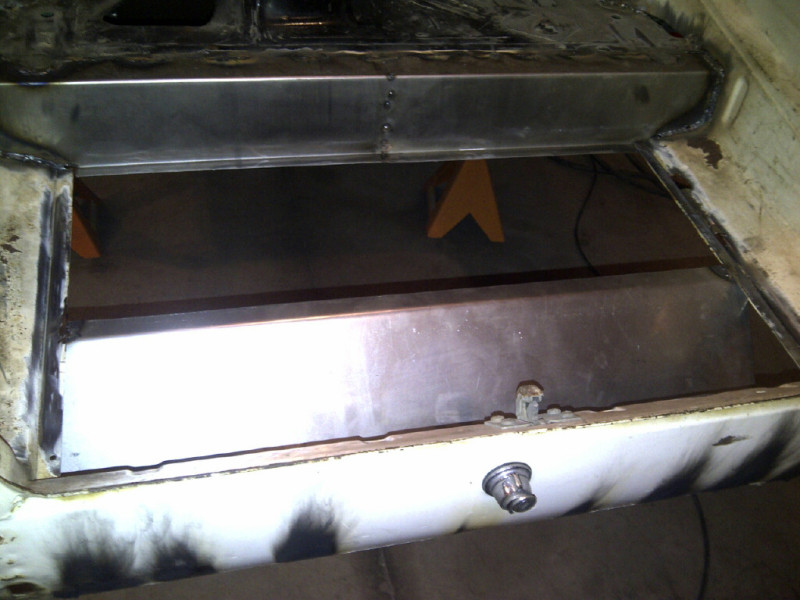

Some pics of yesterday/today's progress.
