This is quite some awesomeness! In for detailed pics of subframe mounting structure madness. I've always wanted to try something like this.

Quote:
Originally Posted by 18psi View Post
holy crap this is brilliant.

my friend trying to miata swap a triumph spitfire NEEDS to see this.
sending link now lol
Links to Spitiata build thread??
EO2K is offline   Reply With Quote
Old 03-07-2012, 01:37 AM   #82
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

Don't think he has one, but I'll encourage him to start.

Quote:
Originally Posted by Stein View Post
My dilema is how far to carry it. I've added the firewall to carry all of the pedals, plus grommets for wiring harnesses, etc and the HVAC system if I want. Then I was carrying through the front frame rails to pick up the front subframe mount. THEN I figured, why not keep the stock shock pockets in place? It now appears that I could keep the entire Miata fender UNDER the existing fender. We will see.

I also cut out the entire rear center section of the car that holds the rear subframe and the gas tank. I just have to watch weight. It's easy to add weight when grafting in other parts.
Yeah weight is our enemy, but having a modern bellypan+all the stuff to mount suspension/etc stuff to is truly great, so I'd carry over as much as I could get away with.

Besides, an extra couple hundo pounds can always be offset with MOAR BOOST
18psi is offline   Reply With Quote
Old 03-07-2012, 05:05 AM   #83
Junior Member

Join Date: Jan 2011
Location: sacramento ,ca
Posts: 402
Total Cats: 46
Default

the thread is started...
https://www.miataturbo.net/showthrea...522#post844522

not a Spitiata... its the spit and shove... named for the raping it will be dealing out...

awesome build so far... i luck out...the spitfire has a frame so bracing doesnt have to be too extensive.
fastivab6tg25mr is offline   Reply With Quote
Old 03-07-2012, 12:24 PM   #84
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 406
Default

Quote:
Originally Posted by Stein View Post
My dilema is how far to carry it. I've added the firewall to carry all of the pedals, plus grommets for wiring harnesses, etc and the HVAC system if I want. Then I was carrying through the front frame rails to pick up the front subframe mount. THEN I figured, why not keep the stock shock pockets in place? It now appears that I could keep the entire Miata fender UNDER the existing fender. We will see.

I also cut out the entire rear center section of the car that holds the rear subframe and the gas tank. I just have to watch weight. It's easy to add weight when grafting in other parts.
You've piqued my interest here. Academically anyway.

What are the prospects of doing a body swap on the miata? You've seen pictures of naked miatas before:



It seems (from my limited ability to see your project up close) that just popping the bodies off both cars, trimming the miata's extremeties, and slapping the Saab back down onto the miata chassis would be ... logistically possible?
y8s is offline   Reply With Quote
Old 03-07-2012, 01:01 PM   #85
Elite Member
Thread Starter
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

Quote:
Originally Posted by y8s View Post
It seems (from my limited ability to see your project up close) that just popping the bodies off both cars, trimming the miata's extremeties, and slapping the Saab back down onto the miata chassis would be ... logistically possible?
The biggest issue is the Miata has a 9" shorter wheelbase.
Stein is offline   Reply With Quote
Old 03-07-2012, 01:22 PM   #86
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,684
Total Cats: 555
Default

Quote:
Originally Posted by y8s View Post
You've seen pictures of naked miatas before:


I'd really like to know how legal that would be in NY. I imagine you'd need stuff like a windsheild, wipers, headlights. But I wonder about no hood/fenters/doors. Maybe cloth ones like a Jeep?
rleete is offline   Reply With Quote
Old 03-07-2012, 02:35 PM   #87
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,842
Total Cats: 1,787
Default

you want some of it back for aero.
Braineack is offline   Reply With Quote
Old 03-07-2012, 04:33 PM   #88
Elite Member
iTrader: (5)

pusha's Avatar

Join Date: Nov 2009
Location: Miami, FL
Posts: 7,363
Total Cats: -32
Default

Quote:
Originally Posted by Stein View Post
I also cut out the entire rear center section of the car that holds the rear subframe and the gas tank. I just have to watch weight. It's easy to add weight when grafting in other parts.
What are you doing for a fuel tank? Reusing the Miata tank? Why not look into a fuel cell? Apologies if you've already addressed this and I simply missed it.
pusha is offline   Reply With Quote
Old 03-07-2012, 04:37 PM   #89
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 406
Default

Quote:
Originally Posted by Stein View Post
The biggest issue is the Miata has a 9" shorter wheelbase.
option a: Saab 96L

option b: saw off 9 inches of the power plant frame.

option c: move the front suspension pickup points 9" rearward.


Where do they eliminate this "9 inches" compared to a miata?
y8s is offline   Reply With Quote
Old 03-07-2012, 04:39 PM   #90
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,842
Total Cats: 1,787
Default

can you not cut the shell in half and make it 9" shorter?


n/m roofline will be a bitch.
Braineack is offline   Reply With Quote
Old 03-07-2012, 04:50 PM   #91
Elite Member
Thread Starter
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

Quote:
Originally Posted by pusha View Post
What are you doing for a fuel tank? Reusing the Miata tank? Why not look into a fuel cell? Apologies if you've already addressed this and I simply missed it.
Re-using the stocker. Keep the pump, lines, everything. I had kept the rear subframe holder part of the unibody and figured, why not keep the tank mounts and tank?
Stein is offline   Reply With Quote
Old 03-08-2012, 09:54 AM   #92
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

Quote:
Originally Posted by Stein View Post
The biggest issue is the Miata has a 9" shorter wheelbase.
Couldn't you could just cut the Miata tub in half, use tube inserts in the frame rails, and then a section from a second tub to extend the interior sheet metal?
m2cupcar is online now   Reply With Quote
Old 03-08-2012, 09:56 AM   #93
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,842
Total Cats: 1,787
Default

Quote:
Originally Posted by m2cupcar View Post
Couldn't you could just cut the Miata tub in half, use tube inserts in the frame rails, and then a section from a second tub to extend the interior sheet metal?

this would probably work.
Braineack is offline   Reply With Quote
Old 03-08-2012, 10:50 AM   #94
Elite Member
Thread Starter
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

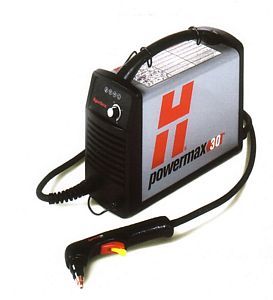

Buying a new toy today at lunch! I've always wanted a plasma cutter and this project justifies one. On top of that I stopped at my local Linweld shop for some .023" wire for my welder yesterday and they were having an open house. Hypertherm is the best brand out there for plasma cutters but they were always $1,400 and sometimes $1250 on ebay. They have them on the open house for $1,033 and included a $180 air filtration system for free. Picking one up today. They had the Thermal Dynamics unit for $872 but the Hypertherm is the best unit and you can drag the tip. Helpful when working in a cramped area. I'm very happy.

Attached Thumbnails
Miata Drivetrain in a SAAB 96-powermax30.jpg
Stein is offline   Reply With Quote
Old 03-08-2012, 11:37 AM   #95
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 406
Default

OH the MIATA is the shorter car.

then that's easy.

You just need a spare wrecked miata to section the middle from and then you can overlap joint the power plant frames.
y8s is offline   Reply With Quote
Old 03-08-2012, 01:27 PM   #96
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

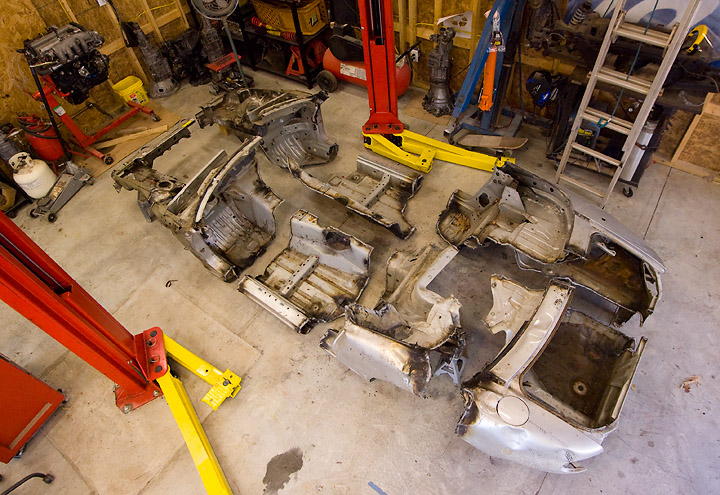

I was thinking a second tube with damaged ends would be free vs. the overlap. I would have the piece needed if this build was a year ago.
Attached Thumbnails
Miata Drivetrain in a SAAB 96-departed720.jpg
m2cupcar is online now   Reply With Quote
Old 03-09-2012, 01:08 AM   #97
Elite Member
Thread Starter
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

Got to play with my new plasma cutter tonight. The question is: How did I get along without one for so long? This thing is awesome! More rust than metal? Cuts right through it. Undercoating? Like it isn't even there. I even had some 1/8" thick tar paper sound deadening sheet inside of the car on the fenders. Strike the arc and cut through it even with the tar paper on the inside of the cut. I was worried that it would need clean metal. Chuck Testa.

I haven't cut anything thick yet. The guy said it would be a rough cut but it can do 3/4" thick. It's rated for 3/8" on a fine cut.

I got the floor pan into position and measured out where I need to cut for the front subframe rails. I laid it out with a sharpie. Then measured again. Then drank a beer looking at it and measured again. I get one shot at cutting this so I decided to wait until tomorrow.
Stein is offline   Reply With Quote
Old 03-09-2012, 01:21 AM   #98
Elite Member
iTrader: (1)

Join Date: Dec 2010
Location: SoCal
Posts: 4,165
Total Cats: 19
Default

Quote:
Originally Posted by rleete View Post
I'd really like to know how legal that would be in NY. I imagine you'd need stuff like a windsheild, wipers, headlights. But I wonder about no hood/fenters/doors. Maybe cloth ones like a Jeep?
You need bumpers to be legal, and like Brain said, there are aero issues.
gearhead_318 is offline   Reply With Quote
Old 03-10-2012, 01:58 AM   #99
Elite Member
Thread Starter
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

Got a bit more done today.

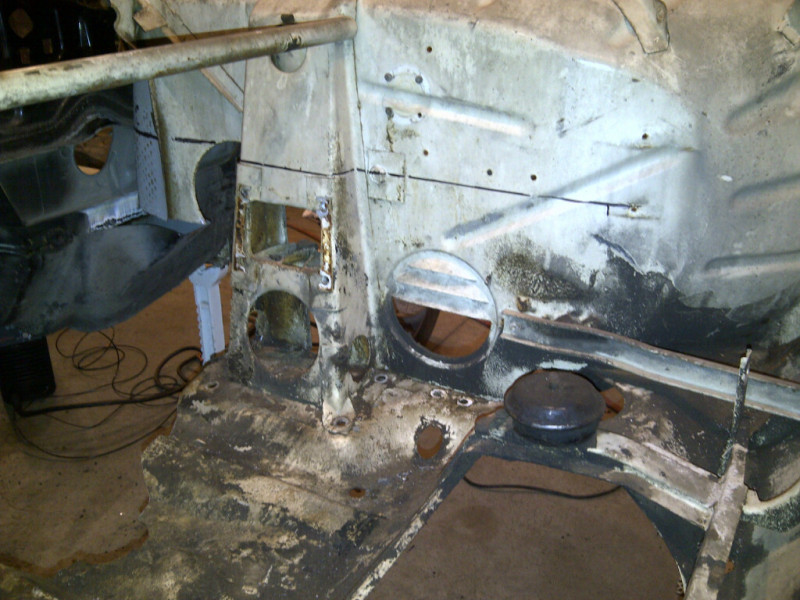

Marked out where I need to cut the unibody/fender liners to fit with the floor in the location needed to position the front wheel in the middle of the fender as well as lowering the car from 4x4 ride height.



Cut away the offending metal.

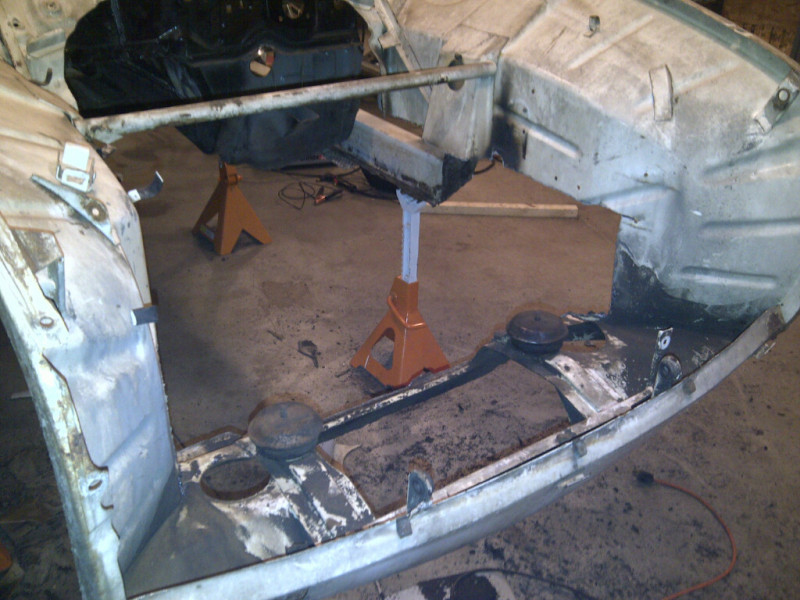

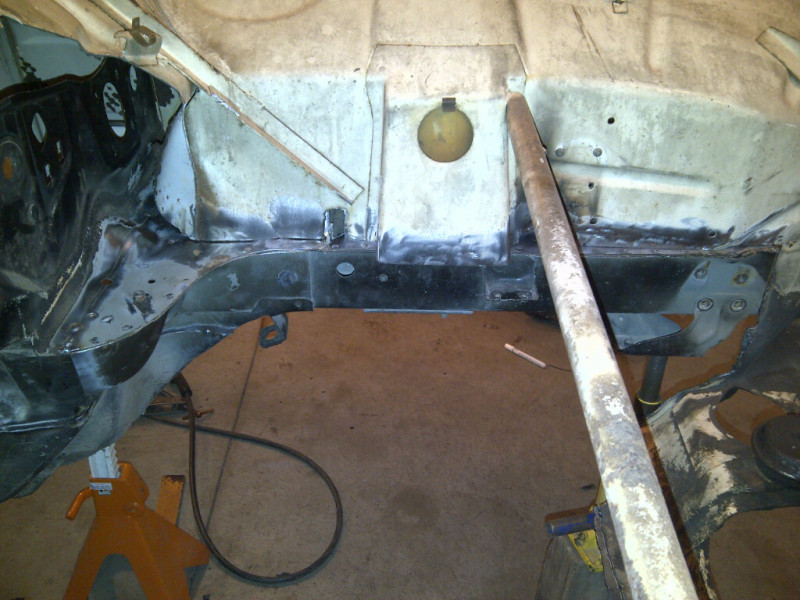

One side of the front subframe mount tacked into place. After I tack in the second one I'll bolt in the subframe. It takes eight bolts in widely spaced locations to bolt it in place so that will help locate everything for final welding. Depending on how the weekend goes the motor/trans may be in place by Sunday night, at least for a test fit. Everything is lining up really well.

Attached Thumbnails
Miata Drivetrain in a SAAB 96-img-20120309-00127.jpg   Miata Drivetrain in a SAAB 96-img-20120309-00128.jpg   Miata Drivetrain in a SAAB 96-img-20120309-00130.jpg
Stein is offline   Reply With Quote
Old 03-10-2012, 05:16 AM   #100
Elite Member
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,762
Total Cats: 18
Default

Nice build.
IN for more..
IcantDo55 is offline   Reply With Quote
