Old 02-16-2012, 11:25 AM   #41
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

no kidding. when you said you were going to sell the "shell" you meant "some of the shell"
y8s is offline   Reply With Quote
Old 02-16-2012, 12:24 PM   #42
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

The thing is- even though there's only a "little" left shell, I think I've installed more than half that stuff on race cars- rockers, windshield frame and rear quarters. Sum of the parts really are worth more than the whole.
m2cupcar is offline   Reply With Quote
Old 02-16-2012, 01:50 PM   #43
Elite Member
iTrader: (11)

Join Date: Feb 2009
Posts: 2,982
Total Cats: 10
Default

subscribed
miatauser884 is offline   Reply With Quote
Old 02-16-2012, 06:07 PM   #44
Elite Member
Thread Starter
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

Quote:
Originally Posted by y8s View Post
no kidding. when you said you were going to sell the "shell" you meant "some of the shell"
LOL, as soon as I started cutting I had two people want me to cut out rocker panels. They are going to chpmnsws6. Fo free.
Stein is offline   Reply With Quote
Old 02-17-2012, 09:49 AM   #45
Senior Member
iTrader: (10)

Join Date: Aug 2007
Location: Fredericton, NB
Posts: 1,187
Total Cats: 4
Default

Damn you and rust free vehicles!!!!!! I would KILL to find a car like the one you bought to tear apart...

Although I would have probably chosen an S2k or Vette drivetrain depending on budget
...and I wouldn't feel so bad cutting one up.

Awesome project none the less
Preluding is offline   Reply With Quote
Old 02-17-2012, 11:26 AM   #46
Elite Member
Thread Starter
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

We usually see rust here as well. Fortunately this was caught in a drug stop coming from rust free California. Rust free does make it easier to disassemble, though.
Stein is offline   Reply With Quote
Old 02-17-2012, 03:43 PM   #47
Free Moustache Rides
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,656
Total Cats: 49
Default

This is way cooler than the Borgward swap. Subbed for Saabata badassery.
matthewdesigns is offline   Reply With Quote
Old 02-17-2012, 04:06 PM   #48
Elite Member
iTrader: (10)

leatherface24's Avatar

Join Date: Dec 2006
Location: Pembroke Pines
Posts: 4,033
Total Cats: 2
Default

Other than killing a perfectly good NA, I really really am diggin this. Sub'd
leatherface24 is offline   Reply With Quote
Old 02-19-2012, 12:59 AM   #49
Elite Member
Thread Starter
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

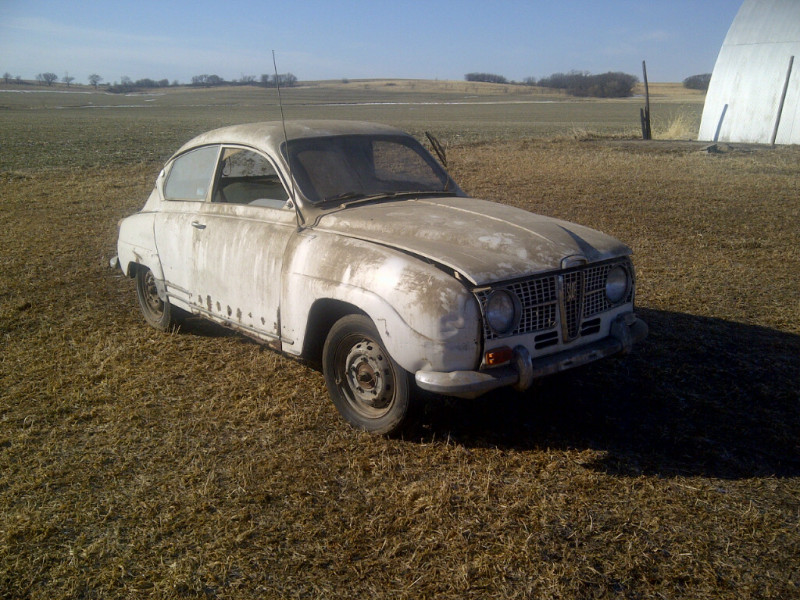

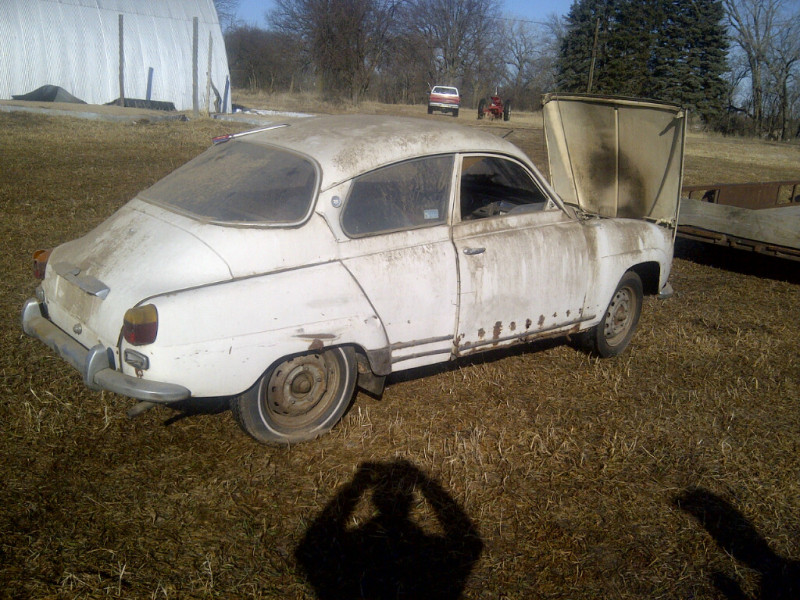

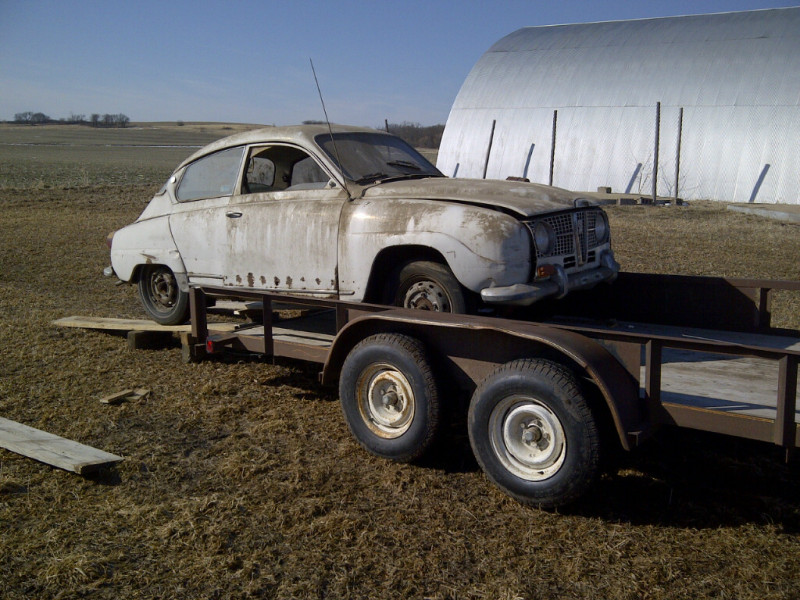

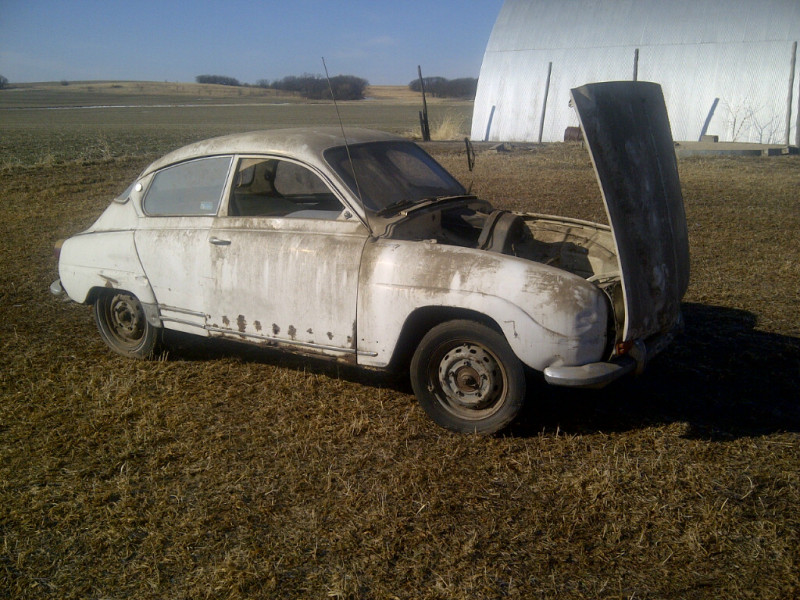

Picked up the SAAB today. Here it is in the sunshine for the first time in about 20 years. John was confident that the tires would hold air. There was a fist-sized hole in one rear so I thought he was full of it but it held up. Must have just been the tread cap. I was also surprised that the brakes weren't frozen to the drums. All four wheels rolled without incident.





Loading onto the trailer.

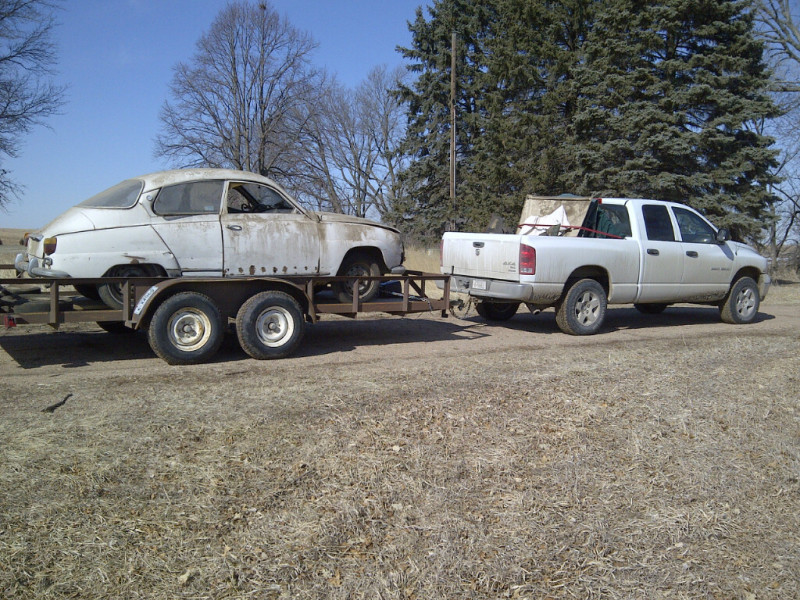

Ready to head home. The back of the truck is filled with three hoods, three doors, two trunklids and five fenders. I'll be changing out some of the parts with better ones in the future.

Attached Thumbnails
Miata Drivetrain in a SAAB 96-img-20120218-00096.jpg   Miata Drivetrain in a SAAB 96-img-20120218-00095.jpg   Miata Drivetrain in a SAAB 96-img-20120218-00094.jpg   Miata Drivetrain in a SAAB 96-img-20120218-00097.jpg   Miata Drivetrain in a SAAB 96-img-20120218-00098.jpg

Stein is offline   Reply With Quote
Old 02-19-2012, 01:00 AM   #50
Elite Member
Thread Starter
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

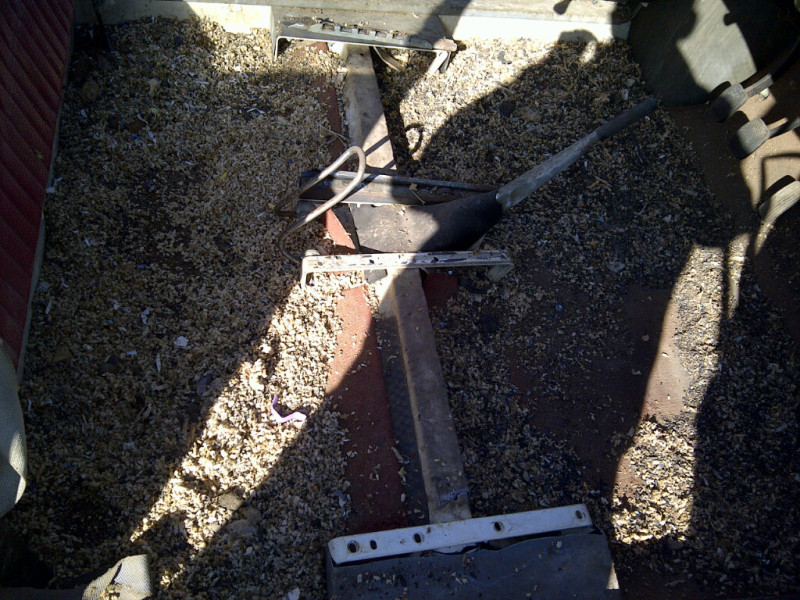

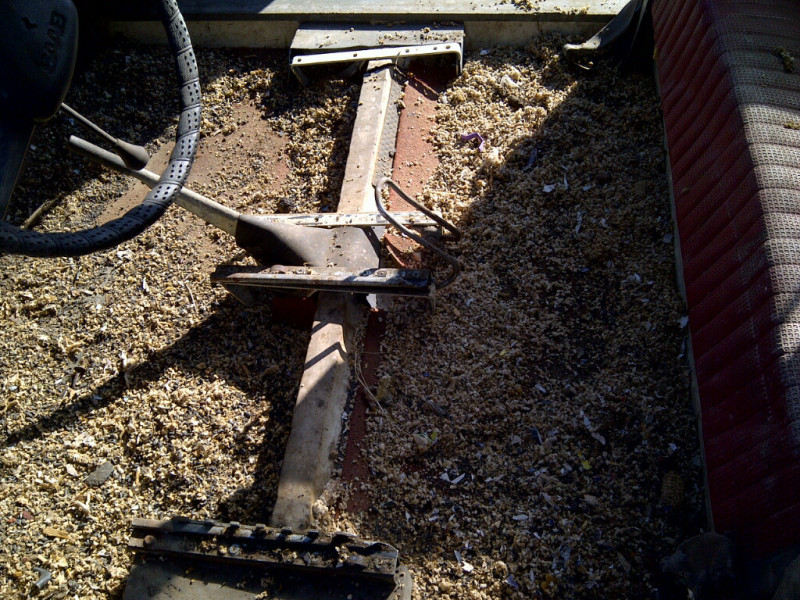

When I got it home I immediately wanted to clean it up. Twenty years of mouse nests makes for quite a bit of smell. The seats were removed and promptly tossed. Here is the floor.

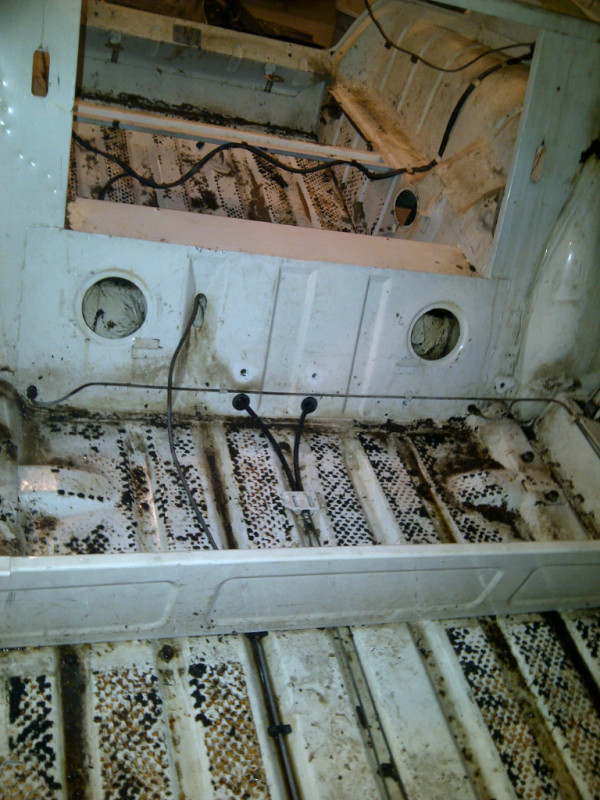

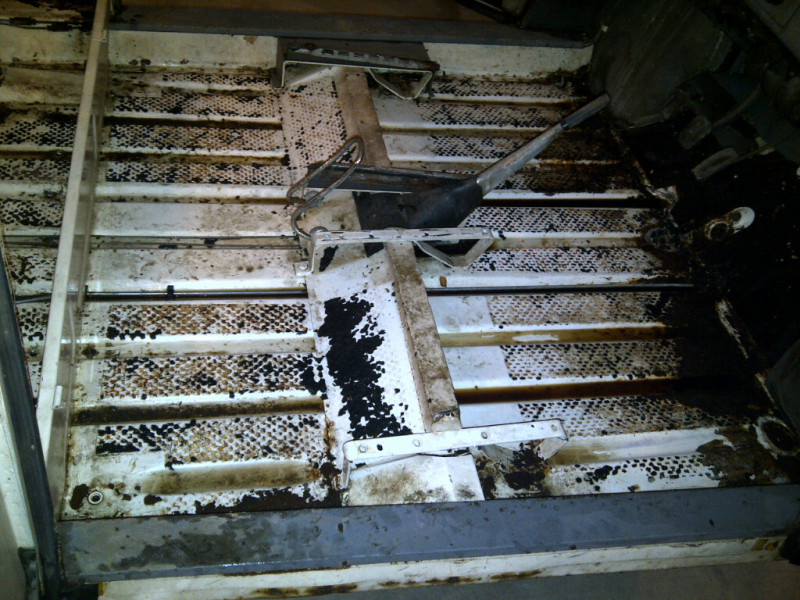

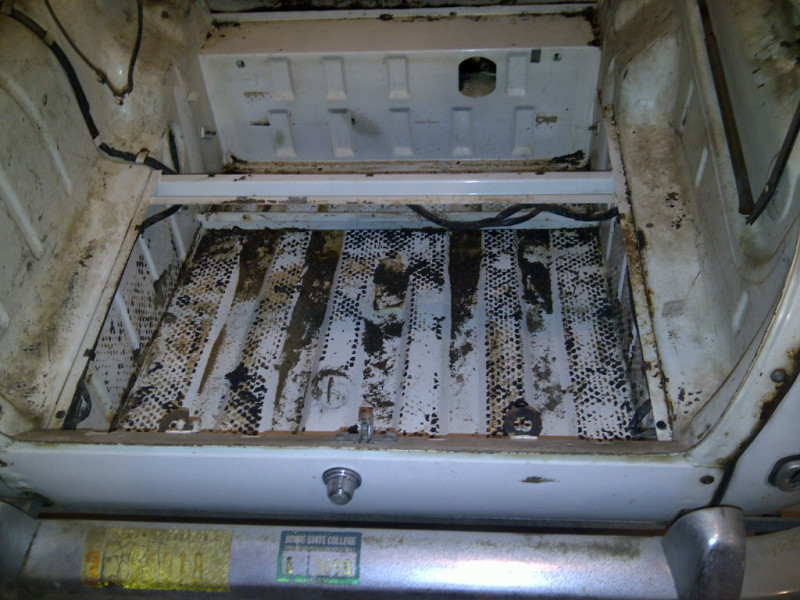

After shoveling out the interior, I shop vacc'ed it and then loaded it back onto the trailer for a trip to the car wash for a good power washing, including the interior. I also hit the engine bay because I hate working on greasy stuff and hosed off 20 years' worth of dust. After returning it to the shop I got out the heat gun and scraped off the tar sound deadening sheets from the floor and trunk. They were full of mouse smell and the water went under them in the channels, plus they needed to come out anyway. The floor is surprisingly rust-free which will help when I go to weld in the new Miata floor and trans tunnel.





I drilled holes in the floor and plan to pull it outside again tomorrow for a good scrubbing and hose down on the inside. It already is ten times better than before.
Attached Thumbnails
Miata Drivetrain in a SAAB 96-img-20120218-00100.jpg   Miata Drivetrain in a SAAB 96-img-20120218-00099.jpg   Miata Drivetrain in a SAAB 96-img-20120218-00101.jpg   Miata Drivetrain in a SAAB 96-img-20120218-00102.jpg   Miata Drivetrain in a SAAB 96-img-20120218-00104.jpg

Stein is offline   Reply With Quote
Old 02-19-2012, 01:06 AM   #51
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Engine bay shots? Cute little car.
curly is offline   Reply With Quote
Old 02-19-2012, 01:15 AM   #52
Elite Member
Thread Starter
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

Quote:
Originally Posted by curly View Post
Engine bay shots? Cute little car.
I'll get some tomorrow. The open area between the inner fenders are 2" wider than a Miata bay and it is at least 8" deeper grille to firewall. Well, that is after I cut out the doghouse footwell and move it back, but the top vertical portion of the firewall is. The rest will when I put in the Miata footwells and firewall. I could V8 swap it easily with the room in here.

It's a little haggard but I have a lot of spare arts that will replace bad areas. I have a bunch of glass that came with it as well.
Stein is offline   Reply With Quote
Old 02-19-2012, 01:27 AM   #53
Elite Member
iTrader: (12)

Join Date: Apr 2008
Location: Springfield IL
Posts: 2,750
Total Cats: 24
Default

Thats a suprisingly clean tub!
chpmnsws6 is offline   Reply With Quote
Old 02-19-2012, 01:44 AM   #54
Elite Member
Thread Starter
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

Quote:
Originally Posted by chpmnsws6 View Post
Thats a suprisingly clean tub!
Yeah, the only thing that is bad is the lower body where the chrome bolted through. If I didn't have a "deluxe" I probably would have had less body rust. The deluxe had the chrome and a tach. That was pretty much it.

The title is dated April 1974. She paid $2,760 for it.
Stein is offline   Reply With Quote
Old 02-19-2012, 09:23 AM   #55
Elite Member
iTrader: (10)

leatherface24's Avatar

Join Date: Dec 2006
Location: Pembroke Pines
Posts: 4,033
Total Cats: 2
Default

Dude all that mouse crap is nasty as hell. Looking good so far though
leatherface24 is offline   Reply With Quote
Old 02-19-2012, 09:33 AM   #56
I'm a terrible person
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

I am definitely in for some more pictures! This is extremely interesting stuff.
FRT_Fun is offline   Reply With Quote
Old 02-19-2012, 10:30 AM   #57
Elite Member
iTrader: (2)

Join Date: Sep 2008
Location: Central Florida
Posts: 3,284
Total Cats: 178
Default

Quote:
Originally Posted by Stein View Post
It already is ten times better than before.
Agreed; I was a little discouraged when I saw the first picture but it did clean up better than I expected.

Good luck and godspeed.
Scrappy Jack is offline   Reply With Quote
Old 02-19-2012, 11:39 AM   #58
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

that car screams acid dip and respray, does it not?
y8s is offline   Reply With Quote
Old 02-19-2012, 11:47 AM   #59
I'm a terrible person
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

Wow wrong thread I posted in lol.

Anyways I agree with y8s.

Last edited by FRT_Fun; 02-19-2012 at 01:16 PM.
FRT_Fun is offline   Reply With Quote
Old 02-20-2012, 12:48 AM   #60
Elite Member
Thread Starter
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

Well, I didn't take any pictures today when I had it out to wash the inside out again. The main reason is I inventoried the spare parts that came with the car. I will be replacing both doors, three of the four fenders and the trunk lid with spare parts that are in very good shape. So, a freshly washed pic wouldn't be worth much.

I have been disassembling the front end to start. A couple of observations:

I haven't worked on a 40 year old car. Ever. Even in my youth they weren't 40 years old.

Fasteners DO rust to the point that they will not come off and simply break

I hate the Swedes for not using hex head bolts and for using Phillips head bolts everywhere instead. The fenders, the doors, everything under the hood is held in place with Phillip head bolts. I'm sure some genius back in '68 thought they could speed up assembly using them but didn't think about maintenance in the field after a liberal application of road salt. It's bad enough trying to break free a 40 year old hex head. I actually took the front part off of my hammer-style impact driver for screws and used it on my regular impact for some larger #4 Phillips. Did you know that they make 5/16-18 bolts with a Phillips head? I didn't but I do now.

I also snapped the tip right off of a big Craftsman #3 Phillips head screw driver. Never mind that I had a 1/2" ratchet and a deep well 1 1/8" socket over the handle but that was the only way to put force into the screw and then have enough leverage to turn it to break it loose.

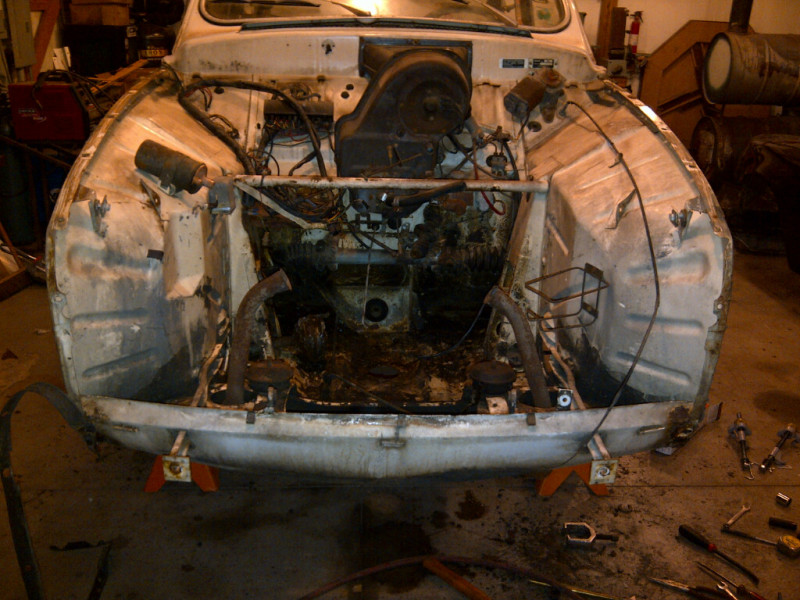

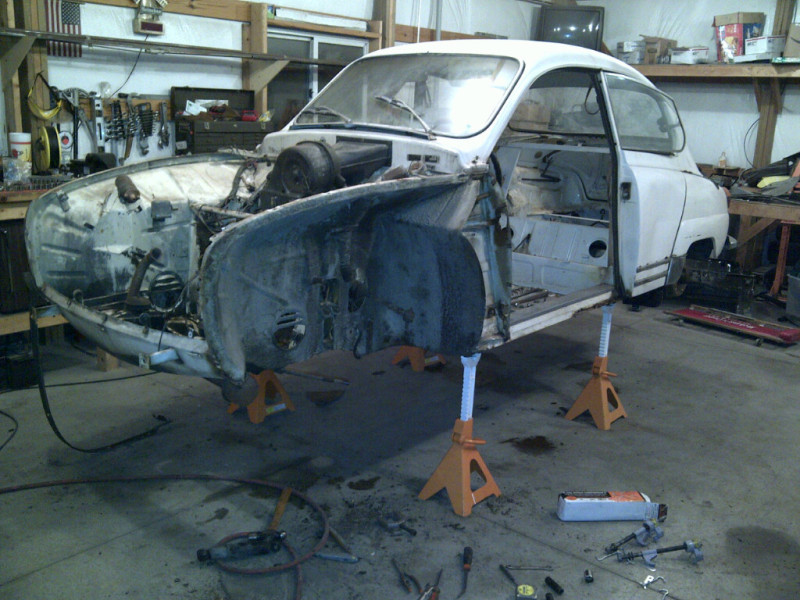

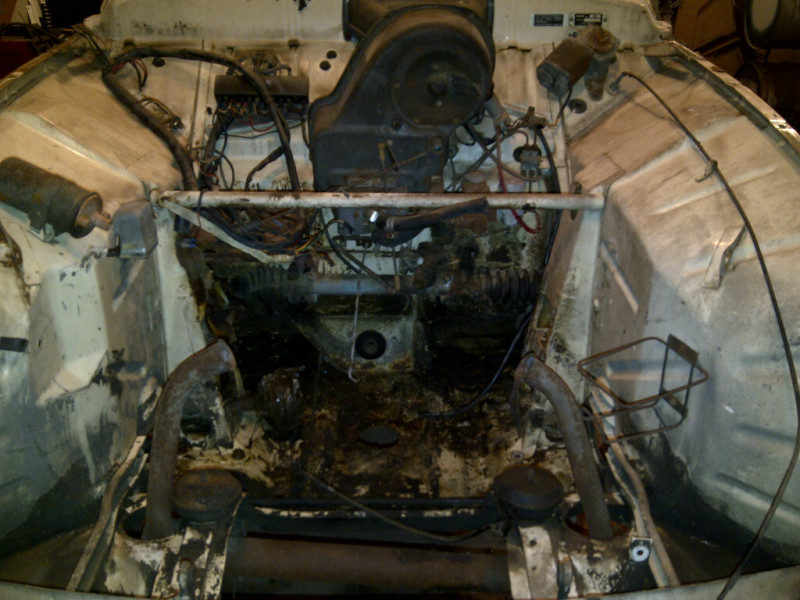

Here's how it sits today.



Attached Thumbnails
Miata Drivetrain in a SAAB 96-img-20120219-00110.jpg   Miata Drivetrain in a SAAB 96-img-20120219-00111.jpg   Miata Drivetrain in a SAAB 96-img-20120219-00113.jpg
Stein is offline   Reply With Quote
