Old 02-11-2016, 06:34 PM   #221
Elite Member
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,667
Total Cats: 107
Default

Awww man, I like.
pdexta is offline   Reply With Quote
Old 02-11-2016, 06:47 PM   #222
Hug Life
iTrader: (3)

Monk's Avatar

Join Date: Apr 2014
Location: Huntington, Indiana
Posts: 2,671
Total Cats: 449
Default

This build is confounding.
Compound boost in a daily driver.
Allofit, but restricts flow with muffler until 0 decibles.
I'm arroused but confused.
Vlad, you need to change Pat's title to ALLOFIT X 2.

Last edited by Monk; 02-11-2016 at 07:36 PM.
Monk is online now   Reply With Quote
Old 02-11-2016, 07:33 PM   #223
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: New Bern, NC
Posts: 25,851
Total Cats: 1,823
Default

Quote:
Originally Posted by patsmx5 View Post
In other news, I decided how much boost I'm going to run.

(Allofit.jpg)
Joe Perez is offline   Reply With Quote
Old 02-11-2016, 07:36 PM   #224
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 8,961
Total Cats: 95
Default

Quote:
Originally Posted by 18psi View Post
I would remove any cat(s) between the two turbos unless you want to sacrifice the 2nd turbo for science

I also agree with these guys that the glasspacks will likely do nothing but add weight to your car
THe 2nd turbo should be fine. The cat is just going to split down the seam in few thousand miles, like literally every other car with a cat or resonator upstream of a rear mounted turbo.
Leafy is offline   Reply With Quote
Old 02-11-2016, 09:24 PM   #225
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,524
Total Cats: 204
Default

Quote:
Originally Posted by Monk View Post
This build is confounding.
Compound boost in a daily driver.
Allofit, but restricts flow with muffler until 0 decibles.
I'm arroused but confused.
Vlad, you need to change Pat's title to ALLOFIT X 2.




Quote:
Originally Posted by Joe Perez View Post
Or make that pic to be my avatar?



Quote:
Originally Posted by Leafy View Post
THe 2nd turbo should be fine. The cat is just going to split down the seam in few thousand miles, like literally every other car with a cat or resonator upstream of a rear mounted turbo.
I'm running the cat you recommended, sir! So far it's been great.
patsmx5 is offline   Reply With Quote
Old 02-11-2016, 09:29 PM   #226
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,524
Total Cats: 204
Default

Quote:
Originally Posted by Monk View Post
This build is confounding.
Compound boost in a daily driver.
Allofit, but restricts flow with muffler until 0 decibles.
I'm arroused but confused.
Vlad, you need to change Pat's title to ALLOFIT X 2.
Idea is to build fast, reliable, daily driver. That can easily be put back to stock to pass emissions.
patsmx5 is offline   Reply With Quote
Old 02-11-2016, 10:51 PM   #227
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,645
Total Cats: 318
Default

Quote:
Originally Posted by Leafy View Post
THe 2nd turbo should be fine. The cat is just going to split down the seam in few thousand miles, like literally every other car with a cat or resonator upstream of a rear mounted turbo.
Hm. Is that why the factory 99 pre-cat is a big cast iron lump?

--Ian
codrus is offline   Reply With Quote
Old 02-12-2016, 12:33 AM   #228
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,524
Total Cats: 204
Default

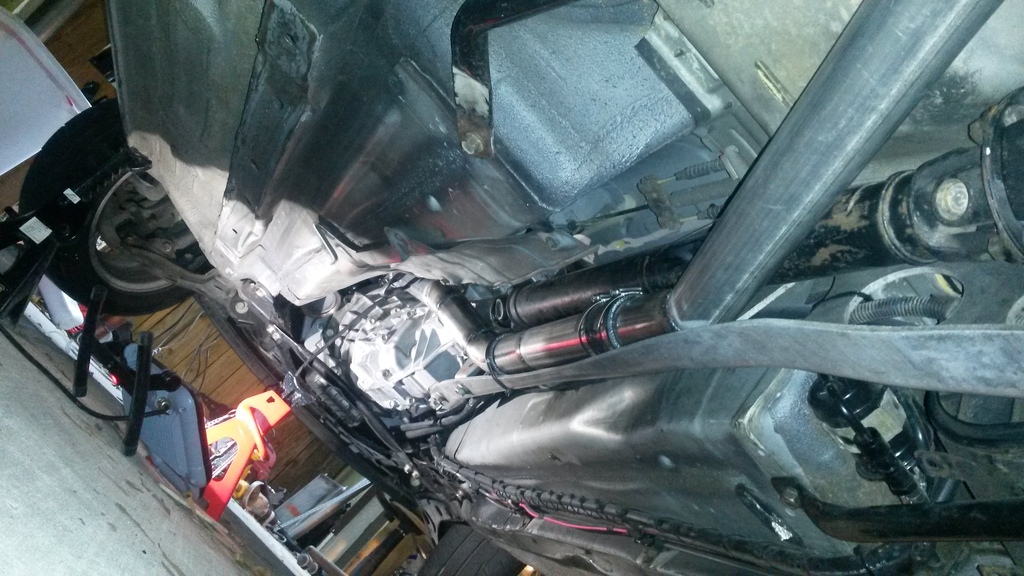

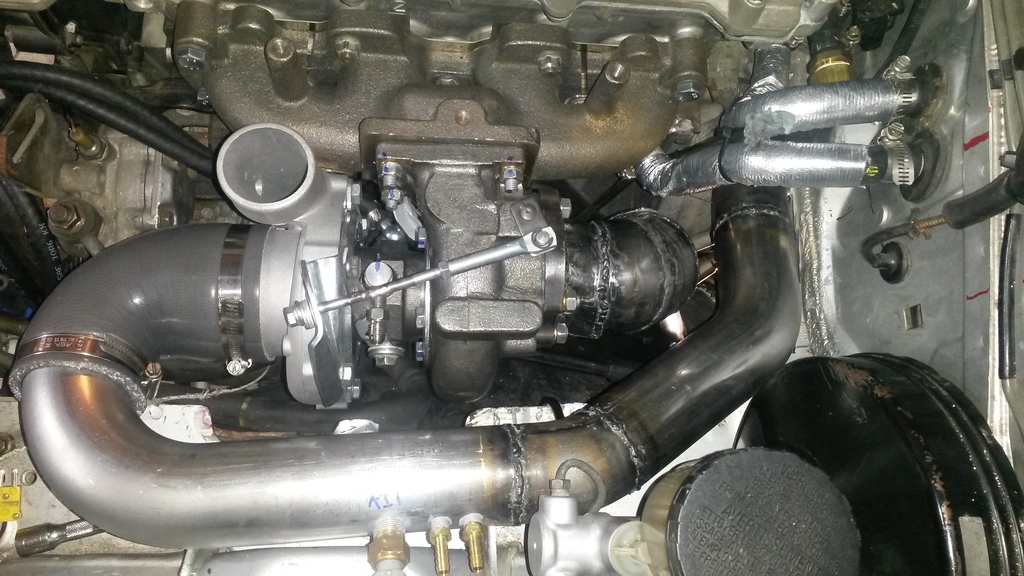

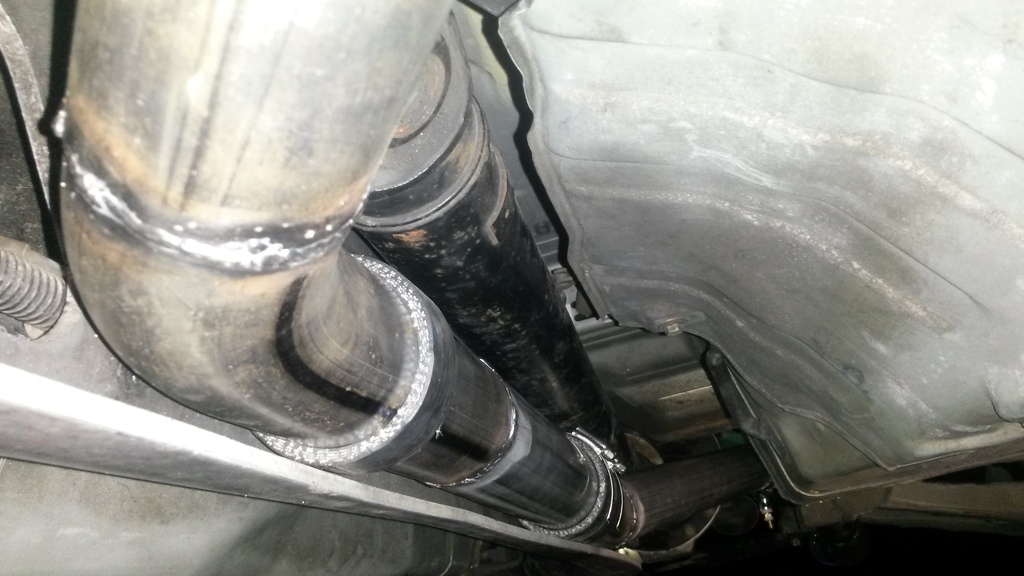

Making progress, but no way it will be running tomorrow... Apparently I only have about 1/2 the things I need to do on my list. And a few things popped up that are adding more time to the build.

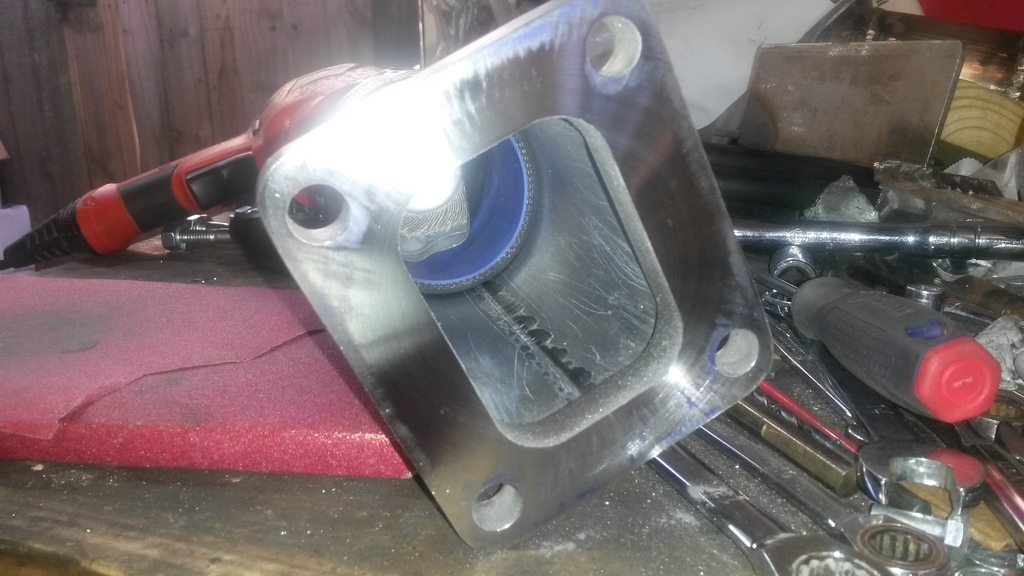

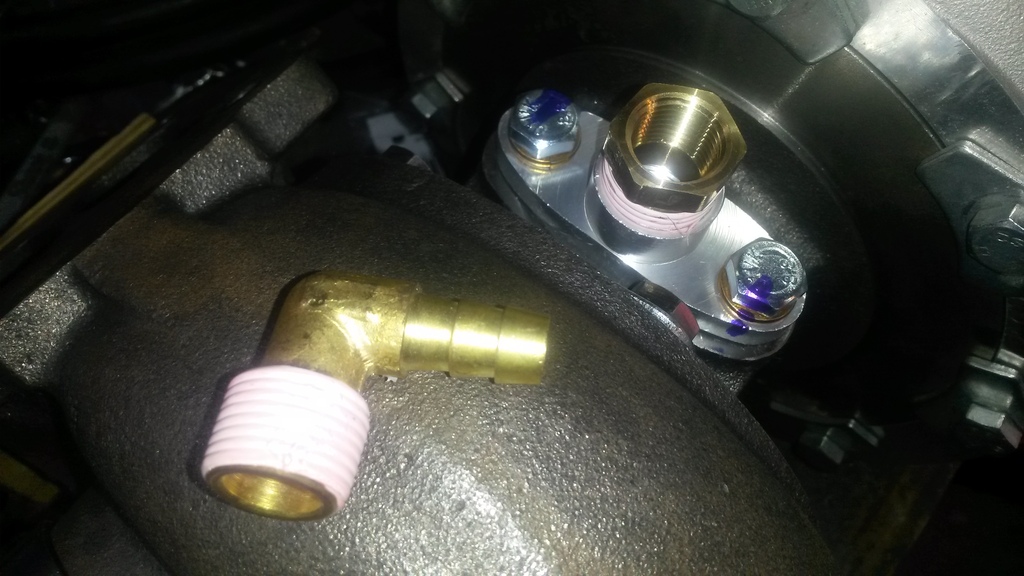

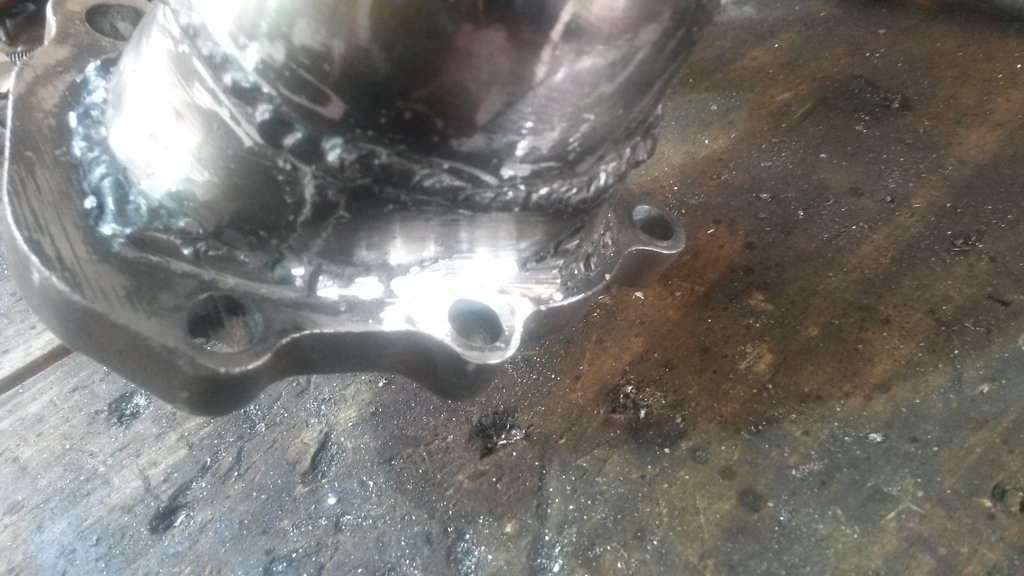

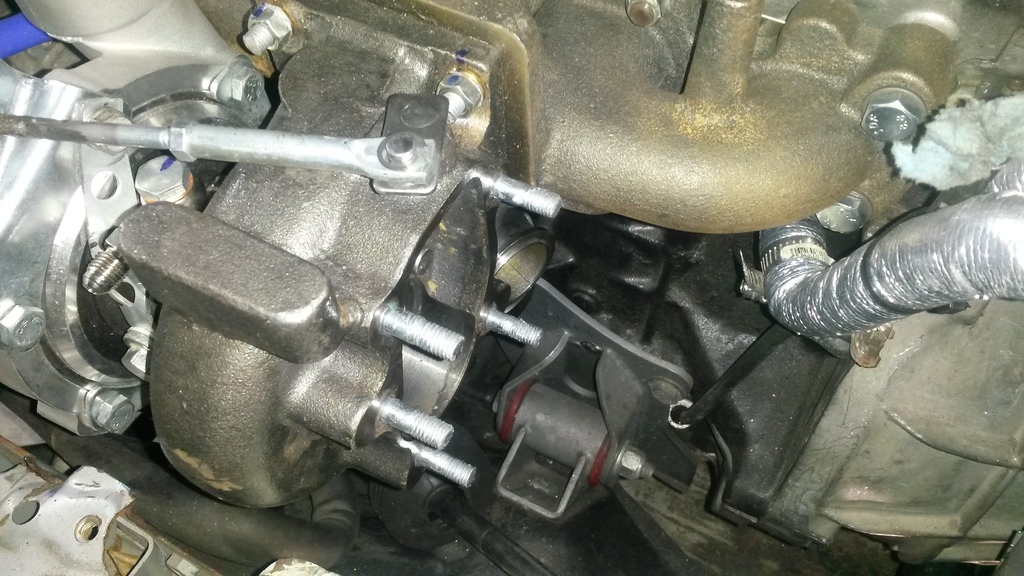

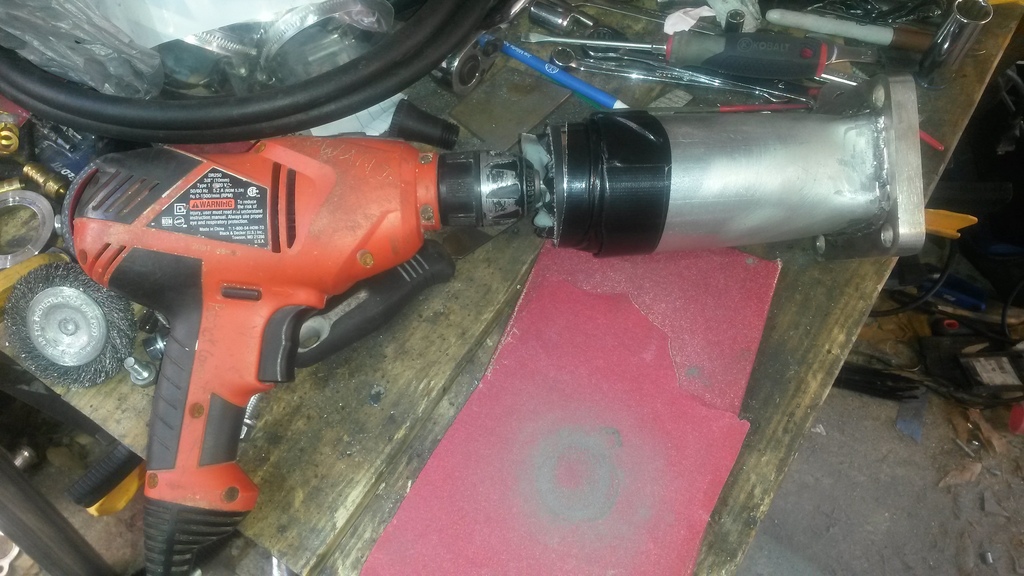

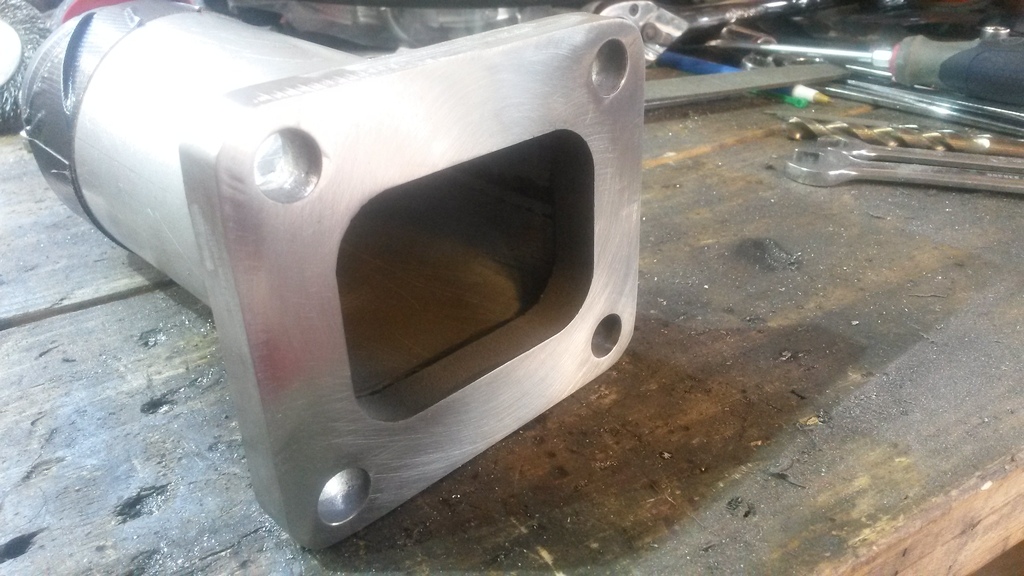

External gate done

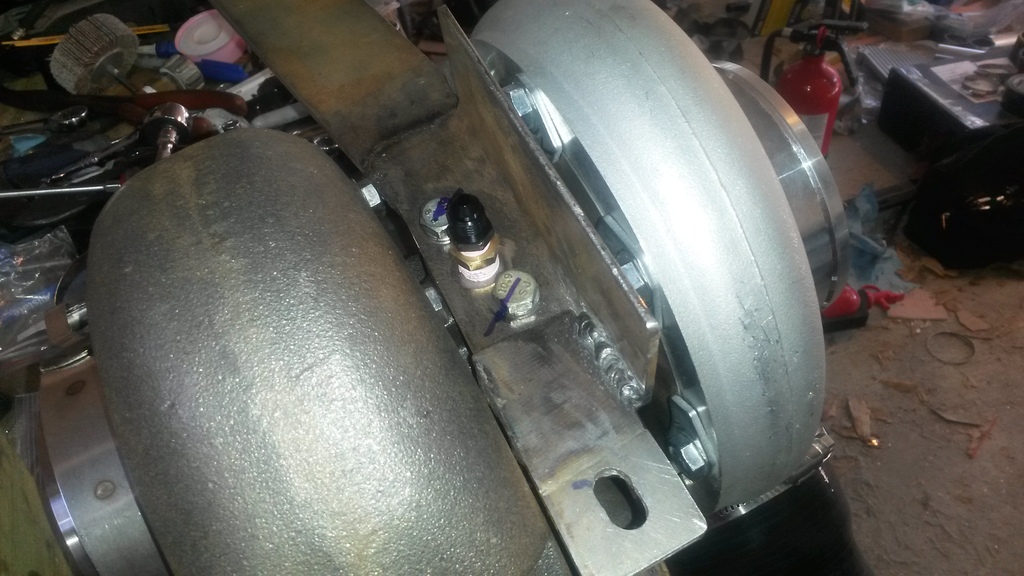

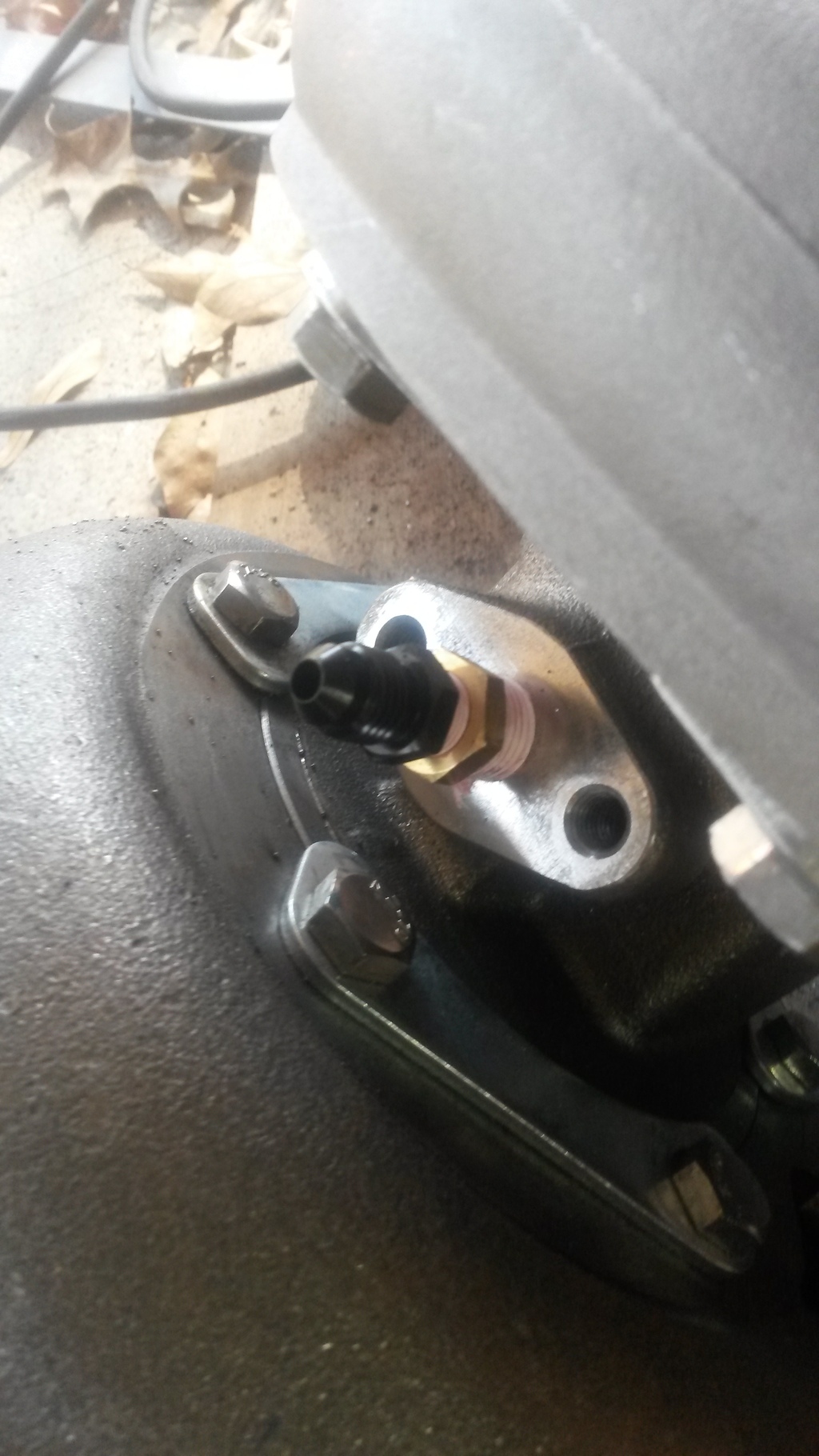

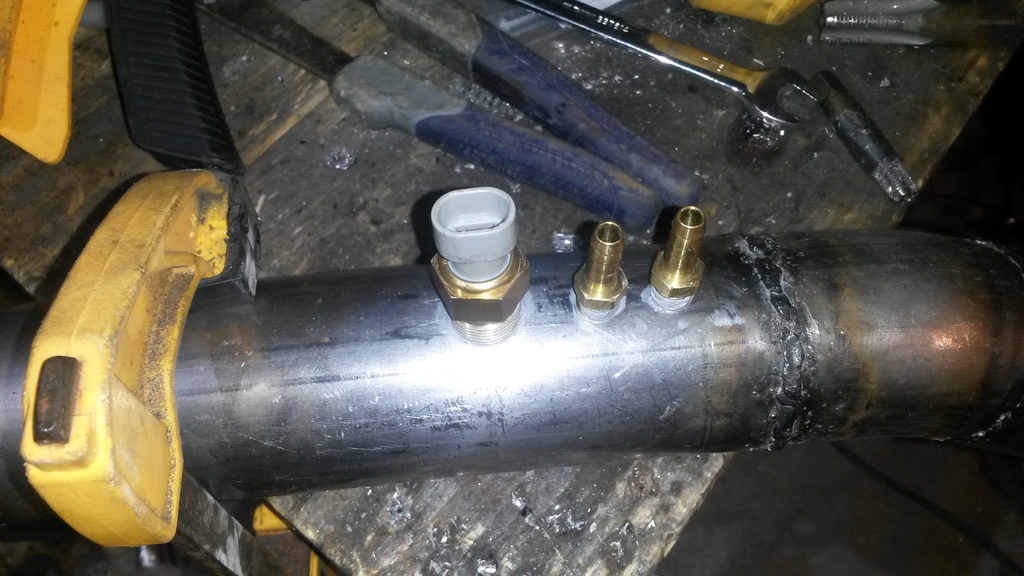

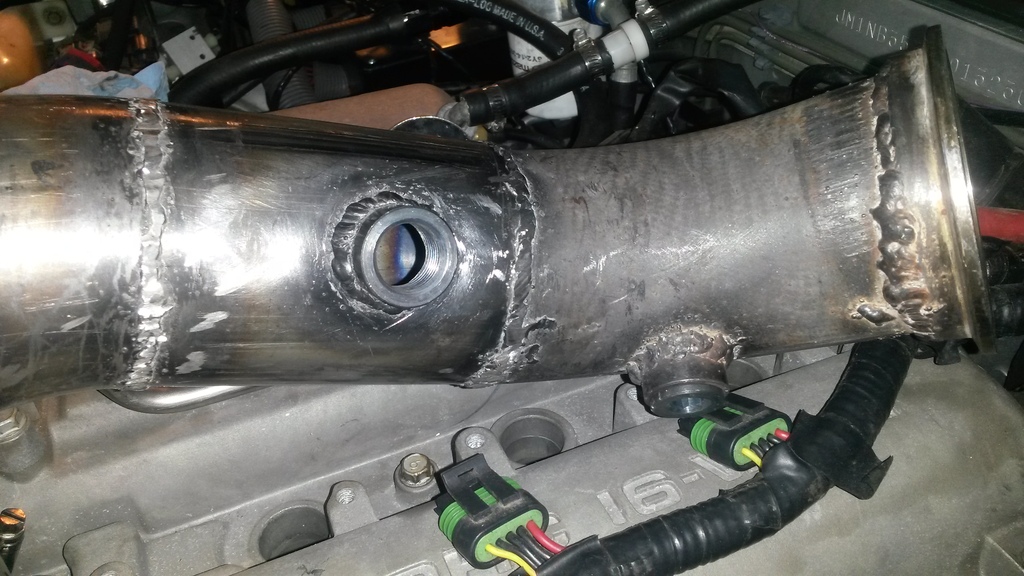

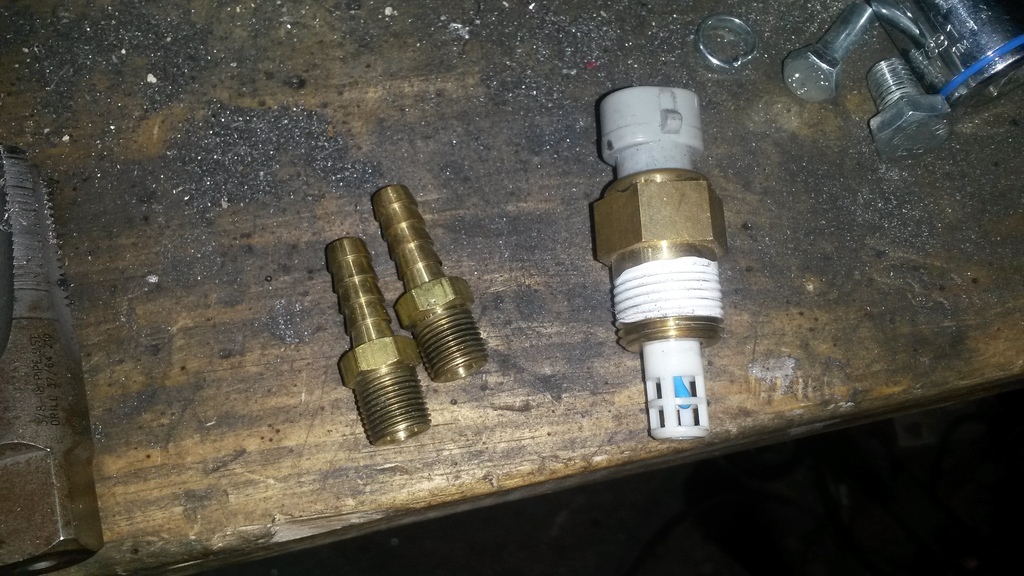

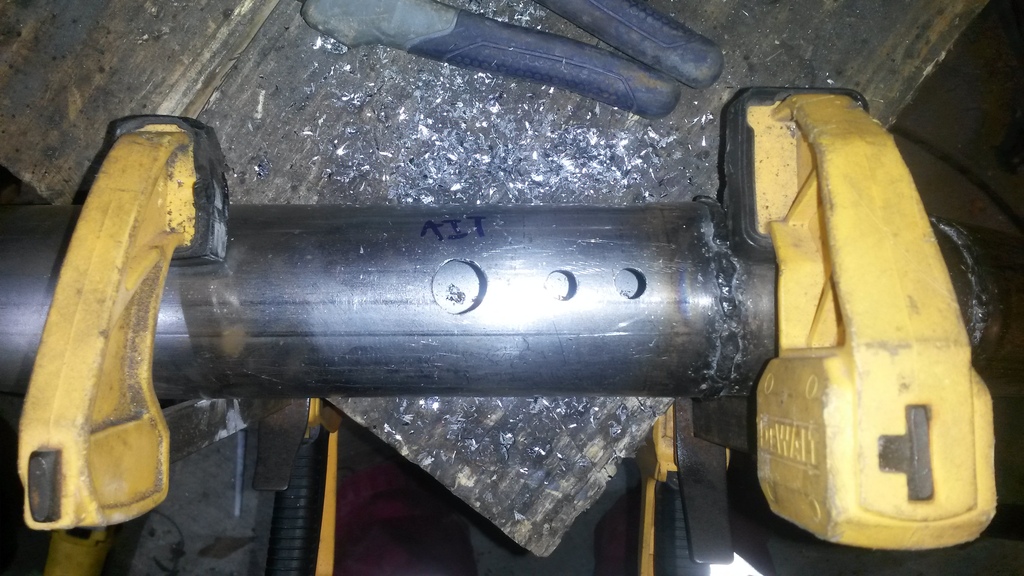

AIT Post big turbo, and two ports (wastegate and Secondary MAP sensor)









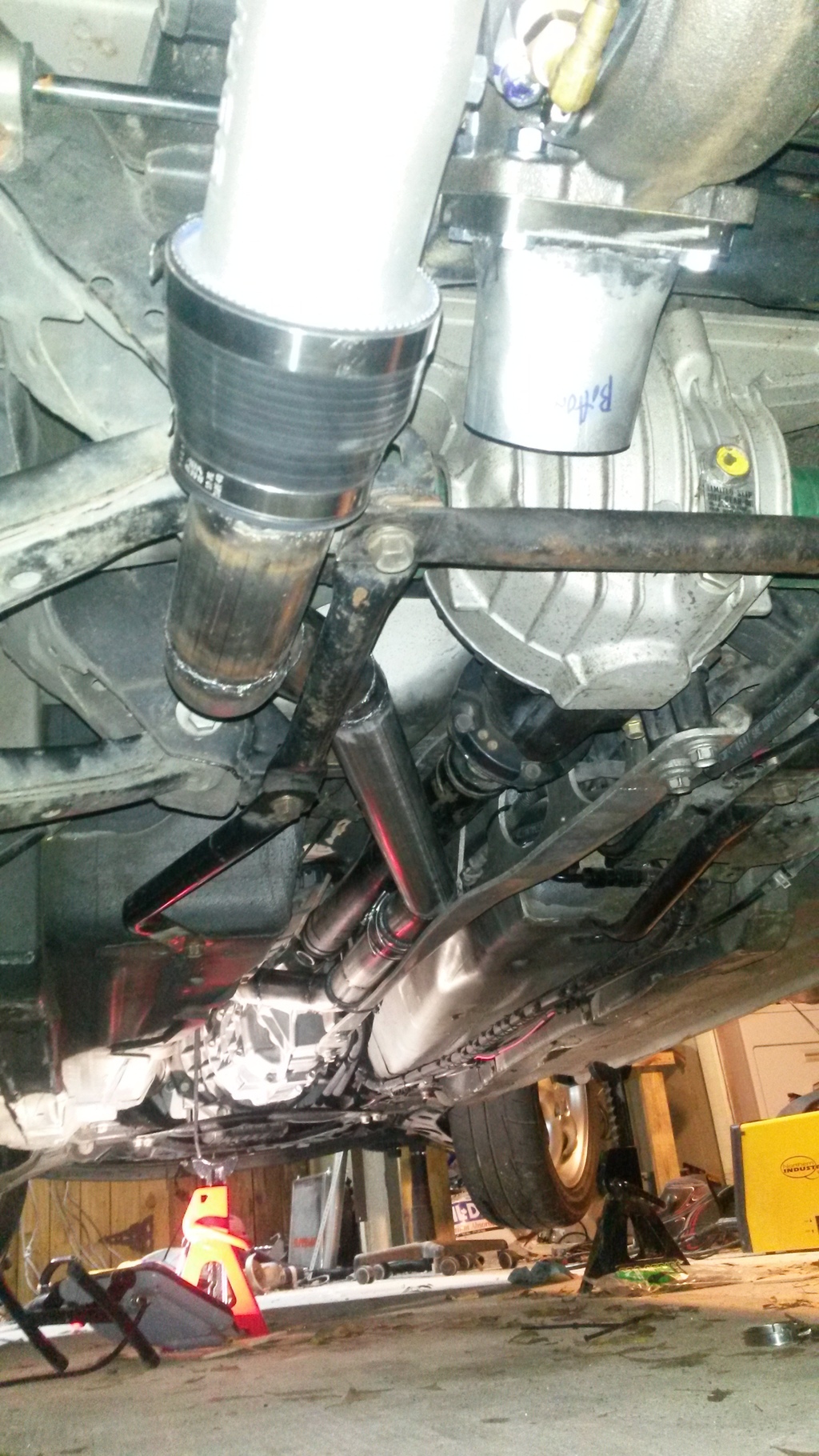

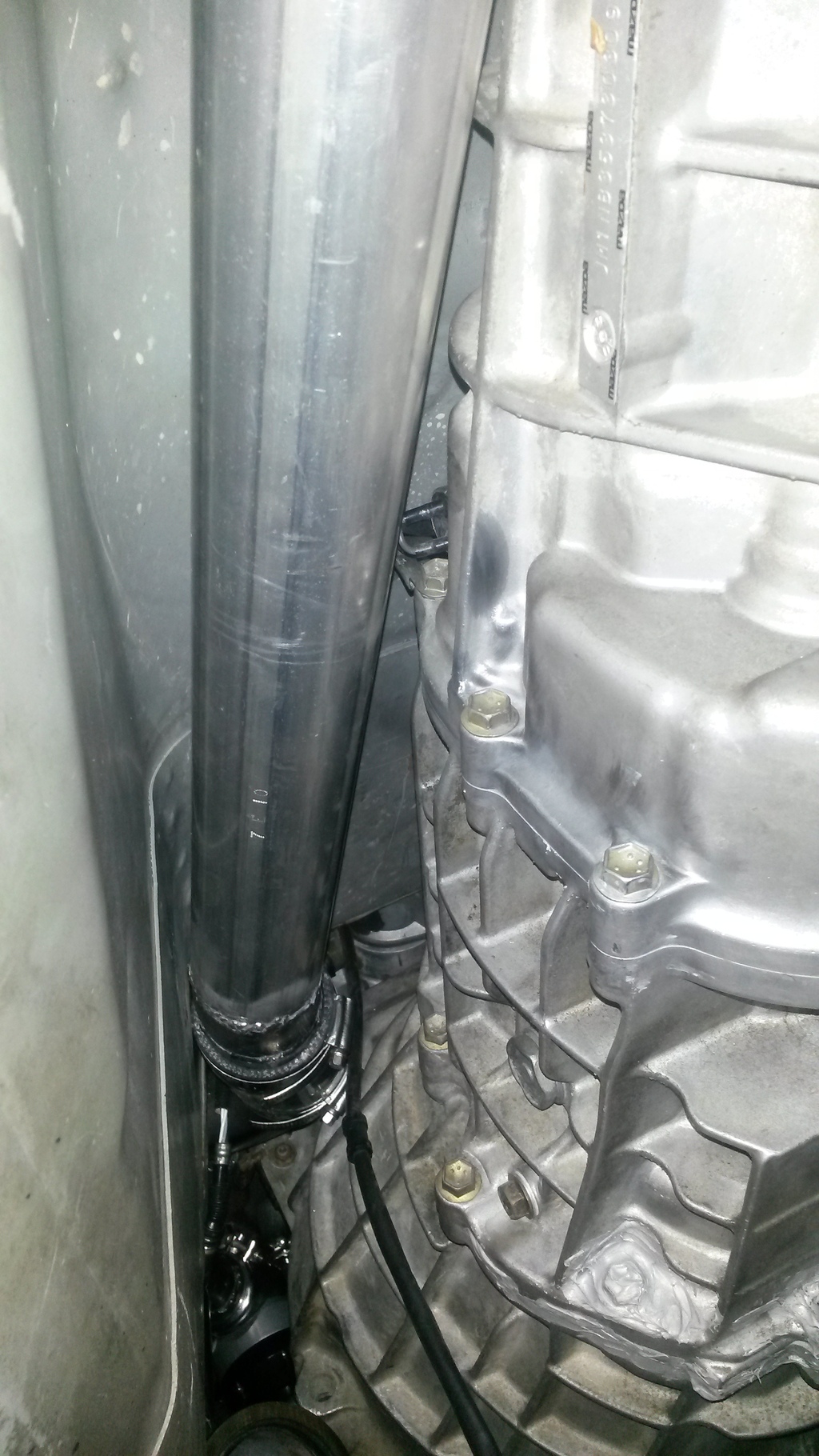

Boost pipe installed

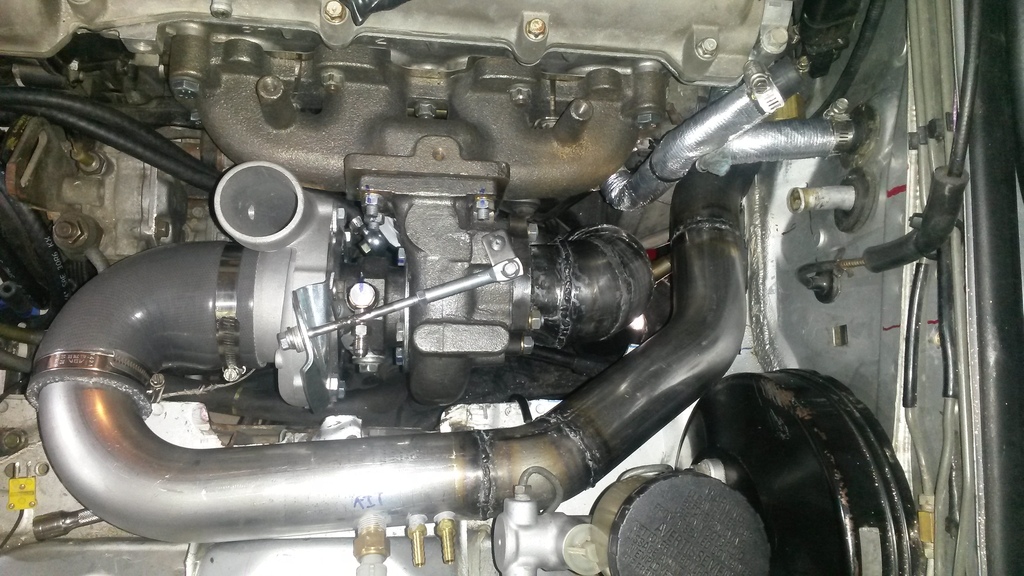

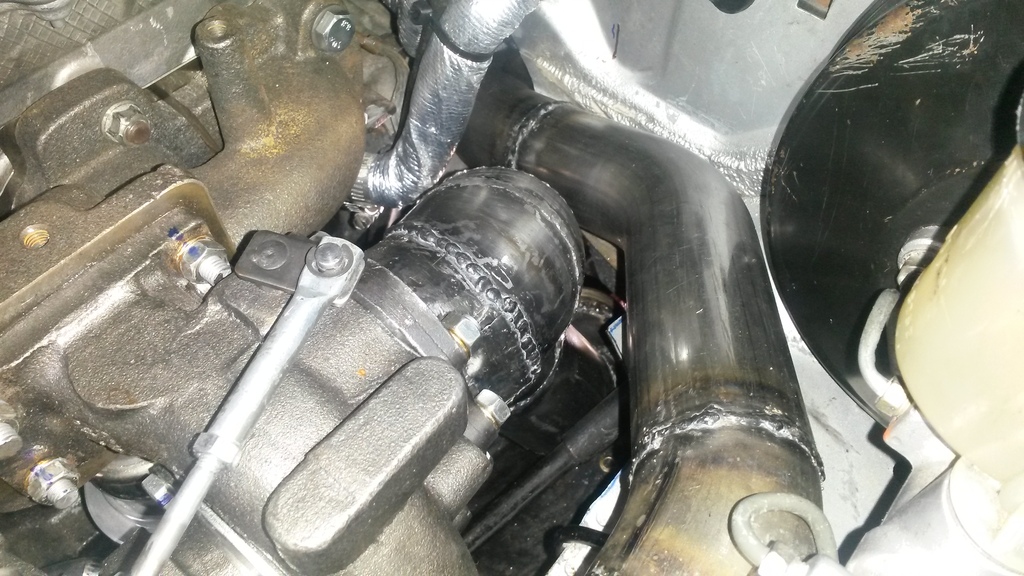

Attached Thumbnails

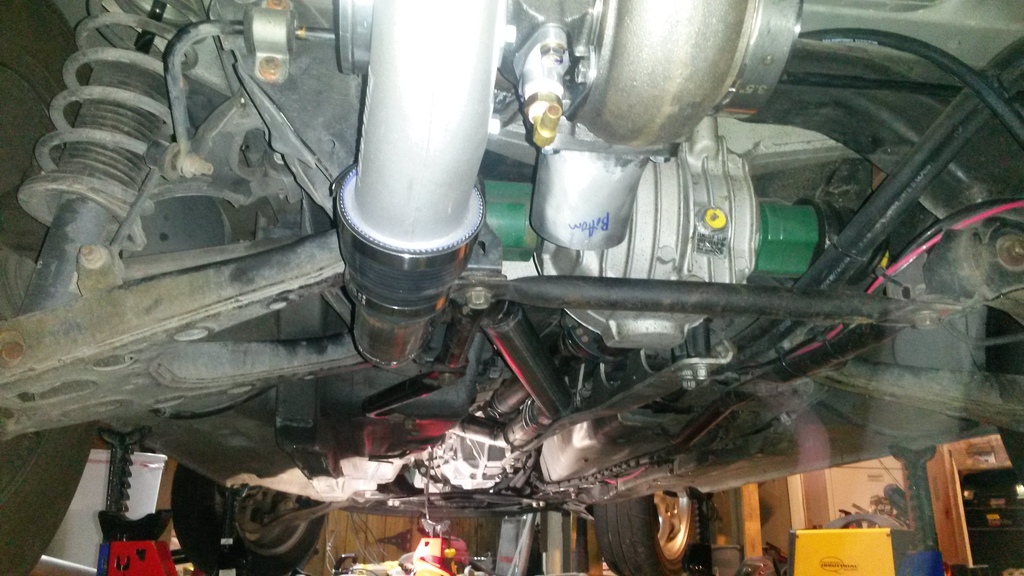

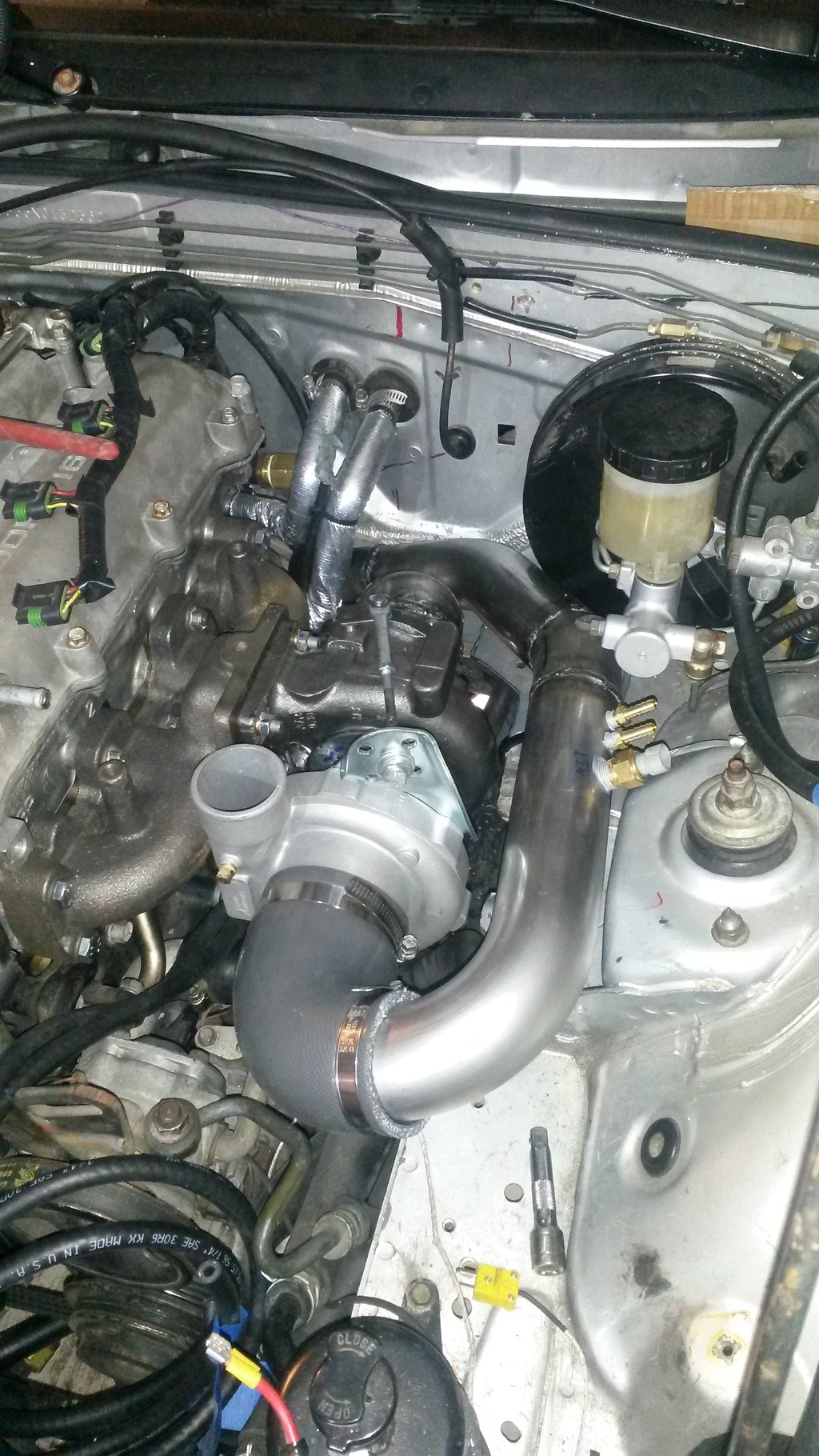

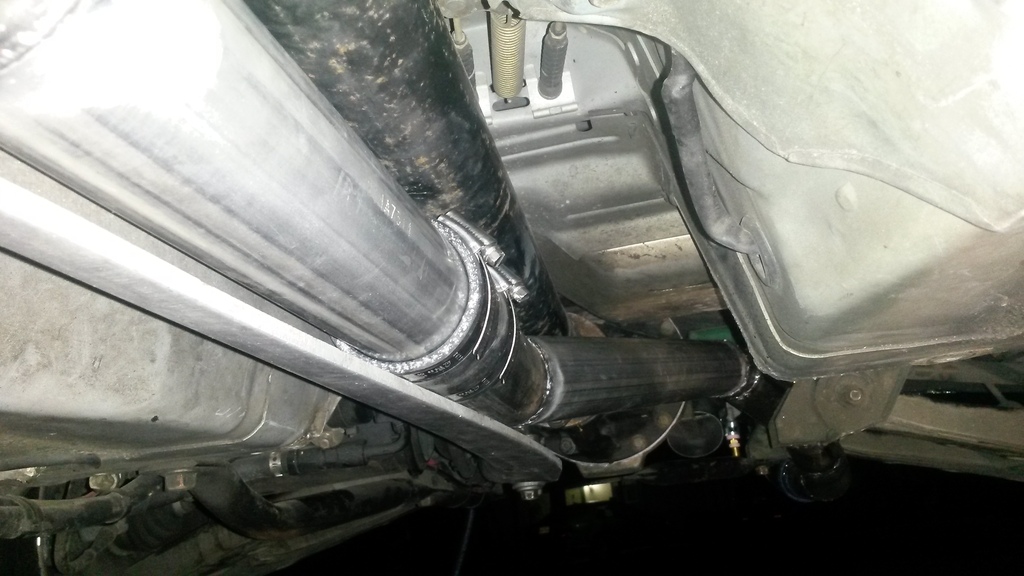

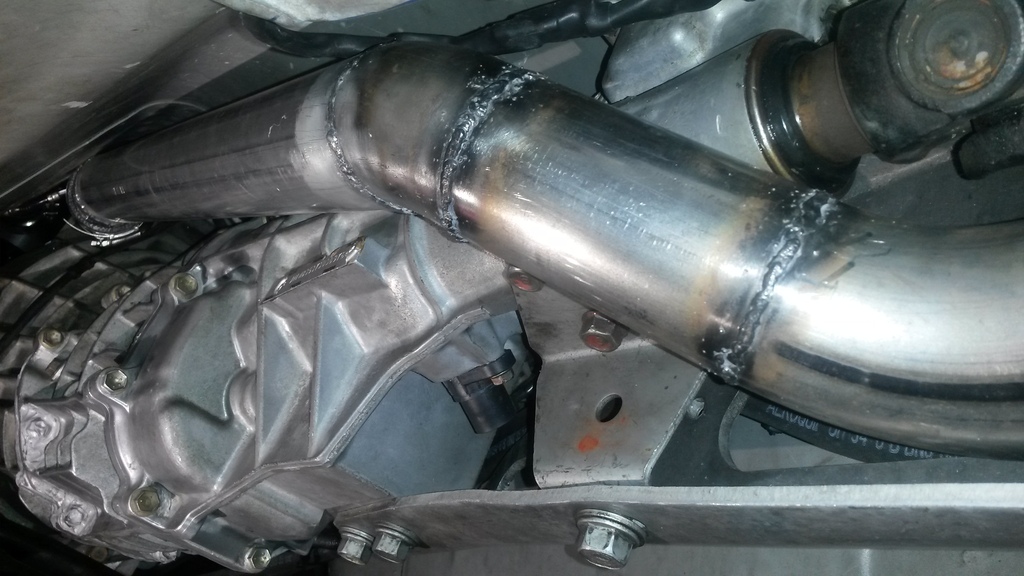

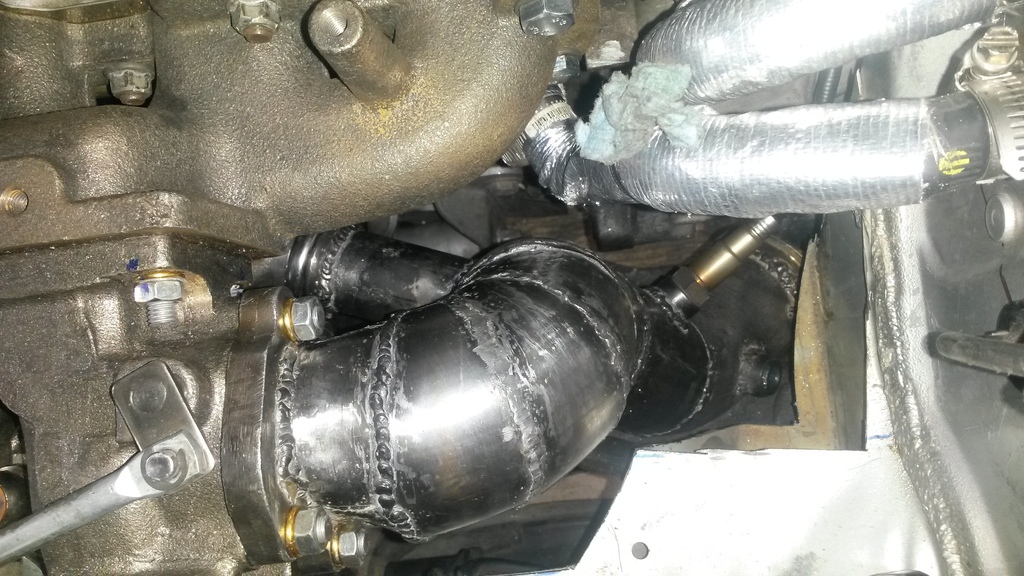

Pat's Ebay Turbo Compound Boost Build-20160211_200229_zps69aj3xz3.jpg   Pat's Ebay Turbo Compound Boost Build-20160211_125702_zpsuozb12ss.jpg   Pat's Ebay Turbo Compound Boost Build-20160211_134902_zpsgzfyqkn1.jpg   Pat's Ebay Turbo Compound Boost Build-20160211_134915_zpstli1gbjw.jpg   Pat's Ebay Turbo Compound Boost Build-20160211_140706_zps29afokqz.jpg

Pat's Ebay Turbo Compound Boost Build-20160211_145358_zpsaz2tnwjw.jpg   Pat's Ebay Turbo Compound Boost Build-20160211_1454060_zpsulne0een.jpg   Pat's Ebay Turbo Compound Boost Build-20160211_145959_zpsplrvny4h.jpg   Pat's Ebay Turbo Compound Boost Build-20160211_150427_zpsqmzdn0wh.jpg   Pat's Ebay Turbo Compound Boost Build-20160211_151217_zpsbkeokjxy.jpg

Pat's Ebay Turbo Compound Boost Build-20160211_152051_zpsgpxmczqd.jpg   Pat's Ebay Turbo Compound Boost Build-20160211_190441_zpsxap9zxdz.jpg   Pat's Ebay Turbo Compound Boost Build-20160211_190458_zps19it35bs.jpg   Pat's Ebay Turbo Compound Boost Build-20160211_212829_zps9kqqf46c.jpg   Pat's Ebay Turbo Compound Boost Build-20160211_212834_zpssuz40hsg.jpg

Pat's Ebay Turbo Compound Boost Build-20160211_214223_zpsuq8yymwe.jpg   Pat's Ebay Turbo Compound Boost Build-20160211_223349_zpss9wiyc7b.jpg   Pat's Ebay Turbo Compound Boost Build-20160211_223356_zpsdwxtr41r.jpg   Pat's Ebay Turbo Compound Boost Build-20160211_223404_zpsyp2zq658.jpg   Pat's Ebay Turbo Compound Boost Build-20160211_223424_zpsaatthzx1.jpg

Pat's Ebay Turbo Compound Boost Build-20160211_224246_zpscysr40rp.jpg   Pat's Ebay Turbo Compound Boost Build-20160211_224249_zpsvqcxibis.jpg   Pat's Ebay Turbo Compound Boost Build-20160211_224258_zpslxvp01vu.jpg   Pat's Ebay Turbo Compound Boost Build-20160211_224304_zps8jbksefm.jpg   Pat's Ebay Turbo Compound Boost Build-20160211_224320_zpsmv6x3h8h.jpg

Pat's Ebay Turbo Compound Boost Build-20160211_225325_zpshetzk2xo.jpg   Pat's Ebay Turbo Compound Boost Build-20160211_225507_zpsyrwk5p8d.jpg   Pat's Ebay Turbo Compound Boost Build-20160211_225514_zpszsn4rusk.jpg   Pat's Ebay Turbo Compound Boost Build-20160211_225522_zpsjgetqsuw.jpg
patsmx5 is offline   Reply With Quote
Old 02-12-2016, 12:19 PM   #229
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 14,626
Total Cats: 1,335
Default Pat's Ebay Turbo Compound Boost Build

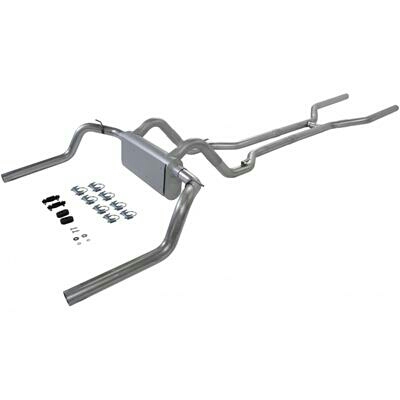

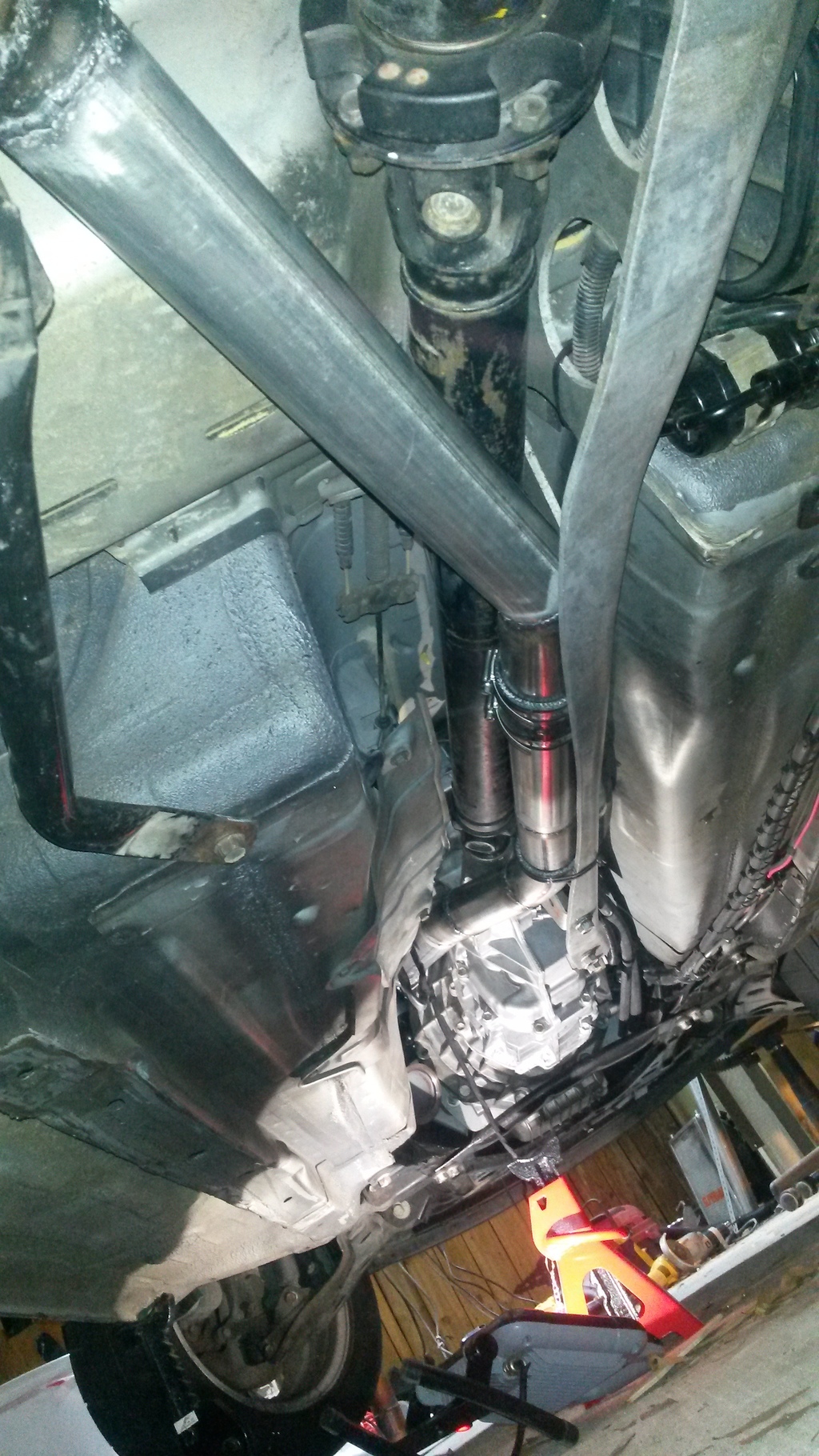

You should be able to have the exhaust come straight out of the rear turbo all the way towards the passenger side then u-bend into a MagnaFlow across the back and driver's side rear exit. The oval shaped MagnaFlow can be mounted with the body turned with the narrow edges top and bottom if necessary for fitment (like some '69 Firebirds/Camaros).
Attached Thumbnails
Pat's Ebay Turbo Compound Boost Build-flo-17104.jpg
sixshooter is offline   Reply With Quote
Old 02-12-2016, 12:21 PM   #230
Senior Member
iTrader: (4)

Join Date: May 2010
Location: Iowa City
Posts: 545
Total Cats: 15
Default

Quote:
Originally Posted by sixshooter View Post
You should be able to have the exhaust come straight out of the rear turbo all the way towards the passenger side then u-bend into a MagnaFlow across the back and driver's side rear exit. The oval shaped MagnaFlow can be mounted with the body turned with the narrow edges top and bottom if necessary for fitment (like some '69 Firebirds/Camaros).
At this point, he could use a firebird/camaro muffler and run it as dual pipes.
vteckiller2000 is offline   Reply With Quote
Old 02-12-2016, 12:23 PM   #231
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 14,626
Total Cats: 1,335
Default

Quote:
Originally Posted by vteckiller2000 View Post
At this point, he could use a firebird/camaro muffler and run it as dual pipes.
Or go back towards the front with dual sidepipes for simplicity.
sixshooter is offline   Reply With Quote
Old 02-12-2016, 12:33 PM   #232
Senior Member
iTrader: (4)

Join Date: May 2010
Location: Iowa City
Posts: 545
Total Cats: 15
Default

Quote:
Originally Posted by sixshooter View Post
Or go back towards the front with dual sidepipes for simplicity.
Or out the side of the rear bumper.
vteckiller2000 is offline   Reply With Quote
Old 02-12-2016, 01:33 PM   #233
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,524
Total Cats: 204
Default

What is the part number for the big magnaflow everyone runs? I want to see if there's any way to mount that one as Six said, 180, muffler, out drivers side.
patsmx5 is offline   Reply With Quote
Old 02-12-2016, 02:44 PM   #234
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,929
Total Cats: 568
Default

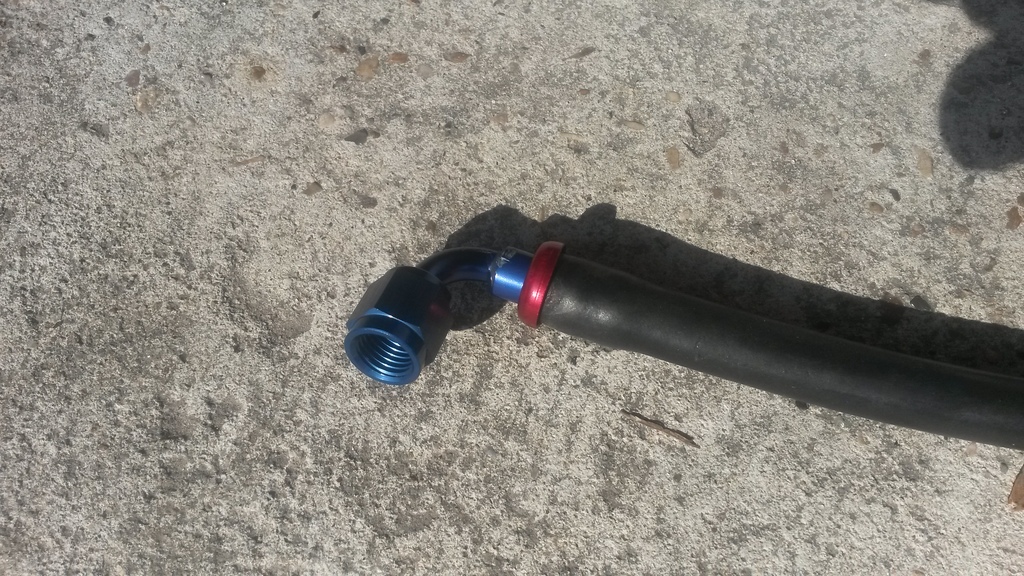

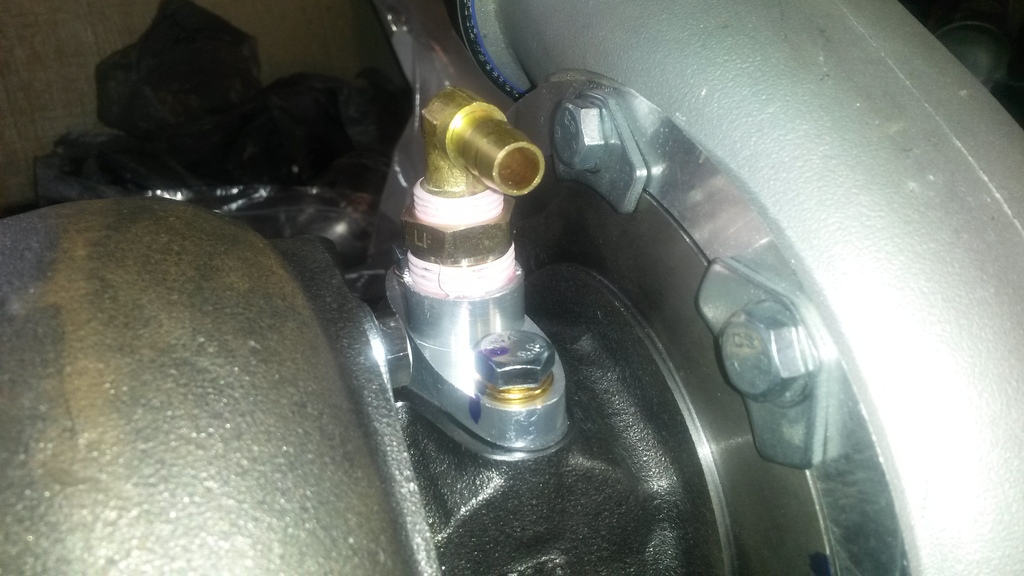

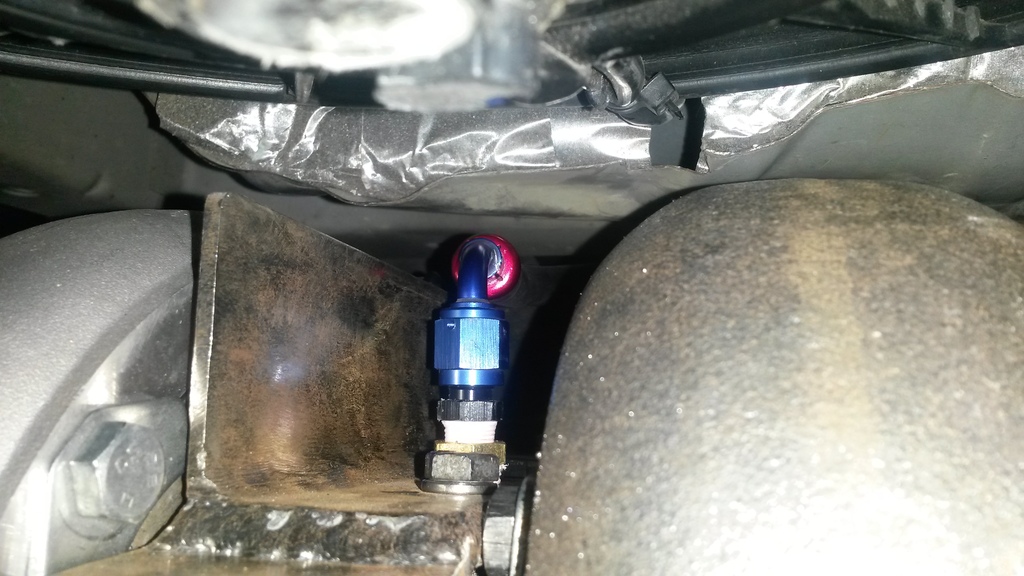

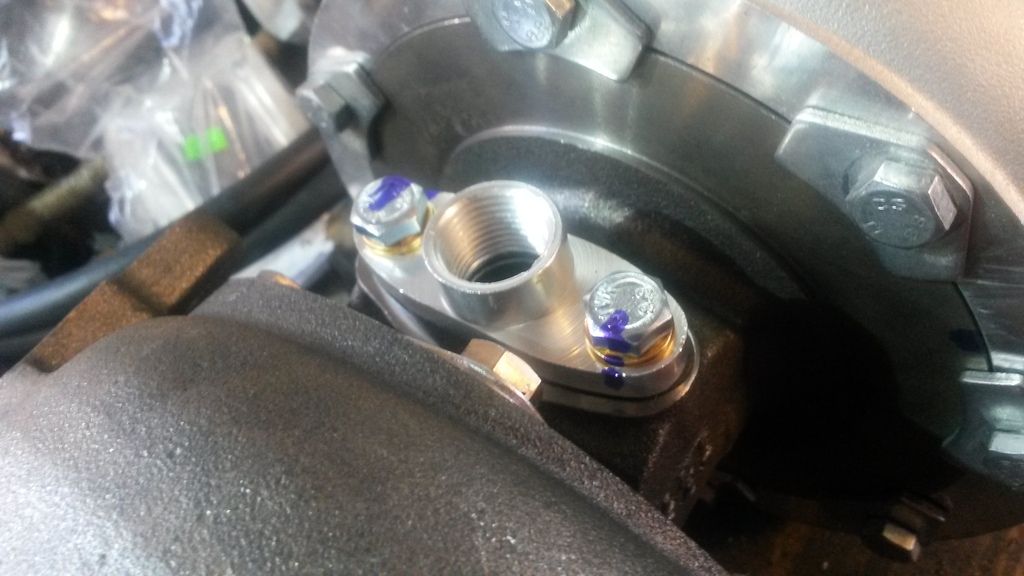

Pat, do I see you using a push-on rubber hose on the oil feed to your rear turbo? If so, I think that's a bad idea due to the temps.
hornetball is online now   Reply With Quote
Old 02-12-2016, 04:23 PM   #235
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

That's the return though, isn't it? The oil feed is on top with the strap that holds the turbo up there, looks like he has 3 or 4an line up there.

Magnaflow 12589 is the one I use. Google Magnaflow 5x11x22 will find you the other three inlet/outlet versions.

You know how big that thing is right, it takes up nearly all the space under the trunk. I don't think there's any way you could fit this one, no way.
deezums is offline   Reply With Quote
Old 02-12-2016, 05:05 PM   #236
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,524
Total Cats: 204
Default

You guys are on point, listen to this...

The 3" 300 cell per inch, metalic spun core Thunderbolt cat is falling apart! I inspected this cat not long ago (like maybe 2 months ago) and it looked like new. Anyways just checked it out and it's falling apart and loose inside the housing. No way I can run it. It's almost 1 year old.

My guess is using a spark cut for launch control probably killed it.

So, the question is, what is the toughest catalytic converter in the world that I can buy that has 3" in/out?

Also I might be building a test pipe for now until I can get the worlds toughest cat here.
patsmx5 is offline   Reply With Quote
Old 02-12-2016, 05:09 PM   #237
Senior Member
iTrader: (4)

Join Date: May 2010
Location: Iowa City
Posts: 545
Total Cats: 15
Default

Quote:
Originally Posted by patsmx5 View Post
You guys are on point, listen to this...

The 3" 300 cell per inch, metalic spun core Thunderbolt cat is falling apart! I inspected this cat not long ago (like maybe 2 months ago) and it looked like new. Anyways just checked it out and it's falling apart and loose inside the housing. No way I can run it. It's almost 1 year old.

My guess is using a spark cut for launch control probably killed it.

So, the question is, what is the toughest catalytic converter in the world that I can buy that has 3" in/out?

Also I might be building a test pipe for now until I can get the worlds toughest cat here.
Put it post-second turbo. Magnaflow metal substrate.

Don't use spark cut and expect a cat to hold together. Anything I build with a cat uses fuel cut only.
vteckiller2000 is offline   Reply With Quote
Old 02-12-2016, 05:33 PM   #238
Junior Member
iTrader: (1)

Join Date: May 2014
Posts: 248
Total Cats: 13
Default

Quote:
Originally Posted by patsmx5 View Post
My guess is using a spark cut for launch control probably killed it.
No ****** ****?
stoves is offline   Reply With Quote
Old 02-12-2016, 05:38 PM   #239
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,399
Total Cats: 1,364
Default

Quote:
Originally Posted by patsmx5 View Post
You guys are on point, listen to this...

The 3" 300 cell per inch, metalic spun core Thunderbolt cat is falling apart! I inspected this cat not long ago (like maybe 2 months ago) and it looked like new. Anyways just checked it out and it's falling apart and loose inside the housing. No way I can run it. It's almost 1 year old.

My guess is using a spark cut for launch control probably killed it.

So, the question is, what is the toughest catalytic converter in the world that I can buy that has 3" in/out?

Also I might be building a test pipe for now until I can get the worlds toughest cat here.
Why dont you just always have a test pipe, swap cat for emissions.
aidandj is offline   Reply With Quote
Old 02-12-2016, 06:23 PM   #240
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,645
Total Cats: 318
Default

Quote:
Originally Posted by vteckiller2000 View Post
Put it post-second turbo. Magnaflow metal substrate.

Don't use spark cut and expect a cat to hold together. Anything I build with a cat uses fuel cut only.
And make it bolt-on so that you can swap out a test pipe for track use.

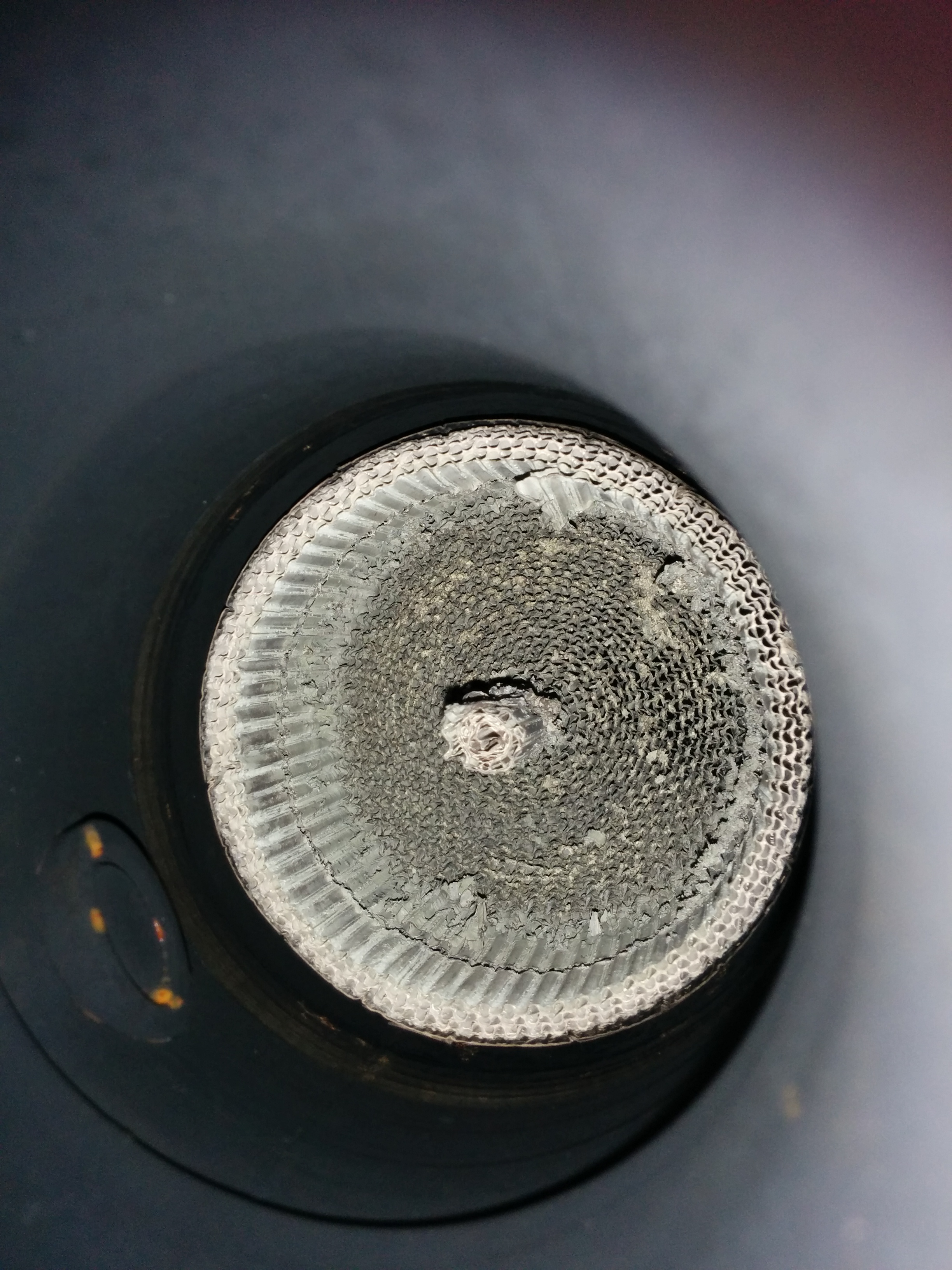

A couple track days did this to my magna flow metal core:



--Ian
Attached Thumbnails
Pat's Ebay Turbo Compound Boost Build-cat-core2.jpg
codrus is offline   Reply With Quote
