DIY Turbo Discussion greddy on a 1.8? homebrew kit?

Reply



LinkBack Thread Tools
Old 03-26-2012, 10:52 AM   #41
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

interesting fuel map....
Braineack is online now   Reply With Quote
Old 03-26-2012, 10:56 AM   #42
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

which fuel map?
Techsalvager is offline   Reply With Quote
Old 03-26-2012, 10:57 AM   #43
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

the pure 100s.
Braineack is online now   Reply With Quote
Old 03-26-2012, 11:02 AM   #44
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

commanded AFR (AFR target) map is the fuel map.
Its not fully tuned in yet, buts its good enough for now.
Techsalvager is offline   Reply With Quote
Old 03-26-2012, 11:05 AM   #45
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

okay. so what are you suggesting you did with the intake cam?


you have a t3 60 trim? what a/r exhaust side? that's spooling really slow compared to mine, and why not holding boost to redline?


mine takes off well before 4K:

Attached Thumbnails
1.6 T28 13psi-nov_13_2010_chinacharger.jpg
Braineack is online now   Reply With Quote
Old 03-26-2012, 11:09 AM   #46
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

changed cam timing by moving the stock intake cam from normal I up top and E at bottom right to E being up top with 19 teeth apart from the exhaust E
Techsalvager is offline   Reply With Quote
Old 03-26-2012, 11:21 AM   #47
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

hmm oh yeah the map sensor is off by abit. I need to fix that issue later.
Actually I push full boost at 3500rpm on stock cam timing and didn't check what it is now.
.48 ar exhaust turbine housing
it holds boost to redline just not in the datalog.
Techsalvager is offline   Reply With Quote
Old 03-26-2012, 11:58 AM   #48
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,664
Total Cats: 1,560
Default

That certainly is the strangest target AFR map I've ever seen as well. I've never seen anyone use a target AFR of 11.0 in vacuum either. Unconventional is a word that comes to mind.
sixshooter is offline   Reply With Quote
Old 03-26-2012, 02:57 PM   #49
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

Quote:
Originally Posted by sixshooter View Post
That certainly is the strangest target AFR map I've ever seen as well. I've never seen anyone use a target AFR of 11.0 in vacuum either. Unconventional is a word that comes to mind.
there is no vacuum in the target AFR map, thats load.
Techsalvager is offline   Reply With Quote
Old 03-27-2012, 01:32 PM   #50
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,664
Total Cats: 1,560
Default

It sure is.
sixshooter is offline   Reply With Quote
Old 03-27-2012, 06:29 PM   #51
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

Quote:
Originally Posted by sixshooter View Post
It sure is.
Its calculated engine load, not pressure.
I'm running on MAF fueling.
Noticed the lack of a VE table.
My main fuel table is the commanded AFR table, I tuned based off this table and I don't use a VE fuel table.
Techsalvager is offline   Reply With Quote
Old 03-27-2012, 06:43 PM   #52
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

Quote:
Originally Posted by Braineack View Post
okay. so what are you suggesting you did with the intake cam?


you have a t3 60 trim? what a/r exhaust side? that's spooling really slow compared to mine, and why not holding boost to redline?


mine takes off well before 4K:

Yours is taking off in the same place mine used to take off, 3700rpm~
I said around 4k on the tach it takes off, but we all know the stock tach is off abit. I can compared your tq and hp graphs directly to my datalog to tell and its in the same area as yours, which is what I hated.
Techsalvager is offline   Reply With Quote
Old 03-30-2012, 02:46 AM   #53
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2011
Posts: 78
Total Cats: 0
Default

So, im scheduling an appointment to have my car tuned at g dimenssions in city of industry. Ill be forking over anywhere between 250 to 300 bucks for the tune. Itll be either Saturday or Sunday of next week. Ill let you guys know how it goes. They advised me to get some bigger injectors and a ebc if possible. I also called church automotive but theyre 400 bucks and too far of a drive from me. I hope to be over 200whp as is and then see what ill need to achievd my 250whp goal....

Any advise before I head down there? And anyone have some bigger injectors they want to sell? 370cc or bigger
Sidewaystocurb is offline   Reply With Quote
Old 03-30-2012, 10:09 AM   #54
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

Quote:
Originally Posted by Techsalvager View Post
Yours is taking off in the same place mine used to take off, 3700rpm~
I said around 4k on the tach it takes off, but we all know the stock tach is off abit. I can compared your tq and hp graphs directly to my datalog to tell and its in the same area as yours, which is what I hated.

feels like a very smooth power delivery to me as it's making a good deal a tq before there. I like the bench mark to be 150rwtq by 3000RPM (hard on a 1.6L). The more you add boost, the more power you'll make expoentially as the boost climbs, no way around that.

imagine if it was more like this:



or this:






consdier this fast spooling turbo:



the fun pedal is alive with fun.
Attached Thumbnails

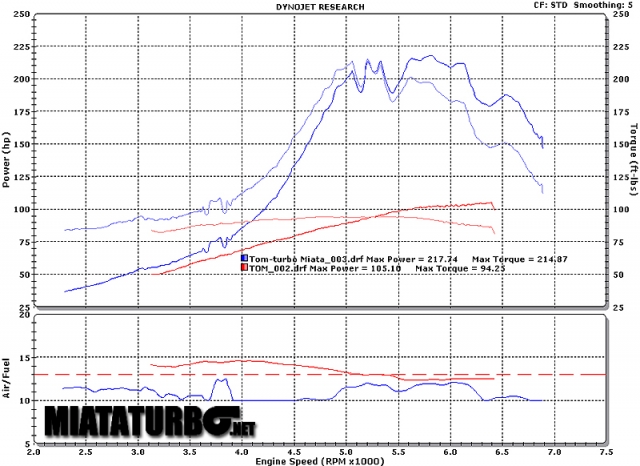

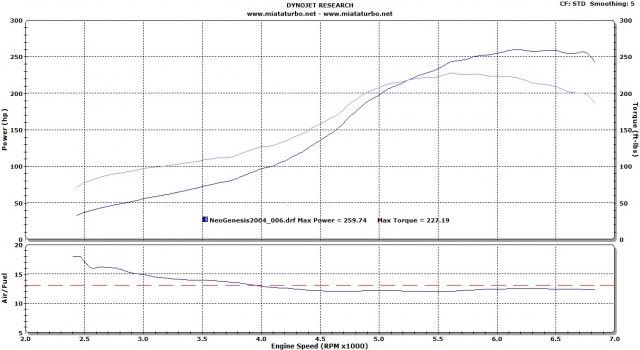

1.6 T28 13psi-neogenesis.jpg   1.6 T28 13psi-tom_brgracer.jpg
Braineack is online now   Reply With Quote
Old 03-31-2012, 01:52 AM   #55
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2011
Posts: 78
Total Cats: 0
Default

So I picke up a mega squirt wohoo!
Sidewaystocurb is offline   Reply With Quote
Old 04-08-2012, 09:08 PM   #56
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2011
Posts: 78
Total Cats: 0
Default

so i got a megasquirt and 430cc but will not install cause i went to the dyno and i have a solid tune now. 242rwhp @ 16psi and 11.5 afr. we all got scared of the boost without knowing if it has a built motor so we turned it down to 10psi. that gave me 181rwhp and a little richer at 10.4 but safer hahaa. also better spool with just removing the mbc and running a 10psi actuator already on the turbo. the mbc is only a vacum line away

done on a mistang dyno
Sidewaystocurb is offline   Reply With Quote
Old 04-08-2012, 09:34 PM   #57
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

what was the tq,
10.4 is just wasting fuel and I dount its making it any safer then running 11.5 afr's
Techsalvager is offline   Reply With Quote
Old 04-08-2012, 09:48 PM   #58
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2011
Posts: 78
Total Cats: 0
Default

150trq @ 10psi and i didnt look at the 16psi. i figured it would be safer at 10psi with 10.4 - 10.6 afrs than running 16psi with 11.5 afr with out knowing if the motor could handle the 16psi.
Sidewaystocurb is offline   Reply With Quote
Old 04-08-2012, 09:51 PM   #59
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

wat was the tq at 16psi and where at in rpm.
Techsalvager is offline   Reply With Quote
Old 04-08-2012, 10:02 PM   #60
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2011
Posts: 78
Total Cats: 0
Default

i dont remember. :( i only payed attention to hp numbers and spool. now i have fool boost by 3800 rpm n does not fall off. all though not as fast more responsive.
Sidewaystocurb is offline   Reply With Quote
