Old 08-29-2007, 02:35 AM   #21
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Quote:
Originally Posted by Saml01 View Post
That doesn't sound kosher to me, ill try compressing the snap ring a bit. Any specific tool I can use? I cant imagine what I can get into those holes on the snap ring.
Well no **** it isn't kosher(jew), i personally use a pair of 8" 90* needle nose because strong snap ring pliers are expensive and the needle nose are more like $7 locally most the time. Make sure the ends fit in the snapring before buying of course. If it's real rusty soak it with oil.

The flap should be tight against the hole. It shouldn't leak otherwise you'll loose spool. If you don't have the actuator hooked up to it though it will be loose. If the actuator doesn't hold it closed tight then the actuator could be bad or you might just need to adjust the pre-tension with a little bracket/mounting modification.
cjernigan is offline   Reply With Quote
Old 08-29-2007, 08:20 PM   #22
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Quote:
Originally Posted by cjernigan View Post
Well no **** it isn't kosher(jew), i personally use a pair of 8" 90* needle nose because strong snap ring pliers are expensive and the needle nose are more like $7 locally most the time. Make sure the ends fit in the snapring before buying of course. If it's real rusty soak it with oil.

The flap should be tight against the hole. It shouldn't leak otherwise you'll loose spool. If you don't have the actuator hooked up to it though it will be loose. If the actuator doesn't hold it closed tight then the actuator could be bad or you might just need to adjust the pre-tension with a little bracket/mounting modification.
Yea im Jewish, good way of putting it huh?

I think I should try to be even more clear. The flap is attached to a little elbow that is operated from outside the turbine by the actuator. The flap itself is loose, like its not rigidly attached to the arm.
Saml01 is offline   Reply With Quote
Old 08-29-2007, 09:17 PM   #23
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

So your kosher flap is not meant to be rigidly mounted to that arm. It should be loose on there so that it can move around in order to seal even under temperature changes and whatnot. So no worries unless something just doesn't seem right. They usually rattle on that arm unless closed. They snap shut no problem with a good actuator though.
cjernigan is offline   Reply With Quote
Old 08-29-2007, 09:29 PM   #24
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Awesome, just what I wanted to know, thank you.

I dont know what I would do without this forum.
Saml01 is offline   Reply With Quote
Old 08-31-2007, 02:23 AM   #25
Junior Member
Thread Starter

Join Date: May 2007
Location: Mountain View, CA
Posts: 220
Total Cats: 0
Default

When selecting which injectors to use based on the flow testing results, which 4 should I use. The ones that match based on pulsed flow, or cc/minute?
kylelind is offline   Reply With Quote
Old 08-31-2007, 01:48 PM   #26
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

The ones closest to each other based on both variables or just pick one. You want them to be as close to 2% with each other as possible.
cjernigan is offline   Reply With Quote
Old 09-01-2007, 04:04 PM   #27
Junior Member
Thread Starter

Join Date: May 2007
Location: Mountain View, CA
Posts: 220
Total Cats: 0
Default

Here is a mock-up of what I plan to do. I tore the car apart friday afternoon and went to the junkyard today. I got a new hood to cut open and make a vent, and an extra radiator fan for $60, great deal at pick-n-pull.

Now I strapped the intercooler and radiator into the car with tie downs to see what it will look like. I am doing a v-mount without cutting any of the frame/bracing apart in the front. It looks do-able for sure and I am STOKED!

The rest of the pics are at:

http://s243.photobucket.com/albums/ff276/kylelind/


kylelind is offline   Reply With Quote
Old 09-01-2007, 04:07 PM   #28
Senior Member
iTrader: (3)

Join Date: Apr 2007
Location: Odenton, MD
Posts: 713
Total Cats: 0
Default

slick, does the Vmount go behind the radiator or what?
Dow.tom is offline   Reply With Quote
Old 09-01-2007, 04:47 PM   #29
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

that is a weird extra radiator man i doubt it gets much flow there.
magnamx-5 is offline   Reply With Quote
Old 09-01-2007, 07:55 PM   #30
Junior Member
Thread Starter

Join Date: May 2007
Location: Mountain View, CA
Posts: 220
Total Cats: 0
Default

Huh, nooo.....there is only that one radiator and intercooler, with each of them exposed to the incoming air thru the nose. Look at the pics on the link. It seems like great flow with a vent in the hood and fans on the radiator. I am going to make shrouds to close it all in and split the flow to each. It seems awesome to me!!??
kylelind is offline   Reply With Quote
Old 09-01-2007, 07:55 PM   #31
Junior Member
Thread Starter

Join Date: May 2007
Location: Mountain View, CA
Posts: 220
Total Cats: 0
Default

I removed the stock radiator for good......I thought that would be understood?
kylelind is offline   Reply With Quote
Old 09-01-2007, 08:02 PM   #32
Senior Member
iTrader: (1)

Join Date: Jun 2006
Location: Outside of the Loop-ATL
Posts: 754
Total Cats: 0
Default

Quote:
Originally Posted by kylelind View Post
Huh, nooo.....there is only that one radiator and intercooler, with each of them exposed to the incoming air thru the nose. Look at the pics on the link. It seems like great flow with a vent in the hood and fans on the radiator. I am going to make shrouds to close it all in and split the flow to each. It seems awesome to me!!??

I think he had to much to drink before he posted... magna has a little more sense then that...hopefully
wildfire0310 is offline   Reply With Quote
Old 09-09-2007, 03:17 AM   #33
Junior Member
Thread Starter

Join Date: May 2007
Location: Mountain View, CA
Posts: 220
Total Cats: 0
Default

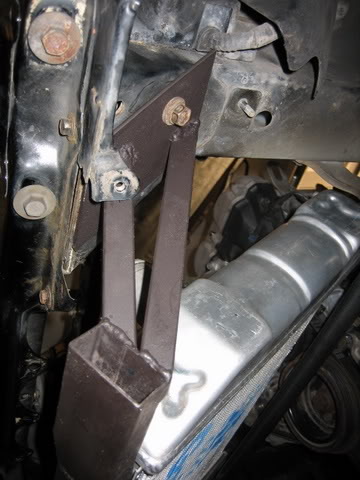

Here is a photo update of my build progress. I have welded up a STRONG support to hold the radiator and protect it from being pushed back into the engine. I aligned it so that it will fit right inside the lower lip of the bumper...and it bolts on where the tow hooks were.


Name:  IMG_1550.jpg
Views: 0
Size:  39.3 KB

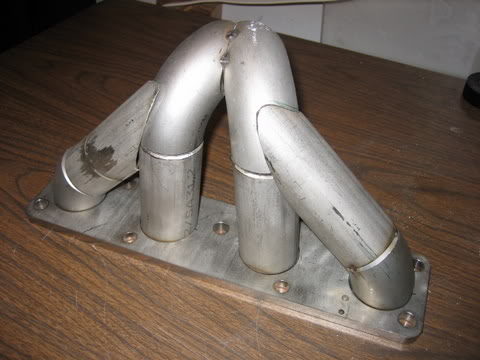

I have also started on my tubular shorty schedule 40 stainless manifold that I designed in solid works. It has come along really well but required some very tricky cuts through .125" walls. Looks just like my model!!

Name:  IMG_1551.jpg
Views: 0
Size:  33.1 KB

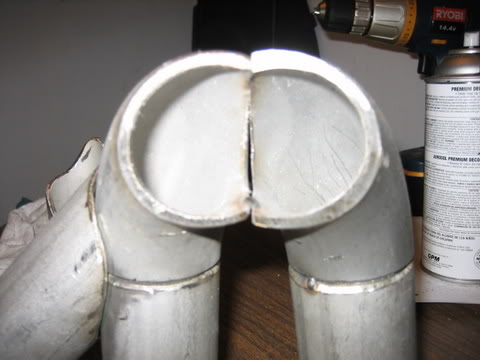

Name:  IMG_1547.jpg
Views: 0
Size:  26.2 KB


I will keep you updated!!
kylelind is offline   Reply With Quote
Old 09-09-2007, 05:18 AM   #34
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,353
Total Cats: 1,319
Default

****, dude. That V-mount bracket setup is really, really cool. I'm excited to see how the final product turns out, especially your hood venting. If it turns out nice, I may want to duplicate the venting on my car for track use.
Savington is offline   Reply With Quote
Old 09-10-2007, 12:11 PM   #35
Elite Member
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default

very sweet...
i want to do something similar, i wonder if there is any data to support your claim of good airflow, it would make me feel a lot better...i have a vented CF hood and a wizdom front bumper, so i get lots of airflow, my fan only comes on if im sitting still for a while, otherwise while driving it never comes on ...so i think ill be alright...please keep us posted
Zabac is offline   Reply With Quote
Old 09-10-2007, 02:21 PM   #36
Junior Member
Thread Starter

Join Date: May 2007
Location: Mountain View, CA
Posts: 220
Total Cats: 0
Default

Yeah, will do......I may put a fan on the intercooler as well with a thermal switch. Also I am going to put 2 spal 9" fans on the back of the radiator with very good shrouds to keep the flow in.

What does everyone think of splitter lips in the front to keep the air through the nose??
kylelind is offline   Reply With Quote
Old 09-10-2007, 05:35 PM   #37
Elite Member
iTrader: (15)

Join Date: Sep 2007
Location: Incline Village, NV
Posts: 2,073
Total Cats: 5
Default

I this that is way cool, im looking into a diy build but i dont know about this DIY haha i will keep reading and possibly steal some ideas good build thread!
thesnowboarder is offline   Reply With Quote
Old 09-10-2007, 06:55 PM   #38
Elite Member
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default

Quote:
Originally Posted by kylelind View Post
Yeah, will do......I may put a fan on the intercooler as well with a thermal switch. Also I am going to put 2 spal 9" fans on the back of the radiator with very good shrouds to keep the flow in.

What does everyone think of splitter lips in the front to keep the air through the nose??
what do you mean...a splitter to separate airflow from intercooler and radiator? it may be a good idea, you need to get plenty of air through the intercooler and radiator both, if you do the v set up it seems that the air would try to go to the middle in between the two, so it may be a good idea to block it off there and route it somehow, maybe aluminum shaped like this <
in front of the two, getting it to flow in that direction, also, you wont have too much room to work with using your stock bumper...but the two fans should help the radiator plenty, just use a 160* thermostat i guess...good luck to you, im gonna wait till someone has it figured out and is willing to share, lol
Zabac is offline   Reply With Quote
Old 09-10-2007, 07:00 PM   #39
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

I think splitters like this work great.
http://www.trackdogracing.com/websit...7-splitter.jpg
They make force more air to go up through the mouth of the car and the air that does go under the car is more laminar creating less drag.
cjernigan is offline   Reply With Quote
Old 09-10-2007, 07:46 PM   #40
Junior Member
Thread Starter

Join Date: May 2007
Location: Mountain View, CA
Posts: 220
Total Cats: 0
Default

Yeah, cjernigan, that is exactly what I am planning to make. I will also split the air accordingly for the intercooler and radiator.

Do I really need to get a different thermostat? The 160* would just open sooner, not a big difference from the 180*???
kylelind is offline   Reply With Quote
