Old 09-28-2007, 02:13 AM   #81
Junior Member
Thread Starter

Join Date: May 2007
Location: Mountain View, CA
Posts: 220
Total Cats: 0
Default

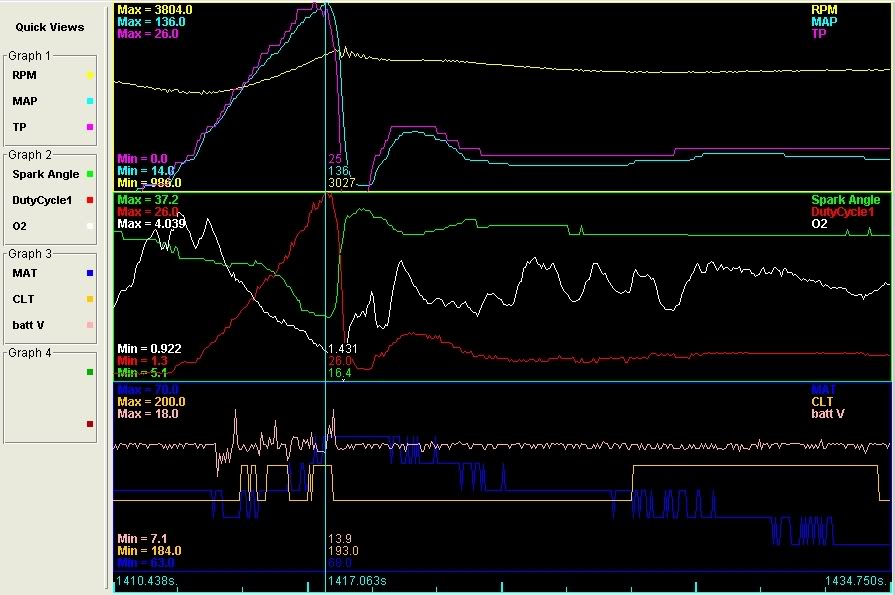

For those who are interested these are the temps I am getting with zero shrouds. Just like the pics above except the bumper is on, except I have one spal 12" fan that is freakin loud. 136kPa....boostin!!

Name:  136kPa.jpg
Views: 0
Size:  83.3 KB
kylelind is offline   Reply With Quote
Old 09-28-2007, 10:22 AM   #82
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

I'm not getting the temp- it's jumping up and down by 16F? usually the clt line ramps. Yes- I've got a 16" spal straight blade and it scares people in traffic when it comes on. But it moves air.
m2cupcar is offline   Reply With Quote
Old 09-28-2007, 10:28 AM   #83
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

The side strikers make a big difference, in how well the top clamps down anyone who says different does not drive there car hard enough to warrant the stiffenes of the HT anyway. Damn convertable lovers :gay:
magnamx-5 is offline   Reply With Quote
Old 09-28-2007, 11:54 AM   #84
Junior Member
Thread Starter

Join Date: May 2007
Location: Mountain View, CA
Posts: 220
Total Cats: 0
Default

The CLT actually jumps in 3 deg increments, and I am still not sure why. I do want the hardtop stiffness (and extra 3 mph on top end)!!
kylelind is offline   Reply With Quote
Old 09-28-2007, 12:23 PM   #85
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

So the min/max data points don't represent what's visible in the screen?
m2cupcar is offline   Reply With Quote
Old 09-28-2007, 12:26 PM   #86
Elite Member
iTrader: (5)

Atlanta93LE's Avatar

Join Date: Sep 2006
Location: Marietta, GA
Posts: 2,198
Total Cats: 1
Default

Quote:
Originally Posted by m2cupcar View Post
So the min/max data points don't represent what's visible in the screen?
They represent min/max of the entire datalog
Atlanta93LE is offline   Reply With Quote
Old 09-28-2007, 12:29 PM   #87
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

If you have any sketchy connections to the MS the signals will spike or have some noise. That will explain the weird max values. When the connections or whatever the problem is gets fixed it will ramp like normal.
cjernigan is offline   Reply With Quote
Old 09-28-2007, 12:45 PM   #88
Junior Member
Thread Starter

Join Date: May 2007
Location: Mountain View, CA
Posts: 220
Total Cats: 0
Default

Which values on my log should be ramping and should it be smoothly?
kylelind is offline   Reply With Quote
Old 09-28-2007, 01:05 PM   #89
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Your CLT jumps around in square patterns and it's not supposed to. If you look at this post it shows Scott accelerating, even though it doesn't show CLT, i'm showing you that your datalog lines should "ramp" smoothly like this.
https://www.miataturbo.net/showpost....1&postcount=26
cjernigan is offline   Reply With Quote
Old 09-28-2007, 01:30 PM   #90
Junior Member
Thread Starter

Join Date: May 2007
Location: Mountain View, CA
Posts: 220
Total Cats: 0
Default

Ok, we will see if placing more grounds on the MS fixes this. How about my O2 reading, should that be more consistent? Could that be due to EGO correction settings?
kylelind is offline   Reply With Quote
Old 09-28-2007, 08:33 PM   #91
Junior Member
Thread Starter

Join Date: May 2007
Location: Mountain View, CA
Posts: 220
Total Cats: 0
Default

Also, is it ok to plumb the idle air inlet directly to the intake pipe? Or is it better to put a seperate filter on it with a check valve?

I would think direct is fine because the same pressure will be on both sides except right after you close the throttle. Hopefully the BOV takes care of that part.
kylelind is offline   Reply With Quote
Old 09-28-2007, 08:36 PM   #92
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Plumb the idle air directly into the intake pipe.
cjernigan is offline   Reply With Quote
Old 09-28-2007, 09:03 PM   #93
Junior Member
Thread Starter

Join Date: May 2007
Location: Mountain View, CA
Posts: 220
Total Cats: 0
Default

Wont boost leak into the low pressure of the intake pipe through the idle valve that way?
kylelind is offline   Reply With Quote
Old 09-28-2007, 09:16 PM   #94
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Everyone does it. If there was a problem i'm sure that wouldn't be the case. The valve closes as soon as you give it any gas so it can't leak. It's only open when it's idling.
Picture of Scotts IC piping with IAC hooked up.
cjernigan is offline   Reply With Quote
Old 09-28-2007, 09:35 PM   #95
Junior Member
Thread Starter

Join Date: May 2007
Location: Mountain View, CA
Posts: 220
Total Cats: 0
Default

Ok, just checking.....I will do the same.
kylelind is offline   Reply With Quote
Old 09-28-2007, 10:36 PM   #96
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

Uh if it is plumbed into the intake tract where is it gonna leak to. A closed system can't leak unto itself. duh
magnamx-5 is offline   Reply With Quote
Old 09-28-2007, 10:36 PM   #97
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

If i didnt already have the bung I'd just have the idle valve get it from the atmos.
Braineack is offline   Reply With Quote
Old 09-30-2007, 03:42 PM   #98
Newb

Join Date: Nov 2006
Location: Bossier City, LA
Posts: 29
Total Cats: 0
Default

thats a sweet build
Miazda318 is offline   Reply With Quote
Old 09-30-2007, 06:29 PM   #99
Junior Member

Join Date: Nov 2006
Posts: 52
Total Cats: 0
Default

If you did all that in the coffin-sized garage in pic #1598, you are an absolute stud.



huge props on a clean and innovative build.
nick><>
924_nick is offline   Reply With Quote
Old 10-01-2007, 02:45 AM   #100
Junior Member
Thread Starter

Join Date: May 2007
Location: Mountain View, CA
Posts: 220
Total Cats: 0
Default

Yeah, should be a coffin because I almost rotted to death from working in there for so many hours. But yes it was all done in that space. Thanks for the compliments!
kylelind is offline   Reply With Quote
