Default Can you tell me what the extra fitting is for?

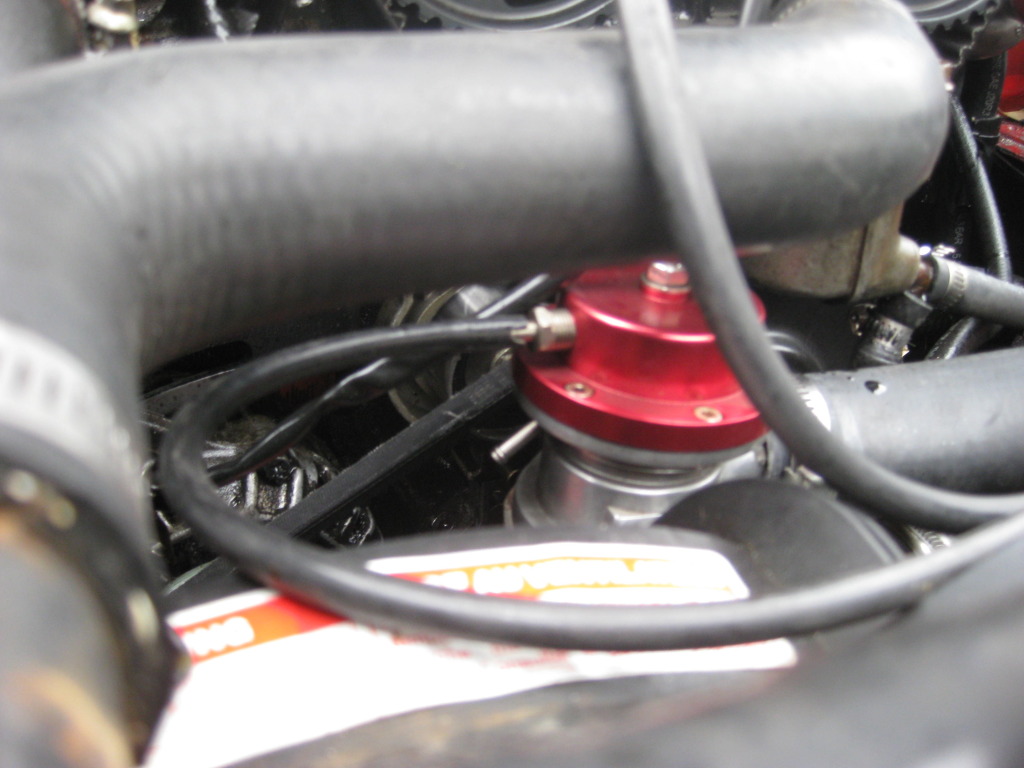

Trying to figure out what this fitting is for and if I need to have it hooked up.
Attached Thumbnails
Can you tell me what the extra fitting is for?-miata005.jpg
clayton351 is offline   Reply With Quote
Old 12-11-2011, 01:46 PM   #2
Newb
Thread Starter
iTrader: (1)

Join Date: Nov 2011
Location: Howe, TX
Posts: 33
Total Cats: 0
Default

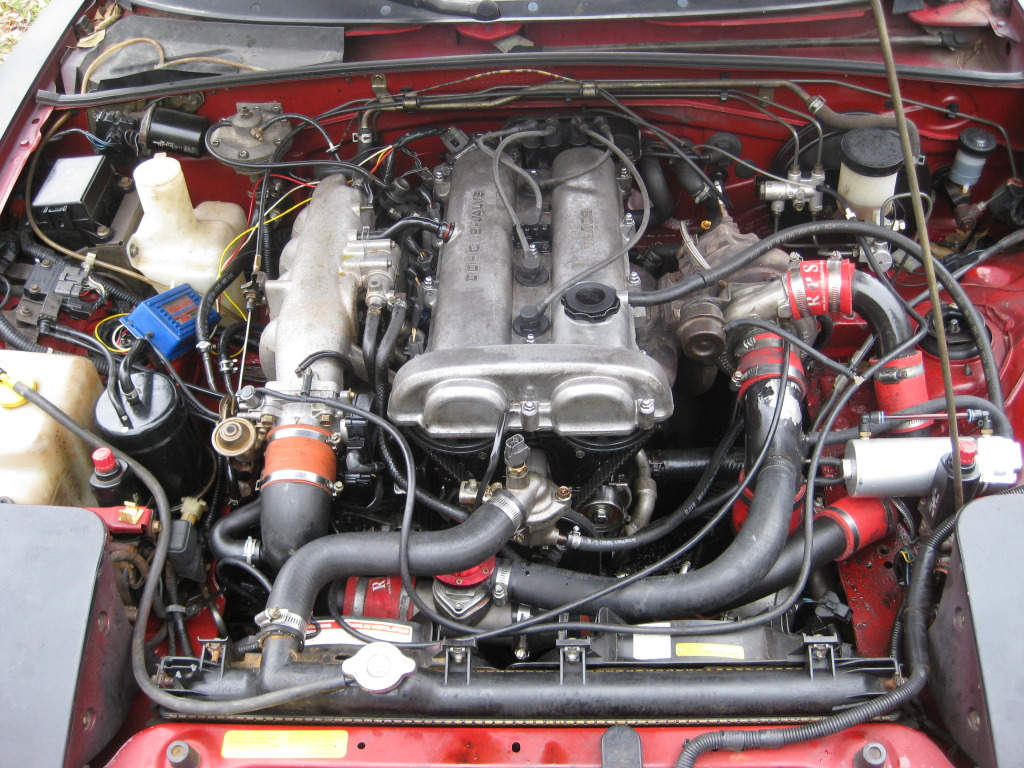

Still working on cleaning up the engine bay, trying to figure out how to route my IC piping and what size piping to use. Shooting for 10 psi with an MSD boost box, cartech FMU, 305cc injectors, 190 HP pump and RX7 afm.
Attached Thumbnails
Can you tell me what the extra fitting is for?-miata003.jpg
clayton351 is offline   Reply With Quote
Old 12-11-2011, 02:01 PM   #3
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

Explain to me, please, why your BOV is the only thing going to the turbo intake.
olderguy is online now   Reply With Quote
Old 12-11-2011, 02:04 PM   #4
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

Infinite boost
Oscar is offline   Reply With Quote
Old 12-11-2011, 02:08 PM   #5
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,878
Total Cats: 344
Default

Quote:
Originally Posted by olderguy View Post
Explain to me, please, why your BOV is the only thing going to the turbo intake.
Looks to me like there's a T fitting pointing straight down (you can just see the red silicone coupler on either side of the BOV hose) about six inches out from the compressor intake. Presumably that's got a filter on it? Definitely a strange routing.

As for the original question, yes, you need to run a vacuum line to the BOV. It's designed to open when the throttle closes, and it does that by sensing vacuum in the intake manifold.

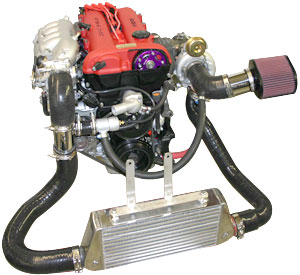

For intercooler routing, my advice is to do it the way FM does. Clock the compressor to point down, run the outlet pipe out into the wheel well and past the radiator.


--Ian
Attached Thumbnails
Can you tell me what the extra fitting is for?-img_3983_300.jpg
codrus is offline   Reply With Quote
Old 12-11-2011, 02:18 PM   #6
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

Quote:
Originally Posted by codrus View Post
Looks to me like there's a T fitting pointing straight down (you can just see the red silicone coupler on either side of the BOV hose) about six inches out from the compressor intake. Presumably that's got a filter on it? Definitely a strange routing.




--Ian

OK, possible. Is there room for the RX7 AFM down there?
olderguy is online now   Reply With Quote
Old 12-11-2011, 02:32 PM   #7
Newb
Thread Starter
iTrader: (1)

Join Date: Nov 2011
Location: Howe, TX
Posts: 33
Total Cats: 0
Default

Quote:
Originally Posted by olderguy View Post
OK, possible. Is there room for the RX7 AFM down there?
There is room for a stock afm, I'll take a pic of it in a few. There are 2 reasons I hooked it up like that. The first is thats the easiest way with the piping I have now, secondly the filter sits by the steering rack and gets colder air. The BOV is hooked up and works. It has 2 fittings on it, looks like one on each side of the diaphram.
clayton351 is offline   Reply With Quote
Old 12-11-2011, 02:45 PM   #8
Newb
Thread Starter
iTrader: (1)

Join Date: Nov 2011
Location: Howe, TX
Posts: 33
Total Cats: 0
Default

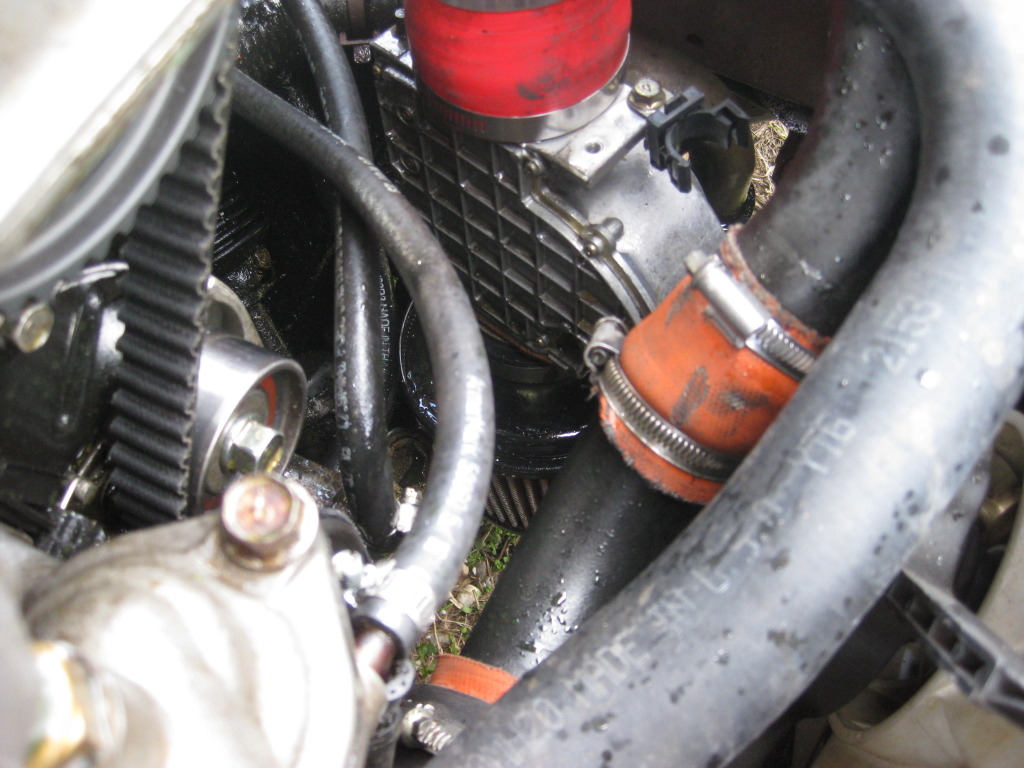

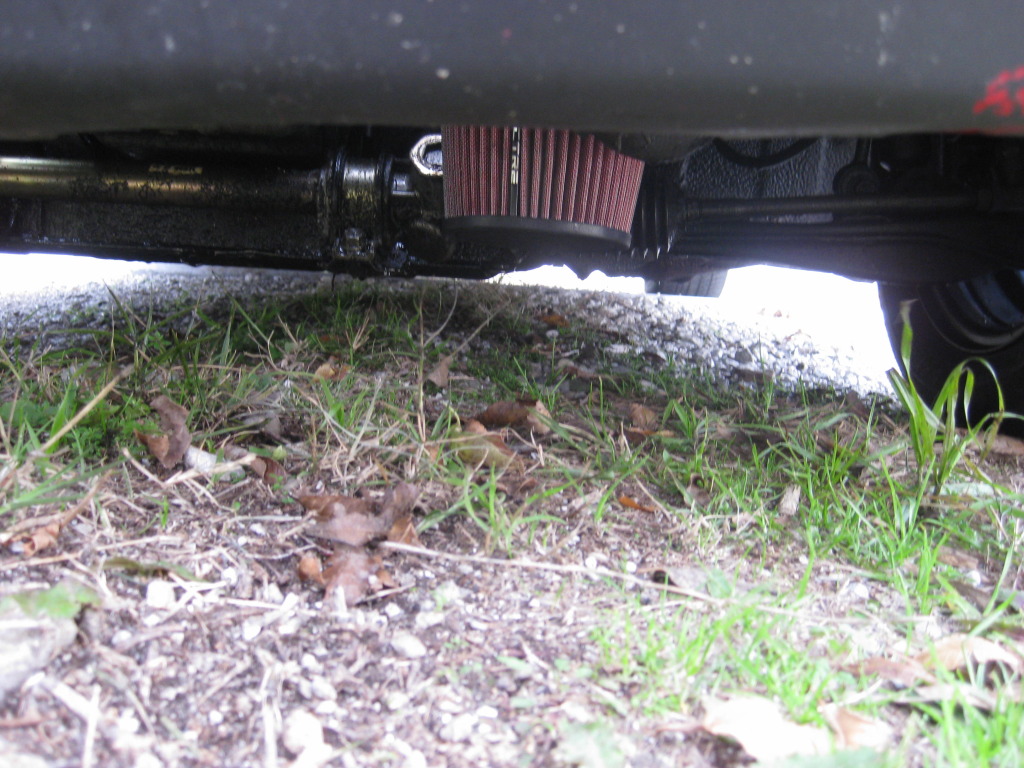

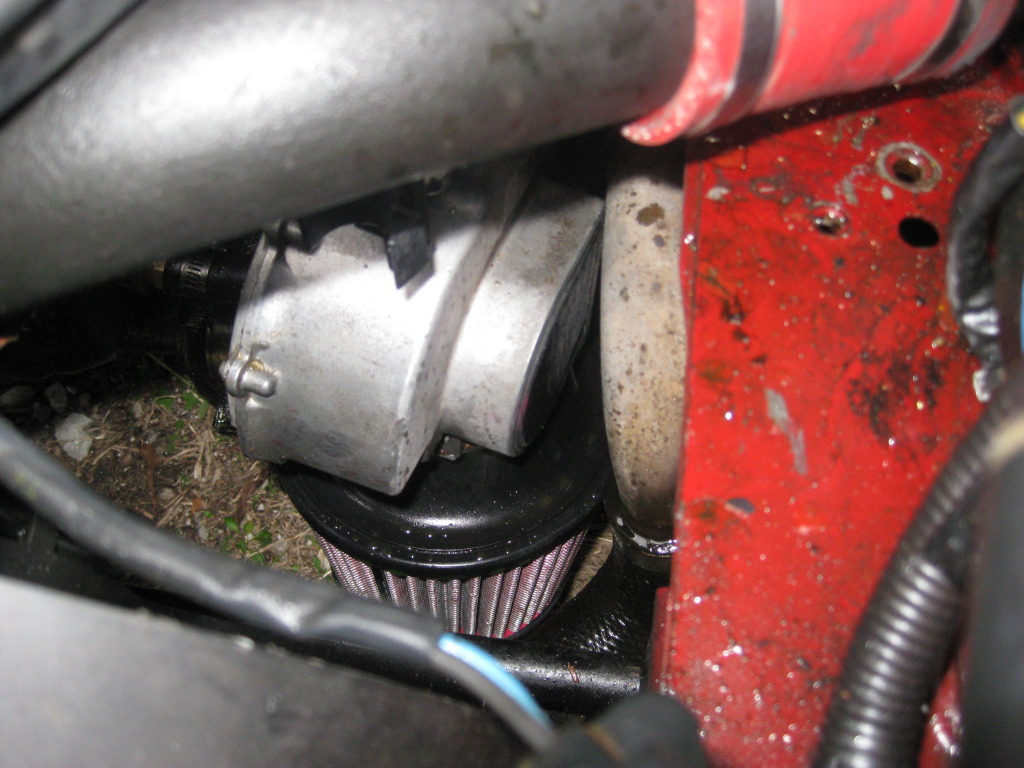

Before I catch too much crap, I know I have alot that needs cleaned up and that the catch can is on wrong. I just havent had time to go get the parts to fix it.
Attached Thumbnails
Can you tell me what the extra fitting is for?-miata001-1.jpg   Can you tell me what the extra fitting is for?-miata002-1.jpg   Can you tell me what the extra fitting is for?-miata003-1.jpg
clayton351 is offline   Reply With Quote
Old 12-11-2011, 02:50 PM   #9
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,328
Total Cats: 1,926
Default

Yeah, that looks like one of the knockoff "Type S" bypass valves, wherein nipples are available at both sides of the diaphragm.

The upper nipple is connected to the manifold post-TB, the lower nipple is connected to the manifold pre-TB, though this connection can be considered optional, to be used when it is desirable to increase the sensitivity of the unit (bypass more and sooner), which would be comparable to removing the softer of the two springs in the "Type R" style valves. The lower nipple can be left VTA if desired.
Joe Perez is offline   Reply With Quote
Old 12-11-2011, 04:20 PM   #10
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,372
Total Cats: 1,334
Default

Quote:
Originally Posted by clayton351 View Post
Before I catch too much crap
Too late


That intake placement is one puddle away from a world of hurt. I would pull it back up several inches or find another place for it entirely.
Savington is offline   Reply With Quote
Old 12-11-2011, 04:26 PM   #11
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,812
Total Cats: 187
Default

Why is your catch can mounted side ways?
thirdgen is offline   Reply With Quote
Old 12-11-2011, 04:52 PM   #12
Newb
Thread Starter
iTrader: (1)

Join Date: Nov 2011
Location: Howe, TX
Posts: 33
Total Cats: 0
Default

Quote:
Originally Posted by Savington View Post
Too late


That intake placement is one puddle away from a world of hurt. I would pull it back up several inches or find another place for it entirely.
I have 3 other cars, miata doesnt see rain. I want to mount it straight in front of the turbo, just cant figure out a way to fit it and have a place for the bov to hook up. The catch can is plumbed on the wrong side of the intake anyway, its just to avoid a vacuum leak at the moment. Im gonna reroute it and mount it in place of the charcoal canister.
clayton351 is offline   Reply With Quote
Old 12-11-2011, 04:53 PM   #13
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,793
Default

I have the real BOV.



upper is going to nipples behind TB, lower post going to the one in front of the TB.
Braineack is offline   Reply With Quote
Old 12-11-2011, 05:17 PM   #14
Newb
Thread Starter
iTrader: (1)

Join Date: Nov 2011
Location: Howe, TX
Posts: 33
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
I have the real BOV.



upper is going to nipples behind TB, lower post going to the one in front of the TB.
I will hook it up and see how it runs that way. This is pretty much how I want to run my piping. But I want to recirculate the BOV and do the filter a little different
clayton351 is offline   Reply With Quote
Old 12-11-2011, 05:18 PM   #15
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,793
Default

it requires you adding some sort of vacuum port between the IC and TB. Otherwise just run without the lower port like you have it.
Braineack is offline   Reply With Quote
Old 12-11-2011, 05:23 PM   #16
Newb
Thread Starter
iTrader: (1)

Join Date: Nov 2011
Location: Howe, TX
Posts: 33
Total Cats: 0
Default

I have one that is capped off. No intercooler at the moment, I have 3 laying around including a FM one that came with the car but dont like the routing on it. I want to run 2 inch piping but cant find a kit that i like.
clayton351 is offline   Reply With Quote
Old 12-12-2011, 03:39 PM   #17
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,878
Total Cats: 344
Default

Quote:
Originally Posted by olderguy View Post
OK, possible. Is there room for the RX7 AFM down there?
Down where? If you route it like that, the AFM would sit somewhere up at the top. I dunno if it'll fit or not -- A 99 MAF fits fine, but is smaller than the flapper-door thingeys.

I certainly wouldn't put the filter 3 inches off the ground like that, sounds very dangerous even if you don't ever intend to drive it when it's raining. Also, the temp of the air going into the filter matters a lot less once you've got a decent intercooler in the system.

--Ian
codrus is offline   Reply With Quote
Old 12-13-2011, 01:42 AM   #18
Newb
Thread Starter
iTrader: (1)

Join Date: Nov 2011
Location: Howe, TX
Posts: 33
Total Cats: 0
Default

Quote:
Originally Posted by codrus View Post
Down where? If you route it like that, the AFM would sit somewhere up at the top. I dunno if it'll fit or not -- A 99 MAF fits fine, but is smaller than the flapper-door thingeys.

I certainly wouldn't put the filter 3 inches off the ground like that, sounds very dangerous even if you don't ever intend to drive it when it's raining. Also, the temp of the air going into the filter matters a lot less once you've got a decent intercooler in the system.

--Ian
The stock AFM is there right now, theres plenty of room. It is a little tricky to get in place but once there its fine. I dont have an intercooler installed at the moment so the temp does matter for now. Im planning a complete reroute in the near future to put the intercooler in so it will probably get moved then
clayton351 is offline   Reply With Quote
