EFR 6258 or GTX2867 twinscroll - Page 2 - Miata Turbo Forum - Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



DIY Turbo Discussion greddy on a 1.8? homebrew kit?

Reply



LinkBack Thread Tools
Old 05-10-2012, 10:33 PM   #21
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,206
Total Cats: 2,587
Default

Its no secret: borgs really like higher pressures
18psi is offline   Reply With Quote
Old 05-10-2012, 10:34 PM   #22
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

NOte that efficiency changes more with flow and less with pressure ratio.
JasonC SBB is offline   Reply With Quote
Old 05-10-2012, 10:43 PM   #23
Senior Member
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

the thing that attracted me to the GTX was that it looks like it might be able to take you to 400whp territory while staying within 0.70 efficiency island. That and it would be a simple swap on my car with no mods to exhaust.
aaronc7 is offline   Reply With Quote
Old 05-10-2012, 11:01 PM   #24
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

Quote:
Originally Posted by Savington View Post
The 6258 will spool and respond SIGNIFICANTLY faster than a Garrett GTX2867.
Please post your data backing this up.
TurboTim is offline   Reply With Quote
Old 05-11-2012, 06:55 AM   #25
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,372
Total Cats: 1,333
Default

No data, just driving impressions. The 6258 that I drove reminded me of my old BP4W/2554R setup. Crazy, crazy responsive and awesome low-end and mid-range power. I've driven several 2860RS cars and they don't even compare to the way a 6258 drives, and the 2867 isn't going to spool or respond faster than a 2860RS.

Look at soviet's dyno plot - 200ft.lbs at 3000rpm and 250+ft.lbs at 3500rpm. Not even Paul's old car did that, and that was a 2560R car. The EFR6258s are torque monsters.
Savington is offline   Reply With Quote
Old 05-11-2012, 08:57 AM   #26
Elite Member
iTrader: (12)

GeneSplicer's Avatar

Join Date: Sep 2009
Location: Birmingham, AL
Posts: 2,006
Total Cats: 147
Default

I want my money back for EFR buttsecks, Andrew...
GeneSplicer is offline   Reply With Quote
Old 05-21-2012, 12:32 PM   #27
Senior Member
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

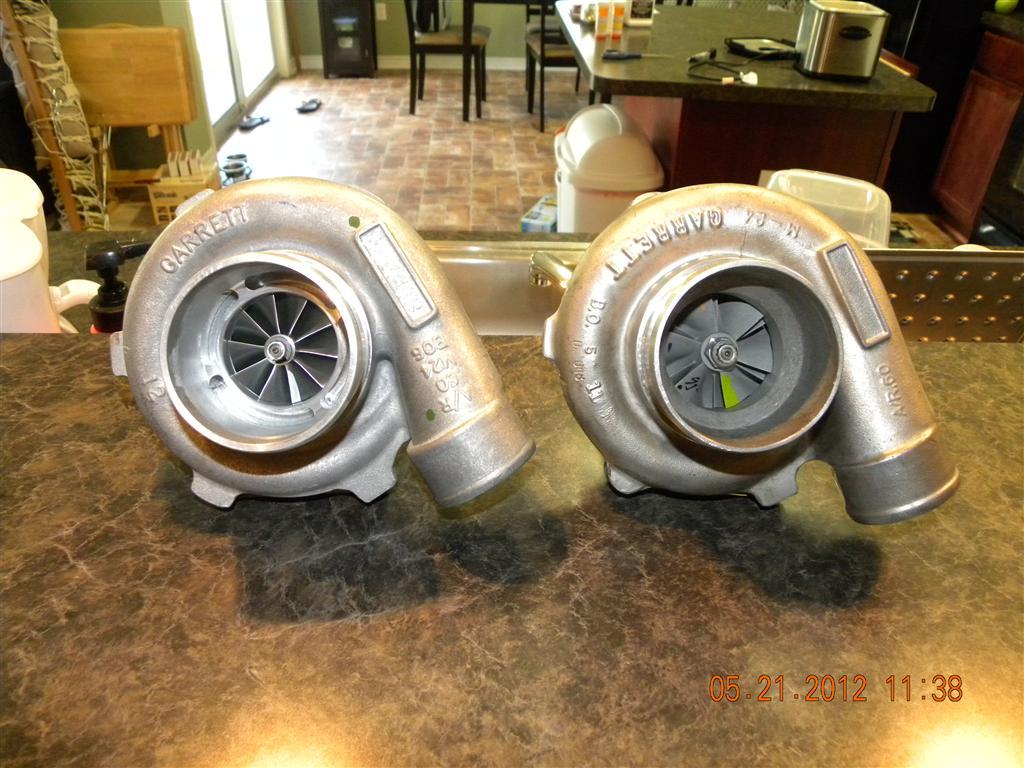

its here

Attached Thumbnails
EFR 6258 or GTX2867 twinscroll-dscn1645medium.jpg
aaronc7 is offline   Reply With Quote
Old 09-26-2012, 11:54 AM   #28
Newb

Join Date: Feb 2011
Posts: 11
Total Cats: 4
Default

Quote:
Originally Posted by Savington View Post
The 6258 will spool and respond SIGNIFICANTLY faster than a Garrett GTX2867. They are impossible to get right now, but I would wait for a 6258.
just a heads up - the efr 6258 are available again

Quote:
Originally Posted by Savington View Post
No data, just driving impressions. The 6258 that I drove reminded me of my old BP4W/2554R setup. Crazy, crazy responsive and awesome low-end and mid-range power. I've driven several 2860RS cars and they don't even compare to the way a 6258 drives, and the 2867 isn't going to spool or respond faster than a 2860RS.

Look at soviet's dyno plot - 200ft.lbs at 3000rpm and 250+ft.lbs at 3500rpm. Not even Paul's old car did that, and that was a 2560R car. The EFR6258s are torque monsters.
agreed, the mid-range torque and the response of these turbos is their most unique trait. Im addicted, nothing else will go on my projects
Full-Race Geoff is offline   Reply With Quote
Old 09-26-2012, 06:21 PM   #29
Junior Member
iTrader: (2)

Join Date: Oct 2011
Posts: 207
Total Cats: -14
Default

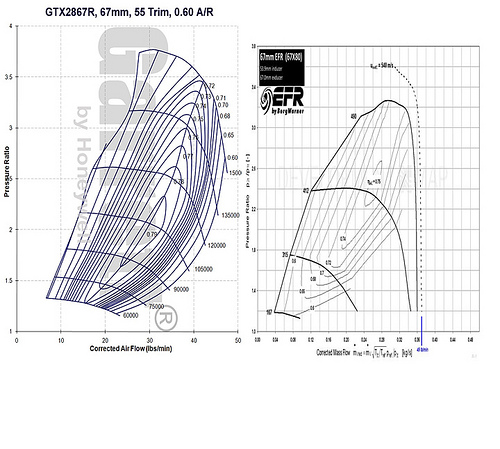

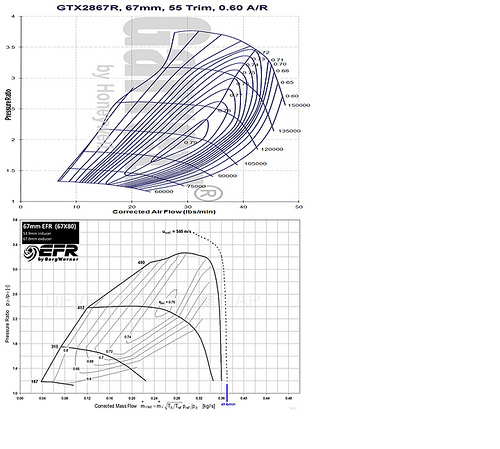

My vote goes to the obvious choice......

Attached Thumbnails
EFR 6258 or GTX2867 twinscroll-7002941423_bec2362ecd.jpg   EFR 6258 or GTX2867 twinscroll-7002919735_dba1265056.jpg
TheDriver is offline   Reply With Quote
Old 09-27-2012, 08:59 AM   #30
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Geoff, any chance of the twin scroll 6258, and if there is, any idea the differences in spool between it and the single scroll.
Leafy is offline   Reply With Quote
Old 09-27-2012, 03:58 PM   #31
Newb

Join Date: Feb 2011
Posts: 11
Total Cats: 4
Default

Based on my experience - the 6258 is crazy responsive in singlescroll T25 config compared to any of the traditional turbos we're used to. the small EFRs are an outstanding fit for turbo miatas, in fact one of bw's engineers ran a 6258/log manifold on his personal car and LOVED it, until he had to move across the planet and sell his car.

There will be more EFR housings released next year (2013) and SEMA will be the official announcement of what's coming. I do not yet know if twinscroll will help 6258s (there is a good chance much earlier spool would make you compressor limited at surge, but dont know the limit yet and it will be different for different engines).

one nice option is you could purchase a singlescroll EFR and upgrade to the twinscroll housing in the future
Full-Race Geoff is offline   Reply With Quote
Old 09-27-2012, 04:02 PM   #32
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

I think earlier spool would surge limit as well from playing with the match bot, but that would mean it requires less energy in the exhaust gas to spool which would theoretically decrease transient response time. Spool doesnt really concern me as long as I can hit my torque target by 3500-4k rpm, its transients that I want.
Leafy is offline   Reply With Quote
Old 09-27-2012, 08:26 PM   #33
Senior Member
iTrader: (2)

Join Date: Nov 2007
Location: Saint Paul, MN
Posts: 1,298
Total Cats: 22
Default

What I've wanted to see was the 6758 spool data with a twinscroll housing.
Der_Idiot is offline   Reply With Quote
Old 12-18-2015, 12:40 PM   #34
Newb

Join Date: Oct 2012
Location: Sioux Falls SD
Posts: 26
Total Cats: 0
Default

Quote:
Originally Posted by Savington View Post
No data, just driving impressions. The 6258 that I drove reminded me of my old BP4W/2554R setup. Crazy, crazy responsive and awesome low-end and mid-range power. I've driven several 2860RS cars and they don't even compare to the way a 6258 drives, and the 2867 isn't going to spool or respond faster than a 2860RS.

Look at soviet's dyno plot - 200ft.lbs at 3000rpm and 250+ft.lbs at 3500rpm. Not even Paul's old car did that, and that was a 2560R car. The EFR6258s are torque monsters.
I know I am bumping a 3 year old thread, but this came up looking for information on the 6258. Awesome info all the way around, so thanks guys. It's helped a lot.

I am looking at a 2860RS compared to the 6258. Buying from Full Race, there is a $550 price difference between the two turbos. Is the 6258 that much better than the 2860RS? I am willing to spend the money if the value is there.

This will be going on a 91 with a 1.8 swap. ECU to be sorted out, I am still in the early stages of planning at this time.

I am clicking reply and completely expecting to get blasted. Thanks for any info.
blackdbl9NB is offline   Reply With Quote
Old 12-18-2015, 12:42 PM   #35
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Yes totally worth $1000 more than a Garrett.
Leafy is offline   Reply With Quote
Old 12-18-2015, 12:46 PM   #36
Newb

Join Date: Oct 2012
Location: Sioux Falls SD
Posts: 26
Total Cats: 0
Default

Thanks Leafy.
blackdbl9NB is offline   Reply With Quote
Old 12-18-2015, 01:01 PM   #37
Elite Member
iTrader: (1)

Join Date: Jun 2014
Location: Austin, TX
Posts: 2,858
Total Cats: 272
Default

Quote:
Originally Posted by blackdbl9NB View Post
I am looking at a 2860RS compared to the 6258. Buying from Full Race, there is a $550 price difference between the two turbos. Is the 6258 that much better than the 2860RS? I am willing to spend the money if the value is there.
No comparison between the two. The 6258 dominates the 2860RS in spool & boost.

Support our vendors!

TSE is setup for preorder on their manifold + turbo - $2,000.00

Trackspeed EFR Turbo Manifold 1.8L

T25 Internal WG for maximum spool, v-band is currently only in a larger A/R
Girz0r is offline   Reply With Quote
Old 12-18-2015, 01:25 PM   #38
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,372
Total Cats: 1,333
Default

EFR6258 gets a lot cheaper when you bundle it with our EFR-specific cast manifold.
Savington is offline   Reply With Quote
Old 12-18-2015, 01:42 PM   #39
Newb

Join Date: Oct 2012
Location: Sioux Falls SD
Posts: 26
Total Cats: 0
Default

Yeah I was looking at that. Its a hell of a deal. Thanks guys.
blackdbl9NB is offline   Reply With Quote
