Old 02-13-2016, 09:57 AM   #41
Junior Member
Thread Starter
iTrader: (5)

Join Date: Oct 2014
Posts: 473
Total Cats: 23
Default

Quote:
Originally Posted by Barton View Post
The 1.6 has a few pins that go back to the ECU that you could use for the boost solenoid.

AFM Connector Pin
1 4P
2 4O
3 SG
4 4K
5 GND
6 GND
7 Fuel pump trigger

You can double check with a multimeter.

Could also use the purge solenoid wiring on 4X or the power steering switch wire on 1P.

How would you check this with a multimeter? Would I enable the switch in MS and check for 12v at the wire or is there another way?


I've currently got 4K pinned for my boost control source but the wiring diagram I linked shows that it's also used for the TPS. I also have my GM air temp sensor run through my AFM harness so those pins are also used.
90civichhb is offline   Reply With Quote
Old 02-13-2016, 11:30 AM   #42
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,840
Total Cats: 1,786
Default

Quote:
Originally Posted by deezums View Post
Not that I've ever heard of anyone having a problem before, but the DIYauto valve is only rated at 122f/50c.
put it inside your cold air box.


if you dont have one, youre dumb.
Braineack is offline   Reply With Quote
Old 02-13-2016, 11:37 AM   #43
Junior Member
Thread Starter
iTrader: (5)

Join Date: Oct 2014
Posts: 473
Total Cats: 23
Default

Brain, what wire do you use for EBC in the AFM?
90civichhb is offline   Reply With Quote
Old 02-13-2016, 11:39 AM   #44
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,840
Total Cats: 1,786
Default

Quote:
Originally Posted by 90civichhb View Post
Brain, what wire do you use for EBC in the AFM?
I use P for AIT, O for fuel pump, so that really leaves one...
Braineack is offline   Reply With Quote
Old 02-13-2016, 11:41 AM   #45
Junior Member
Thread Starter
iTrader: (5)

Join Date: Oct 2014
Posts: 473
Total Cats: 23
Default

So how do you get K to work without interfering with the TPS signal?
90civichhb is offline   Reply With Quote
Old 02-13-2016, 11:41 AM   #46
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,840
Total Cats: 1,786
Default

why would that interfere? do you have an automatic?
Braineack is offline   Reply With Quote
Old 02-13-2016, 11:42 AM   #47
Junior Member
Thread Starter
iTrader: (5)

Join Date: Oct 2014
Posts: 473
Total Cats: 23
Default

They are connected at a terminal, according to the schematic I have.
90civichhb is offline   Reply With Quote
Old 02-13-2016, 11:43 AM   #48
Junior Member
Thread Starter
iTrader: (5)

Join Date: Oct 2014
Posts: 473
Total Cats: 23
Default

I don't have an automatic but I do have a VTPS hooked up there that I believe is using the 5v reference wire.
90civichhb is offline   Reply With Quote
Old 02-13-2016, 11:44 AM   #49
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,840
Total Cats: 1,786
Default

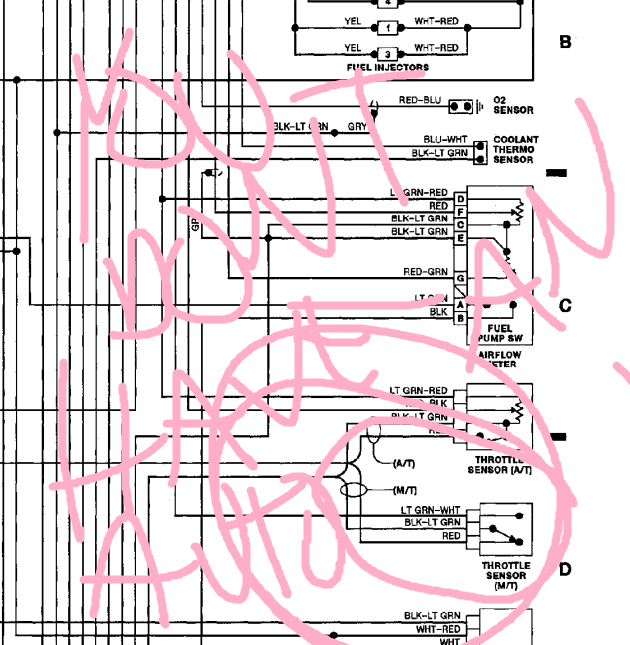

look at the wiring diagram again. you have 5vref wired to 2N. you dont have an automatic, so it doesnt matter about 4K, that wire doesnt go back over to the throttle on your car.
Braineack is offline   Reply With Quote
Old 02-13-2016, 11:46 AM   #50
Junior Member
Thread Starter
iTrader: (5)

Join Date: Oct 2014
Posts: 473
Total Cats: 23
Default

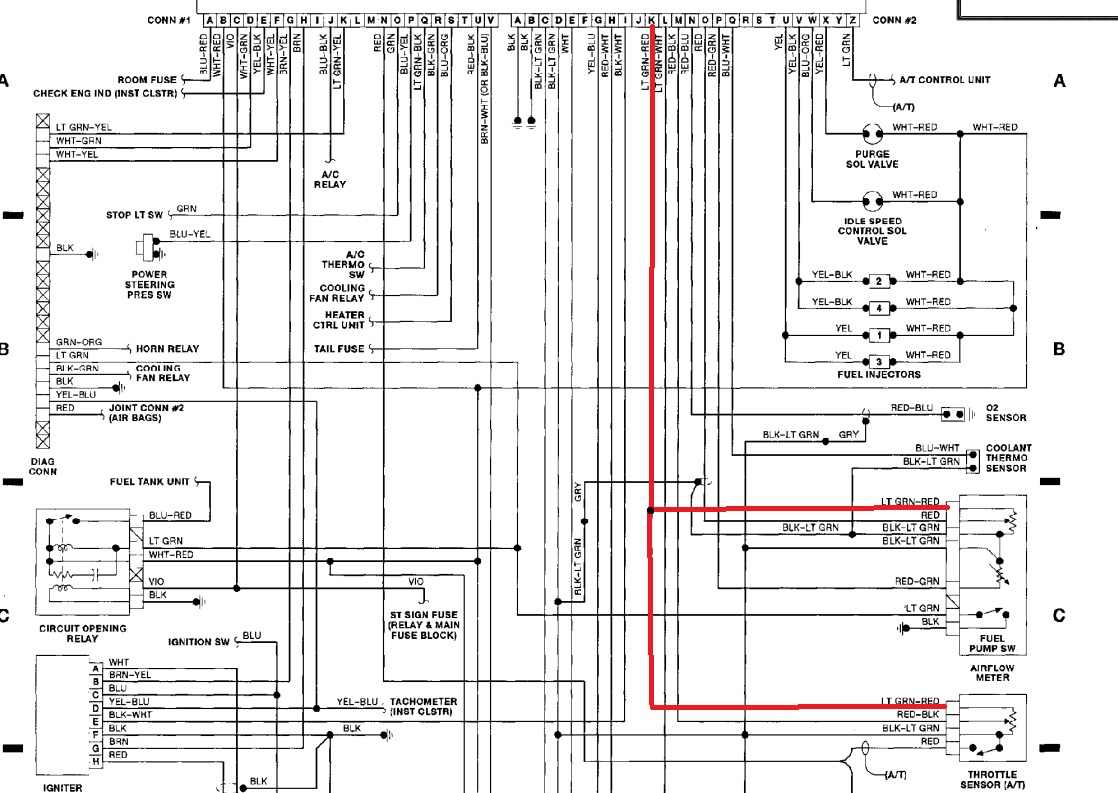

Does the red line not affect the TPS signal from the AFM connector and 2K on the ECU pin?

Attached Thumbnails
Electronic Boost control from unused wire in loom-hqqmb14.jpg
90civichhb is offline   Reply With Quote
Old 02-13-2016, 11:51 AM   #51
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,840
Total Cats: 1,786
Default

Attached Thumbnails
Electronic Boost control from unused wire in loom-80-undefined_e9d2a010973681961da8cd14092a36eefbd499bb.png
Braineack is offline   Reply With Quote
Old 02-13-2016, 11:56 AM   #52
Junior Member
Thread Starter
iTrader: (5)

Join Date: Oct 2014
Posts: 473
Total Cats: 23
Default

Quality penmanship fo sho.

I cut my image off too early. :(

Thanks for the help.
90civichhb is offline   Reply With Quote
Old 02-13-2016, 11:56 AM   #53
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,840
Total Cats: 1,786
Default

Braineack is offline   Reply With Quote
Old 02-13-2016, 07:23 PM   #54
Junior Member

Join Date: Jun 2015
Location: VIC, Australia
Posts: 104
Total Cats: 13
Default

Quote:
Originally Posted by Braineack View Post
Barton is offline   Reply With Quote
Old 02-14-2016, 11:31 AM   #55
Junior Member
Thread Starter
iTrader: (5)

Join Date: Oct 2014
Posts: 473
Total Cats: 23
Default

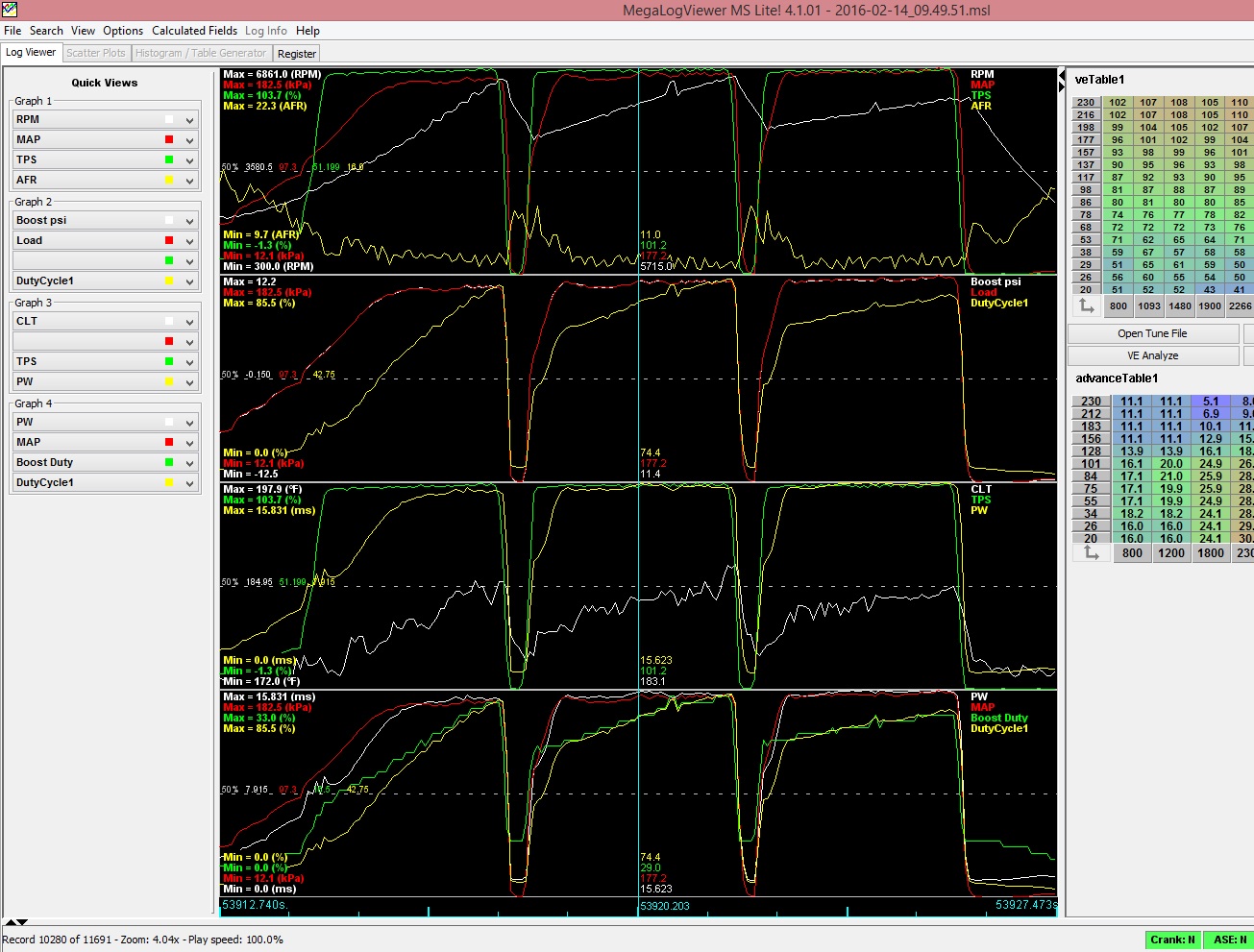

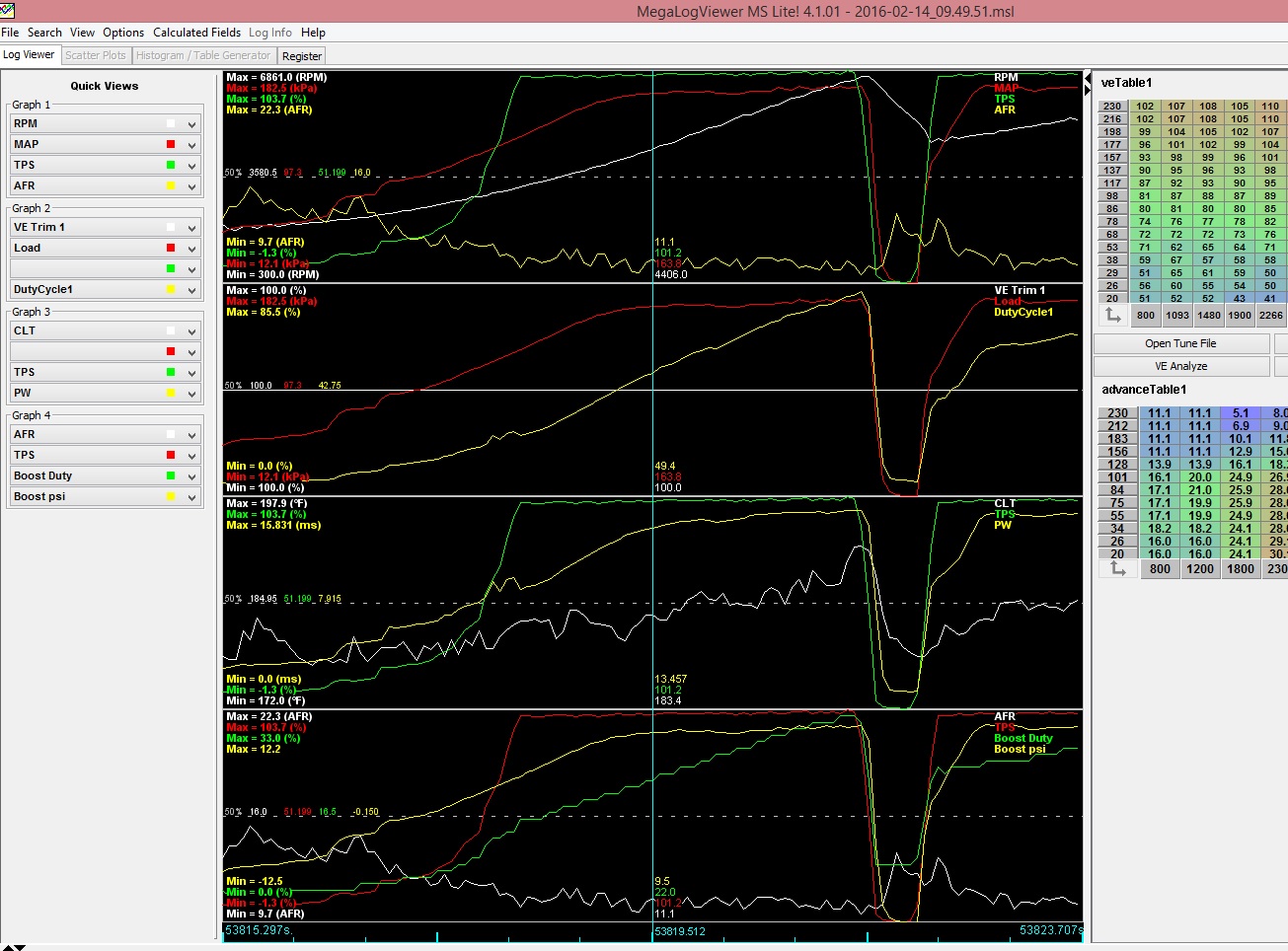

So I got everything in the car and moving. Setting up a decent target boost map was somewhat challenging. Open-loop stuff to start and I may jump into closed-loop PID settings later on.

Any input on torque curve? Load looks pretty linear and transmission safe to me. I may try to push this little 1.6L a bit harder in the future, but 12lbs pulls pretty good. Enough to make 1st gear somewhat useless.

Attached Thumbnails
Electronic Boost control from unused wire in loom-mgkzjag.jpg   Electronic Boost control from unused wire in loom-8l4ayty.jpg

Last edited by 90civichhb; 02-14-2016 at 12:31 PM.
90civichhb is offline   Reply With Quote
