Default FMU Pics

Does anyone have any pics of a Vortech or paxton FMU with the 10:1 or 8:1 plates in it? I am going to make the plates and parts to change the ratio of mine, and id like to see some pics of the various parts. So if anyone has them please put them up.. THANX!
adbradley is offline   Reply With Quote
Old 11-25-2006, 03:10 AM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,896
Total Cats: 1,792
Default

i can snap a few later, but would it be easier to just buy the set?
Braineack is offline   Reply With Quote
Old 11-25-2006, 02:12 PM   #3
Senior Member
Thread Starter
iTrader: (2)

Join Date: Feb 2006
Location: Mesa, AZ
Posts: 999
Total Cats: 0
Default

easy yes, cheaper, no.. i like to make stuff.. plus from what i have seen, im pretty sure its just a ring and a disk.. not a lot there
adbradley is offline   Reply With Quote
Old 11-25-2006, 11:08 PM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,896
Total Cats: 1,792
Default

it is jus a ring and disc. you can also get the exact diameters of each disc ratio, somewhere burried on vortechs website. it's on the install instructions as well but I through them away.

It's basically a thin washer, and a ring. the ring has a small section cut out for air to pass through.

Last edited by olderguy; 11-29-2006 at 08:16 PM.
Braineack is offline   Reply With Quote
Old 11-27-2006, 02:46 PM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,896
Total Cats: 1,792
Default

here homey:












2.72" Dia for the 12:1
2.47" Dia for the 10:1
2.22 Dia for the 8:1
1.85" Dia for the 6:1
1.59" Dia for the 4:1
Braineack is offline   Reply With Quote
Old 11-29-2006, 07:24 PM   #6
Senior Member
Thread Starter
iTrader: (2)

Join Date: Feb 2006
Location: Mesa, AZ
Posts: 999
Total Cats: 0
Default

thanx man!!
adbradley is offline   Reply With Quote
Old 11-29-2006, 07:40 PM   #7
Senior Member
Thread Starter
iTrader: (2)

Join Date: Feb 2006
Location: Mesa, AZ
Posts: 999
Total Cats: 0
Default

if u are going to use the 8:1 disk, do do you have to install the 10:1 and the 8:1 ring?
adbradley is offline   Reply With Quote
Old 11-29-2006, 08:16 PM   #8
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

Quote:
Originally Posted by adbradley View Post
if u are going to use the 8:1 disk, do do you have to install the 10:1 and the 8:1 ring?
Each set stands by itself.
olderguy is offline   Reply With Quote
Old 11-29-2006, 10:48 PM   #9
Senior Member
Thread Starter
iTrader: (2)

Join Date: Feb 2006
Location: Mesa, AZ
Posts: 999
Total Cats: 0
Default

do you know why the smaller rings have the step in them?
adbradley is offline   Reply With Quote
Old 11-29-2006, 10:59 PM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,896
Total Cats: 1,792
Default

http://www.vortechsuperchargers.com/...fmurecalim.pdf


i'm acutally now confused about the purpose of the small hole that the cutout is for...
Braineack is offline   Reply With Quote
Old 11-30-2006, 10:43 AM   #11
Senior Member
Thread Starter
iTrader: (2)

Join Date: Feb 2006
Location: Mesa, AZ
Posts: 999
Total Cats: 0
Default

well from what i can tell, the only real change here is the dimeter of the disk, and that changes how much pressure that is applied by the Diaphragm, whitch in turn changes the rate at that fuel pressure is increased. Im going to try a solid disk no ring, and im going to put a small flat head bolt through the plate and into the plunger, insted of using the ring to hold the disk in place. I will let you know how it works out.
adbradley is offline   Reply With Quote
Old 11-30-2006, 10:45 AM   #12
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

Quote:
Originally Posted by adbradley View Post
do you know why the smaller rings have the step in them?
To keep them from cocking.
olderguy is offline   Reply With Quote
Old 11-30-2006, 10:48 AM   #13
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

Quote:
Originally Posted by adbradley View Post
well from what i can tell, the only real change here is the dimeter of the disk, and that changes how much pressure that is applied by the Diaphragm, whitch in turn changes the rate at that fuel pressure is increased. Im going to try a solid disk no ring, and im going to put a small flat head bolt through the plate and into the plunger, insted of using the ring to hold the disk in place. I will let you know how it works out.
The rings keep the discs in place and limit the amount of pressure to the surface size of the disc. Without the rings, the discs will transmit more pressure.
olderguy is offline   Reply With Quote
Old 11-30-2006, 12:03 PM   #14
Senior Member
Thread Starter
iTrader: (2)

Join Date: Feb 2006
Location: Mesa, AZ
Posts: 999
Total Cats: 0
Default

Quote:
The rings keep the discs in place and limit the amount of pressure to the surface size of the disc. Without the rings, the discs will transmit more pressure.
I dont understand how the rings change the ammount of pressure going to the disk..
adbradley is offline   Reply With Quote
Old 11-30-2006, 12:14 PM   #15
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

Quote:
Originally Posted by adbradley View Post
I dont understand how the rings change the ammount of pressure going to the disk..
If the rings limit the exposure of the diaphram to the disc, it will only transmit the pressure equal to that surface area. If that limit is not there, the diaphragm will stretch around it and pull the disc down with additional force.
olderguy is offline   Reply With Quote
Old 11-30-2006, 01:27 PM   #16
Senior Member
Thread Starter
iTrader: (2)

Join Date: Feb 2006
Location: Mesa, AZ
Posts: 999
Total Cats: 0
Default

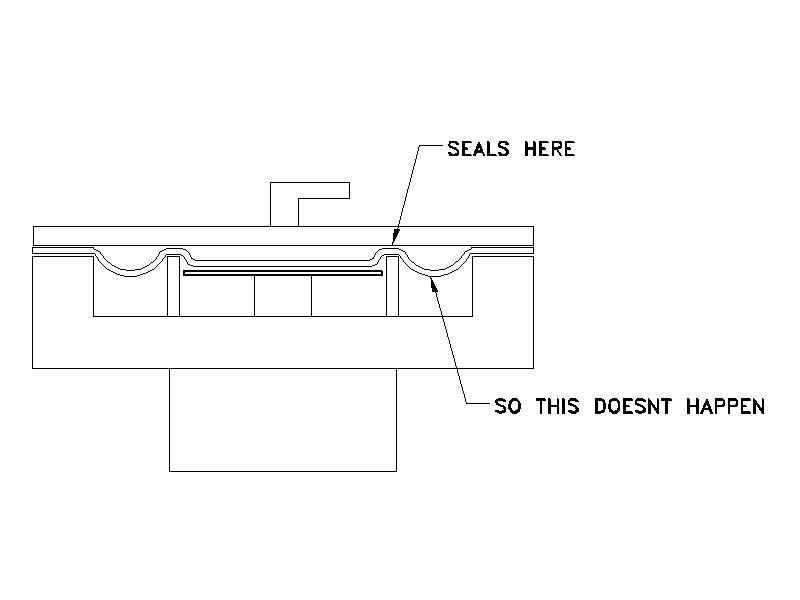

AHHH i see now, the ring seals on the diaphragm on top..

Like this...
Attached Thumbnails
FMU Pics-section-model.jpg
