Old 02-20-2015, 02:08 PM   #81
Elite Member
Thread Starter

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,695
Total Cats: 266
Default

WOT means nothing. RPM and oil temp are the variables of concern.

Last edited by DNMakinson; 02-20-2015 at 02:10 PM. Reason: Added temp
DNMakinson is offline   Reply With Quote
Old 02-20-2015, 02:51 PM   #82
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,624
Total Cats: 1,559
Default

Quote:
Originally Posted by calteg View Post
Just so I'm clear, you're tracking your car with a maximum of 30 psi oil pressure?
No. It's about 45-50 @ 6000 now that I'm using a little thicker oil.
sixshooter is offline   Reply With Quote
Old 02-20-2015, 04:08 PM   #83
Senior Member
iTrader: (8)

Join Date: Jan 2012
Location: Azusa, CA
Posts: 1,376
Total Cats: 80
Default

Quote:
Originally Posted by DNMakinson View Post
WOT means nothing. RPM and oil temp are the variables of concern.
sorry, that's peak pressure so WOT at 6500+ RPM.
I just hooked up an oil temp gauge to I can get that info now but coolant was up to temp.
cyotani is offline   Reply With Quote
Old 02-12-2016, 09:50 PM   #84
Newb

Join Date: Feb 2016
Posts: 3
Total Cats: 0
Default

Great thread, big help! Hope somebody can advise if my oil pressure is normal and OK please.
96 na8, with AVO turbo kit(GT25xx, oil and water cooled), peaks at near 8psi. While prepping for turbo we saw some very high pressures (real gauge tapped off T at normal sender point), ~80psi, then one day nothing. On removing the pan found relief valve stuck open. Removed the slug, cleaned up roughness, refitted. Saw ~60psi on cold start. After turbo , fed with oil from T at sender fitting, fully hot through we see at 1000rpm 16-18psi, 32psi at 2k, 40psi at 4k. We used to get some HLA noise at cold start until recently replacing the oil filter - now pressure comes up quicker, and there is no HLA noise, but there is a not change between start and pressure registering on gauge. Under 2k mi on the oil, 10-50 synthetic.
Sound normal? Has under 60k miles on it, tons of power.
thanks
jp
jp928 is offline   Reply With Quote
Old 02-12-2016, 11:52 PM   #85
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,315
Total Cats: 1,913
Default

Quote:
Originally Posted by EO2K View Post
I've often wondered why no one has taken an MSM block and checked to see if Mazda did anything differently in the oil passages from the MSM to the BP4W/BP6D.
Just now noticed this thread in which my name was called out. Better three years late than never...

Around 2009, I made precisely this observation and posted the results in another thread. I can't find the exact images which I used there, but here's a recreation based upon a photo I took of the back of a '99 block:

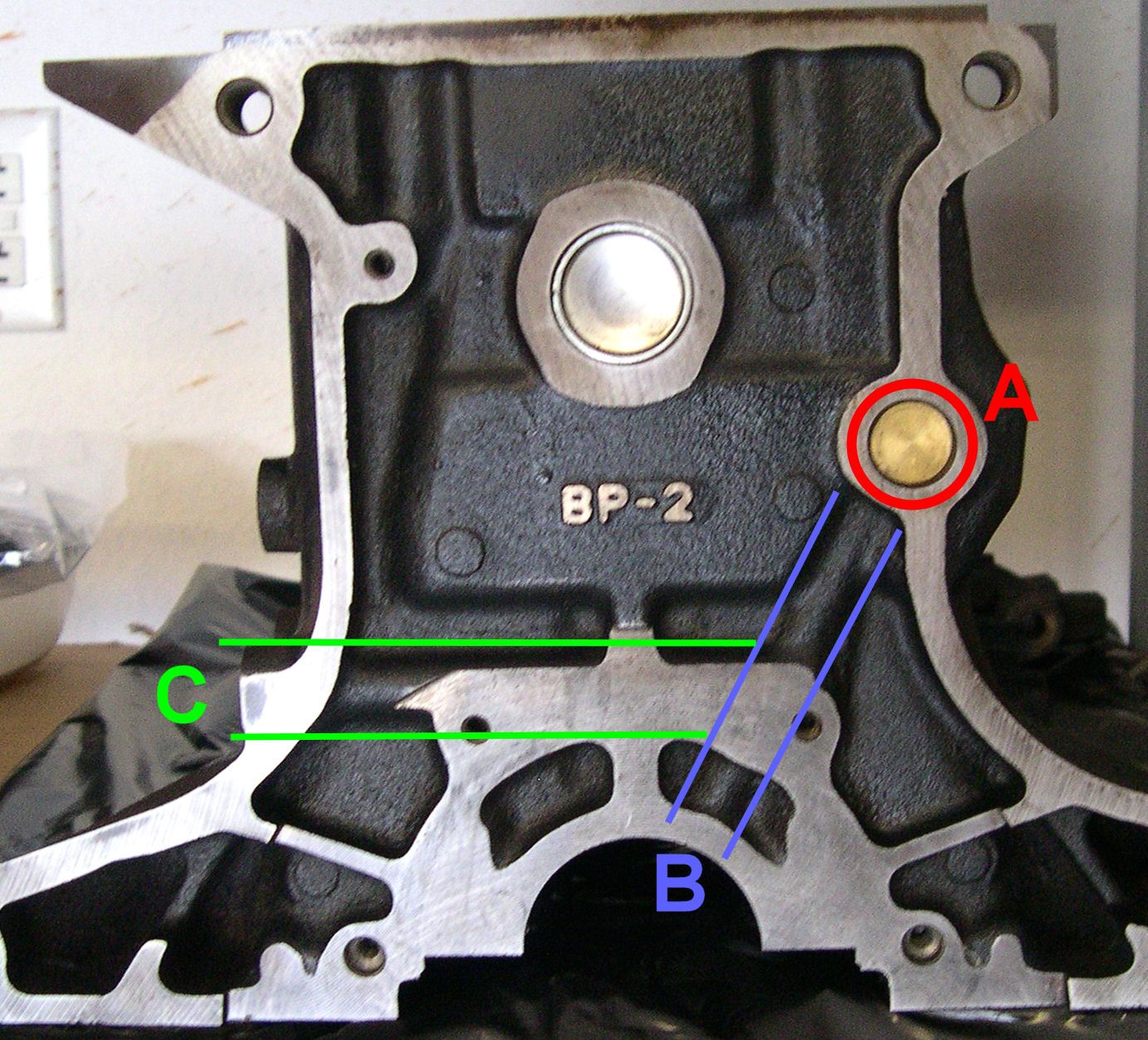

The red circle marked "A" is the main oil galley, which runs from the front of the block all the way to the back, and is supplied directly by the output of the oil filter. The feed up to the head (through the restrictor) taps off of this line midway, as do all of the feeds which run down to the main crankshaft bearings. The oil pressure sensor hole is also drilled transversely into this line, and in VVT engines, the oil supply to the intake cam is also sourced from the same location.


The blue lines marked "B" outline the casting feature which surrounds the drilled passage running down to the rear main crankshaft bearing.


The green lines marked "C" outline the casting feature which, in the GTX, '90-'93 Miata and MSM blocks is drilled out to supply oil to the turbo. The casting hump is present on all BP blocks, it's simply not drilled out on most of them. If you possess the ability to make a perfectly straight and level hole a few mm wide through five inches of cast iron without deviating by more than 1, then you can convert any '94-'05 BP block into an MSM block simply by drilling inwards from the outer surface of this casting feature until you reach the diagonal passage (B) which runs from the main galley down to the rear main bearing. This is how Mazda did it in every single factory-turbo variant of the B-series engine.

Here is the spot where you would drill from:

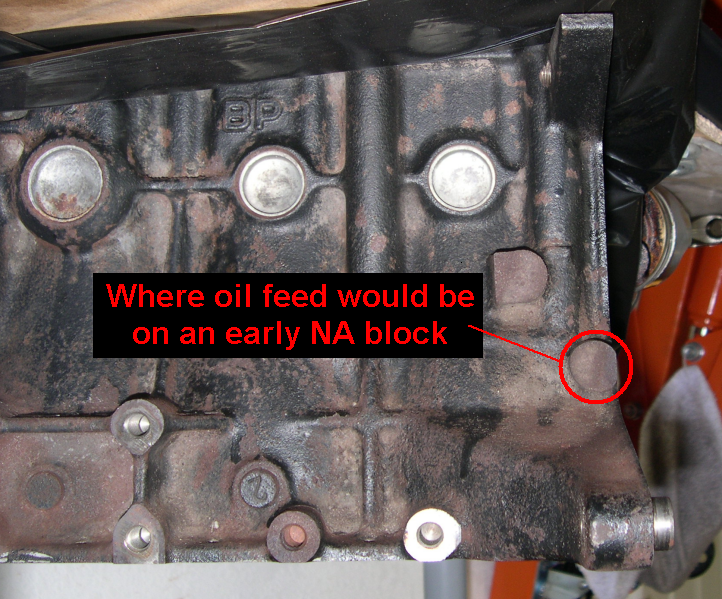

Note that the commend I made on that image about "early NA block" should read "1.6 or MSM block." That was a very old image from before I'd started thinking about the MSM.



TL;DR: The block casting is identical across all 1.8L B engines, and is conceptually identical (in terms of the oil passages) to all 1.6L blocks, be they 323GTX or stock Miata. Only the machining differs, to expose the oil (and coolant) through casting features which are present regardless of whether the machining operation is performed or not.
Attached Thumbnails
Further Thread on Oil Supply-80-bp_oil_feed_47da39c9d4654e24d6f732e867cfbe4031da0c27.jpg   Further Thread on Oil Supply-80-undefined_055acf46bcfcb87f93e3c68342ec58ecab3faf26.png
Joe Perez is offline   Reply With Quote
Old 02-13-2016, 03:31 AM   #86
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,875
Total Cats: 344
Default

Quote:
Originally Posted by Joe Perez View Post
If you possess the ability to make a perfectly straight and level hole a few mm wide through five inches of cast iron without deviating by more than 1, then you can convert any '94-'05 BP block into an MSM block simply by drilling inwards from the outer surface of this casting feature until you reach the diagonal passage (B) which runs from the main galley down to the rear main bearing.
So all you need to do is mount the engine block on a lathe and...

--Ian
codrus is offline   Reply With Quote
Old 02-13-2016, 01:25 PM   #87
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Joe, it cant be that precise. No machine can do that at a mass production level. A true position of 5 thou on that hole is more reasonable given the length, diameter, and material. And then a careful machinist could do it in a freshly rebuilt bridgeport.
Leafy is offline   Reply With Quote
Old 02-13-2016, 01:47 PM   #88
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,315
Total Cats: 1,913
Default

Quote:
Originally Posted by Leafy View Post
Joe, it cant be that precise. No machine can do that at a mass production level. A true position of 5 thou on that hole is more reasonable given the length, diameter, and material. And then a careful machinist could do it in a freshly rebuilt bridgeport.
The level of precision you have specified (a few thou) is more precise than one the I specified (1 of arc over 5", which comes to an error or .0873", much more than "a few thou.")
Joe Perez is offline   Reply With Quote
Old 02-13-2016, 02:02 PM   #89
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,788
Total Cats: 247
Default

So realistically, I could do this with a drill? Maybe.
patsmx5 is online now   Reply With Quote
Old 02-13-2016, 02:12 PM   #90
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Quote:
Originally Posted by patsmx5 View Post
So realistically, I could do this with a drill? Maybe.
With a really really rigid drill press, a couple thousand dollars worth of fixture (miata crank mandrel, 18" sin table, etc), a couple days worth of setup, and a few blocks you're willing to scrap till you get it setup right? Sure.

And joe, you're right. I should have done the math out.
Leafy is offline   Reply With Quote
Old 02-13-2016, 02:17 PM   #91
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,788
Total Cats: 247
Default

Quote:
Originally Posted by Leafy View Post
With a really really rigid drill press, a couple thousand dollars worth of fixture (miata crank mandrel, 18" sin table, etc), a couple days worth of setup, and a few blocks you're willing to scrap till you get it setup right? Sure.

And joe, you're right. I should have done the math out.
I guess i need to look into this. Does it really require this much precision? You're just intersecting another hole. Would be nice to see what size hole the MSM used.
patsmx5 is online now   Reply With Quote
Old 02-13-2016, 02:42 PM   #92
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

From what I remember of older threads theres a coolant passage you have to miss along with having a small range to do it. If the boss on the block is faced accurately at the factory then maybe you could setup off that and get away with making a smaller jig with a drill bushing based off the boss and maybe be ok. But I dont believe it is.
Leafy is offline   Reply With Quote
Old 02-13-2016, 02:54 PM   #93
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,315
Total Cats: 1,913
Default

Quote:
Originally Posted by patsmx5 View Post
And joe, you're right. I should have done the math out.
Actually, I should have done the math first. You're probably much closer to what's actually required; .084" is actually quite a lot of error, given the very narrow passages that we're dealing with.
Joe Perez is offline   Reply With Quote
Old 02-13-2016, 02:57 PM   #94
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,315
Total Cats: 1,913
Default

Quote:
Originally Posted by patsmx5 View Post
I guess i need to look into this. Does it really require this much precision? You're just intersecting another hole. Would be nice to see what size hole the MSM used.
Easy enough to try.

Go buy a 1" x 6" plank of hard wood. Measure the diameter of a crank main oil passage, and drill a hole that size through the plank the short way, 5" from the edge.

Now, try to perfectly intersect that hole from the perpendicular face 5" away.

Then, imagine doing the same in cast iron.
Joe Perez is offline   Reply With Quote
Old 02-13-2016, 03:57 PM   #95
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,875
Total Cats: 344
Default

It seems like you could fixture it by welding up a couple of U-shaped brackets out of square tubing, then bolting them to the head bolt holes on one side and the main cap holes on the other. Set it on its side, put some kind of adjustment screws on it so you can level it, then clamp it down. I would want to use a mill though, not a drill press. TechShop has 'em.

If I still had my old block I'd be tempted to give it a try (I tossed it out when I moved)

--Ian
codrus is offline   Reply With Quote
Old 02-13-2016, 08:32 PM   #96
Elite Member
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 2,398
Total Cats: 200
Default

Couldn't you use a pretty small bit, like 1/4 ? Since it is only going to feed a turbo, which will then neck down to like .030" . A short bit to start the hole, then finish with something longer. I am by no means a precision machinist, but with a mill, some time spent to level things out, I'd go for it.
ryansmoneypit is offline   Reply With Quote
Old 02-13-2016, 10:12 PM   #97
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

Is this seriously a discussion we are having?!
Braineack is offline   Reply With Quote
Old 02-13-2016, 10:40 PM   #98
Elite Member
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 2,398
Total Cats: 200
Default

I laughed at first, when I noticed it was a multi year old thread.

I guess if you are really hurting for this one specific spot to pull oil from, and your block doesn't have the port...
ryansmoneypit is offline   Reply With Quote
Old 02-13-2016, 10:44 PM   #99
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

EDM or GTFO
EO2K is offline   Reply With Quote
Old 02-13-2016, 10:44 PM   #100
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,315
Total Cats: 1,913
Default

Quote:
Originally Posted by Braineack View Post
Is this seriously a discussion we are having?!
It is.



Coming up after the break, we'll show you how one Chantilly man fit an MSM exhaust manifold onto his 1.6 engine. And later, residents are shocked by a gruesome discovery involving a local man, his wife, their cats, and a common household item which may pose a lucking danger for all of us.

Stay tuned.
