Default Help With Air Filter Roadblock 1.6 MkTurbo w/AC/PS

So we're almost done with the MkTurbo kit, and I'm running into a snag when it comes to the filter.

To keep AC/PS, we ran the hot side out of the fender similar to TurboTim's old build. With how far the turbo sits, we're having issues determining where to put a filter, considering the hot pipe through the fender takes up the space normally used for the filter.

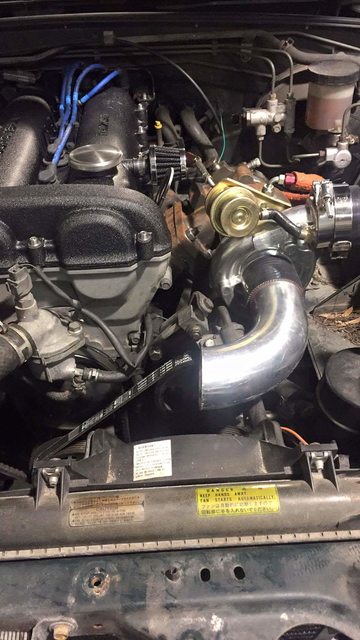

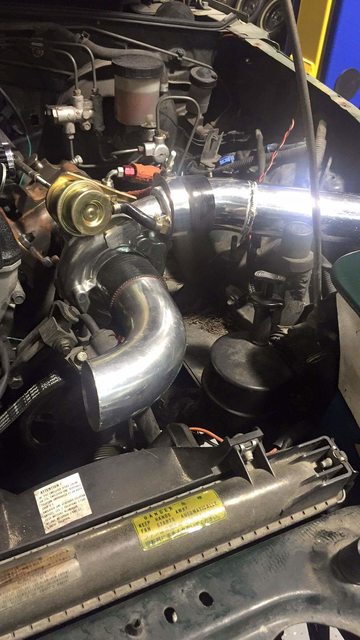

Here's what we're looking at.





One of the options that came up is to just run a TurboGuard, but I've heard lots of conflicting arguments for/against them. This would be the easiest solution.

The next would be to run the filter as the pipe shows in the pics, right behind the radiator, but that would have heat soak problems and is highly regarded as poor placement from what I've read on here in plenty of threads.



Those are the two main options I've got at this moment, and am hoping some of the veterans can help me choose, or provide a better alternative.


Thank you!
Attached Thumbnails
Help With Air Filter Roadblock 1.6 MkTurbo w/AC/PS-jyq6kpel.jpg   Help With Air Filter Roadblock 1.6 MkTurbo w/AC/PS-903g9gvl.jpg
Corifto is offline   Reply With Quote
Old 07-06-2016, 09:04 AM   #2
Junior Member
iTrader: (1)

Join Date: Dec 2015
Location: Tulsa
Posts: 157
Total Cats: 14
Default

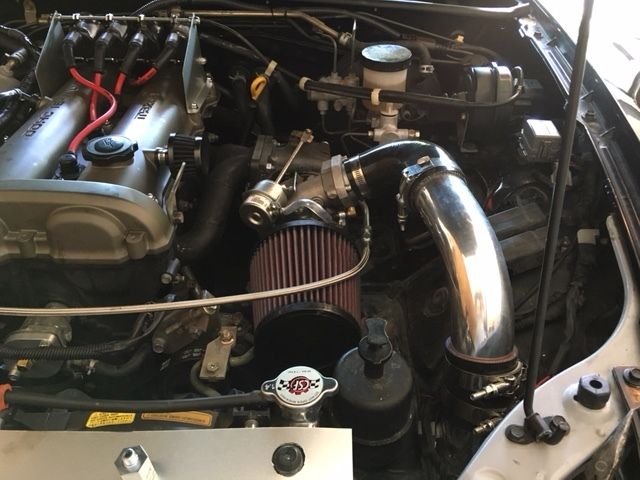

May not be ideal but it is what I did.
Attached Thumbnails
Help With Air Filter Roadblock 1.6 MkTurbo w/AC/PS-80-img_0326_97c116db618d8c092cd69eb5d3addbebd596f89e.jpg
dr_boone is offline   Reply With Quote
Old 07-06-2016, 09:10 AM   #3
Junior Member

Join Date: Sep 2014
Location: Canton, GA
Posts: 150
Total Cats: -85
Default

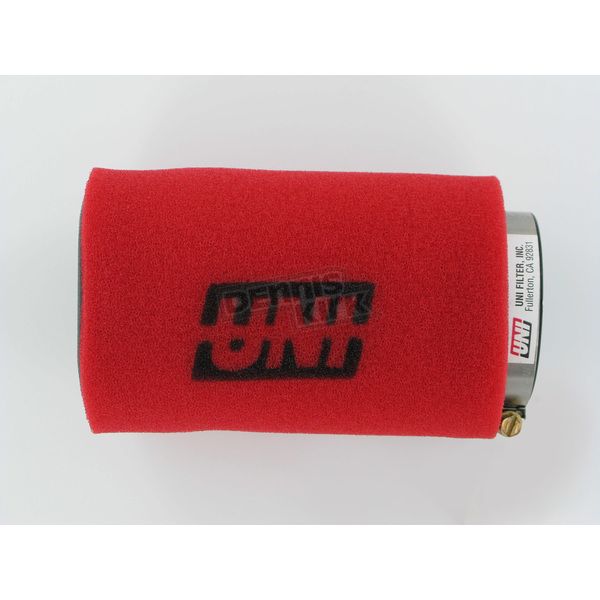

Hard to tell from your pictures (a top view would help immensely) but, source a 45 degree coupler to come of the compressor inlet, and then install one of these:



You will want to minimize the legs of your 45 degree coupler to as short as possible, to give you the most room. I believe it would fit with that method, and the best part is these filters are flexible and "squishy", so if there is a little interference, fear not. They sell a 15 degree angled version of the dual-layer pod as well, which you might be able to mount directly off the compressor. Just pull a tape and get some spacial constraints. That picture is the 4" x 6" 2.5" ID, no angle. Here is the catalog link:

http://www.unifilter.com/clamp-on/

I would go the 45 degree route, to get the filter as far away from manifold as possible, and giving you some hope of fabbing a heatshield in the future.
Attached Thumbnails
Help With Air Filter Roadblock 1.6 MkTurbo w/AC/PS-80-uni_2e012b4fdcdc326d9ab0ab1669e5659f40bbccde.jpg
NBoost is offline   Reply With Quote
Old 07-06-2016, 10:20 AM   #4
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,066
Total Cats: 911
Default

Normally I run a 90 off the front of the turbo and put the filter behind the headlight, in your case that unfortunately does not work. Is there room to run a pipe under the IC pipe back towards the back of the engine bay? Pick up air where the stock tube did?
shuiend is offline   Reply With Quote
Old 07-06-2016, 11:13 AM   #5
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,889
Total Cats: 566
Default

Attached Thumbnails
Help With Air Filter Roadblock 1.6 MkTurbo w/AC/PS-147342d1440003177-hornetballs-build-img_0699.jpg
hornetball is offline   Reply With Quote
Old 07-06-2016, 04:50 PM   #6
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2010
Location: Bradenton, FL
Posts: 386
Total Cats: 19
Default

Thanks everyone. I thought about the over/under and into the master cylinder, but wasn't sure about adding that complication.


I ended up ordering both of these K&N filters. One should work. 3.5 in diameter, 20 degree flange angle, and one is 4" and one is 6".


K&N RU-1720 Universal Rubber Filter, Universal Air Filters


K&N RU-1700 Universal Rubber Filter, Universal Air Filters
Corifto is offline   Reply With Quote
Old 07-08-2016, 01:14 PM   #7
Junior Member

Join Date: Jul 2014
Location: Kensington, MD
Posts: 281
Total Cats: -25
Default

Quote:
Originally Posted by hornetball View Post

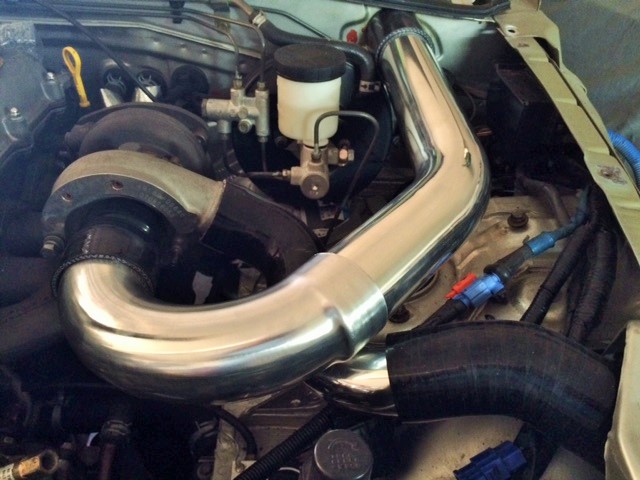

That looks pretty trick. Turbo Randall! Do you drive in the rain at all?
huesmann is offline   Reply With Quote
Old 07-08-2016, 01:25 PM   #8
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,889
Total Cats: 566
Default

Sometimes. Not an issue, filter is well above the cowl water channel.
hornetball is offline   Reply With Quote
Old 07-30-2016, 09:14 PM   #9
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2010
Location: Bradenton, FL
Posts: 386
Total Cats: 19
Default

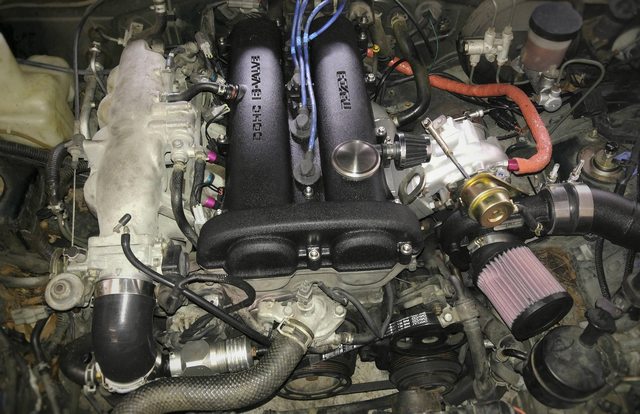

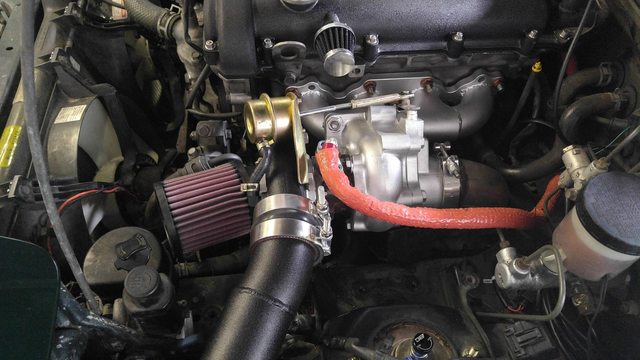

Well here's the update. Found this filter thanks to Sokool on here and it fits like a glove.




Corifto is offline   Reply With Quote
Old 07-31-2016, 01:51 AM   #10
Senior Member

Join Date: Sep 2015
Location: San Jose, CA
Posts: 874
Total Cats: 27
Default

what is it?
MiataMan00 is offline   Reply With Quote
