Default Here's the MX-3 I traded the Civic for.

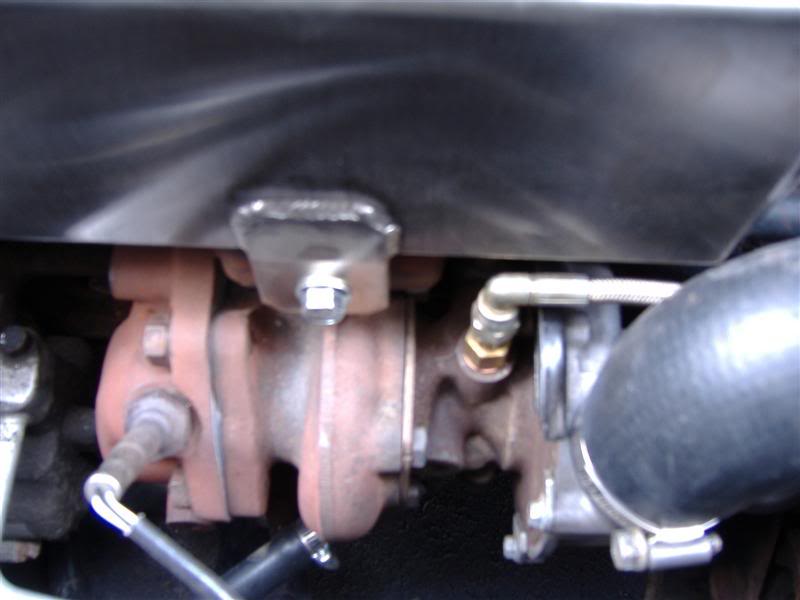

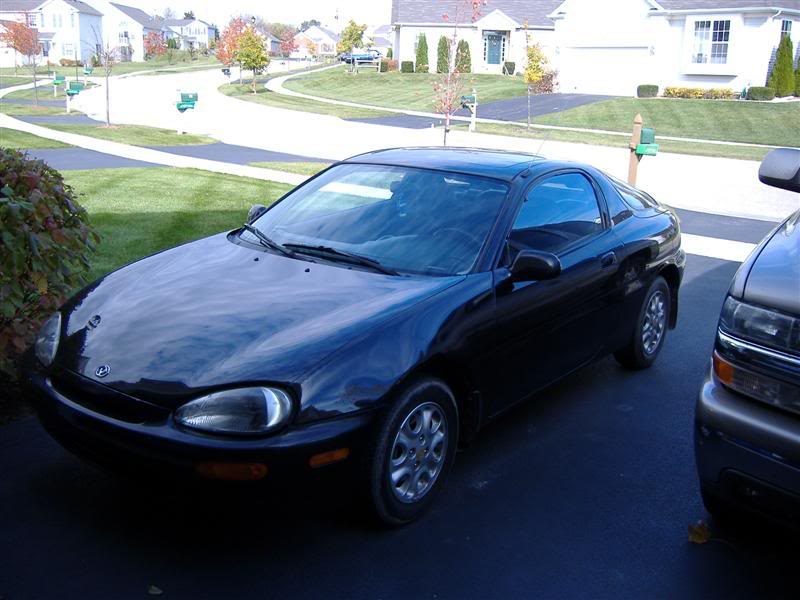

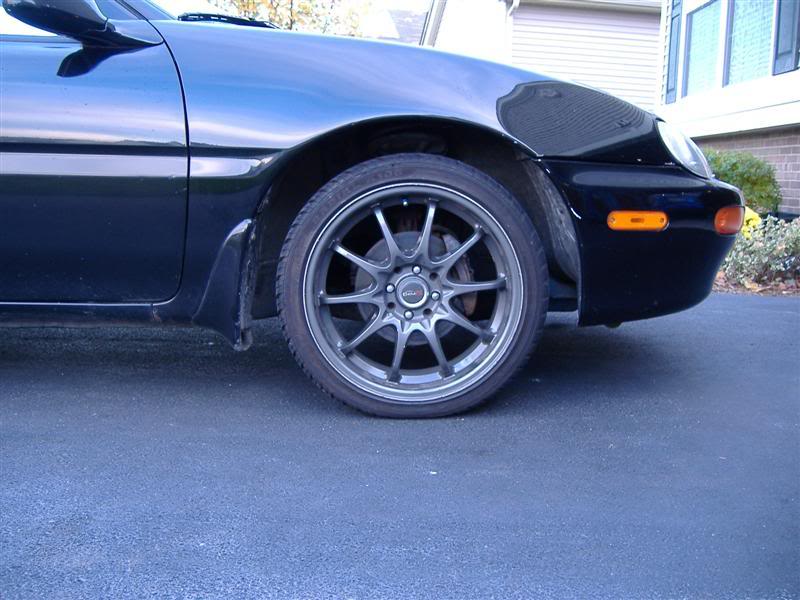

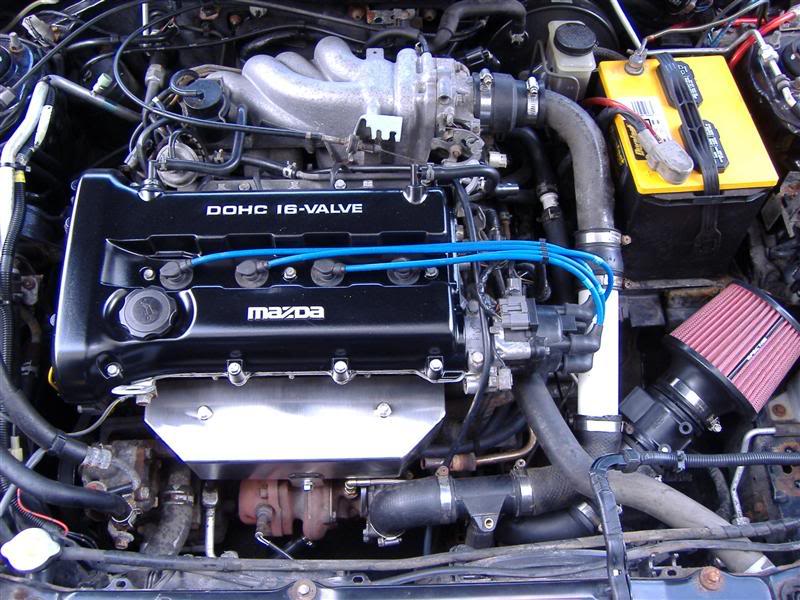

I think my Miata wheels look better on this car. I bought 16s for the Miata that are 1/2 the weight of those 17" so they went on the 3. The turbo, dp housing and downpipe are from the Probe. Manifold is from a 323 GTX. Running 5.5psi on no engine management other then 6deg base timing and 280cc Probe injectors. Apperently the maf has some headroom. Lets see how long this holds up. Total cost $230 and the PVC is back! I'll fix that this spring when I put an intercooler in it.

Name:  DSCF1165Medium-1.jpg
Views: 1
Size:  64.3 KB
Name:  DSCF1171Medium.jpg
Views: 1
Size:  70.9 KB
Name:  DSCF1167Medium-1.jpg
Views: 1
Size:  101.6 KB
Name:  DSCF1169Medium.jpg
Views: 1
Size:  37.2 KB
lazzer408 is offline   Reply With Quote
Old 12-07-2007, 10:51 AM   #2
Elite Member
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default

again?
Zabac is offline   Reply With Quote
Old 12-07-2007, 10:57 AM   #3
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Lexington, SC
Posts: 2,084
Total Cats: 0
Default

that valve cover is nice, the charge pipe doesn't rub the battery?
mazda/nissan is offline   Reply With Quote
Old 12-07-2007, 10:58 AM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,887
Total Cats: 1,792
Default

that turbo is so tiny.
Braineack is online now   Reply With Quote
Old 12-07-2007, 10:59 AM   #5
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Lexington, SC
Posts: 2,084
Total Cats: 0
Default

is that the same afm that the 1.8's use?
mazda/nissan is offline   Reply With Quote
Old 12-07-2007, 11:08 AM   #6
Senior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2006
Location: Illinois
Posts: 1,011
Total Cats: 7
Default

Quote:
Originally Posted by whaaamx5 View Post
again?
Whut?

Quote:
Originally Posted by Braineack View Post
that turbo is so tiny.
Yeh it is. I forgot how small they are. That's the same turbo I used on my first diy Miata setup. But it spools quick.

Quote:
Originally Posted by mazda/nissan View Post
is that the same afm that the 1.8's use?
I believe it is. I don't think the 1.6L in here is the same as the Miata and GTX 1.6L. It's some B6 variant (B6F?). Alot of it is the same but the block casting is different -I think-. The oil pan is 2 pieces. It has an aluminum skirt. Also this engine had 212cc injectors in it. What did the B6 Miata have 190s?

The charge pipe isn't hitting the battery. That's all temporary anyways. I needed it to drive the car. =)
lazzer408 is offline   Reply With Quote
Old 12-07-2007, 11:12 AM   #7
Senior Member
iTrader: (2)

SamS's Avatar

Join Date: Jun 2006
Location: Wisconsin
Posts: 1,254
Total Cats: 7
Default

looks nice, it's hard to find a clean mx-3 these days.
SamS is online now   Reply With Quote
Old 12-07-2007, 11:18 AM   #8
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

damn lazzer, you are the king of cheap turbo setups
that's a clean 3
m2cupcar is offline   Reply With Quote
Old 12-07-2007, 11:24 AM   #9
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,295
Total Cats: 26
Default

Heh, i love rigged setups that work.

Welcome back Lazzer.
Splitime is offline   Reply With Quote
Old 12-07-2007, 11:33 AM   #10
Senior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2006
Location: Illinois
Posts: 1,011
Total Cats: 7
Default

Thanks guys. It's my gas saving daily driver. 32mpg up from 30 with the turbo. Go figure. The Civic was automatic and OBD-2. It was easier to do the 3 plus it's stick. The guy traded me even up. His gf couldn't drive stick. I also wired up cruise control that I grabed from a v6 3 at the junkyard. That was a pain in the ***. On the manual 3s there is a transistor in the instrument panel that causes the brake indicator light to light up when you turn the key to start. That transistor had a resistor from base to ground which caused the cruise to think the clutch was depressed. The cruise normally sees that ground thru the starter solinoid to deactivate when you press the clutch. It took awhile to figure it all out.

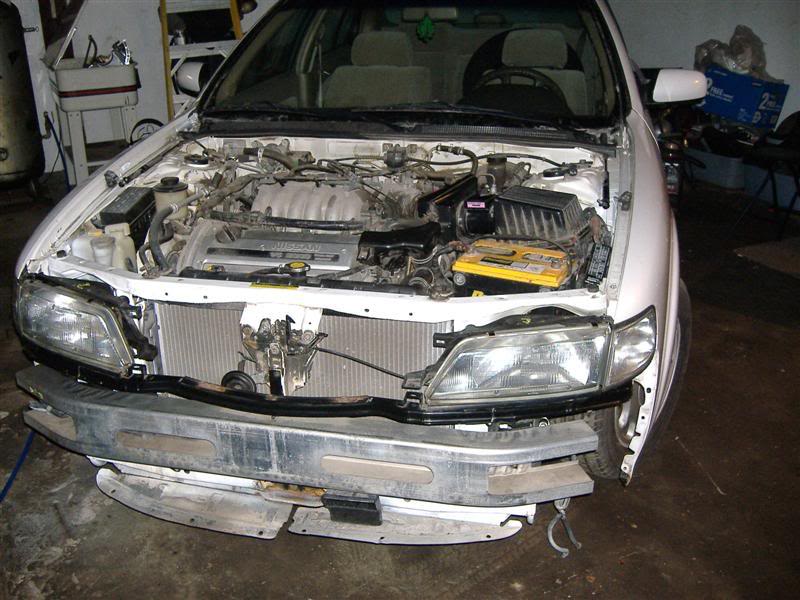

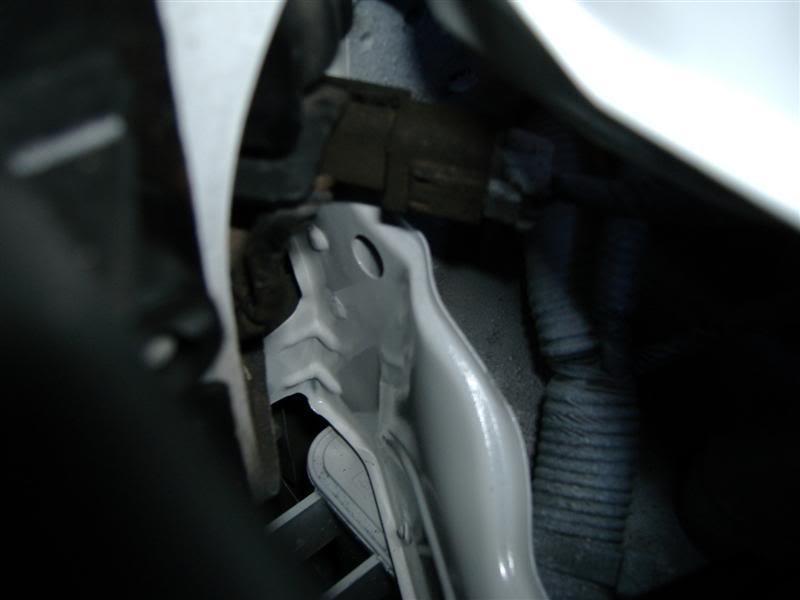

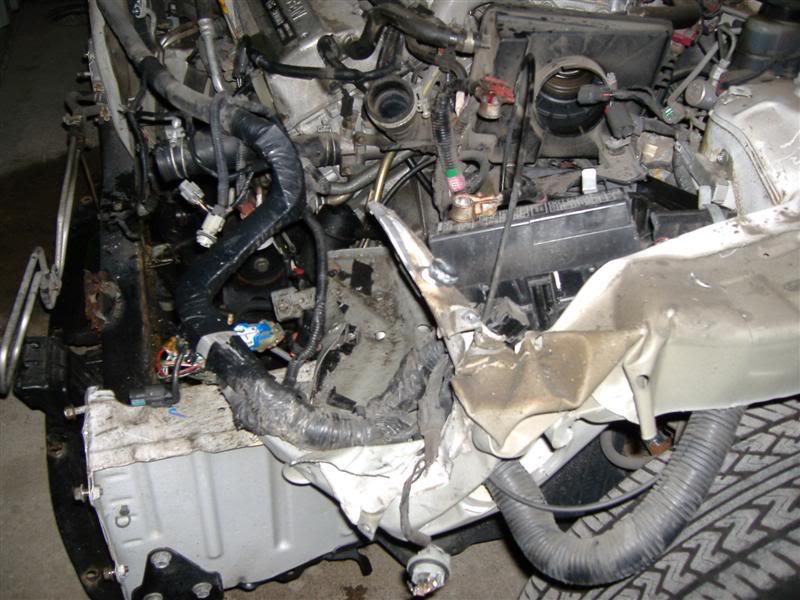

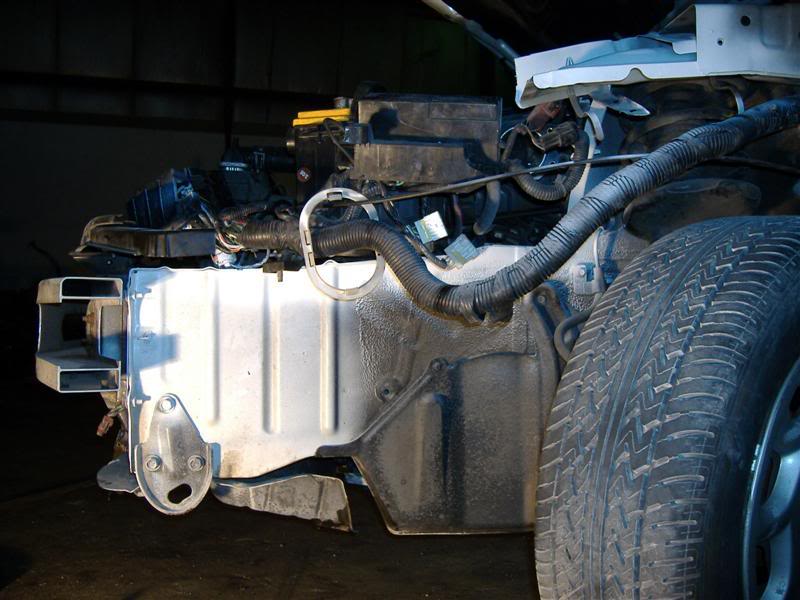

On another note, Check out this 83,000mi Nissan Maxima I picked up. To make conversation... My friend was moving to Florida and on his way to get a Uhaul and a dolly, he rear ended an SUV. He gave me the car. =) I don't have many before pictures but it was bad. A relay box with 7 relays was pinched between the core support and the battery and more or less exploded on impact into 1000 pieces alone with the airbox assembly. I've rewired in a new relay box, replaced the airbox, and welded in the core support. It's drivable now but I still need a hood and bumper cover. This is my first attempt at any major body work. My first time spot welding sheetmetal with the mig too. That pic is kinda hard to see. It's easy after all. I'm going to sell this car once it's done. Anyone like Maximas?

Name:  DSCF1180Medium.jpg
Views: 1
Size:  82.2 KB
Name:  DSCF1207Medium.jpg
Views: 1
Size:  68.8 KB
Name:  DSCF1222Medium.jpg
Views: 1
Size:  26.7 KB
Name:  DSCF1224Medium.jpg
Views: 1
Size:  85.5 KB
lazzer408 is offline   Reply With Quote
Old 12-07-2007, 11:37 AM   #11
Senior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2006
Location: Illinois
Posts: 1,011
Total Cats: 7
Default

Quote:
Originally Posted by Splitime View Post
Heh, i love rigged setups that work.

Welcome back Lazzer.
Power to the people!
lazzer408 is offline   Reply With Quote
Old 12-07-2007, 12:03 PM   #12
Elite Member
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default

Quote:
Originally Posted by lazzer408 View Post
Whut?
the thread title said butt-plug, i thought it was funny
no biggie-but you used to get pissed when they changed your thread title
thats all, not meant to confeuse anyone
Zabac is offline   Reply With Quote
Old 12-07-2007, 12:04 PM   #13
Elite Member
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default

about the maxima, i love my 97, only thing is their 02 sensors like to **** a lot and the shocks like to blow on them
Zabac is offline   Reply With Quote
Old 12-07-2007, 12:17 PM   #14
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

The maxima is looking good. Making a junkyard run soon?
cjernigan is offline   Reply With Quote
Old 12-07-2007, 12:17 PM   #15
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

******* nice. Glad to see you back Lazzer.

Nice valve cover and heat shield.
TurboTim is offline   Reply With Quote
Old 12-07-2007, 12:25 PM   #16
Senior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2006
Location: Illinois
Posts: 1,011
Total Cats: 7
Default

Quote:
Originally Posted by whaaamx5 View Post
the thread title said butt-plug, i thought it was funny
no biggie-but you used to get pissed when they changed your thread title
thats all, not meant to confeuse anyone
I was mocking the past I guess. I'm glad someone got a chuckle out of it. =)

O2s must be ok. No CEL so far. The struts are toast. That's the only bad thing. It already has new front brakes, axles, and 4 tires though. I know because I did all the work last summer. lol

Tim muh man! How goes it?

cjernigan: Yeh I keep checking the yards but no white ones yet. I'll hold out for the same color so I don't have to have it painted.
lazzer408 is offline   Reply With Quote
Old 12-07-2007, 12:53 PM   #17
Elite Member
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default

good call on waiting for the right color parts, it is worth the wait, especially since you dont have anything in the car, i used to do that for a living (fix up cars)
struts dont last on maximas, mine rides like a boat
i had to change 3 02s on mine, but its been good lately, lol
Zabac is offline   Reply With Quote
Old 12-07-2007, 09:43 PM   #18
Junior Member
iTrader: (2)

Join Date: Nov 2005
Location: A2, MI
Posts: 474
Total Cats: 0
Default

The 3 looks great, just like tha maxima.

All you people with daily drivers that are great on gas.... My daily gets 15-17mpg on the freeway. It sucks but, it's fun to drive and not that old, it's good looking and it's also a Mazda.
Dhaark is offline   Reply With Quote
Old 12-08-2007, 01:51 AM   #19
Senior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2006
Location: Illinois
Posts: 1,011
Total Cats: 7
Default

Quote:
Originally Posted by Dhaark View Post
The 3 looks great, just like tha maxima.

All you people with daily drivers that are great on gas.... My daily gets 15-17mpg on the freeway. It sucks but, it's fun to drive and not that old, it's good looking and it's also a Mazda.
What is it?
lazzer408 is offline   Reply With Quote
Old 12-08-2007, 01:55 AM   #20
Elite Member
iTrader: (11)

Trent's Avatar

Join Date: Feb 2006
Location: Louisiana
Posts: 1,625
Total Cats: 5
Default

looking at his sig, the rx8 maybe? I knew rotaries weren't exactly miserly, but dang. 15-17 highway?!
Trent is offline   Reply With Quote
