Old 09-17-2013, 12:31 PM   #101
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

solid info hyde.



I emailed Thermwell products about the foam **** you guys use. product number fv516 has a temperature rating of 190 degrees but the fiberglass is fire retardant.

So it will fall off but it wont burn. Probably OK to use if it will stick. (similar to what Hyde said)
shlammed is offline   Reply With Quote
Old 10-16-2013, 06:13 PM   #102
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Florida
Posts: 774
Total Cats: -5
Default

Quote:
Originally Posted by poobs View Post
Well, I drove all over today in 90 degree heat and the piece that I glued on top of my heat shield is still ok.

I'm going to slap some more when I get a chance.

See pic if it loads
Oh, BTW do not use this stuff directly on the heat shield.

Mine has not burst into flames yet but it got hard and somewhat brittle. The foil seems to be ok.
poobs is offline   Reply With Quote
Old 10-16-2013, 06:16 PM   #103
MT Pony Underground
iTrader: (6)

Nagase's Avatar

Join Date: May 2009
Posts: 1,811
Total Cats: 0
Default

Update. Put a fair amount of miles on my heat shielding on the transmission tunnel/firewall.

It's quite helpful and lasting well. Still recommend ceramic coating everything though.
Nagase is offline   Reply With Quote
Old 10-16-2013, 06:51 PM   #104
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Quote:
Originally Posted by Nagase View Post
Update. Put a fair amount of miles on my heat shielding on the transmission tunnel/firewall.

It's quite helpful and lasting well. Still recommend ceramic coating everything though.
The DEI Floor & Tunnel Shield II? I'm guessing you did the 3.5 sq. ft. chunk as in the video?

Thanks for the report back, first hand experience is a huge bonus. I'm thinking this is the route I'll finally take.
EO2K is offline   Reply With Quote
Old 10-16-2013, 06:56 PM   #105
MT Pony Underground
iTrader: (6)

Nagase's Avatar

Join Date: May 2009
Posts: 1,811
Total Cats: 0
Default

I got this, actually:

DEI 050502 4' x 21" Floor And Tunnel Shield - 7 sq.ft : Amazon.com : Automotive DEI 050502 4' x 21" Floor And Tunnel Shield - 7 sq.ft : Amazon.com : Automotive

Put a chunk over the tunnel just like the video I showed before, then another square by the ebrake, and more by the headers.
Nagase is offline   Reply With Quote
Old 10-16-2013, 07:11 PM   #106
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Awesome. Does it mold well at all to the compound curves and such?
EO2K is offline   Reply With Quote
Old 10-16-2013, 07:15 PM   #107
MT Pony Underground
iTrader: (6)

Nagase's Avatar

Join Date: May 2009
Posts: 1,811
Total Cats: 0
Default

It actually did surprisingly well. The only place where there's a gap in adhesion was on the ebrake, where it needs to go up and over two different levels. I could have cut it and put on both, but it's working fine with that gap even. Very nicely sticky.

The only prep I did was soap and water.
Nagase is offline   Reply With Quote
Old 10-23-2013, 09:01 PM   #108
Senior Member
iTrader: (3)

Join Date: Dec 2007
Location: Brownsburg,IN
Posts: 800
Total Cats: 58
Default

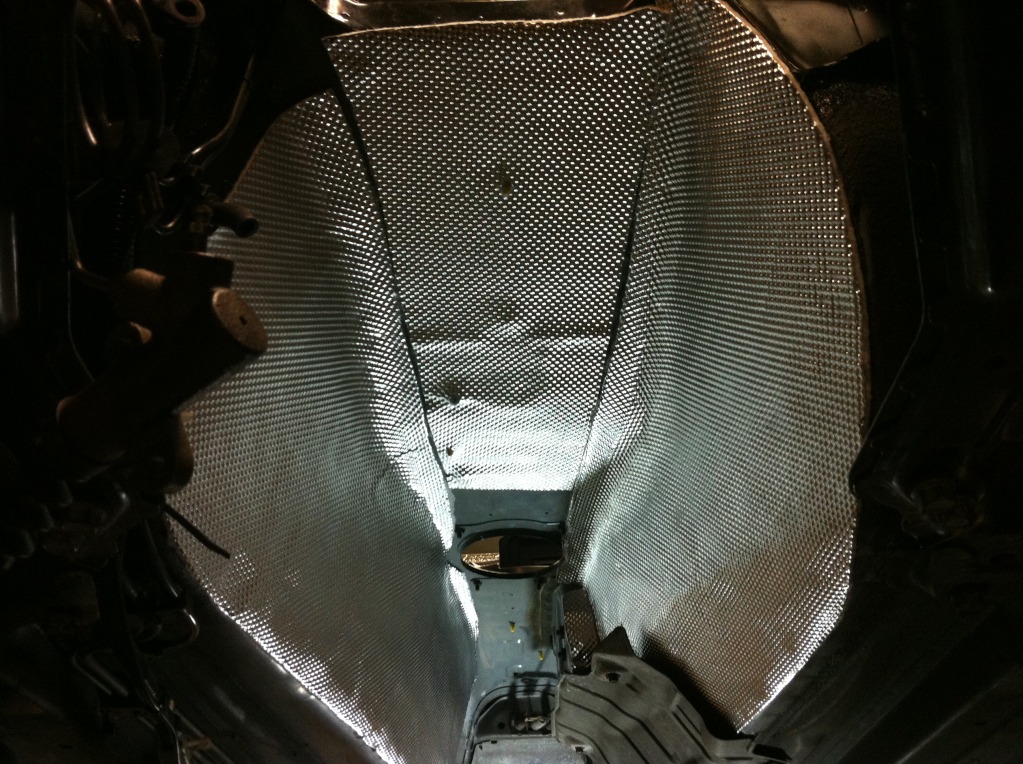

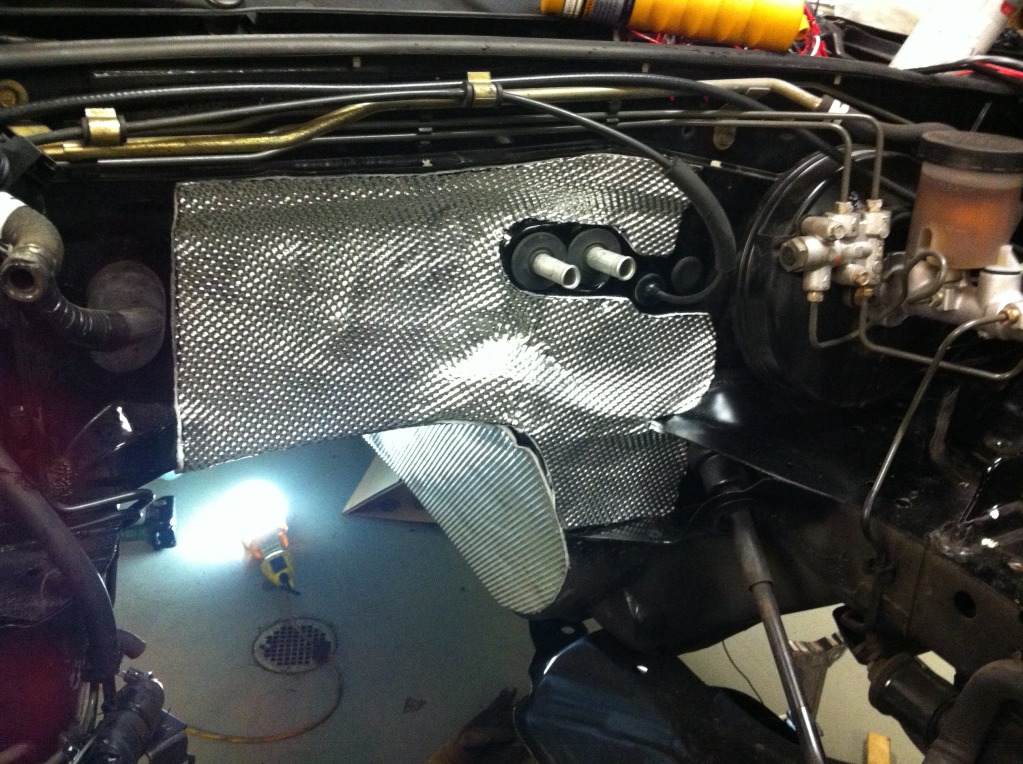

Just finished putting some on my build, hope that it is worth the money

Attached Thumbnails
How R you keeping the heat out of cabin?-null_zps53c4f432.jpg   How R you keeping the heat out of cabin?-null_zpsd287ad6b.jpg
HHammerly is offline   Reply With Quote
Old 10-23-2013, 09:13 PM   #109
MT Pony Underground
iTrader: (6)

Nagase's Avatar

Join Date: May 2009
Posts: 1,811
Total Cats: 0
Default

I'd put some on the ebrake area too. A surprising amount of heat comes in through there.
Nagase is offline   Reply With Quote
Old 10-23-2013, 09:19 PM   #110
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Florida
Posts: 774
Total Cats: -5
Thumbs up

Quote:
Originally Posted by HHammerly View Post
Just finished putting some on my build, hope that it is worth the money

Looks like good stuff

U built your car in the shower ?!

poobs is offline   Reply With Quote
Old 10-23-2013, 10:44 PM   #111
Senior Member
iTrader: (3)

Join Date: Dec 2007
Location: Brownsburg,IN
Posts: 800
Total Cats: 58
Default

Yea, got some over the brake howsing; No shower LOL long story but in short i have a shop floor drain (shower drain from Lowes)
HHammerly is offline   Reply With Quote
Old 10-25-2013, 03:07 AM   #112
Junior Member

Join Date: Oct 2013
Location: Bay Area
Posts: 68
Total Cats: 0
Default

I have dynamat installed in the bay and in the interior. Helped out a lot.
L4nthonyl is offline   Reply With Quote
Old 10-28-2013, 01:01 AM   #113
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Man finding rattles with the shiny stuff will be a pain in the ***, glue that **** on there good.
triple88a is offline   Reply With Quote
Old 10-28-2013, 02:00 AM   #114
Senior Member
iTrader: (4)

mr_hyde's Avatar

Join Date: Jul 2009
Location: Seattle
Posts: 799
Total Cats: 25
Default

It wouldn't be the worst idea to pop a few holes at the corners and secure with some rivets and fender washers.
mr_hyde is offline   Reply With Quote
Old 12-03-2013, 02:14 PM   #115
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Quote:
Originally Posted by HHammerly View Post
Just finished putting some on my build, hope that it is worth the money
HHammerly: How many sq/ft did you buy to get that much coverage? I may order this week and see how it goes.
EO2K is offline   Reply With Quote
Old 12-03-2013, 07:33 PM   #116
Senior Member
iTrader: (3)

Join Date: Dec 2007
Location: Brownsburg,IN
Posts: 800
Total Cats: 58
Default

I got the 4'x42" mat like the one on this link (no affiliation) http://www.stylintrucks.com/parts/fl...45050503-.aspx

And had some left over after making the brake master heat shield etc.
it was easy to install with the engine and tranny out, but it would be hard to do with them on
HHammerly is offline   Reply With Quote
Old 12-03-2013, 08:07 PM   #117
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Killer, thanks for the reply. Ordered 14sq/ft this afternoon, along with some other stuff. I'm looking to get similar coverage and didn't want to short myself. It will sit for a while until the engine/trans comes out again, but that shouldn't be an issue.

I noticed that DEI has part numbers for both "Floor and Tunnel Shield" and "Floor and Tunnel Shield II" floating around out there. Both sets of part numbers are searchable and orderable on Amazon. I'm wondering why they revised the product? I bought the II FWIW

Also ordered DEI Cool Tape for the seams, because anything worth doing is worth overdoing
EO2K is offline   Reply With Quote
Old 12-03-2013, 08:23 PM   #118
Senior Member
iTrader: (3)

Join Date: Dec 2007
Location: Brownsburg,IN
Posts: 800
Total Cats: 58
Default

Great, post some photos when you get it done
HHammerly is offline   Reply With Quote
Old 12-04-2013, 01:27 PM   #119
Junior Member
iTrader: (1)

Join Date: Jan 2012
Location: College Station/Bryan
Posts: 57
Total Cats: 6
Default

Quote:
Originally Posted by Nagase View Post


Here's a solution for the transmission tunnel from a local miata shop.

Mainly works on street cars, so sounds like this is a cheap easy and effective way to go.

What it is: Floor & Tunnel Shield II - Heat & Sound Insulation 050501 | Purchase DEI, CryO2, Ny-Trex, Boom Mat & SPA Turbo Products | Design Engineering, Inc. - Thermal Performance Products

Where he's selling it: Miatamecca Insulation Heat Shield Floor Tunnel Cure for Miata MX 5 Hot Foot | eBay

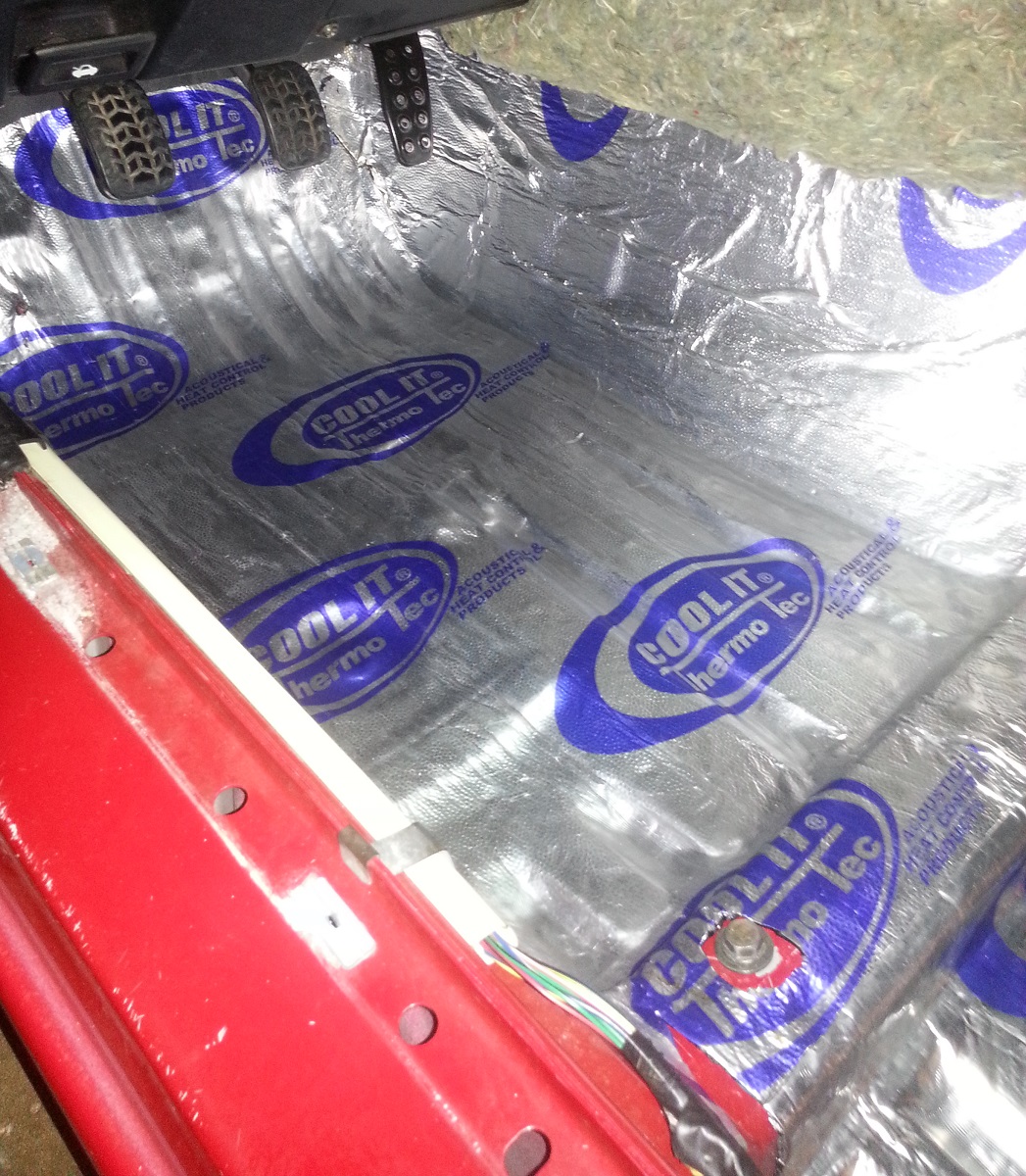

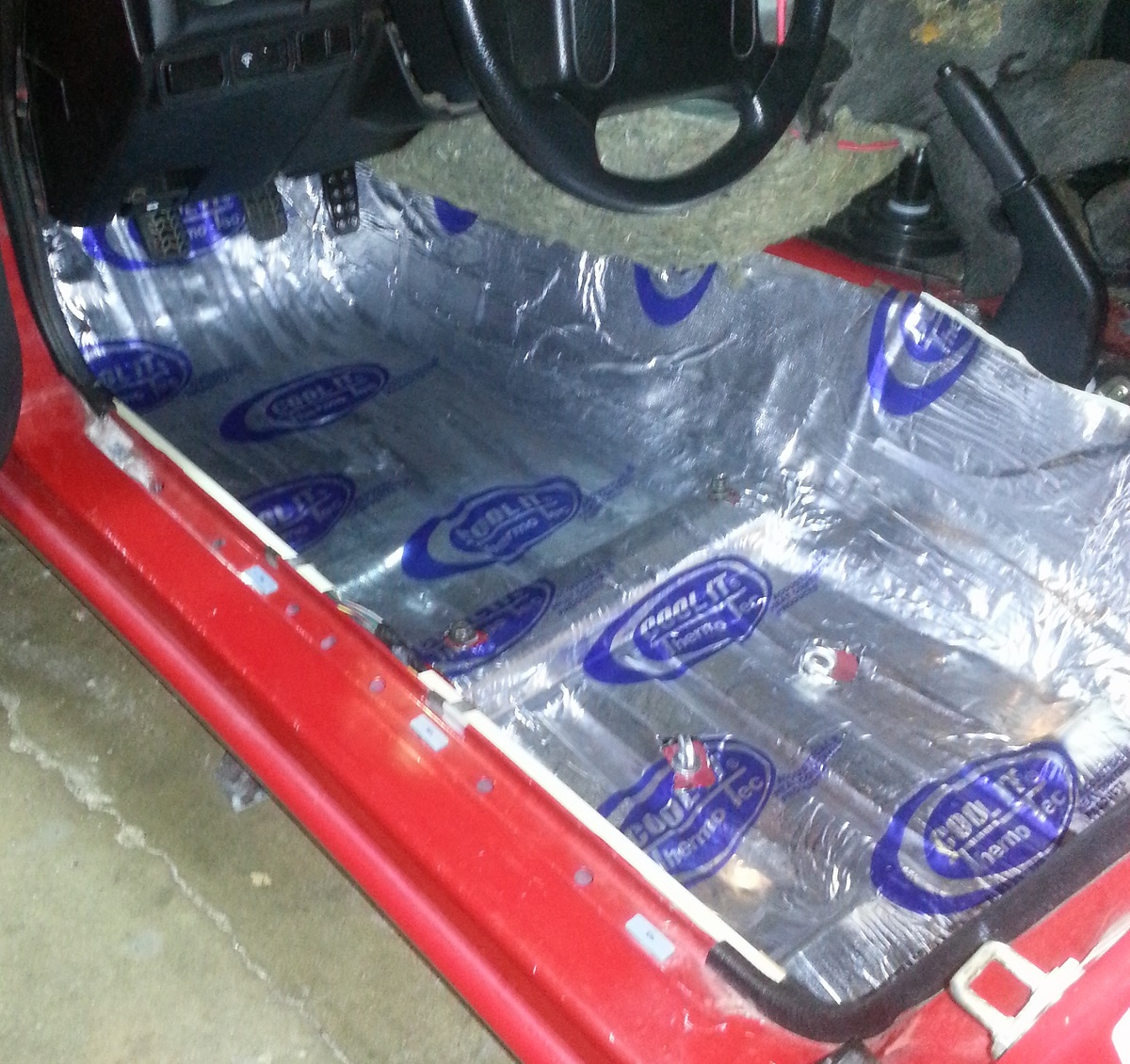

I did this and used this in the car on drivers side and over transmission tunnel made a huge difference.
How R you keeping the heat out of cabin?-20130905_205444.jpg
How R you keeping the heat out of cabin?-20130905_205452.jpg
t2couger is offline   Reply With Quote
Old 12-04-2013, 01:55 PM   #120
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Is that Suppressor Acoustical & Heat Control Mat or Super Sonic Acoustical Mat ?

I'm pulling the dash this weekend and the plan is to run DEI - Under Carpet Lite over the tunnel and as far up the firewall as I can get it, and then follow it up with the before mentioned Floor and Tunnel Shield II on the outside next time the engine is out.

I have a roll of RattleTrap XXX in the garage I bought for my 70's F250 that I could press into service, but that ****'s heavy. I used some on the rear deck and vertical section behind the seats in the Miata and it helped a lot, but I'm not sure I want to use all 30lbs of the stuff.
EO2K is offline   Reply With Quote
