Old 08-26-2013, 05:19 PM   #21
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Florida
Posts: 774
Total Cats: -5
Default

Quote:
Originally Posted by triple88a View Post
Keep in mind most turbo blankets will not cover the down pipe so you'll need to make a good heat shield regardless. I say start with the heat shield and then add a turbo blanket (which will probably crumble into nothing by the end of the year)
crumble into nothing by the end of the year ???!!!!
poobs is offline   Reply With Quote
Old 08-26-2013, 05:23 PM   #22
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Quote:
Originally Posted by poobs View Post
crumble into nothing by the end of the year ???!!!!
Maybe i misspelled something. Yes it will turn hard, bridle and start to chip away piece by piece. Back when i was searching for reviews most people say they last about a year before they become useless.
triple88a is offline   Reply With Quote
Old 08-26-2013, 05:29 PM   #23
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

Check Faefae's abortion of a thread. IIRC he went through at least 2 different blankets.
thenuge26 is offline   Reply With Quote
Old 08-26-2013, 06:12 PM   #24
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Florida
Posts: 774
Total Cats: -5
Default

No, I believe you. I was just surprised.
It doesn't take much for me not to spend money
poobs is offline   Reply With Quote
Old 08-26-2013, 06:41 PM   #25
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Its a shame, they look quite nice.
triple88a is offline   Reply With Quote
Old 08-26-2013, 08:08 PM   #26
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Florida
Posts: 774
Total Cats: -5
Default

Quote:
Originally Posted by triple88a View Post
Its a shame, they look quite nice.
There's a spray advertised where header tape and stuff like that is sold....

I plugged the little hole in my fire wall

Ironically it is just too darn hot in the garage to start fabricating a heat shield.
poobs is offline   Reply With Quote
Old 08-26-2013, 10:02 PM   #27
Junior Member
iTrader: (1)

Join Date: Feb 2011
Location: Minot, ND
Posts: 242
Total Cats: 21
Default

I have the same issue and friends will ask I have the heat on in the summer until they notice it's not on. Even with the top down, and a muggy day somewhat, that heat will get to you and it'll annoy me till..........forever. I have my manifold and downpipe wrapped. I opted out of the turbo blanket for same reasons listed above. I am all for fabbing a complete heat shield one day but I think just drawing more air into the bay would help tremendously. That heat has to go somewhere no matter how you cover it. In for some real results
sickmiatabra is offline   Reply With Quote
Old 08-26-2013, 10:07 PM   #28
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

Drawing more air into the bay will be great for making your interior cool, but terrible for keeping your engine cool.
thenuge26 is offline   Reply With Quote
Old 08-26-2013, 11:16 PM   #29
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Florida
Posts: 774
Total Cats: -5
Default

At one point I considered running a heavily insulated flex hose from the nose to a hole somewhere in the floor but felt that it would pick up heat regardless.

There are aircraft like vents that rotate to direct air. They come as part of the small triangular windows on the doors.

I hope to be able to better plan my approach tomorrow. Might even stop be AutoZone to pick up some header wrap or some other stuff.
poobs is offline   Reply With Quote
Old 08-27-2013, 12:57 AM   #30
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

This would be Crusher of 949Racing



Quote:
Originally Posted by emilio700 View Post
The stuff in the floor is Koolmat. Still a bit slippery when wet but great in the dry.
The inside of the tunnel has Thermo-Tec adhesive backed barrier. Image here. Header and exhaust are wrapped to rear axle with DEI 2" header wrap. Car has almost no radiant heat inside. Putting a ton of thermal barriers on the cockpit side of the tunnel is a waste of time. Exhaust will heat all the sheet metal from the firewall to the rear bulkhead to 180 and radiate buckets of heat even if the little heel protector mat is saving your right foot. Keep the tub from getting hot in the first place and you don't need to go crazy in the interior.
Emphasis added for emphasis. If it works for 25hr enduro races, it will work in our peasant mobiles.

More infos here: https://www.miataturbo.net/race-prep-75/crusher-61450/
Attached Thumbnails

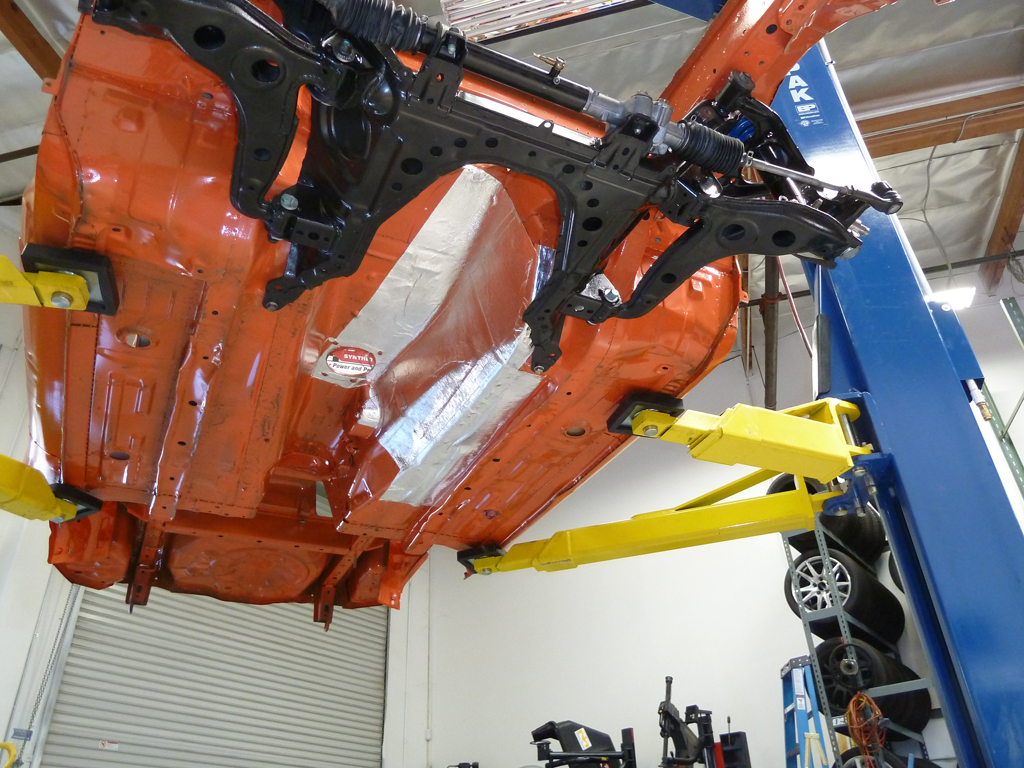

How R you keeping the heat out of cabin?-crusher_tub_underneath_1.jpg

Last edited by EO2K; 08-27-2013 at 01:56 AM.
EO2K is offline   Reply With Quote
Old 08-27-2013, 08:45 AM   #31
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

im trying to figure out why this isnt a thread about insulating the tranny tunnel...
Braineack is offline   Reply With Quote
Old 08-27-2013, 09:35 AM   #32
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Florida
Posts: 774
Total Cats: -5
Default

Quote:
Originally Posted by Braineack View Post
im trying to figure out why this isnt a thread about insulating the tranny tunnel...
It is
poobs is offline   Reply With Quote
Old 08-27-2013, 09:42 AM   #33
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

Quote:
Originally Posted by poobs View Post
It is
finally after #30 (i didnt notice it when i posted)
Braineack is offline   Reply With Quote
Old 08-27-2013, 10:31 AM   #34
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

Brain's mind is always on someone's tranny tunnel
thenuge26 is offline   Reply With Quote
Old 08-27-2013, 10:40 AM   #35
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

you better believe it.
Braineack is offline   Reply With Quote
Old 08-27-2013, 11:41 AM   #36
Elite Member

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 2,159
Total Cats: 131
Default

Quote:
Originally Posted by triple88a View Post
I say start with the heat shield and then add a turbo blanket (which will probably crumble into nothing by the end of the year)
I'll let you know how mine fairs. I only drive my car in the warmer months though so it won't be effected by snow and salt. It does seem a little less flexible than it was when I installed it but it's not like I am handling it at all.
Chiburbian is offline   Reply With Quote
Old 08-27-2013, 05:06 PM   #37
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Florida
Posts: 774
Total Cats: -5
Default

I just bit the bullet and ordered a 100" x 2" roll of header wrap for the DP.

Nearly ordered the Flying Miata GRedy turbo heat shield but it really does not seem to fit my Racing Mazda dp.

Put my hand to the metal that makes up the box directly behind the firewall and it was HOT.

On the bright side - anything I do is going to make things better.
poobs is offline   Reply With Quote
Old 08-27-2013, 05:58 PM   #38
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Quote:
Originally Posted by Braineack View Post
finally after #30 (i didnt notice it when i posted)
And yet, no props

(Of course, you should be thanking Emilio for sharing)

Last edited by EO2K; 08-27-2013 at 06:18 PM.
EO2K is offline   Reply With Quote
Old 08-28-2013, 09:51 AM   #39
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

I gave you one for post #30, but -1 for this whiney bitch post

I should alos give poobs -1 for wrapping the header instead of insulating the things he wants to protect from heat.
Braineack is offline   Reply With Quote
Old 08-28-2013, 01:08 PM   #40
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Attached Thumbnails
How R you keeping the heat out of cabin?-eo2k-15208-albums-random-647-picture-screen-image-285177-3381.jpg
EO2K is offline   Reply With Quote
