Stock 2000 miata with FM setup from Manifold back.
2.5 exhaust with cat. Fab9 vibrant 'stage 1' intercooler. Running stock timing map from brain's basemap.
Turbo is a SR20 modified to a '2560'. FM manifold was modified with a tial EWG (by thirdgen).

-Make sure boost cut was set up for 12 psi
-Disconnect wg line
-Do a 4th gear pull starting at ~2k rpm

Started at TPS of 3.2, psi -12.2 and 1687 rpm.

0 PSI : 1771 RPM at TPS 38.3
1 PSI : 1886 RPM at TPS 100 (first reading at 100 TPS)
2 PSI : 2105 RPM
3 PSI : 2174 RPM
4 PSI : 2370 RPM
5 PSI : 2551 RPM
6 PSI : 2742 RPM
7 PSI : 2883 RPM
8 PSI : 3005 RPM
9 PSI : 3102 RPM
10 PSI : 3200 RPM
11 PSI : 3253 RPM
12 PSI : 3349 RPM
/Boost cut @ 12

Should I do this again and start when holding the 'boost' at about atm pressure with the throttle? In any event, this doesn't seem too bad.



Log here: https://www.miataturbo.net/build-thr...5/#post1430616
ridethecliche is offline   Reply With Quote
Old 09-25-2017, 11:52 PM   #322
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,641
Total Cats: 1,549
Default

Engine: Trackspeed Stage 2 VVT longblock (8.6:1 83.5mm Supertechs)
Turbo: EFR6758 0.64a/r
Manifold: Trackspeed EFR T25
Downpipe Size/Style: Trackspeed EFR 3"
Exhaust Size: 3"
Exhaust Components: 3" Enthuza metal cat + catback
Intercooler Core Size: Precision 350hp
Intake Manifold: EUDM Squaretop
Headwork: OEM
Engine Management: MSLabs MS3 Basic
Other Spoolin' Helpers/Hurters: CA91, GM D585s, 3.636:1s

FIFTH GEAR PULL: (equivalent of a 4th gear pull in a 5-speed car)

RPM Boost(psi)
2023rpm 0.1psi
2060rpm 1.0psi
2152rpm 2.0psi
2268rpm 3.0psi
2404rpm 4.1psi
2536rpm 5.0psi
2621rpm 6.0psi
2720rpm 7.0psi
2811rpm 8.0psi
2911rpm 9.0psi
2988rpm 10.1psi
3079rpm 11.2psi
3135rpm 12.1psi
3218rpm 13.1psi
3263rpm 14.2psi
3304rpm 15.1psi
3370rpm 16.0psi
3420rpm 17.0psi
3484rpm 18.4psi
Savington is online now   Reply With Quote
Old 11-21-2017, 10:50 AM   #323
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 16,557
Total Cats: 1,771
Default

Engine: '96 (8.6:1 Supertechs), Crower forged rods
Turbo: GTX2867R 0.86a/r IWG
Manifold: Artech Tubular Top Mount
Downpipe Size/Style: Artech 3"
Exhaust Size: 3"
Exhaust Components: 3" MKTurbo Magnaflow
Intercooler Core Size: Medium-sized Ebay junk, I'll measure and insert info here later
Intake Manifold: stock '96 NA8
Headwork: Ported by Miata2fast, small stock NA8 cams, hyd lifters
Engine Management: MSLabs MS3 Basic
Other Spoolin' Helpers/Hurters: Skunky2 TB, Air filter mounted right on turbo for hot air intake, GM 585s, 3.636:1s,

FIFTH GEAR PULL: (equivalent of a 4th gear pull in a 5-speed car)

RPM Boost(psi)
1900rpm 0.4psi
2000rpm 1.0psi
2200rpm 1.7psi
2400rpm 2.3psi
2600rpm 3.0psi
2800rpm 3.7psi
3000rpm 4.2psi
3200rpm 4.8psi
3400rpm 5.4psi
3600rpm 6.0psi
3800rpm 6.8psi
4000rpm 8.6psi
4200rpm 9.9psi
4400rpm 12.1psi
4600rpm 16.0psi
4800rpm 18.6psi
5000rpm 20.3psi
5200rpm 21.1psi
sixshooter is online now   Reply With Quote
Old 11-21-2017, 10:53 AM   #324
Tweaking Enginerd
iTrader: (2)

Join Date: Mar 2013
Location: Boulder, CO
Posts: 587
Total Cats: 50
Default

Thanks Six! Super informative for me.

do you have a VD by any chance?
Ted75zcar is offline   Reply With Quote
Old 11-21-2017, 11:27 AM   #325
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 16,557
Total Cats: 1,771
Default

Quote:
Originally Posted by Ted75zcar View Post
Thanks Six! Super informative for me.

do you have a VD by any chance?
Uh, nope. Clean bill of health.
sixshooter is online now   Reply With Quote
Old 11-21-2017, 11:29 AM   #326
Tweaking Enginerd
iTrader: (2)

Join Date: Mar 2013
Location: Boulder, CO
Posts: 587
Total Cats: 50
Default

Quote:
Originally Posted by sixshooter View Post
Uh, nope. Clean bill of health.
nice, good to hear.

very curious to know if you get the typical tq fall-off after say 5kRPM with that turbine housing and ex combo.
Ted75zcar is offline   Reply With Quote
Old 11-21-2017, 11:58 AM   #327
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 16,557
Total Cats: 1,771
Default

Next time I'm at my computer I will upload that particular log
Attached Files
File Type: msl 2017-04-09_10.03.08.msl (569.9 KB, 44 views)

Last edited by sixshooter; 11-28-2017 at 07:58 AM.
sixshooter is online now   Reply With Quote
Old 11-21-2017, 02:23 PM   #328
Tweaking Enginerd
iTrader: (2)

Join Date: Mar 2013
Location: Boulder, CO
Posts: 587
Total Cats: 50
Default

Quote:
Originally Posted by sixshooter View Post
Next time I'm at my computer I will upload that particular log
sweet, thanks!
Ted75zcar is offline   Reply With Quote
Old 03-05-2018, 10:37 AM   #329
Newb

Join Date: Sep 2010
Location: Portugal
Posts: 41
Total Cats: 0
Default

Engine: BP4W (9:1 84mm Supertechs)
Turbo: VF35
Manifold: Kraken Subaru Log
Downpipe Size/Style: 3" Custom
Exhaust Size: 3"
Exhaust Components: 3" Magnaflow metal cat + Magnaflow big mufler
Intercooler Core Size: Ebay 450MM X 175MM X 65MM
Intake Manifold: Squaretop
Headwork: Home DIY P&P
Engine Management: MSLabs MS3 Basic
Other Spoolin' Helpers/Hurters: 98Ron, EBC, 3.636:1s

FIFTH GEAR PULL: (equivalent of a 4th gear pull in a 5-speed car)

Time RPM TPS MAP Boost
s RPM % kPa psi
0 1923.0 100.3 102.2 0.3
0.067 1934.0 100.3 102.7 0.3
0.134 1940.0 100.3 103.4 0.4
0.201 1950.0 100.3 104.2 0.6
0.27 1958.0 100.3 104.9 0.7
0.339 1967.0 100.3 105.9 0.8
0.406 1971.0 100.3 106.4 0.9
0.474 1988.0 100.3 107.4 1.0
0.541 1997.0 100.3 108.1 1.1
0.608 2006.0 100.3 108.8 1.2
0.675 2013.0 100.5 109.6 1.3
0.74 2020.0 100.4 110.3 1.4
0.808 2034.0 100.4 111.0 1.5
0.873 2043.0 100.4 112.0 1.7
0.94 2057.0 100.4 112.7 1.8
1.007 2063.0 100.4 113.5 1.9
1.074 2080.0 100.4 114.2 2.0
1.14 2081.0 100.4 114.9 2.1
1.207 2095.0 100.4 115.9 2.2
1.275 2102.0 100.4 116.9 2.4
1.342 2112.0 100.4 117.6 2.5
1.41 2130.0 100.4 118.1 2.6
1.479 2136.0 100.4 118.8 2.7
1.55 2148.0 100.4 119.6 2.8
1.617 2161.0 100.4 120.3 2.9
1.687 2172.0 100.4 121.0 3.0
1.754 2184.0 100.4 121.5 3.1
1.821 2194.0 100.4 122.5 3.2
1.887 2206.0 100.4 123.2 3.3
1.954 2215.0 100.5 123.9 3.4
2.023 2229.0 100.4 124.4 3.5
2.091 2241.0 100.4 125.4 3.6
2.16 2256.0 100.4 125.9 3.7
2.228 2268.0 100.4 126.6 3.8
2.296 2280.0 100.4 127.2 3.9
2.363 2291.0 100.4 128.1 4.0
2.431 2293.0 100.4 128.6 4.1
2.496 2317.0 100.4 129.4 4.2
2.564 2328.0 100.4 130.1 4.3
2.631 2336.0 100.4 130.8 4.4
2.699 2352.0 100.4 131.6 4.5
2.767 2357.0 100.3 132.3 4.6
2.831 2375.0 100.3 133.5 4.8
2.899 2386.0 100.3 134.0 4.9
2.967 2403.0 100.3 134.7 5.0
3.034 2415.0 100.3 135.5 5.1
3.099 2429.0 100.3 136.1 5.2
3.167 2439.0 100.3 137.4 5.4
3.234 2451.0 100.3 137.9 5.4
3.302 2472.0 100.3 138.9 5.6
3.371 2480.0 100.3 139.6 5.7
3.438 2499.0 100.3 140.3 5.8
3.506 2508.0 100.3 141.6 6.0
3.575 2527.0 100.3 142.0 6.0
3.643 2534.0 100.3 143.0 6.2
3.711 2559.0 100.3 144.0 6.3
3.778 2571.0 100.3 144.7 6.4
3.845 2589.0 100.3 145.7 6.6
3.913 2595.0 100.3 146.5 6.7
3.98 2605.0 100.3 147.7 6.9
4.047 2622.0 100.3 148.4 7.0
4.114 2648.0 100.3 150.1 7.2
4.181 2655.0 100.3 150.3 7.2
4.248 2681.0 100.3 152.1 7.5
4.316 2680.0 100.3 152.8 7.6
4.383 2703.0 100.3 154.5 7.8
4.451 2722.0 100.3 155.0 7.9
4.518 2732.0 100.3 156.7 8.2
4.585 2760.0 100.3 157.7 8.3
4.652 2759.0 100.3 159.4 8.6
4.719 2794.0 100.5 160.9 8.8
4.786 2787.0 100.4 162.6 9.0
4.854 2832.0 100.4 163.6 9.2
4.92 2826.0 100.4 165.2 9.4
4.987 2868.0 100.4 166.7 9.6
5.055 2855.0 100.4 168.0 9.8
5.121 2894.0 100.4 169.7 10.0
5.19 2902.0 100.4 171.4 10.3
5.257 2924.0 100.4 172.8 10.5
5.324 2947.0 100.4 175.0 10.8
5.391 2965.0 100.4 176.8 11.1
5.458 2978.0 100.4 178.7 11.4
5.526 3008.0 100.4 181.4 11.7
5.593 3008.0 100.4 183.4 12.0
5.661 3039.0 100.4 185.6 12.4
5.728 3058.0 100.4 187.8 12.7
5.795 3086.0 100.4 190.9 13.1
5.862 3096.0 100.4 193.8 13.5
5.929 3133.0 100.4 196.3 13.9
5.997 3140.0 100.5 199.7 14.4
6.067 3172.0 100.5 202.4 14.8
6.134 3194.0 100.4 205.8 15.3
6.203 3212.0 100.4 209.4 15.8
6.268 3255.0 100.4 211.5 16.1
6.335 3271.0 100.4 214.1 16.5
6.402 3313.0 100.4 214.9 16.6
6.47 3335.0 100.4 215.3 16.7


5th Gear Boost Response:

@3500RPM

Time RPM TPS MAP Boost
s RPM % kPa psi
-0.27 3448 12.6 70.2 -4.3
-0.20 3456 17 80.9 -2.8
-0.13 3485 32 101.3 0.2
-0.07 3476 57.9 109.6 1.4
0.00 3480 100 113 1.9
0.07 3489 100 116.4 2.4
0.13 3496 100 120.6 3.0
0.20 3505 100 124.6 3.6
0.27 3521 100 129.1 4.2
0.34 3530 100 133.7 4.9
0.40 3540 100 138.1 5.5
0.47 3555 100 143.2 6.3
0.54 3570 100 147.8 6.9
0.60 3581 100 153.2 7.7
0.67 3599 100 158.4 8.5
0.74 3622 100 163.7 9.2
0.81 3636 100 169.4 10.1
0.87 3645 100 175.9 11.0
0.94 3668 100 181.6 11.8
1.01 3681 100 187.3 12.7
1.07 3701 100 192.9 13.5

@4500RPM

Time RPM TPS MAP Boost
s RPM % kPa psi
-0.20 4450 15.5 75.5 -3.6
-0.13 4454 23.4 96.5 -0.5
-0.07 4521 89.4 116.5 2.4
0.00 4475 100 126.4 3.8
0.07 4523 100 138.5 5.6
0.13 4516 100 151.3 7.4
0.20 4552 100 167.8 9.8
0.27 4561 100 186 12.5
0.34 4594 100 200.6 14.6
0.40 4611 100 208.7 15.8
0.47 4636 100 213.4 16.4 Boost Target


Engine is still on break in oil and process and still need some adjustments to do in the overall map.

Last edited by kamel6k; 03-05-2018 at 10:44 AM. Reason: Wrong format
kamel6k is offline   Reply With Quote
Old 03-05-2018, 10:43 AM   #330
Tweaking Enginerd
iTrader: (2)

Join Date: Mar 2013
Location: Boulder, CO
Posts: 587
Total Cats: 50
Default

~delete post~

Edit: format changed
Ted75zcar is offline   Reply With Quote
Old 03-07-2018, 05:57 PM   #331
Newb

Join Date: Dec 2014
Posts: 23
Total Cats: 2
Default

I tried to post my spool data, about a month ago and i got a responce, that my post would have to be reviewed by an admin. What happened?
Mpliki is offline   Reply With Quote
Old 03-07-2018, 07:45 PM   #332
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 16,557
Total Cats: 1,771
Default

Quote:
Originally Posted by Mpliki View Post
I tried to post my spool data, about a month ago and i got a responce, that my post would have to be reviewed by an admin. What happened?
New people have to be approved for posting initially because of spambots and spampeeps.
sixshooter is online now   Reply With Quote
Old 03-08-2018, 05:26 PM   #333
Newb

Join Date: Dec 2014
Posts: 23
Total Cats: 2
Default

Quote:
Originally Posted by sixshooter View Post
New people have to be approved for posting initially because of spambots and spampeeps.

Ok. Good to know.

Sooo am i approved now?
Mpliki is offline   Reply With Quote
Old 04-04-2018, 12:06 AM   #334
Junior Member

Join Date: Sep 2015
Location: Memphis, TN
Posts: 189
Total Cats: 28
Default

Engine: MZR 2.0L (factory stock 2009 NC)
Turbo: BW EFR6758 vband 0.85 A/R
Manifold: Gleason Manufacturing (Fab9 kit)
Downpipe Size/Style: 3" stainless vBand (Fab9 kit)
Exhaust Size: 3" stainless all the way back (Fab9 kit)
Exhaust Components: 3" Vibrant integrated metal cat in the midpipe + Vibrant single 3" vBand inlet / dual 2.5" outlet (Fab9 kit)
Intercooler Core Size: Treadstone 30"x9.25"x3.25" with end tanks (Fab9 kit)
Engine Management: Stock ECU + EcuTeK hybrid speed density tune for this particular run...
Other Spoolin' Helpers/Hurters: TurboSmart IWG75 dual-port actuator on a 7psi spring, 4-port MAC solenoid, eBoost2 at about 43% duty and WG pressure of 13.5psi

This was in FOURTH GEAR on a SIX SPEED transmission, but this was because the very first OE run on the dyno was also in 4th gear and I never caught it until it was too late. Wanted to be consistent in my later comparison runs... As such, I have some better spool waiting for me when I go back and have it retested on my own tune and in 5th gear as it should be.


2300RPM: 2psi
2550RPM: 3psi
2700RPM: 5psi
2900RPM: 7psi
3200RPM : 10psi
3400RPM: 12psi
3650RPM: 15psi
Attached Thumbnails

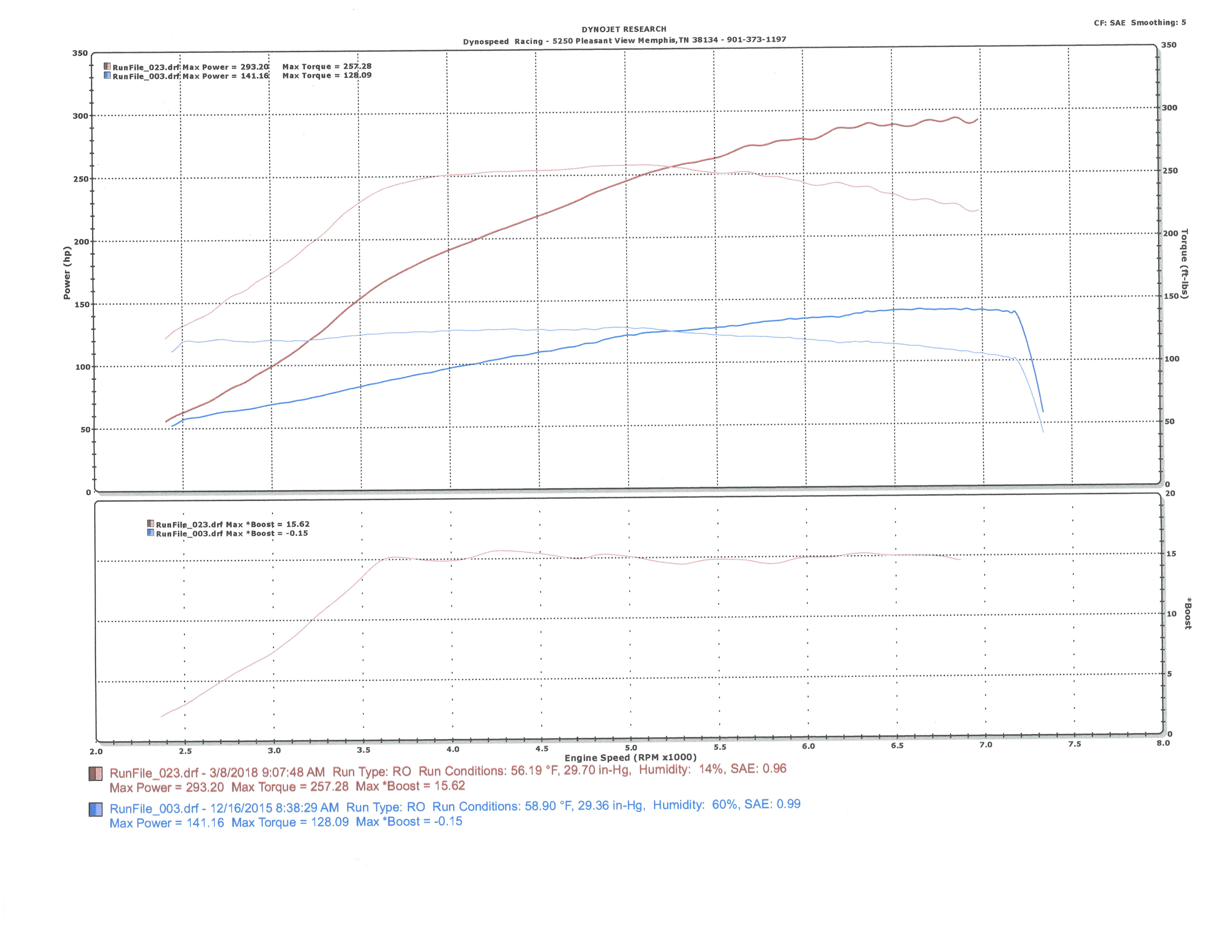

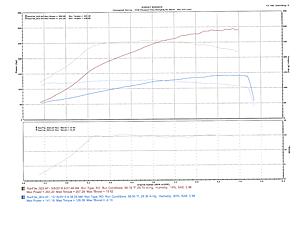

I want your spool data!-fab9-15psi-log-20180308.jpg
albuquerquefx is offline   Reply With Quote
Old 04-06-2018, 09:37 AM   #335
Junior Member
iTrader: (1)

miataman04's Avatar

Join Date: Apr 2011
Location: Jonesboro Arkansas
Posts: 461
Total Cats: 18
Default

Nice
miataman04 is offline   Reply With Quote


Reply

Related Topics
Thread Thread Starter Forum Replies Last Post
1994 Spec Miata Race Car SM/SM2/SSM For Sale Quinn Cars for sale/trade 6 10-23-2016 07:58 AM
Why dynos should plot Torque divided by MAP JasonC SBB ECUs and Tuning 11 10-27-2015 04:56 PM
Back to Stock Part Out!! Turbo Parts, MS2 Enhanced 01-05, Suspension, and MOAR! StratoBlue1109 Miata parts for sale/trade 16 10-02-2015 09:39 AM
The "other" spool question stefanst DIY Turbo Discussion 44 09-28-2015 07:16 PM
Interpreting Deatchwerks Dead Times from Battery Wizard compuw22c MEGAsquirt 0 09-14-2015 06:08 PM


Thread Tools

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off



All times are GMT -4. The time now is 01:50 PM.




We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.
