Old 01-05-2012, 08:32 PM   #161
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,984
Total Cats: 578
Default

Engine: '90 1.6L w/ 190K miles
Turbo: Mitsubishi TD04-16G (Greddy Kit)
Manifold: Greddy Cast
Downpipe Size/Style: Greddy
Exhaust Size: 60mm (2.4")
Exhaust Components: Cobalt Performance Exhaust (Moss Motors) + Metallic High Flow Cat
Intercooler Core Size: No Intercooler
Intake Manifold: stock
Headwork: none
Engine Management: MSPNP9093
Other Spoolin' Helpers/Hurters: Closed Loop EBC, Porting of the Greddy Downpipe Inlet

FOURTH GEAR PULL:
RPM Boost (psi)
2000 1.01
2100 1.31
2200 1.60
2300 1.74
2400 2.18
2500 2.47
2600 2.61
2700 3.19
2800 4.06
2900 4.79
3000 5.95
3100 6.24
3200 6.82
3300 6.96
3400 7.98
3500 8.27
3600 8.56
3700 9.28
EBC Limited After 3700
hornetball is offline   Reply With Quote
Old 01-06-2012, 02:53 AM   #162
Elite Member

Join Date: Jul 2005
Posts: 6,443
Total Cats: 80
Default

Engine: '01 8.6:1 Supertech pistons
Turbo: GT2560, internal gate
Manifold: ETD shorty tubey, internal gate
Downpipe Size/Style: BEGI custom divorced 2.25" or 2.5" ?
Exhaust Size: 3"
Exhaust Components: FM hybrid cat (2.5" entrance, 3" rear), magnaflow rez, magnaflow 5x11x22"
Intercooler Core Size: TDR over the rad
Intake Manifold: '99 VICS stock
Headwork: mild Rebello, +1mm exhaust
Engine Management: AEM boost control and VVT, VVT not fine tuned for spool yet
Other spool helpers: cool weather, IAT = 17*C, slight boost leak from compressor O-ring

2320: 5 psi
2730: 10 psi
3100: 15 psi

Last edited by JasonC SBB; 01-06-2012 at 06:09 PM.
JasonC SBB is offline   Reply With Quote
Old 01-06-2012, 03:12 AM   #163
Elite Member

Join Date: Jul 2005
Posts: 6,443
Total Cats: 80
Default

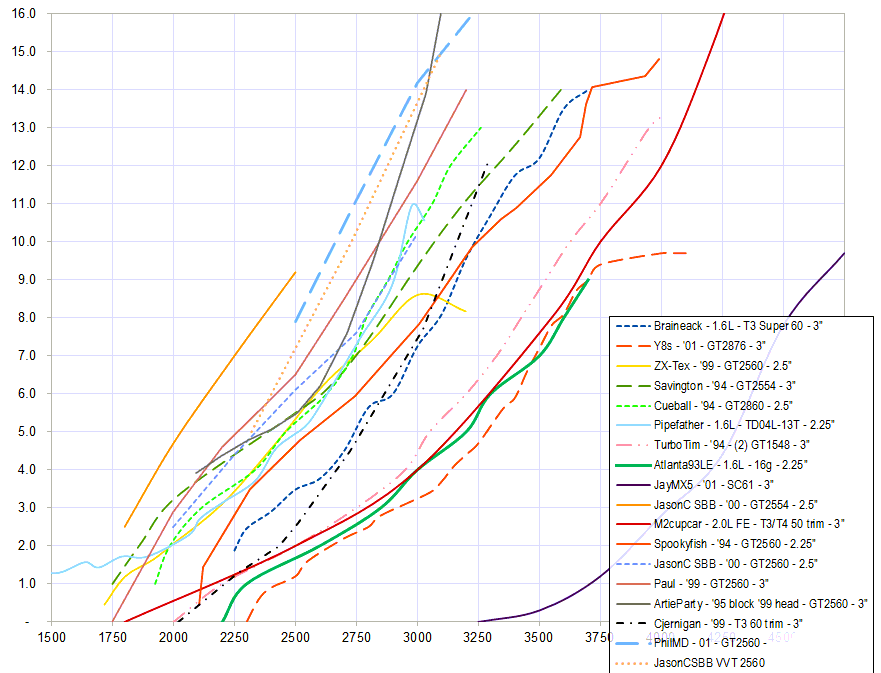

Added my new data. 3rd earliest spool. PhilMD's data (2nd fastest) isn't at 4th gear on the street, it's on a dyno, which may produce a spoolier result.

VVT head got me like 250 RPM of spool.

Attached Thumbnails
I want your spool data!-spool.gif
Attached Files
File Type: xls New Spool plots.xls (54.5 KB, 131 views)
JasonC SBB is offline   Reply With Quote
Old 03-06-2012, 08:31 PM   #164
Junior Member
iTrader: (4)

Join Date: Oct 2009
Location: College Station, TX
Posts: 281
Total Cats: 5
Default

Resurrected

Engine: '04 1.8L VVT
Turbo: 2854 Chinacharger
Manifold: BEGi Cast "Directed Pulse"
Downpipe Size/Style: ARTech 3"
Exhaust Size: ARTech 3"
Exhaust Components: Magnaflow Muffler and High flow cat
Intercooler Core Size: 24"x12"x2.5"
Intake Manifold: Stock
Headwork: N/A
Engine Management: Megasquirt
Other Spoolin' Helpers/Hurters: N/A
Trans & Rear End Ratio: 5-speed, 4.3 LSD
Rear tire size: 195/50-15

FOURTH GEAR PULL:

RPM Boost(psi)
2250 2.5
2300 2.7
2400 3.2
2500 3.6
2600 4.2
2700 4.7
2800 5.2
2900 5.6
3000 6
3100 6.5
3200 6.7
3300 6.9
3400 7
palmtree is offline   Reply With Quote
Old 05-21-2012, 10:55 PM   #165
Junior Member
iTrader: (1)

Join Date: Jul 2011
Location: Grand Rapids, MI
Posts: 201
Total Cats: 36
Default

Engine: '94 1.8L totally stock
Turbo: GT2860RS with Tial .64 A/R turbine housing
Manifold: Custom equal length bottom mount tubular with a proper merge collector
Downpipe: Custom 3"
Exhaust Size: Custom 3"
Exhaust Components: Magnaflow Muffler, Metallic high flow cat
Intercooler Core Size: BEGi #2
Intake Manifold: Stock
Headwork: None
Engine Management: Link
Other Spoolin' Helpers/Hurters: 65F ambient temp, GReddy profec B boost controller
Trans & Rear End Ratio: 5-speed, 4.3 LSD
Rear tire size: 205/45/16

FOURTH GEAR PULL:

RPM Boost(psi)

1840 0.0
2014 2.0
2334 4.0
2607 6.0
2808 8.0
2950 10.0
3050 12.0
3145 14.0

I should also note that I have uncontrollable boost creep (past 20 psi) with this setup above 5500 rpm, even with a Tial 38mm wastegate mounted right to the collector :(
mx592 is offline   Reply With Quote
Old 05-21-2012, 11:30 PM   #166
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,679
Total Cats: 212
Default

Quote:
Originally Posted by mx592 View Post
I should also note that I have uncontrollable boost creep (past 20 psi) with this setup above 5500 rpm, even with a Tial 38mm wastegate mounted right to the collector :(
Dump tube?
Full_Tilt_Boogie is offline   Reply With Quote
Old 05-22-2012, 05:27 AM   #167
Elite Member

Join Date: Jul 2005
Posts: 6,443
Total Cats: 80
Default

WG probably at right angles too...
JasonC SBB is offline   Reply With Quote
Old 05-22-2012, 09:23 AM   #168
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,510
Total Cats: 1,710
Default

ohhhh i need to find a boost log of my t3 50 trim chinacharger compared to my t3 60 trim.
Braineack is offline   Reply With Quote
Old 05-22-2012, 09:35 PM   #169
Junior Member
iTrader: (1)

Join Date: Jul 2011
Location: Grand Rapids, MI
Posts: 201
Total Cats: 36
Default

Quote:
Originally Posted by Full_Tilt_Boogie View Post
Dump tube?
1-1/2" tube, probably about 24" long before it merges back into the 3" downpipe.
mx592 is offline   Reply With Quote
Old 05-22-2012, 09:36 PM   #170
Junior Member
iTrader: (1)

Join Date: Jul 2011
Location: Grand Rapids, MI
Posts: 201
Total Cats: 36
Default

Quote:
Originally Posted by JasonC SBB View Post
WG probably at right angles too...
What wastegate doesn't require the exhaust to abruptly change directions? The wastegate itself is a 90 degree angle.
mx592 is offline   Reply With Quote
Old 05-22-2012, 09:53 PM   #171
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,679
Total Cats: 212
Default

Quote:
Originally Posted by mx592 View Post
1-1/2" tube, probably about 24" long before it merges back into the 3" downpipe.
Id try not doing that.
Full_Tilt_Boogie is offline   Reply With Quote
Old 05-23-2012, 12:11 AM   #172
Elite Member
iTrader: (11)

Join Date: Feb 2009
Posts: 2,982
Total Cats: 10
Default

Quote:
Originally Posted by Full_Tilt_Boogie View Post
Dump tube?
Build motor and enjoy creep
miatauser884 is offline   Reply With Quote
Old 05-23-2012, 01:05 PM   #173
Junior Member
iTrader: (1)

Join Date: Jul 2011
Location: Grand Rapids, MI
Posts: 201
Total Cats: 36
Default

Quote:
Originally Posted by Full_Tilt_Boogie View Post
Id try not doing that.
VTA isn't really my thing.

I have a .86 Tial housing on order, I will try that first. It should be a pretty easy swap, given all the v-band connections!! I hate to lose my 14 psi at 3150 rpm spool, but if it works it will be a helluva lot easier than going to a 44mm wastegate, or twin wastegates, or anything else that requires extensive welding and fabrication.
mx592 is offline   Reply With Quote
Old 06-15-2012, 03:32 PM   #174
Junior Member

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Engine: '99 1.8L 9.5:1 supertechs +1mm
Turbo: GT2560R
Manifold: ARTech™ Ramhorn Top Mount manifold
Downpipe Size/Style: 3.5" homemade
Exhaust Size: 3.5" homemade. no cat
Exhaust Components: Magnaflow 5x11x22 muffler
Intercooler Core Size: 550mm x 225mm x 64mm
Intake Manifold: stock
Headwork: none
Engine Management: Adaptronic E420c
Other Spoolin' Helpers/Hurters: EBC

FOURTH GEAR PULL:
RPM Boost (psi)
2576 3.33
2605 4.49
2701 6.67
2839 10.15
2926 11.89
3057 12.91
3176 15.09
Attached Thumbnails
I want your spool data!-mtspool.gif

Last edited by muoto; 06-15-2012 at 04:40 PM.
muoto is offline   Reply With Quote
Old 06-18-2012, 09:27 AM   #175
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,768
Total Cats: 2,496
Default

wow that is an efficient setup right there. torque under curve must be insane. Got a dyno plot?
18psi is offline   Reply With Quote
Old 06-18-2012, 07:31 PM   #176
Junior Member

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Quote:
Originally Posted by 18psi View Post
wow that is an efficient setup right there. torque under curve must be insane. Got a dyno plot?
Thereís one in my build thread but my wastegate was leaking during that dyno run... nevertheless with 14.5psi boost it made 265lbs around 4K so Iím happy.
muoto is offline   Reply With Quote
Old 06-18-2012, 11:13 PM   #177
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,768
Total Cats: 2,496
Default

that car is just BEGGING for a 2871 and custom Intake mani
18psi is offline   Reply With Quote
Old 06-19-2012, 10:24 PM   #178
Elite Member
iTrader: (11)

Join Date: Feb 2009
Posts: 2,982
Total Cats: 10
Default

Engine: '95 1.8L
Turbo: GT2860RS
Manifold: ARTech FM replacement manifold
Downpipe Size/Style: 3"
Exhaust Size: 3"
Exhaust Components: resonator & Magnaflow Muffler
Intercooler Core Size: Old Style FM
Intake Manifold: Stock
Headwork: 99 head 3angle, backcut
Engine Management: MS3x
Other Spoolin' Helpers/Hurters: Toyota COPs, EBC, intake timing gear
Trans & Rear End Ratio: 6-speed, 3.636 LSD
Rear tire size: 205/50-15

FIFTH GEAR PULL:

RPM Boost(psi)
2893 .3
2904 1.0
3006 3.5
3106 5.0
3316 6.5
3510 8.3
3719 10.1
3943 14.9
4038 15.5
4211 18.2
4307 20.0

I wanted to post my values before tuning my EBC. I'm honestly not very happy with the results. I expected to be at 20psi before 4k. I guess the smaller wheel of the 2860rs is offset by the .84 exhaust housing vs the .64 of the china 2870.

AFTER EBC tune:
miatauser884 is offline   Reply With Quote
Old 06-20-2012, 12:26 AM   #179
Elite Member
iTrader: (12)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,680
Total Cats: 232
Default

Can we add another field to this survey? Altitude. I've been trying to research altitude vs spool loss and I haven't had much results. Soon enough I should have datalogs for where I live (7200 ft elevation) vs Albuquerque (5200 ft) - but I'm more curious of the differences between sea level vs 7k+ feet.
Fireindc is offline   Reply With Quote
Old 06-21-2012, 04:10 PM   #180
Free Moustache Rides
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,656
Total Cats: 48
Default

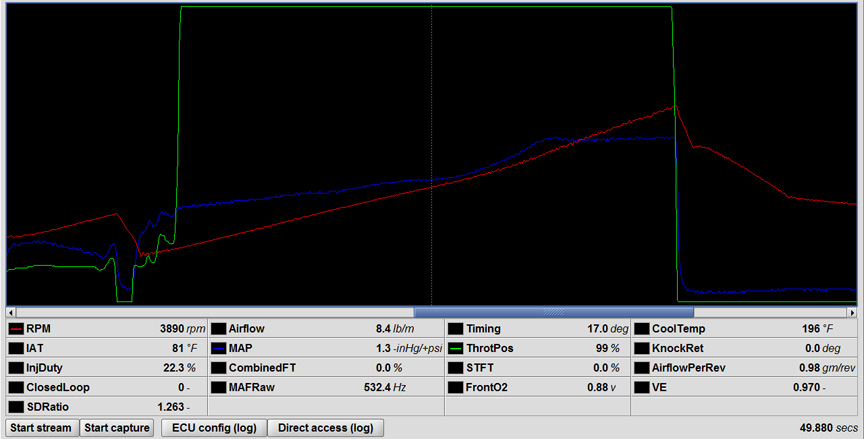

***Edit: I found a couple days after posting this data that my wastegate was loose...really loose. Retuning for what will hopefully be greatly improved spool and will post new results when I get them.


Still working on the tune, but I don't think I'm going to get spool times down much more due to the crappy manifold and dp, no matter how much timing I throw at it. So here it is.

Engine: '92 1/6L
Turbo: EvoIII 16g (Genuine Mitsubishi)
Manifold: eBay/OBX log
Downpipe Size/Style: eBay/OBX 2.5"
Exhaust Size: 2.5"
Exhaust Components: No cat, 14x9 Magnaflow
Intercooler Core Size: 19x10x2.5"
Intake Manifold: Stock
Headwork: Nope
Engine Management: Galant VR4 ecu & ECMLink
Other Spoolin' Helpers/Hurters: Ummm...eBay manifold and dp
Trans & Rear End Ratio: Stock 5-speed/4.3
Rear tire size: 205/50-15

4th Gear Pull, flat footed it at about 2K rpms but I'm in vac until roughly 3400 so that's where the data starts here.

3444 0.1
3544 0.4
3655 0.6
3754 1.3
3854 1.3
3955 1.5
4045 1.8
4144 2.5
4257 3.2
4366 4.4
4454 5.5
4551 6.7
4641 7.9
4741 8.8
4864 10.2
4954 10.9
5054 11.7
5137 11.9
5245 11.2
5350 11.2
5372 11.4
5466 11.4
5597 11.4
...

Attached Thumbnails
I want your spool data!-4th-gear-pull-6-20-12.jpg

Last edited by matthewdesigns; 06-22-2012 at 10:23 PM.
matthewdesigns is offline   Reply With Quote


Reply

Related Topics
Thread Thread Starter Forum Replies Last Post
1994 Spec Miata Race Car SM/SM2/SSM For Sale Quinn Cars for sale/trade 6 10-23-2016 07:58 AM
Why dynos should plot Torque divided by MAP JasonC SBB ECUs and Tuning 11 10-27-2015 04:56 PM
Back to Stock Part Out!! Turbo Parts, MS2 Enhanced 01-05, Suspension, and MOAR! StratoBlue1109 Miata parts for sale/trade 16 10-02-2015 09:39 AM
The "other" spool question stefanst DIY Turbo Discussion 44 09-28-2015 07:16 PM
Interpreting Deatchwerks Dead Times from Battery Wizard compuw22c MEGAsquirt 0 09-14-2015 06:08 PM


Thread Tools

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off



All times are GMT -4. The time now is 07:33 AM.
