Old 08-17-2009, 03:22 PM   #41
Guest
iTrader: (2)

Join Date: Jul 2009
Location: Los Angeles
Posts: 115
Total Cats: 0
Default

Quote:
Originally Posted by hustler View Post
they probably backed out because you're a virgin.
How's your car running? Oh wait...
CRXican is offline   Reply With Quote
Old 08-17-2009, 04:58 PM   #42
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,048
Total Cats: 8
Default

Quote:
Originally Posted by Savington View Post
It was nice being able to run down 996 Turbos and ****. 280whp is retarded power in this car. 3rd gear is nearly unuseable.
Yeah - 444 hp / 3630 lbs (turbo s) = 0.122314 (8.175 lb/hp crank)
* 2500 lb car: 305 crank hp, *2300 lb car 280 crank hp.

I'm sure your car weighs less, and 250 whp is certainly something you've been able to put together. Wish I could have been there.
AbeFM is offline   Reply With Quote
Old 08-17-2009, 05:52 PM   #43
Junior Member

Join Date: Jul 2008
Posts: 114
Total Cats: 0
Default

safety wire is really the only way to go besides v-band i guess... there's a reason you have to safety wire a lot of **** to pass most race tech inspections...
NickC is offline   Reply With Quote
Old 08-17-2009, 06:08 PM   #44
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by NickC View Post
safety wire is really the only way to go besides v-band i guess... there's a reason you have to safety wire a lot of **** to pass most race tech inspections...
It would be pretty slick if you could v-band the housings to the bearing house.
hustler is offline   Reply With Quote
Old 08-17-2009, 10:53 PM   #45
Junior Member

Join Date: Jul 2008
Posts: 114
Total Cats: 0
Default

Quote:
Originally Posted by hustler View Post
It would be pretty slick if you could v-band the housings to the bearing house.
yeah, i wasn't sure if that existed hence the "i guess..."
NickC is offline   Reply With Quote
Old 08-17-2009, 10:57 PM   #46
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

There are larger turbos that are like that. Nothing in the T3 or T4 category that I know of.
neogenesis2004 is offline   Reply With Quote
Old 08-17-2009, 11:16 PM   #47
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

Besides drilling the heads of the bolts for safety wire, could it be easier to waterjet some thin sheet stock that's a little longer than the plates that hold on the turbine...bend tangs up onto the side of the bolt hex head to keep it from rotating? There's something on the car that uses this; I remember having to hammer them flat to remove the bolts.
TurboTim is offline   Reply With Quote
Old 08-17-2009, 11:16 PM   #48
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

That sounds like a great plan actually. Much more simple.
neogenesis2004 is offline   Reply With Quote
Old 08-18-2009, 12:33 AM   #49
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

Quote:
Originally Posted by neogenesis2004 View Post
That sounds like a great plan actually. Much more simple.
Thanks...

For something quick n dirty, you (I) could cut some out with the cutoff wheel and clean em up with a belt sander. I got my mockup chinese turbo here I can get the bolt pattern off of. I'll get some .030 or so sheet from mcmaster. If you want.
TurboTim is offline   Reply With Quote
Old 08-18-2009, 01:15 AM   #50
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,372
Total Cats: 1,332
Default

McMaster should sell bolts with the heads already drilled. It's an expensive problem to have reoccur.

But let's talk about exactly how fucked I am, here:

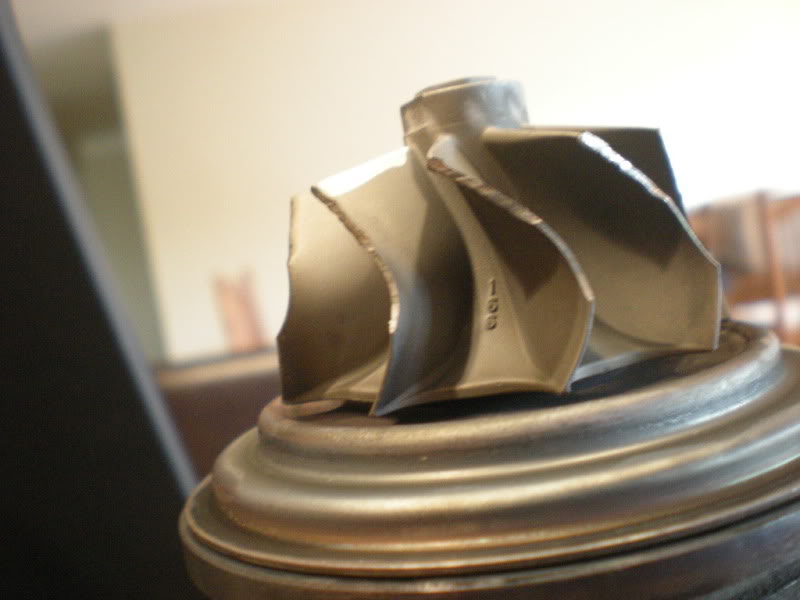

Name:  DSCN1630.jpg
Views: 2
Size:  81.6 KB

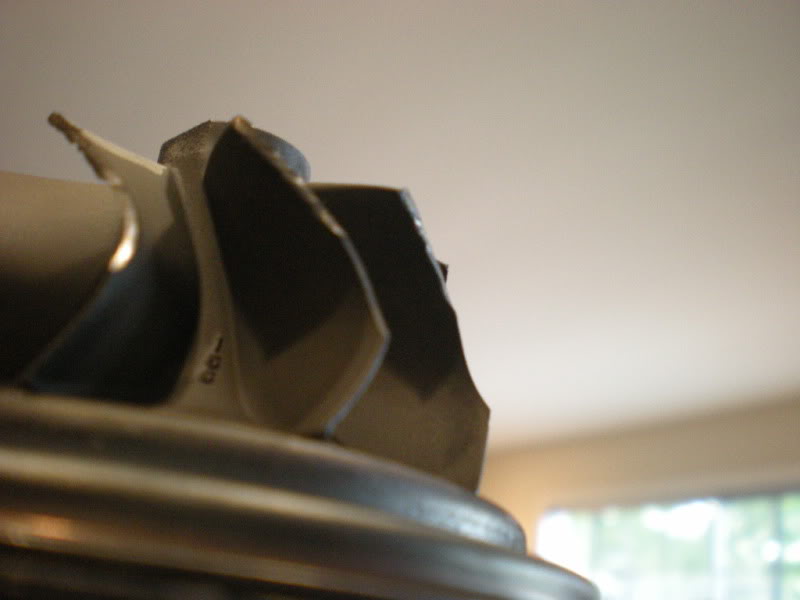

Name:  DSCN1631.jpg
Views: 2
Size:  68.1 KB

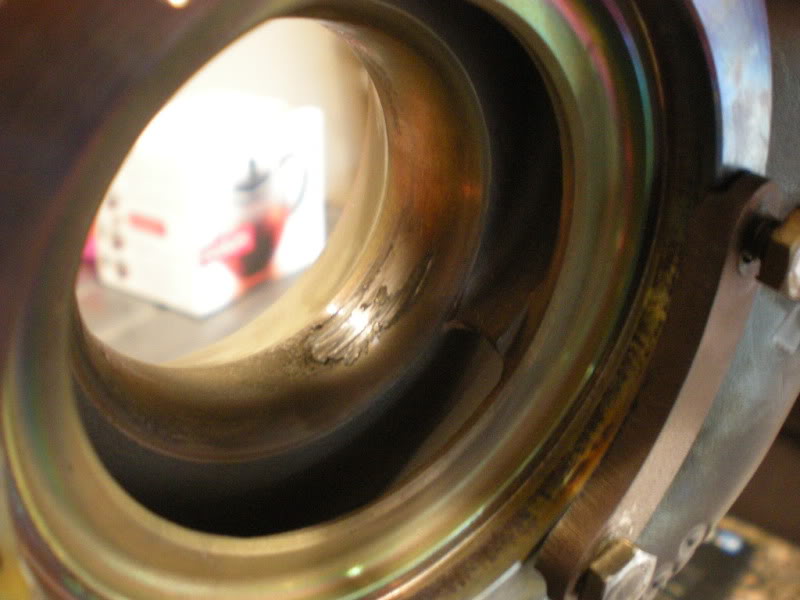

Name:  DSCN1633.jpg
Views: 2
Size:  89.7 KB

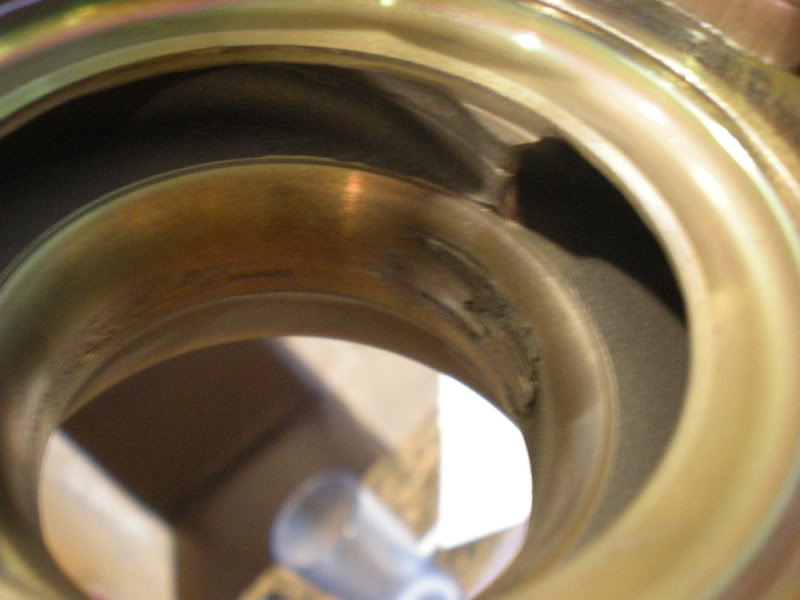

Name:  DSCN1634.jpg
Views: 2
Size:  84.3 KB

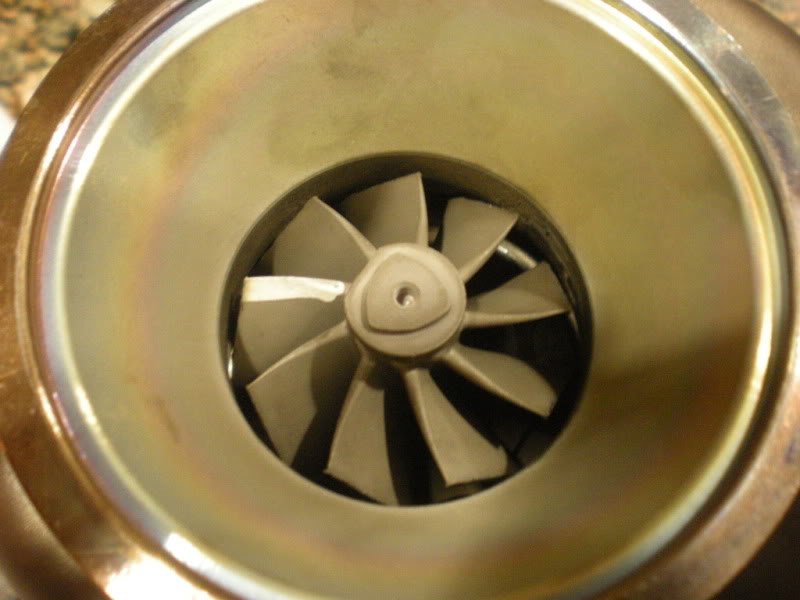

Name:  DSCN1635.jpg
Views: 2
Size:  89.6 KB

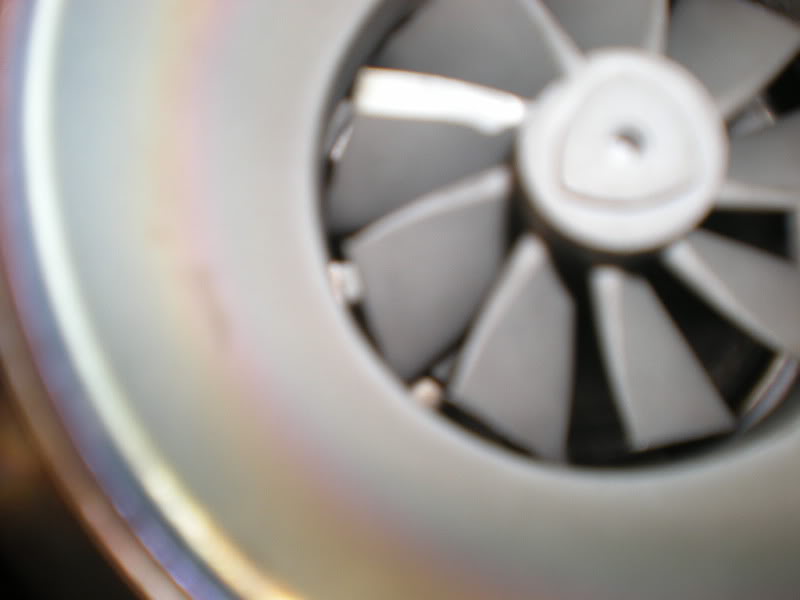

Name:  DSCN1637.jpg
Views: 2
Size:  66.4 KB
Savington is online now   Reply With Quote
Old 08-18-2009, 01:24 AM   #51
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

Any chance some sand paper can fix that housing? It looks like its sticking out, not in... Turbo you'll have to ship out for garrett's exchange program.
neogenesis2004 is offline   Reply With Quote
Old 08-18-2009, 02:01 AM   #52
Senior Member
iTrader: (1)

Join Date: Jul 2009
Location: Batavia, IL
Posts: 604
Total Cats: 0
Default

gee that's not too bad, a little buffing here and there, some JBwelGOD ******* DAMN THAT SUCKS. Sorry to hear, your build was/is inspirational on 20 different levels. What are your plans now?
Cococarbine3 is offline   Reply With Quote
Old 08-18-2009, 02:10 AM   #53
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,372
Total Cats: 1,332
Default

Quote:
Originally Posted by neogenesis2004 View Post
Any chance some sand paper can fix that housing? It looks like its sticking out, not in... Turbo you'll have to ship out for garrett's exchange program.
You think the wheel is that bad? I might just try it. The housing can probably be saved.
Savington is online now   Reply With Quote
Old 08-18-2009, 02:12 AM   #54
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Savington View Post
You think the wheel is that bad? I might just try it. The housing can probably be saved.
is this a serious response, or are you just gaying up your own thread?
hustler is offline   Reply With Quote
Old 08-18-2009, 02:28 AM   #55
Senior Member
iTrader: (1)

Join Date: May 2008
Location: south texas
Posts: 1,419
Total Cats: 9
Default

Quote:
Originally Posted by hustler View Post
It would be pretty slick if you could v-band the housings to the bearing house.
that's how mitsubishi turbo's are held together. v-band since atleast 1990 maybe earlier.

sav - for sure you could smooth out that wheel and housing. but that turbo won't be balanced anymore. could last a day or a year. try it, you've got nothing to lose.
spoolin2bars is offline   Reply With Quote
Old 08-18-2009, 02:38 AM   #56
Senior Member
iTrader: (15)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,404
Total Cats: 263
Default

Ouch! Sucks to see that happen after all that expense. Solve one problem then another comes up.
99mx5 is offline   Reply With Quote
Old 08-18-2009, 02:53 AM   #57
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,372
Total Cats: 1,332
Default

Quote:
Originally Posted by spoolin2bars View Post
try it, you've got nothing to lose.
except the comp housing, which would then mean I'm out $1100 vs just $750. CHRA goes to Garrett this week, I'll try and sand the housing out before I replace that.
Savington is online now   Reply With Quote
Old 08-18-2009, 10:29 AM   #58
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

where's the picture of the turbine Splitime used to run for a while...

edit:



iirc he still made 236rwhp on it :P
Braineack is offline   Reply With Quote
Old 08-18-2009, 11:34 AM   #59
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

I still think that's like going into battle with a dull sword....those blades literally are the tip of the spear in a turbocharged system.

For how much we work to optimize everything else (COPS anybody?) I'd want the turbo to be top notch.
gospeed81 is offline   Reply With Quote
Old 08-18-2009, 11:55 AM   #60
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

I think the housing can be easily salvaged. the wheel probably isn't true anymore and might have enough play to hit even with a new housing.

when a screw went through mine the blades were still perfect, but it bent the wheel enough that the bottom edge of the blades rubbed against the heat-shield on the chra.
Braineack is offline   Reply With Quote
