Default Most Ghetto Heatshield Award Winner

My wife is a nurse and works funny hours, so when she works nights, sometimes I'm in the garage until well after midnight. I got a new rattle this past week and found the DP rubbing against the tranny tunnel, so I loosened the bolts at the turbo and moved it over a little... then I did my usual thing, I started cleaning the car. Toothbrush, q-tips, Simple Green, wet rag, etc... When that was done, I decided to make a heat shield. The summer is around the corner and I think I'm gonna need one.

Besides installing a device in my engine bay that is razor sharp on all sides, how'd I do?

Last edited by samnavy; 08-01-2007 at 10:48 PM.
samnavy is offline   Reply With Quote
Old 03-23-2007, 12:08 AM   #2
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Lexington, SC
Posts: 2,084
Total Cats: 0
Default

What is it made of? I do like the idea of cutting slits into the side and putting the seam where they end, genius! (Drink Guinnes draft responsibly) I'll have to try that with my own someday when I need one.
mazda/nissan is offline   Reply With Quote
Old 03-23-2007, 12:11 AM   #3
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,295
Total Cats: 26
Default

Looks like galvanized stuff used for vent ducting?
Splitime is offline   Reply With Quote
Old 03-23-2007, 12:11 AM   #4
Senior Member
iTrader: (2)

SamS's Avatar

Join Date: Jun 2006
Location: Wisconsin
Posts: 1,254
Total Cats: 7
Default

Most ghetto, eh? I'll take a pic tomorrow of mine. :gay:

Yours looks effective, however dangerous it may be. Perhaps it could also be called a turbo/dp theft deterrent.
SamS is offline   Reply With Quote
Old 03-23-2007, 12:20 AM   #5
Junior Member
iTrader: (1)

Join Date: Nov 2006
Location: Hartville, OH
Posts: 174
Total Cats: 0
Default

looks better than mine
left field is offline   Reply With Quote
Old 03-23-2007, 12:23 AM   #6
Elite Member
iTrader: (9)

Join Date: Aug 2006
Location: Concord, North Carolina
Posts: 4,173
Total Cats: 5
Default

You could cover it in heat wrap? less chance of cuts and might help a bit? cut...pop rivet...tada?

I think it looks great the way it is though.
miatamania is offline   Reply With Quote
Old 03-23-2007, 12:47 AM   #7
Supporting Vendor
iTrader: (6)

Join Date: Mar 2005
Location: Broken Arrow,Ok
Posts: 1,061
Total Cats: 40
Default

It certainly doesn't look bad. You might try and take it out and make a template and cut it out of some stainless sheet, and get it all polished up nice.
-Michael-
TheBandit is offline   Reply With Quote
Old 03-23-2007, 01:16 AM   #8
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 3,054
Total Cats: 8
Default

looks good, I'm also interested in what material you used.
Efini~FC3S is offline   Reply With Quote
Old 03-23-2007, 01:55 AM   #9
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

You could do the same thing out of a sheet of either galvanized maybe aluminized sheet metal from lowes if you have one near you. Not sure what lowes carries but i know they carry different sizes and thickness of sheet, could do it out of aluminum as well if your cutting/bending tools were limited.
Looks good man, I'd pull it out and just bend the edges over with a pair of pliers to get a rounded edge. I cut the hell out of my hands installing the CAS in my car because i didn't bend the sharp safety wire that holds the heat wrap on my some things around the back of the DP.
Did you use stock bolt locations to mount it?
cjernigan is offline   Reply With Quote
Old 03-23-2007, 02:05 AM   #10
Senior Member

Join Date: Mar 2005
Posts: 531
Total Cats: 0
Default

fuuuuck have you seen mine? yours looks like the Sidney opera house compared to my pooper scooper.

http://jazz.sdsc.edu/photo/pictures/...s_DSCN2428.JPG
VRTSid is offline   Reply With Quote
Old 03-23-2007, 02:10 AM   #11
Elite Member
iTrader: (2)

Newbsauce's Avatar

Join Date: Jul 2006
Location: NoVA
Posts: 2,304
Total Cats: 2
Default

You can buy a used greddy HS for like 30 bucks and mod it to fit .. much less work
Newbsauce is offline   Reply With Quote
Old 03-23-2007, 02:29 AM   #12
Senior Member

Join Date: Jun 2005
Location: WA
Posts: 500
Total Cats: 0
Default

I'll have to make myself one of them heatshields.... one of these days.
RusMan is offline   Reply With Quote
Old 03-23-2007, 09:30 AM   #13
Elite Member
Thread Starter
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

It's fairly light gauge sheet metal. It does have that galvanized look to it. I used the edge of my workbench and a ball-peen hammer to knock the edges over. If y'all don't think it's too bad, I guess I'll try to clean it up a little.

There are some fairly dangerous edges where I had to manuever the sheers. The Dremel should make short work of the corners and I'll sandpaper all the the edges to round them off a little. Now that I've got the general shape down... maybe I'll take the time this weekend to make a proper one. I'd really like some thicker material.

I'll keep y'all up to speed.
samnavy is offline   Reply With Quote
Old 03-23-2007, 09:44 AM   #14
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,247
Total Cats: 291
Default

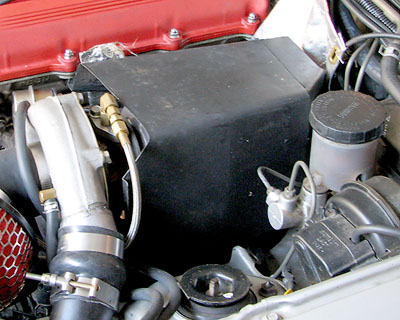

sam I think you've got too much "skillz" to do anything ghetto. You actually considered cutting and bending the metal when fab'ing the piece. And of course you used new metal. I used the front panel off my old hvac unit.
Attached Thumbnails
Most Ghetto Heatshield Award Winner-heatshield.jpg
m2cupcar is offline   Reply With Quote
Old 03-23-2007, 09:45 AM   #15
Junior Member

Join Date: Dec 2006
Posts: 85
Total Cats: 0
Default

Quote:
Originally Posted by VRTSid View Post
fuuuuck have you seen mine? yours looks like the Sidney opera house compared to my pooper scooper.

http://jazz.sdsc.edu/photo/pictures/...s_DSCN2428.JPG
Your one is more ghetto, I love it.

Sam, mine is similar, I think it works nicely.

60AGS
t25miata is offline   Reply With Quote
Old 03-23-2007, 09:55 AM   #16
Junior Member

Join Date: Oct 2006
Location: Detroit Area, MI
Posts: 227
Total Cats: 0
Default

Looks fine to me just file all of the sharp edges down or you'll regret it later when you are dripping blood on your super clean engine bay
expensivehobby22 is offline   Reply With Quote
Old 03-23-2007, 01:37 PM   #17
Elite Member
iTrader: (8)

Join Date: Sep 2006
Location: Severn, MD
Posts: 1,927
Total Cats: 5
Default

Just bend the sharp edges over in a vice. That's what I did with my ghetto heatshied on my Forester XT. Used pop rivets too. No zip ties though.

Frank
fmowry is offline   Reply With Quote
Old 03-23-2007, 01:48 PM   #18
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

i almost made something like that myself then i though nah ill just get ceramic. Clean it up and then paint it. It will help beat the heat brighten your engine bay and save the paint on your hood all at the same time Good job sam.
magnamx-5 is offline   Reply With Quote
