DIY Turbo Discussion greddy on a 1.8? homebrew kit?

Reply



LinkBack Thread Tools
Old 01-14-2013, 08:37 AM   #41
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

Quote:
Originally Posted by elior77 View Post
The pan is down, the oil pump is out, the relief valve bore is stuck...

I need a pump, rod bearings and water pump (?) when the timing was last changed (not long ago) the water pump did not.

Can you guys help me out, where can I buy this parts cheap and fast ?

Thanks !
Main bearings?

Going to pull the motor or do everything lying on your back?
olderguy is offline   Reply With Quote
Old 01-14-2013, 08:48 AM   #42
Senior Member
Thread Starter

Join Date: Nov 2012
Location: Israel
Posts: 543
Total Cats: -298
Default

It is on a lift in the shop, the engine stays in.

They take it down till the oil pump gets here.
elior77 is offline   Reply With Quote
Old 01-14-2013, 08:57 AM   #43
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

Quote:
Originally Posted by elior77 View Post
It is on a lift in the shop, the engine stays in.

They take it down till the oil pump gets here.
And the main bearings are OK?

Would not have thought of attempting it all that way; but I guess when you have a lift........
olderguy is offline   Reply With Quote
Old 01-14-2013, 11:14 AM   #44
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,686
Total Cats: 1,562
Default

Yeah, you can only do the bottom main bearings that way, and you really can't just do the bottom mains and not the tops. So rods only, I guess. I would damn sure peek at one of the mains, though.
sixshooter is offline   Reply With Quote
Old 01-14-2013, 04:17 PM   #45
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

I don't understand doing rod bearings and not main bearings. Does not compute.

And what about the oil squirters? Is there junk in there?

What about the cam bearings and lifters?

Lots of places see pressurized oil and could have trash. Why did they only want to do rod bearings?
hornetball is offline   Reply With Quote
Old 01-14-2013, 06:54 PM   #46
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,686
Total Cats: 1,562
Default

I don't even want to think about all of the other little places I might have little plastic bits stuck. So frustrating. But thankfully my bearings looked awesome, the Boundary pump is in, and I say eff it all because I'm going to run it! If it was metal I would be tearing it down for a rebuild.
sixshooter is offline   Reply With Quote
Old 01-15-2013, 01:42 PM   #47
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

I would expect the oil filter trapped most of your plastic bits. The concern is over the engine making metal post-filter.
hornetball is offline   Reply With Quote
Old 01-15-2013, 05:39 PM   #48
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,686
Total Cats: 1,562
Default

The oil filters don't filter all of the oil that comes to them. The oil filter bypass valves on our cars open between 8-15 psi depending upon brand. Above that pressure some of the oil does not go through the filter media. Mind you, we aren't talking about 8-15 psi of system pressure but 8-15 psi of differential pressure between oil filter inlet and outlet.
sixshooter is offline   Reply With Quote
Old 01-15-2013, 07:16 PM   #49
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

I wouldn't expect the bypass to open until the media is REALLY dirty. Still think you were mostly protected (so long as you were changing at reasonable intervals) unless a lot of plastic was caught in the filter. Wishful thinking?
hornetball is offline   Reply With Quote
Old 01-16-2013, 05:41 AM   #50
Senior Member
Thread Starter

Join Date: Nov 2012
Location: Israel
Posts: 543
Total Cats: -298
Default

I read some horror stories about the relief valve, I read about installing an external oil pressure regulator...

What do you think ?

I just ordered a new oil pump

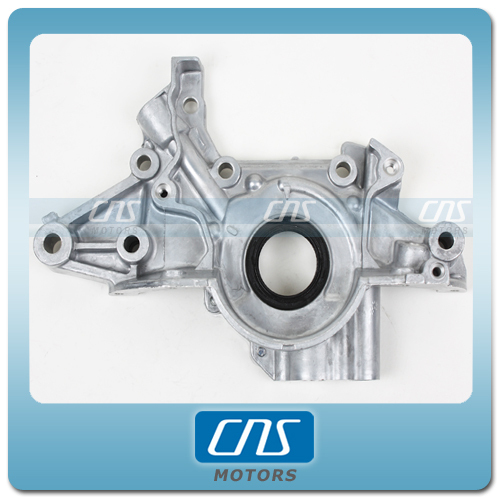

90 98 Mazda Ford Mercury 1 5L 1 6L 1 8L Engine Oil Pump | eBay



This is the external reg

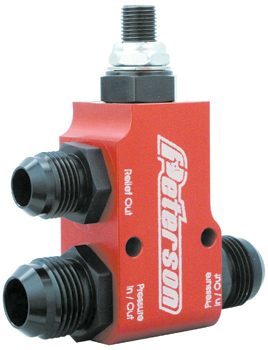

Oil Pressure Regulator: Peterson Fluid Systems, External, Inline, Adj.



My car is a 97 @ 9psi boost up to 12psi (later)
stock engine.

This stuck relief valve is going to cost me allot, I just thought maybe I should install this external solution...

Thanks !
Attached Thumbnails
Oil pressure takes time to build...-pump_acc_rempress.jpg   Oil pressure takes time to build...-%24-kgrhqmokice3h5g-e5ebn5u-q1m3q%7E%7E_12.jpg
elior77 is offline   Reply With Quote
Old 01-16-2013, 09:15 AM   #51
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,686
Total Cats: 1,562
Default

Three things-

If Japanese oil pump gears fail on our cars, I wouldn't trust Chinese.

If debris can hang up in an internal relief valve, it can hang up in an external one.

How do you intend to insert an external oil pressure relief valve that is designed for a dry sump external oil pump into the factory oil circuit? If you plumb it at the oil filter adapter some of the stock relief's functionality is compromised. The stock relief relieves backpressure at the pump outlet, thereby taking additional stress off of the gears during high pressure situations. With it relocated, it is possible to still have that high degree of stress within the pump as it tries to get oil through its outlet, into the oil galley, and to the filter adapter. It isn't ideal to relocate it.
sixshooter is offline   Reply With Quote
Old 01-16-2013, 09:48 AM   #52
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,640
Total Cats: 25
Default

For plumbing in external you just remove the factory one entirely and feed the entire relief into this valve.

It works very very well.

Dann
nitrodann is offline   Reply With Quote
Old 01-16-2013, 11:38 AM   #53
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,327
Total Cats: 1,926
Default

Quote:
Originally Posted by hornetball View Post
I wouldn't expect the bypass to open until the media is REALLY dirty.
Or unless the oil was rather cold and thick, and the oil pressure was rather high, which is what typically happens every morning when you start the engine and drive away.


Quote:
Originally Posted by elior77 View Post
On the one hand, I'm hesitant to automatically criticize any part sourced from eBay, and I acknowledge that the now-common Chinese H-beam connecting rods that we were all so paranoid about a couple of years ago seem to be working out.

On the other hand, when I see something like an oil pump selling for half as much (literally, half) from an eBay vendor as from Rock Auto or Parts Dinosaur (traditionally the go-to suppliers for inexpensive parts), it makes me wonder...




Quote:
I just thought maybe I should install this external solution...
The internal pressure control valve works just fine so long as it's not fouled with debris. I'd be leery or introducing additional complexity into the system.

Last edited by Joe Perez; 01-16-2013 at 12:06 PM.
Joe Perez is offline   Reply With Quote
Old 01-16-2013, 03:40 PM   #54
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

Quote:
Originally Posted by Joe Perez View Post
Or unless the oil was rather cold and thick, and the oil pressure was rather high, which is what typically happens every morning when you start the engine and drive away.
Another firmly-held Polyanna belief utterly shattered. Thanks a lot!
hornetball is offline   Reply With Quote
Old 01-16-2013, 08:58 PM   #55
Senior Member
iTrader: (8)

Join Date: May 2011
Location: Granbury, Tx
Posts: 815
Total Cats: 14
Default

I have a thread about this same exact problem. The plunger on your oil pump is stuck open, that was my problem.
FowlerMotorsports is offline   Reply With Quote
Old 01-17-2013, 09:58 AM   #56
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,686
Total Cats: 1,562
Default

Quote:
Originally Posted by Joe Perez View Post
Or unless the oil was rather cold and thick, and the oil pressure was rather high, which is what typically happens every morning when you start the engine and drive away.
I continue to believe (albeit through anecdote) that vehicles owned by persons who allow them to warm for 3 to 5 minutes before driving them have longer lasting engines due to numerous factors including debris bypass. This may be a causal fallacy due to the fact that the individuals who would take care too allow their vehicles to warm would also better care for their vehicles generally.
sixshooter is offline   Reply With Quote
Old 01-17-2013, 10:11 AM   #57
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,689
Total Cats: 560
Default

I don't care. I have never had an engine fail from normal DD duties. Around here, if you get 150k before the rest of the vehicle is a rusted hulk, you're doing well. By the time I hit that, the car is 10-12 years old, rusty and beginning to have so many various other problems that it's time for a new one. So, I beat on them and not worry about it.

Track cars or one you plan on keeping (summer only car) is a different story.
rleete is offline   Reply With Quote
Old 01-17-2013, 10:44 AM   #58
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

For a DD, I have heard that letting it sit and warm up is worse for the engine, since it takes the oil longer to come up to temp.

You know, as long as you aren't beating the **** out of it for those first 3-5 minutes.
thenuge26 is offline   Reply With Quote
Old 01-17-2013, 11:25 AM   #59
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

Quote:
Originally Posted by thenuge26 View Post
For a DD, I have heard that letting it sit and warm up is worse for the engine, since it takes the oil longer to come up to temp.

You know, as long as you aren't beating the **** out of it for those first 3-5 minutes.
I beat the **** out of it right out the driveway. Heats the pistons faster to get them into tolerances
Braineack is offline   Reply With Quote
Old 01-17-2013, 12:46 PM   #60
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,686
Total Cats: 1,562
Default

My last Toyota truck V6 engine was clean as a whistle inside and has lasted 400k+ without needing a rebuild yet.
sixshooter is offline   Reply With Quote
