Default Ok, which one of these flanges is effed up?

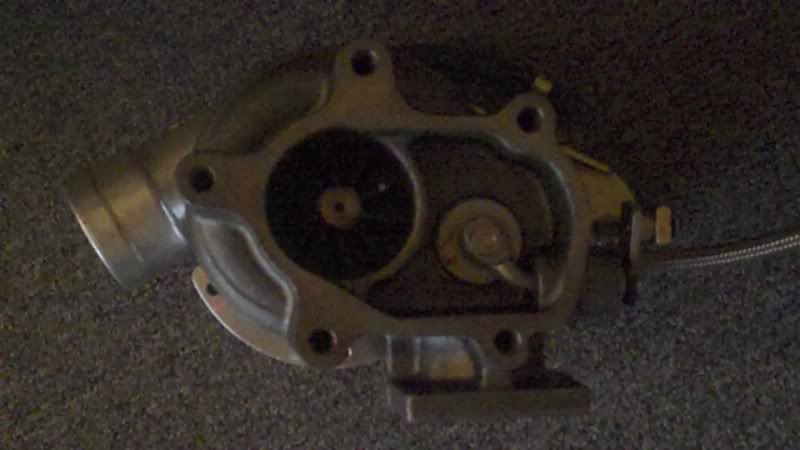

Name:  LB0921601655_165626476_1200_1280_72.jpg
Views: 2
Size:  36.7 KB

or

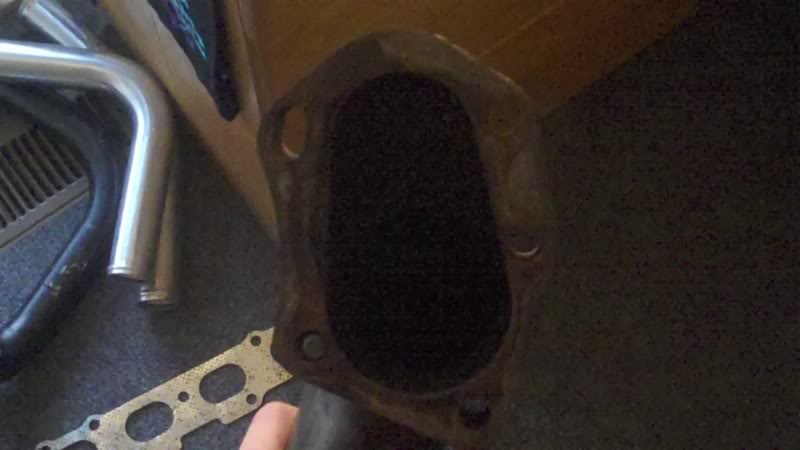

Name:  LB0921601655_165626462_1200_1280_72.jpg
Views: 2
Size:  32.2 KB

I bought my buddies old DP to couple to my chinacharger (http://cgi.ebay.com/ebaymotors/ws/eB...m=110480768452) and the flanges don't nearly line up... at all.

I think he might have hooked up up with the wrong downpipe, or my chinacharger is ******* retarded.

Which one looks like a t25 outlet flange?

Oh, and sorry for the **** pictures... My camera fell out of my bag on vacation through security. I picked up the camera, but didn't realize the battery had popped out 'till I was there.

EDIT: Ok, appreantly the turbo is an emotorusa.com "TC-TB25".

Last edited by rider384; 03-23-2010 at 09:47 PM.
rider384 is offline   Reply With Quote
Old 03-23-2010, 09:49 PM   #2
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

The down pipe is T2.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 03-23-2010, 09:52 PM   #3
Want fries with that?
Thread Starter
iTrader: (3)

Join Date: Oct 2009
Location: Twin Cities, Minnesota
Posts: 2,023
Total Cats: -1
Default

Quote:
Originally Posted by levnubhin View Post
The down pipe is T2.

god dammit, according to e-motors usa, that turbo is also t2.

Thanks man.

EDIT: So is that turbo a t3 outlet or something?

Last edited by rider384; 03-23-2010 at 10:09 PM.
rider384 is offline   Reply With Quote
Old 03-23-2010, 10:30 PM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

not a t3 turbo, not a t3 outlet.








your outlet might be a DSM t25, not nissan.
Braineack is offline   Reply With Quote
Old 03-23-2010, 10:38 PM   #5
Want fries with that?
Thread Starter
iTrader: (3)

Join Date: Oct 2009
Location: Twin Cities, Minnesota
Posts: 2,023
Total Cats: -1
Default

God damn, so what the **** is the turbo?
rider384 is offline   Reply With Quote
Old 03-23-2010, 10:41 PM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

was your turbo advertised as a drop in replacement for the R34 GTR?

http://www.turbobygarrett.com/turbob...7160_5_new.pdf
Braineack is offline   Reply With Quote
Old 03-23-2010, 10:59 PM   #7
Want fries with that?
Thread Starter
iTrader: (3)

Join Date: Oct 2009
Location: Twin Cities, Minnesota
Posts: 2,023
Total Cats: -1
Default

Quote:
Originally Posted by Braineack View Post
was your turbo advertised as a drop in replacement for the R34 GTR?

http://www.turbobygarrett.com/turbob...7160_5_new.pdf
Wasn't advertised as a drop in replacement for anything. Ebay ad is posted in the OP.

This is fucked up, NONE of those numbers match what I have.
rider384 is offline   Reply With Quote
Old 03-23-2010, 11:29 PM   #8
Elite Member
iTrader: (5)

pusha's Avatar

Join Date: Nov 2009
Location: Miami, FL
Posts: 7,363
Total Cats: -32
Default

Nevermind, you figured it out.
pusha is offline   Reply With Quote
Old 03-23-2010, 11:41 PM   #9
Want fries with that?
Thread Starter
iTrader: (3)

Join Date: Oct 2009
Location: Twin Cities, Minnesota
Posts: 2,023
Total Cats: -1
Default

GOD MOTHERFUCKING DAMMIT IT'S A ******* DSM TURBO! I'M GONNA BUST A NUT! ******* advertised as a regular t25 flange... ******* ebay sellers, I hope his shop burns down.

EDIT: God ******* dammit again, all I can find are DSM 4-bolt flanges for sale. Can someone help me out? I'm about to rage on my computer. Anyone got specs for the DSM 5-bolt outlet flanges so I can measure?

EDIT EDIT: Ok, really stupid question here, but are T25 and GT25 flanges different?
rider384 is offline   Reply With Quote
Old 03-24-2010, 12:52 AM   #10
Junior Member

Join Date: Jan 2008
Posts: 272
Total Cats: 0
Default

t25 amd gt25 are the same...dsm t25 i remember it was different...ebay sucks another lesson learned.
Sleeper_MX5 is offline   Reply With Quote
Old 03-24-2010, 01:02 AM   #11
Want fries with that?
Thread Starter
iTrader: (3)

Join Date: Oct 2009
Location: Twin Cities, Minnesota
Posts: 2,023
Total Cats: -1
Default

Anyone got a DSM cutout/spec sheet like Brain posted for the standard 5-bolt? Been searching but can't find anything.
rider384 is offline   Reply With Quote
Old 03-24-2010, 01:35 AM   #12
Elite Member

Join Date: Feb 2008
Location: Victoria, BC
Posts: 2,322
Total Cats: 12
Default

Quote:
Originally Posted by rider384 View Post
Anyone got a DSM cutout/spec sheet like Brain posted for the standard 5-bolt? Been searching but can't find anything.
Doesn't look like a DSM flange to me. My T25 DSM turbo used a 4 bolt downpipe flange.

By the way, could you take a picture of your downpipe on the turbo? Would like to see which bolts aren't lining up.

Here's a pic of the DSM t25 flange. Definitely 4 bolt, and not what you have.
dustinb is offline   Reply With Quote
Old 03-24-2010, 01:41 AM   #13
Want fries with that?
Thread Starter
iTrader: (3)

Join Date: Oct 2009
Location: Twin Cities, Minnesota
Posts: 2,023
Total Cats: -1
Default

Quote:
Originally Posted by dustinb View Post
Doesn't look like a DSM flange to me. My T25 DSM turbo used a 4 bolt downpipe flange.

By the way, could you take a picture of your downpipe on the turbo? Would like to see which bolts aren't lining up.

Here's a pic of the DSM t25 flange. Definitely 4 bolt, and not what you have.
I can't get a reasonable picture right now due to the camera situation in the OP. I'll try to describe it. When I say it doesn't line up, I mean if I have two studs in any configuration on the turbo, it won't line up. It's that far off.
rider384 is offline   Reply With Quote
Old 03-24-2010, 01:43 AM   #14
Elite Member

Join Date: Feb 2008
Location: Victoria, BC
Posts: 2,322
Total Cats: 12
Default

Quote:
Originally Posted by rider384 View Post
I can't get a reasonable picture right now due to the camera situation in the OP. I'll try to describe it. When I say it doesn't line up, I mean if I have two studs in any configuration on the turbo, it won't line up. It's that far off.
To me it looks like the flange was put on upside down. You also might just need to make the holes larger on your downpipe. I had to do that with my OBX turbo.
dustinb is offline   Reply With Quote
Old 03-24-2010, 08:48 PM   #15
Want fries with that?
Thread Starter
iTrader: (3)

Join Date: Oct 2009
Location: Twin Cities, Minnesota
Posts: 2,023
Total Cats: -1
Default

Thanks for the advise and help guys... Just got a message back from the seller. Apperantly it's a non-standard flange, and the only way I can use this thing is to get one of their flanges welded onto my Begi DP. I've talked about getting my money back from them. I'm looking forward to their response.
rider384 is offline   Reply With Quote
Old 03-24-2010, 08:52 PM   #16
Senior Member
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

Consider a chargeback?
dgmorr is offline   Reply With Quote
Old 03-24-2010, 08:55 PM   #17
Want fries with that?
Thread Starter
iTrader: (3)

Join Date: Oct 2009
Location: Twin Cities, Minnesota
Posts: 2,023
Total Cats: -1
Default

You mean through Paypal? I'm going to wait for a response before I do.
rider384 is offline   Reply With Quote
Old 04-19-2010, 01:01 AM   #18
Newb

Join Date: Jun 2009
Location: Ottawa, Canada
Posts: 23
Total Cats: 0
Default

I just made the same mistake. Sent the seller an email asking for a refund since it's a non-standard flange. Not holding my breath. :(

Does anybody make a downpipe or flange to match this thing???

Here's the flange on the turbo:
