Default TD04 rattle @ 3-4k rpm when over run

Hey,

I enjoy my miata turbo for a year now, after taking care of more impotent things I can now take care of the small things.

Well, I get a loud rattle sound from the turbo (I'm almost sure) when in over run (0% tps when rpm going down) from 4k rpm to 3k rpm.

It sounds like a washer "dancing" on a screw freely.

It comes on only when the car is warm.

I took out the heat shiled and the air filter with its pipes to see maybe the noise coming from them, but no.

Any idea ?

Cheers

Last edited by elior77; 10-31-2013 at 09:36 AM.
elior77 is offline   Reply With Quote
Old 10-31-2013, 09:32 AM   #2
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

Are you sure the BOV is open?
olderguy is offline   Reply With Quote
Old 10-31-2013, 09:34 AM   #3
Senior Member
Thread Starter

Join Date: Nov 2012
Location: Israel
Posts: 543
Total Cats: -298
Default

yes, I'm @ as low as 12kpa MAP
elior77 is offline   Reply With Quote
Old 10-31-2013, 11:48 AM   #4
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

Is the wastegate arm tight?
Fireindc is offline   Reply With Quote
Old 10-31-2013, 11:48 AM   #5
Senior Member
Thread Starter

Join Date: Nov 2012
Location: Israel
Posts: 543
Total Cats: -298
Default

yes...
elior77 is offline   Reply With Quote
Old 10-31-2013, 01:22 PM   #6
Junior Member

Join Date: Jan 2011
Location: Winnipeg, Canada
Posts: 84
Total Cats: 1
Default

Sounds like it could be pinging. Any chance you can get an audio clip depending on how audible it is?
ACiFiC is offline   Reply With Quote
Old 10-31-2013, 01:26 PM   #7
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,199
Total Cats: 260
Default

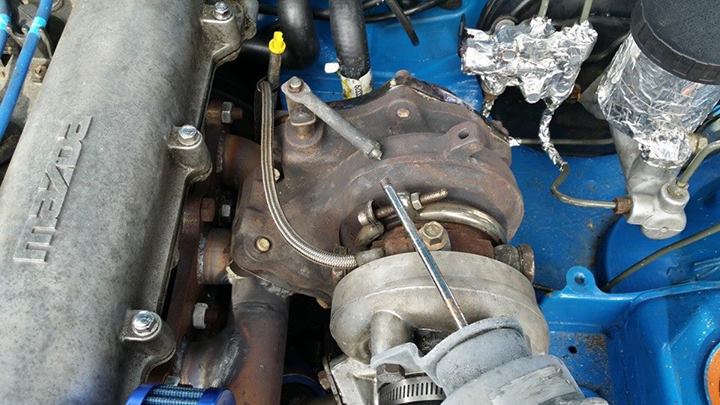

The TDo4 on the smurf i built had a rattle. Same thing.

Tightened the arm up and



The wastegate is bad internally. Well that's what we've come up with. Gotta rig up a new wastegate and we'll know for sure.
Attached Thumbnails
TD04 rattle @ 3-4k rpm when over run-1383586_10152544023181091_652774848_n.jpg
Erat is online now   Reply With Quote
Old 10-31-2013, 01:42 PM   #8
Senior Member
iTrader: (3)

Join Date: Nov 2011
Location: Beaverton, OR
Posts: 737
Total Cats: 30
Default

have you taken the intake off and checked for shaft play? I had a very similar noise when my car was warm coming from the turbo and my turbo was shot shaft play up the wazoo, any oil being burnt on overrun?
greddygalant is offline   Reply With Quote
Old 01-07-2014, 07:29 AM   #9
Senior Member
Thread Starter

Join Date: Nov 2012
Location: Israel
Posts: 543
Total Cats: -298
Default

It was the EGR tube !
elior77 is offline   Reply With Quote
Old 01-07-2014, 08:54 AM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

help gays, my cars rattles in overrun in the sweet spot of resonance rpm.
Braineack is online now   Reply With Quote
Old 01-07-2014, 10:01 AM   #11
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by ACiFiC View Post
Sounds like it could be pinging. Any chance you can get an audio clip depending on how audible it is?
Hard to knock when there's no fuel being injected and at very low load.
Leafy is offline   Reply With Quote
Old 01-07-2014, 03:25 PM   #12
Senior Member
Thread Starter

Join Date: Nov 2012
Location: Israel
Posts: 543
Total Cats: -298
Default

Quote:
Originally Posted by Braineack View Post
help gays, my cars rattles in overrun in the sweet spot of resonance rpm.
Not any more and I'm so gay about it
