Default teaser shot 2

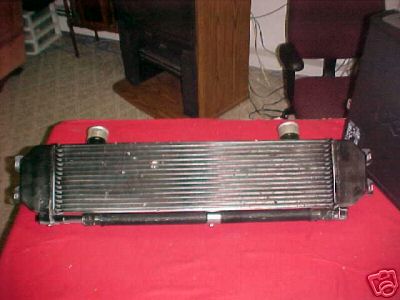

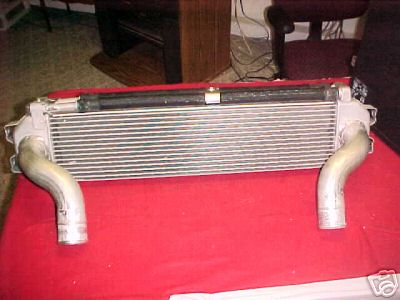

For my next setup I will be putting together a V-mount using a Solstice intercooler and lowering the radiator with custom brackets. The core dimensions are 26-1/4" x 6-3/4". Overall dimensions are 33-1/2" x 6-3/4" x 2-3/4". Inlet and outlet tubes are both 2-1/2" diameter. I will also be making an air diverter to direct more air.
Attached Thumbnails
teaser shot 2-solstice-ic.jpg   teaser shot 2-solstice-2.jpg
zoom2zoom is offline   Reply With Quote
Old 03-21-2008, 04:44 PM   #2
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Did you paint it or did it come like that.
Saml01 is offline   Reply With Quote
Old 03-21-2008, 04:49 PM   #3
Elite Member
iTrader: (5)

Atlanta93LE's Avatar

Join Date: Sep 2006
Location: Marietta, GA
Posts: 2,198
Total Cats: 1
Default

Take the tubes off the bottom and block the passages. Don't ask why, just do it.
Atlanta93LE is offline   Reply With Quote
Old 03-21-2008, 04:50 PM   #4
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

^ Hmm, what is that? some sort of bypass?
Saml01 is offline   Reply With Quote
Old 03-21-2008, 04:54 PM   #5
Elite Member
iTrader: (5)

Atlanta93LE's Avatar

Join Date: Sep 2006
Location: Marietta, GA
Posts: 2,198
Total Cats: 1
Default

Nope, not a bypass. If you're interested, go check out the solstice forums; they might have it figured out by now, but I'm not getting into it here.
Atlanta93LE is offline   Reply With Quote
Old 03-21-2008, 04:55 PM   #6
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

PS cooler?
cjernigan is offline   Reply With Quote
Old 03-21-2008, 04:56 PM   #7
Elite Member
iTrader: (5)

Atlanta93LE's Avatar

Join Date: Sep 2006
Location: Marietta, GA
Posts: 2,198
Total Cats: 1
Default

Nope.
Atlanta93LE is offline   Reply With Quote
Old 03-21-2008, 04:57 PM   #8
I'm Miserable!
Thread Starter
iTrader: (5)

Join Date: Sep 2005
Location: SLC, Utah
Posts: 1,591
Total Cats: 0
Default

it's supposedly a way to remove condensation or water if present. but feel free to post your knowledge on the matter if you know more.
zoom2zoom is offline   Reply With Quote
Old 03-21-2008, 04:58 PM   #9
Junior Member
iTrader: (3)

Join Date: Apr 2007
Location: San Diego CA
Posts: 399
Total Cats: 0
Default

Quote:
Originally Posted by Atlanta93LE View Post
Nope, not a bypass. If you're interested, go check out the solstice forums; they might have it figured out by now, but I'm not getting into it here.

ok...so. what are they?

why do people bring something up and then refuse to talk about it.
teknikscian is offline   Reply With Quote
Old 03-21-2008, 05:01 PM   #10
Elite Member
iTrader: (5)

Atlanta93LE's Avatar

Join Date: Sep 2006
Location: Marietta, GA
Posts: 2,198
Total Cats: 1
Default

Ok good, so it's been figured out. Last I had heard it was still a mystery GM wasn't ready to share. Think about it though...you have condensation in a controlled accumulation in the intake tract...what do people do with water in the intake? Take a look under the hood of a Skystice, and the electronics/sensors in the intake tract. You can figure it out.
Atlanta93LE is offline   Reply With Quote
Old 03-21-2008, 05:29 PM   #11
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Are you ******* serious... water injection?
Saml01 is offline   Reply With Quote
Old 03-21-2008, 05:36 PM   #12
Elite Member
iTrader: (5)

Atlanta93LE's Avatar

Join Date: Sep 2006
Location: Marietta, GA
Posts: 2,198
Total Cats: 1
Default

I didn't say that... Look at the electronics...the ECU most certainly knows, and takes advantage, when vaporized water is entering the chambers, whether it can be considered "injection" or not could be up for debate.
Atlanta93LE is offline   Reply With Quote
Old 03-21-2008, 06:37 PM   #13
I'm Miserable!
Thread Starter
iTrader: (5)

Join Date: Sep 2005
Location: SLC, Utah
Posts: 1,591
Total Cats: 0
Default

interesting, do you know more?
zoom2zoom is offline   Reply With Quote
Old 03-21-2008, 06:59 PM   #14
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,915
Default

Here are some better pictures:
http://www.solsticeforum.com/forum/a...394-large-.jpg
http://www.solsticeforum.com/forum/a...393-large-.jpg

It's just two pieces of hose, with a loop on one end. At the other end, both hoses connect to the tank.
Joe Perez is offline   Reply With Quote
Old 03-21-2008, 07:51 PM   #15
Elite Member
iTrader: (3)

Join Date: May 2006
Location: Houston, TX
Posts: 2,900
Total Cats: 0
Default

the ecu can accomodate WI without any issue, but I know for a fact that the ECU is not configured to control WI in a solstice. I was on the design team the built the damned ECUs (model code: MED 9.6.1). unless something changed after the 2nd year of the model anyways... the first two I know didn't have it in the ecu.

sorry for the hijack.
Arkmage is offline   Reply With Quote
Old 03-21-2008, 09:24 PM   #16
I'm Miserable!
Thread Starter
iTrader: (5)

Join Date: Sep 2005
Location: SLC, Utah
Posts: 1,591
Total Cats: 0
Default

So should I leave the tubes alone or cap them off?
zoom2zoom is offline   Reply With Quote
Old 03-21-2008, 11:49 PM   #17
Senior Member

Join Date: Jan 2007
Location: Maryland
Posts: 701
Total Cats: 0
Default

I would cap them off. You don't need them for anything so why bother.
MX_Eva is offline   Reply With Quote
Old 03-22-2008, 06:01 PM   #18
Elite Member
iTrader: (5)

Atlanta93LE's Avatar

Join Date: Sep 2006
Location: Marietta, GA
Posts: 2,198
Total Cats: 1
Default

Of course it isn't water "injection" there's no nozzle, etc.
Atlanta93LE is offline   Reply With Quote
