Old 07-16-2007, 09:33 AM   #21
Senior Member

Join Date: Dec 2004
Posts: 1,450
Total Cats: -1
Default

Nice results, y8s!

So, the previous pull that was 13rwhp less was also done after you'd installed the new BEGi intercooler and tossed the A/W setup, right?
bripab007 is offline   Reply With Quote
Old 07-16-2007, 09:36 AM   #22
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

I think you had another 10hp by 7k given the path your curve was on.
Post up a graph with AIT, rpm, IGN and boost....pleeeeeze.
m2cupcar is offline   Reply With Quote
Old 07-16-2007, 11:32 AM   #23
y8s
2 Props,3 Dildos,& 1 Cat
Thread Starter
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 406
Default

ok ok.
http://y8spec.com/nemesis/maps/?C=M;O=A scroll down to the bottom where the date is 7/16 and check out the CSV files. Those are the datalogs from the before and after runs. The dyno data dump is in there too (xls) as well as the maps.

Rob, what do you mean I had another 10hp by 7k? I dont get what you mean...

The two graphs are same day both with the BEGi setup. I'll work on posting the graphs of the datalogs from before and after. they're very similar though.

M
y8s is offline   Reply With Quote
Old 07-16-2007, 11:41 AM   #24
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by y8s View Post
Yeah that's bizzare. we're within like 25 ft-lbs/hp in the spool-up zone.

course you're running 14 psi to my 9, but it's interesting none the less.

you're on the stock greddy turbo?
Yeah, if you look at power at any given rpm, it's pretty comparable. I'm running less displacement and a smaller turbo with more boost. You hit your torque peak before I do, but I'd bet that has to do with your nice 3" turbo-back exhaust vs my 2.5" dp going to 2" (or was it 2.25?) cat back with crush bends before and after my 1 in, 2 out muffler. I'm also running a Jim-B style under the rad and Saab FMIC, and I bet I'll gain a psi or so when I get my new IC in. You also have more capable EM in your Hydra, but I think my MS is doing a pretty good job.

Turbo is the standard Greddy/Mitsu 15g
Ben is offline   Reply With Quote
Old 07-16-2007, 11:43 AM   #25
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

I screwed up and was looking at ben's power graph
m2cupcar is offline   Reply With Quote
Old 07-16-2007, 11:43 AM   #26
Elite Member
iTrader: (5)

Atlanta93LE's Avatar

Join Date: Sep 2006
Location: Marietta, GA
Posts: 2,198
Total Cats: 1
Default

Mmmm, makes me want to get out there and really start tuning!
Atlanta93LE is offline   Reply With Quote
Old 07-16-2007, 11:50 AM   #27
Elite Member
iTrader: (8)

Join Date: Sep 2006
Location: Severn, MD
Posts: 1,927
Total Cats: 5
Default

I remember a post where you said your Hydra timing reporting and the actual timing was 6 degrees off (as shown in your .csv file where you're idling at 16 degrees). Right?

Thanks,
Frank
fmowry is offline   Reply With Quote
Old 07-16-2007, 12:11 PM   #28
y8s
2 Props,3 Dildos,& 1 Cat
Thread Starter
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 406
Default

I fixed the value in the hydra triggers menu so it's correct. I am idling at a true 16 degrees.
y8s is offline   Reply With Quote
Old 07-16-2007, 12:55 PM   #29
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

wow you are running some nice timming almost as much as stock. the ramp up is way quicker though thanks for the info.
magnamx-5 is offline   Reply With Quote
Old 07-16-2007, 03:52 PM   #30
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

You are getting 76 ft-lbs per liter per atmosphere. That is very good. F1 motors are at around 82 IIRC, and BMW M motors are at around 75.
JasonC SBB is offline   Reply With Quote
Old 07-16-2007, 09:47 PM   #31
Junior Member

Join Date: Dec 2006
Location: Vancouver, BC
Posts: 131
Total Cats: 6
Default

Very very nice.

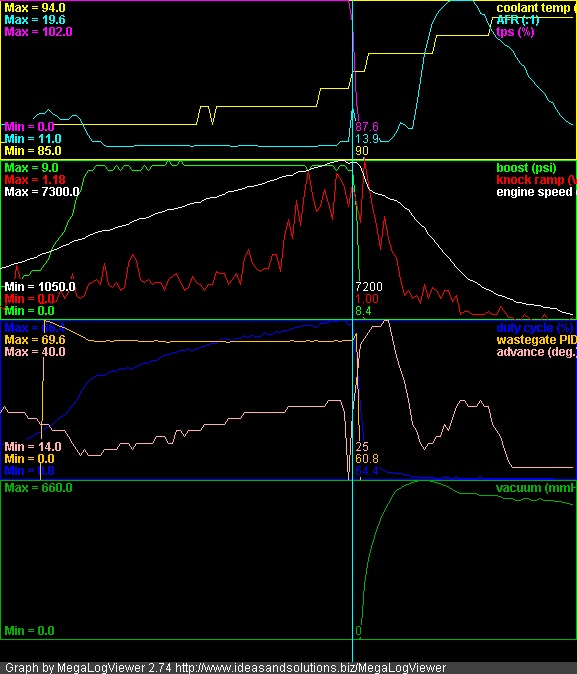

Looking at 20070714_final002.csv:

1) Why the lean spot around 7150-7200rpm?

2) That's without knock? Wow. In your datalog your knock ramp goes up to 1.18. For my MSM I consider anything over 0.4V to be knock...I may be a bit conservative. I know the FM defaults are over 1V but I just assumed they were being aggressive or had a very noisy car. I went very fast down a hill while not in boost to determine my knock threshold. I also found I could squelch the knock spike after throttle let-off by making my high rpm vacuum load cells richer...which led me to believe I was getting rid of knock.
Attached Thumbnails
the y8s one-car dyno day.-20070714_final002_graph.jpg

Last edited by VanMSM; 07-16-2007 at 09:52 PM. Reason: Added attachment.
VanMSM is offline   Reply With Quote
Old 07-16-2007, 10:28 PM   #32
y8s
2 Props,3 Dildos,& 1 Cat
Thread Starter
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 406
Default

1) I believe that lean spot is rev limiter. note the spark there is ~14 degrees. Not sure why it's cutting fuel--i didn't think the hydra did that. It could be the backing off the throttle triggered the enleanment there.

2) I didn't think much of it. Everything is so noisy at 7 grand I can't be sure it's knock (or NOT knock?). I was always under the impression that true knock resembles an outlier in the sensor readings. like 2-3x the "noise" level.

Or my engine will die soon.

In any case, FM is not known to be anything but conservative with tuning. So who knows?

Where'd you get the .4V number?
y8s is offline   Reply With Quote
Old 07-16-2007, 11:58 PM   #33
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

So how fast do you reach full boost?

How big of a roll does the size of your compressor play when making so much power at 9psi vs someone else's making the same power at 14psi?
Saml01 is offline   Reply With Quote
Old 07-17-2007, 12:24 AM   #34
y8s
2 Props,3 Dildos,& 1 Cat
Thread Starter
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 406
Default

right around 4200 is where I hit max boost. it depends on the gear of course.

compressor size has a lot to do with top end. boost pressure is a small part. imagine a 10 foot pipe with 2 psi vs. a garden hose with 2 psi flowing into a pool. which supplies more water?

Matt
y8s is offline   Reply With Quote
Old 07-17-2007, 03:39 AM   #35
Junior Member

Join Date: Dec 2006
Location: Vancouver, BC
Posts: 131
Total Cats: 6
Default

Quote:
Originally Posted by y8s View Post
1) I believe that lean spot is rev limiter. note the spark there is ~14 degrees. Not sure why it's cutting fuel--i didn't think the hydra did that. It could be the backing off the throttle triggered the enleanment there.

2) I didn't think much of it. Everything is so noisy at 7 grand I can't be sure it's knock (or NOT knock?). I was always under the impression that true knock resembles an outlier in the sensor readings. like 2-3x the "noise" level.

Or my engine will die soon.

In any case, FM is not known to be anything but conservative with tuning. So who knows?

Where'd you get the .4V number?
1) Page 28 of the Hydra 2.5 manual indicates that hitting the soft rev limiter retards timing and cuts 60% of sequential fuel events. Strange that it's already doing something at only ~7200rpm. But the Hydra seems to do some interesting interpolations...another being the coolant spark trim (if you pull 1 degree at 100C it'll start pulling timing if you break 90C).

Letting off the throttle should actually cause a rich event due to the slight lag in pulling fuel after the throttle closes...I think.

2) Now you've got me wondering. I don't have any experience with detecting knock so I guess I'm being overly careful. I believe some professional tuners actually use something like a stethoscope on the engine block to listen for sub-audible knock.

The 0.4V is just from watching my datalogs when I had things very rich. It also came from loggin while running very high rpms without being in boost. Though I probably don't get above 6500rpm that often...which is where yours really starts getting noisy.

Last edited by VanMSM; 07-17-2007 at 03:40 AM. Reason: typo
VanMSM is offline   Reply With Quote
Old 07-17-2007, 04:27 AM   #36
I'm Miserable!

Join Date: Nov 2004
Location: Chico, CA
Posts: 103
Total Cats: 0
Default

Quote:
Originally Posted by JasonC SBB View Post
BTW I think Al Gore sucks greenie dick with his global warming propaganda, but letting blowby out your cam cover dumps filth in the air!


Yeah, why does it smoke so much in the video?
92yella is offline   Reply With Quote
Old 07-17-2007, 09:20 AM   #37
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,482
Total Cats: 248
Default

Quote:
Originally Posted by VanMSM View Post
Letting off the throttle should actually cause a rich event due to the slight lag in pulling fuel after the throttle closes...I think.
That's right, and getting back on the throttle causes a lean event (drop in pressure causes fuel vapor to momentarially change back to liquid form and vice versa). Hence fuel acceleration and fuel deceleration trim maps based on either delta TPS or delta MAP calculations (in the AEM EMS at least) If these aren't set right you may get knock when you snap your throttle open after a shift on the road even though you may never get knock on a dyno run.
TurboTim is offline   Reply With Quote
Old 07-17-2007, 09:20 AM   #38
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

Quote:
Yeah, why does it smoke so much in the video?
holding boost in high rpms.
Braineack is offline   Reply With Quote
Old 07-17-2007, 10:13 AM   #39
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

Quote:
Originally Posted by VanMSM View Post
1) ...I believe some professional tuners actually use something like a stethoscope on the engine block to listen for sub-audible knock...
Knock detectors are stoopid- easily fooled by other noises. I'm seriously considering something like below:
http://www.homemadeturbo.com/forum/i...?topic=78720.0
http://autospeed.drive.com.au/cms/article.html?&A=0353

I get the same rise in my knock curve as the rpm goes up. Then a large step up and have assumed it's all mechanical noise. When I see something that's a spike over 50%, then I examine the other parameters and determine if conditions suit knock.
m2cupcar is offline   Reply With Quote
Old 07-17-2007, 10:26 AM   #40
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

I dont want to clutter your thread with more quesitons, so my next one I will take to my thread. If you can please take a look, I would really appreciate it.
Saml01 is offline   Reply With Quote
