10psi Greddy Turbo - Miata Turbo Forum - Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



Reply



LinkBack Thread Tools Search this Thread
Old 10-08-2008, 10:09 PM   #1
Guest
Thread Starter
iTrader: (1)

ray_sir_6's Avatar

Join Date: Dec 2006
Location: DFW, TX
Posts: 714
Total Cats: 0
Default 10psi Greddy Turbo

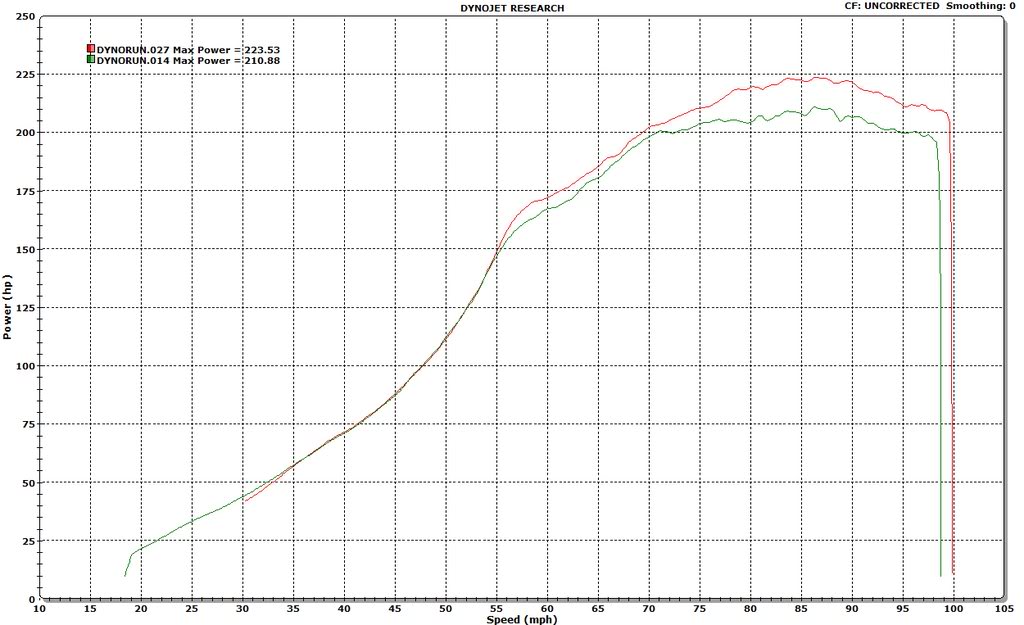

First run was 10psi, untuned. I didn't put the torque on it cause it was having issues with the RPM pickup, so the readings are either spikey or missing a big chunk of the line.

Name:  Miata10psiTunedvsUntuned.jpg
Views: 2
Size:  103.0 KB

I was running 210whp/186tq.

I am now running 223whp/191tq thanks to some tuning.
ray_sir_6 is offline   Reply With Quote
Old 10-09-2008, 01:39 AM   #2
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,702
Total Cats: 237
Default

Impressive numbers. Are you going to run any more boost?
Fireindc is offline   Reply With Quote
Old 10-09-2008, 02:26 PM   #3
Guest
Thread Starter
iTrader: (1)

ray_sir_6's Avatar

Join Date: Dec 2006
Location: DFW, TX
Posts: 714
Total Cats: 0
Default

Well, I am running the Walbro 190HP, so have to swap it out, cause it is maxed. I'll put in a 255HP and replace the wastegate actuator with one that will hold boost. It is dropping boost at 10psi. I should have the water injection kit in when we get all this stuff done, so I'll be shooting for 15-18psi next time around.
ray_sir_6 is offline   Reply With Quote
Old 10-09-2008, 04:50 PM   #4
Junior Member
iTrader: (1)

Join Date: Mar 2008
Location: Arizona
Posts: 75
Total Cats: 0
Default

which injectors and FPR are you using ?
BoostCreep is offline   Reply With Quote
Old 10-09-2008, 04:55 PM   #5
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,295
Total Cats: 26
Default

Huh? How do you figure you maxed out the walbro 190?
Splitime is offline   Reply With Quote
Old 10-09-2008, 05:00 PM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

Quote:
Originally Posted by Splitime View Post
Huh? How do you figure you maxed out the walbro 190?

Because he needs more fuel supply a this injectors to support more than the 350BHP he's making.

injectors are just a means for fuel to enter the head, nothign to do with the amount of fuel injected. It's all the fuel pump, don't you know anything?
Braineack is offline   Reply With Quote
Old 10-09-2008, 05:24 PM   #7
Junior Member
iTrader: (4)

Join Date: Dec 2006
Location: Charlotte , nc
Posts: 325
Total Cats: 1
Default

Nice numbers, could we get more details of your setup?
Exhaust your running?2.5 - 3?
intercooler size. injector size?

Looks like a goal of mine, where i want to be.
jedduh01 is offline   Reply With Quote
Old 10-09-2008, 05:25 PM   #8
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

1.6 or 1.8?
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 10-09-2008, 05:26 PM   #9
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,796
Total Cats: 248
Default

Post your timing map. Nice numbers. And more details on your setup please.
patsmx5 is offline   Reply With Quote
Old 10-09-2008, 05:39 PM   #10
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,295
Total Cats: 26
Default

Quote:
Originally Posted by levnubhin View Post
1.6 or 1.8?
Last I checked, Greddy only made a 1.6L kit.
Splitime is offline   Reply With Quote
Old 10-09-2008, 05:47 PM   #11
Guest
Thread Starter
iTrader: (1)

ray_sir_6's Avatar

Join Date: Dec 2006
Location: DFW, TX
Posts: 714
Total Cats: 0
Default

Quote:
Originally Posted by BoostCreep View Post
which injectors and FPR are you using ?
550cc injectors, and stock FPR.

Quote:
Originally Posted by Splitime View Post
Huh? How do you figure you maxed out the walbro 190?
See Below.

Quote:
Originally Posted by Braineack View Post
Because he needs more fuel supplya this injectors to support more than the 350BHP he's making.

injectors are just a means for fuel to enter the head, nothign to do with the amount of fuel injected. It's all the fuel pump, don't you know anything?
Quote:
Originally Posted by jedduh01 View Post
Nice numbers, could we get more details of your setup?
Exhaust your running?2.5 - 3?
intercooler size. injector size?



Looks like a goal of mine, where i want to be.
2.5" DP, 3" from the bellhousing back.

It's an ebay IC, don't remember the size, and too lazy to go measure. It works pretty well, which is really surprising.

Quote:
Originally Posted by levnubhin View Post
1.6 or 1.8?
1.6

Quote:
Originally Posted by patsmx5 View Post
Post your timing map. Nice numbers. And more details on your setup please.
CR Garage

It's the only site that hasn't deleted the garage and lost all my info.
ray_sir_6 is offline   Reply With Quote
Old 10-09-2008, 05:48 PM   #12
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Quote:
Originally Posted by Splitime View Post
Last I checked, Greddy only made a 1.6L kit.

I've never checked. I guess your saying its impossible to put on a 1.8?
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 10-09-2008, 05:51 PM   #13
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

Quote:
Originally Posted by ray_sir_6 View Post
See Below.

Sarcasm must not travel well through my cat5.
Braineack is offline   Reply With Quote
Old 10-09-2008, 05:53 PM   #14
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,796
Total Cats: 248
Default

Could you post the basic specs HERE? And I didn't see your timing map anywhere.
patsmx5 is offline   Reply With Quote
Old 10-09-2008, 06:06 PM   #15
Guest
Thread Starter
iTrader: (1)

ray_sir_6's Avatar

Join Date: Dec 2006
Location: DFW, TX
Posts: 714
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
Sarcasm must not travel well through my cat5.
Must not. The 190HP is maxed, I can't add any more fuel. We tried a 12psi run and it was too lean, so for more boost I need a 255HP. Remember, we are going for 11:1 AF, so maybe the 190 will work if I was running 12:1, or 12.5:1, but I'm not, so it's done.

Quote:
Originally Posted by patsmx5 View Post
Could you post the basic specs HERE? And I didn't see your timing map anywhere.
I don't have the timing map. It's on the tuning laptop. I'm not gonna post it up even if I had it, I don't think that would be fair to my tuner, who has spent alot of time building it.

Basic specs:
Stock Engine
Unorthodox Racing Adj. Cam Gears
JVT Radiator
AEM EMS
Greddy Turbo Kit
2.5" Modified TurboTony DP
3" SS Exhaust
550cc Injectors
Tuner Toys Dual Feed Fuel Rail
AC/PS Removed
Greddy Oil
Motul Diff and Tranny fluid
Greddy Oil Relocation Kit
Oil Cooler
Custom FMIC (Ebay)
ray_sir_6 is offline   Reply With Quote
Old 10-09-2008, 06:17 PM   #16
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,295
Total Cats: 26
Default

Something else is wrong.

I have a 190lph, 550s and I can run more boost on a larger turbo and run richer than 11s.

Your pump is designed to pump even more than mine (at higher psi at least) The pump isn't the problem.

Maybe you need to ditch the AEM for a real EMS?
Splitime is offline   Reply With Quote
Old 10-09-2008, 06:30 PM   #17
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Quote:
Originally Posted by Splitime View Post
Something else is wrong.

I have a 190lph, 550s and I can run more boost on a larger turbo and run richer than 11s.

Your pump is designed to pump even more than mine (at higher psi at least) The pump isn't the problem.

Maybe you need to ditch the AEM for a real EMS?
I run 11psi, 550's and a stock fuel pump and only hit a peak of 70%dc, that's aiming for 11.8:1 AFR

Something else is definitely wrong. The stock fuel pump is capable of supplying enough fuel for 300bhp with the correct sized injectors.
richyvrlimited is offline   Reply With Quote
Old 10-09-2008, 06:31 PM   #18
Guest
Thread Starter
iTrader: (1)

ray_sir_6's Avatar

Join Date: Dec 2006
Location: DFW, TX
Posts: 714
Total Cats: 0
Default

Quote:
Originally Posted by Splitime View Post
Something else is wrong.

I have a 190lph, 550s and I can run more boost on a larger turbo and run richer than 11s.

Your pump is designed to pump even more than mine (at higher psi at least) The pump isn't the problem.

Maybe you need to ditch the AEM for a real EMS?
Or maybe the pump isn't working 100%? I got it used, and it has had alot of miles on it, and I am sure the high FPR I was running before I went to the EMS with larger injectors didn't help it any. So like I said before, it's done.
ray_sir_6 is offline   Reply With Quote
Old 10-09-2008, 06:33 PM   #19
Guest
Thread Starter
iTrader: (1)

ray_sir_6's Avatar

Join Date: Dec 2006
Location: DFW, TX
Posts: 714
Total Cats: 0
Default

Quote:
Originally Posted by richyvrlimited View Post
I run 11psi, 550's and a stock fuel pump and only hit a peak of 70%dc, that's aiming for 11.8:1 AFR

Something else is definitely wrong. The stock fuel pump is capable of supplying enough fuel for 300bhp with the correct sized injectors.
Again, you are assuming the pump is in perfect condition. No matter the reason, the fuel pump is maxed out.
ray_sir_6 is offline   Reply With Quote
Old 10-09-2008, 06:36 PM   #20
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,796
Total Cats: 248
Default

Quote:
Originally Posted by ray_sir_6 View Post
I don't have the timing map. It's on the tuning laptop. I'm not gonna post it up even if I had it, I don't think that would be fair to my tuner, who has spent alot of time building it.
Sucks.
patsmx5 is offline   Reply With Quote
