Default '99 longblock, GT2554R, MSPNP: 217whp/[email protected] (Mustang Dyno)

I'm very pleased with these numbers. The 99 longblock gobbled up another 3-4 degrees on top of what my 94 motor was doing and it translated to some serious numbers. I actually hit MBT on 91 octane above 6300rpm. I need to work on the boost curve a bit but other than that I'm quite pleased. It comes on nice and smooth around 3500rpm and then pulls like a freight train, harder and harder until the rev limiter steps in.

I did a pull with the VICS closed and one pull with it open; the closed pull made 10-12tq more below 5000rpm and showed nearly no losses above that. I set the switch point at 5200rpm. From what I can tell, the solenoid is powered all the time to keep them closed, and then it becomes unpowered at the switchpoint which opens them up. Or maybe I have it wired backwards.

The baseline number is my old spark map with 3 degrees removed, and my old fuel map with 10% added. I ended up pulling a bunch of fuel out and added timing like a madman.

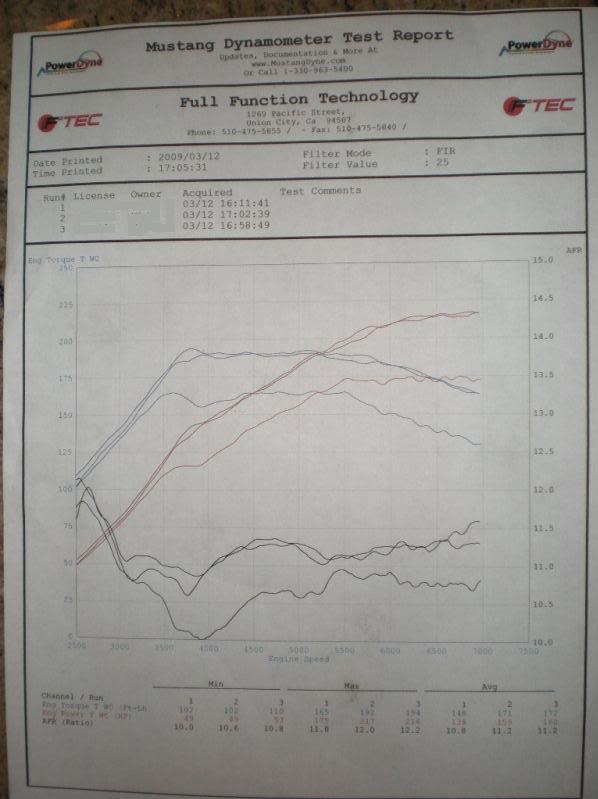

Chart:
Name:  DSCN1328.jpg
Views: 9
Size:  44.8 KB

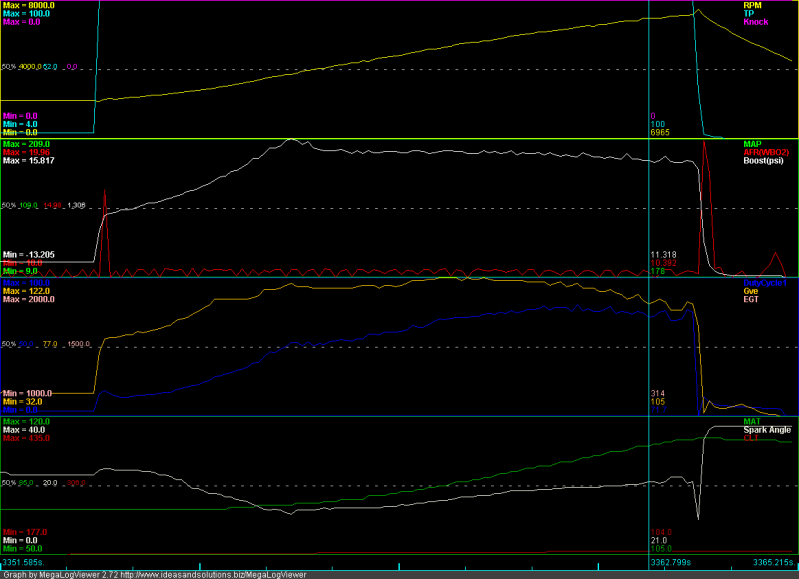

Datalog (boost curve spikes at 15.8 and ends at 11psi, needs some work for sure. 217whp at 11psi at redline isn't too shabby.)

Name:  FFTECdyno.png
Views: 9
Size:  119.2 KB

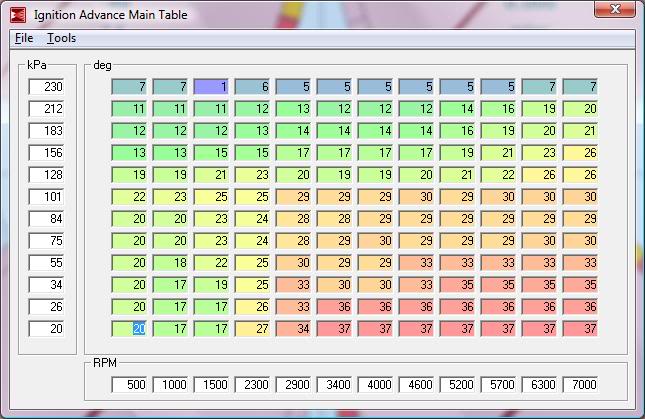

Spark:

Name:  sparkmapFFTEC.jpg
Views: 9
Size:  64.1 KB
Savington is offline   Reply With Quote
Old 03-13-2009, 06:19 AM   #2
NB/VVT Connoisseur
iTrader: (24)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,073
Total Cats: 253
Thumbs up

Damn man, nice numbers.

You sure dont waste any time do you? Haha
viperormiata is offline   Reply With Quote
Old 03-13-2009, 08:28 AM   #3
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

Hella nice turnaround time Sav!
kotomile is offline   Reply With Quote
Old 03-13-2009, 01:14 PM   #4
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,371
Total Cats: 1,332
Default

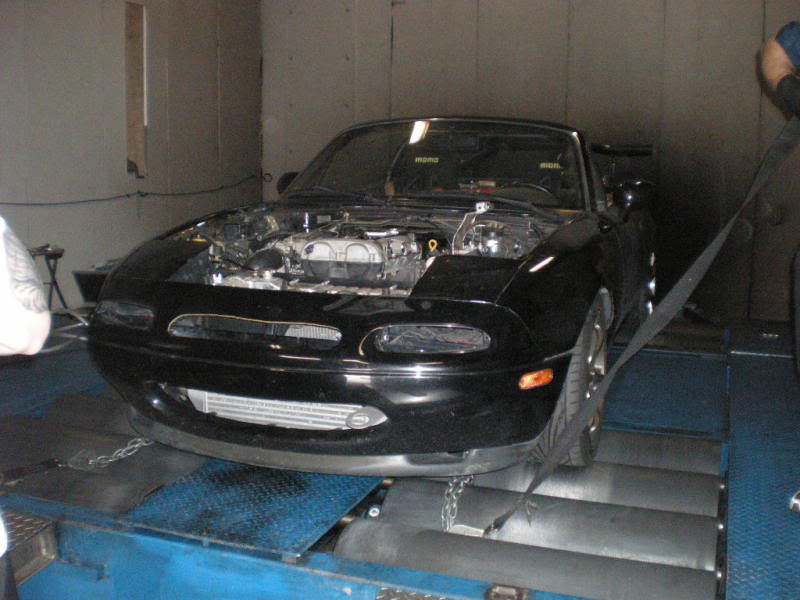

My dirty-*** hooptie getting strapped down:

Name:  DSCN1325.jpg
Views: 10
Size:  64.6 KB

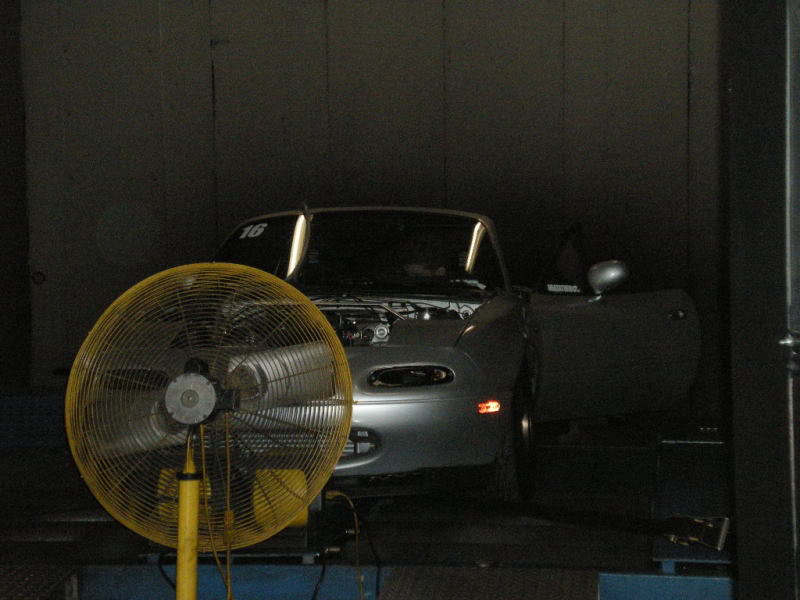

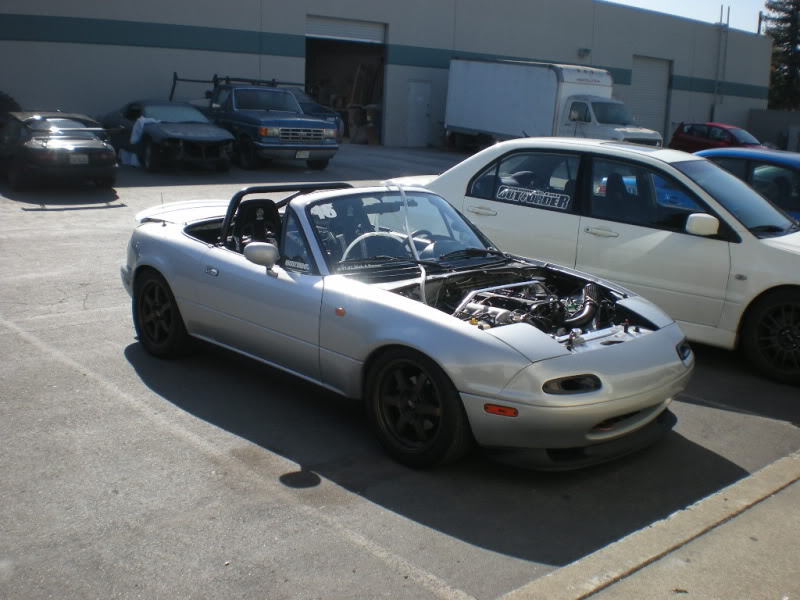

TheSnowboarder's car

Name:  DSCN1319.jpg
Views: 9
Size:  117.2 KB

Name:  DSCN1323.jpg
Views: 9
Size:  57.2 KB

Me looking like I know what I'm doing

Name:  DSCN1324.jpg
Views: 9
Size:  51.0 KB
Savington is offline   Reply With Quote
Old 03-13-2009, 01:28 PM   #5
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Nice! Looks like you have the same actuator problem I have.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 03-14-2009, 01:28 AM   #6
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

What's the conversion factor from Mustang to Dynojet?
JasonC SBB is offline   Reply With Quote
Old 03-14-2009, 01:37 AM   #7
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Looks good Sav. You going to get back up to 14 psi or leave it where it is?
cjernigan is offline   Reply With Quote
Old 03-14-2009, 04:41 AM   #8
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,371
Total Cats: 1,332
Default

Can't decide. It feels about the same as before, but another 10-15whp on the top. I need it to be stone reliable. I'll probably stabilize the boost curve and then turn it back down to 13. I'd like to see 225 on that dyno.

Jason, not sure what the correction factor for their numbers are. Those are corrected numbers but the uncorrected numbers are 15whp higher. The comparo I have right now is Nick's car, which did 230whp at 14psi and then did 218 at 17.5 on this dyno before we started tuning. He walked away with the same power at 14psi as he came in at 17.5psi with.
Savington is offline   Reply With Quote
Old 03-14-2009, 04:51 AM   #9
Newb

Join Date: Dec 2008
Location: Atlanta, Ga
Posts: 1
Total Cats: 0
Default

What kind of seats are those? They look really sick.
lawguy85 is offline   Reply With Quote
Old 03-14-2009, 04:59 AM   #10
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,865
Total Cats: 493
Default

You aren't f*cking around. I like that.

About thesnowboarder starting the day off at 17.5 psi and puting down 218 rwhp and by the end doing 230 whp @ 14psi, what was changed so much to make such a difference? Are we just talking spark tuning? That's a bangin' improvement.

P.S. How affordable and where is this dyno because I need to do about an hour of tuning but have no hook ups in that area...

-Ryan

Last edited by ThePass; 03-14-2009 at 05:28 AM.
ThePass is offline   Reply With Quote
Old 03-14-2009, 05:02 AM   #11
Trackspeed Engineering
iTrader: (9)

Join Date: Jan 2008
Location: Bay Area, California
Posts: 937
Total Cats: 10
Default

Quote:
Originally Posted by lawguy85 View Post
What kind of seats are those? They look really sick.
Momo Start or Sparco Sprint 5, depending on which car you are talking about.
crashnscar is offline   Reply With Quote
Old 03-14-2009, 05:18 AM   #12
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,371
Total Cats: 1,332
Default

Quote:
Originally Posted by ThePass View Post
You aren't f*cking around. I like that.

About thesnowboarder starting the day off at 17.5 psi and puting down 218 rwhp and by the end doing 230 whp @ 14psi, what was changed so much to make such a difference? Are we just talking spark tuning? That's a bangin' improvement.

P.S. How affordable and where is this dyno because I need to do about an hour of tuning but have no hook ups in that area...
-Ryan
Just checked my logs to confirm everything. Nick did 230/235 at 14psi on a different dyno. Came on this dyno and did 218 at 16.5psi, and left at 218 at 15.0psi. Something is up with his head or compression because his motor HATES timing.

As far as what a good spark map is worth:

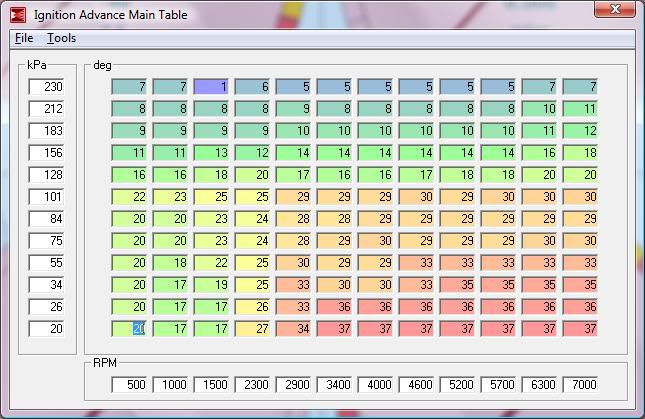

175whp/165wtq, 15.5psi to 12.5psi at redline:
Name:  FFTECbaseline.jpg
Views: 11
Size:  63.3 KB

217whp/192wtq, 15.8psi to 11.3psi at redline:
Name:  sparkmapFFTEC.jpg
Views: 9
Size:  64.1 KB
Savington is offline   Reply With Quote
Old 03-14-2009, 05:29 AM   #13
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,865
Total Cats: 493
Default

P.P.S. Sav is your wastegate signal still coming off the compressor? Or are you using EBC to intentionally spike to 15 and then mellow out later? I switched my wastegate vac source to post-IC/pre-TB and now have very little boost drop off - you could probably spike to only 14 and then settle to 13 or 12.5...
ThePass is offline   Reply With Quote
Old 03-14-2009, 05:34 AM   #14
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,371
Total Cats: 1,332
Default

Quote:
Originally Posted by ThePass View Post
P.P.S. Sav is your wastegate signal still coming off the compressor? Or are you using EBC to intentionally spike to 15 and then mellow out later? I switched my wastegate vac source to post-IC/pre-TB and now have very little boost drop off - you could probably spike to only 14 and then settle to 13 or 12.5...
That's the goal. Your thread and Joe's response inspired me to do that. Just need to tap the IC pipe for a bung, bust out the det cans and make a few pulls.
Savington is offline   Reply With Quote
Old 03-14-2009, 05:39 AM   #15
Elite Member
iTrader: (15)

Join Date: Sep 2007
Location: Incline Village, NV
Posts: 2,073
Total Cats: 5
Default

Quote:
Originally Posted by ThePass View Post
P.P.S. Sav is your wastegate signal still coming off the compressor? Or are you using EBC to intentionally spike to 15 and then mellow out later? I switched my wastegate vac source to post-IC/pre-TB and now have very little boost drop off - you could probably spike to only 14 and then settle to 13 or 12.5...

its still off the compressor, he just needs to move it. He would like to hold the boost all the way to redline.

As for my seats, sprint 5, 2007 versions. Thanks for the cudos!

We dynoed at Full Function Motorsports in Union City. Ryan, check NCR for a bunch of local dynos. I created a thread to organize the cheapest load holding dynos a few weeks back. I think this particular dyno was 110 an hr.
thesnowboarder is offline   Reply With Quote
Old 03-14-2009, 06:34 AM   #16
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,865
Total Cats: 493
Default

Based on the NCR dyno thread, I assume you went to Full Function Technology ($110 for 1 hour rental)... so you did the "rent the dyno if you know what you're doing with tuning" deal? We need a thread on what to focus on/what steps to take if you go to a dyno and tune yourself because I have no idea how to tune at a dyno... just fiddle with the timing until you find a max power? I know so little...

-Ryan
ThePass is offline   Reply With Quote
Old 03-14-2009, 12:58 PM   #17
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

what's that clear tube?


nice torque curve, I'm sure if you could keep the boost from dropping you'd hit your goal.
Braineack is offline   Reply With Quote
Old 03-14-2009, 03:53 PM   #18
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,371
Total Cats: 1,332
Default

Quote:
Originally Posted by Braineack View Post
what's that clear tube?


nice torque curve, I'm sure if you could keep the boost from dropping you'd hit your goal.
Clear tube is the detonation cans. It's 5/8" nylon tube plugged into a set of construction earmuffs, and then the other end is plugged into a piece of copper pipe which is crushed and bolted to the motor mount. It makes listening to detonation idiotproof.

If I can hold boost I think I might be able to keep the torque curve up. As it sits right now, I actually had 1 more degree of timing in the 6300/7000 cells at 183/212kpa, and I lost no power by removing it. No more power available there. :(
Savington is offline   Reply With Quote
Old 03-16-2009, 10:47 AM   #19
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

its nice to see someone else jocking the det-cans. I'm the motherfucking man, don't ever forget it.

If the snowboarder's motor is at 9.5:1 static comp, then I think his #'s are reasonable. If its low comp like mine, then its a sad existence. Could his mechanical timing be off a tooth at the crank? Could it not be timed properly with the timing light? Could the CAS move?
hustler is offline   Reply With Quote
Old 03-16-2009, 11:29 AM   #20
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

I thought it might be, i got confused when i saw what it looked to be joining at the laptop... :P
