Old 07-21-2012, 05:23 PM   #81
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,793
Default

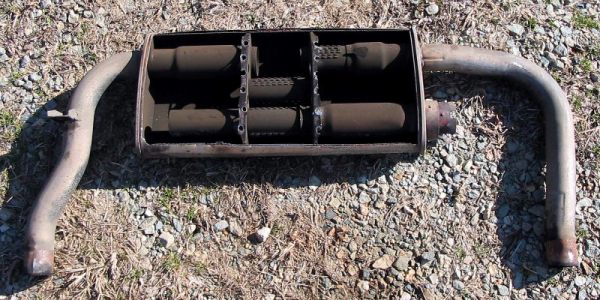

yeah so it probably looks like this inside:





Attached Thumbnails
Artech 1.6 at 10 psi-86373d1170201283-stock-muffler-cutaway-pics-muff1.jpg
Braineack is offline   Reply With Quote
Old 07-21-2012, 05:55 PM   #82
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,812
Total Cats: 187
Default

Do you think my beat racing (racing beat) dual exit muffler looks like that??
thirdgen is online now   Reply With Quote
Old 07-21-2012, 05:59 PM   #83
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,793
Default

probably. they are quite N/A mufflers.
Braineack is offline   Reply With Quote
Old 07-21-2012, 06:04 PM   #84
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,812
Total Cats: 187
Default

I know that, but how much of a restriction do you think this causes in a turbo setup...I like that muffler/ sound. I think Paul uses the same one one his wife's car...or whatever she is.
thirdgen is online now   Reply With Quote
Old 07-21-2012, 06:13 PM   #85
Senior Member
iTrader: (6)

Join Date: Jun 2010
Location: San Rafael, CA
Posts: 1,125
Total Cats: 41
Default

Quote:
Originally Posted by Braineack View Post

that muffler sucked. It's a camaro style muffler if you know how those flow...

yeah so it probably looks like this inside:


Ahh... it all makes sense now. Thanks for taking the time to share.
k24madness is offline   Reply With Quote
Old 07-21-2012, 11:56 PM   #86
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Dual exhaust is great for weighting down the back of the car, lol.
hustler is offline   Reply With Quote
Old 07-22-2012, 02:38 AM   #87
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,206
Total Cats: 2,587
Default

Quote:
Originally Posted by thirdgen View Post
I know that, but how much of a restriction do you think this causes in a turbo setup...I like that muffler/ sound. I think Paul uses the same one one his wife's car...or whatever she is.
You're asking all these questions because you already know the answer and just don't want to believe it. Staying in denial = spending less moneys.

If you like it and don't want to change it, don't. No one's forcing you to. But don't kid yourself that the difference is small or insignificant.
18psi is offline   Reply With Quote
Old 07-22-2012, 02:40 PM   #88
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

Quote:
Originally Posted by thirdgen View Post
I know that, but how much of a restriction do you think this causes in a turbo setup...I like that muffler/ sound. I think Paul uses the same one one his wife's car...or whatever she is.
Exhaust restriction is just killer on a turbo because the turbine operates at a pressure ratio. So, whatever the exhaust restriction is, multiply it by the turbine PR to get what your engine has to pump against. It really is a big deal for power.

My muffler is chambered. Power is down because of that (but still a nice bump over stock). It's relatively quiet with a really nice sound, all burbly and stuff. It's a DD. You make compromises. You just need to find YOUR happy medium somewhere between stock and Faeflora's 5 minute MTBF ("Mean Time Between Failures").
hornetball is offline   Reply With Quote
Old 07-24-2012, 04:05 AM   #89
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

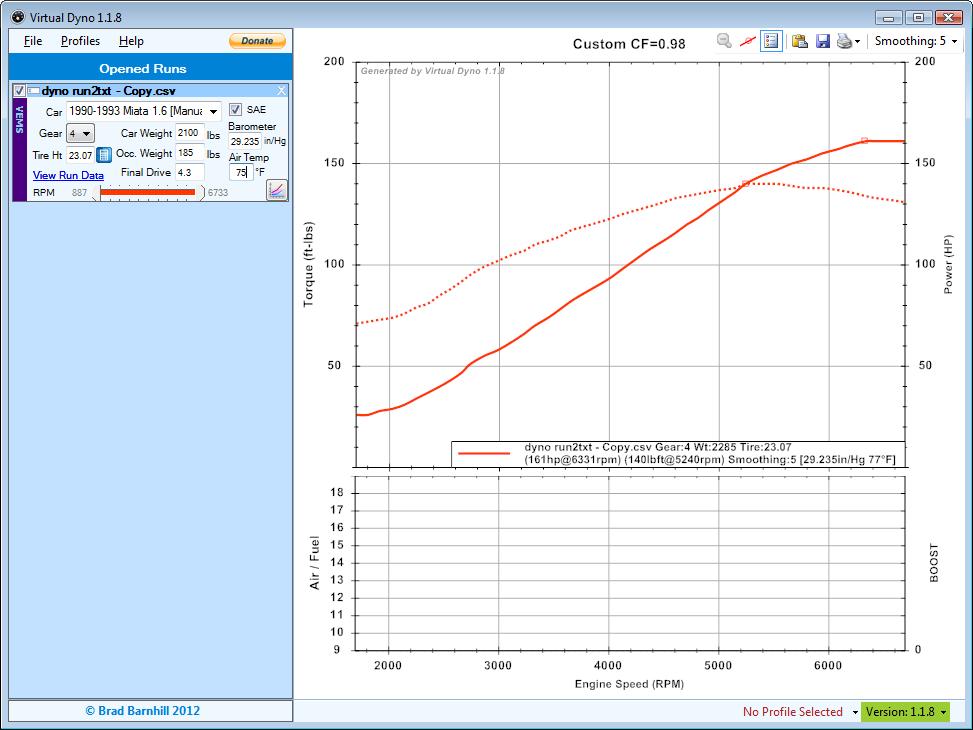

Virtual Dyno got it pretty damn close! 5hp high and 8ft/lbs low. That's with a weight, as you can see, of 2100lbs, which is a very rough estimate. If I put in 2000lbs it gets the hp dead on, I doubt with my stock seats, roll bar, and turbo setup I'm that light.

Attached Thumbnails
Artech 1.6 at 10 psi-virtualdynorun.jpg
curly is offline   Reply With Quote
Old 07-24-2012, 04:07 AM   #90
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

P.S. Down payment on Artech 3" exhaust just sent.
curly is offline   Reply With Quote
Old 07-24-2012, 04:09 AM   #91
Free Moustache Rides
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,656
Total Cats: 49
Default

Nice! Thanks for the effort to get that done.
matthewdesigns is offline   Reply With Quote
Old 07-24-2012, 10:21 AM   #92
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

Awesome. Subscribed for the "after" dyno.

ARTech full 3" was the very last piece I added to my first setup. Never dyno'd it before I pulled it all off the car, but it was a really BIG kick in the pants, and I had to add a shitload of fuel (VEs increased about 15% when I was done tuning).

I had a tiny IHI turbo from an old BEGi setup, so spool didn't change a lot, but it kept pulling up top which was what I wanted. Broke the tires loose everywhere and commenced to own lightly modded Mustangs once I put on some real rubber.
gospeed81 is offline   Reply With Quote
Old 07-24-2012, 10:23 AM   #93
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,793
Default

I litterally blew up a coupler after I added my enthuza exhaust.
Braineack is offline   Reply With Quote
Old 07-24-2012, 10:38 AM   #94
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,206
Total Cats: 2,587
Default

I blew my motor. wsup den
18psi is offline   Reply With Quote
Old 07-24-2012, 04:26 PM   #95
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

Quote:
Originally Posted by 18psi View Post
I blew my motor. wsup den
Biggest concern right thar.

My car's been great but my whole philosophy with this build is to keep it cheap(er). $500+ in exhaust doesn't quite reflect that, although I did cancel a $200+ track day to buy it.

Hopefully any added power won't require a forged engine. If and when I hit 200hp I'm stopping there.
curly is offline   Reply With Quote
Old 07-24-2012, 05:46 PM   #96
Elite Member
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

200rwhp is HPDE/racing-solid on a stock engine, Curly?
blaen99 is offline   Reply With Quote
Old 07-24-2012, 06:01 PM   #97
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

Supposedly.
curly is offline   Reply With Quote
Old 07-24-2012, 07:35 PM   #98
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,206
Total Cats: 2,587
Default

Mine was somewhere around 240whp when it blew.
Don't know if coincidence, but it was the same night I installed full exhaust and stepped up to 12psi. Picked up a big chunk of power before even turning it up to 12


IF you simply add exhaust to your setup and don't raise boost or timing, I think your car will actually run safer. Less backpressure, heat, det, etc. and make more power in the process
18psi is offline   Reply With Quote
Old 07-24-2012, 08:17 PM   #99
Free Moustache Rides
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,656
Total Cats: 49
Default

I immediately gained 5+ psi (without touching the controller) when I went from stock exhaust diameter to 2.5", so you might want to turn your boost down a bit after the install to prevent bad things from happening
matthewdesigns is offline   Reply With Quote
Old 07-24-2012, 11:46 PM   #100
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

Now . . . here is something else that is interesting about this exercise.

Curly's first efforts were directed to the piping immediately around the turbo, i.e., the manifold and the downpipe. Changing these by themselves did not have the expected power gain because of the restriction downstream (to be confirmed).

Turbine pressure ratio multiplication effect is the big deal here. Based upon that, it would appear that the most cost effective exhaust mods should focus on the exhaust from the downpipe on ("after the turbine"). The design of the exhaust manifold itself doesn't have much of an effect because it is not subject to the turbine "multiplier." I suspect all those springing for big, fancy tubular exhaust manifolds are mostly wasting their money, dealing with packaging issues and increasing engine compartment heat. It is not the same thing as exhaust headers on a NA engine . . . there is no scavenging effect when you've plugged up the exhaust with a turbine wheel.

So, sub'd for confirmation (actually, Brain's incredible results are already pretty clear I think).
hornetball is offline   Reply With Quote
